GODIAG C4 Smoke Diagnostic Leak Detector Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Light Trucks, Boats

The GODIAG C4 smoke diagnostic leak detector, for finding leaks in vehicle pipe systems on cars, motorcycles, snowmobiles, ATVs, light trucks and runs on DC12V at 6A with an internal air pump, flows around 10 litres a minute across a 0 to 15 range, takes 30ml of oil, carries a 1.8m test hose and 1.6m power cable, and measures 350 by 130 by 240mm.

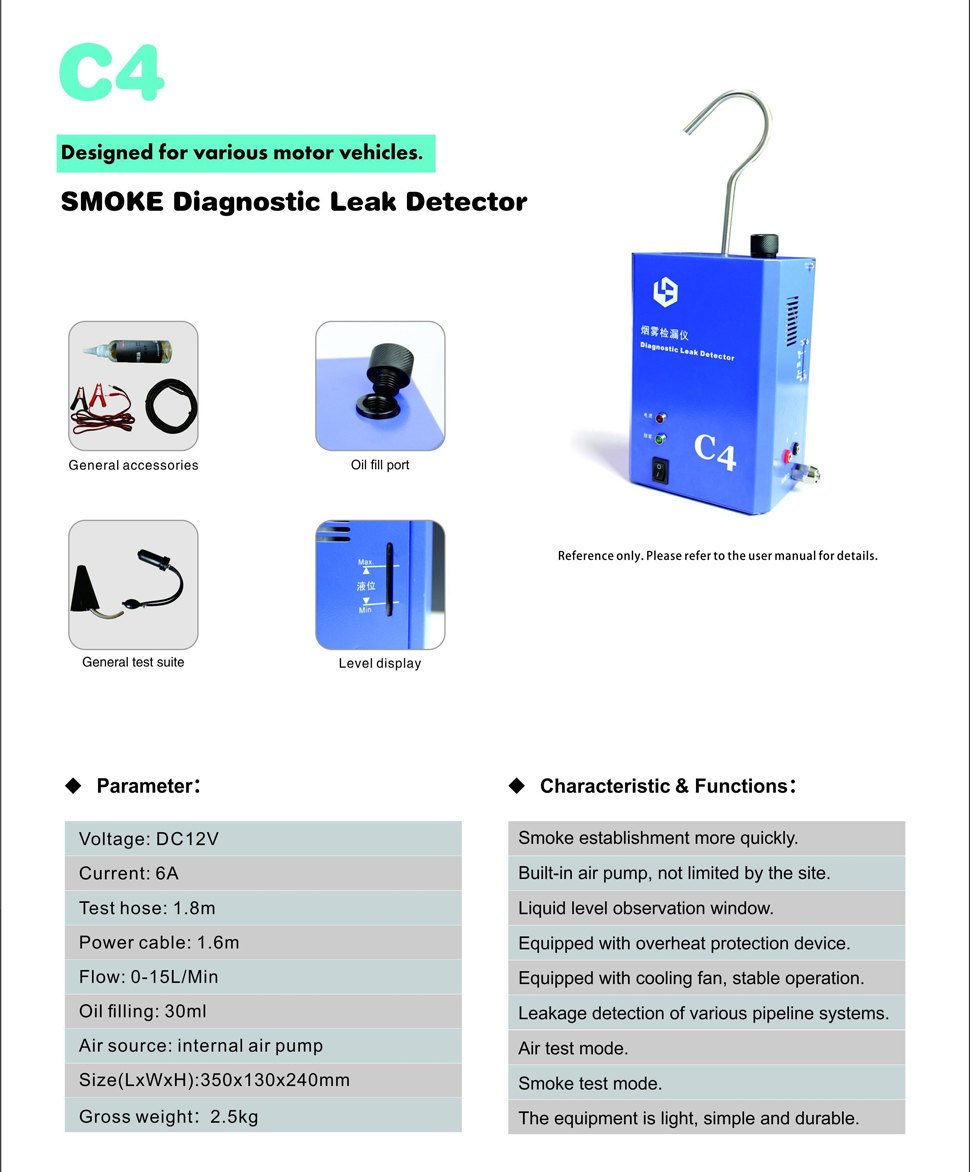

Specifications

• NOTE: Please note that this automotive diagnostic cannot test the EVAP system, if you want to EVAP system please buy the special test sets.
• Note: Too much oil will inundate the hydro-cylinder and too less oil will make less smoke.
• Note: red clamp to positive (+), and black clamp to negative (-).
• Power Supply: DC12V /6A
• Flow Rate: about 10L/Min(0-15L/Min)
• Test hose: 1.8m
• Power cable: 1.6m
• Oil filling: 30ml
• Air source: internal air pump
• Size: 350 x 130 x 240mm
• Gross weight: 2.5KG
• Working time: 10 minutes a work period.

What you get

• 1pc x Main Unit
• 1pc x Inflatable Adaptor
• 1pc x Power Cords
• 1pc x Smoke Tube
• 1pc x Intake Adaptor Core
• 1pc x User Manual
• 1pc x Certification
• This automotive diagnostic leak detector is designed for testing leak in vehicle pipe systems. It can be used on all cars, motorcycles, snowmobiles, ATV, light trucks, boats, etc.
• GODIAG C4 Diagnostic Leak Detector Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Light Trucks, Boats
• lightweight, simple and durable

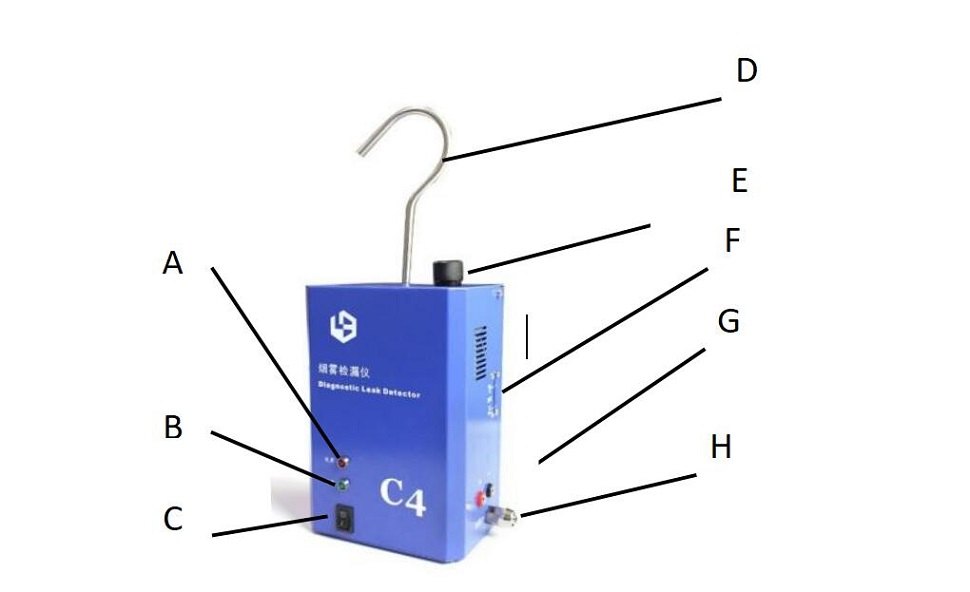

• 1.Mount the hook to the D screw hole.
• 2.Plug the power cords in the G socket on side of main unit. Red to red, black to black.
• 3.Mount the smoke tube to the H vent on the main unit.
• 4.Unscrew the E cap and fill amount of smoke oil and view the oil level through the F window make sure the oil within the rank of scale.
• 1.Connect 12V vehicle battery with the clamps on the Power Cords. The Power Indicator will be ON and the unit will start generating air pressure.
• 2.Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure.
• 3.Switch on the smoke mode switch, the smoke mode indicator will be ON. The unit will start producing smoke.
• Note: The equipment will be in self-protection state after a long working time to avoid the smoke maker overheated, the B indicator light will be off. And the equipment will stop making smoke, until the temperature comes to safety level. Users can cool the equipment with the air pump. Do not fill oil while working.

GODIAG note the oil level matters both ways, and the red clamp goes to positive with black to negative.
