GIT-01 Fuel Injection Drivebox Injector Tester With Universal Plugs to Test All kinds of Injectors Frequency Lock Function

The GIT-01 fuel injection drivebox and injector tester, supplied with universal plugs so it reaches most injector types. It has a frequency lock function, runs on DC9 to 14V at 1 amp, and measures 17.5 by 13.5 by 7cm at 0.3kg.

Specifications

• Model: GIT-01
• Power Supply: DC9~14V 1Amp
• Packing: Carton
• Dimension: 17.5x13.5x7cm
• Weight: 0.3kgs
• Note: The power socket specification is DC 5.5x2.1 socket, user could use any DC12V1AMP switch power to supply power to the driverbox.

What you get

• 1pc x Main unit
• 2pcs x Adapters
• 1pc x Power cord
• 1pc x Signal cord
• 1pc x User Manual
• GIT-01 Fuel Injection Drivebox With Universal Plugs to Test All kinds of Injectors Frequency Lock Function

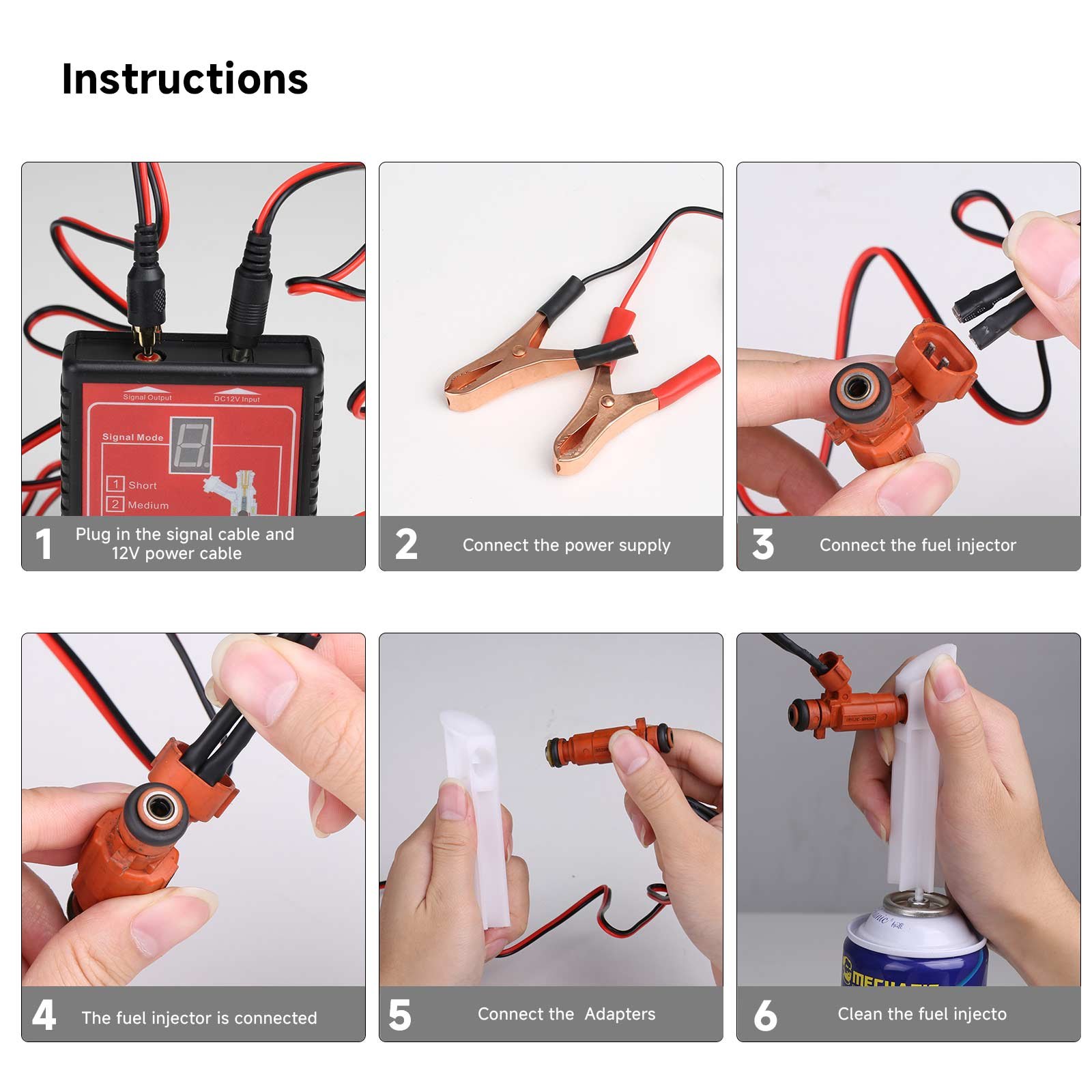

• GIT-01 fuel injection drivebox helps to diagnose injector problems, by testing the fuel injectors one by one to confirm issues like stuck, leaking or combustion finished condition. It has four kinds of pulse signal output mode, users can choose any one according to their needs. Using 12V automobile battery as the power supply, the continuous working mode can identify the quality of the fuel injector when the engine is off, and the mode locking function ensures the consistency when testing the fuel injector. It can be used with any fuel pressure source under 10 bar.
• Universal plugs to fit all kinds of injector interface
• Fit most kinds of injectors( PFI, SCI, MPF)
• Frequency lock function, to ensure same test signal for different injectors.

The power socket is a DC 5.5 by 2.1, which matters if you intend to use your own supply.
