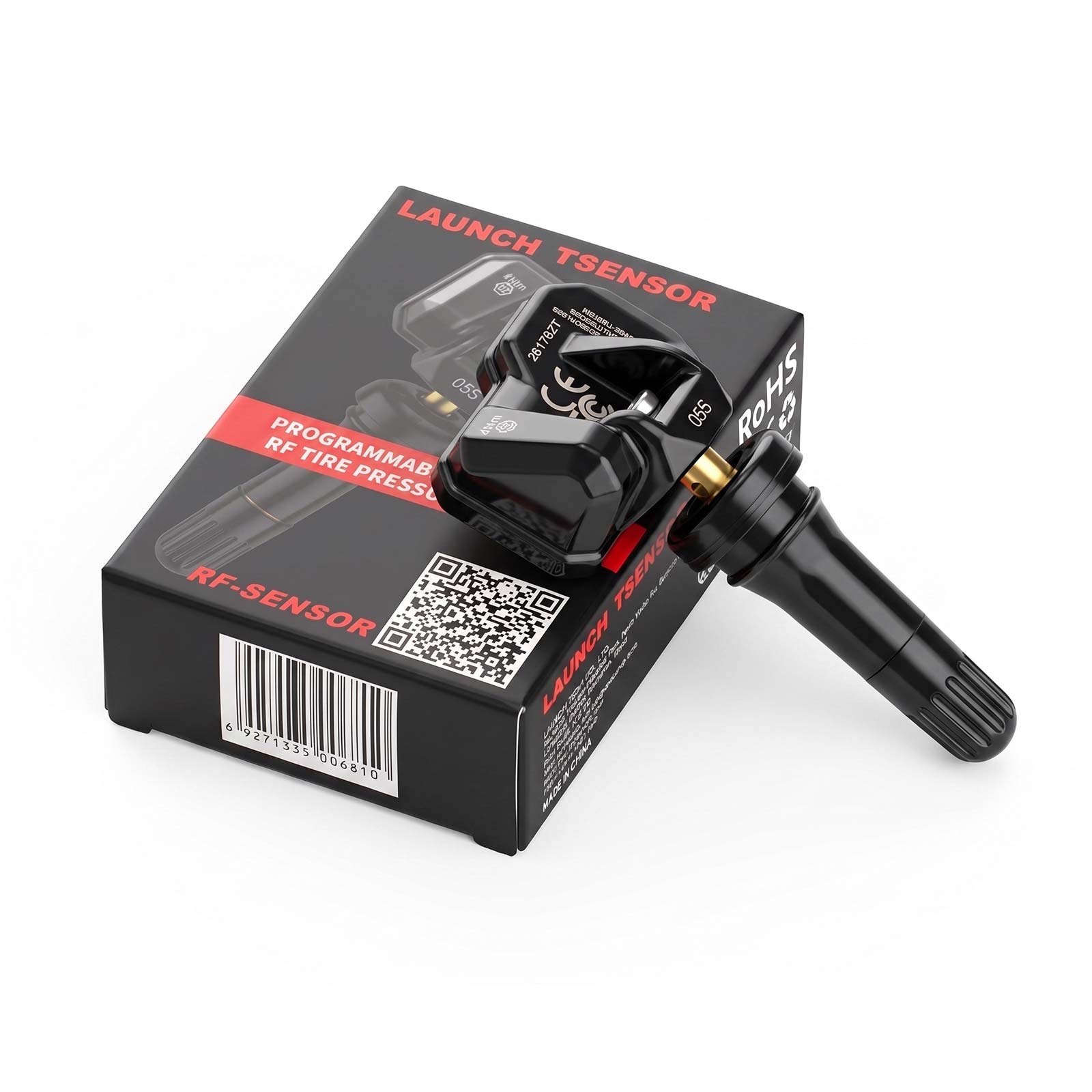

4pcs Launch TSENSOR-05S RF TPMS Sensor Tool Rubber Black & Matte Silver

A set of four Launch TSENSOR-05S RF TPMS sensors in rubber black and matte silver. They run at 433MHz or 315MHz with 5 to 8 dBm transmission, monitor 0 to 800 kPa to within 10 kPa, read temperature to within 5 degrees C, hold a 345 mAh battery good for four to five years or 100,000 km, and work from minus 40 to 125 degrees C at up to 90 percent humidity.

Specifications

• Battery Life: 4-5 years / 100,000 km
• Battery Capacity: 345 mAh
• Operating Temperature: -40℃ ~ 125℃
• Storage Temperature: -40℃ ~ 125℃
• Operating Humidity: ≤ 90%
• Transmission Power: 5-8 dBm
• Operating Frequency: 433 MHz / 315 MHz
• Pressure Monitoring Range: 0-800 kPa (1 bar = 100 kPa = 0.1 MPa)
• Pressure Reading Accuracy: ±10 kPa
• Temperature Reading Accuracy: ±5℃
• Dimensions: Approx. 72*51*27 mm
• Weight: < 35 g
• Protection Rating: IP67

What you get

• 1pc x LAUNCH TSENSOR-05S RF TPMS Sensor
• 4pcs Launch TSENSOR-05S RF TPMS Sensor Tool Rubber Black & Matte Silver

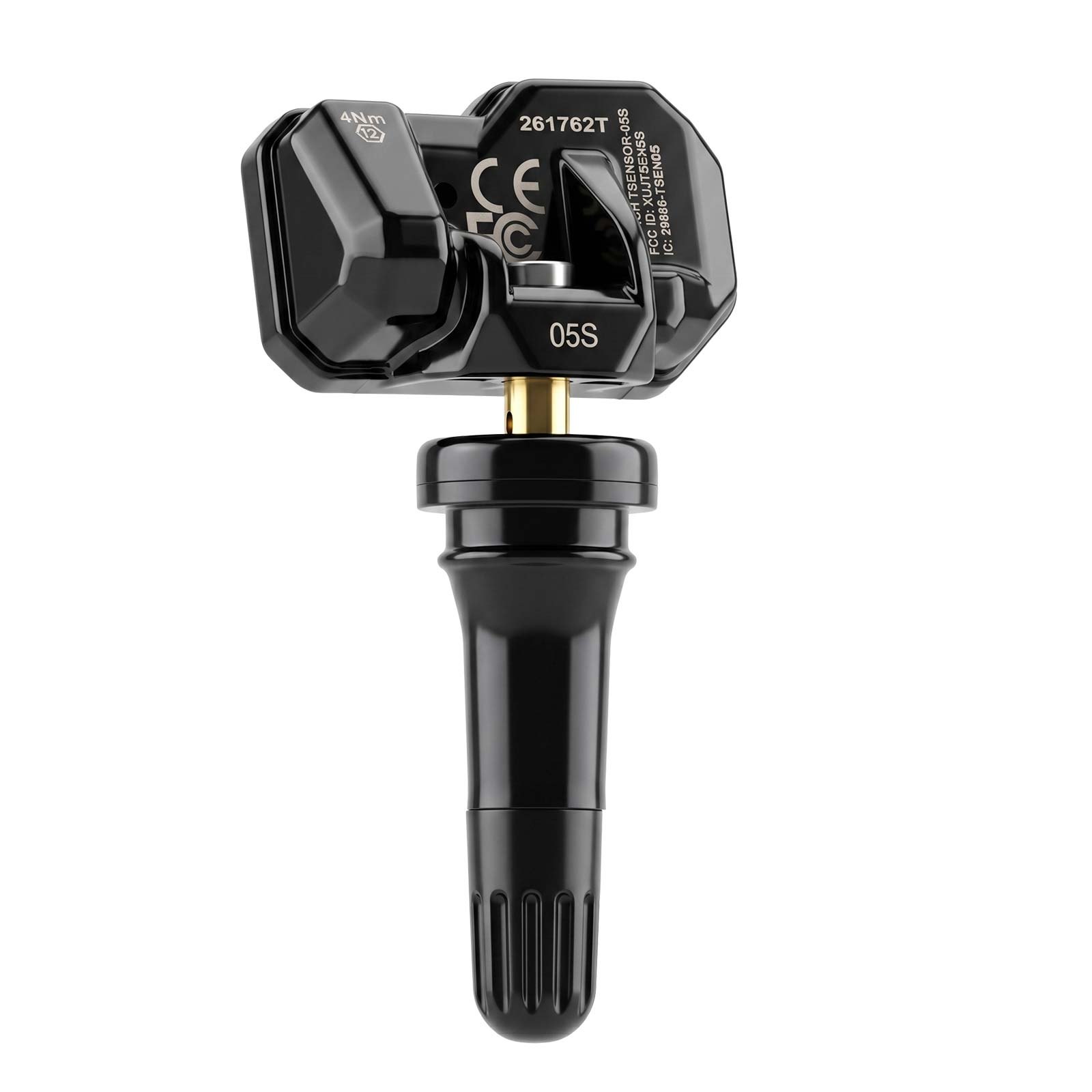

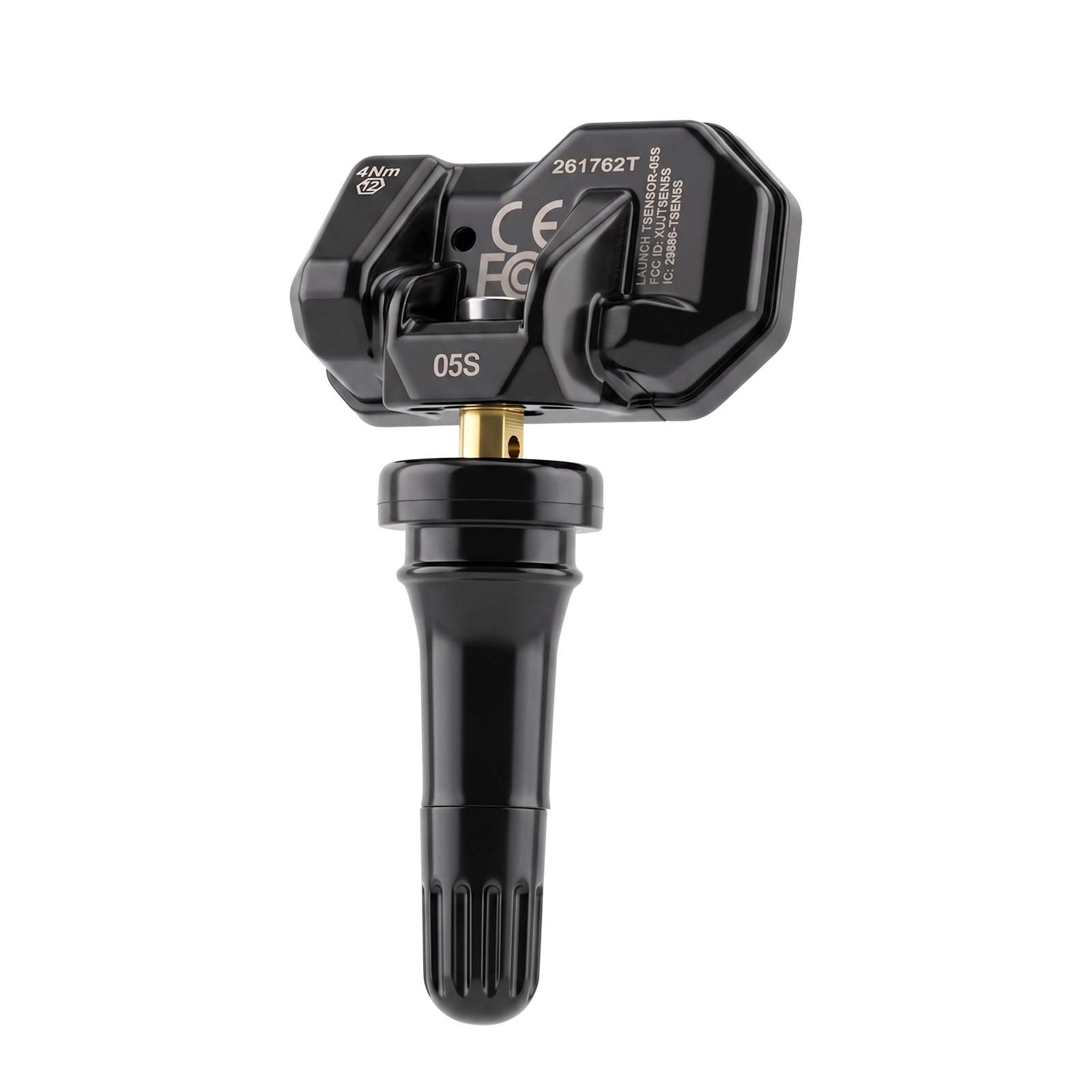

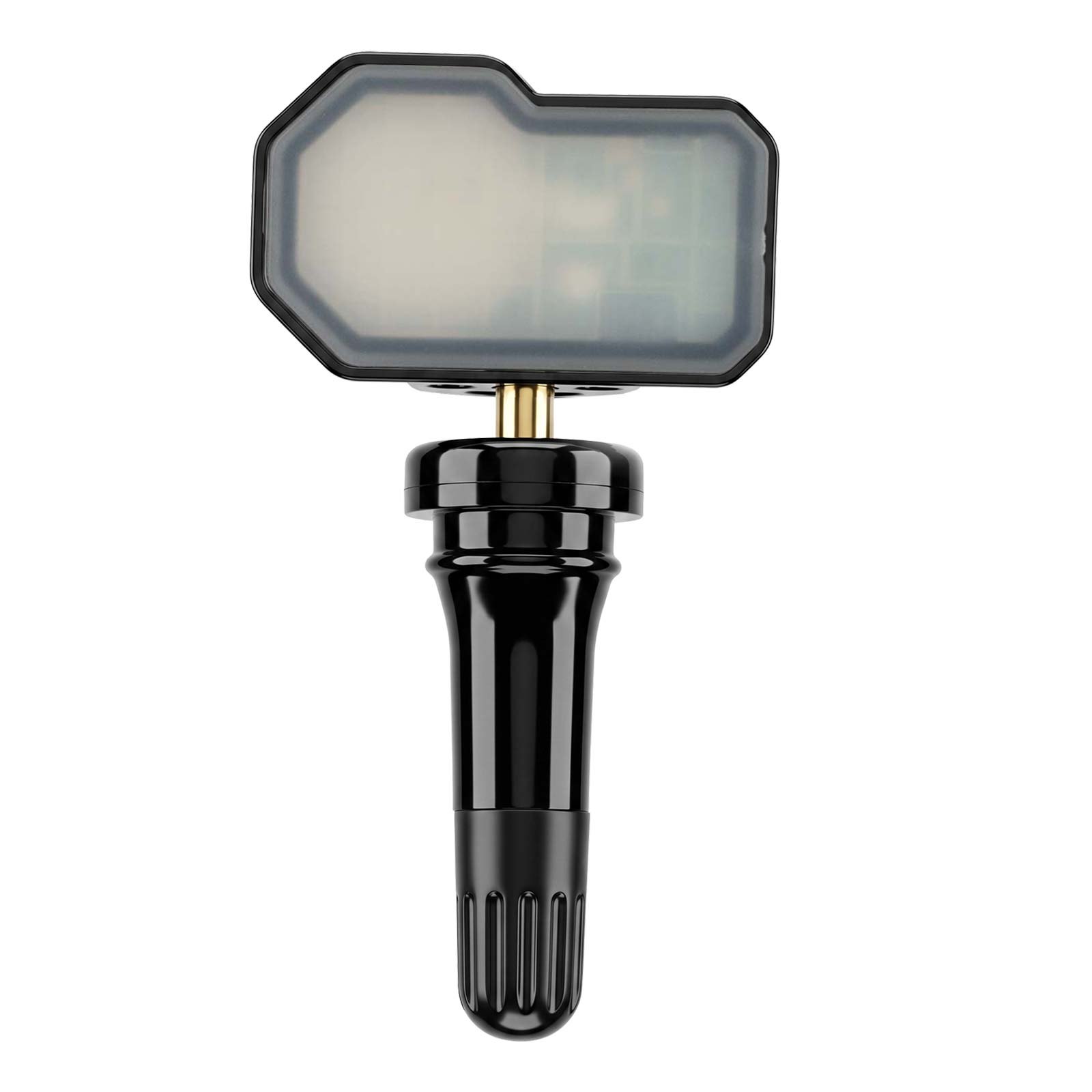

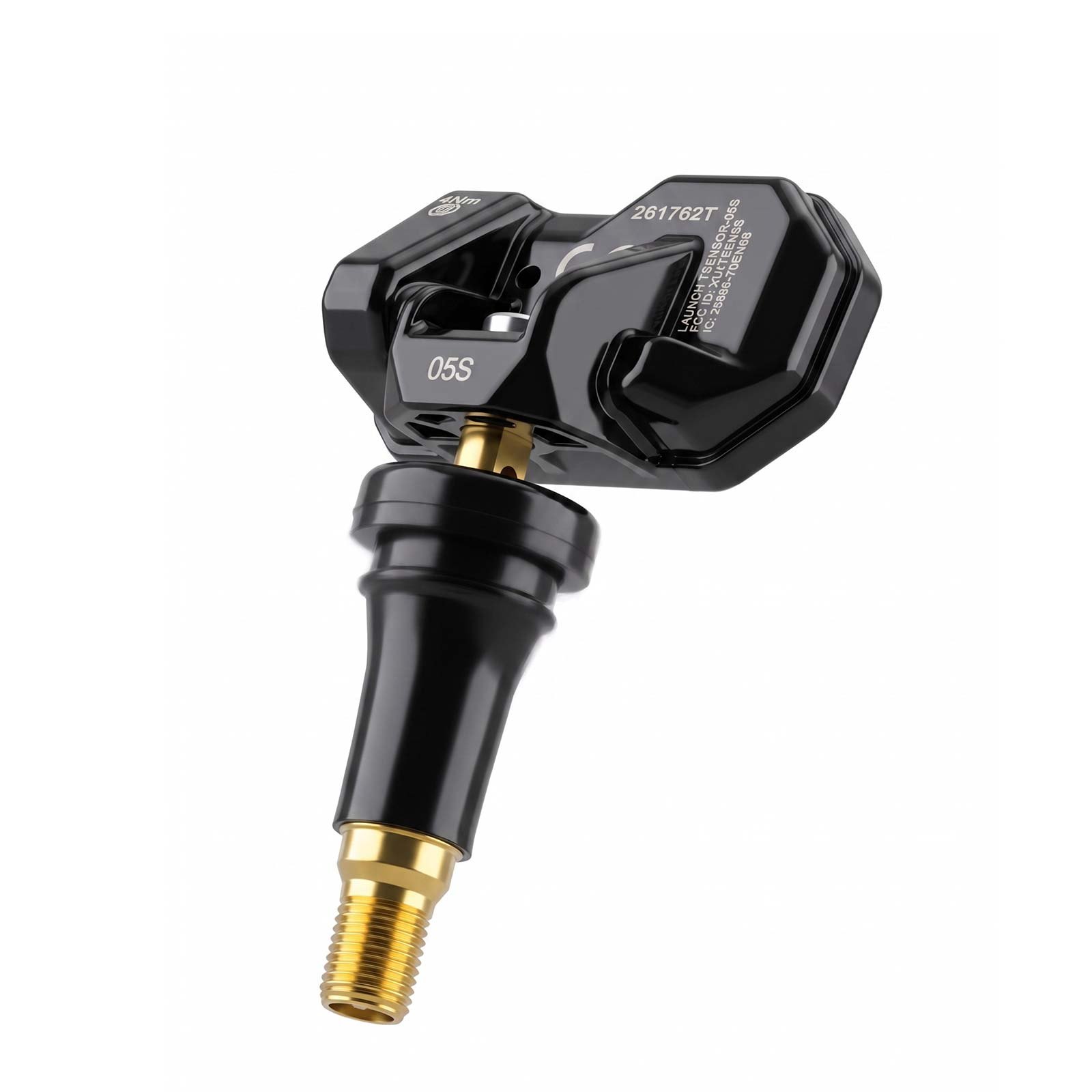

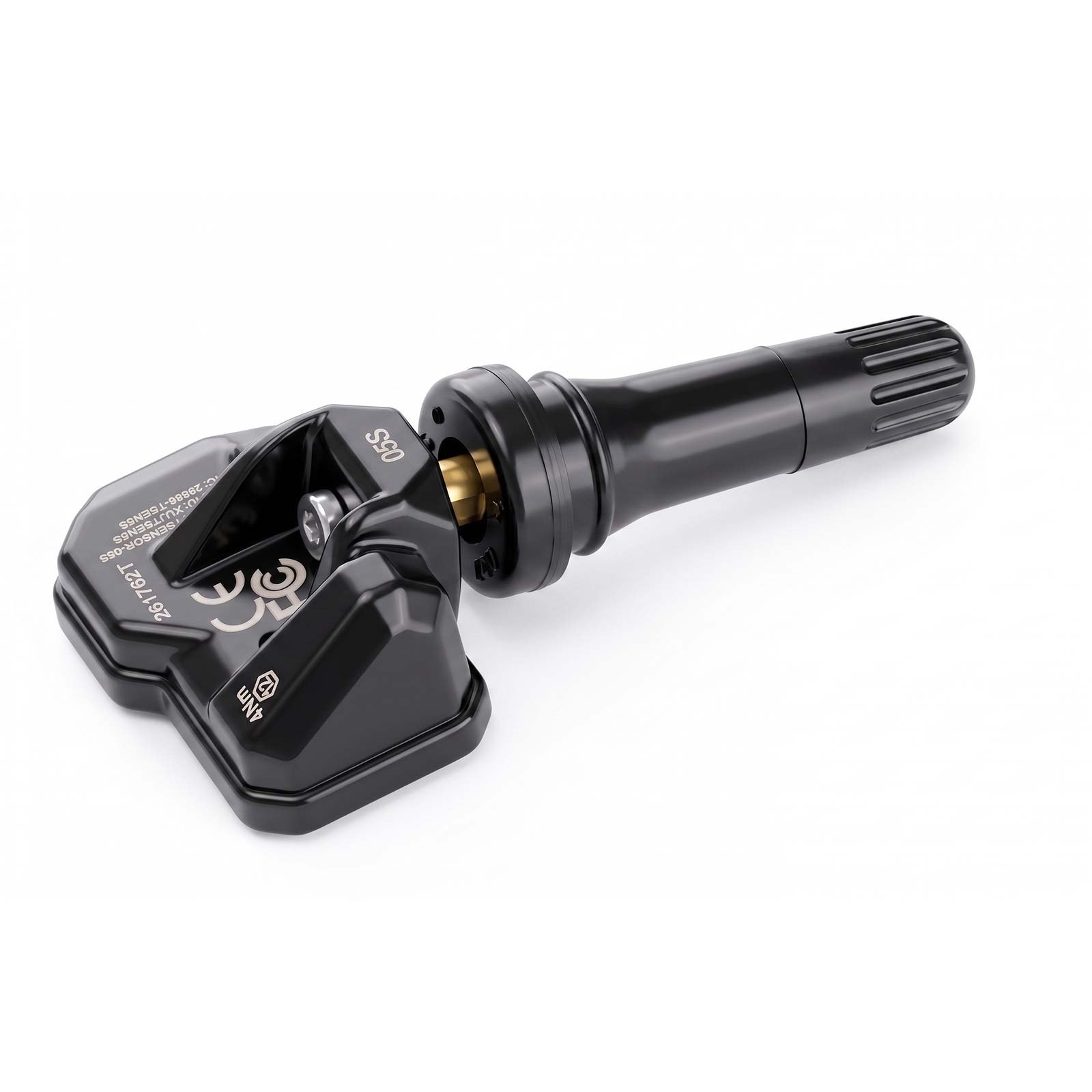

• LAUNCH TSENSOR-05S RF TPMS Sensor

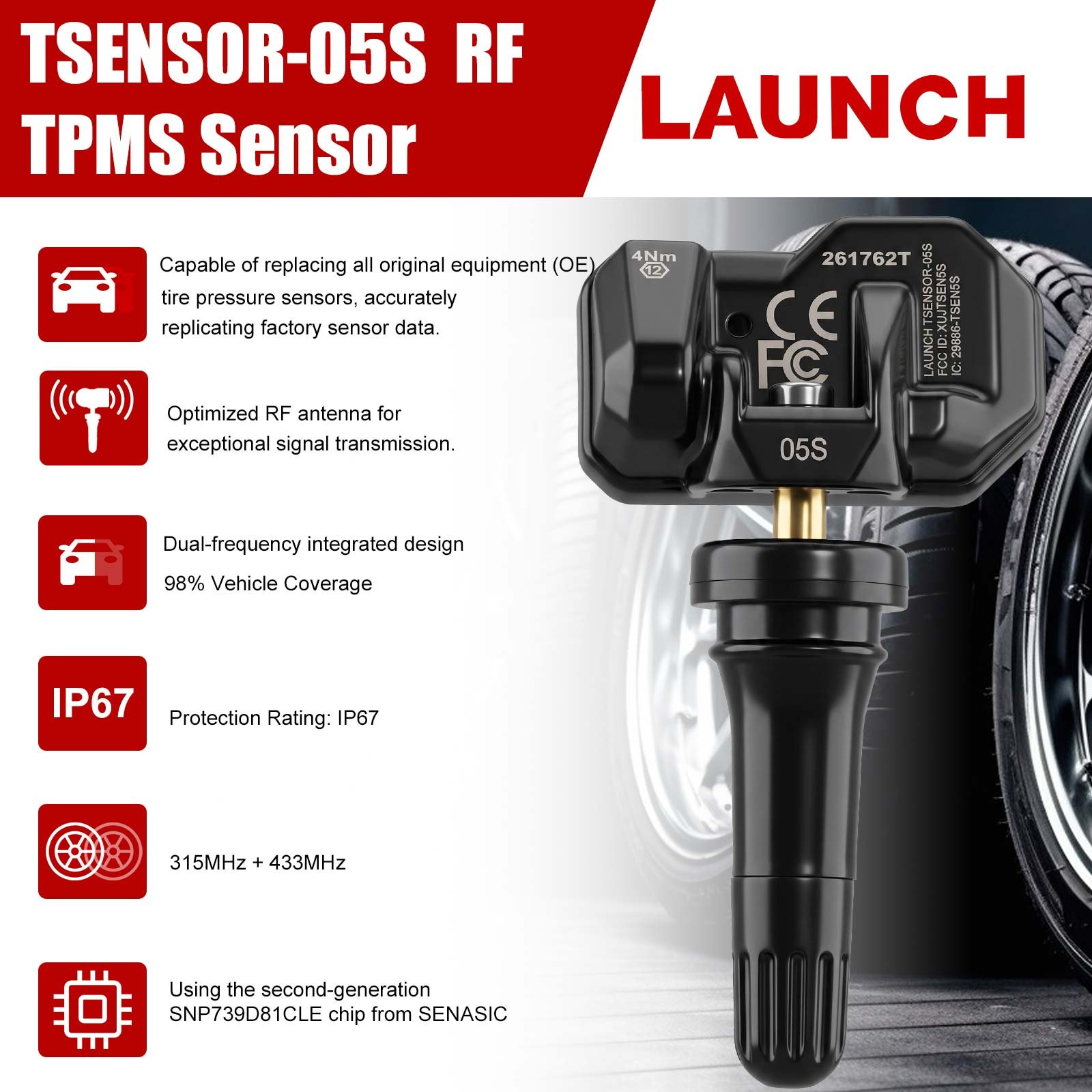

• Using the second-generation SNP739D81CLE chip from SENASIC, this RF tire pressure sensor is suitable for passenger cars and can replace 98% of original sensors on the market. For the Creader TPMS 5011 V2 model, the TPMS software needs to be upgraded to version V10.54, and the CRT5011E client needs to be upgraded to version V1.50. The use of the second-generation SENASIC SNP739D81CLE mainly addresses the poor LF (low frequency) adaptation issues of the first-generation sensors in several vehicle models, thereby improving sensor compatibility with more vehicle models.
• Dual-frequency integrated design, compatible with 98% of vehicles on the market.
• Performance comparable to OE standards (supports both 315MHz and 433MHz dual frequencies), supports unlimited reprogramming, and features a non-invasive installation design for enhanced durability and convenience.
• Optimized RF antenna for exceptional signal transmission.
• Acceleration (G) Sensor Reading Accuracy: ±15%

Four sensors is one car, so this is the pack size a tyre bay actually orders.
