2026 New CG FC200 DAP Adapter for Toyota Denso and DCM7.1AP & DCM7.24

A new CG FC200 DAP adapter for Toyota Denso along with the DCM7.1AP and DCM7.24. The DAP function is primarily for reading and writing ECUs carrying Infineon TC2xx chips. It runs 12V at 1A, works from minus 20 to 85 degrees C, and comes in an ABS and PC shell with online firmware updating.

Specifications

• Online Firmware Updates: Simply connect to the internet to obtain and install the latest official firmware with one click.
• DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.
• Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.
• Precautions: ① The correct vehicle model must be selected for operation; ② Diesel engines require a stable 12V power supply.
• Operating Voltage: 12V
• Operating Current: 1A
• Operating Temperature: -20℃~+85℃
• Storage Temperature: -40℃~+80℃
• Operating Humidity: 30%RH~60%RH
• Shell Material: ABS+PC30%

What you get

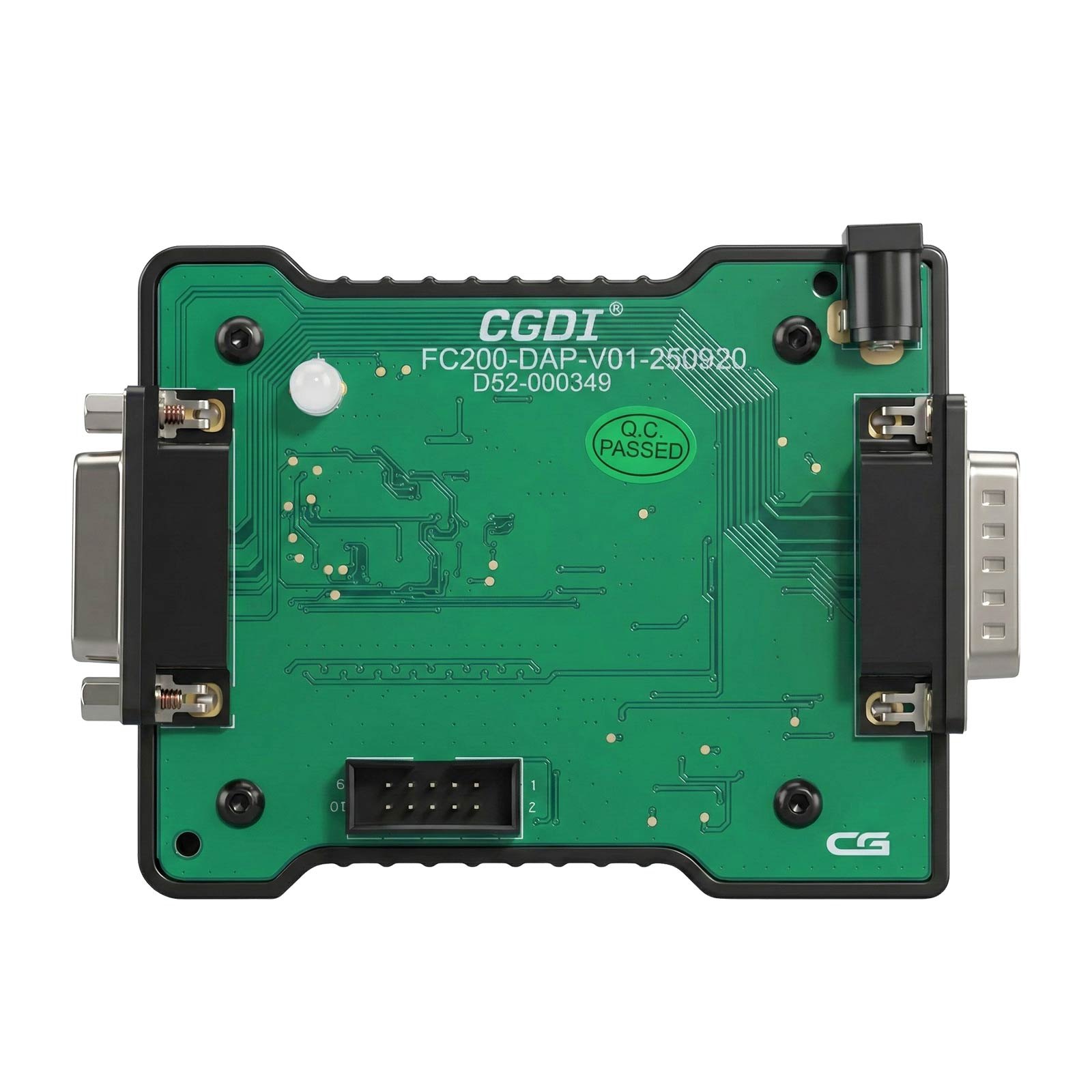

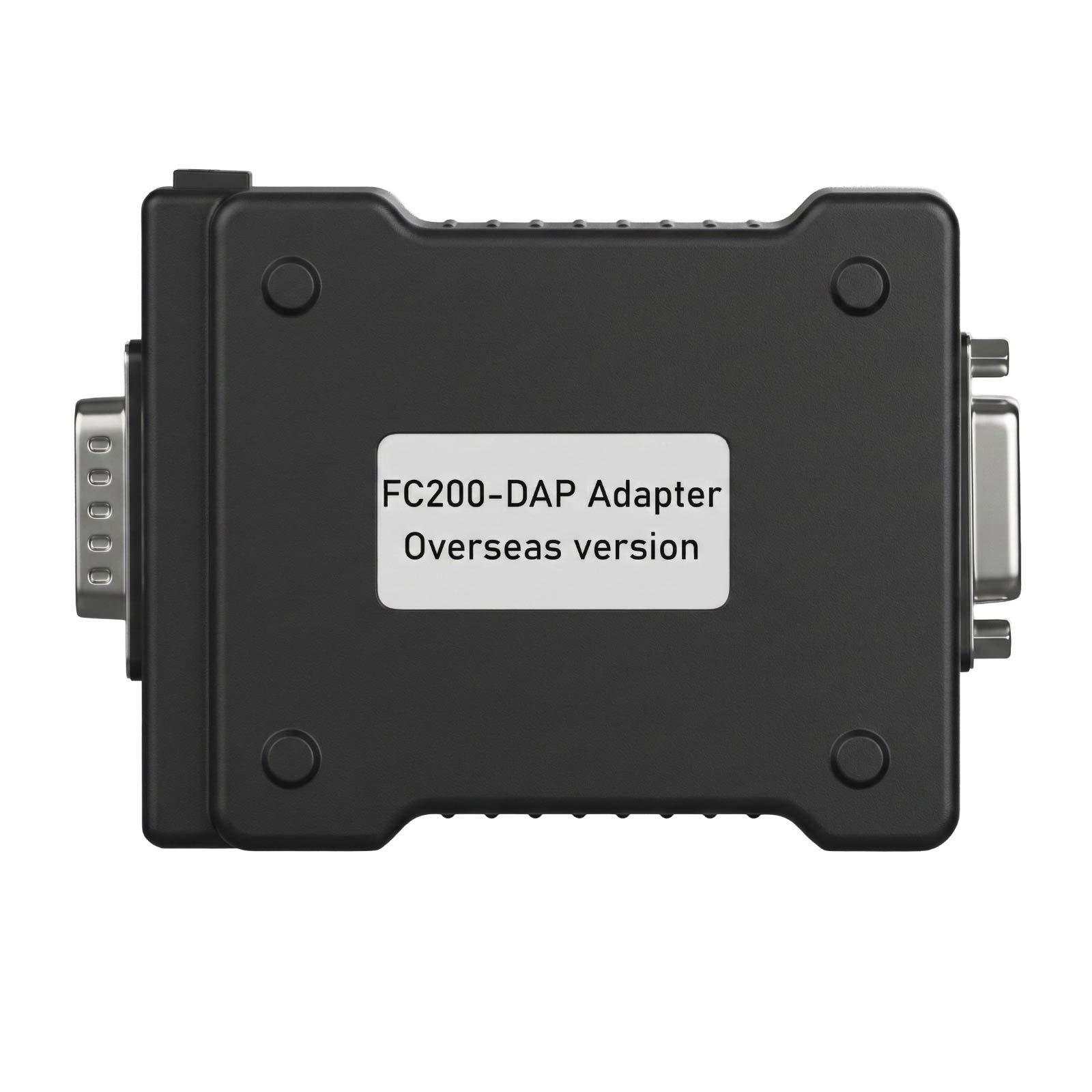

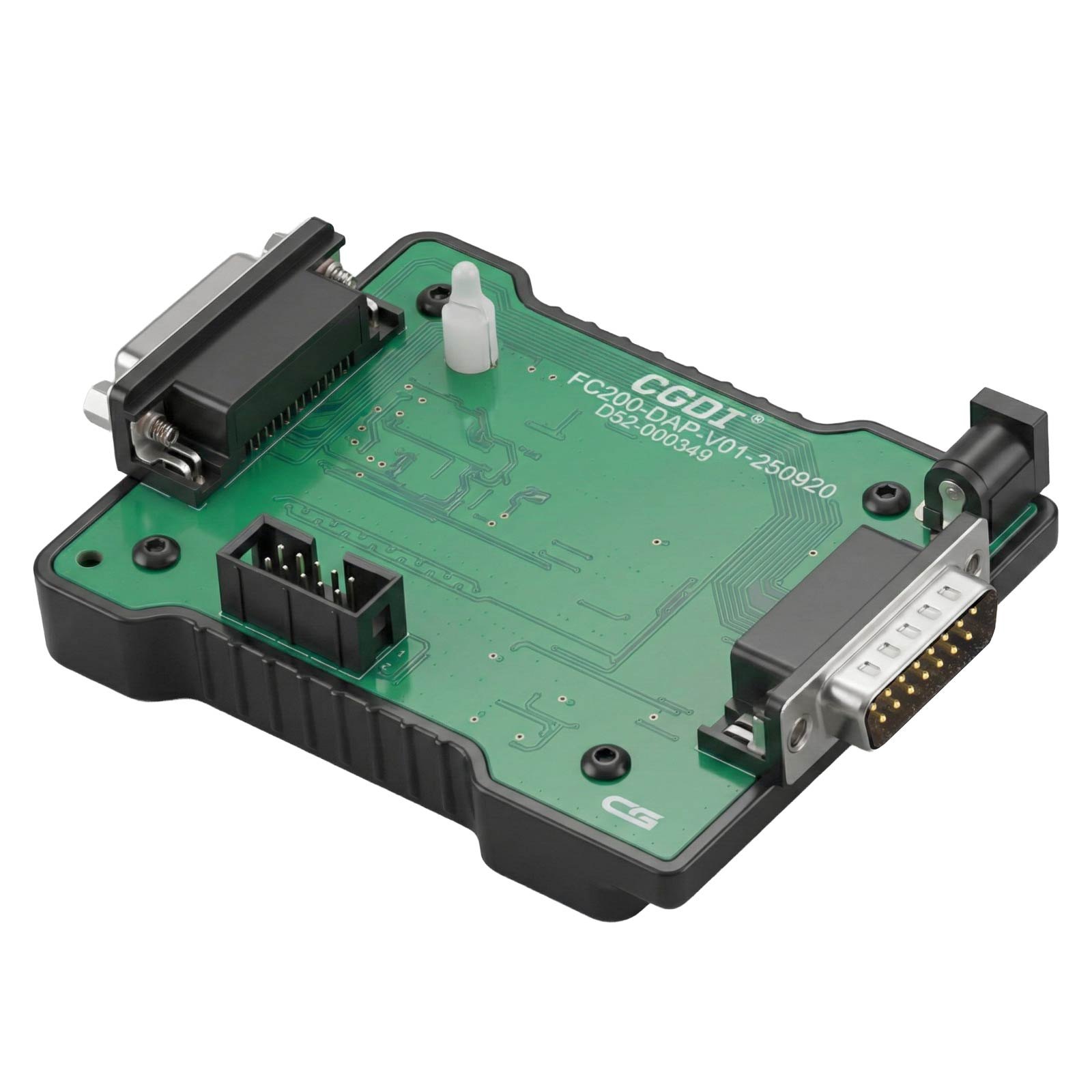

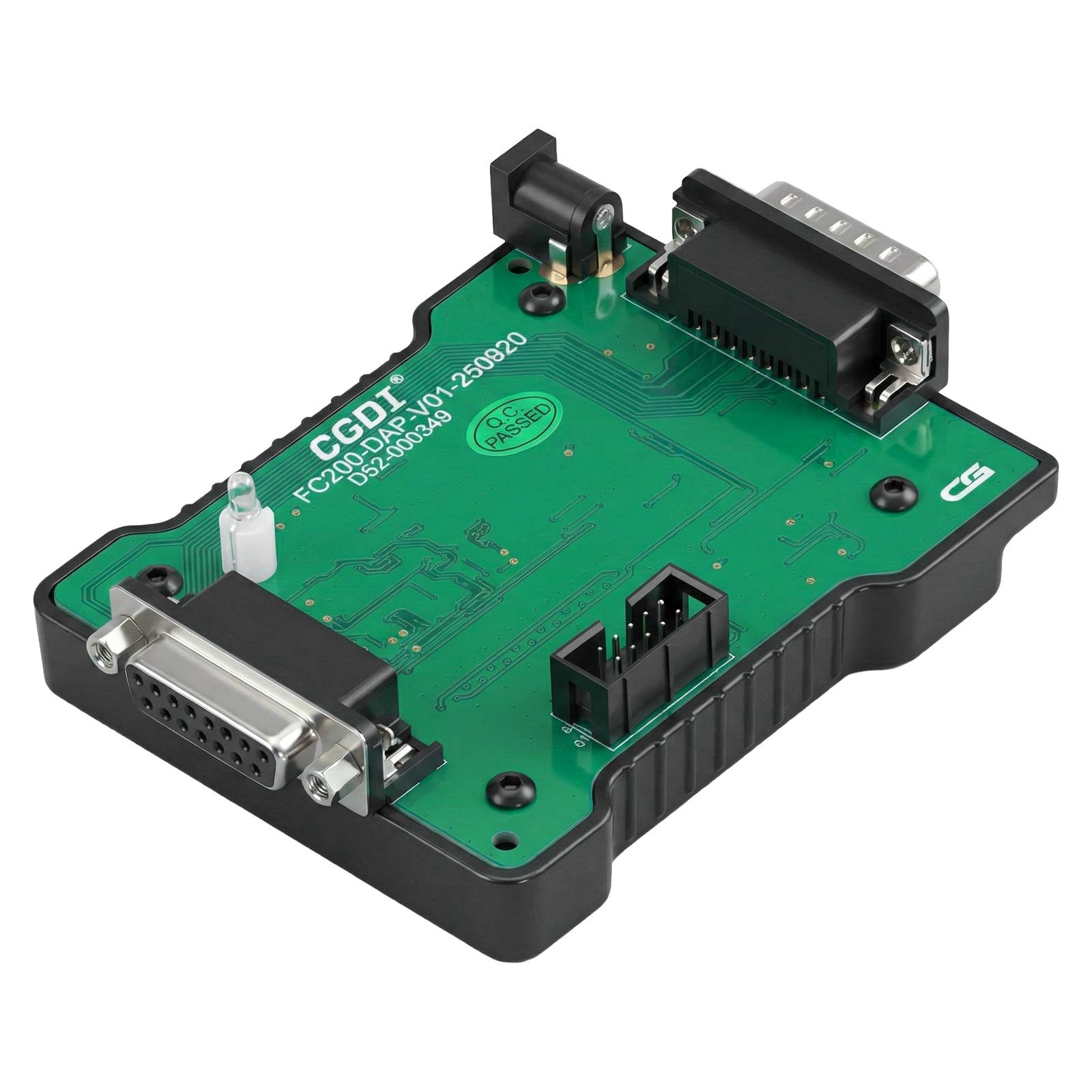

• 1pc x CGDI FC200 DAP Adapter
• 1pc x Pin header
• 1pc x Gray ribbon cable connector
• 1pc x FC200-DAP cable
• 1pc x 76F adapter board
• 1pc x DB15 two-row male-female connector
• 1pc x DIDC ribbon cable extension cable
• How to use the CG FC-200 DAP adapter to read the 89661-36190 ECU
• CG FC200 DAP Adapter can read 7.1AP, TC277TP, Toyota Denso 76F0038GD, 76F0070, 76F0085, 76F0039GD, 76F0040GD etc ECUs.
• CG FC200 DAP Adapter for Toyota Denso and DCM7.1AP & DCM7.24
• Works with CG FC200 programmer to read 7.1AP, TC277TP, Toyota Denso 76F0038GD, 76F0070, 76F0085, 76F0039GD, 76F0040GD etc ECUs.
• CGDI FC200 DAP Adapter Mainly For Toyota's First-generation DENSO Series, DCM7.1AP & DCM7.24 Chips
• Wide Compatibility with Mainstream Chips: The adapter primarily supports reading/writing and verification operations for key chips such as Toyota's first-generation DENSO series, as well as DCM7.1AP and DCM7.24. Optimized communication protocols and stable hardware interfaces ensure more efficient and secure ECU data reading and flashing.
• Continuously Expanding Chip Support: The FC200-DAP is developed based on a scalable hardware platform and software architecture. We will continuously expand its supported chip models through ongoing firmware updates.
• DCM7.1AP, Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.
• DCM7.24, Chinese Yuchai
• Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:
• 76F0038GD
• 76F0038AGD
• 76F0039GD
• 76F0039AGD
• 76F0040GD
• 76F0040AGD
• 76F0070
• 76F0085
• Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.

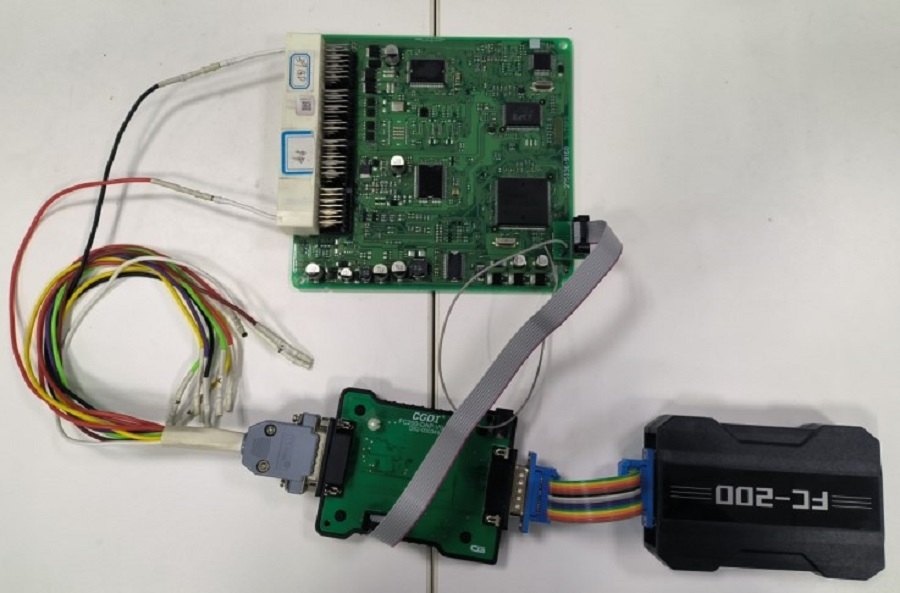

• Use pin headers for connection.

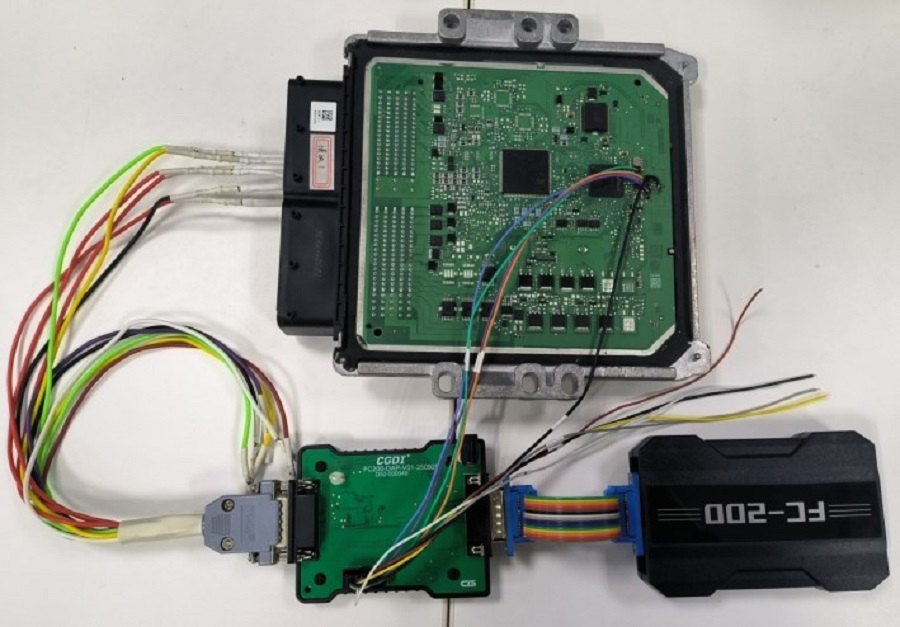

• Use DAP cable harness for connection.

CGDI stress the correct vehicle model must be selected, and that TC297 chips need adding separately.
