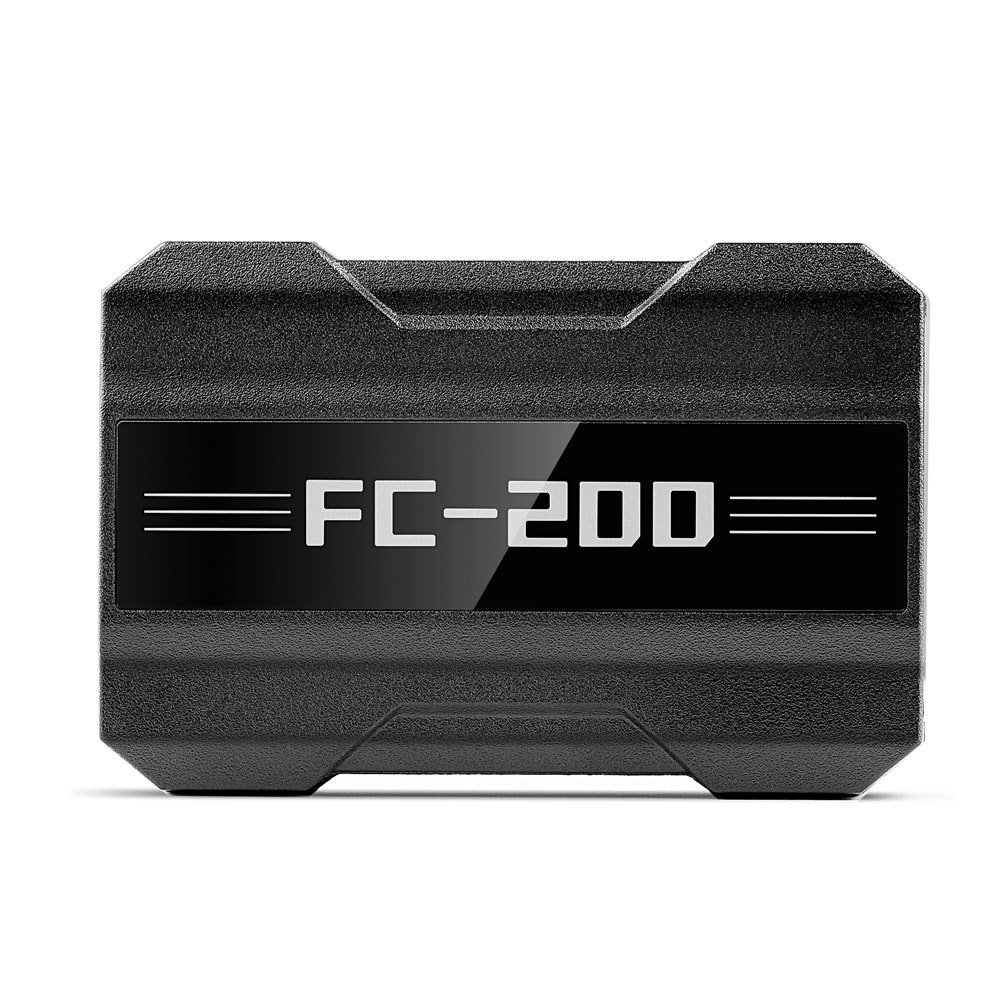

CG FC200 ECU Programmer Full Version with MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench

$310.99

In stock, delivery 7 to 20 days

Free US shipping over $150
Secure checkout via Stripe
30 day returns, no restocking fee

Buying for the trade? Ask for a written quote on quantity.

Description

The CG FC200 ECU programmer in full version with the MPC5XX adapter, for Bosch MPC5xx read and write on the bench. It runs three operating modes, CAN-BUS, bench and boot. Coverage includes the ME9.0, MED9.1 and MED9.5.10, the EDC16C2, EDC16CB and EDC16CP31, Kama EDC17CV54, Foton EDC17C55, the Honda and Acura Keihin 37820-R5G-H61 and H62 on MPC5566, Skoda SIMOS15.10 read only, Mercedes MED17.7.7 and Ford MD1CP006.

Specifications

There are 3 Operating Modes: CAN-BUS, Bench Mode and Boot Mode
Multi-Language: English
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.
KAMA: EDC17CV54 (Read / Write / Checksum)
Foton: EDC17C55 (Read / Write / Checksum)
Honda / Acura: KEIHIN 37820-R5G-H61 MPC5566 (Read / Write / Checksum)
Honda / Acura: KEIHIN 37820-R5G-H62 MPC5566 (Read / Write / Checksum)
Skoda: SIMOS15.10 (Read Only)
Mercedes-Benz: MED17.7.7
Ford: MD1CP006
BAIC: FC-50
Honda / Acura: KEIHIN 37820-R62-H65 SH7058
Chevrolet: ME17.6.8
Hyundai / Kia: BOSCH MEG17.9.8 TC1767
Hyundai / Kia: BOSCH MEDG17.9.8 TC1767
BMW: MSV80 (Bench mode)
BYD: TB10
BMW / Alpina: EDC16C3 (Beta)
Massey Ferguson: EDC17C62
Hyundai/Kia: MEG17.9.22.1
Foton / Hafei Minyi / Jinbei: TR40
Jinbei: TR4C, LEC4A, STC-213

Also stated by the supplier

CG FC200 ECU Programmer Full Version
With MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench Support EDC16/ ME9.0/ MED9.1/ MED9.5 etc
CG FC200 ECU Programmer Full Version with MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench

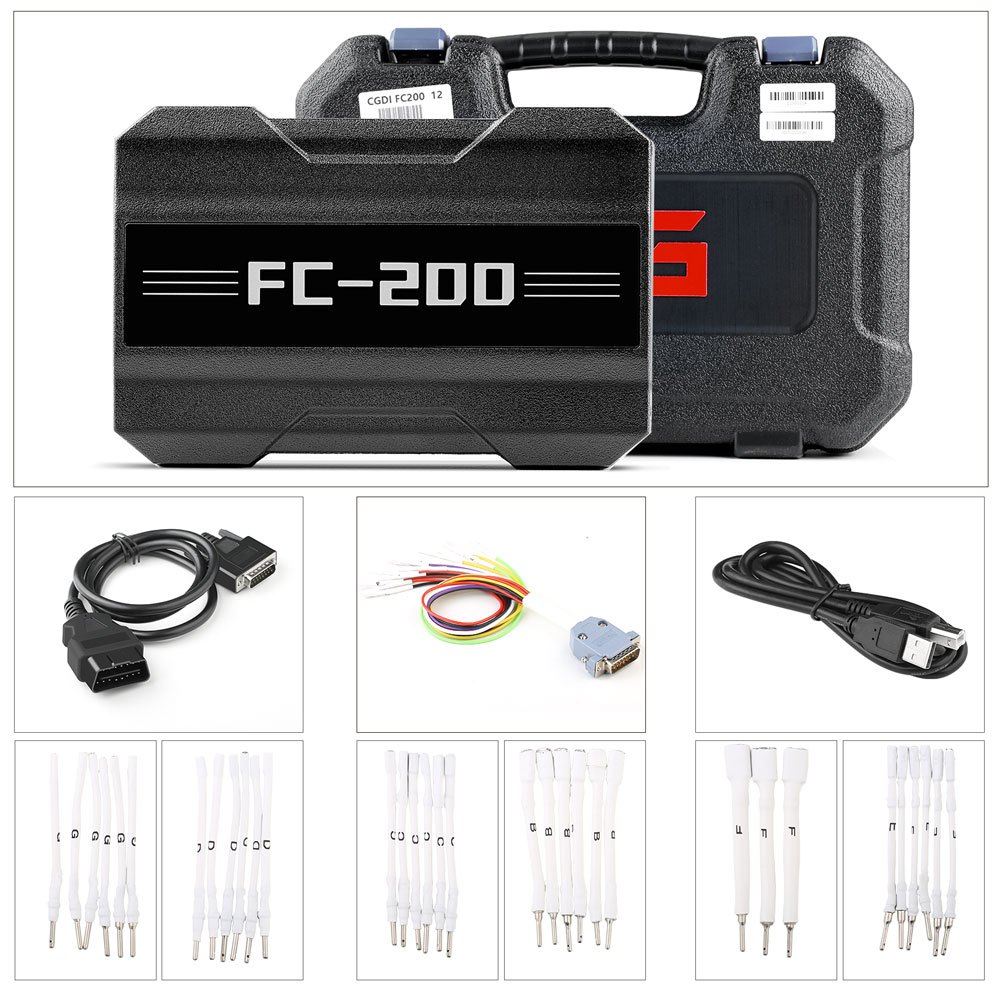

Bundle Deal with CG FC200 Full Version with All License Activated and MPC5XX Adapter.

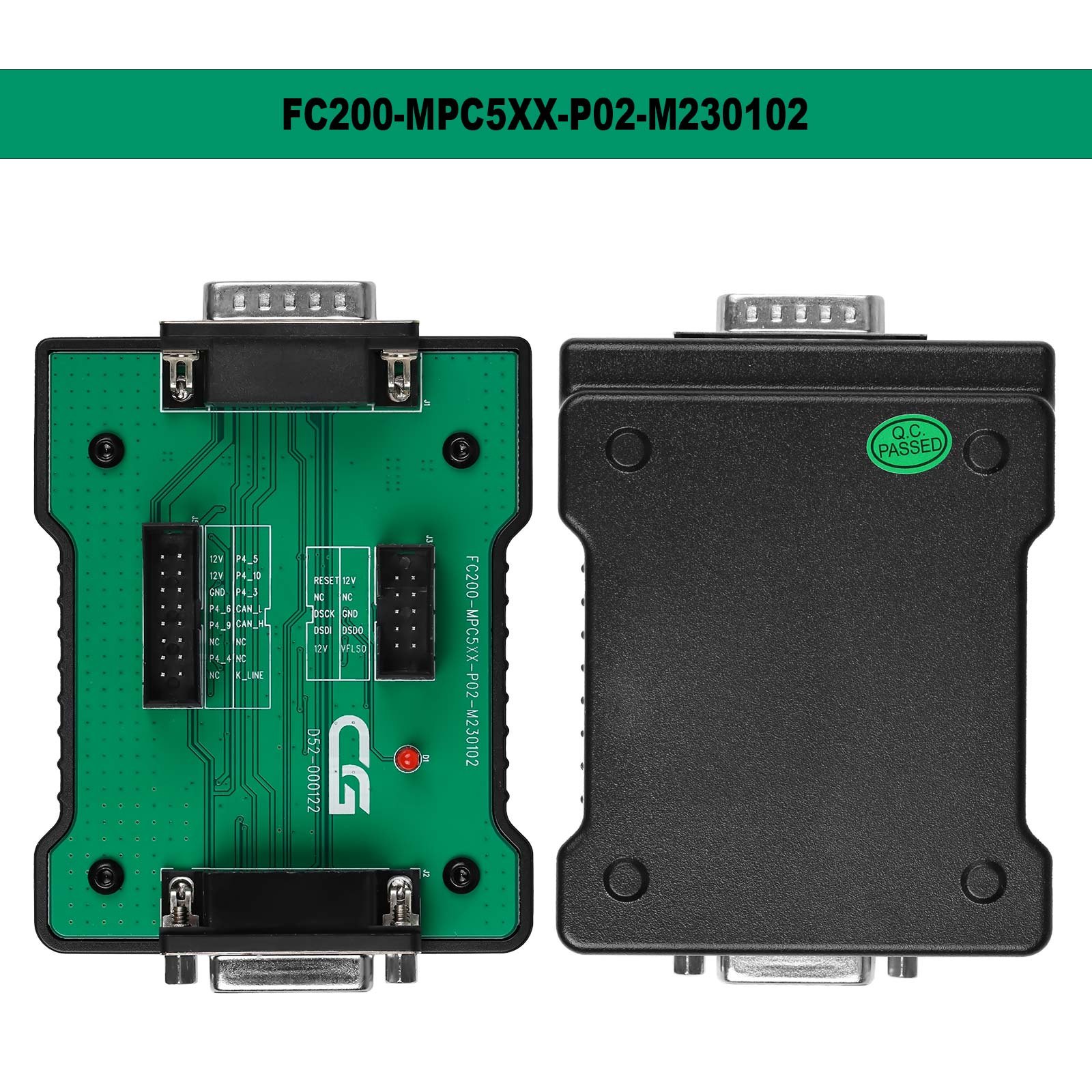

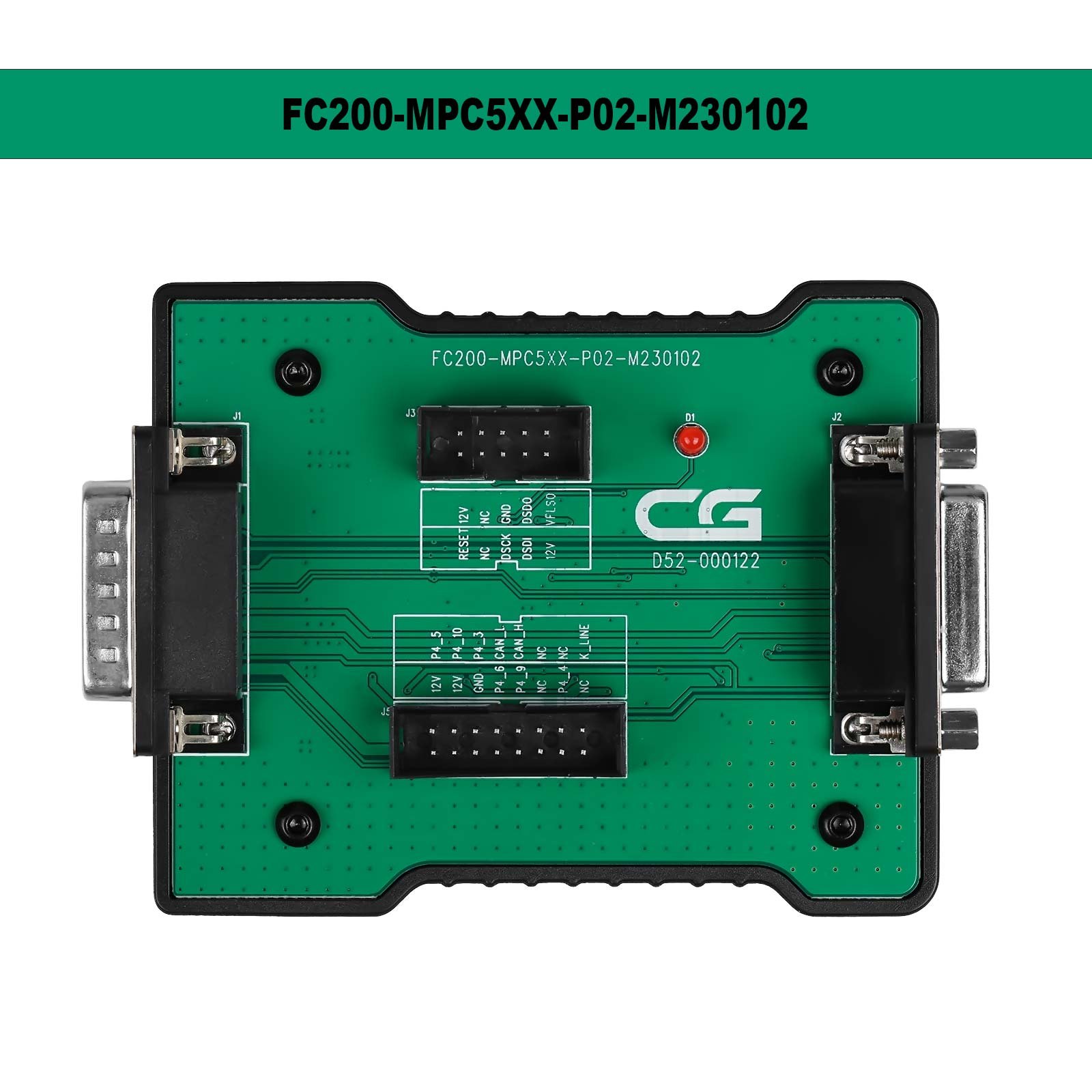

CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.
Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.
4.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.
6.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
For Russian, Polish, Turkish, German, French, Spanish, will need to pay Language Change Service to get authorized seperately with serial number.
Full Version with All License Activated.
Free Update Online for One Year. Please pay for Annual Fee after the first year.
With CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.
CG FC-200 V1.3.6.0 Update on May.26, 2026
VGS4-0-NGS2 / VGS4-500-NGS2 (Supports Read / Write / Erase / Clone / Modify VIN Functions)
BOSCH ME17 / EDC17 / MED17 / MEG17 / MEV17 / MEVD17 / MEDG17 Series
EDC17C53
EDC17C53 (domestic) / MED17.9.8 (Hyundai
CG FC-200 V1.3.5.5 Update on May.7, 2026
Added new DTC OFF types (automatic disabling):
1.Domestic/BYD/Changan/Qoros/Chery/Geely/GAC:ME17.8.8,MED17.8.X;
2.Domestic:EDC17CV44_CV54,SCE60, SIM2K-51.4, SIM2K-D51, MT20U2 (256KB), MT22.1.1 (256KB), MT22.1.1 (384KB), MT22.1 (512KB), MT22.1 (768KB)
3.Changan/Geely:Bosch MG1US008-UD8,MG1UA008-UP8
4.Jiangxi Isuzu/JAC/SAICMaxus:MD1CS089
5.Changan / Chery / Geely / Haval / GAC / Luxgen / Lynk & Co / BYD / Roewe: MED17.8.10
6.Dongfeng / JAC / Jinbei / Kama / Wuling: FC-34, FC-50,LEC4AF, LEC4AP
7.BAIC / Dongfeng / Jinbei / Chery / Zotye: ME7.8.8, ME7.9.7.1
8.Changan / Chery / Geely / Haval / GAC / Luxgen / Lynk & Co / Wuling / BYD / Roewe: M7.8.0,M7.9.71,MT60, MT80, MT60.1, MT92.X, MT62.X
9.Wuling / Geely: Easy U1, Easy U2, Easy U2.5, Easy U2W, Easy U3.6
10.Audi / Volkswagen / SEAT / Skoda: ME17.5.22, MG1CA811
11.Mercedes-Benz: ME17.7
12.Land Rover / Jaguar: MED17.0, MG1CS028
13.BMW / Mini: MSD87,MEV17.2.2, MEV17.2, MEV17.2.1
14.Buick: Delco E37 (2048KB), Delco E39 (3072KB), Delco E39A (3072KB), Delco E67 (2048KB)
15.Peugeot / Citroën: ME7.4.4, ME7.4.5, MEV17.4.2, MEVD17.4.4, MG1CS042 16.Honda: MED17.9.3, EDC17C58
17.Hyundai / Kia: ME17.9.11, ME17.9.11.1, ME17.9.21.1, MED17.9.8, MEDG17.9.8, MEG17.9.8, MG7.9.8
18.Maserati: MED17.3.4, MED17.3.5
19.Volvo: MB279700-96xx, MED17.0
20.Ford: MED17.0.1, MED17.0, ME17.8.5, ESU-418, ESU-415, ME17.0.3, MED17.0.7, MED17.2.2, MEDG17.0, MG1CS017
21.Kaifike: CPEGDX.XX.X
22.Mainland China: SIM2K-24x, SIM2K-25x, SIM2K-341, SIMK-43
23.Chrysler / Dodge: GPEC2, GPEC2A
24.Honda / Suzuki: ME17.9.5, ME17.9.61
CGDI FC-200 Latest Update V1.3.5.3, Apr 25th, 2026,
Added Bootloader Mode for EEPROM Reading,supports ECU cloning BYD/Changan/Chevrolet/Cirelli/Dongfeng/FAW/Great Wall/Roewe/SAIC/Trumpchi: MG1US008
BAIC/Bestune/BYD/Changan/Cirelli/Dongfeng/FAW/Feidi Motors/Geely/Great Wall/JAC/Proton/SAIC/Southeast/Trumpchi/Wuling:MG1UA-UP8
37820-RLH-H62 / 37820-RLH-H63 / 37820-R62-H13 / 37820-R48-H71 / 37820-50W-B52 / 37820-5R3-B52 / 37805-RLH-H53
MG1UA008/MG1UA008_Bootloder mode
4.Added CALID Modification & Blank Repair:
ECU6.1_Black
Fixed write failure issue on BYD TB10
Fixed checksum issue on some ME7.1.1 systems
Renamed CONTINENTAL VGS4-0-NAG2 R5F72544R → MB_GETRAG_VGS4-0-NAG2 R5F72544R
CGDI FC-200 New Update V1.3.5.2, Apr 10th, 2026,
Added ECU Types
MG1UA008 (Bootloader mode)
Added VIN blank repair function for Changan Visteon STC-113 / STC-213
Optimized VIN function for domestic ME17.8.8
Fixed verification issue in SIMK43 not-ready state repair
Fixed file type error when writing in BOOT mode for DCM3.7AP R5F72544R and VGS4-0-NAG2 R5F72544R
CGDI FC-200 New Update V1.3.5.1, April 3th, 2026:
New ECU Types Added
ESU-415 7G91-12A650-MK, ESU-415 7G91-12A650-ME
Added file checksum for SsangYong SIM2K_C201
Optimized VIN reading for BMW N55 series
FC-34 system optimization
Optimized known issues in J2534
CG FC200 V1.3.4.1 Update Log, Jan 28th, 2026
KEIHIN 37820-R62-H71 (SH7058)
KEIHIN 37820-R62-H64 (SH7058)
