2026 Launch X-431 PAD VII PAD 7 Elite Plus X431 EV Diagnostic Upgrade Kit with Card Supports New Energy Battery Diagnostics Get Free CRP123X

2026 Launch X-431 PAD VII Elite Plus EV Diagnostic Upgrade Kit with Card

$3,454.72

In stock, delivery 7 to 20 days

Free US shipping over $150
Secure checkout via Stripe
30 day returns, no restocking fee

Buying for the trade? Ask for a written quote on quantity.

Description

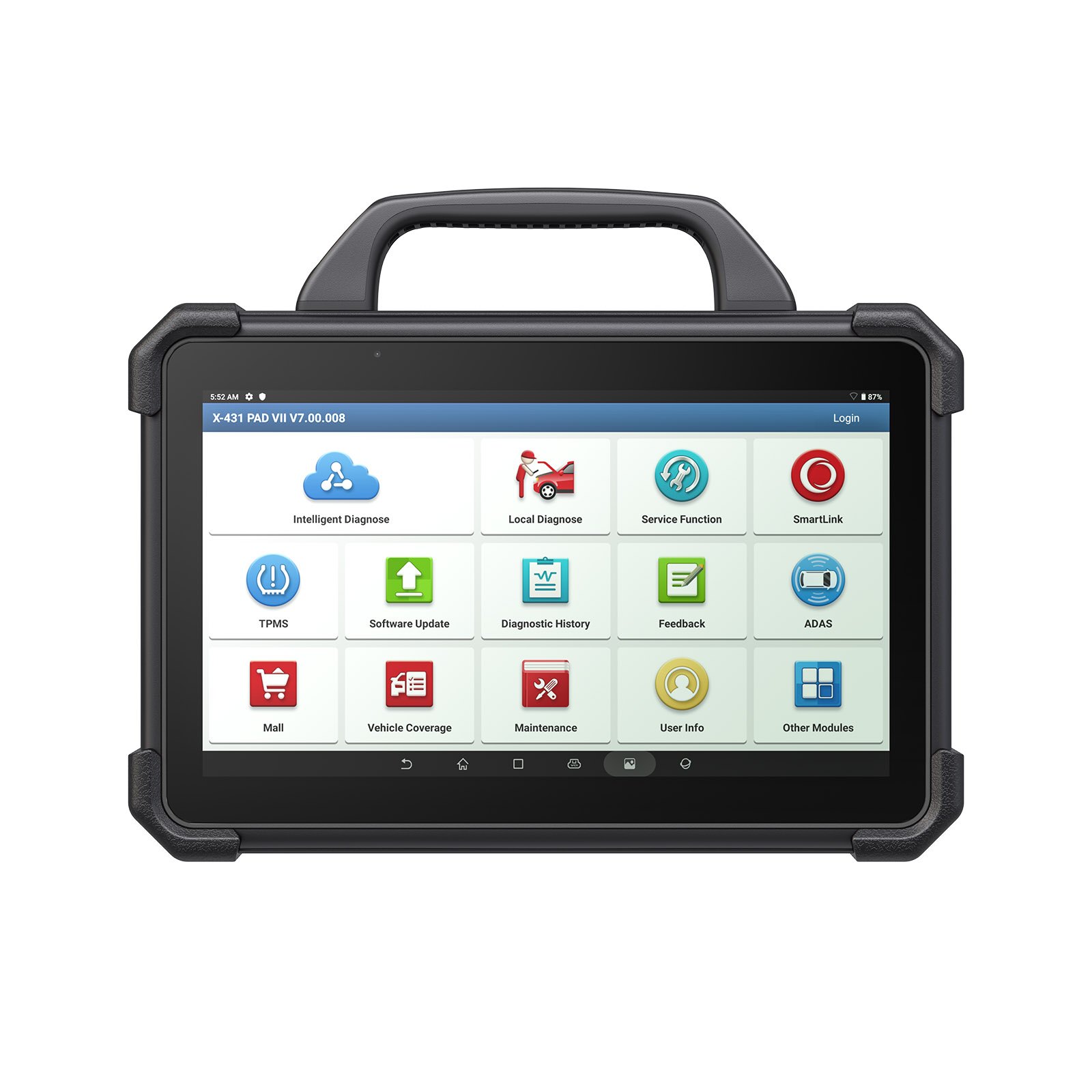

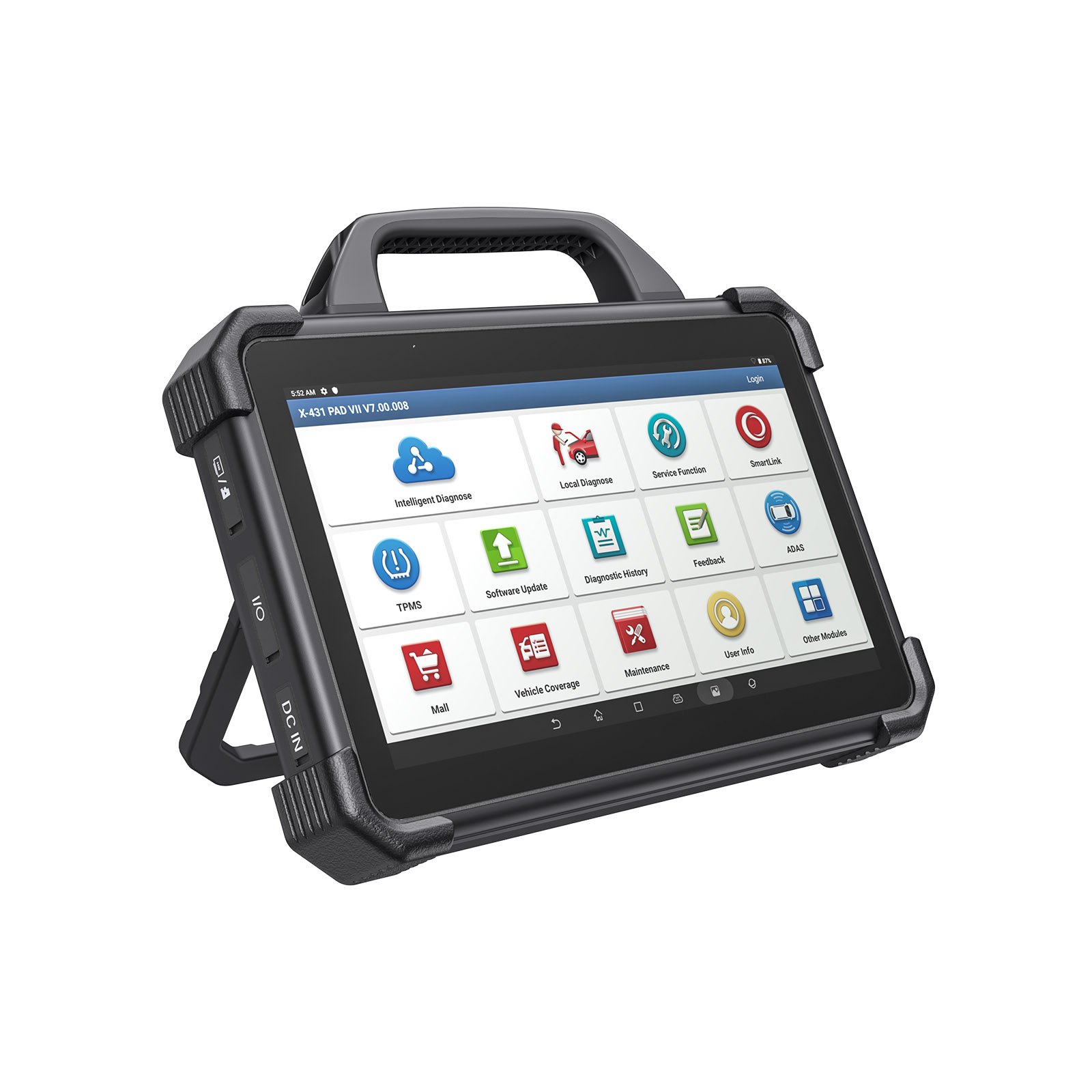

The 2026 Launch X-431 PAD VII Elite Plus with X431 EV Diagnostic Upgrade Kit and card combines the PAD VII Elite automotive diagnostic tool with the EV battery diagnostics upgrade for new energy vehicles.

Compatibility

Full system vehicle coverage for US, Asian, and European markets, over 110 brands, continually updated. Support for commercial vehicles and passenger cars. Support for CAN, CAN FD, and DoIP protocols and J2534, D-PDU, and RP1210 standards.

Online programming support for BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, and Subaru. Guided functions for VW and Audi.

X431 EV Diagnostic Upgrade Kit with activation card is compatible with X431 PAD V and PAD VII. Use the kit to diagnose battery pack State of Charge and State of Health on Tesla, BYD, and many other electric vehicles.

Specifications

2 years free update online. After 2 years, buy the update service when needed
Global version without IP limitation
Real-time voltage display to monitor vehicle voltage during diagnosis
Support for commercial vehicle and passenger car diagnosis, with J2534, CAN FD, and DoIP
Multi-language: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
32 special functions: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS. Listed with 26 service functions plus TPMS service in detailed specs
Advanced coding and programming function
Support for ADAS calibration function and eight extended modules: videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester. Optional ADAS calibration and TPMS service support
Built-in repair information and training video modules to track and fix issues fast
Upgrade and expand with more software and service through the MALL module as needed
Topology mapping for visual checking of DTCs and all systems communication status
Auto detection of vehicle communications protocol and check of OBDII port pin condition
Intelligent diagnostics with automatic VIN identification and quick system access
2.4GHz and 5GHz dual band communication for quick and stable connection. Diagnose light, medium, and heavy duty vehicles with SmartLink C
Basic functions: read and clear DTC, bidirectional control, live data graph, wireless software update

Functions

EV battery pack analysis with activation card and adapters for specific electric vehicles.

New energy battery pack diagnostic configuration for X-431 PAD V and X-431 PAD VII with activation card and diagnostic adapter cables
Choose an activation method on the scanner to enable the new energy detection package

Box contents

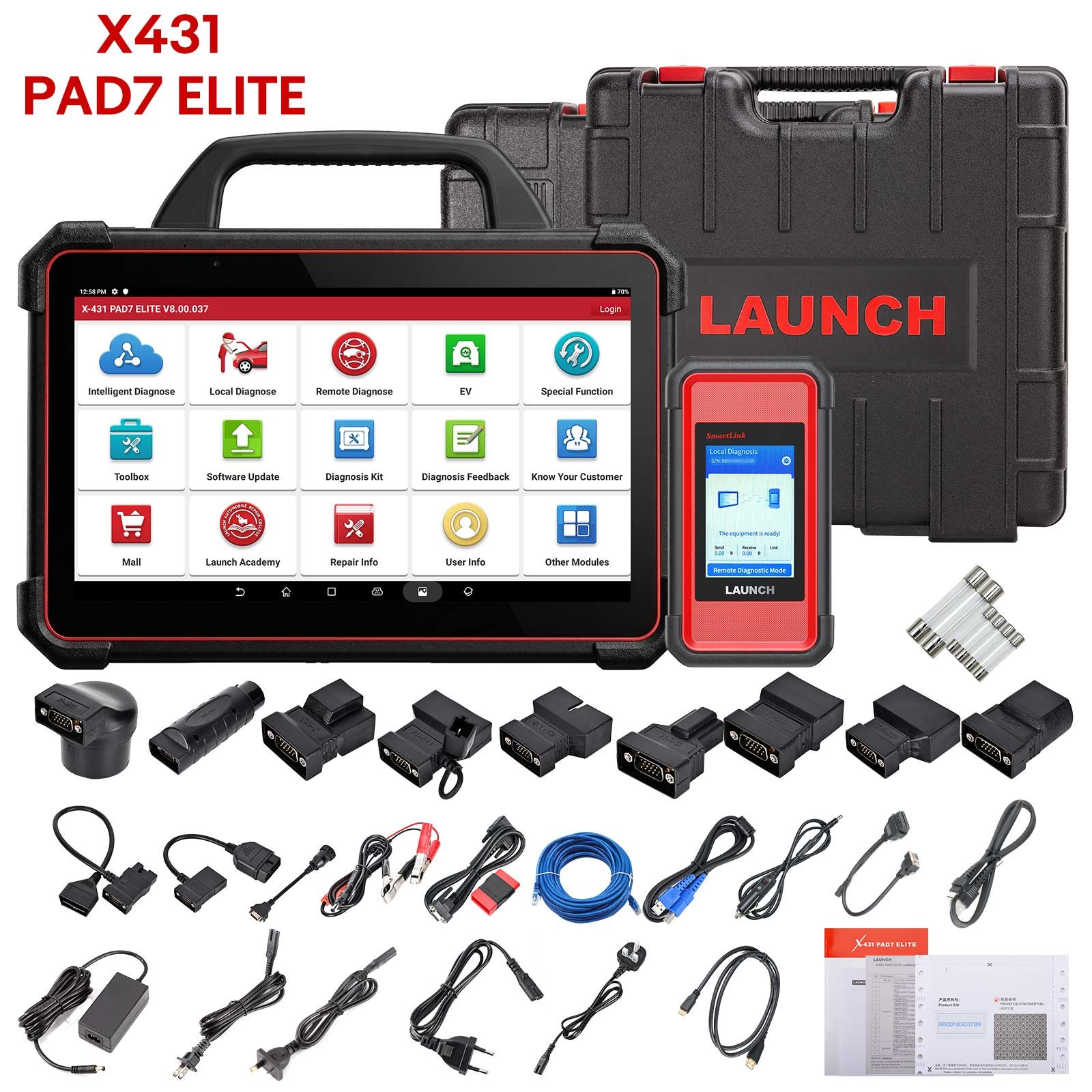

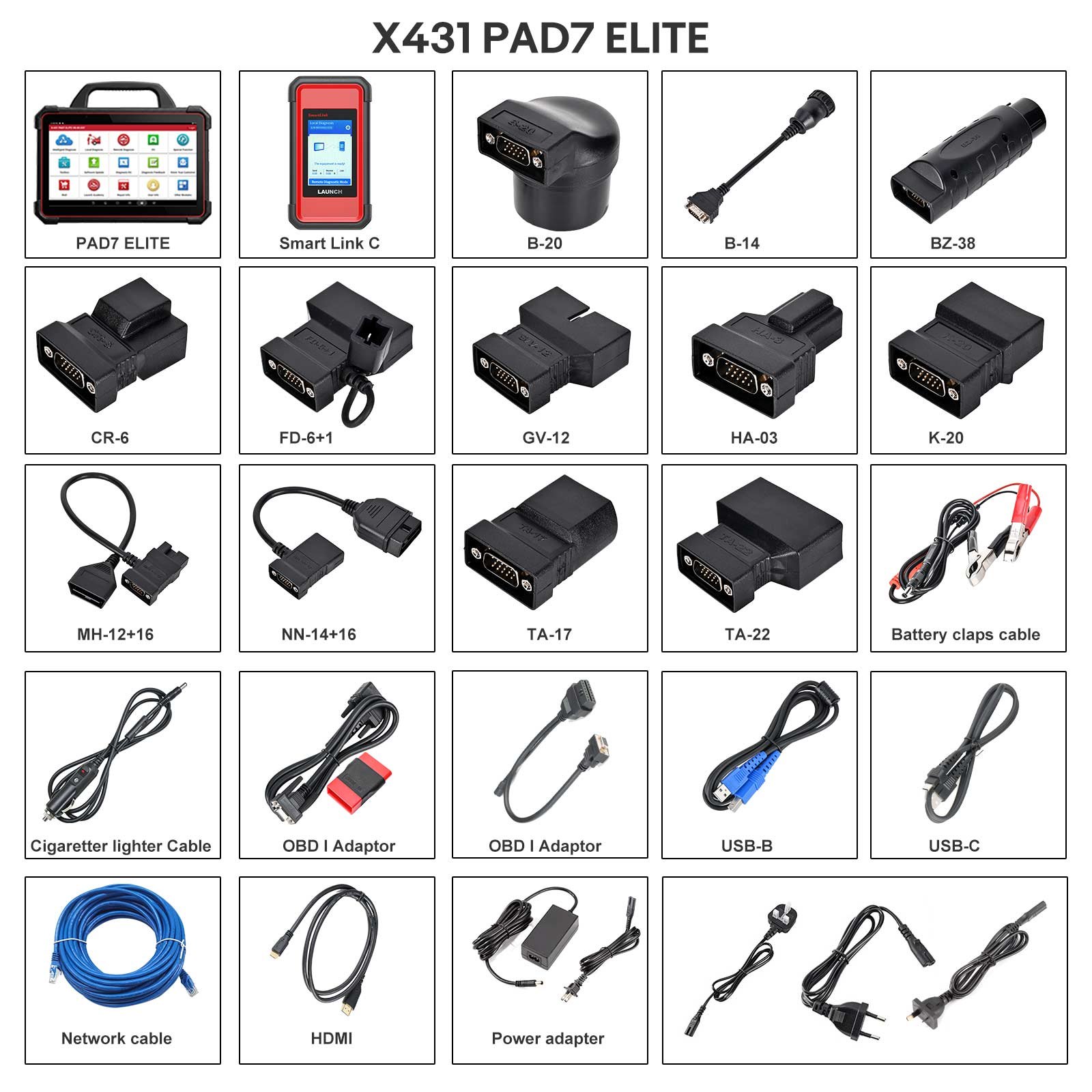

Launch X431 PAD VII Elite package:

1pc x PAD VII tablet
1pc x SmartLink C
1pc x B-20 adapter
1pc x BZ-14 adapter
1pc x BZ-38 adapter
1pc x CR-6 adapter
1pc x FD-6 plus 1 adapter
1pc x GV-12 adapter
1pc x HA-3 adapter
1pc x K-20 adapter
1pc x MH-12 plus 16 adapter
1pc x NN-14 plus 16 adapter
1pc x TA-17 adapter
1pc x TA-22 adapter
1pc x Battery clamps cable
1pc x Cigarette lighter cable
1pc x OBD adapter
1pc x OBD I adapter
1pc x USB-B cable
1pc x USB-C cable
1pc x Network cable
1pc x HDMI cable
1pc x Power adapter
1pc x Australia standard AC wire rod
1pc x Britain standard AC wire rod
1pc x European standard AC wire rod
6pcs x Lighter fuses
1pc x Packing list
1pc x Quick start guide
1pc x Universal PIN envelope
1pc x User manual
1pc x Suitcase
1pc x Carton

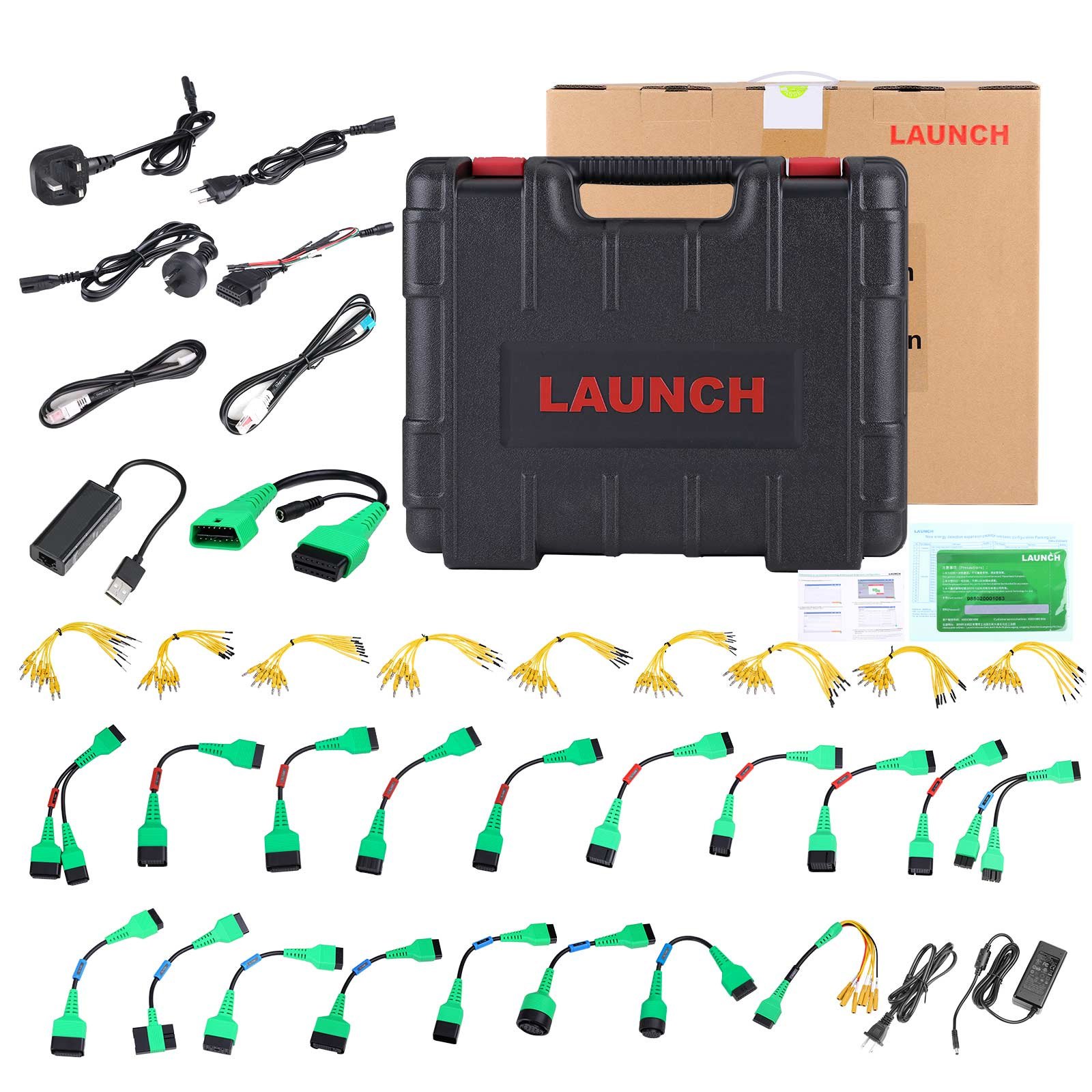

Launch X431 EV Diagnostic Upgrade Kit package:

1pc x Special connector for Tesla airbag repair, RoHS
1pc x PAD VII 220V 1.3A 8-suffix British AC wire, 1M, RoHS
1pc x OBD16 male to female new energy extension cable with DC cable, RoHS
1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS
1pc x X-431 PAD IV electric control adapter cable 1, RoHS
1pc x X-431 PAD IV electric control adapter cable 2, RoHS
1pc x X-431 PAD IV electric control adapter cable 3, RoHS
1pc x X-431 PAD IV electric control adapter cable 6, RoHS
1pc x X-431 PAD IV electric control adapter cable 7, RoHS
1pc x X-431 PAD IV electric control adapter cable 8, RoHS
1pc x X-431 PAD IV electric control adapter cable 10, RoHS
1pc x X-431 PAD IV electric control adapter cable 11, RoHS
1pc x X-431 PAD IV electric control adapter cable 12, RoHS

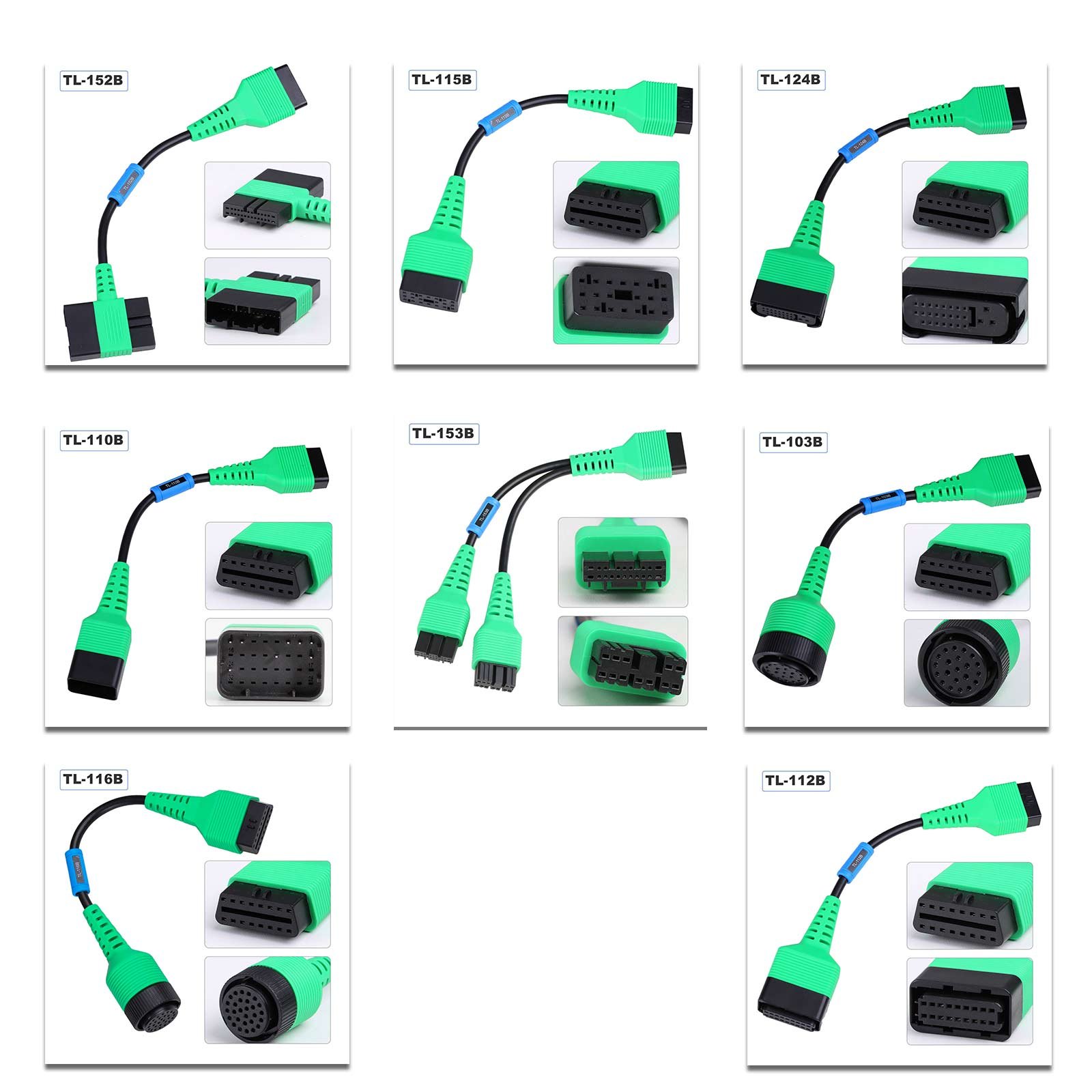

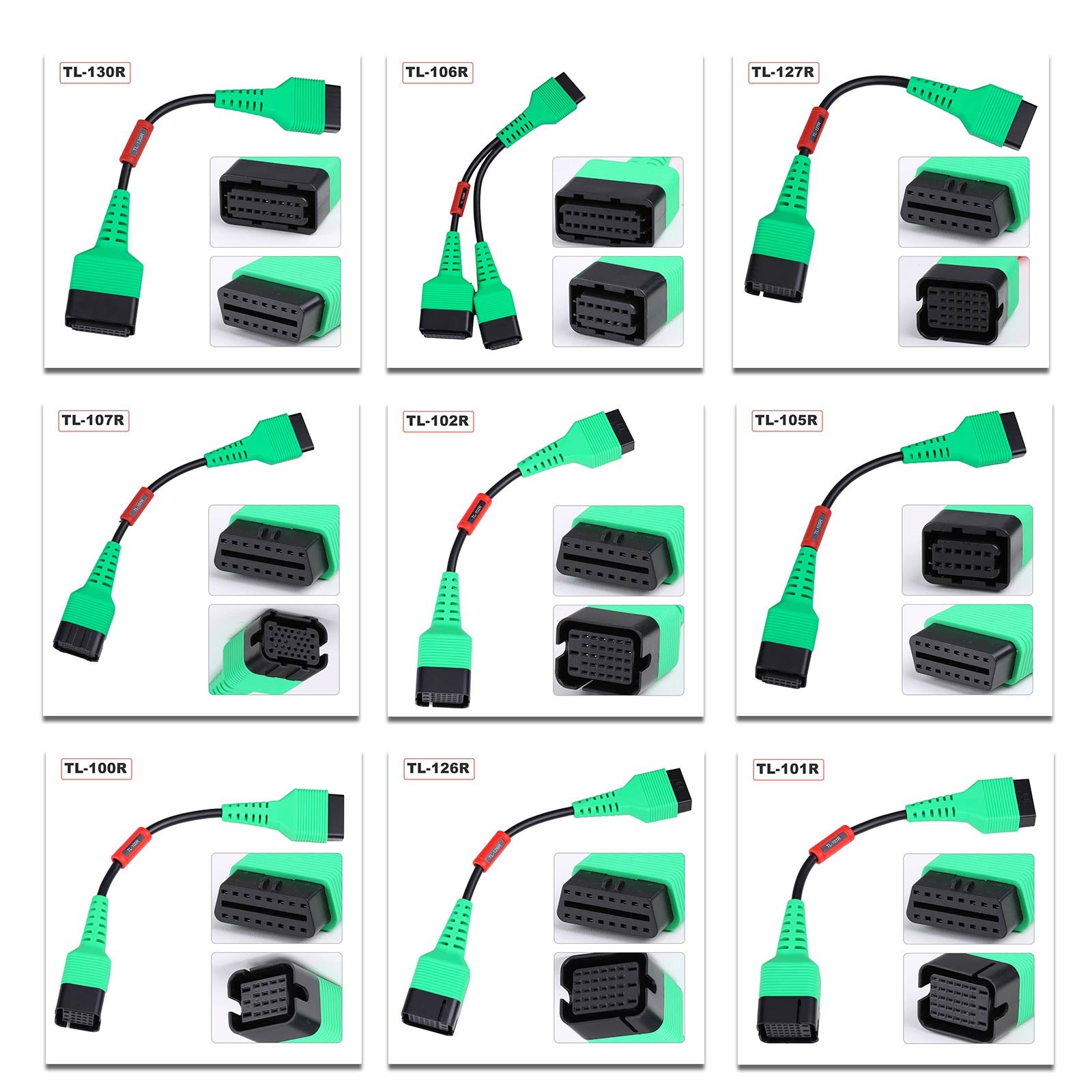

1pc x Battery pack test line 100 models, RoHS
1pc x Battery pack test line 101, RoHS
1pc x Battery pack test line 102, RoHS
1pc x Battery pack test line 103, RoHS
1pc x Battery pack test line 104, RoHS
1pc x Battery pack test line 105, RoHS
1pc x Battery pack test line 106, RoHS
1pc x Battery pack test line 107, RoHS
1pc x Battery pack test line 108, RoHS
1pc x Battery pack test line 109, RoHS
1pc x Battery pack test line 110 models, RoHS
1pc x Battery pack test line 112 models, RoHS
1pc x Battery pack test line 113, RoHS
1pc x Battery pack test line 114, RoHS
1pc x Battery pack test line 115 models, RoHS
1pc x Battery pack test line 116, RoHS
1pc x Battery pack test line 119, RoHS
1pc x Battery pack test line 124 types, RoHS
1pc x Battery pack test line 126 models, RoHS
1pc x Battery pack test line 127 models, RoHS
1pc x Battery pack test line 130 models, RoHS
1pc x Battery pack test line 152 models, RoHS
1pc x Battery pack test line 153 models, RoHS
1pc x Network port diagnostic test line flat 5Pin L 2 meters, RoHS
1pc x Network port diagnostic test line round HSD4Pin L 2 meters, RoHS
1pc x USB 2.0 Ethernet network card, about 22.6cm total length, RoHS
1pc x PAD VII 8-suffix Australian standard AC wire, 1M, RoHS
1pc x PAD VII 220V 1.3A 8-suffix European standard AC wire, 1M, RoHS
1pc x Power adapter 12V4A 48W desktop with 8-suffix DC connector 5.5 and US standard AC cable 2M, RoHS
