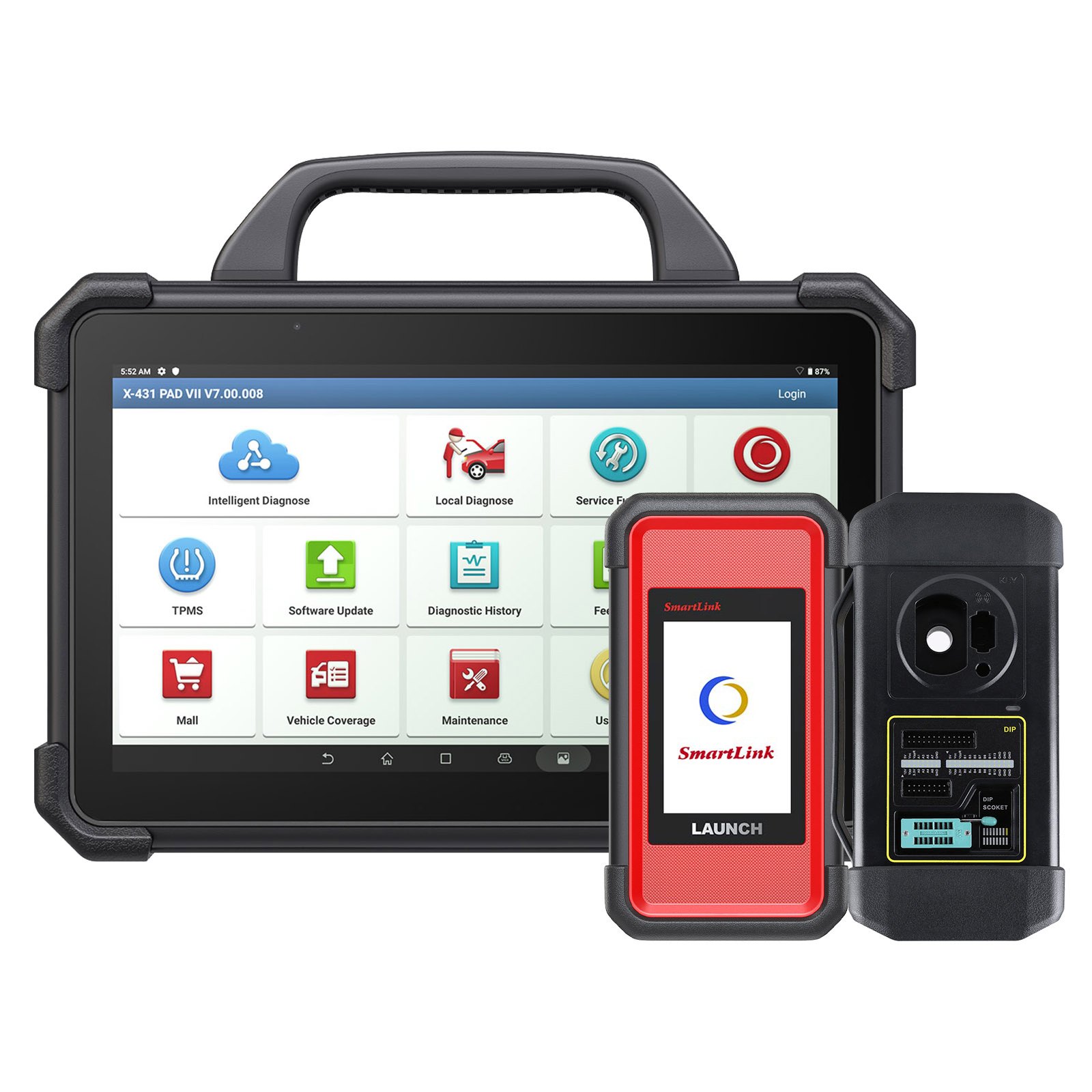

2026 Launch X-431 PAD VII Elite Plus with GIII X-Prog 3

The 2026 Launch X-431 PAD VII Elite Plus with GIII X-Prog 3 combines the PAD VII Elite full system diagnostic tool with the X-Prog 3 for key programming, online coding and programming, and ADAS PAD VII Elite uses a 13.2 inch touch screen in the highlights and a 13.3 inch touchscreen in the detailed specs, with 32 service functions, SmartLink diagnosis, topology mapping, and support for TPMS service and eight extended modules.

Versions

Six versions are available at different prices: GIII X-Prog 3 Adapter, EV Diagnostic Kit plus Activation Card, Heavy Duty Adapter Set with License, PAD VII Elite, PAD VII Elite with X-Prog 3 shown here, and PAD VII Elite plus GIII X-Prog 3 plus MCU3 Adapter. Select the version that matches the work you do.

Compatibility

Full system vehicle coverage for US, Asian, and European markets, over 110 brands, continually for commercial vehicles and passenger cars. Support for CAN, CAN FD, and DoIP protocols and J2534, D-PDU, and RP1210 standards. Diagnose light, medium, and heavy duty vehicles with SmartLink C.

Online coding and programming support for BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, and Subaru. Guided functions for VW and Audi.

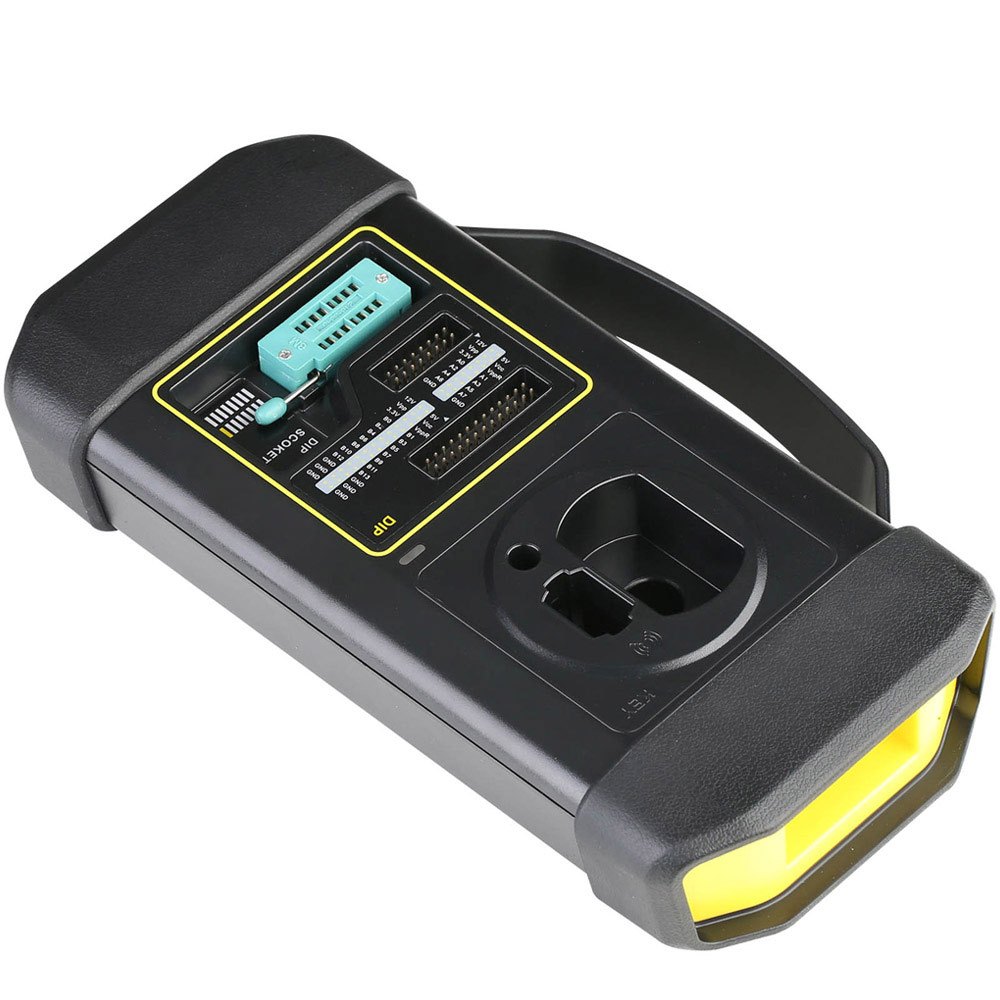

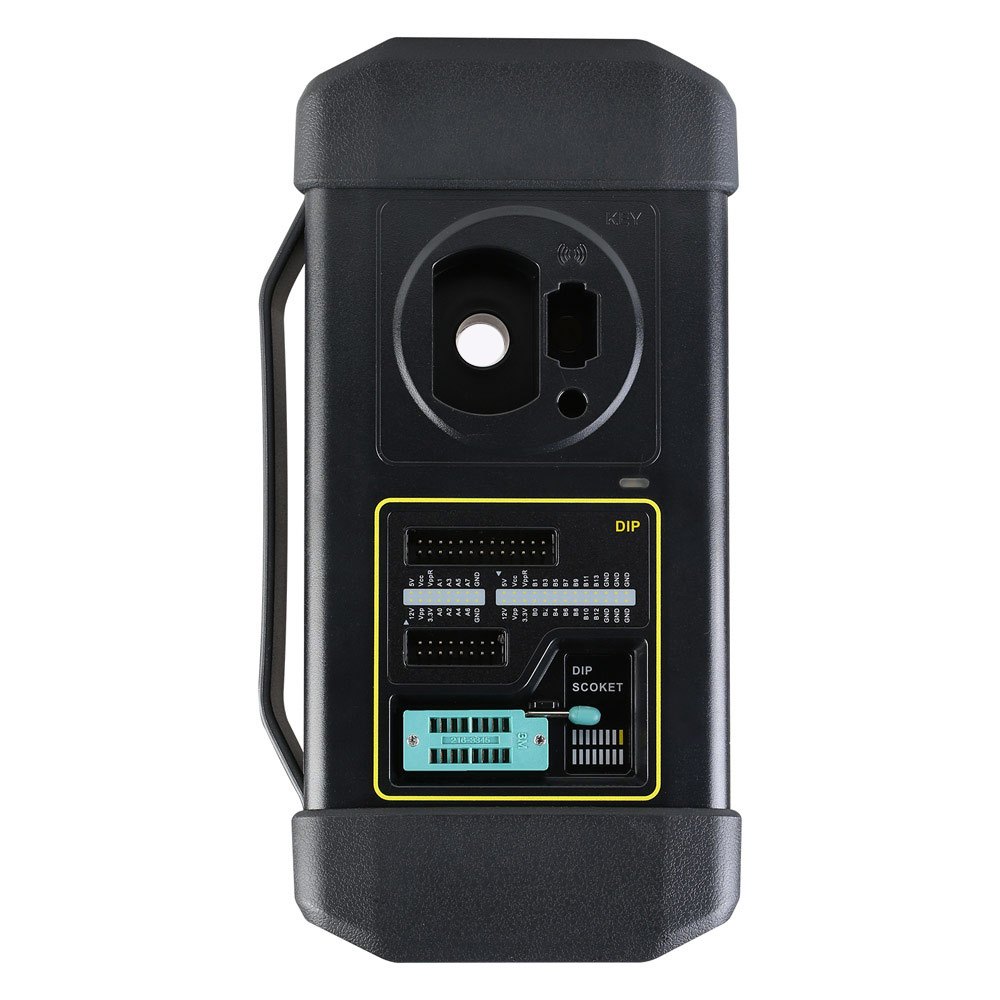

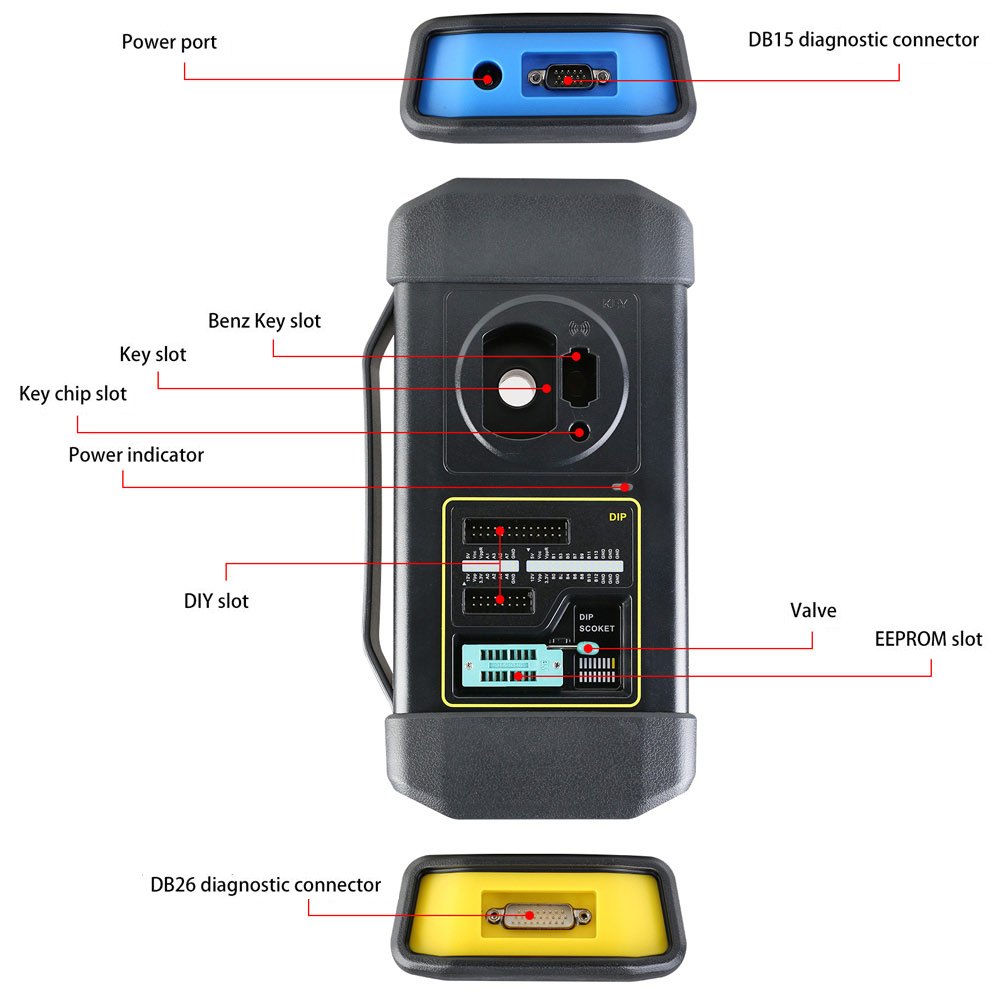

With GIII X-Prog 3: read and write keys, anti-theft type identification, remote control matching, key chip reading and matching, anti-theft password reading, and anti-theft component replacement.

Passenger vehicle coverage:

• Australian: AUST Holden, AUST Ford
• Asian: Toyota and Lexus, Honda and Acura, Mazda, Subaru, Nissan and Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
• European: Audi, Mercedes and Maybach, BMW and MINI and Rolls Royce, VW and Bentley and Bugatti, Opel and Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault and Dacia, Fiat and Romeo and Abarth and Lancia, Rover, Land Rover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Aston Martin, Porsche, Jaguar
• USA: USA Ford and Lincoln, GM and Buick and Cadillac and Chevrolet, Chrysler and Dodge and Jeep
• Chinese: Changcheng Great Wall, Geely, Qirui TY Cherry, Futian, Changan, Changhe, Haifei, and others
• Special: Immobilizer and Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
• Others: EOBD, Demo

Heavy duty vehicles, require heavy duty license and adapter set: Nissan Diesel, Mitsubishi Diesel, USA Ford Diesel, Kenworth, Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel, Denso Diesel, FAW Liberation.

Specifications

• 2 years free update online
• Global version without IP limitation
• Real-time voltage display to monitor vehicle voltage during diagnosis
• Support for commercial vehicle and passenger car diagnosis, with J2534, CAN FD, and DoIP
• Multi-language: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
• 32 service functions. Detailed service list: Service Lamp Reset, Electronic Throttle, Brake Reset, Immobilizer Reset, Battery Reset, Injector Coding, SAS Reset, TPMS Reset, ABS Bleeding, Gear Learning, DPF Regeneration, Gearbox Reset, Headlamp Reset, Sunroof Initialization, SUS Reset, EGR Adaption, A and F Reset, AdBlue Reset, Nox Sensor Reset, Stop and Start settings, Transport Mode, Coolant Bleed, Windows Calibrations, Seat Calibrations, Tyre Reset, Language Change. Highlights also list: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

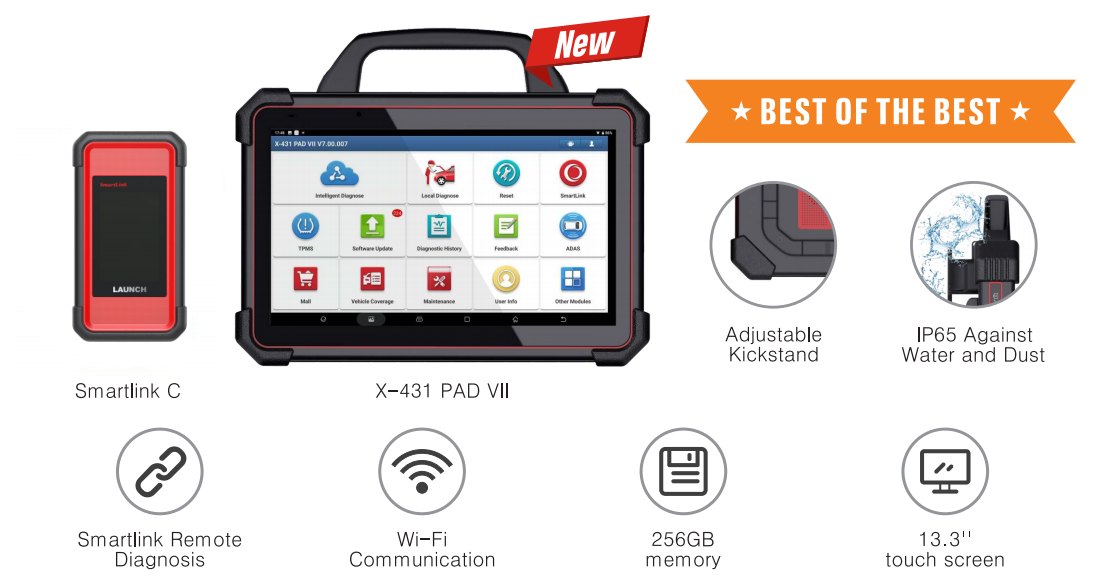

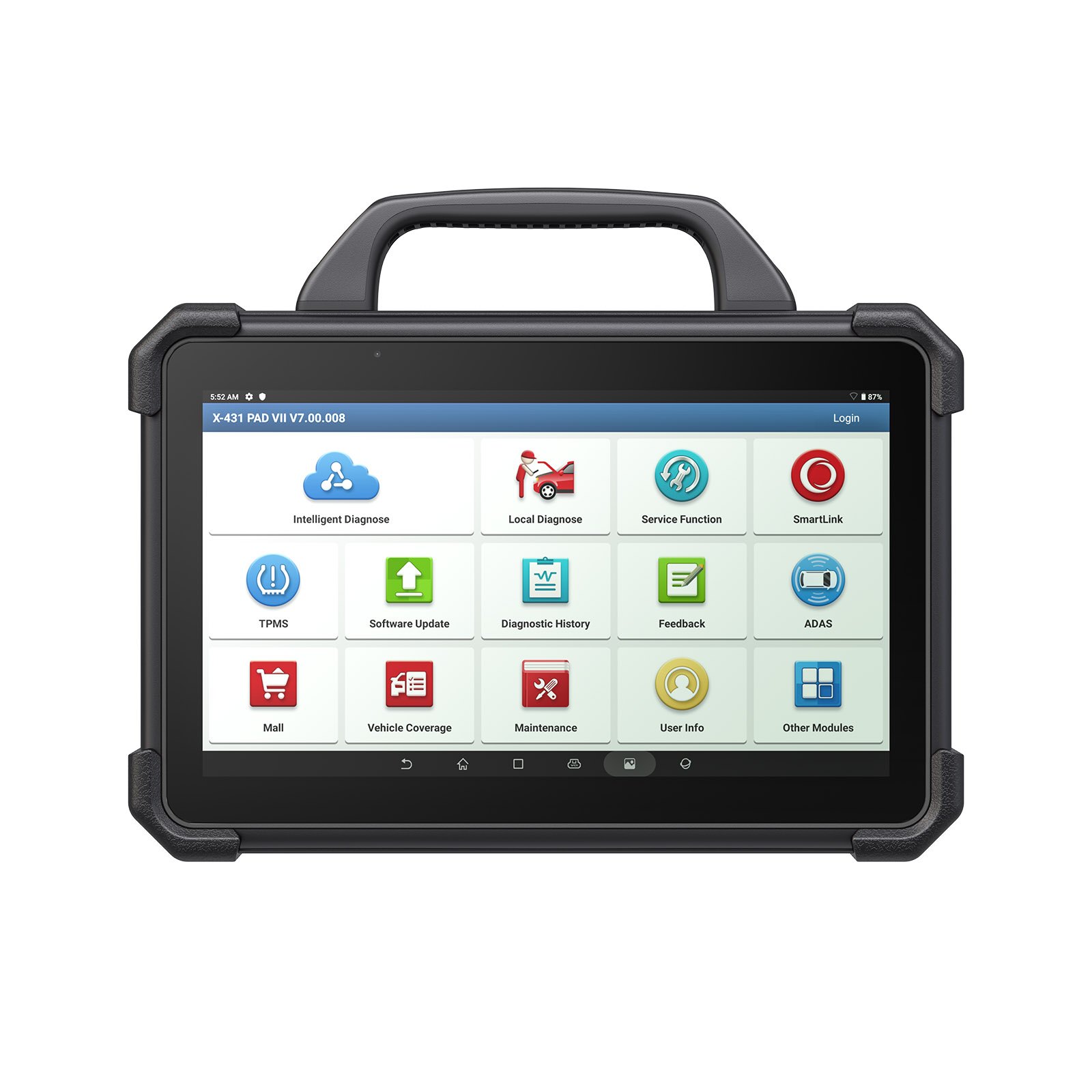

• Hardware: Android 9.0, 2.0GHz Octa-core chipset, 8G memory and 256G storage, 13.3 inch high-definition display, precision-machined outer shell against water and dust in compliance with IP65, high-capacity about 19000 mAh battery with shorter charging time, charging base, dual 2.4GHz and 5GHz Wi-Fi, SmartLink C with SmartLink diagnosis, new MALL module to expand and upgrade with more software

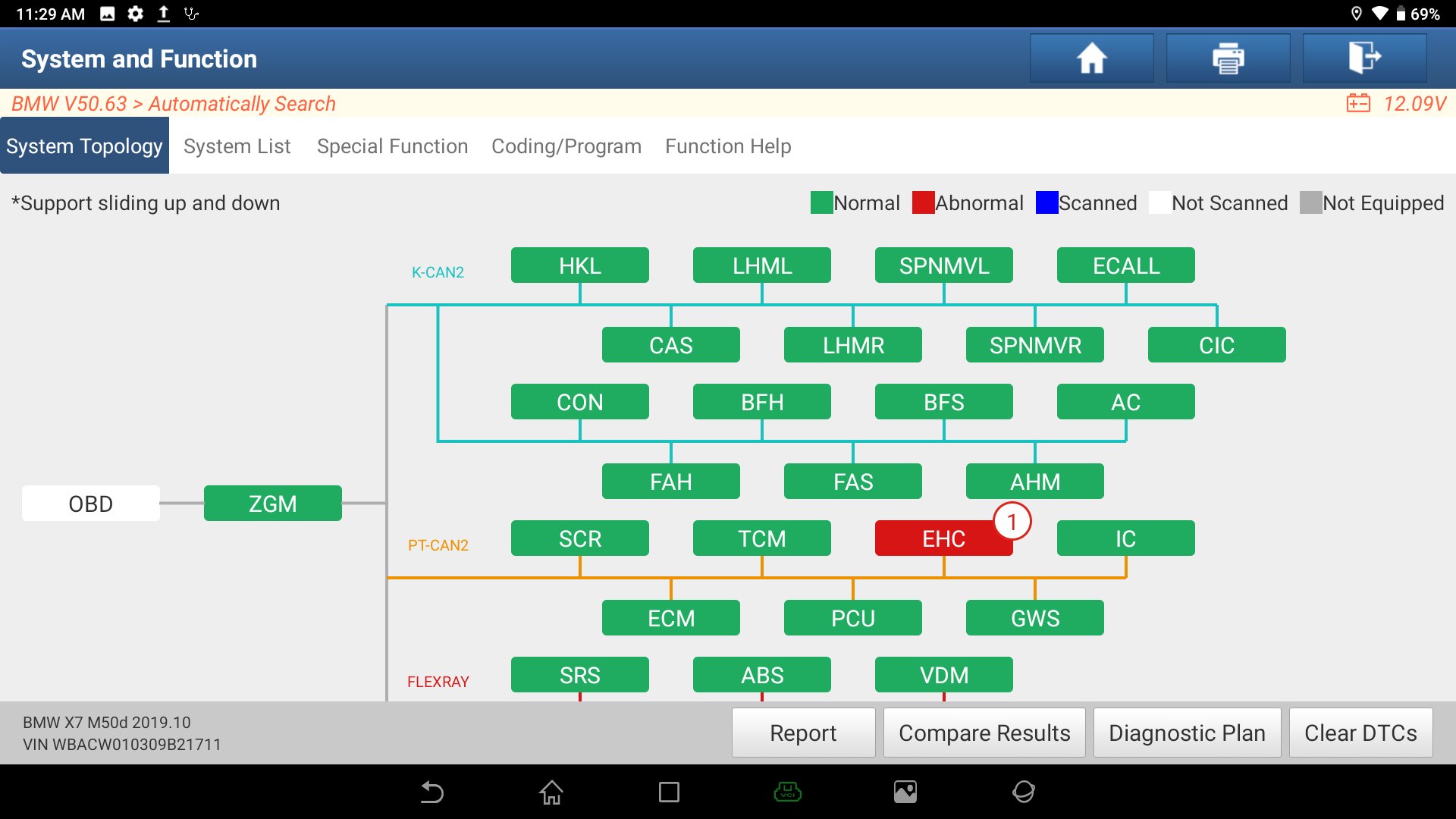

• Topology mapping for visual checking of DTCs and all systems communication status
• Auto detection of vehicle communications protocol and check of OBDII port pin condition
• Intelligent diagnostics with automatic VIN identification and quick system access. Local diagnosis by manual make and model selection when network is not available
• Guided function for VW and Audi
• Optional ADAS calibration function. Accurate ADAS calibration for driver assistance systems including automatic emergency braking, lane departure warning, lane keeping assist, blind spot elimination, night vision camera, and adaptive lighting. ADAS hardware needs to be purchased separately
• Advanced coding and programming function
• Extended support for TPMS service
• Basic functions: read and clear DTC, bidirectional control, live data graph, wireless software update, read data stream with diverse display modes and user-defined standard data stream, actuation test, I and M readiness status display
• Built-in repair information and training video modules to track and fix issues fast

Functions

• Check DTCs and all systems communication status visually by topology module mapping
• Auto detection of vehicle protocol and OBDII connector pin check
• Intelligent diagnosis, read DTC, clear DTC, read data stream, actuation test, with accurate data and special functions

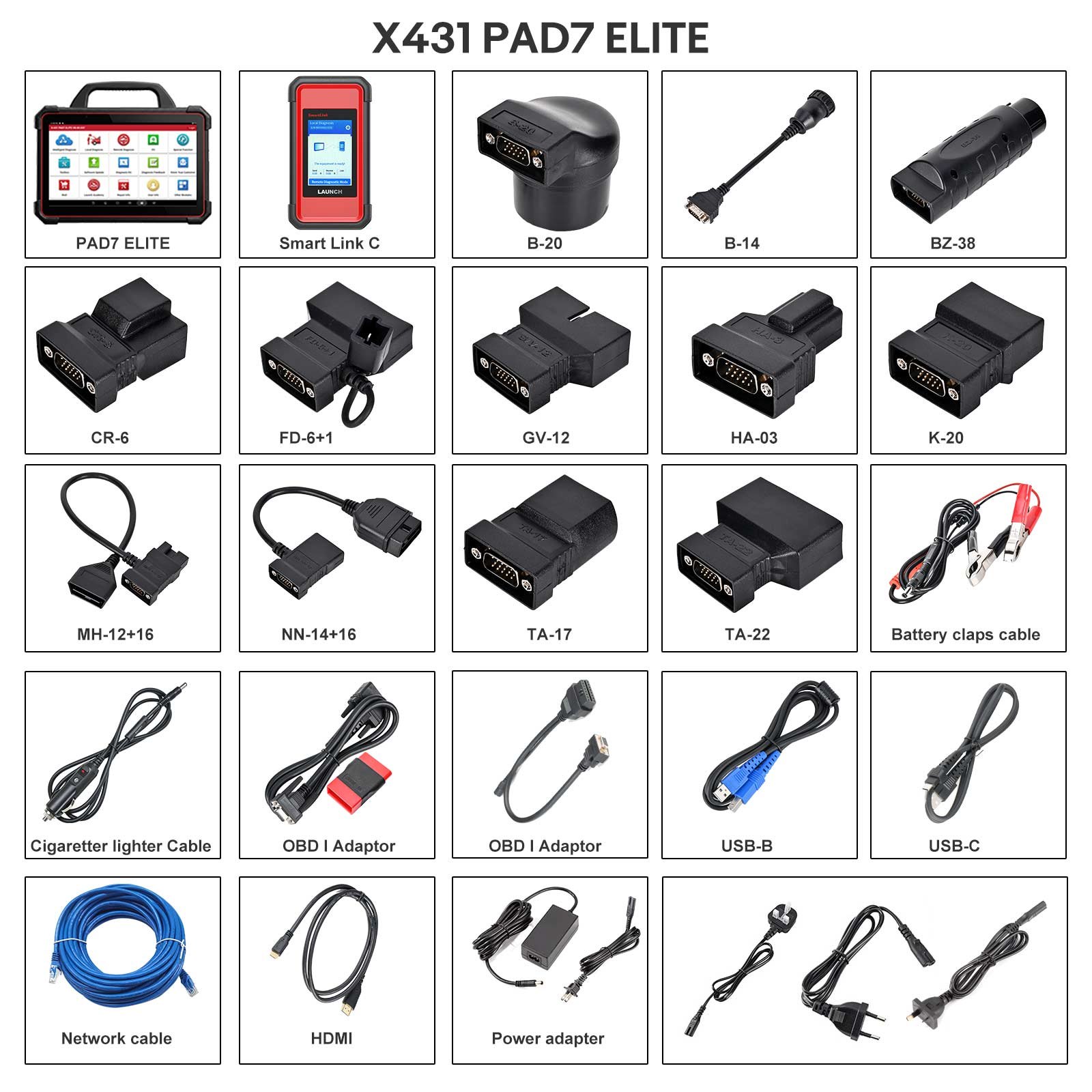

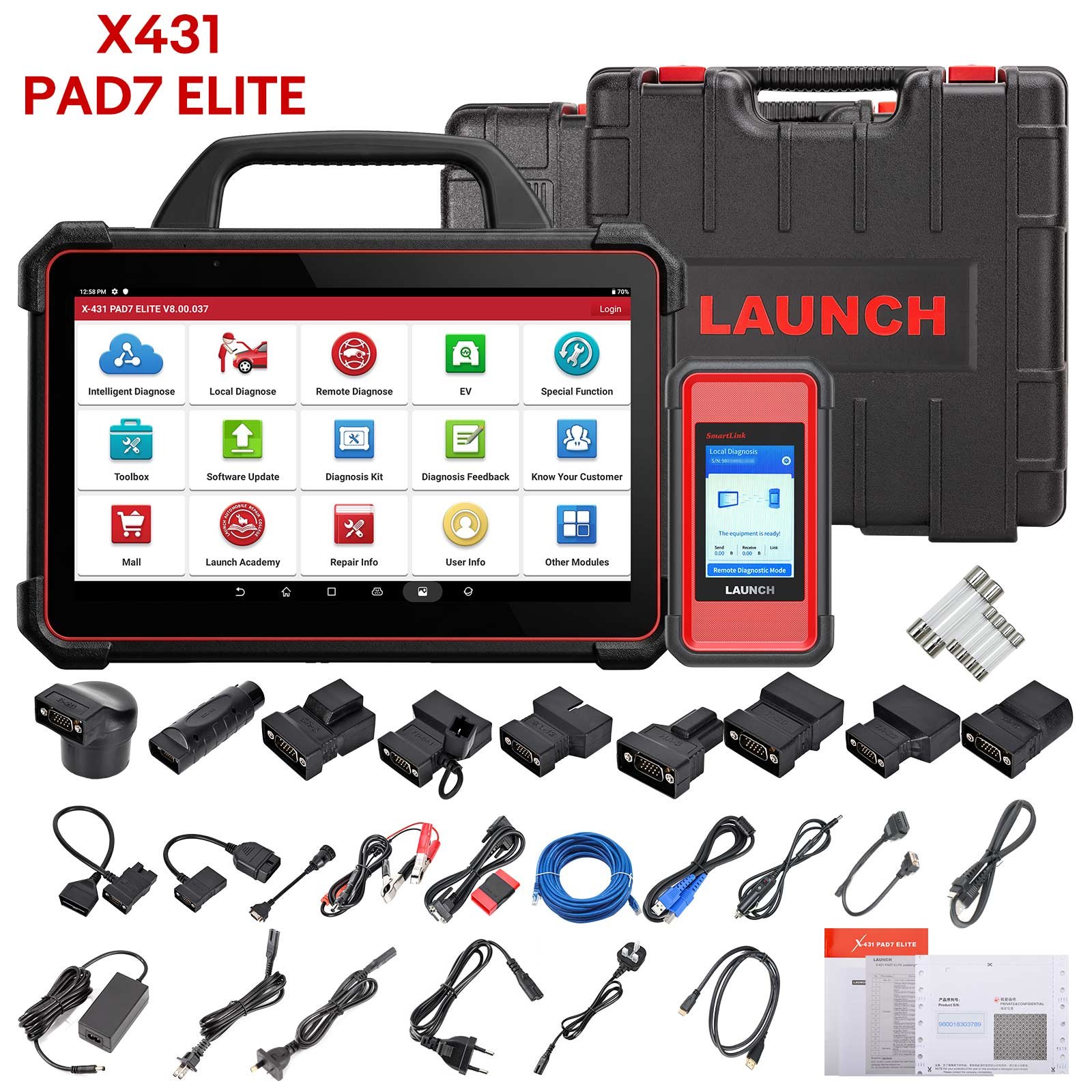

Box contents

Supplier package lists for this bundle were not included in the provided to the selected version for the included adapters and cables.

Notices

PAD VII Elite cannot perform online programming in United States, Canada, Mexico, Portugal, and Spain. Remote Diagnosis cannot be performed in United States, Canada, and Mexico. Buy PAD VII Elite and get a free CRP123X for US, EU, and UK addresses only.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
