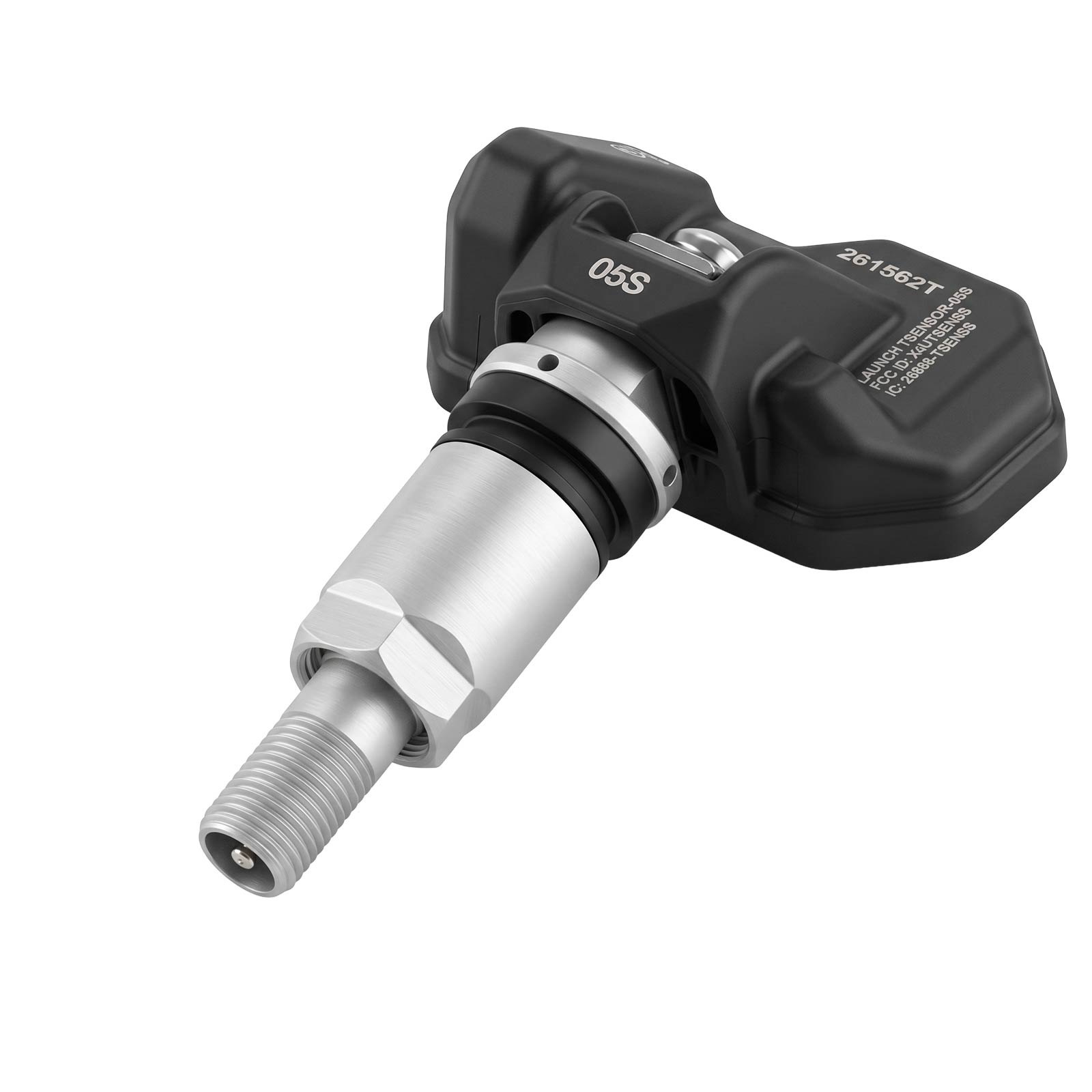

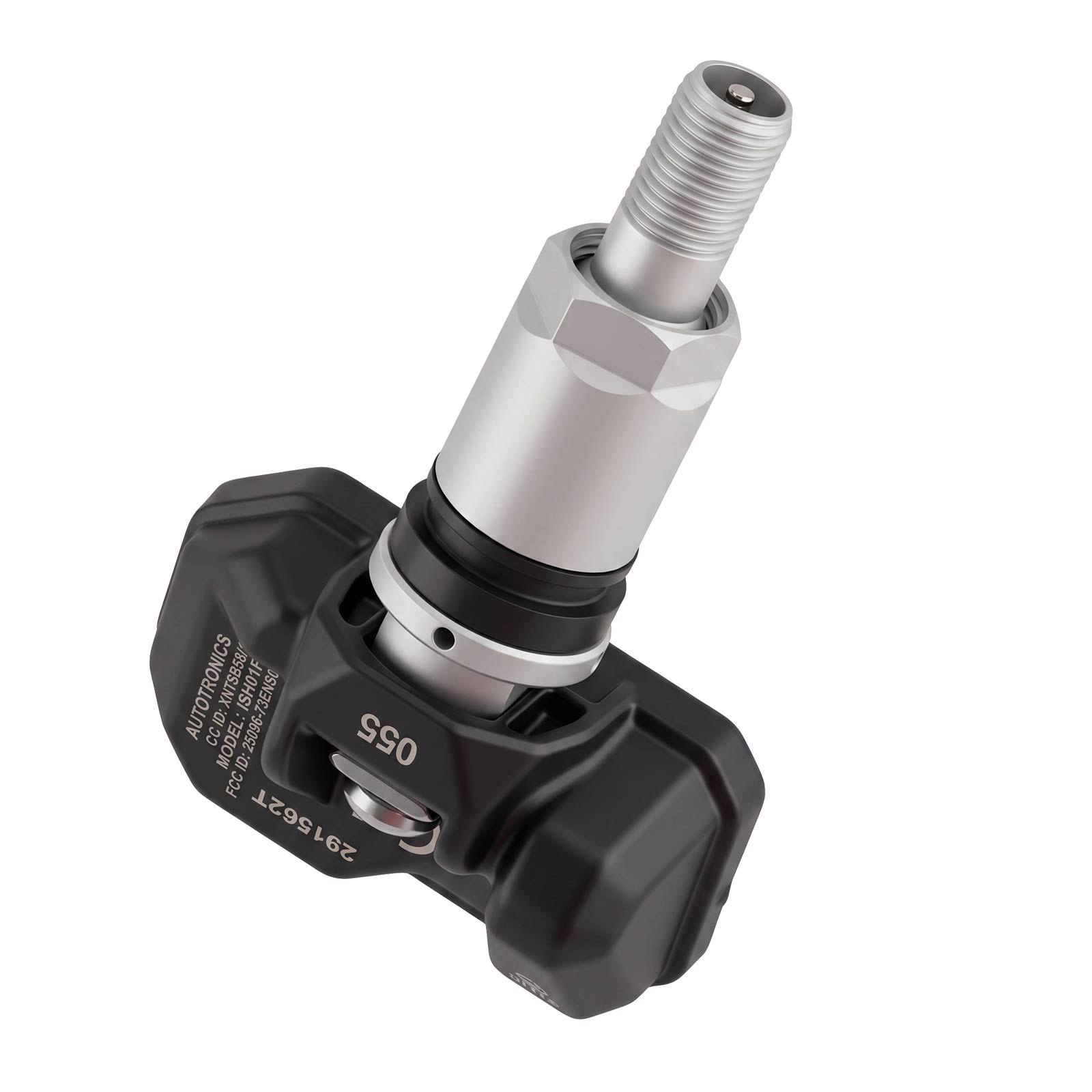

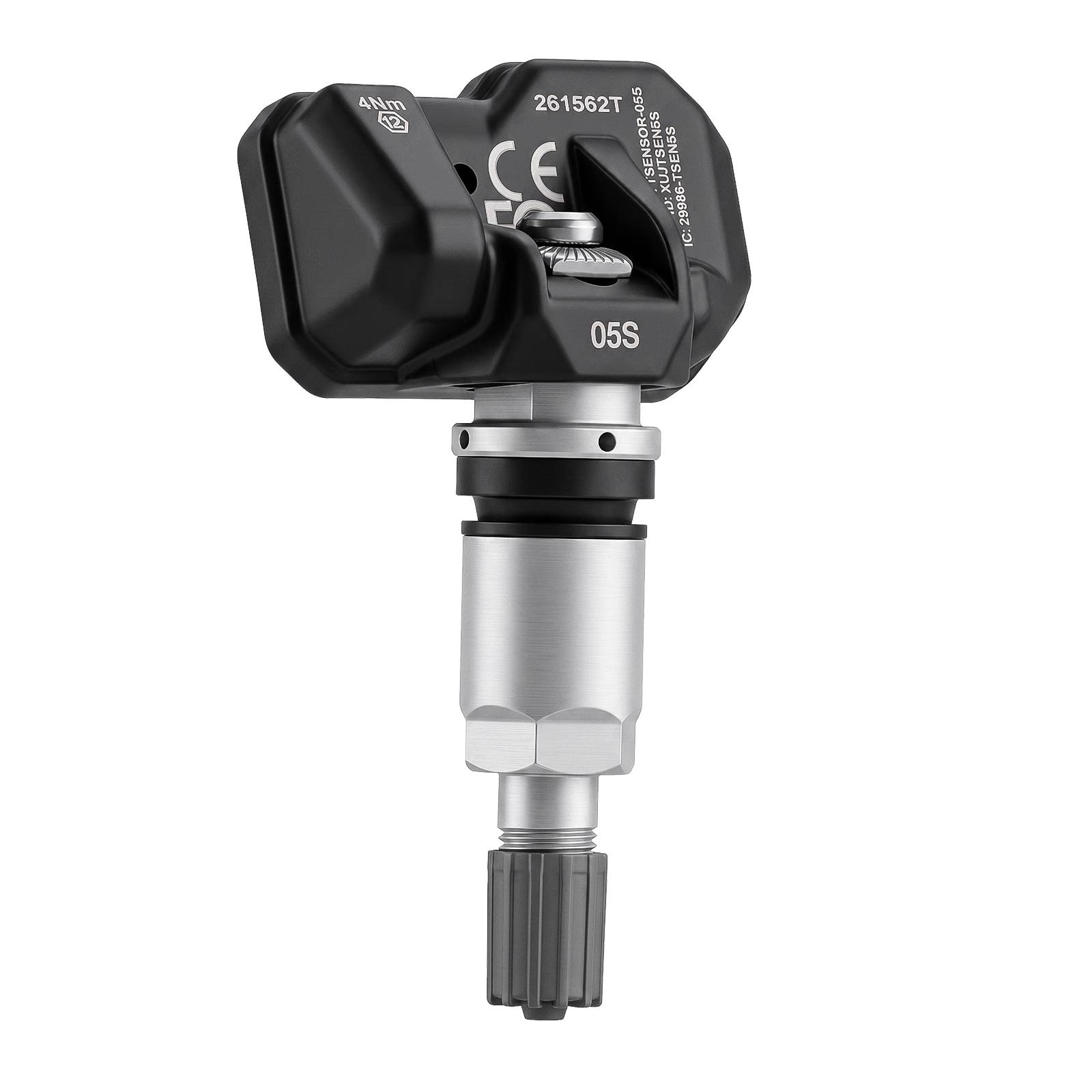

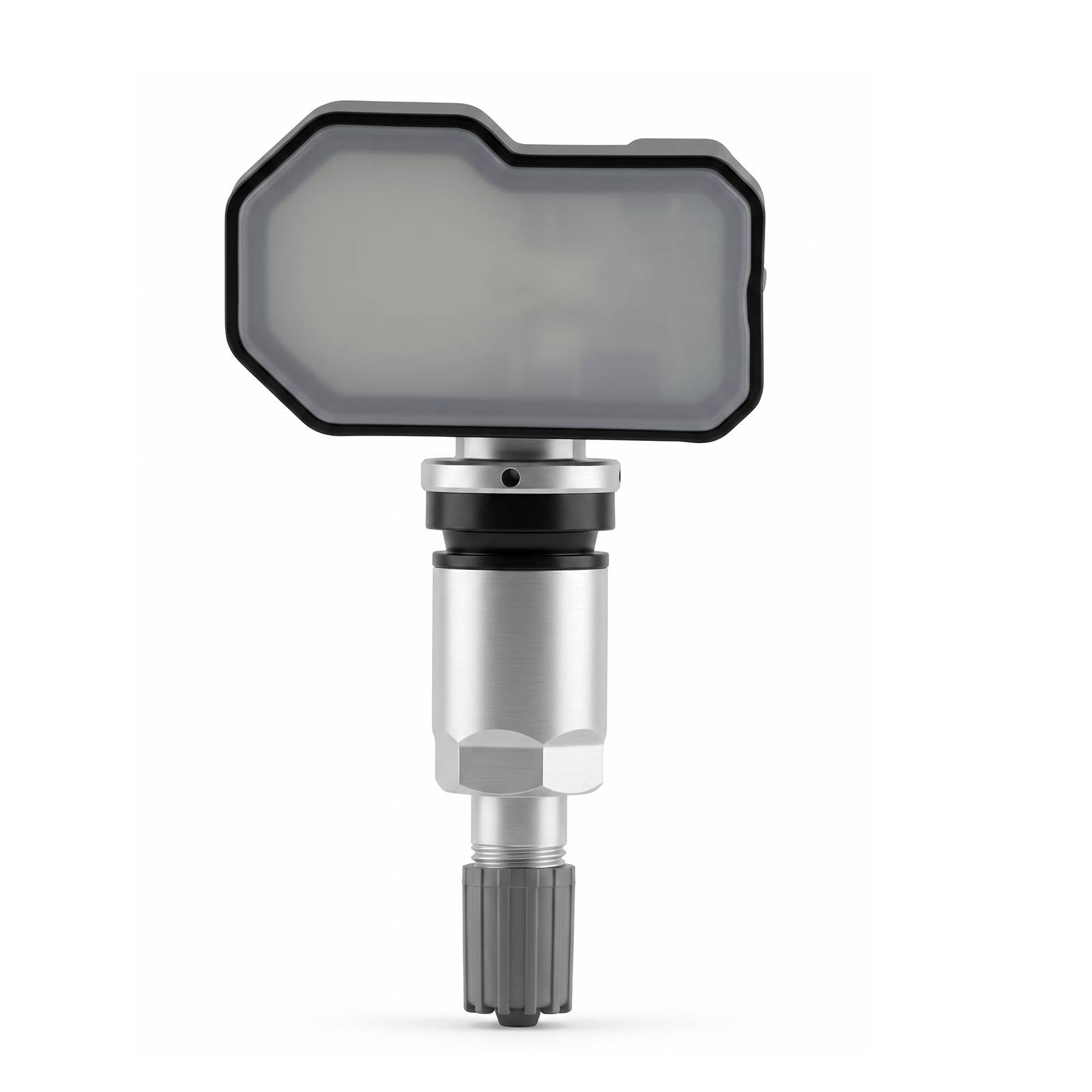

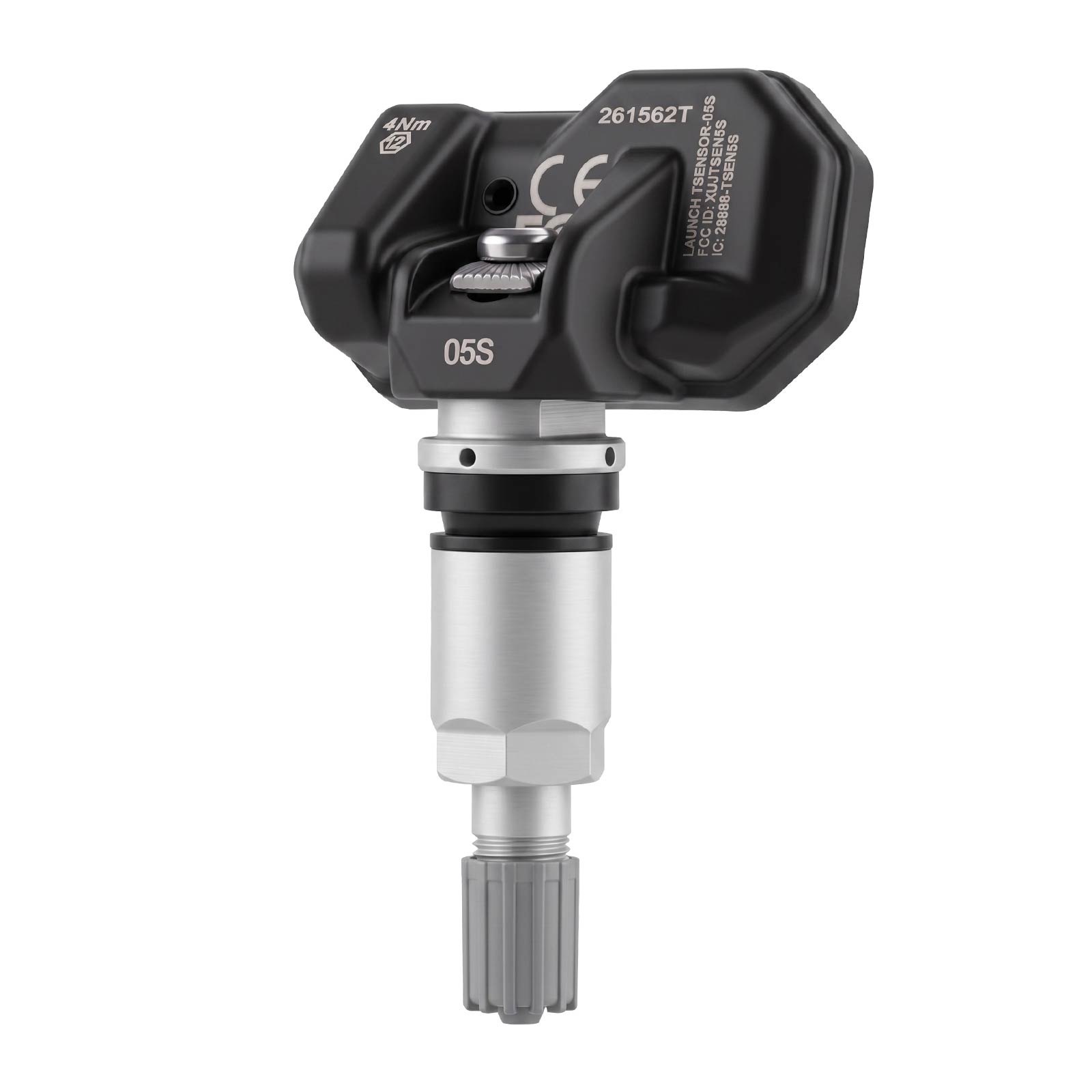

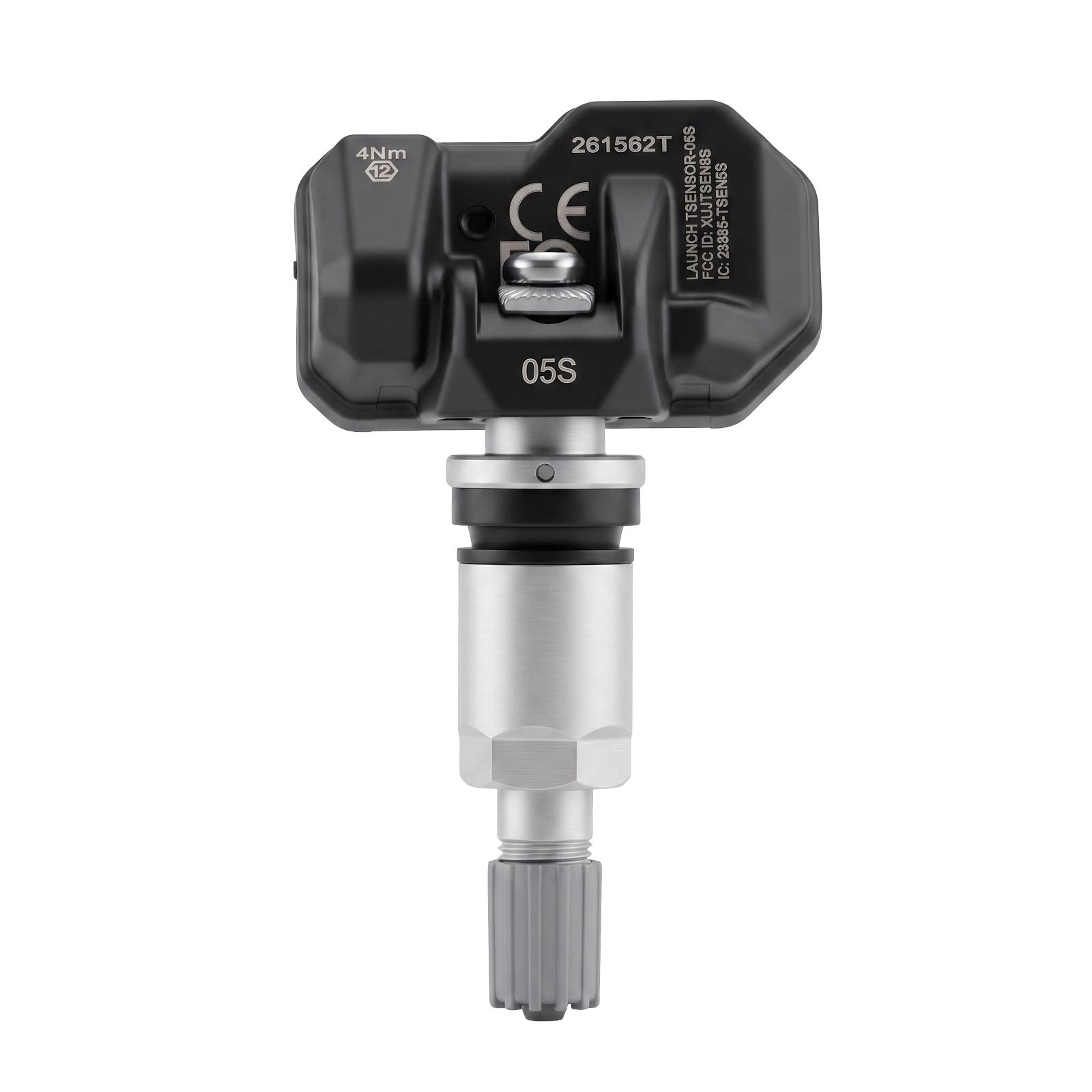

2026 LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum) 4pcs/lot

A four piece lot of Launch TSENSOR-05S RF TPMS sensors in overseas configuration, with adjustable angles and sandblasted silver aluminium bodies. They run at 433MHz or 315MHz, monitor 0 to 800 kPa to within 10 kPa, read temperature to within 5 degrees C, and hold a 345 mAh battery good for four to five years.

Specifications

• Battery Life: 4-5 years / 100,000 km
• Battery Capacity: 345 mAh
• Operating Temperature: -40℃ ~ 125℃
• Storage Temperature: -40℃ ~ 125℃
• Operating Humidity: ≤ 90%
• Transmission Power: 5-8 dBm
• Operating Frequency: 433 MHz / 315 MHz
• Pressure Monitoring Range: 0-800 kPa (1 bar = 100 kPa = 0.1 MPa)
• Pressure Reading Accuracy: ±10 kPa
• Temperature Reading Accuracy: ±5℃
• Dimensions: Approx. 72*51*27 mm
• Weight: < 35 g
• Protection Rating: IP67

What you get

• 4pcs x LAUNCH TSENSOR-05S RF TPMS Sensor
• LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum) 4pcs/lot
• LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)
• Using the second-generation SNP739D81CLE chip from SENASIC, this RF tire pressure sensor is suitable for passenger cars and can replace 98% of original sensors on the market. For the Creader TPMS 5011 V2 model, the TPMS software needs to be upgraded to version V10.54, and the CRT5011E client needs to be upgraded to version V1.50. The use of the second-generation SENASIC SNP739D81CLE mainly addresses the poor LF (low frequency) adaptation issues of the first-generation sensors in several vehicle models, thereby improving sensor compatibility with more vehicle models.
• Dual-frequency integrated design, compatible with 98% of vehicles on the market.
• Performance comparable to OE standards (supports both 315MHz and 433MHz dual frequencies), supports unlimited reprogramming, and features a non-invasive installation design for enhanced durability and convenience.
• Optimized RF antenna for exceptional signal transmission.
• Aluminum alloy sandblasted silver valve stem supports 30-degree angle adjustment.
• Model
• LAUNCH TSENSOR-03
• LAUNCH TSENSOR-05
• LAUNCH TSENSOR-05S
• LAUNCH TSENSOR-05N
• Chip Type
• SNP739D01CLE
• SNP739D81CLE
• NXP NTM88H135T1
• SNP74601CLE (Bluetooth sensor)
• 45S/per sensor
• 25S/per sensor
• 8S/per sensor
• Currently only 1 sensor
• 4 sensors (Requires upgrading the APP main program to version V1.50)
• 8 sensors (Requires upgrading the APP main program to version V1.25)
• Acceleration (G) Sensor Reading Accuracy: ±15%

Four sensors is one car, which makes this the pack size a tyre bay orders per job.
