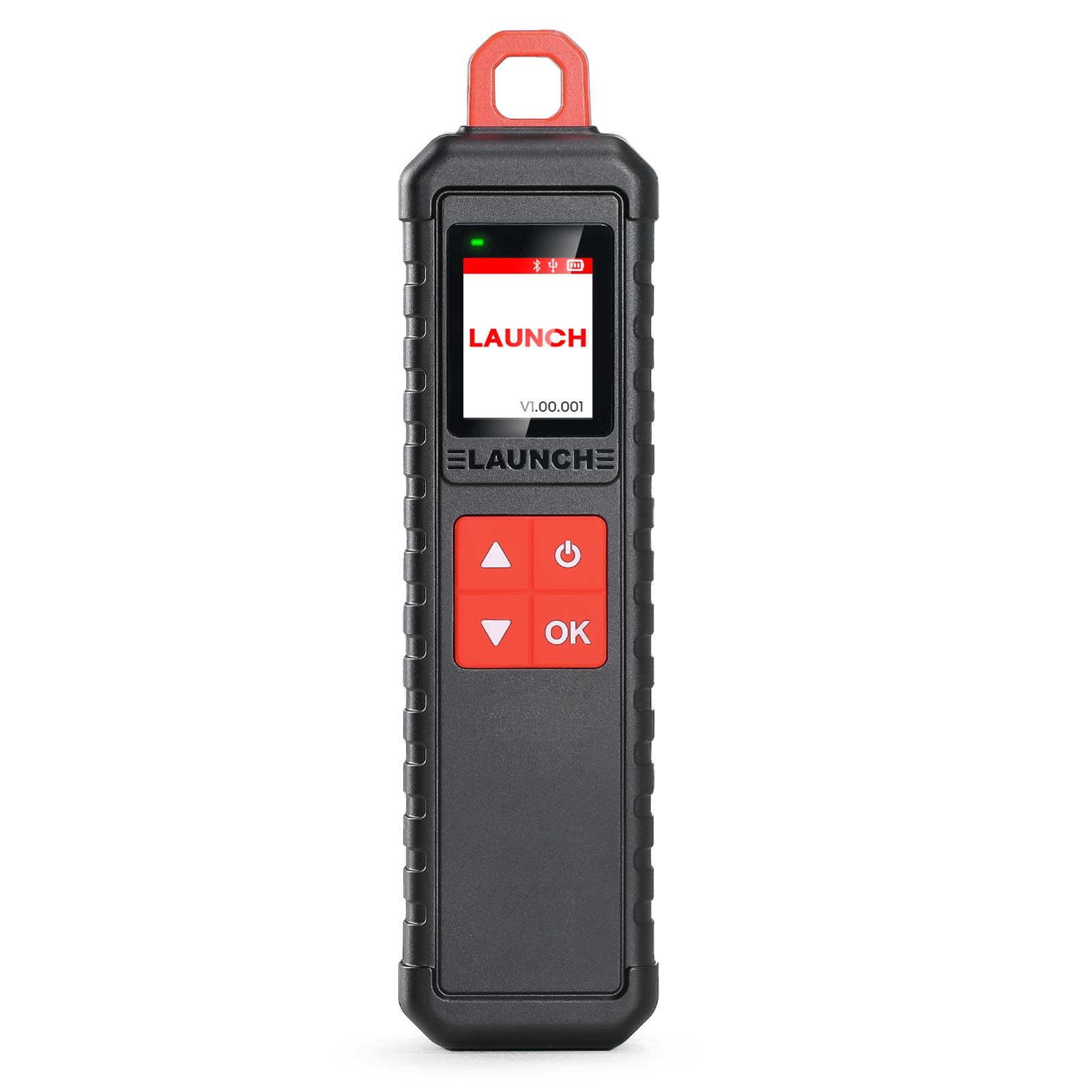

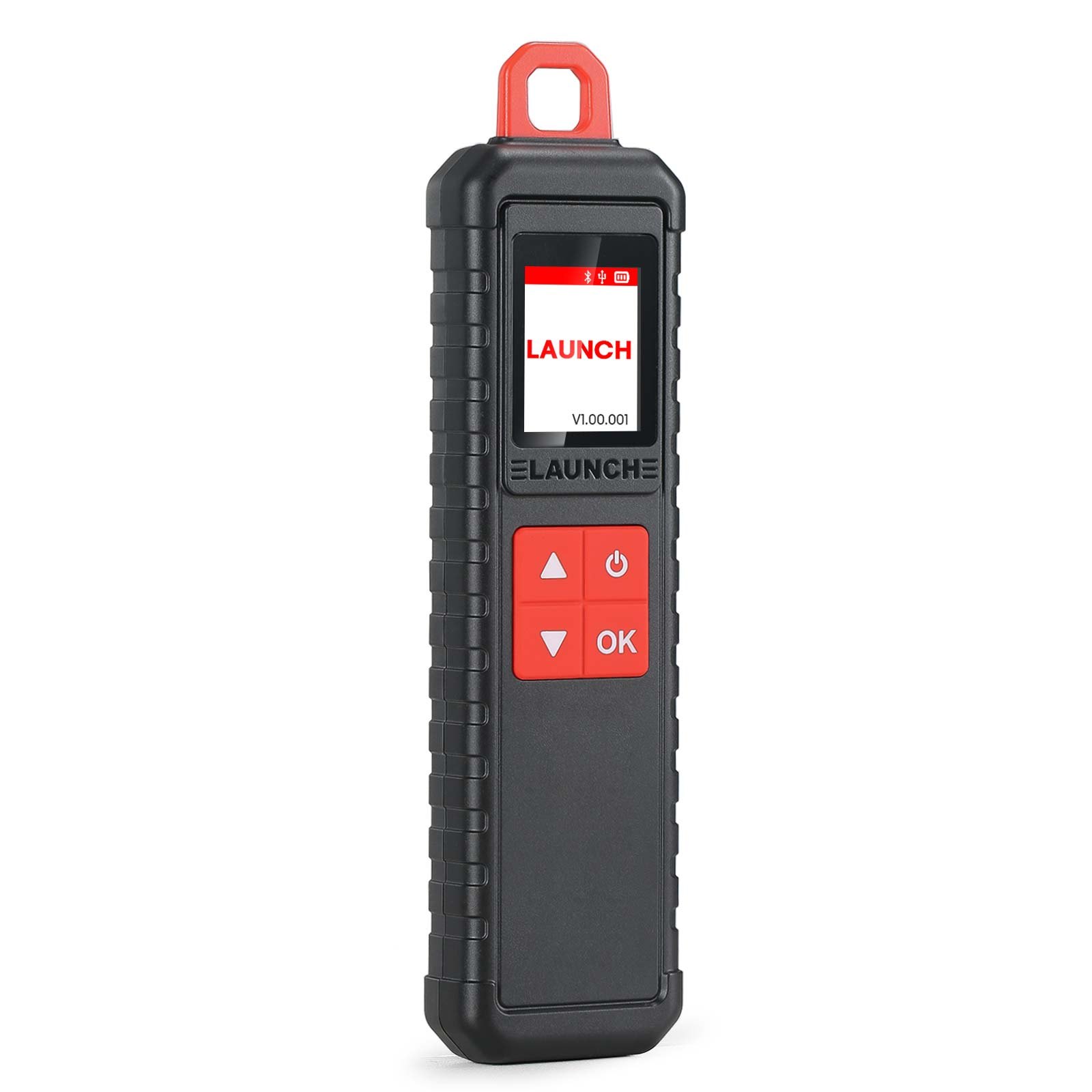

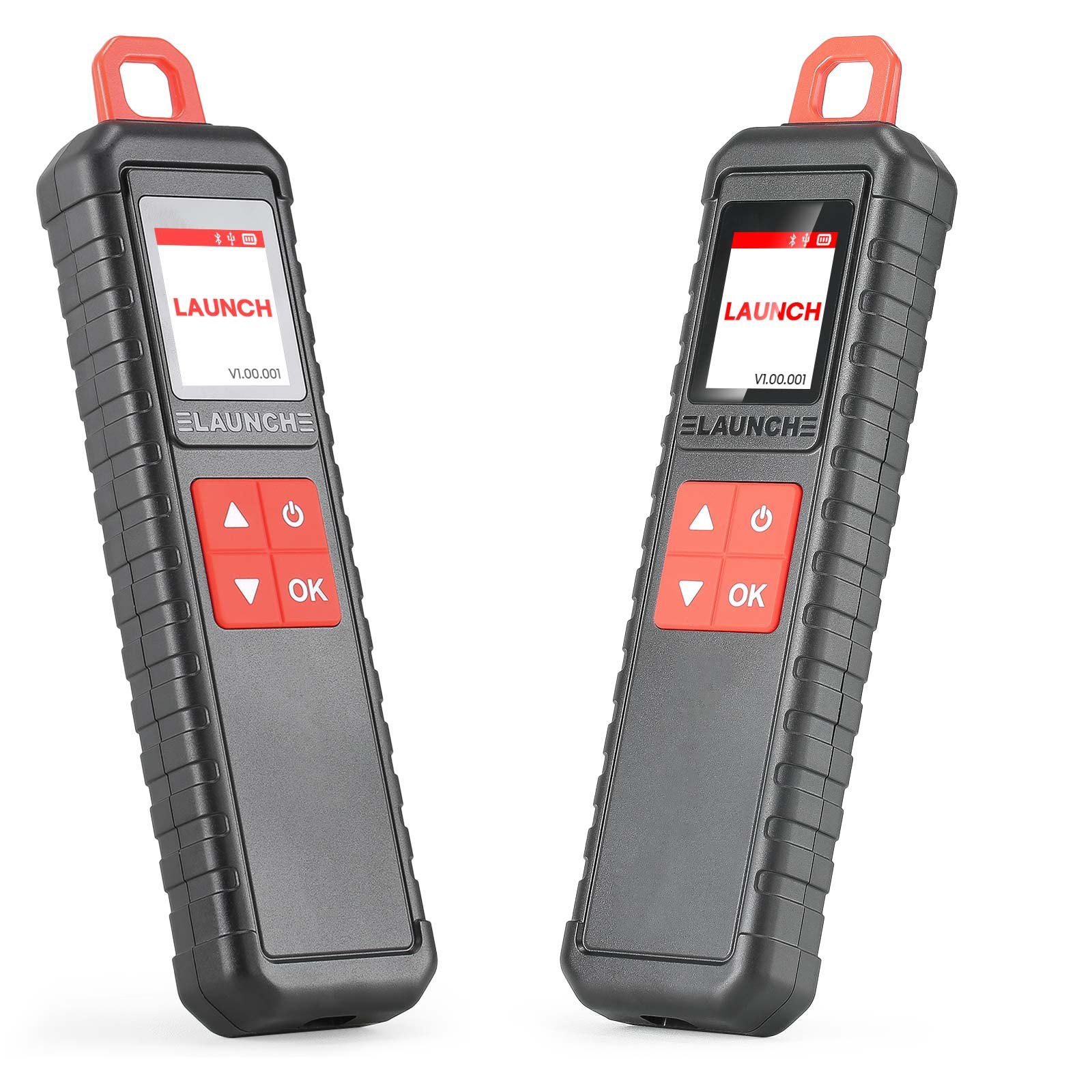

2026 Launch i-TPMS Handheld TPMS Service Tool Can be Binded with X-431 Scanner and the i-TPMS APP Supports All 315/433MHz Sensors

The Launch i-TPMS handheld TPMS service tool, which binds to an X-431 scanner and to the i-TPMS app and supports all 315 and 433MHz sensors. Sensor IDs are auto created at a button press, entered by hand, copied by OBD or copied by activating the original sensors first.

Specifications

• Auto Create: user can generate the sensor ID by click auto button
• Manual Input: x431 tsgun support manually input the original ID or other ID.
• Copy by OBD: it needs to connect OBD cable to retrieve the sensor ID from the ECU.
• Copy by Activation: it requires activate the original sensors first.

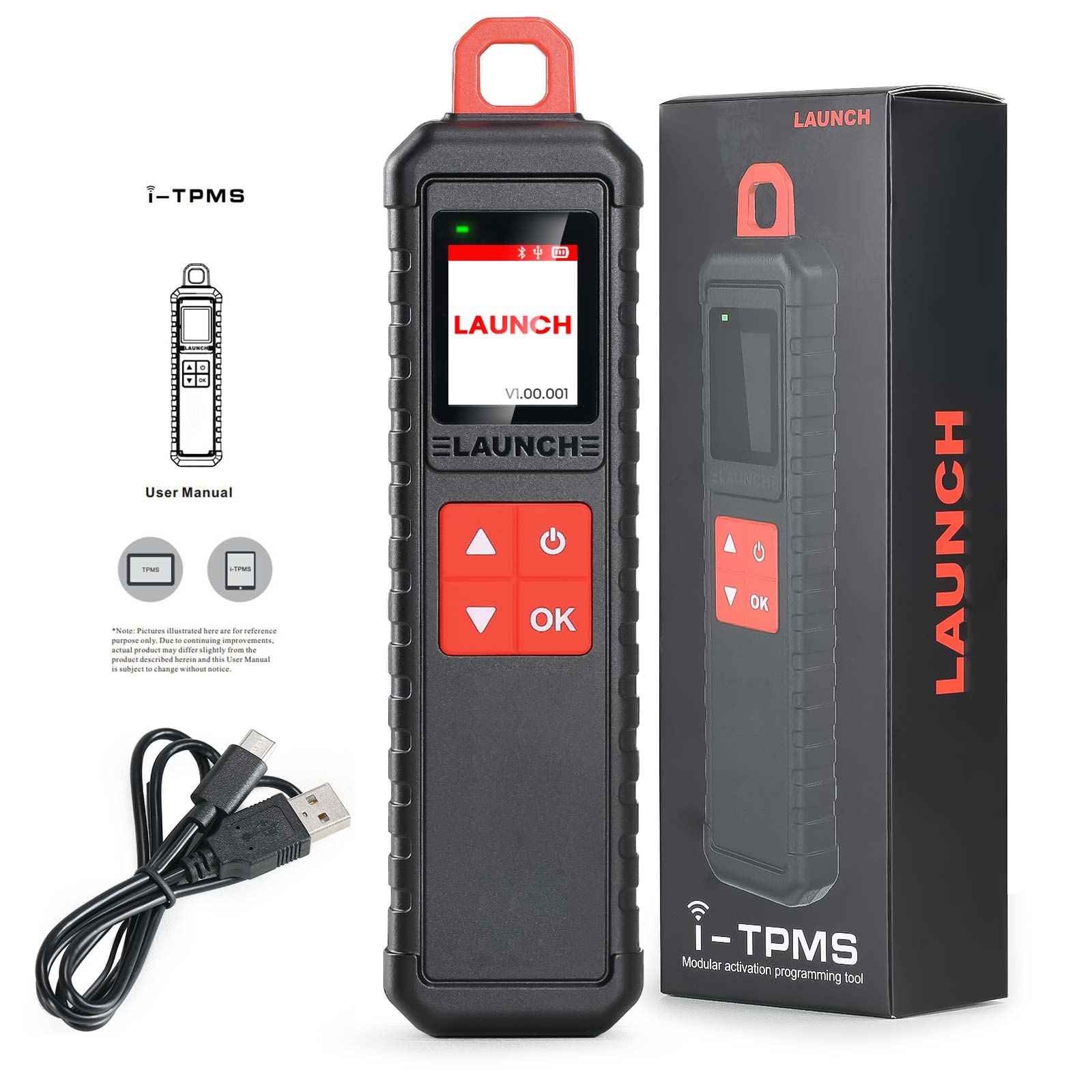

What you get

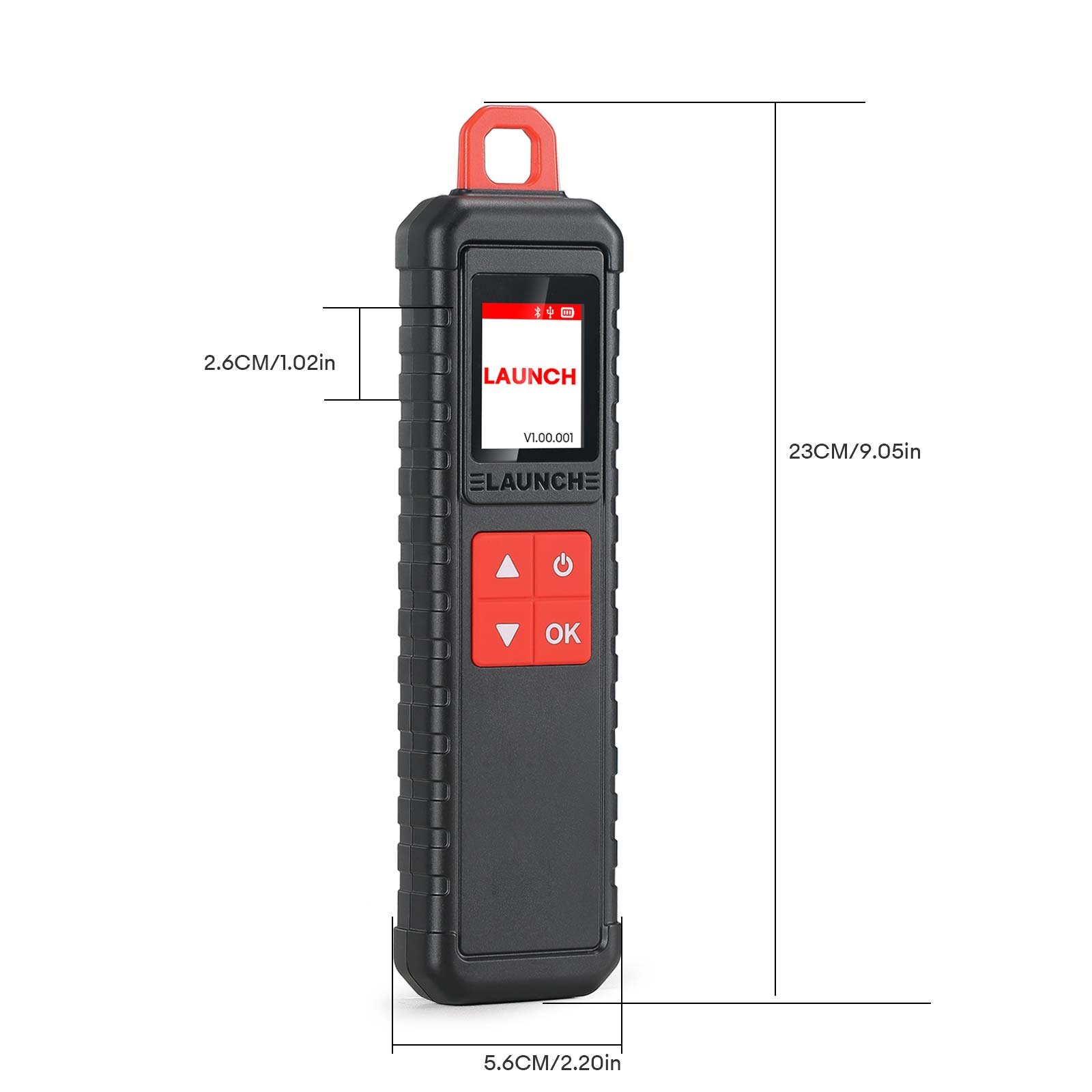

• 252*54*30 (mm)
• 1pc x i-TPMS device
• 1pc x charging cable
• 1pc x manual

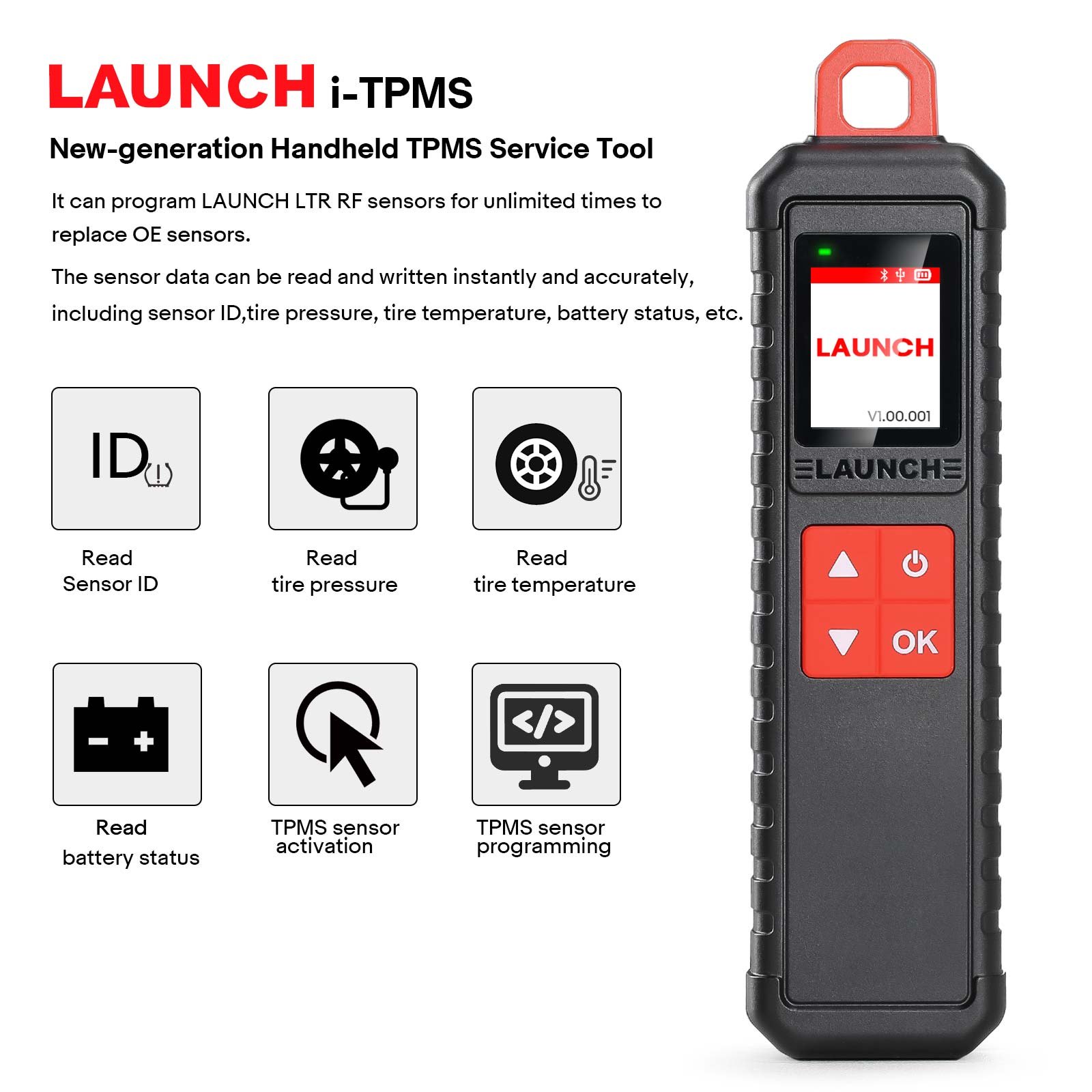

• Launch i-TPMS provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors. The sensor data can be read instantly and accurately, including sensor ID, tire pressure, tire temperature, battery status, etc
• Launch i-TPMS Handheld TPMS Service Tool Can be Binded with X-431 Scanner and the i-TPMS APP Supports All 315/433MHz Sensors
• The i-TPMS serves over 98% of mainstream vehicles with a TPMS-equipped system available on the market.

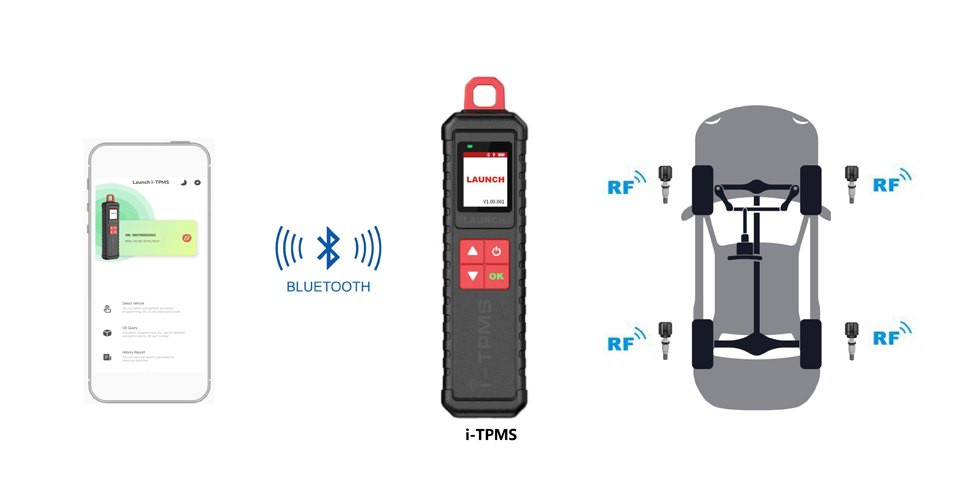

• Experience TPMS service by binding it with an X-431 scanner or using it standalone with the i-TPMS APP.
• Supports all 315/433MHz sensors.
• Binding it with an X-431 scanner: Activation, Programming, Relearn and Diagnosing for sensors.
• The standalone mode working with the i-TPMS app: Activation and Programming for sensors.
• Supports unlimited programming for LAUNCH sensors to replace OE sensors.
• Replace the Launch X-431 TSGUN TPMS Tire Pressure Detector
• What is the Difference Between Launch i-TPMS and Launch X-431 TSGUN?
• They are all support 315/433MHz sensors's activation,programming,relearning and diagnosis.
• Launch X-431 TSGUN must be conbine with the x431 series scanners,while the Launch i-TPMS can work standalone via i-tpms app in your Android phone.
• Launch i-TPMS can not only be selected by car brand and model but can be selected by OE part number directly and faster,while the Launch X-431 TSGUN can only support be selected by car brand and model.
• Launch i-TPMS support multiple online repair resources including Operating Skills,DTC Help,Tech Handbook,Repair Case,Tire Pressure Maintenance Database for you to diagnostic and repair.
• Brand new mode, combined with i-TPMS mobile APP can
• Query sensor OE part number
• i-TPMS App Download (Only for Android Smartphone users)

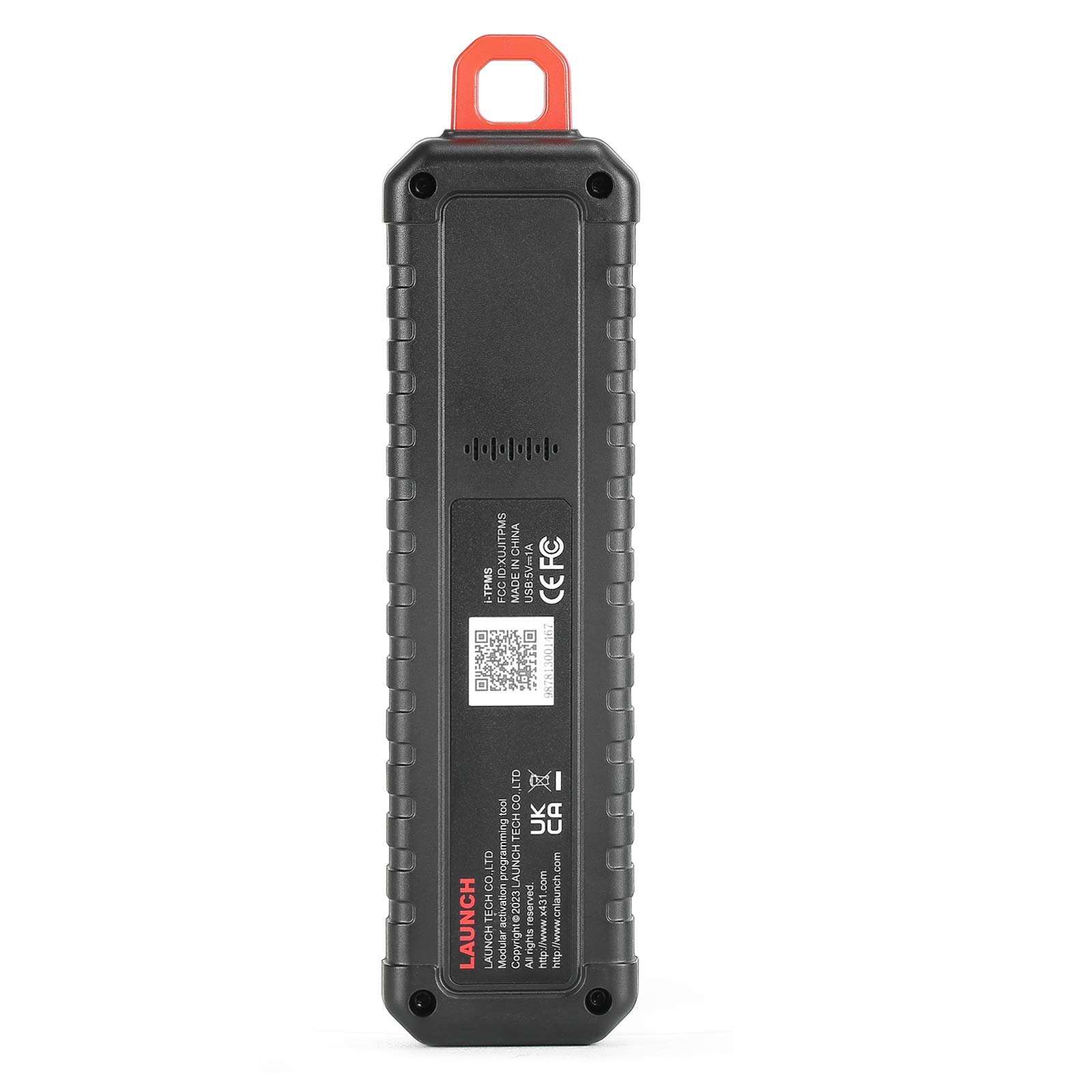

• For Android system smartphone user, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on the phone.
• Reads sensor data including sensor ID, tire pressure, temperature, battery condition ect.
• Read/Clear fault codes for tpms system, allows you clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults;
• Automatic Relearn, for some vehicles, can be completed by driving. Refer to the on-screen learning steps to do the operation.
• OBD Relearn directly writes TPMS sensor IDs to the TPMS module via the OBD connector. To perform relearn by OBD, firstly activate all sensors, and then use the diagnostic tool together with the included VCI to complete the learning steps following the on-screen instructions.
• 1.77'', 168*128
• Battery
• 2000mAh
• OBDII Input Voltage
• 9V ~ 18V
• DC Input Voltage
• DC 5V
• ≤1A
• 10℃~50℃
• 20℃~60℃
• Dimension

Binding it to an existing X-431 keeps TPMS work on the tool a workshop already knows how to drive.
