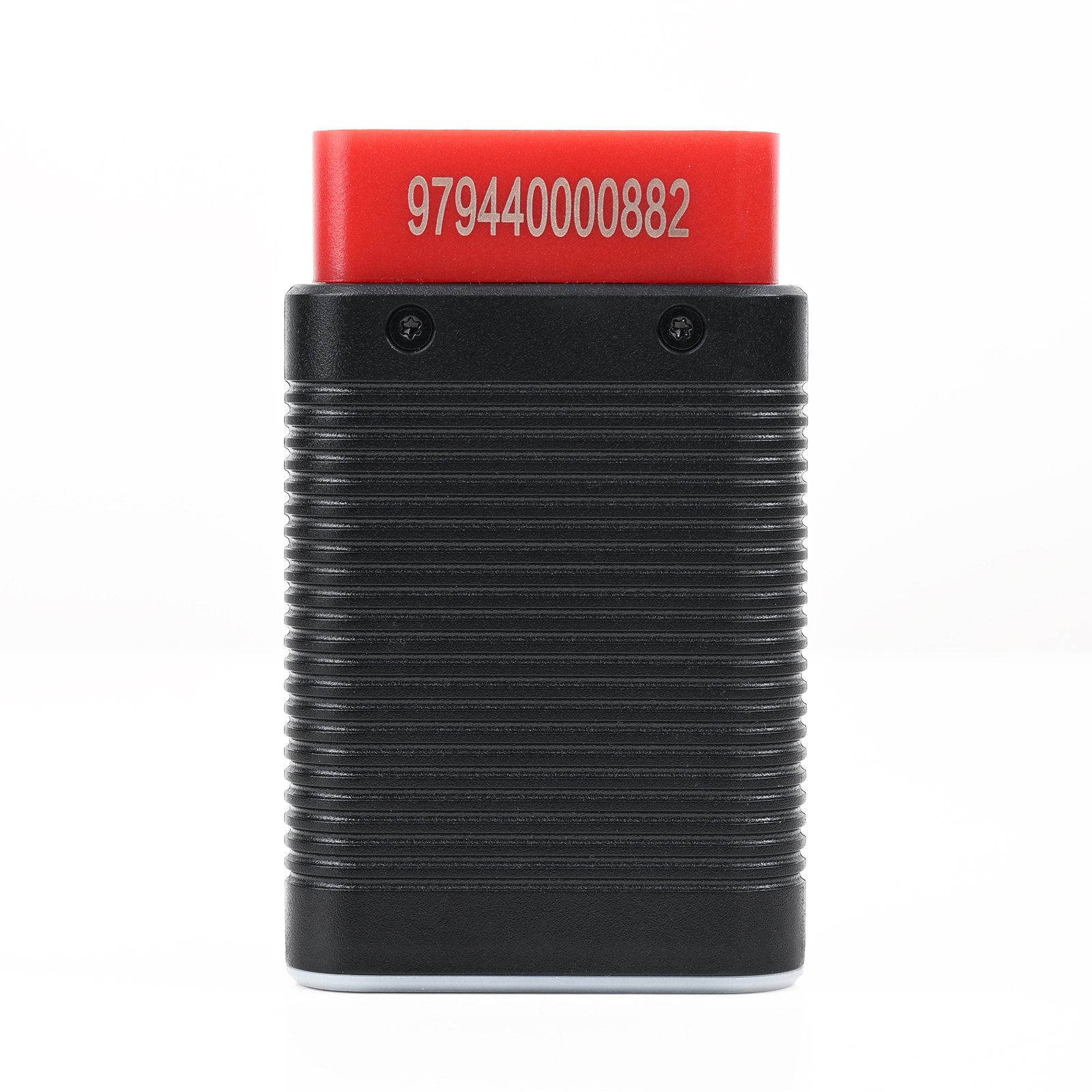

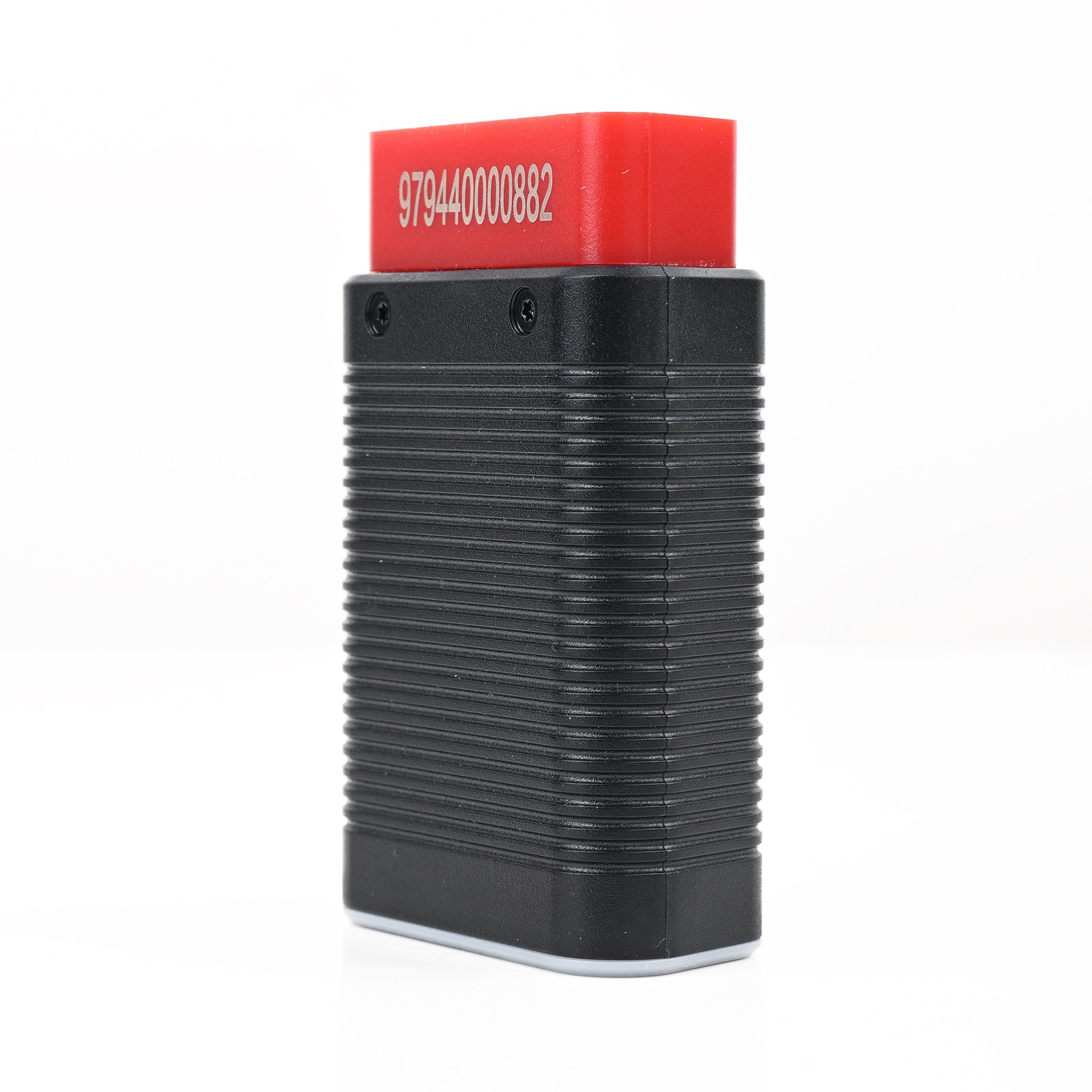

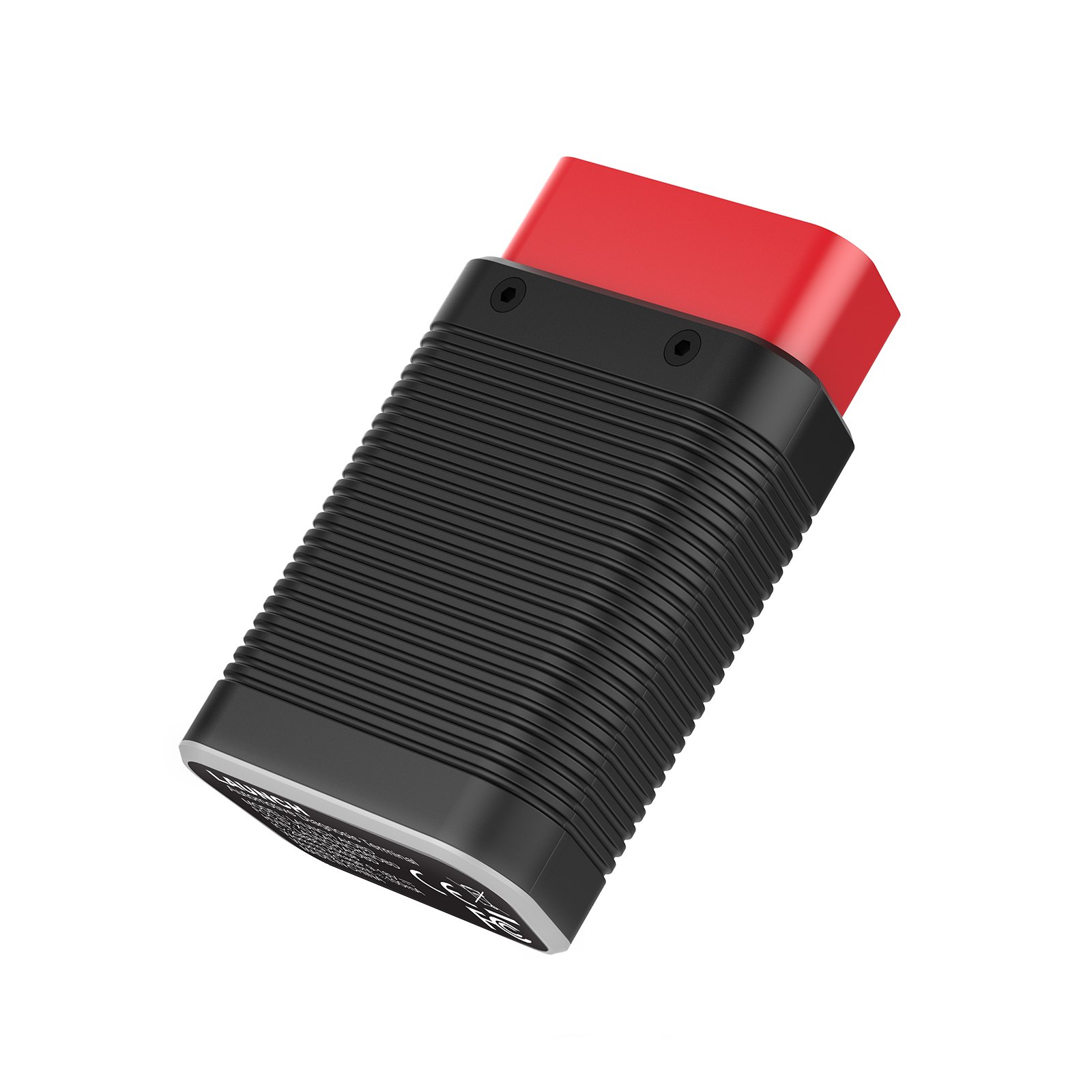

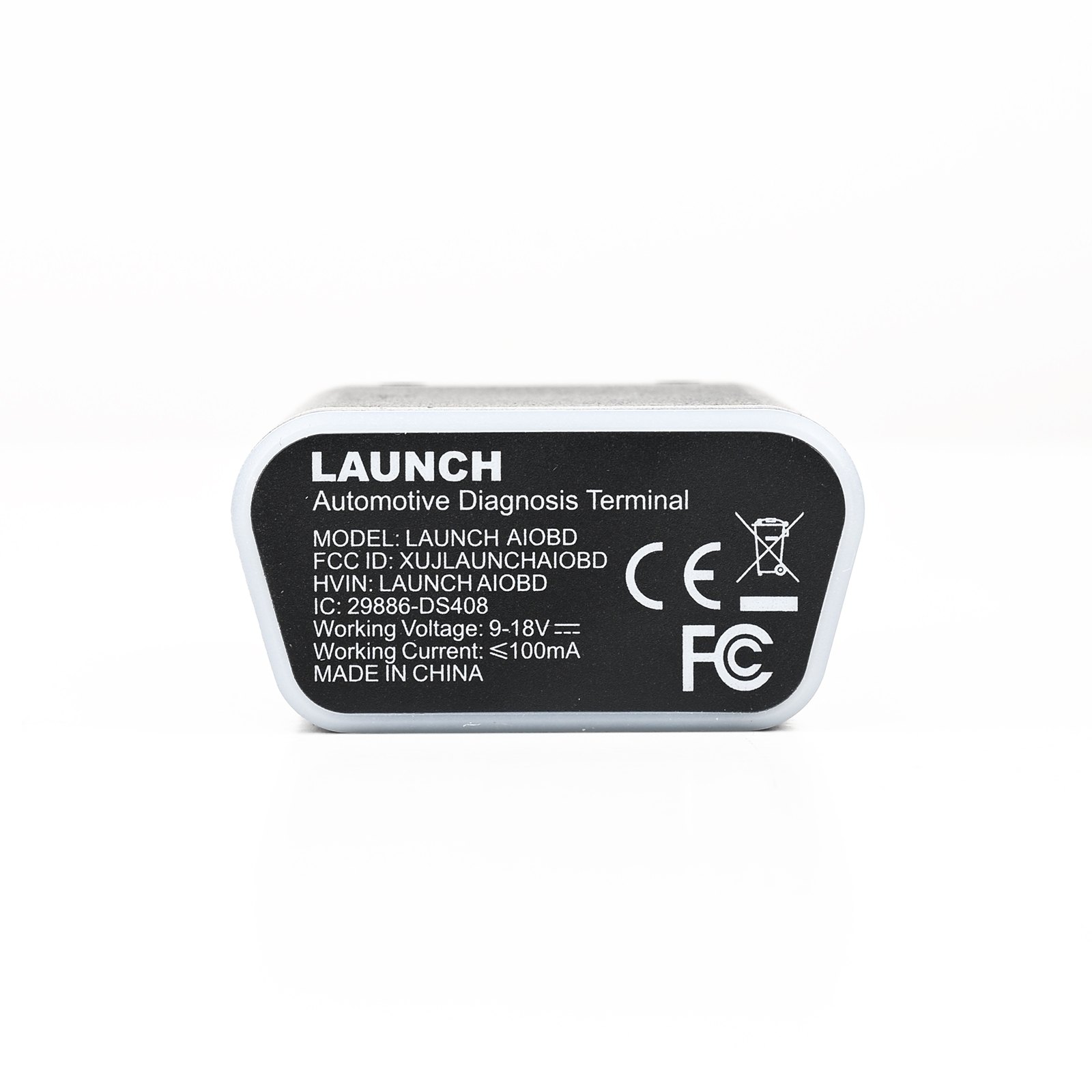

2026 LAUNCH AIOBD (NueraDiag) Automotive Diagnosis Terminal Global Version

The Launch AIOBD, also badged NueraDiag, an automotive diagnosis terminal in global version. It runs a GD32F405 MCU on DC 9 to 18V drawing under 100mA at 12V, connects over Bluetooth, supports CAN and K-line, measures 74 by 47.1 by 24mm and works from minus 10 to 50 degrees C.

Specifications

• MCU: GD32F405
• Operating voltage: DC 9-18V
• Operating current: ≤100mA @12V DC
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 70°C
• Storage humidity: 10% to 93%
• Dimensions: 74*47.1*24mm
• Communication method: Bluetooth
• CAN: support
• K-line: support

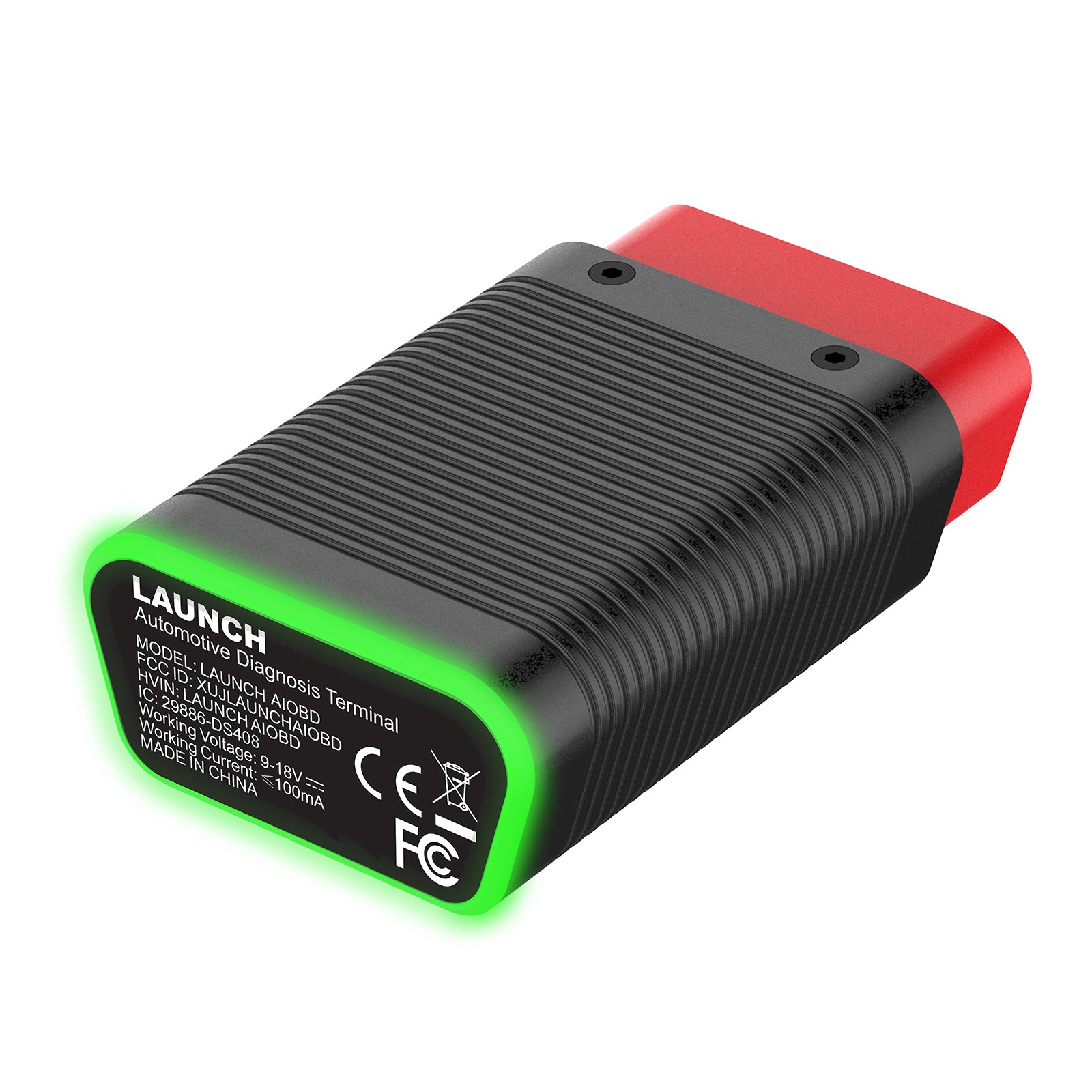

• Green light: Connector powered
• Blue light: Bluetooth connected
• Blue light: Flashing: Bluetooth communication
• Red light: Upgrade unsuccessful

What you get

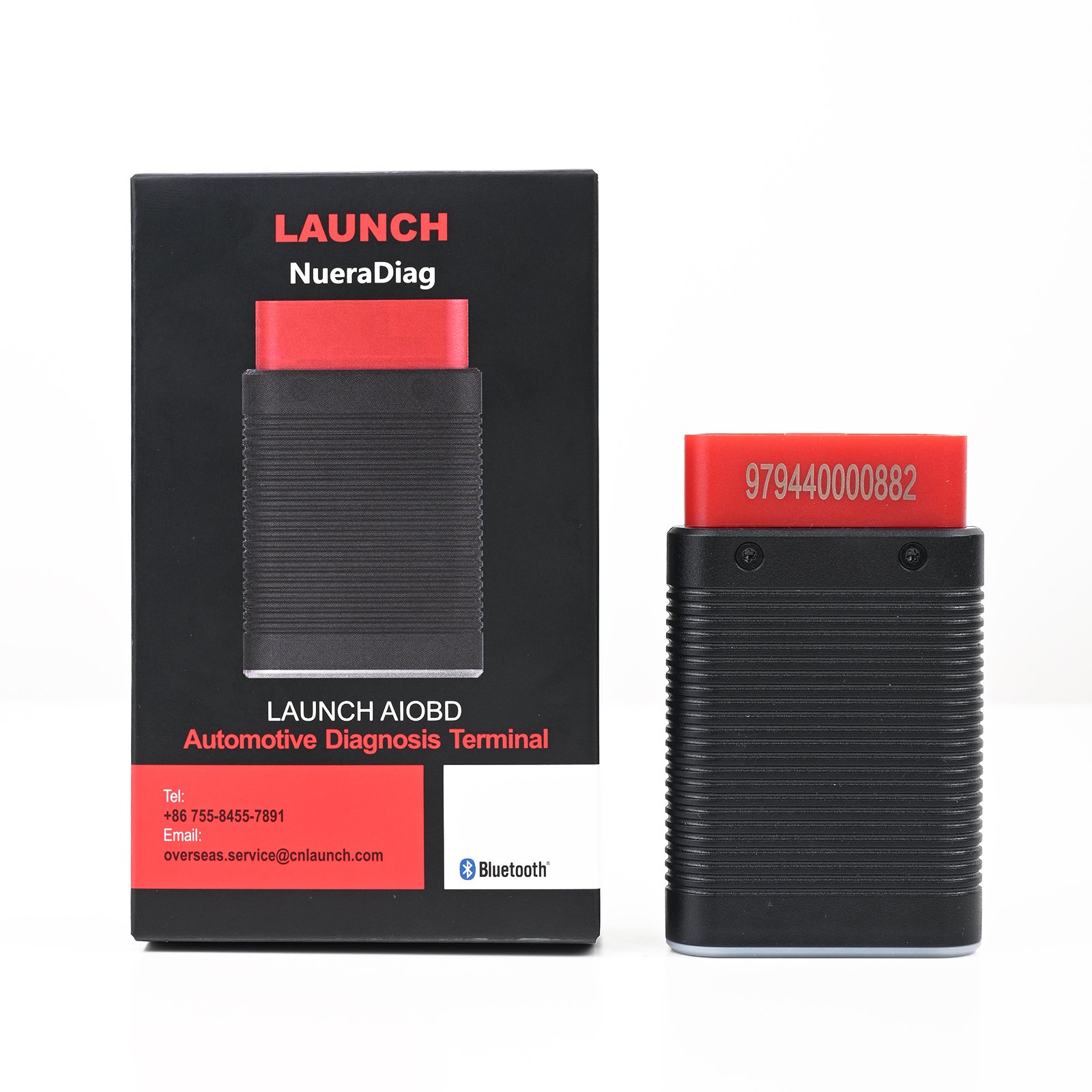

• 1pc x LAUNCH AIOBD Automotive Diagnosis Terminal Global Version
• For iOS devices, search for "LAUNCH AIOBD" in the official App Store.
• For Android devices, search for "LAUNCH AIOBD" in the official Google Play store.
• New users automatically search for connectors to activate and register, NO need for manual activation.
• Generate a comprehensive OBD static data report with one click. Supports ten OBD modes, Smog Check, and OFBCM. Reports can be generated and shared, and are free for life.

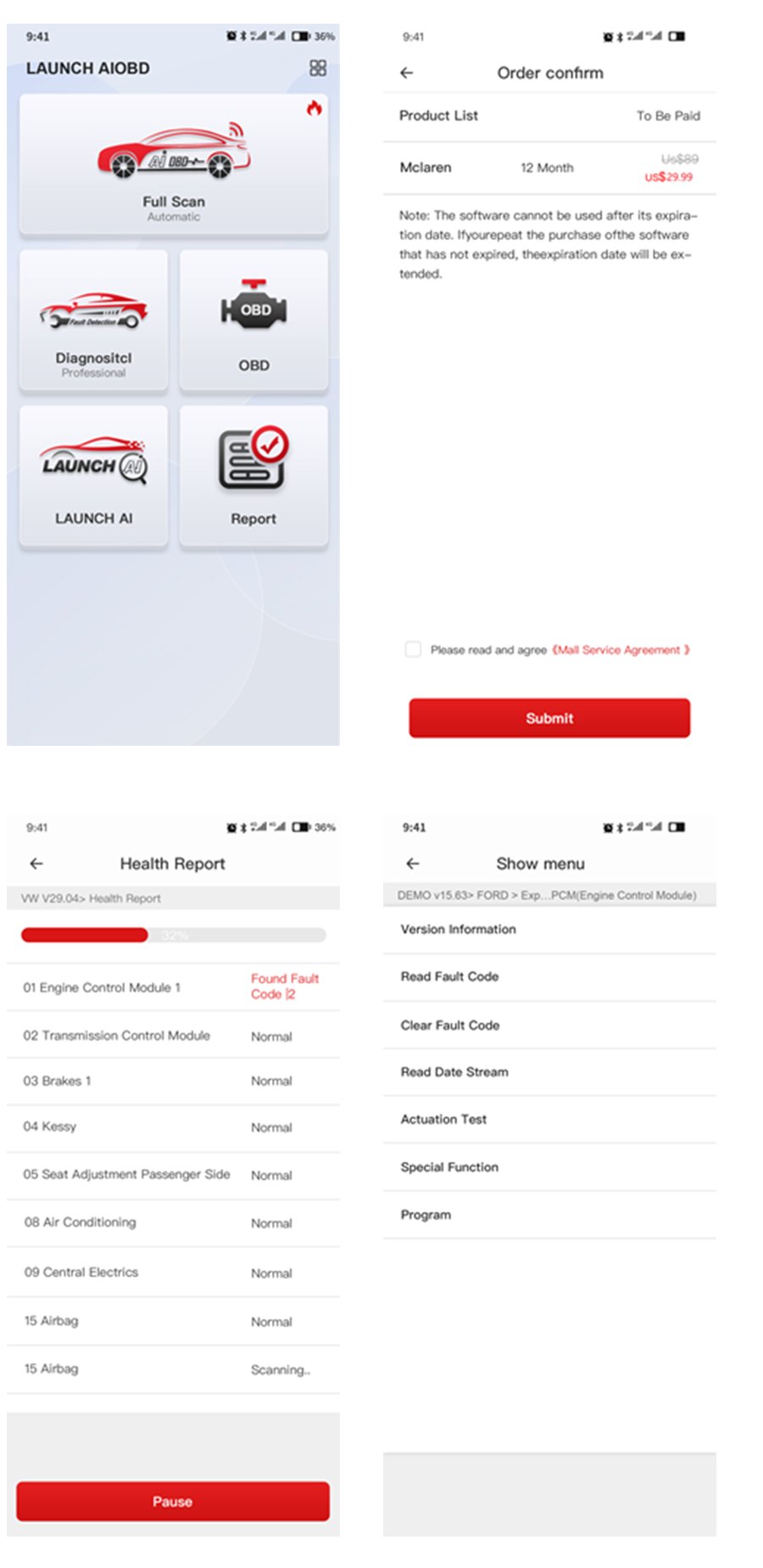

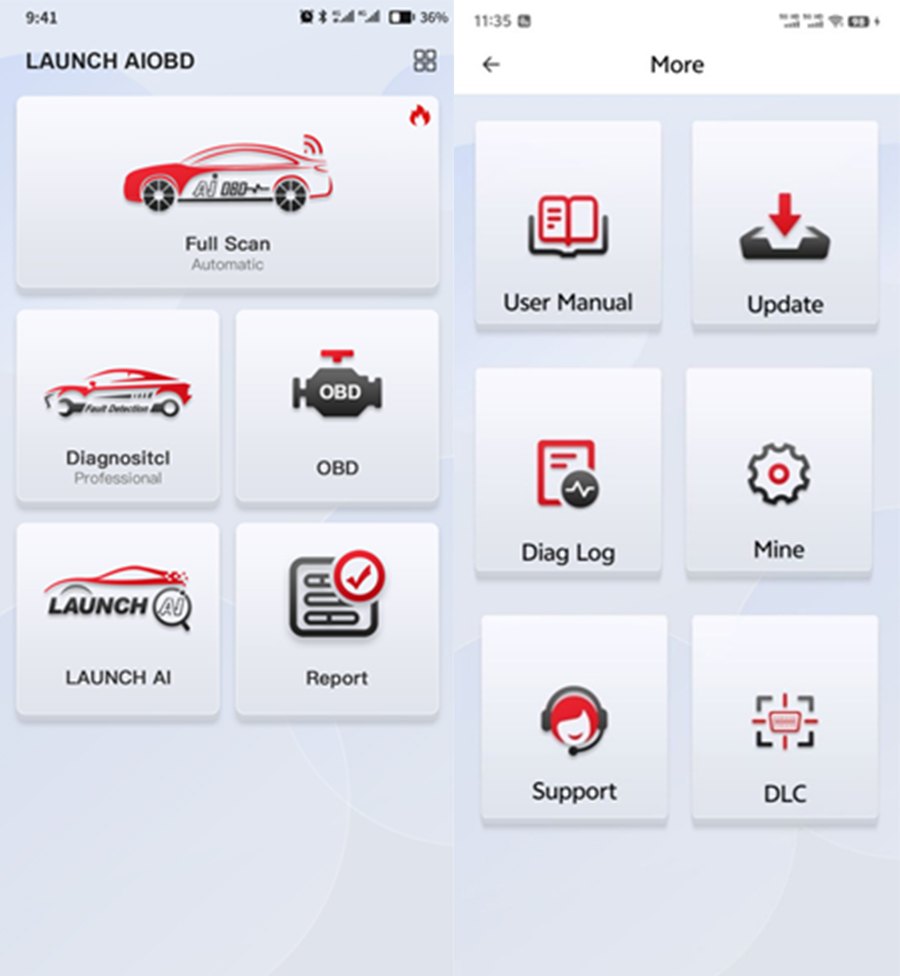

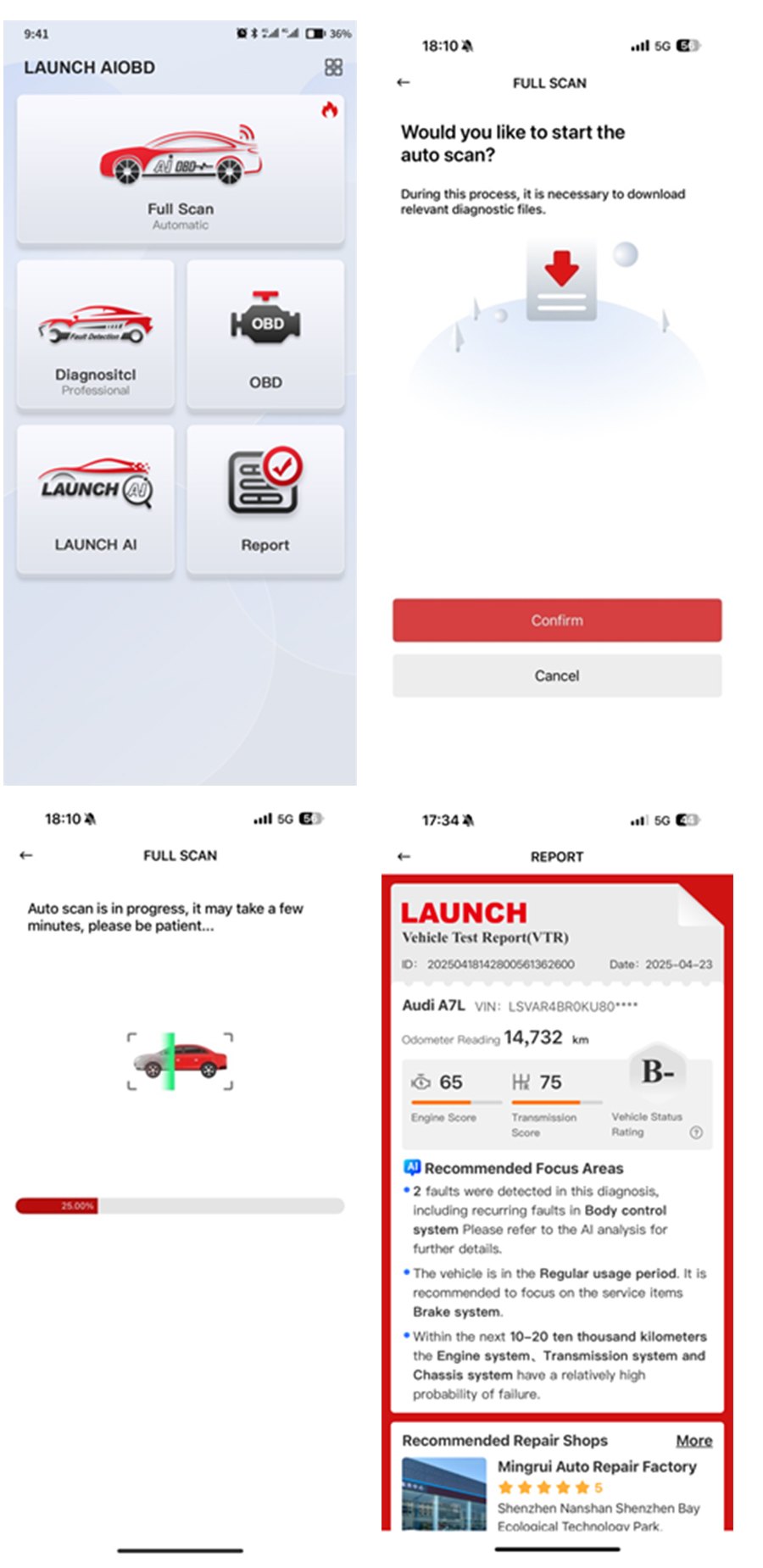

• Full Scan automatically detects and generates professional diagnostic reports with one click. Ideal for individual car owners, it's easy to use. If you haven't purchased the software for your vehicle, you can scan the report first. Only the OBD report will be displayed. Other system faults and professional analysis reports are available only after unlocking the software. Paid features include AI analysis, predictive maintenance recommendations, work hours, and replacement parts software can be upgraded through Update, regardless of whether it's already been purchased. However, only the vehicle model you've purchased can be used for professional traditional diagnostics in Diagnostic.
• Full Scan's interactive design offers highly consistent functionality, simple operation, and a clean interface. Traditional connector products require multiple menus for selection.
• After purchasing, the vehicle test report generated by Full Scan can be analyzed professionally by AI, recommending nearby repair shops, displaying fault information for different systems, including required parts, repair hours, and costs. It also summarizes the vehicle's historical diagnostic faults, showing the top 10 fault types for that model, and proactively adding maintenance with the vehicle's historical faults and maintenance information, predictive maintenance service recommendations are provided.
• The diagnosis performed in the Diagnostic and OBD menus provides vehicle model fault information and fault explanations, and allows for quick fault code query. If AI analysis is not performed, the report is free of charge.
• Mode 6
• Mode 6 (vehicles without Mode 6 display Mode 5 data, including oxygen sensor data).
• Mode 8

K-line support matters on older cars, where a CAN only dongle simply finds nothing to talk to.
