Original Diatronic Pluto JLR Full Package for Land Rover and Jaguar 2017-2025 (DoIP, All Keys Lost)

The Original Diatronic Pluto JLR Full Package covers Land Rover and Jaguar coding, programming, and key learning for 2017-2025 DoIP models. Pluto JLR is engineering software with server online access. For 2024 and 2025 models, flash files are unavailable, but all coding and key learning work.

Versions

Four versions are available at different prices: Pluto one year subscription, COMET JLR, Diatronic Pluto JLR full package shown here, and the Pluto plus COMET bundle package. COMET JLR covers 2010-2018 models and replaces SDD and owners can add COMET JLR for 3000 USD.

April 2025 update

Updated 2025 Premium 2023-2025 database is purchased separately for 350 USD. Flash modules and change CCF until 2025.

Package contents

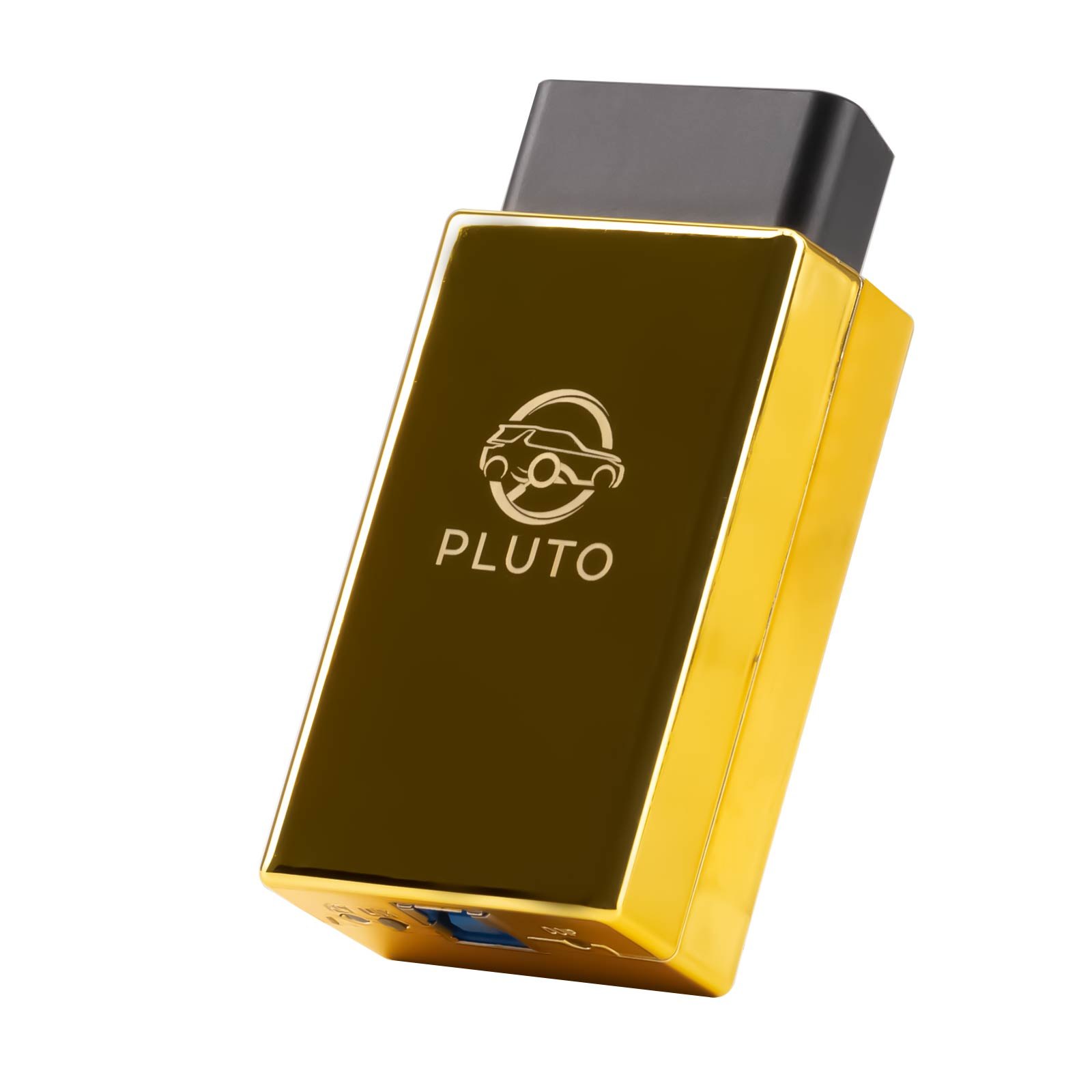

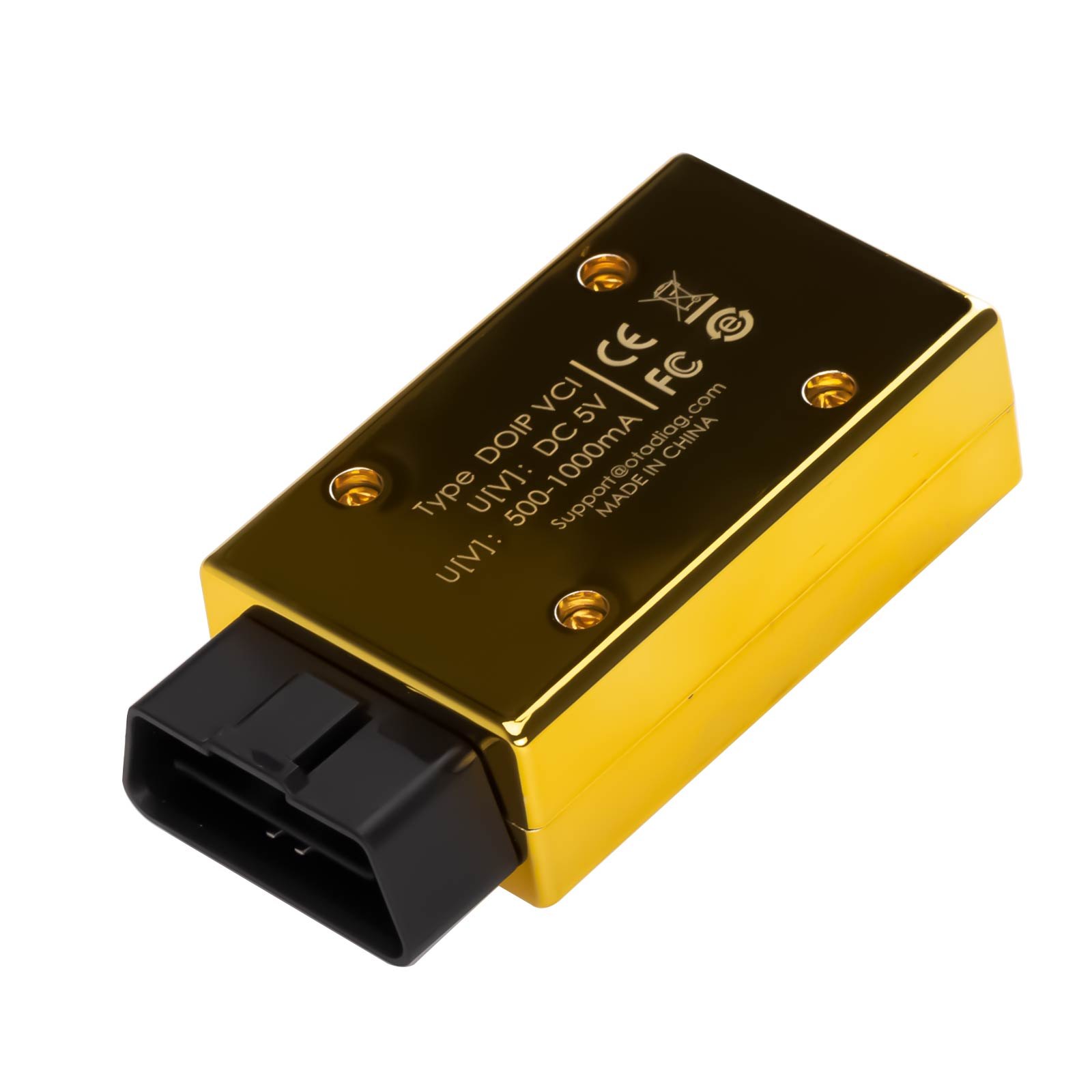

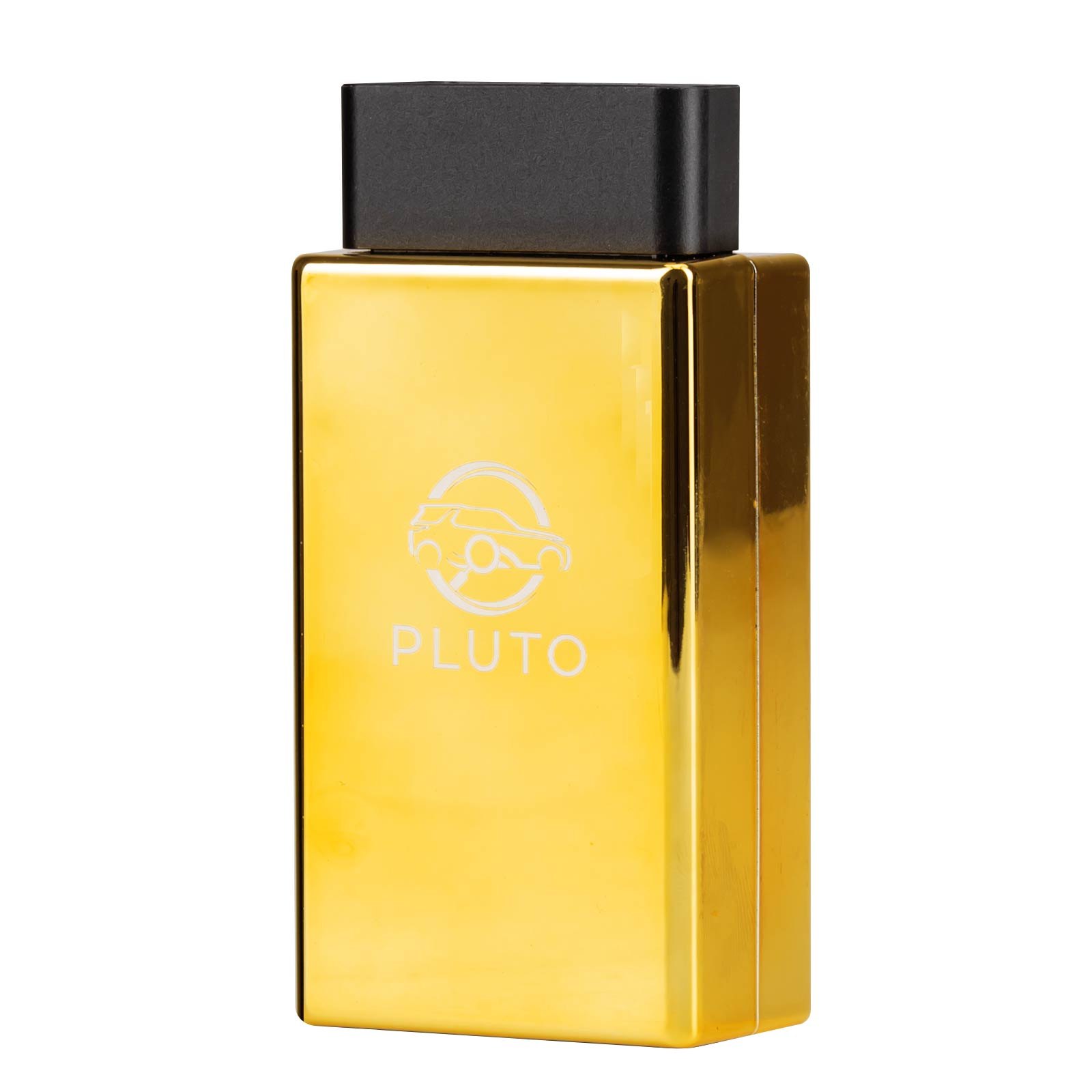

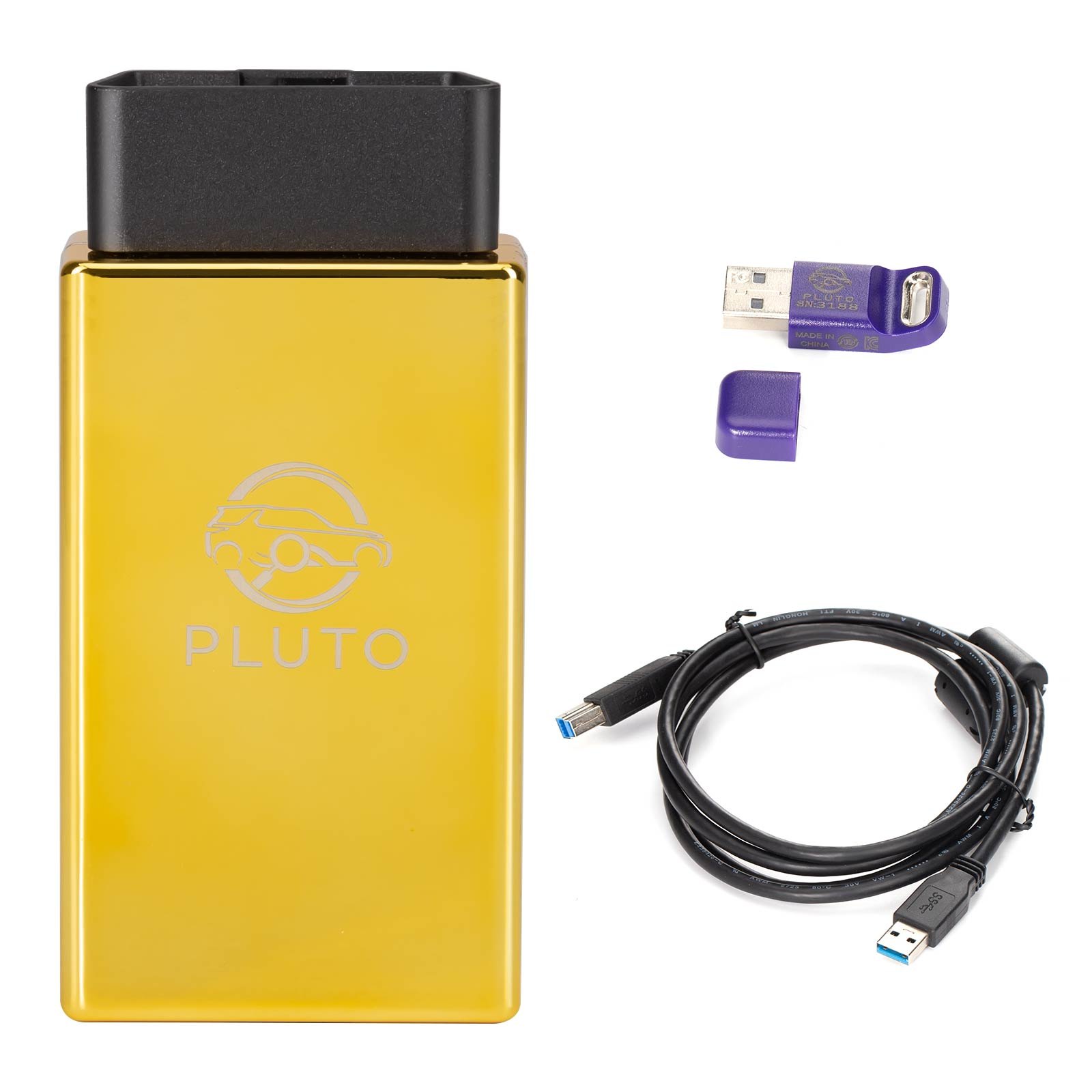

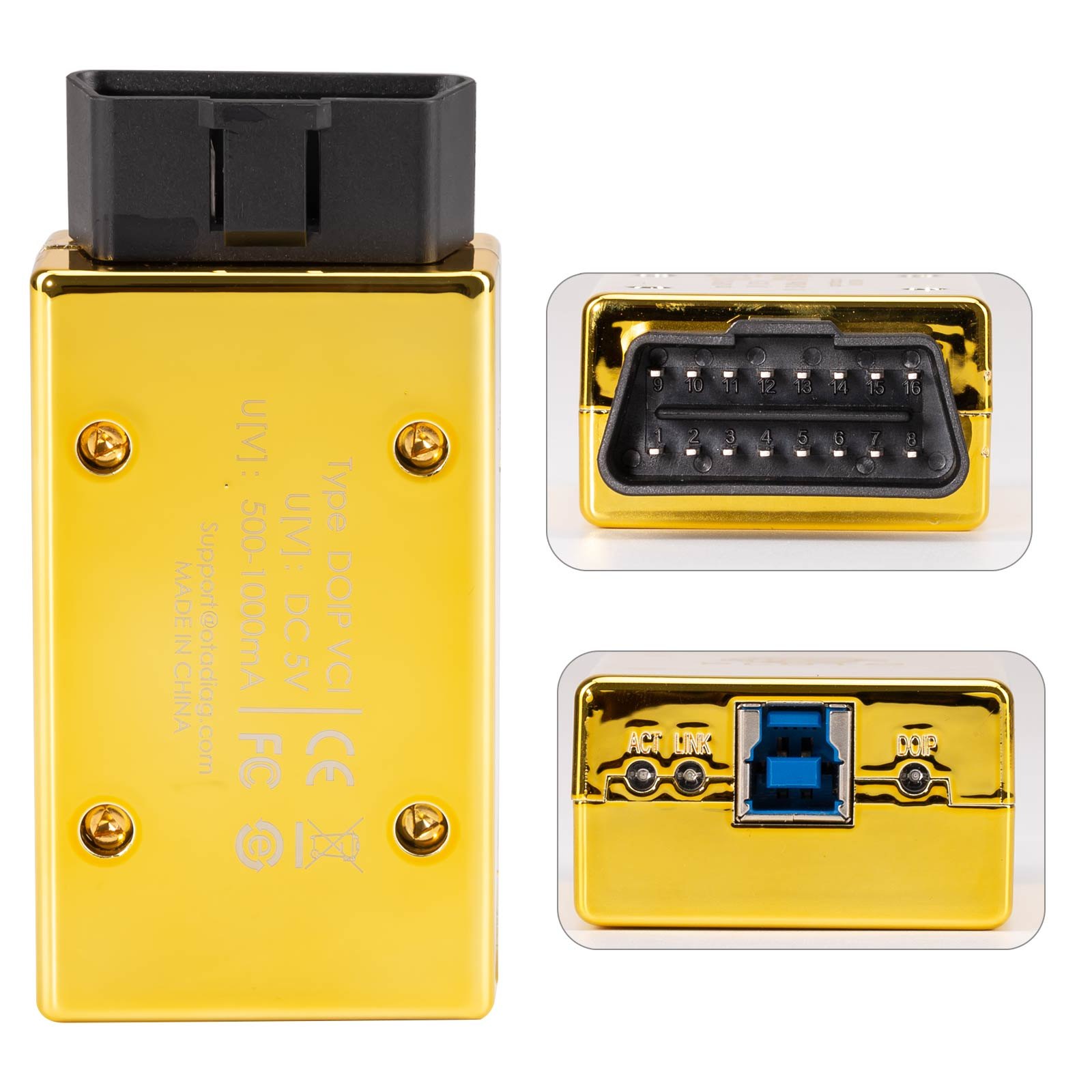

• Pluto JLR OBDII VCI
• Pluto JLR USB security key dongle
• Pluto software license with activation for one year, including free software updates for the same period
• Hardware limited warranty for one year
• Free gift: JLR SDD software
• Free gift: online and phone support for one year

Pluto JLR functions

• Coding all modules
• Online flashing, individual flashing, and ECU update with manual version selection
• Vehicle services
• Read and erase DTC
• Read vehicle info (typology)
• Key learn in 1 minute
• Immobilization and ECU reset
• Replace KVM and BCM
• CCF change and VIN write

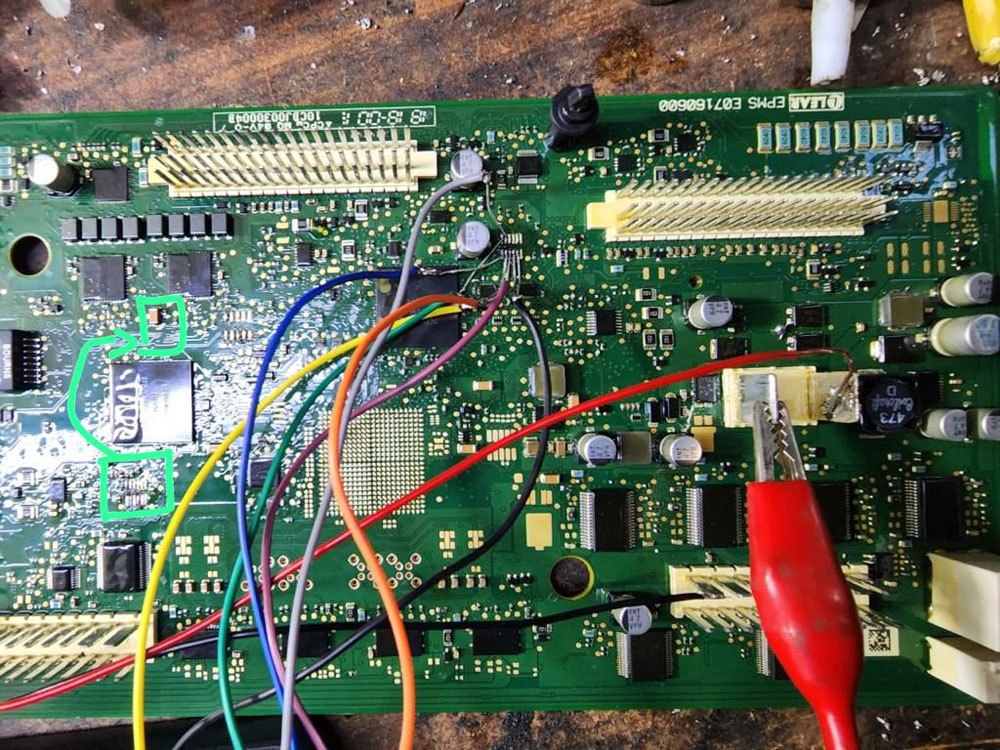

• Unlocking locked BCM with working key
• Reprogram used BCM 2019-2020 with no need to renew
• Retrofit with CCF functions and CCF learning
• Reprogram used modules instead of buying new ones
• Reset BCM and code replacement modules after immobilization work

Online CCF

Select the function after connecting to OBD and the tool downloads what it needs, similar to a maintenance reset. No byte changes are needed. Flash files are provided during support. If the BCM is locked, unlock it first and then reprogram. The same applies to KVM. PCM needs no unlocking.

EVA1 and EVA2 identification

Check the entertainment system: NGI system means EVA1 vehicle, Pivi-Pro means EVA2. HPLA and JPLA BCM units are fitted in EVA1 vehicles. L8B2 and M8E2 units are in EVA2 vehicles.

February 2023 update log

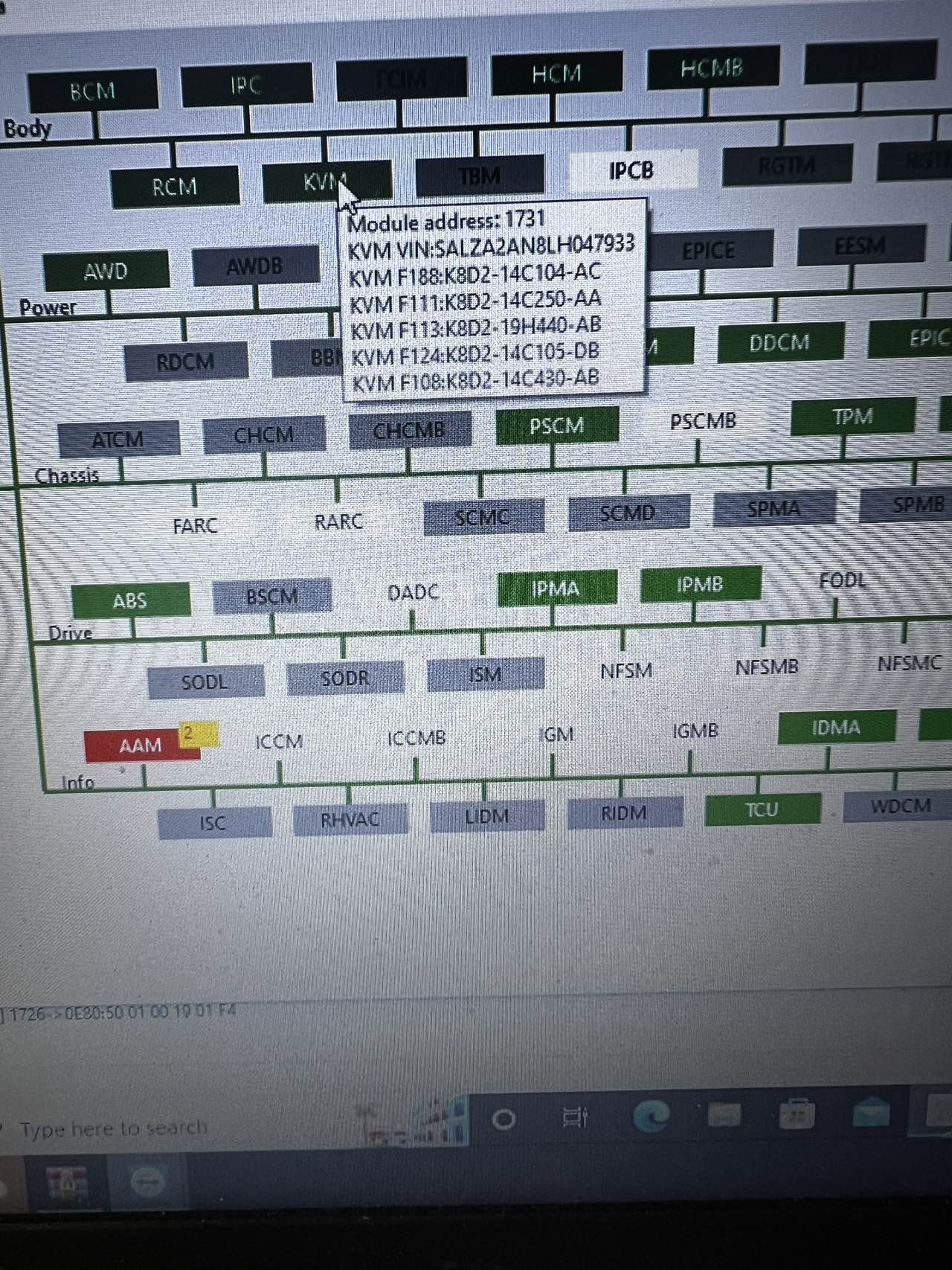

Module address shows on the home screen. SCAN DTC is more detailed with more options.

Terms

• Software annual fee 500 USD per year. The software must be renewed after expiry
• Send the serial number on the dongle after receipt so the software is customized for you
• Language: English
• No IP limitation
• One-year hardware warranty, no returns or exchanges
• TOPIX cloud stays dealer-only. Individual and independent accounts are unavailable
• Cannot ship to Israel

What is in the box

1 set Diatronic Pluto JLR.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
