Yanhua Mini ACDP Module 39 with License A105 for Benz A206 A223 A177 MB HU7 Instrument R7F7015923/ R7F7015924 Mileage Correction

Newer Mercedes clusters moved to the HU7 platform, and Module 39 with licence A105 is the route into them for mileage correction on R7F7015923 and R7F7015924 microcontrollers. Covered dashboards are A206, A223 and A177.

Specifications

• For A206/A223 dashboards: Set DIP switch to A-end.

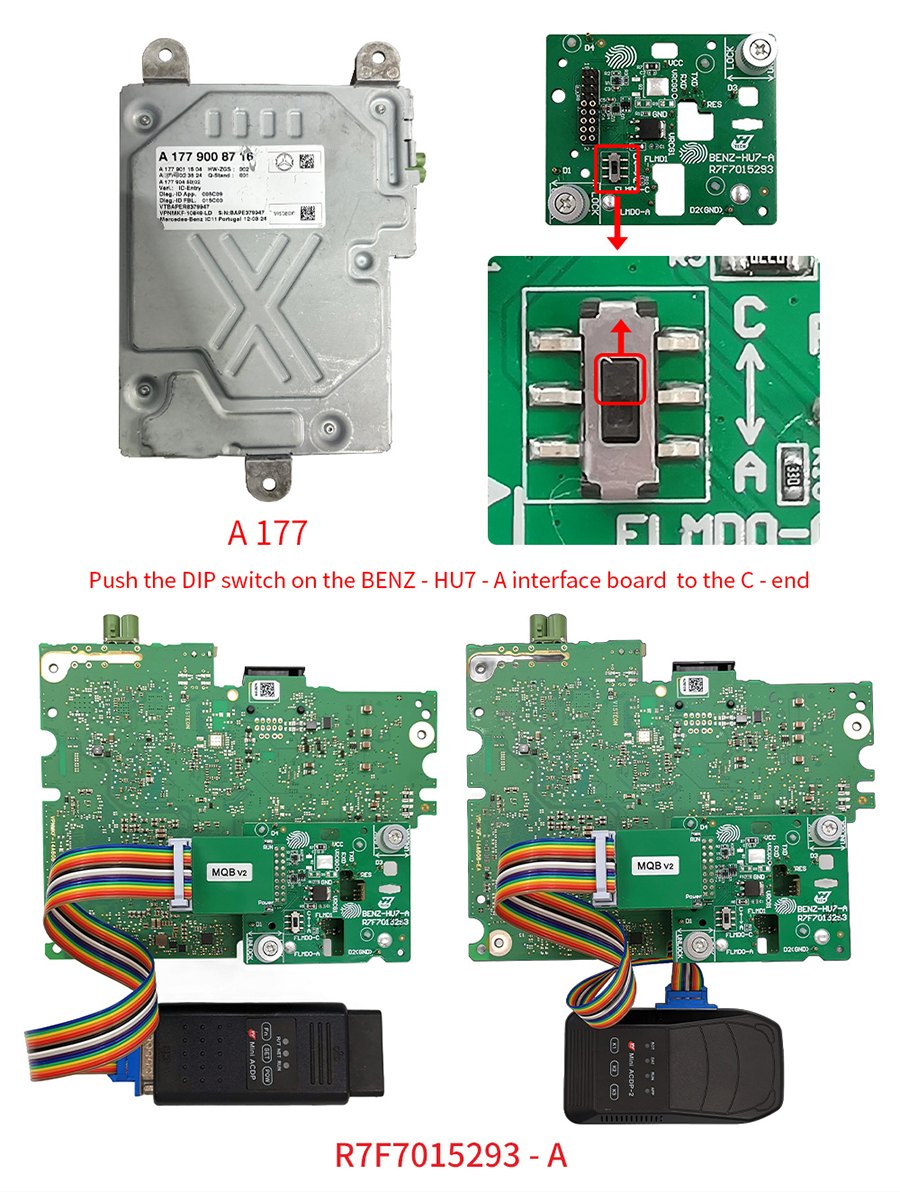

• For A177 dashboards: Set DIP switch to C-end.
• For A206/A223: Set to A-end.
• For A177: Set to C-end.
• Note: Installation for A177 follows the same steps but requires DIP switch adjustment (Step 2 ans Step 4).

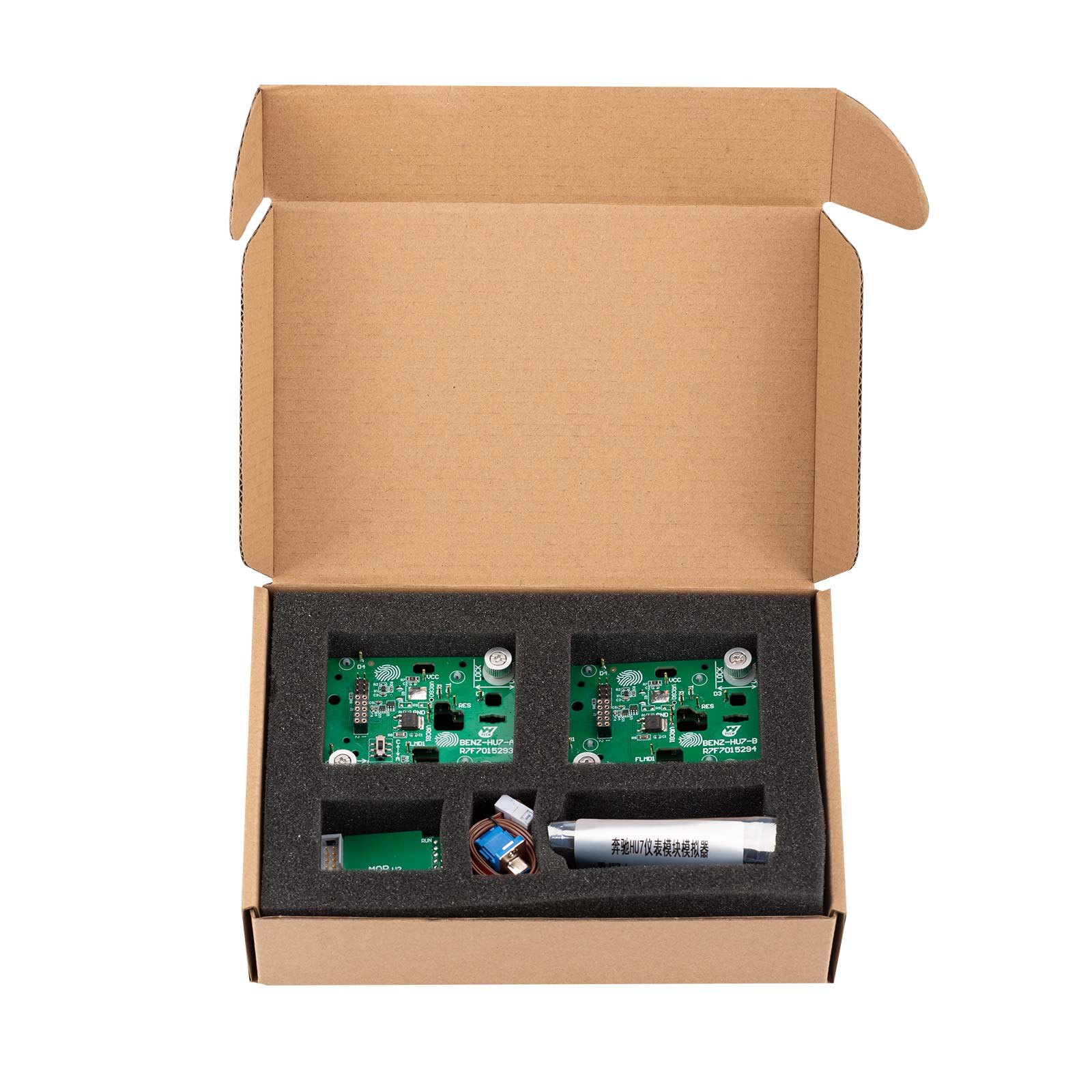

What you get

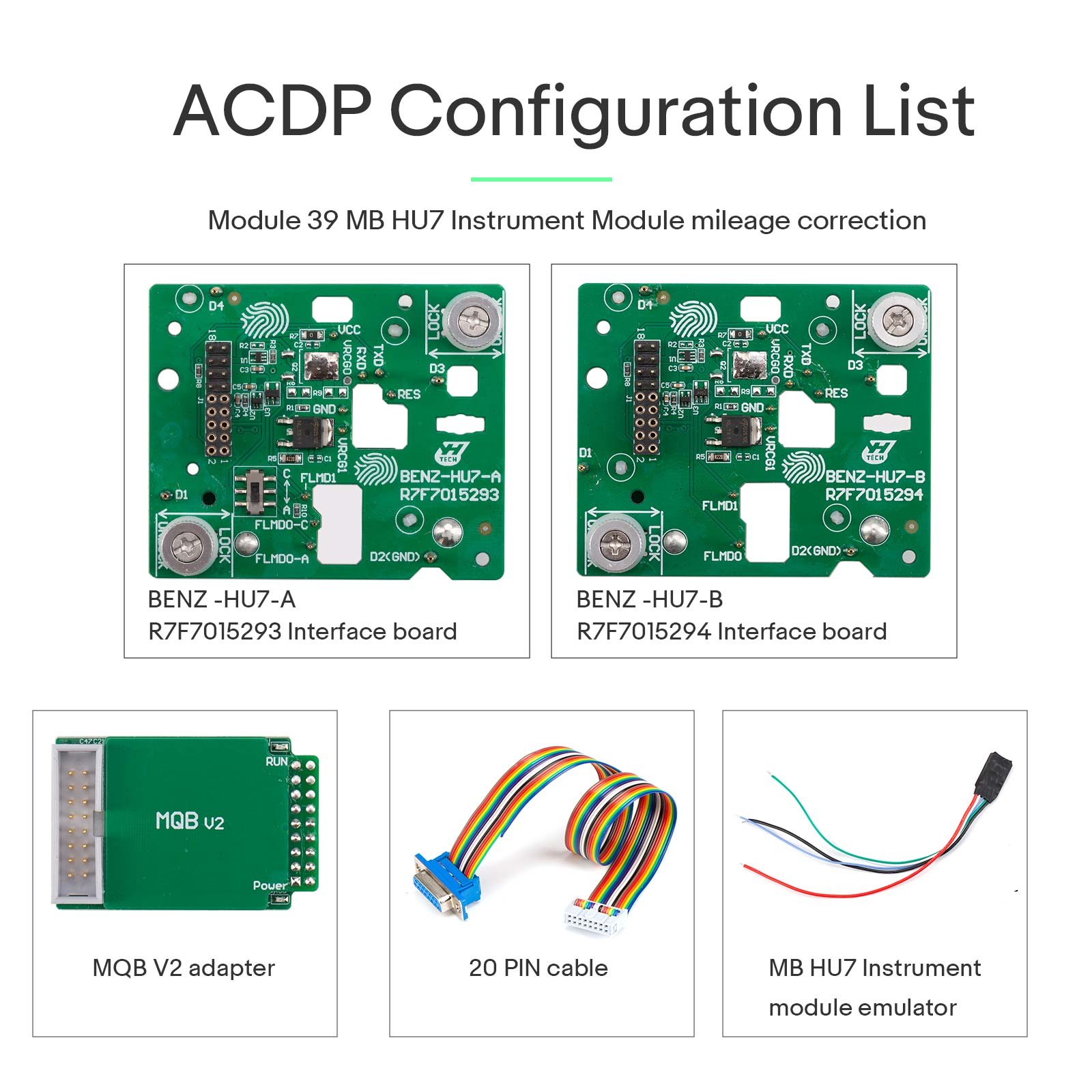

• 1pc x BENZ-HU7-A R7F7015293 Interface board
• 1pc x BENZ-HU7-B R7F7015294 Interface board
• 1pc x MQB V2 adapter
• 1pc x 20 PIN cable
• 1pc x MB HU7 Instrument module emulator
• Yanhua Module 39 includes two interface boards, one MQB V2 adapter, and an MB HU7 instrument module emulator. When working with different Benz HU7 dashboards, it's essential to select the appropriate interface board for compatibility. Please follow the installation guide below carefully.
• R7F7015293 (A206, A223, A177)
• R7F7015294 (A223)
• Support mileage correction for the MB HU7 instrument module (A206/A223/A 177) with chip model R7F7015923/ R7F7015924.
• YANHUA Module 39 MB HU7 Instrument Module Mileage Correction
• Support mileage correction for the MB HU7 instrument module(A 206/ A 223/A 177) with chip model R7F7015923/R7F7015924.
• S(W223)/C(W206 /S206/V206/X206)/AMG(192/X290)/ A(W177)/B(W243 W247)/ CLA(C118 /W118)/CLE(A236 C236)/EQA (H243)/EQB
• (X243)/EQE (V294) /EQS (V297)/ GLA(H247)/GLB (X247)/GLC (C254/ X254)/GLE (V167)/ GLS (X167)/CLS (W257)/SL (232)
• A206, A177, A223
• For A223 dashboards only.
• Installation Steps for BENZ-HU7-A (R7F7015293)
• Yanhua Mini ACDP2

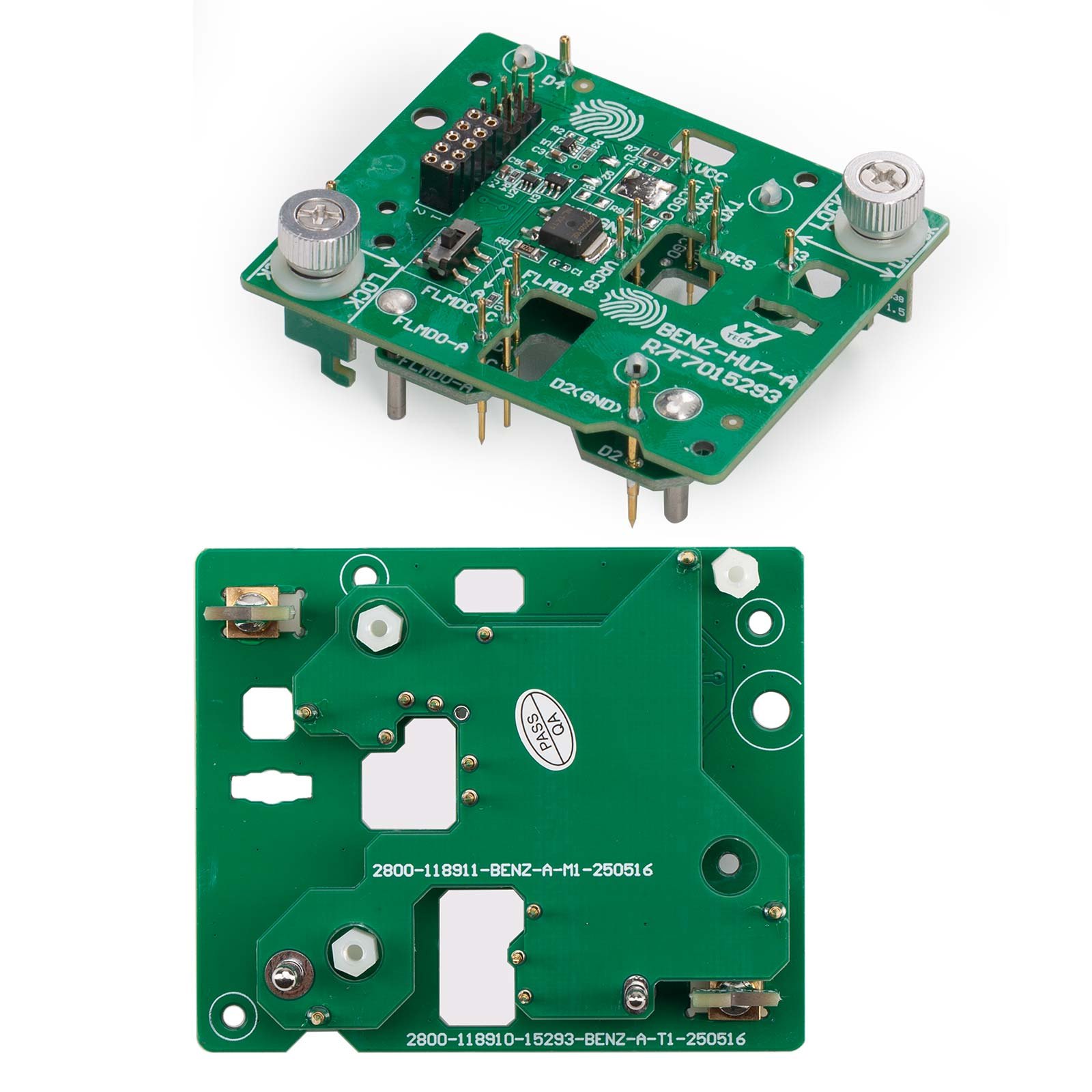

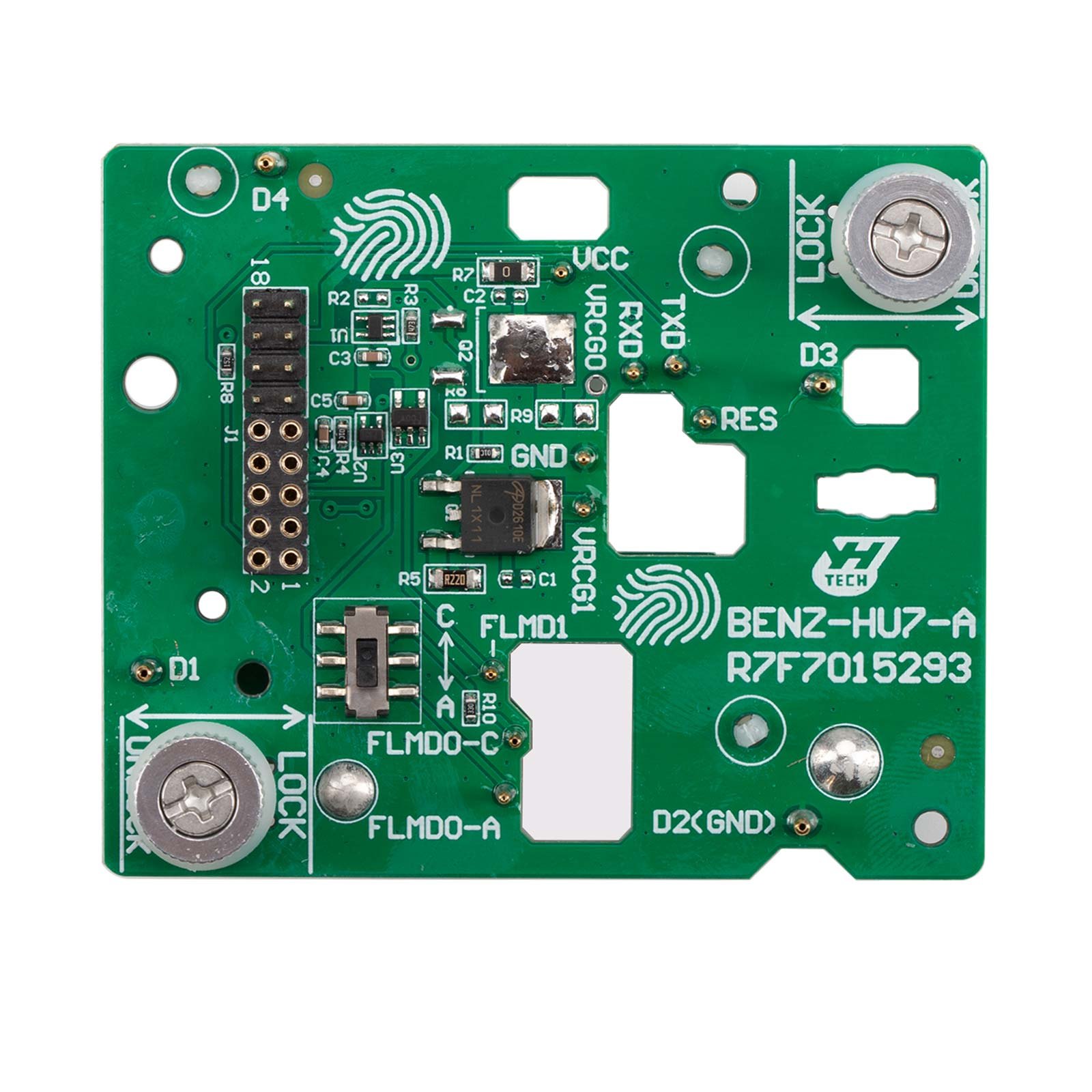

• BENZ-HU7-A Interface Board

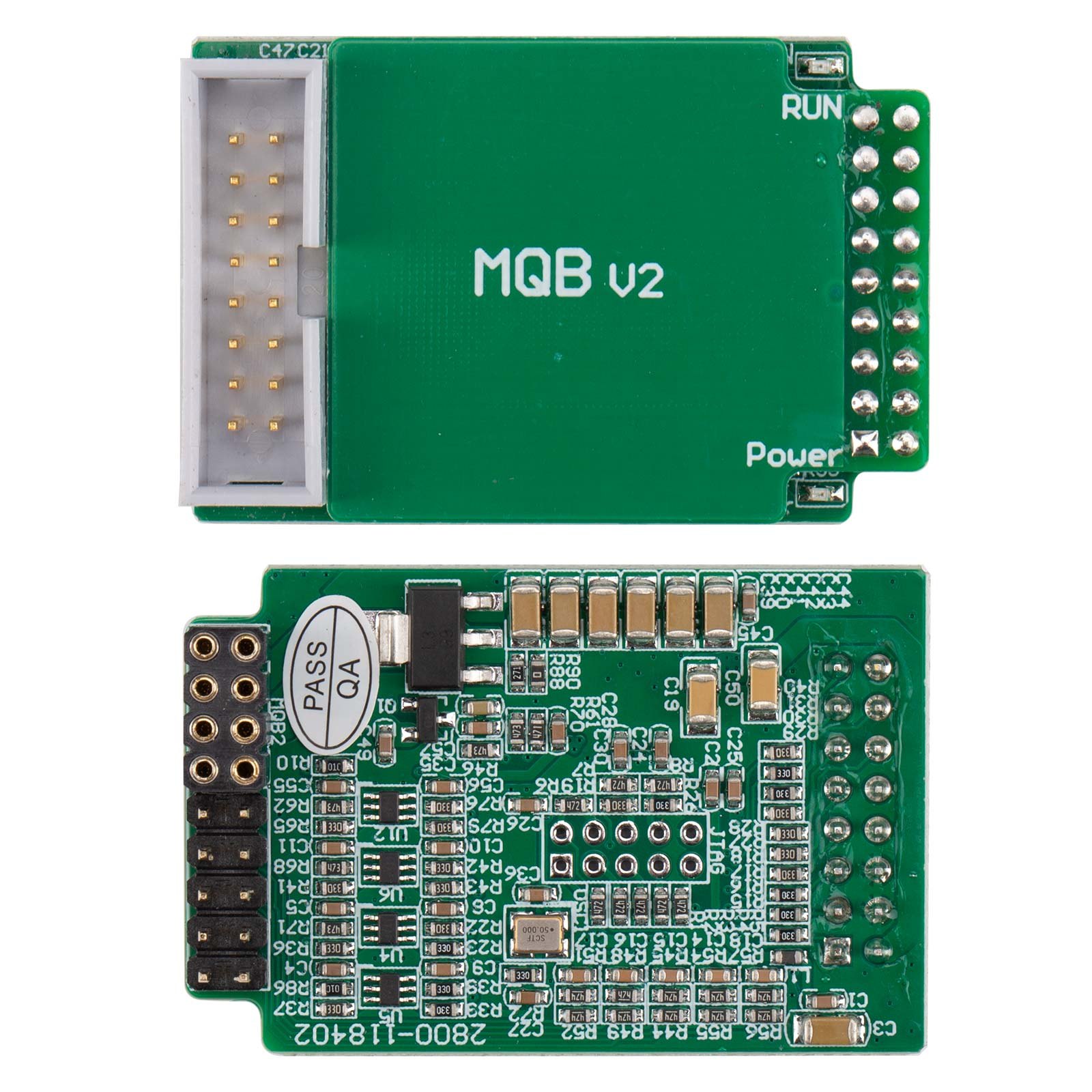

• MQB V2 Adapter
• 20-PIN Cable
• Target Dashboard Module (A206/A223/A177)
• Push the latch to the unlock position and align it with the instrument's positioning pillars.
• Locate the correct D1, D4 holes on the meter.
• Align D2 pins with instrument holes, press down firmly, and lock the PCB buckle.
• See the overall connection diagram for reference.
• Installation Steps for BENZ-HU7-B (R7F7015294)
• Yanhua ACDP2

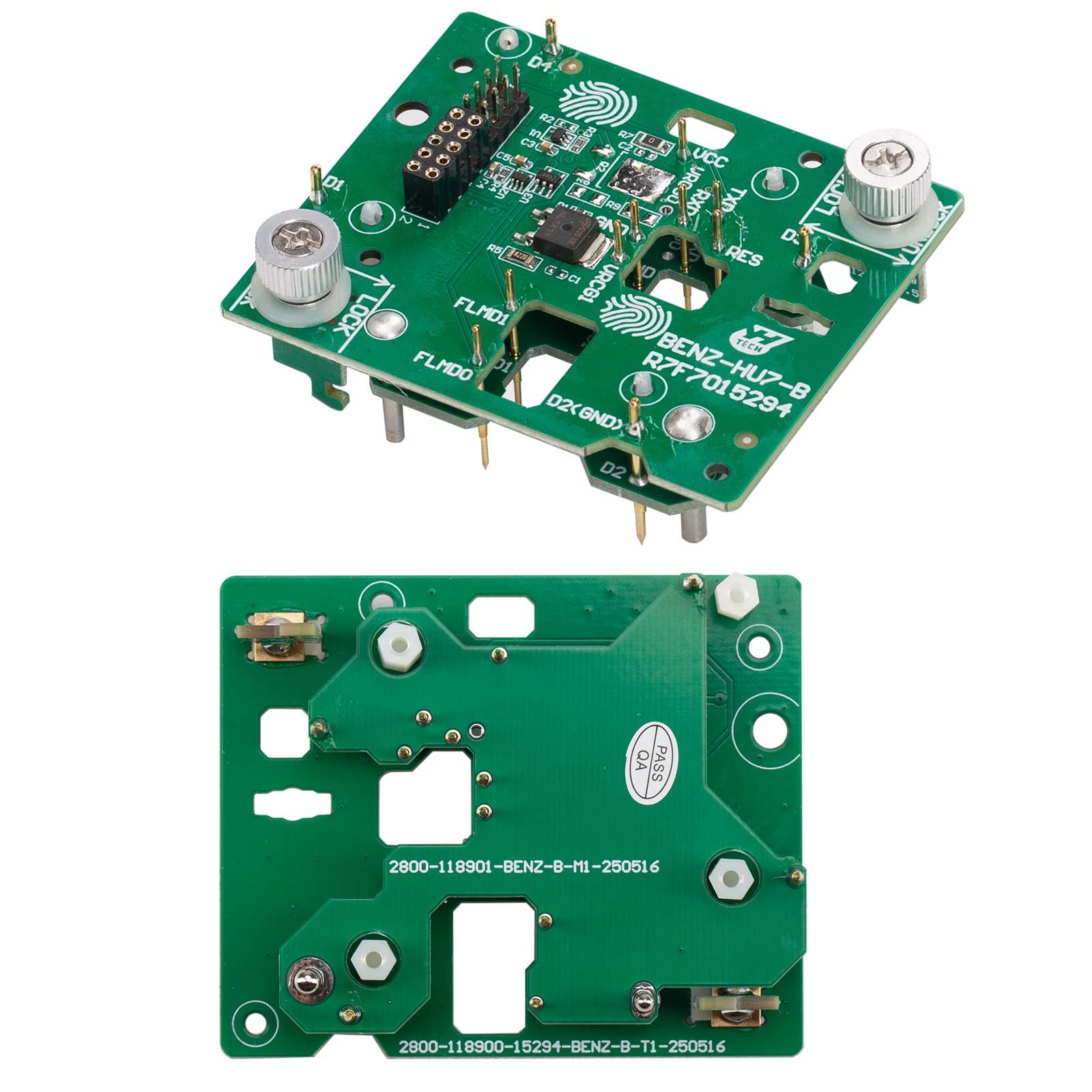

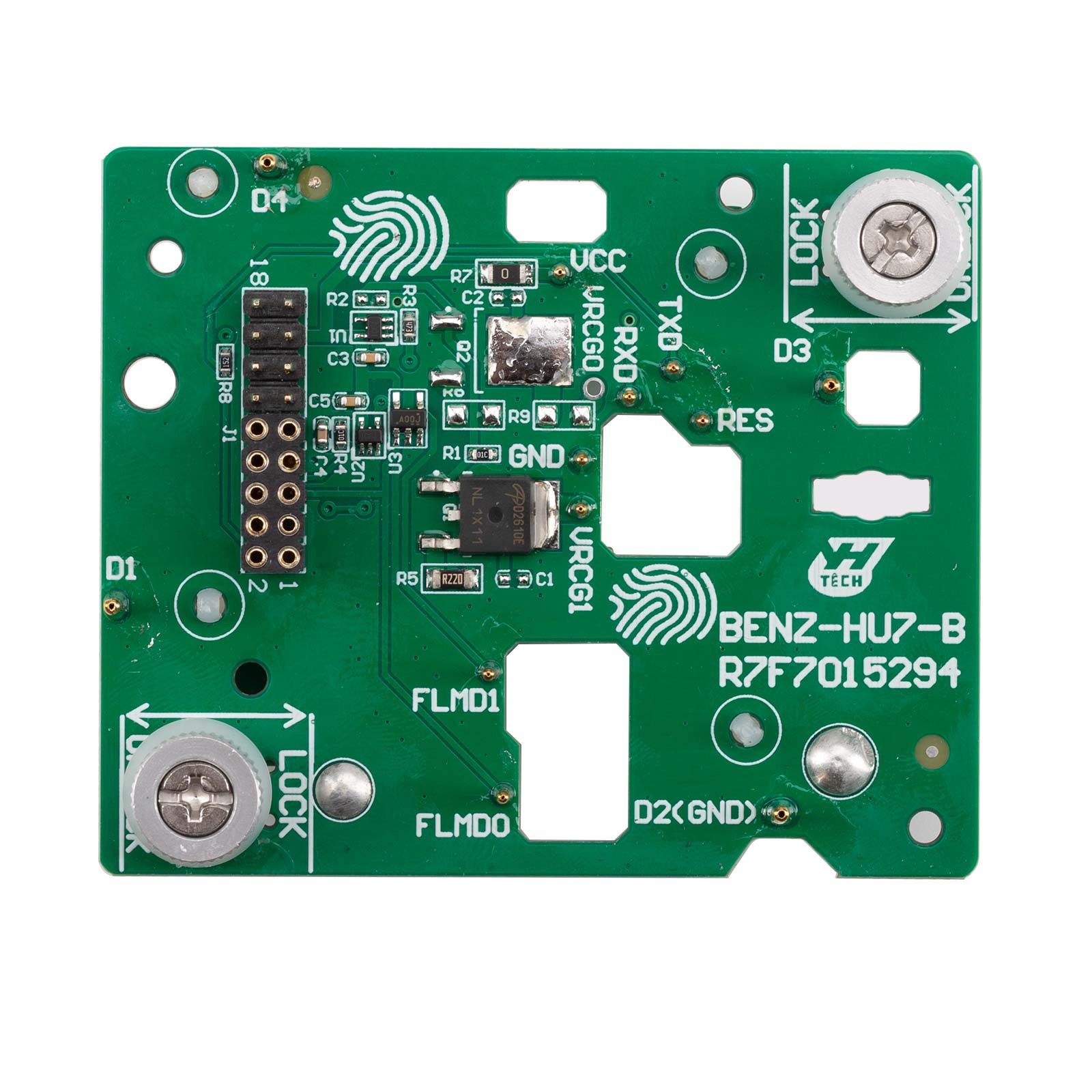

• BENZ-HU7-B Interface Board
• A223 Dashboard Module

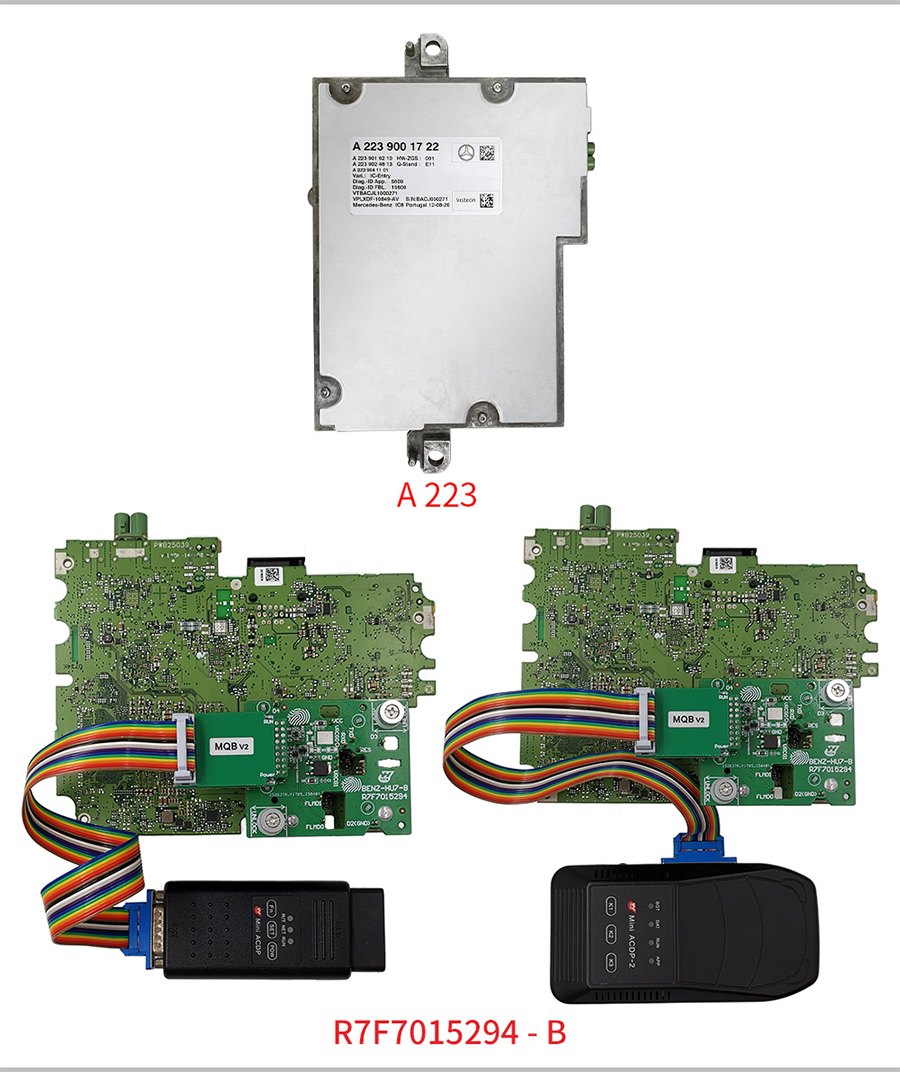

• 1.Unlock and position the interface board (same as Step 1 above).
• 2.Align D1, D4 holes
• 3.Verify test points
• 4.Secure the board using D2 pins and lock the buckle
• 5.Confirm connections
• MB HU7 Emulator Installation
• Check wire colors (black, red, green, blue, white) for correct pinouts.

DIP switch position matters: A end for A206 and A223 dashboards, C end for A177. Installation for A177 follows the same steps but needs the different DIP setting. Cluster work is legal only on a repaired or replaced unit and must be recorded honestly.
