Yanhua ACDP2 BMW BDC2/ BDC3/ BCP Package ACDP-2 Hardware + Module 3 + Module 38 + BDC2 Platform + B48/B58 Board + BDC3/BCP Board

This is the complete BMW bench setup: ACDP-2 hardware, Module 3 for DME ISN and cloning, Module 38 with the BDC2 platform, plus the B48 and B58 interface board and the BDC3 BCP board. It covers key work and engine controller work from one purchase.

Specifications

• 1: Read ISN codes of N20/N55/N13 by OBD or without openning the DMEshell.
• 2: Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell.
• 3: Read ISN code of other models (B38, etc.) by opening the shell.
• 4: Read ISN code of MSV90/B48 by OBD.(Need to buy interface board)
• 5: Read & Write ISN code on Bench. Support full versions ofN13/N20/N63/S63/N55/B38 etc.(Need to buy Bench interface board)
• 6: Ecu Clone. Support BMW N13, N20, N63,S63,N55 and B38 Dflash andPflash reading/writing.( Need to buy Bench interface board andauthorization)
• 3: The special interface board connection method replaces the traditional plugging wire method, simple and efficient, safe andreliable.
• Step 1: Backup coding data
• Step 2: Backup FAFP data
• Step 3: Write IMMO data
• Step 4: Write coding data
• Step 5: Made dealer key
• Step 6: Write DME ISN
• Step 7: Reset EGS EWS(turn on ignition, but not start the car)

What you get

• Support BMW G Series BDC2 Add Key & All Key Lost Programming.
• Yanhua ACDP2 BMW BDC2 AKL Package ACDP-2 Hardware + Module 3 + Module 38 + BDC2 Keys Learning Bench Platform + B48/B58 Interface Board

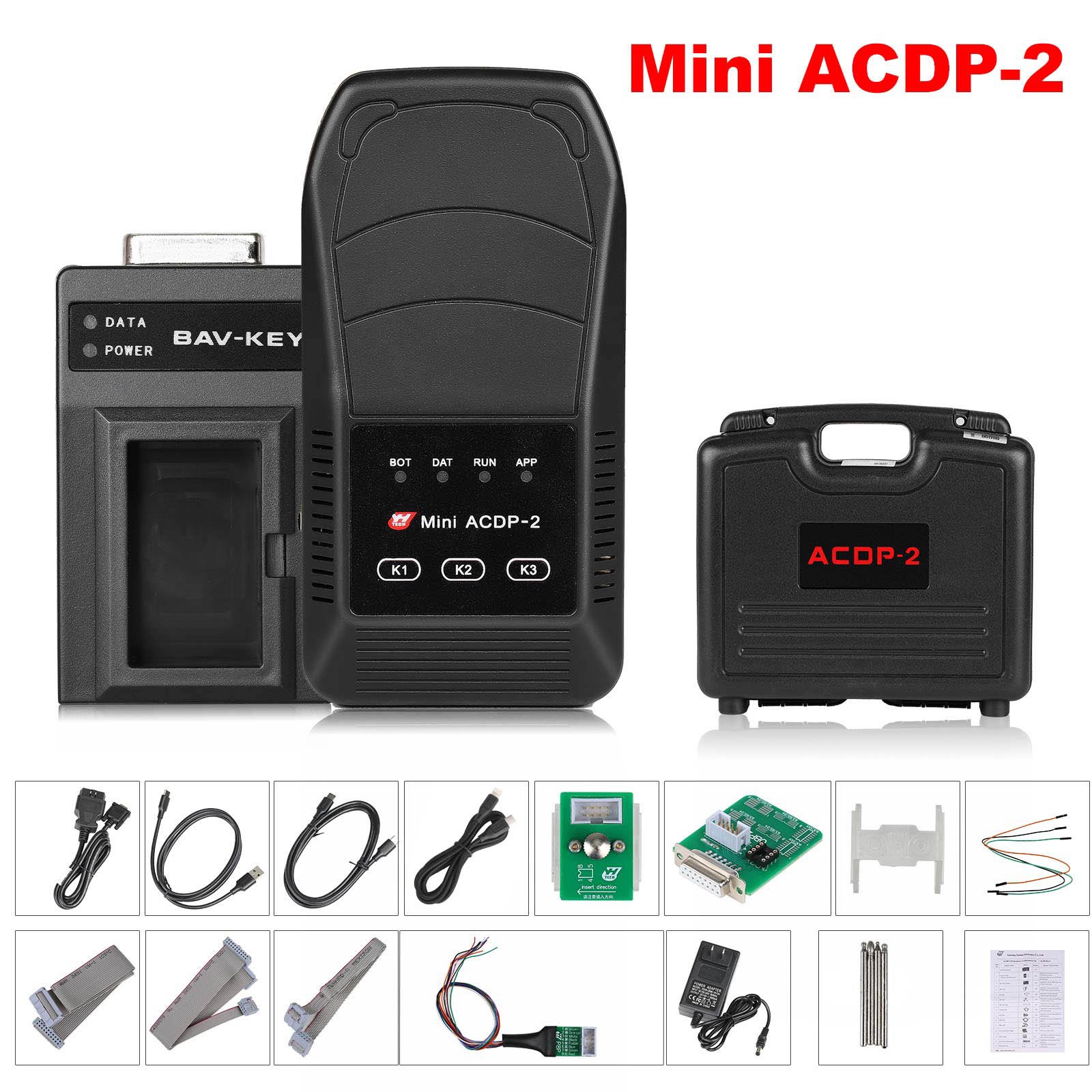

• Yanhua ACDP2 Hardware
• Module 3
• Yanhua ACDP-2 Module 38
• BMW BDC2 Keys Learning Bench Platform with AKL License A504
• B48/B58 Interface Board
• BMW BDC3 BDP Interface Board
• ACDP 2 Programmer with License A801
• Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.
• No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
• 03_ISN Module with License A50E, A50B, A50D
• Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell.
• Read the requested ISN code when making BMW all key lost.
• N20(MEVD1724, MEVD172P, MEVD1729), N13(MEVD1725, ), N55(MEVD172, MEVD1726, MEVD172G, MEVD172S, MEVD17, ), MSV80, MSD81, MS085,
• MSD85HY, MSD87, MSV90, MEVD1728(s63), MEV1722, MED172, MEVD1727, DDE701,DC17C50, BMSX.
• 1pc x Yanhua ACDP-2
• 1pc x Module 38

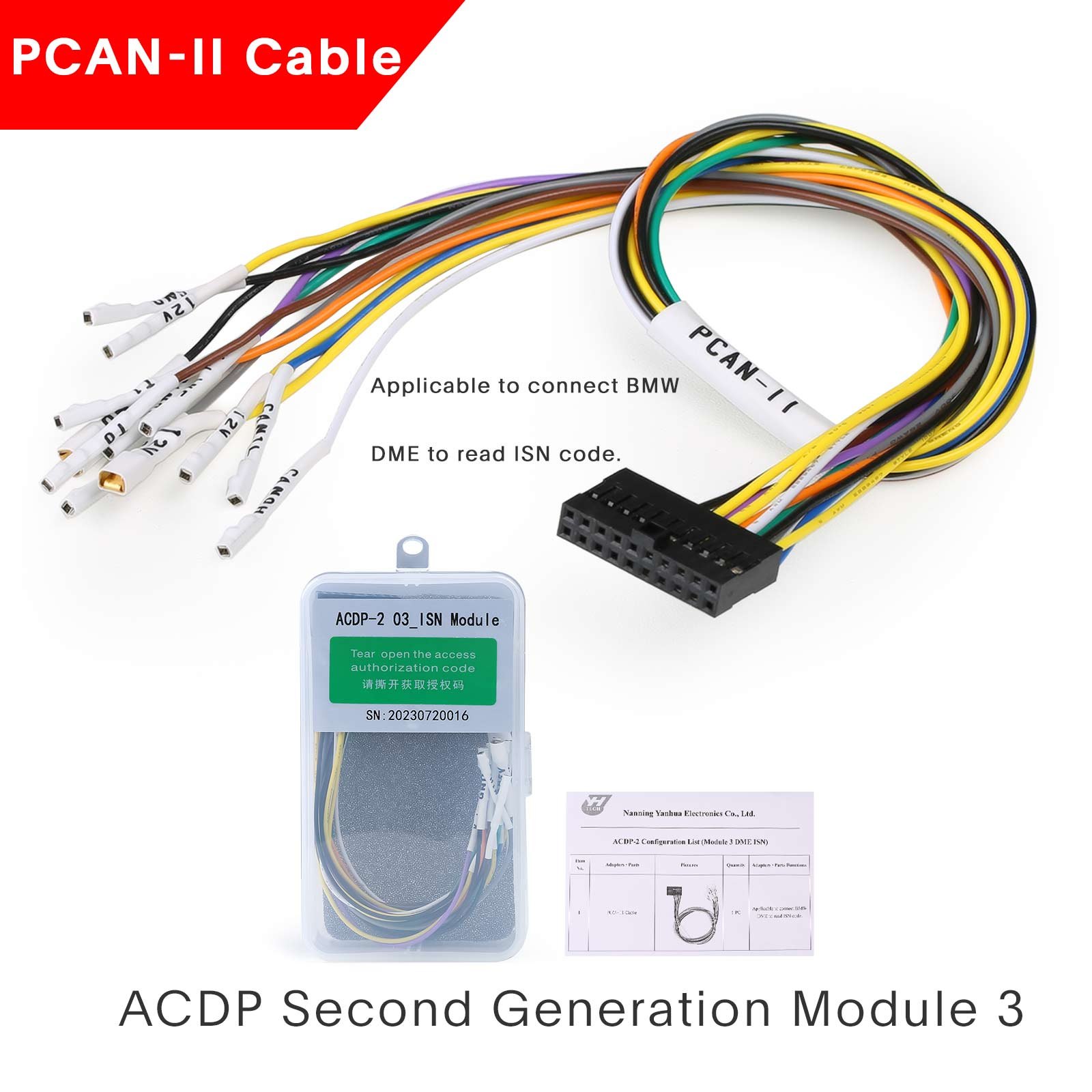

• 1pc x P CAN-II Cable Module3
• 1pc x YANHUA B48-Bench Interface Board-ACDP2
• 1pc x BMW BDC2 Keys Learning Bench Platform with AKL License A504
• 1pc x BMW BDC3 BDP Interface Board
• Yanhua MINI ACDP BMW BDC2 Module Reset Milleage
• 38_BMW BDC2 IMMO with License A503
• Supports BMW BDC2 all versions adding keys, BDC2 refresh and Copy data replacement.
• Supports key addition for all versions of BMW BDC2.
• Compatible with both OEM and aftermarket G-chassis blank keys, no specialized keys required.
• Model
• 5 Series
• G30
• 2016/11-2020/06
• G31
• 2017/03--2020/06
• G38
• 2017/05-2020/08
• 6 Series
• G32
• 2017/07-2020/06
• 7 Series
• G11/G12
• 2015/07-2019/02
• F90
• 2017/11-2020/06
• X3/IX3
• G08
• 2018/05-2021/08
• F97
• 2019/04-2021/07
• G01
• 2017/12-2021/07
• G02
• 2018/04-2021/07
• F98
• 2018-

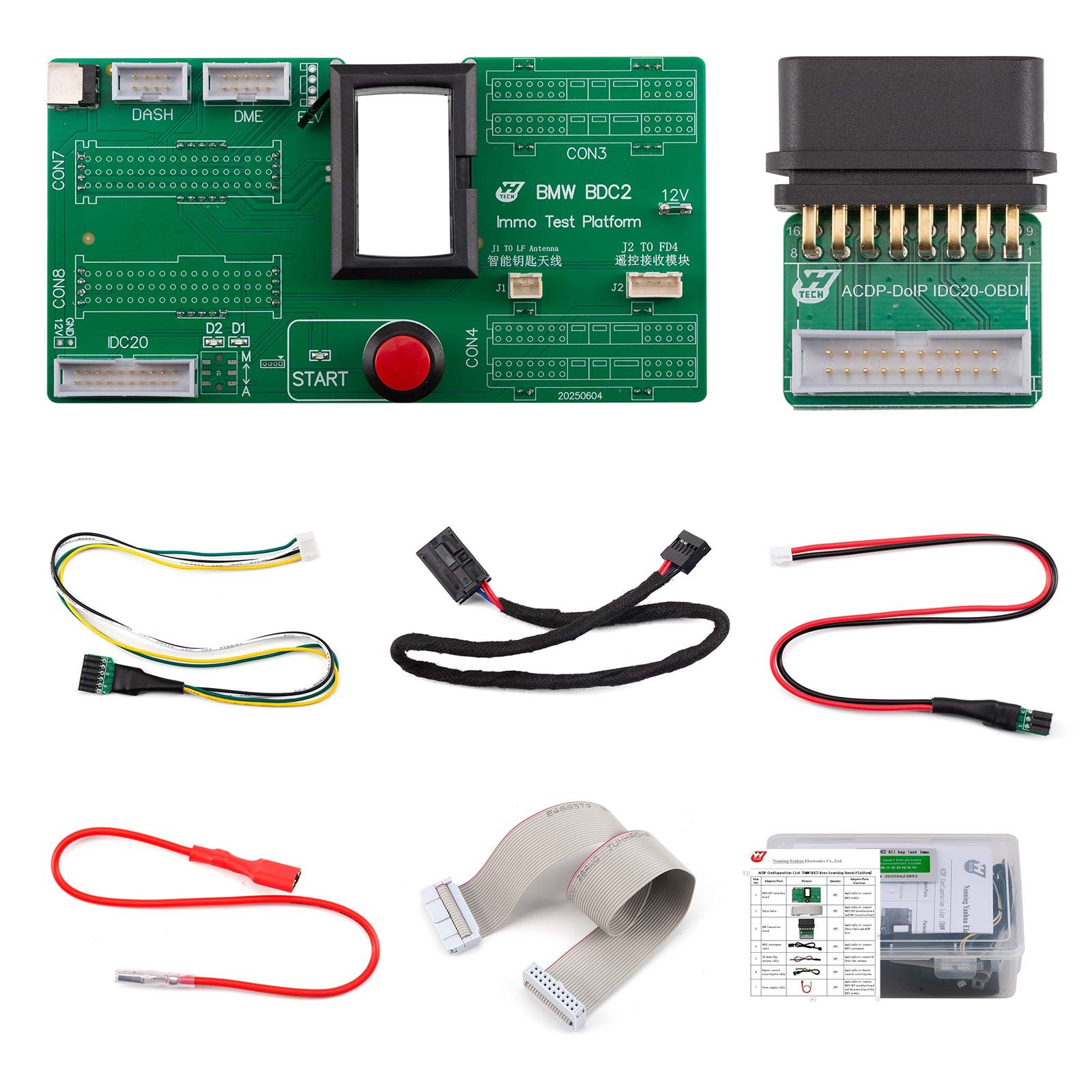

• Yanhua BMW BDC2 Keys Learning Bench Platform Work with Module38 For All Key Lost
• Contains the BMW BDC2 all keys lost authorization（used with module 38）
• Can learn BDC2 keys on bench, no need to assemble BDC2 module back to car.
• Can test key emergency function to confirm whether the key can turn on ignition and ensure that the key has been learned.
• Can connect smart antennas and remote control receiver for testing key remote control and keyless.
• Can connect the BDC2 instrument and DME module.
• Compatible with any device that supports the BDC2 module.

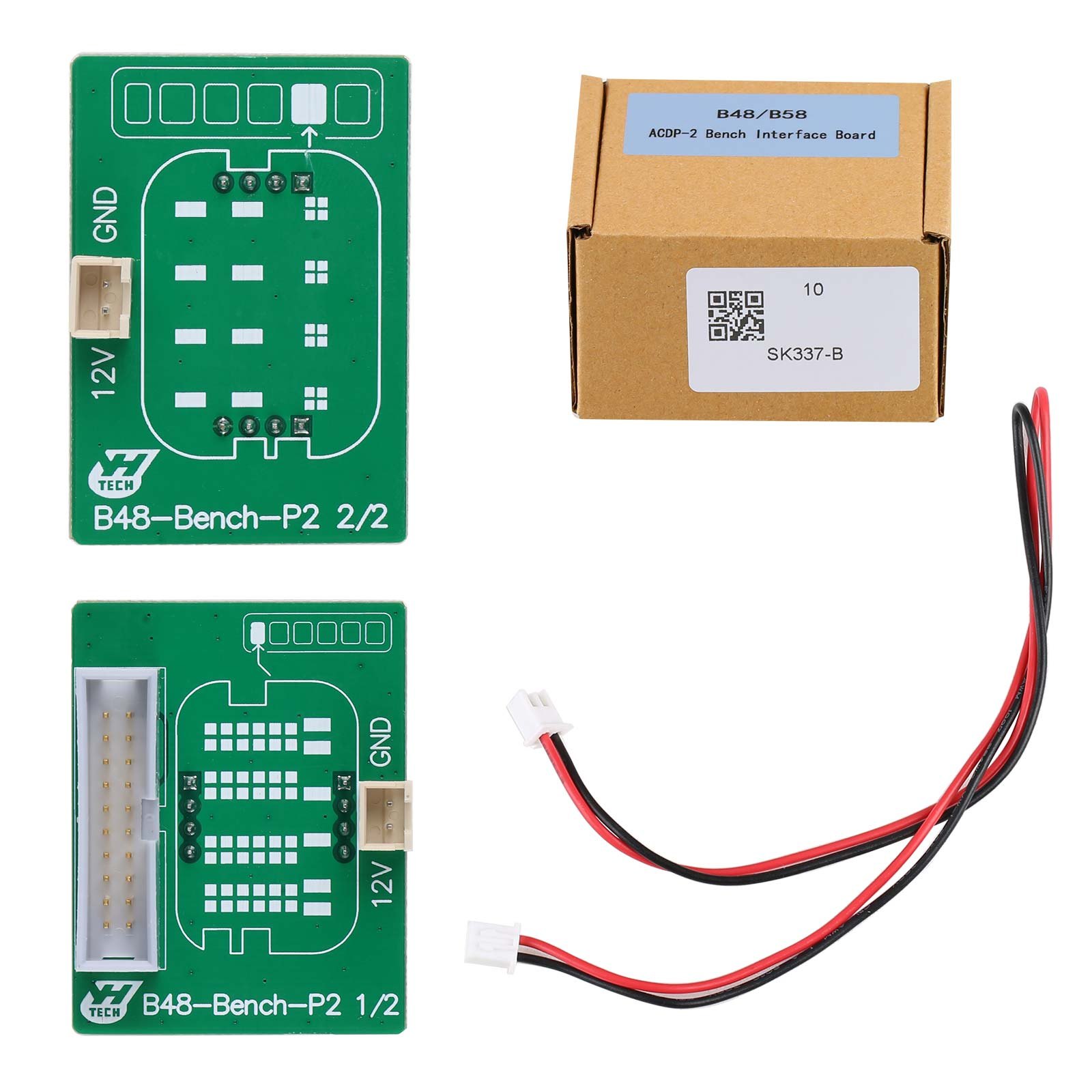

• Yanhua ACDP BMW B48/B58 Interface Board for B48/B58 ISN Reading and Clone via Bench Mode
• Support all F/G chassis versions and all B48/B58 DME which chipmodel is (SPC5777/TC298TP).
• How to Enter the All Key Lost Menu In ACDP APP?
• BMW-> FEM/BDC-> IMMO/Mileage-> BDC2 ICP+ OBD (F/G Chassis)-> Add Key (All key lost)

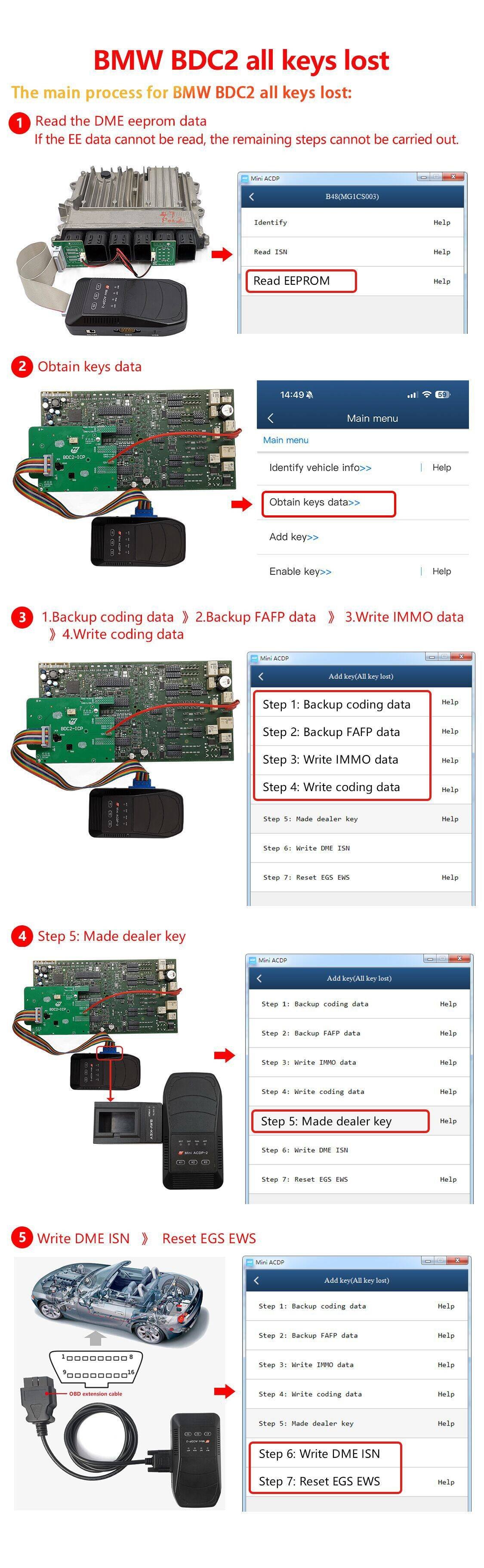

• How to Do BMW BDC2 All Key Lost?
• Use Yanhua ACDP Module 3 and B48 Interface Board to backup EEPROM data
• After making the dealer key, turn on the ignition to do key match
• Verify the key can start the car normally, then go to next step
• After finishing these steps, start the engine - both the key and vehicle should now function properly

Named ISN coverage is N20, N55 and N13 by OBD without opening the DME, MSV70, MSV80 and MSD80 without opening the shell, other models such as B38 by opening it, MSV90 and B48 by OBD with the interface board, plus bench read and write on full versions of N13. ECU cloning covers N13, N20, N63, S63, N55 and B38 Dflash. The documented order is back up coding data, back up FAFP data, then write IMMO data.
