Yanhua Mini ACDP ACDP-2 Module28 with License A703 for ZF-9HP Gearbox Computer Clone Support JLR ,Chrysler, Dodge, Fiat, Honda, Jeep

The Yanhua Mini ACDP and ACDP-2 Module 28 supplied with licence A703, for cloning the ZF 9HP gearbox computer. It covers Jaguar Land Rover, Chrysler, Dodge, Fiat, Honda and Jeep, all of which fitted the 9HP across a long run.

Specifications

• Module 28: ZF-9HP gearbox clone

What you get

• 1pc x YANHUA ACDP Module 28
• Yanhua Mini ACDP ZF-9HP Gearbox Clone
• Yanhua Mini ACDP ZF-9HP Gearbox Clone Tutorials: Here is the detail steps.

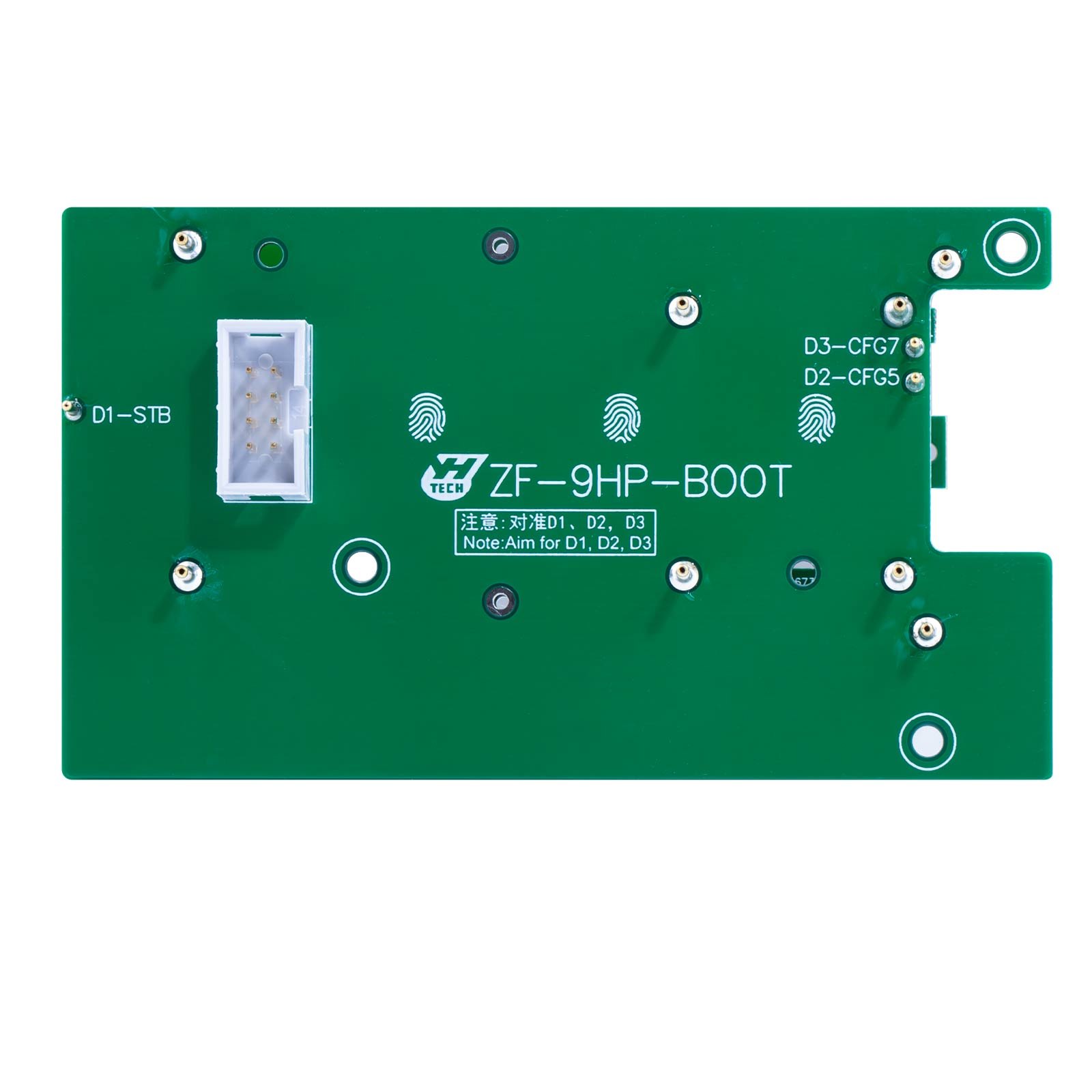

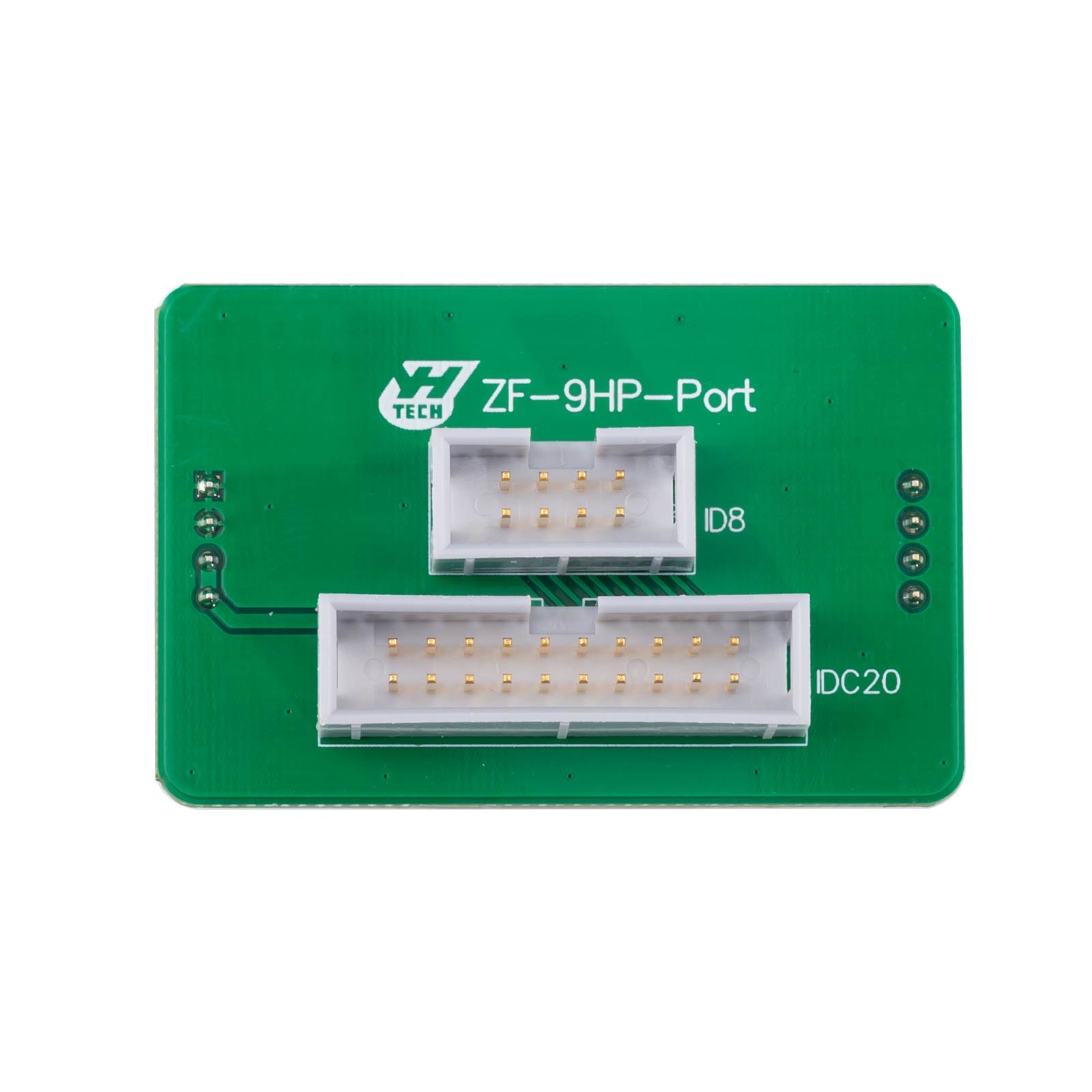

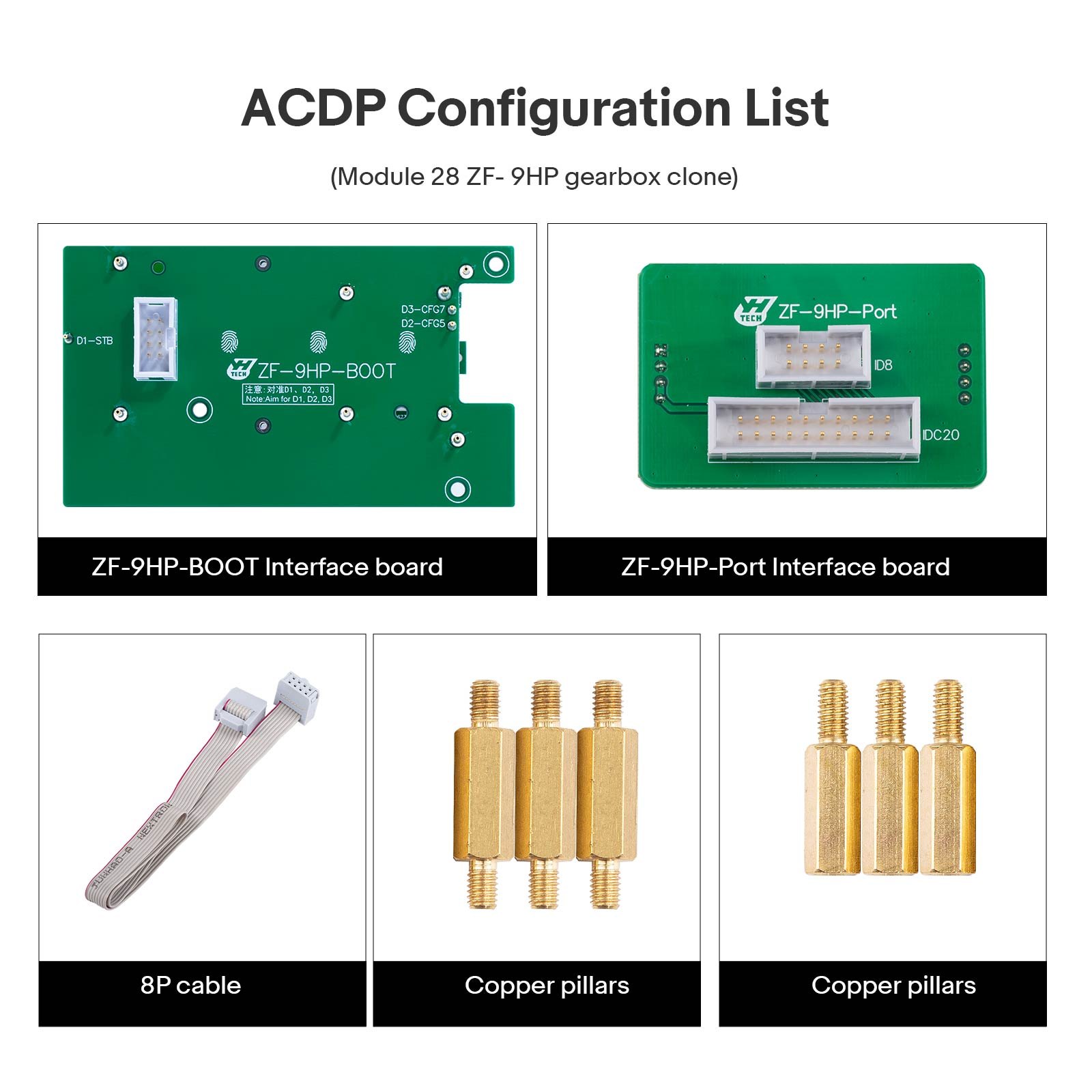

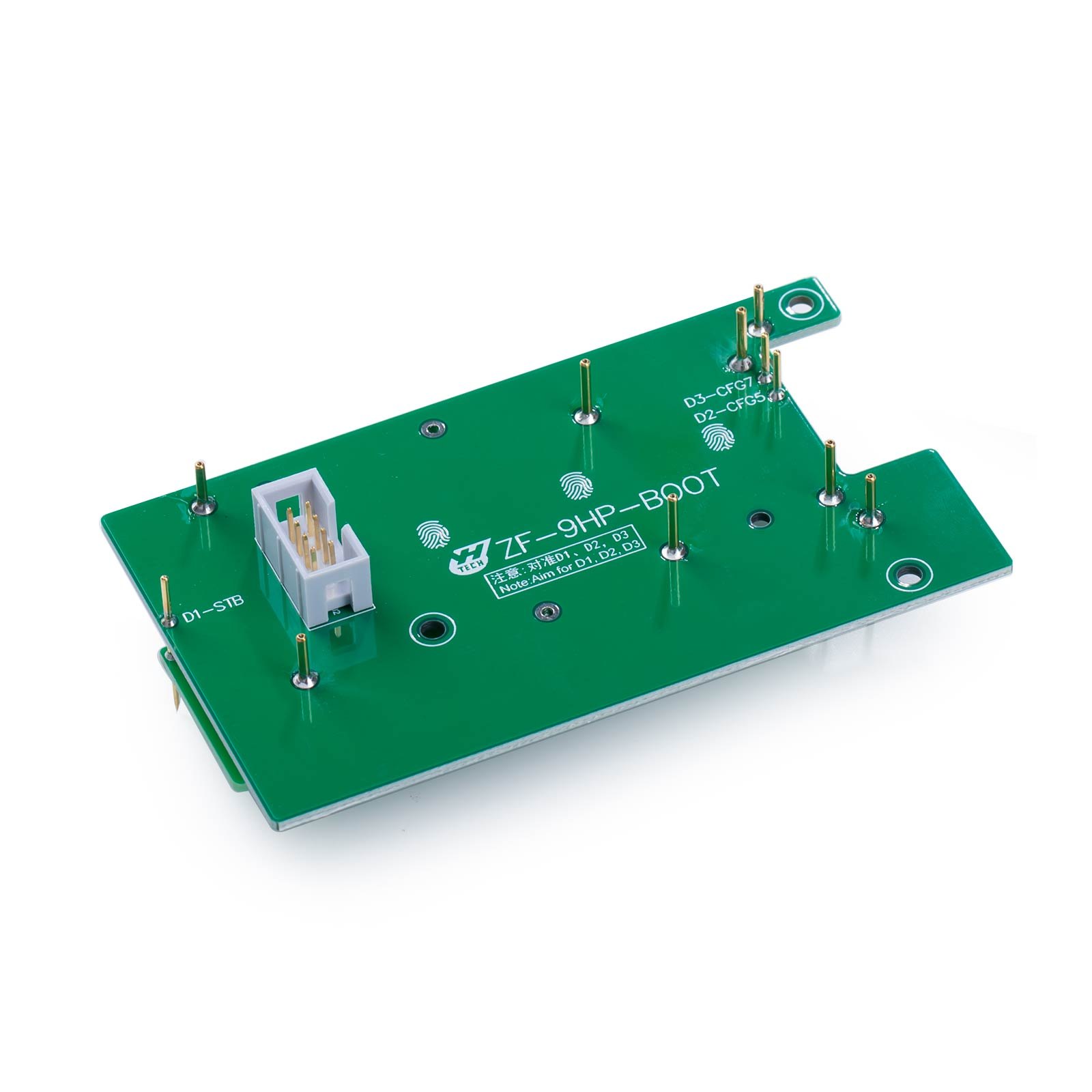

• ACDP Host, OBP+ICP Adapter, 20 Pin Cable, 8Pin Cable, ZF-9HP-Port interface board, ZF-9HP-Boot interface board, copper pillars, Screwdriver, ZF-9hp gearbox computer
• Firstly, Disassembling the ZF-9HP gearbox computer case. Remove the 3 screws of the infterface board. Install the copper pillars. Put the CPU positioning frame on the CPU. Install ZF-9HP Boot interface board. Then Lock the board with copper pillars. Install ZZF-9HP Port interface board. Conncet two interface boards with 8Pin cable. Connect OBP+ICP Adapter with 20Pin cable. Short the Can resistor on the OBP+ICP adapter to the "CAN-R-JOIN" side. Connect the ACDP host.
• After Conncetion, Click ACDP App, Choose Jaguar/LandRover - Gearbox Clone - ZF-9HP(Boot)- Identify, Confirm system information, click continue.
• Then Connect another ZF-9HP gearbox computer.
• Choose Full Write Data. Continue the steps and choose the chip data file that saved in the previous step and write the chip data.
• Yanhua Mini ACDP ACDP-2 Module28 with License A703 for ZF-9HP Gearbox Computer Clone
• 28_ZF-9HP gearbox clone with License A703
• Support JLR,Chrysler, Dodge, Fiat, Honda, Jeep ZF-9HP gearbox BOOT mode clone.
• YANHUA ACDP Module 28 comes with authorization number A703, authorized function: ZF-9HP gearbox computer clone.
• Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox computer BOOT mode clone.
• The interface board can be inserted blindly to align with the boot test point, no need magnifying glass for calibration or complex probe workbench operation.
• The special interface board replaces the cable, which is simple, efficient, safe and reliable.

The 9HP is a widely shared gearbox, which is what makes one cloning module worth this much bench time.
