Yanhua Mini ACDP ACDP-2 Module16 with License A101 for Benz Gearbox Renew and Refresh

The Yanhua Mini ACDP and ACDP-2 Module 16 for Mercedes-Benz gearbox renew and refresh, supplied with a free A101 licence. It supports the Benz 722.8 and 722.9 gearboxes, so a used unit can be renewed rather than scrapped.

Also stated by the supplier

• Yanhua Mini ACDP ACDP-2 Module16 Benz Gearbox Renew and Refresh
• Support Benz 722.8 722.9 Gearbox
• with Free License A101

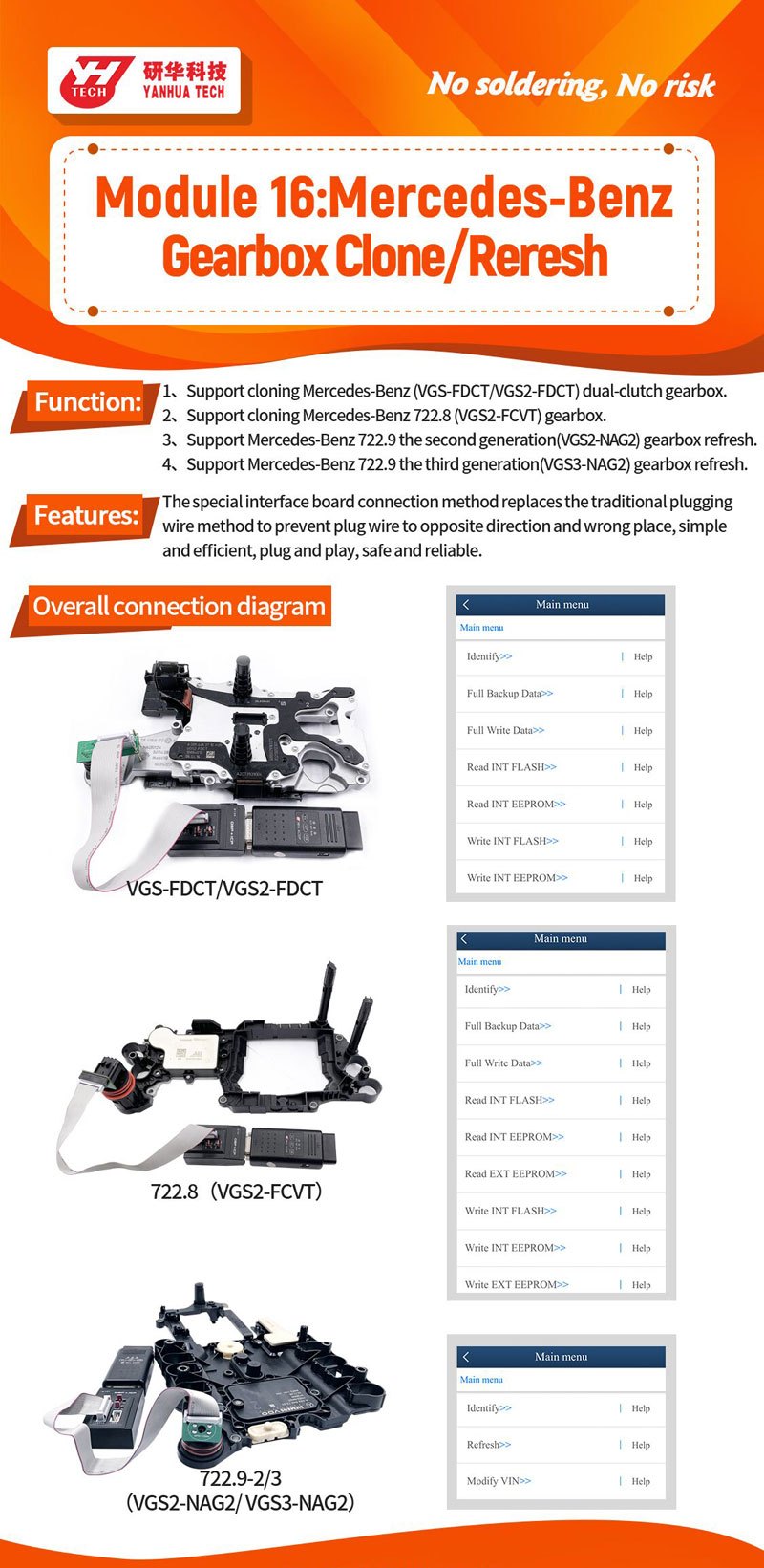

• 16_Mercedes-Benz gearbox Clone / Refresh with License A101
• Support MB dual-clutch gearbox,722.8 gearbox clone and 722.9-2/3 gearbox refresh.
• Support cloning Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox.
• Support cloning Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.
• Support Mercedes-Benz 722.9 the second generation (VGS2-NAG2) gearbox refresh.
• Support Mercedes-Benz 722.9 the third generation (VGS3-NAG2) gearbox refresh.
• The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.
• ACDP Configuration List (Module 16 Mercedes-Benz gearbox Clone/Refresh)
• Quantity

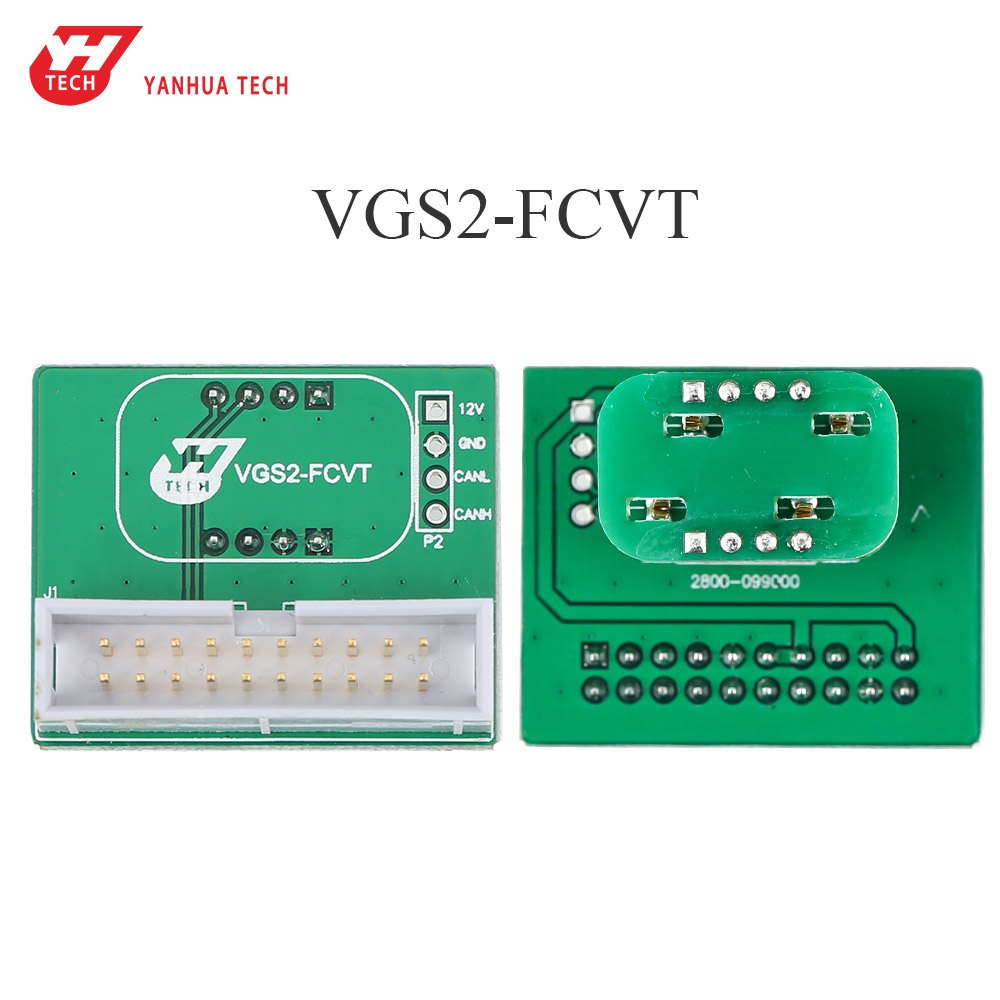

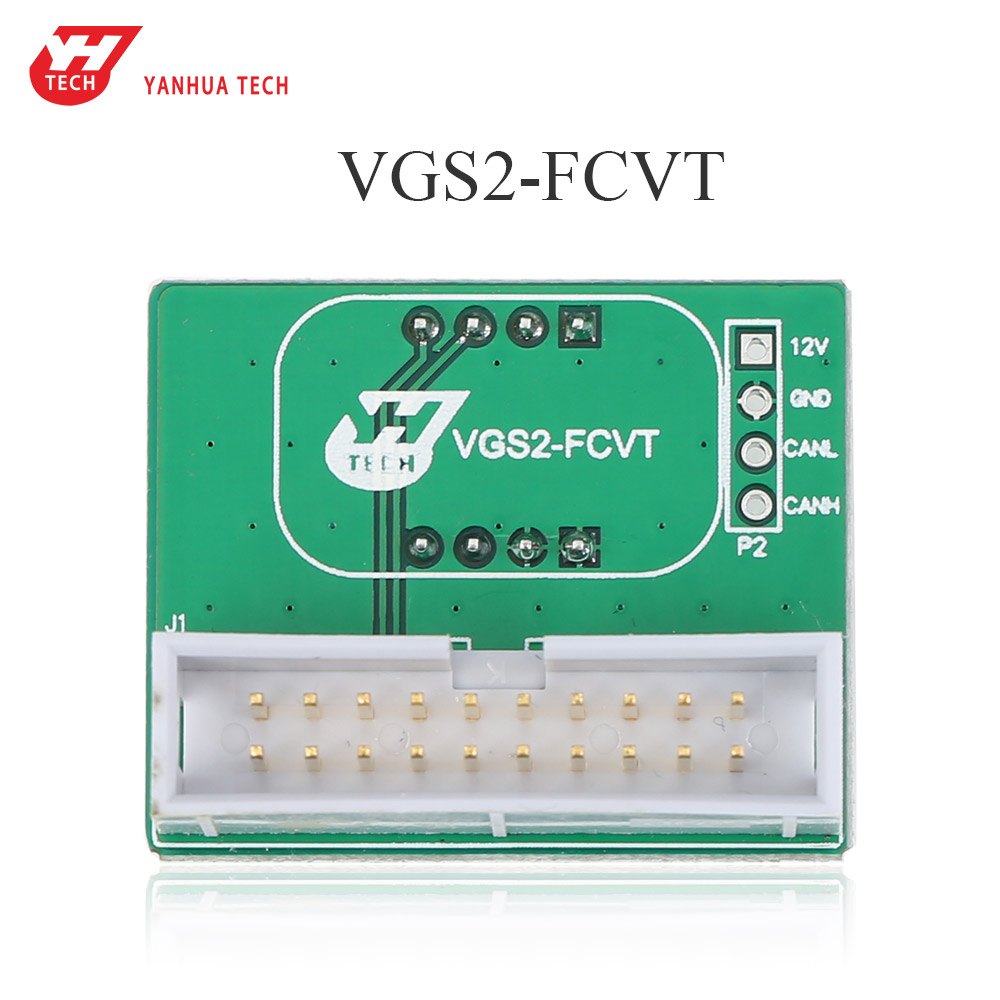

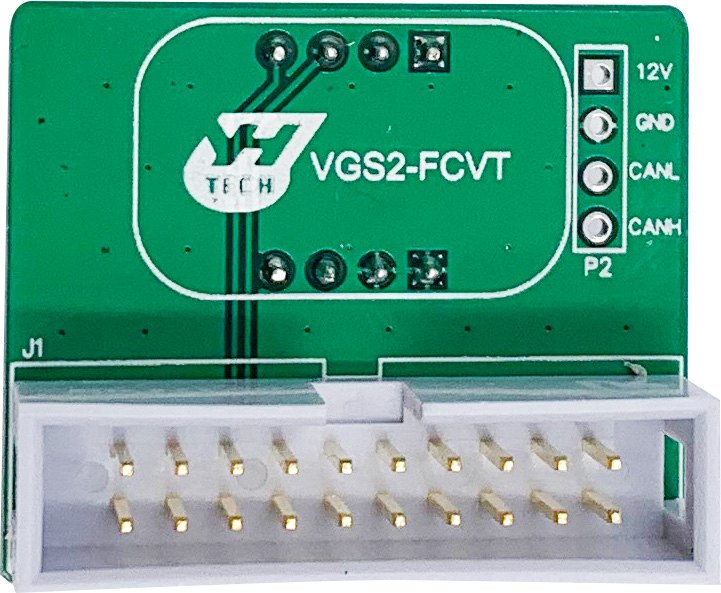

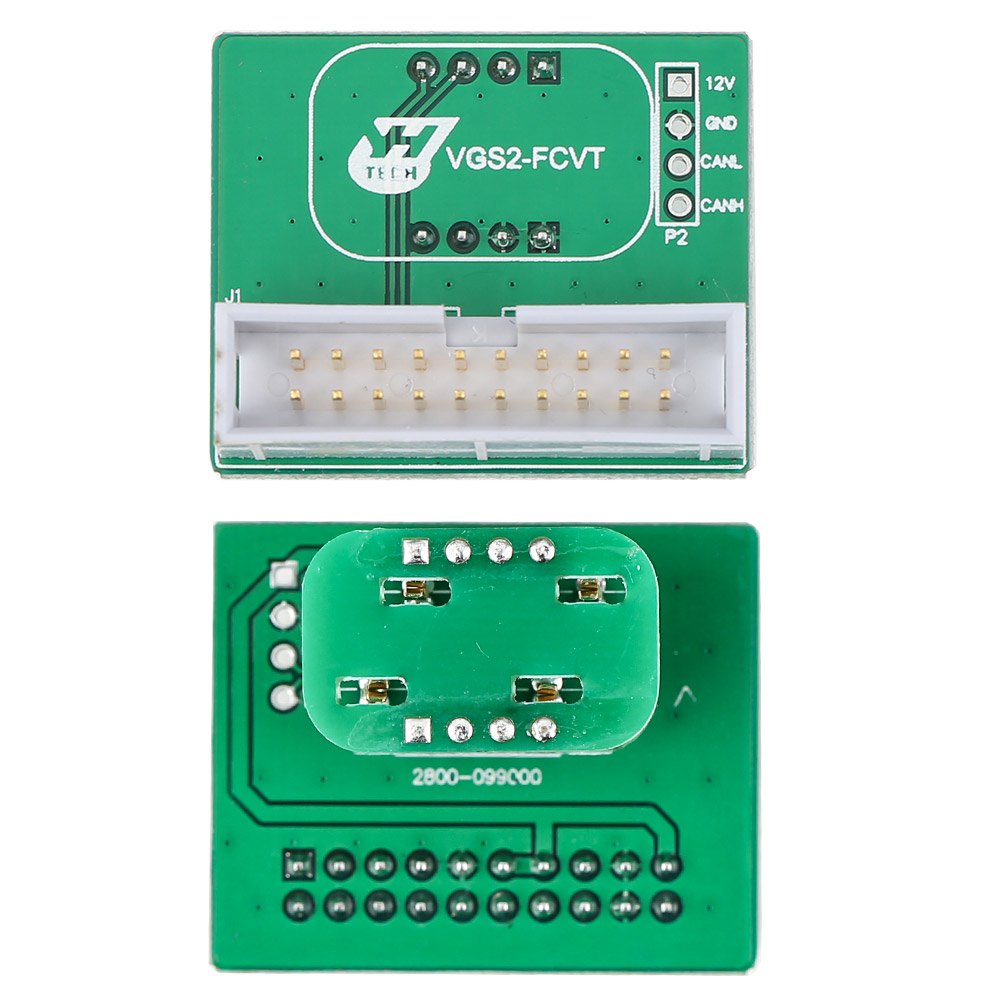

• VGS2-FCVT Interface Board
• 1pc
• Applicable to connect MB 722.8 (VGS2-FCVT) gearbox

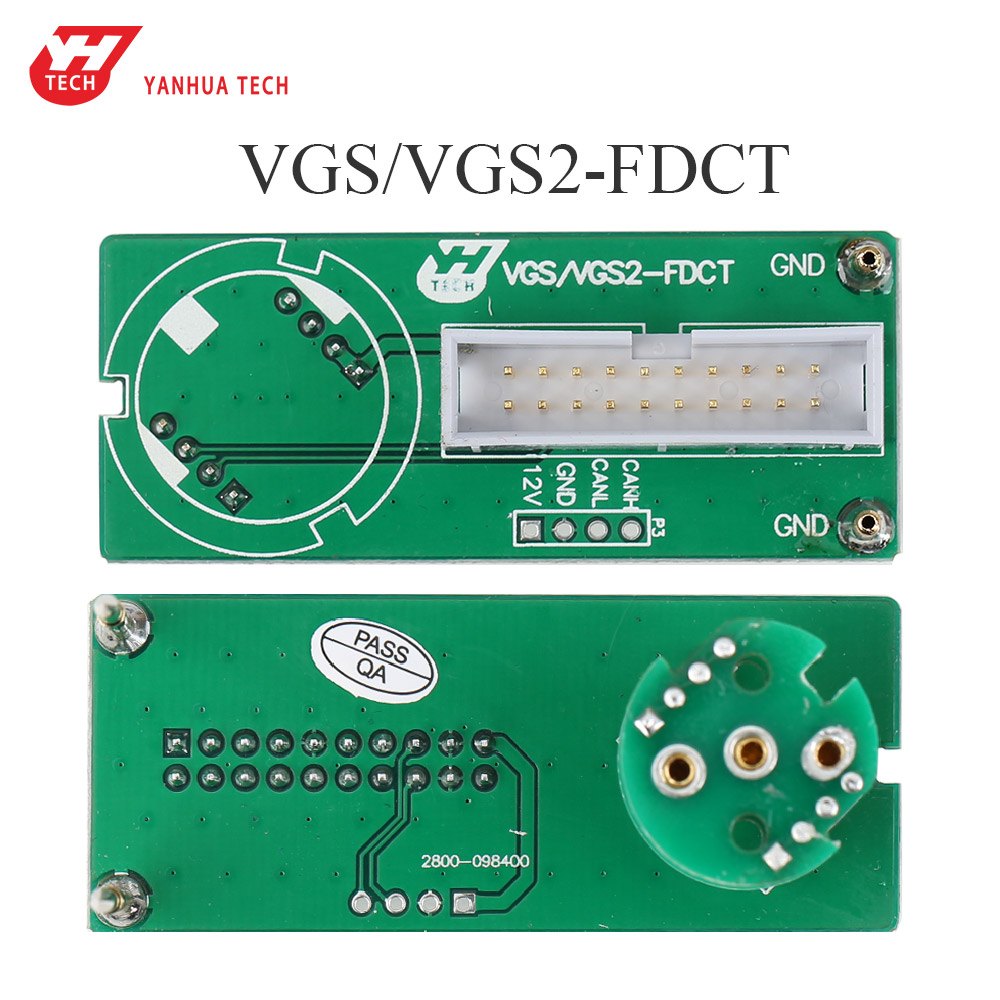

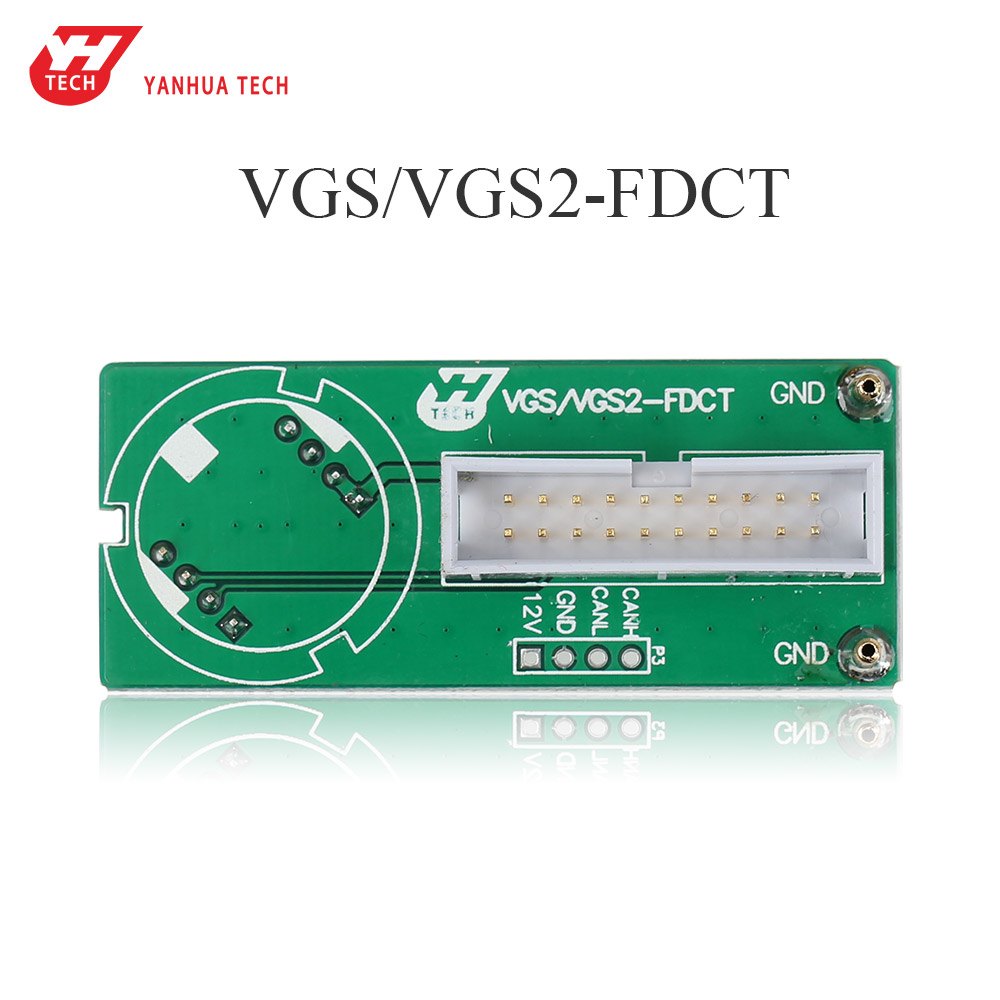

• VGS/VGS2-FDCT Interface Board
• Applicable to connect MB (VGS-FDCT/VGS2-FDCT) dual-clutch gearbox

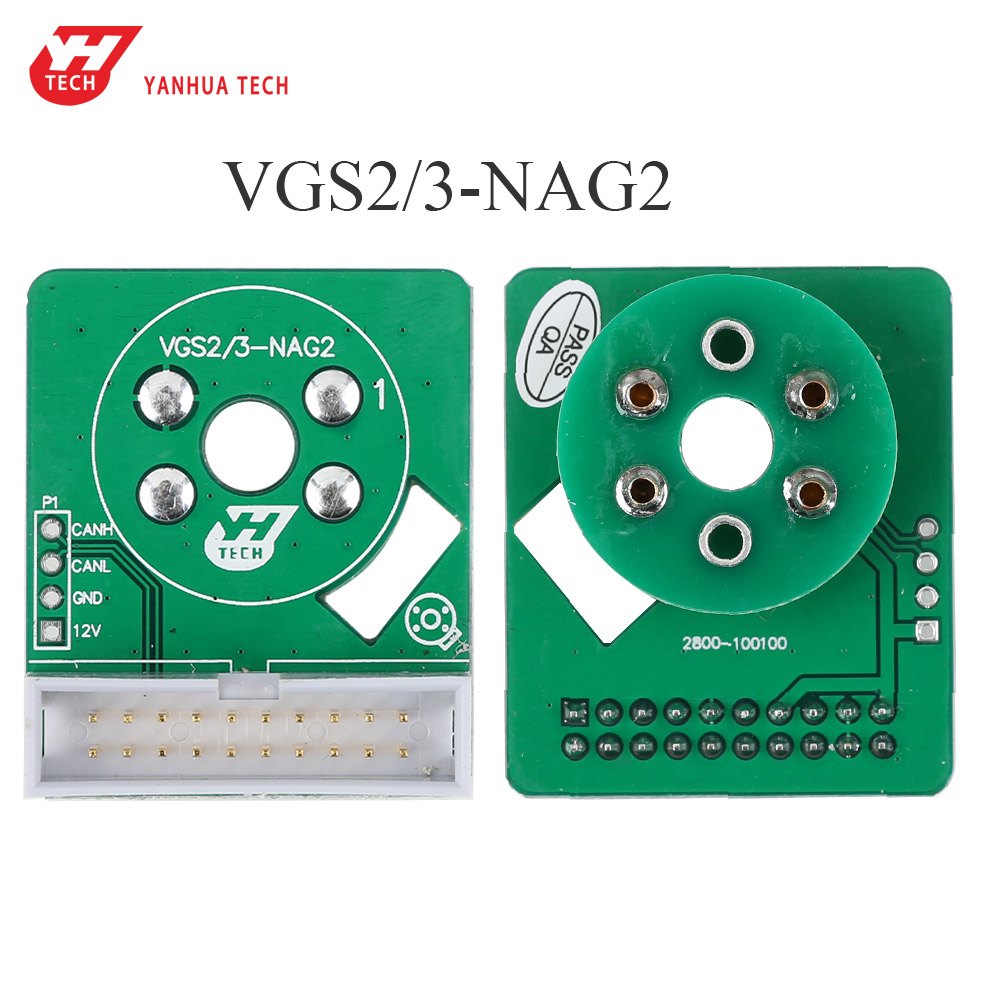

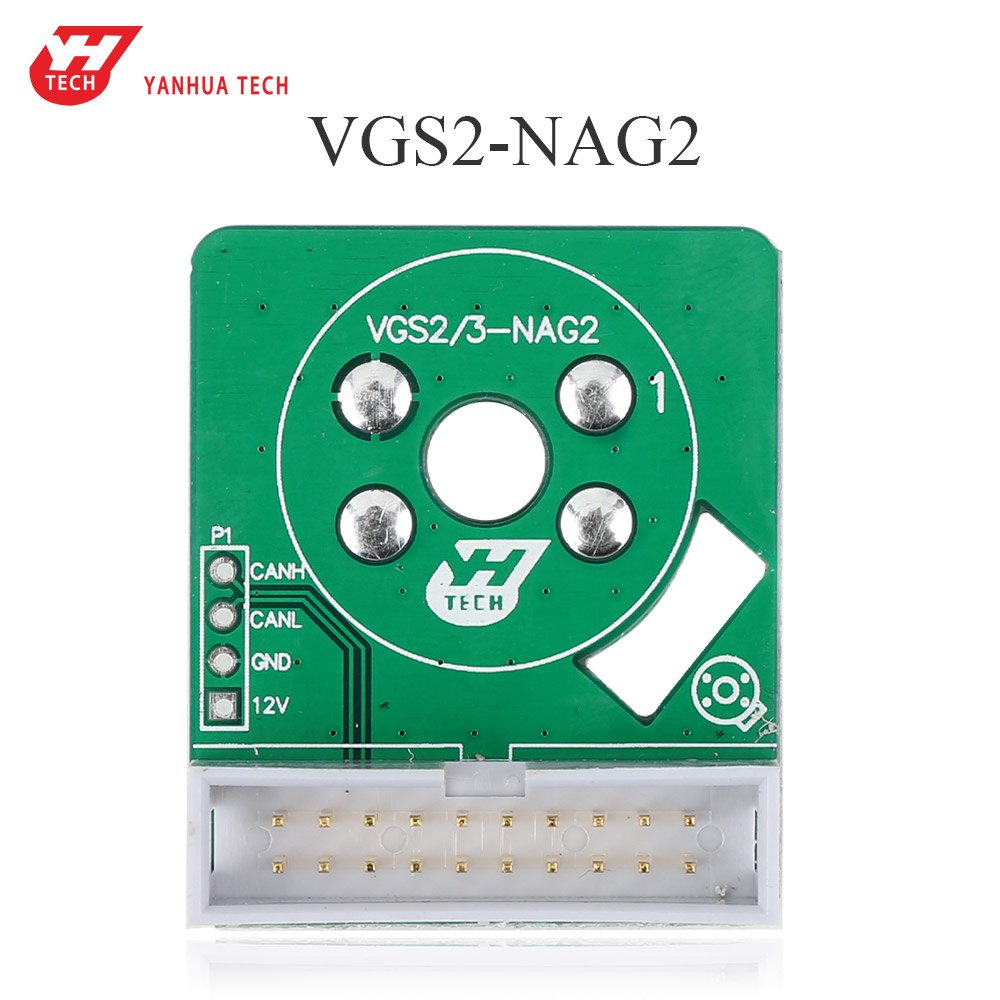

• VGS2/3-NAG2 Interface Board
• Applicable to connect MB 722.9-2/3 (VGS2-NAG2/ VGS3-NAG2) gearbox
• Applicable to connect VGS/VGS2-FDCT Interface board and gearbox (for spare)
• Mini ACDP with Yanhua Module16 Benz C Class Gearbox VGS2 NAG2 Refresh Tutorials.
• Please Confirm whether the gearbox module model is correct.
• Step 1. Please prepare ACDP, OBP+ICP adapter,interface board and gearbox.
• Step 2. Connect the interface board correctly to the gearbox interface as shown.
• Step 3. Short the CAN resistor on the OBP+ICP adapter to the "CAN-R Join".
• Step 4. Connect ACDP, OBP+ICP adapter, interface board and gearbox.

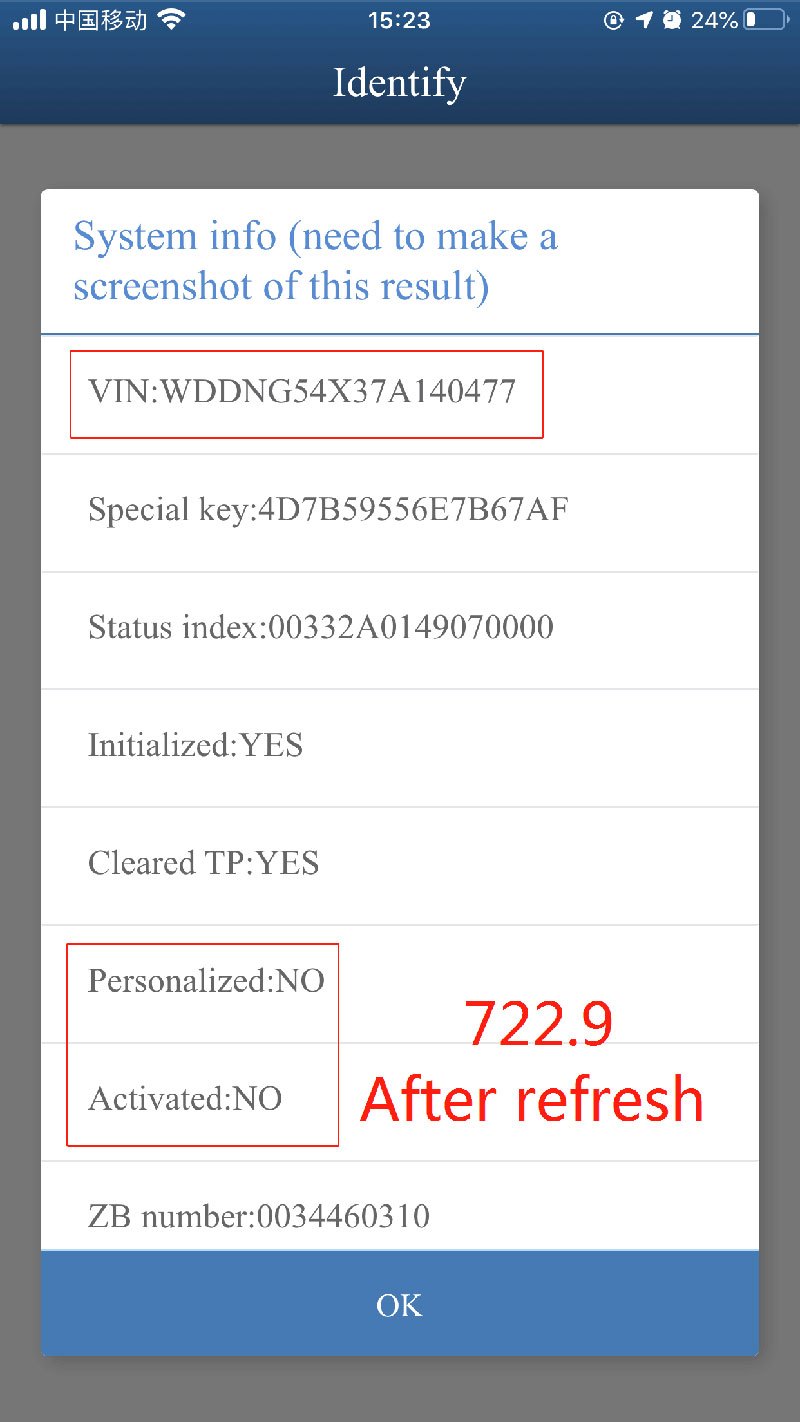

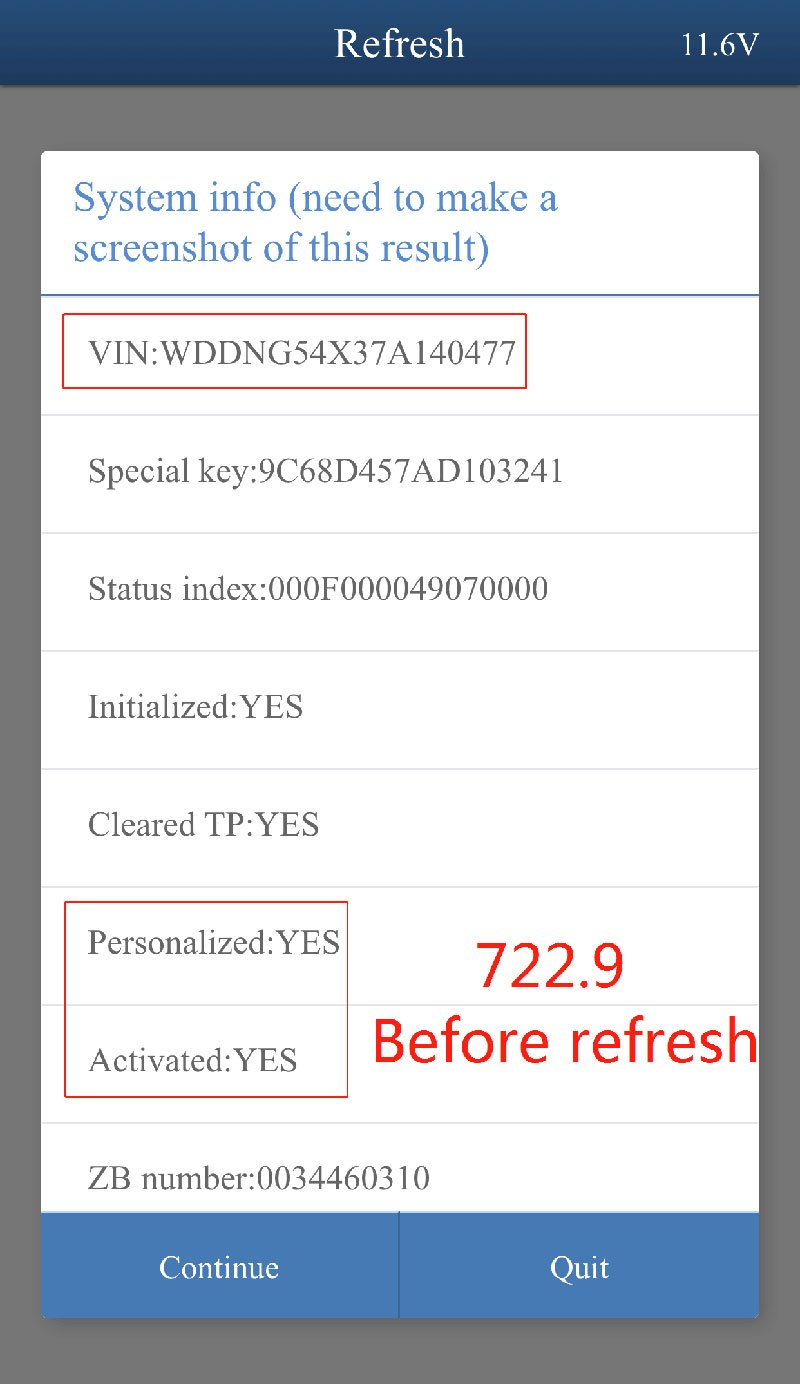

• After Connection, Open MINI ACDP APP, Choose Benz - Gearbox clone/refresh - C Class- VGS2 NAG2 - Refresh and follow continue steps

Renewing a second hand gearbox controller is what makes a used box worth fitting at all.
