Yanhua Mini ACDP ACDP-2 Module13 with License A600 for Volkswagen/Audi Gearbox Module Clone Support DQ200 DQ250 DL382 DL501 VL381
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
The Yanhua Mini ACDP and ACDP-2 Module 13 with licence A600, for Volkswagen and Audi gearbox module cloning. It supports the DQ200 in 0AM and 0CW, the DQ250 in 02E, the DL382, DL501 and VL381, across Volkswagen, Audi, Seat and Skoda, with a help document carrying the connection diagram.
Specifications
- Module Function: Support VW (Volkswagen), Audi DQ200 (0AM / 0CW), DQ250 (02E / 0D9), DL382 (0CK), DL501 (0B5), VL381 (0AW) models and etc.
- Supported Brands: Volkswagen/Audi/Seat/Skoda
- Connection Steps: ( You can click help document to check the connection diagrams)
What you get
- 1set x Yanhua Mini ACDP Module13 Volkswagen/Audi Gearbox Module Clone
- Yanhua Mini ACDP Module13 VW/AUDI VL381(0AW) Gearbox Clone Tutorials
- Yanhua MINI ACDP VW/Audi VL381(0AW) Gearbox Clone with ACDP Module 13 Tutorials:
- Yanhua Mini ACDP ACDP-2 Module13 with License A600 for Volkswagen/Audi Gearbox Module Clone
- Support VW (Volkswagen), Audi DQ200 (0AM / 0CW), DQ250 (02E / 0D9), DL382 (0CK), DL501 (0B5), VL381 (0AW) models and etc.
- 13_VW/Audi Gearbox Clone Module with License A600

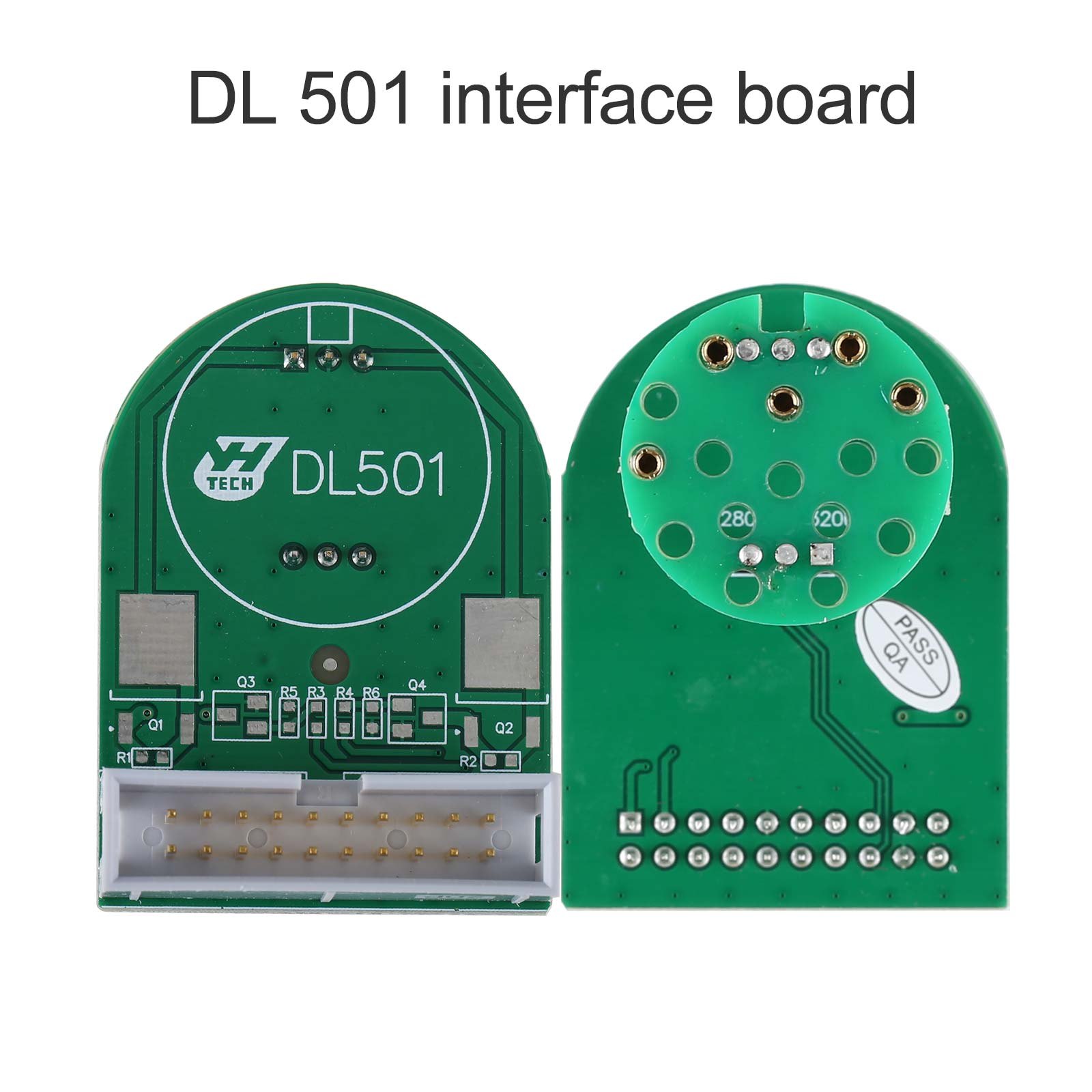

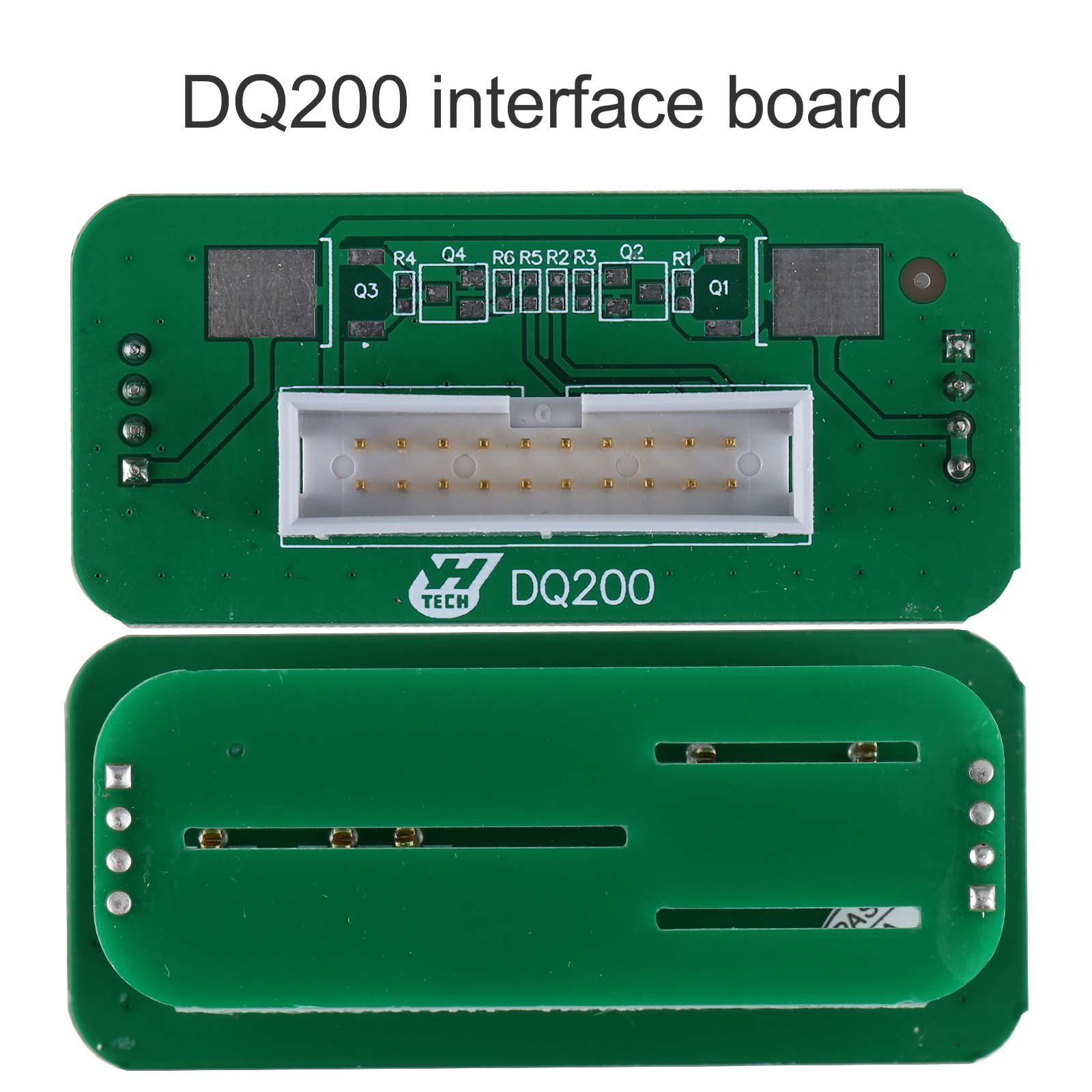

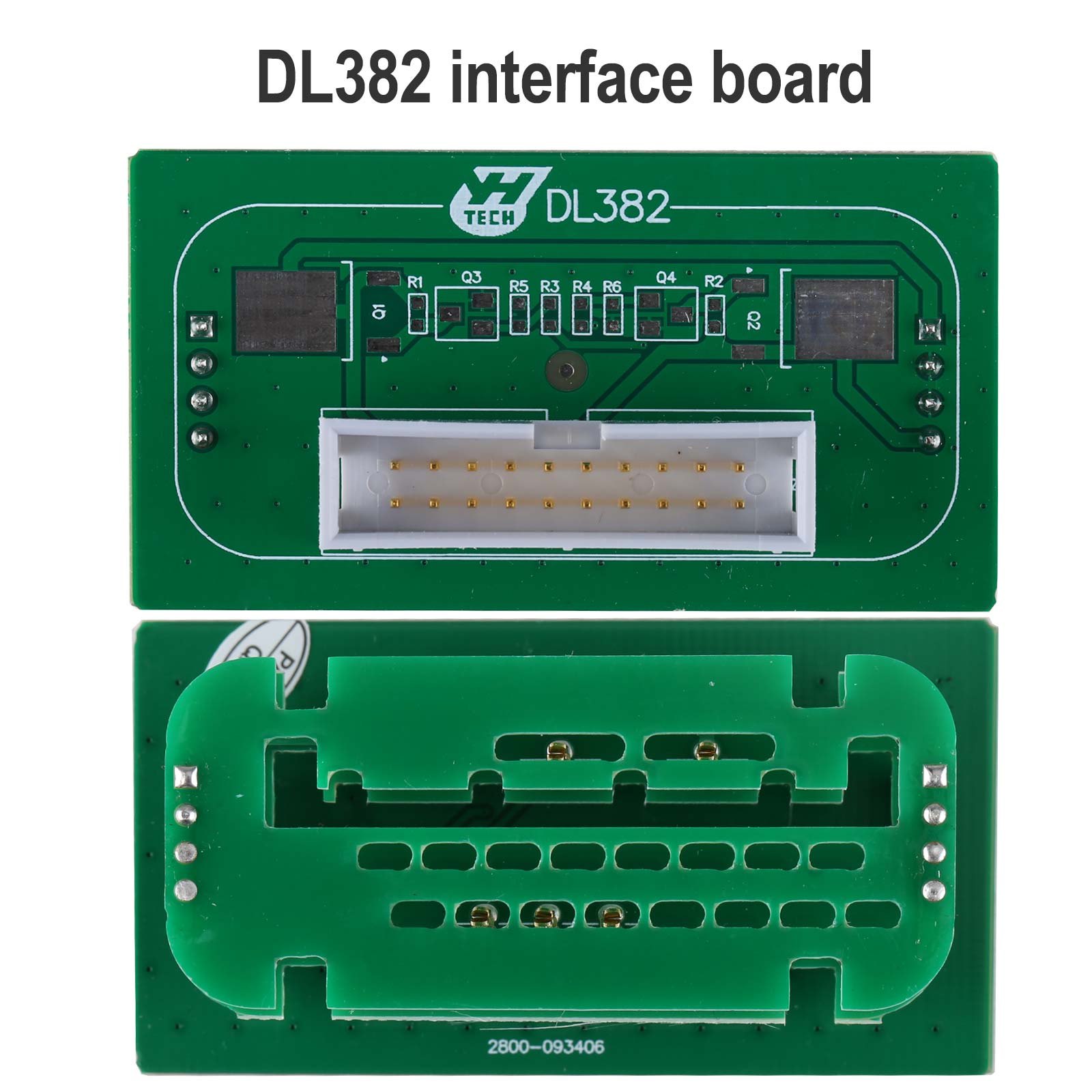

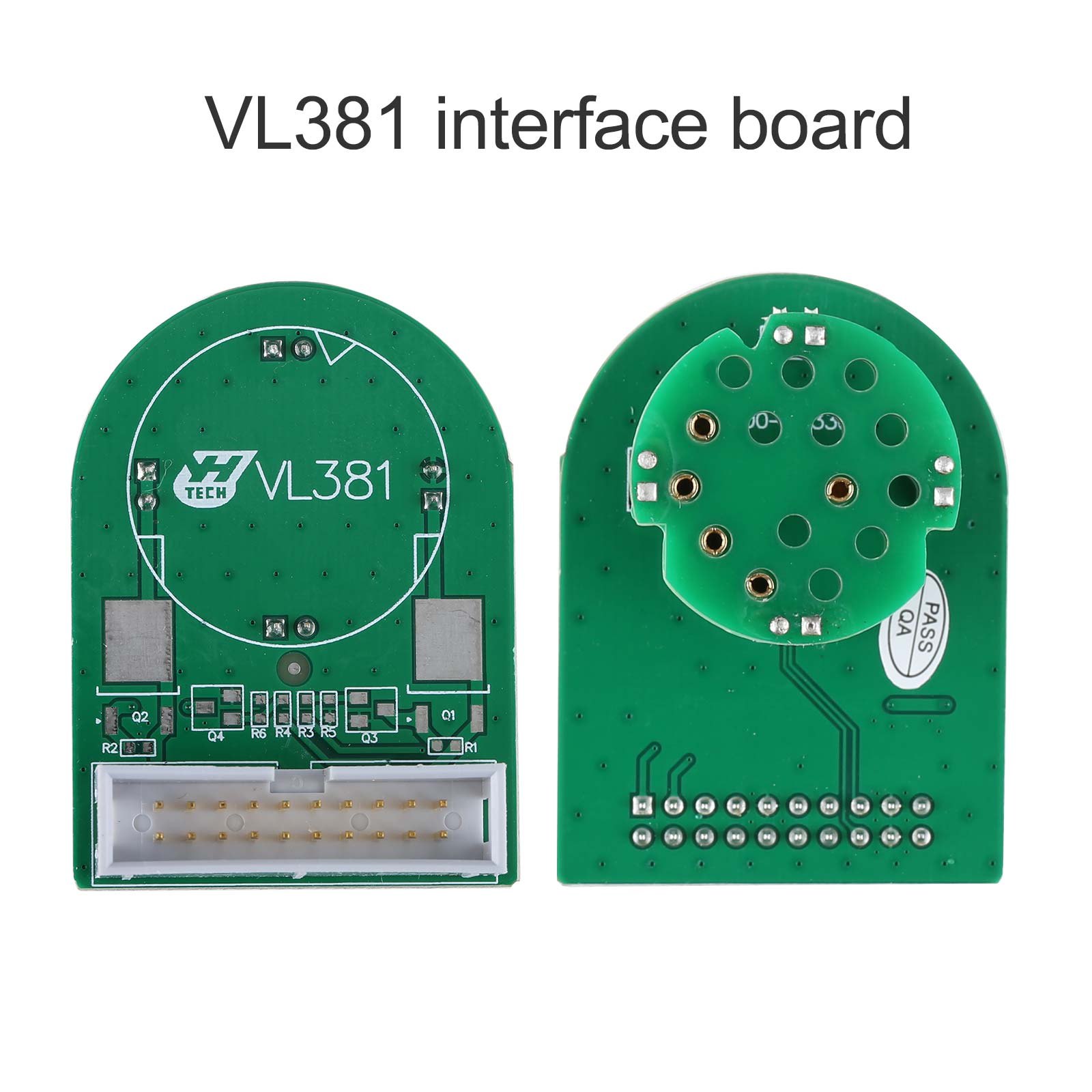

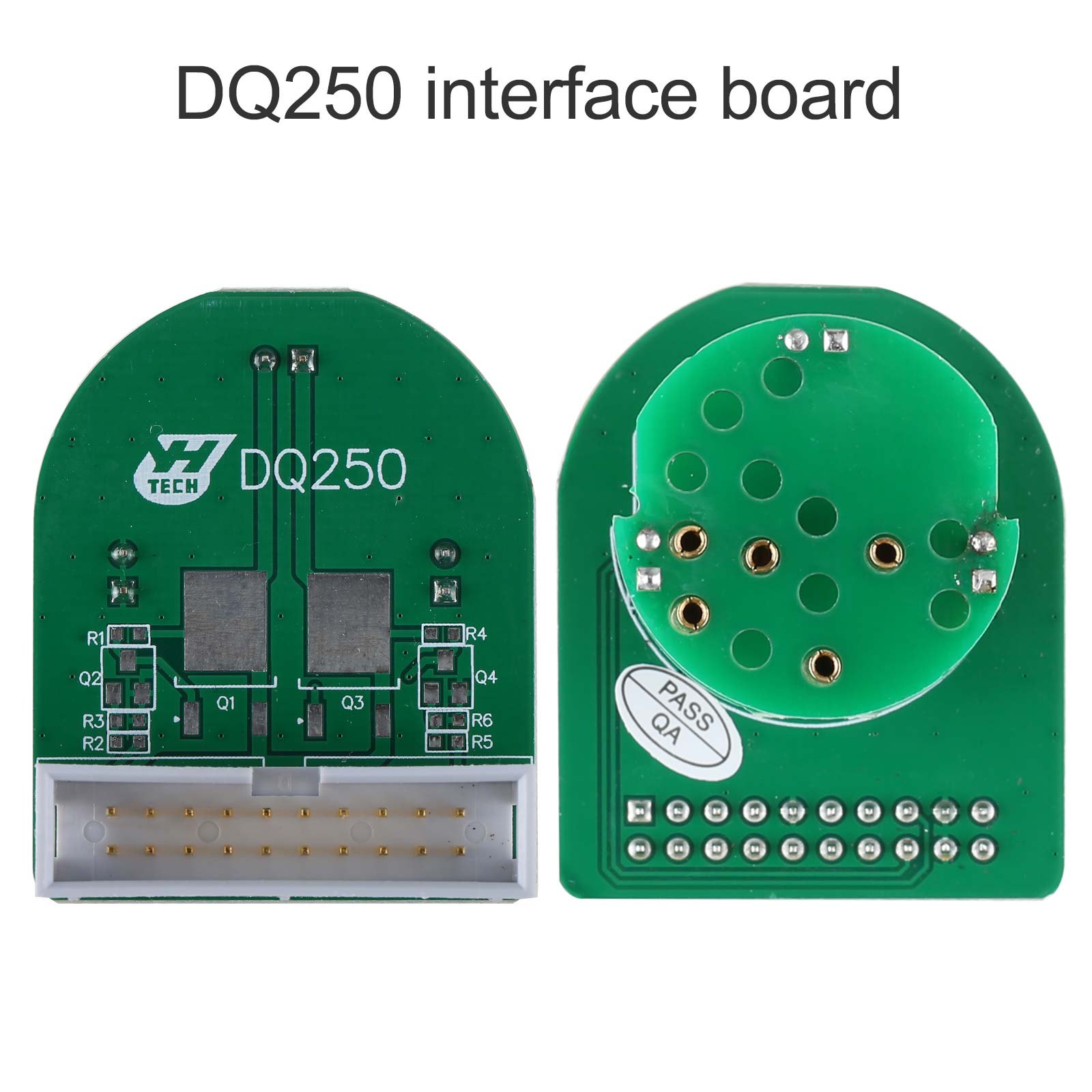

- The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.
- Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and VAG.
- Step 2. Connect the interface board correctly to the VAG interface as Shown.
- Step3. Connect the CAN resistor.
- Step4. Connect ACDP, OBP+ICP adapter,interface board and VAG.
- After Connection, Click ACDP - VW - Gearbox Clone - Audi - VL381(0AW) - Full Backup
- Confirm that the ACDP device is connected to gearbox and Click OK. Confirm the gearbox model is VL38l, click continue. Read Chip data and save the file.
- After backup the file, Connect the new VL38l(0AW) gearbox. Click full write- Confirm that the ACDP device is connected to new gearbox
- Confirm the gearbox model is also VL38l, choose the data file saved in the previous step
The A605 licence alone and Module 21 for gearbox mileage are the other options on this listing.
Specifications
| Brand | Yanhua |
|---|---|
| Type | Auto Key Programmer |
| Part number | SK317 |
| Condition | New |
| Version | A605 License Only, Module21 Gearbox Mileage with A605 License, Module13 Gearbox Clone with A600 License |
| Price range | $273.99 to $638.99 |
