Yanhua Mini ACDP-2 for Mercedes-Benz Package with Module 15/16/18/19 and Pcan2 Cable Support Gearbox Clone/Refresh DMW/ISM Refresh
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
The new generation Yanhua Mini ACDP-2 master supplied with the four Mercedes modules and the Pcan2 cable. It covers DME cloning, gearbox cloning and refresh, and DME and ISM refresh.
One point to check before ordering. Modules 3, 8, 12, 15, 18, 19, 25 and 30 exist in separate ACDP and ACDP-2 forms and are not interchangeable, so the module has to match the programmer it will be used on. The modules in this package are the ACDP-2 versions.

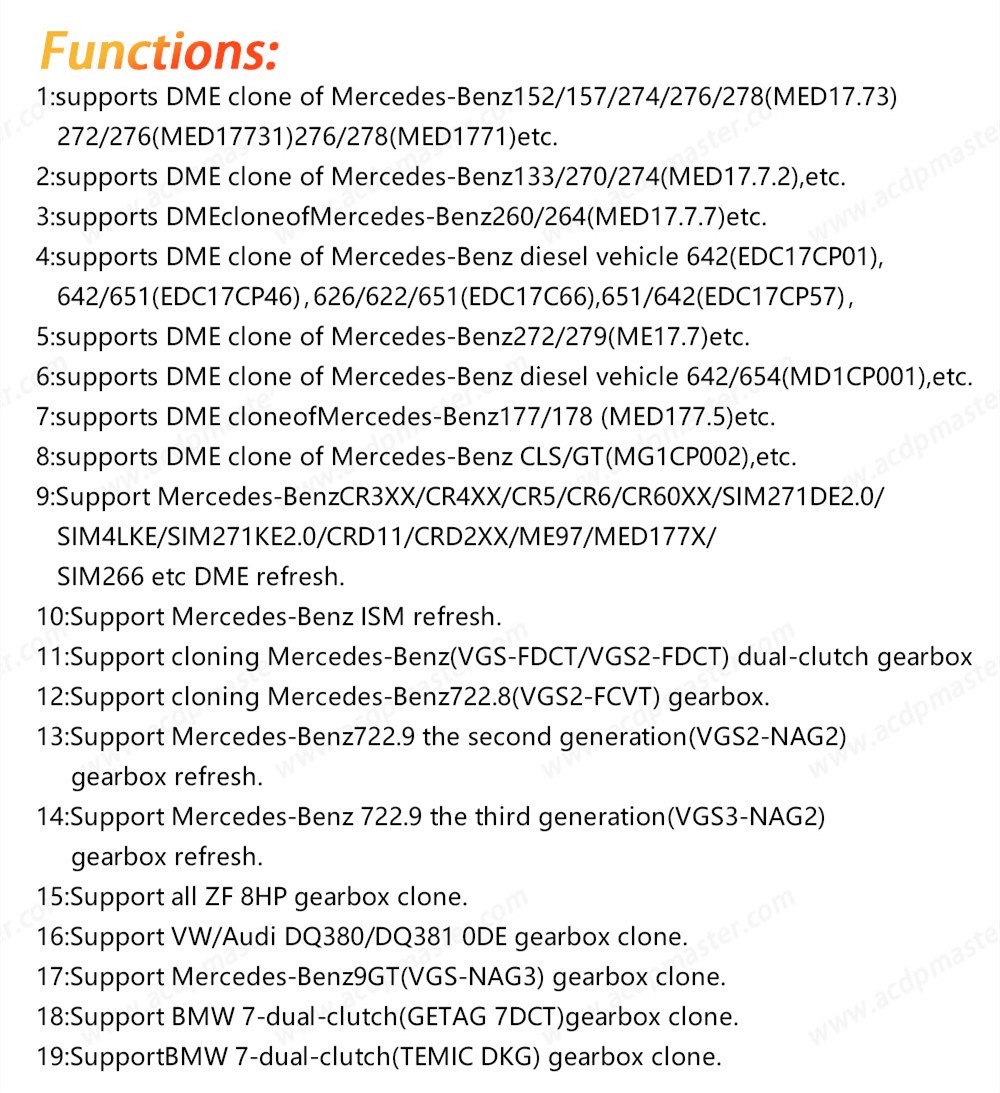

Functions
- Mercedes DME clone (module 15, licence A100)
- Mercedes gearbox clone and refresh (module 16, licence A101), covering dual clutch gearboxes, 722.8 clone and 722.9-2 and 722.9-3 refresh
- Mercedes DME and ISM refresh (module 18), covering 271, 272 and 273 series DME and ISM
- SH725XX gearbox clone (module 19, licence A000), covering all ZF 8HP, DQ380 and DQ381 0DE, Mercedes VGS-NAG3, BMW GETAG 7DCT and BMW TEMIC DKG
- 93, 24, 25, 35 and 95 series EEPROM in circuit programming (ICP) and on adapter board programming (OBP)
Specifications

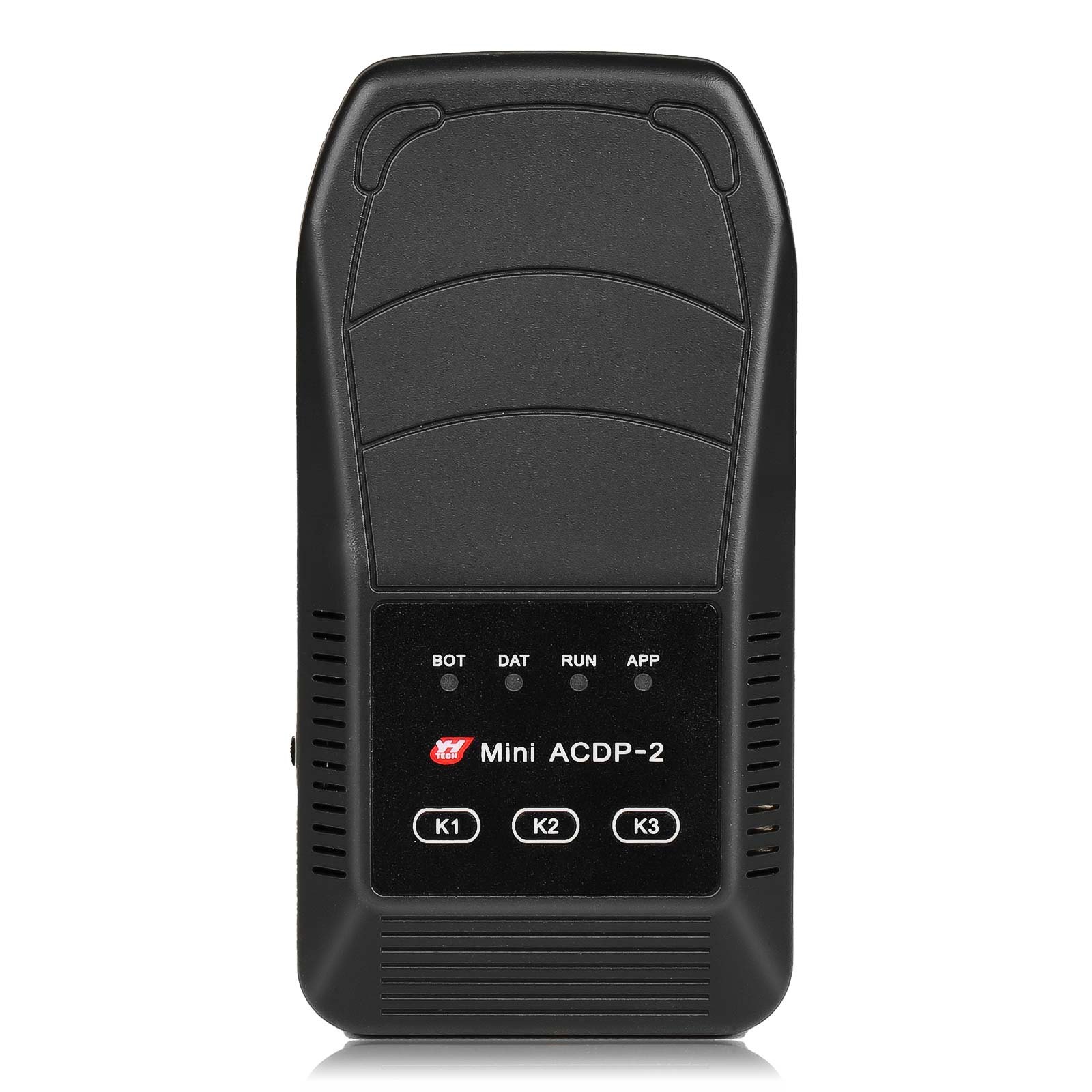

- Programmer: ACDP-2 master basic module
- Modules: 15, 16, 18 and 19
- Licences: A100, A101 and A000
- Cable: Pcan2
In the box
- 1 x ACDP-2 master basic module
- 1 x ACDP-2 Module 15
- 1 x ACDP-2 Module 16
- 1 x ACDP-2 Module 18
- 1 x ACDP-2 Module 19
- 1 x Pcan2 cable
Specifications
| Brand | Yanhua |
|---|---|
| Type | Auto Key Programmer |
| Part number | SK247-PP15 |
| Condition | New |
