Yanhua Mini ACDP-2 for DME Clone Package with Module 3/8/15/18/27 and Bench Interface Boards for BMW Mercedes Benz

The ACDP-2 master unit with five modules and the bench interface boards for BMW and Mercedes DME work. The master itself handles 93, 24, 25, 35 and 95 series EEPROM, both in circuit (ICP) and on an adapter board (OBP), and is the required base for every module.

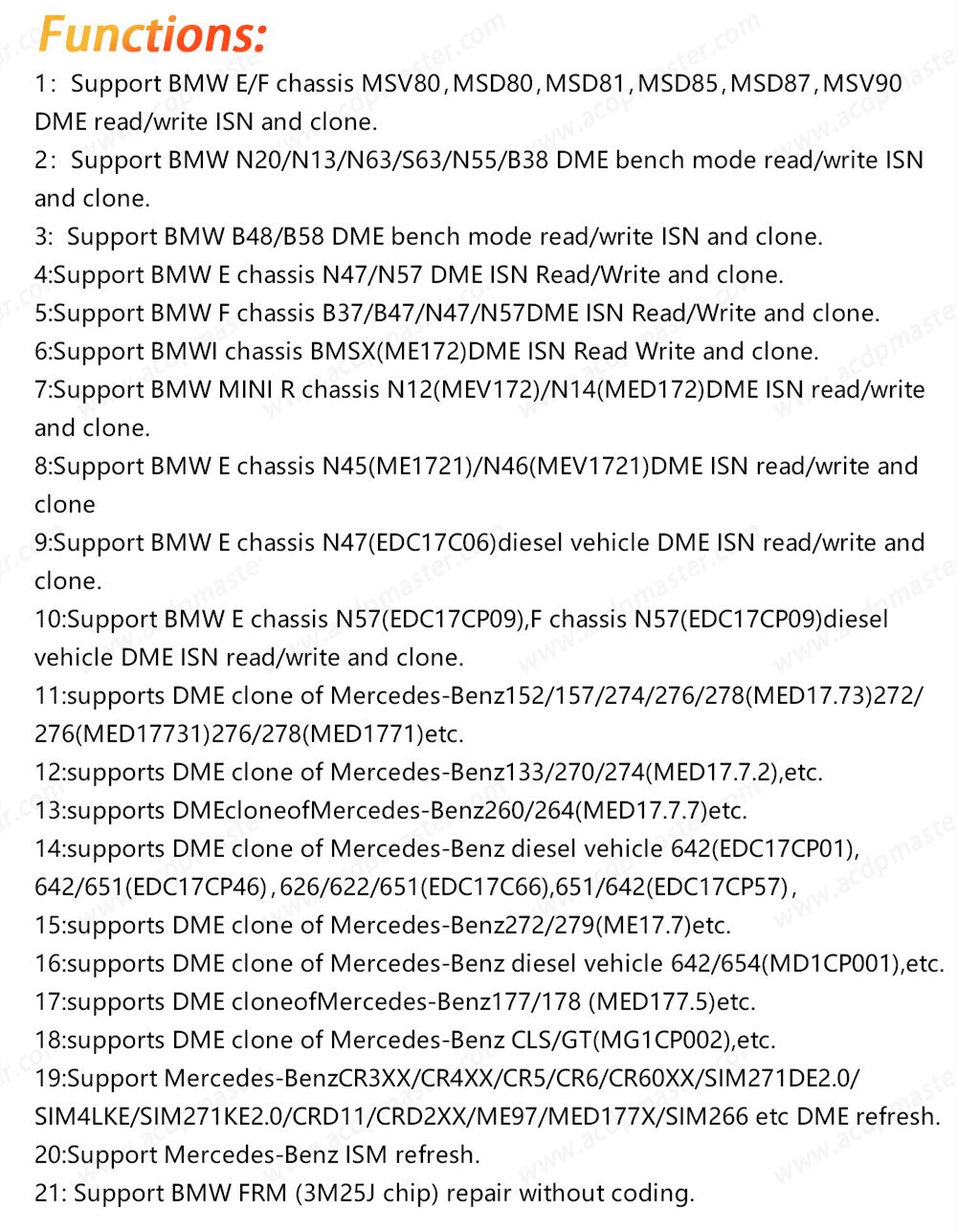

Module 27 is the one that saves the most bench time: MSV80, MSD80, MSD81, MSD85, MSD87 and MSV90 ISN read, write and clone on E and F chassis cars.

Modules included

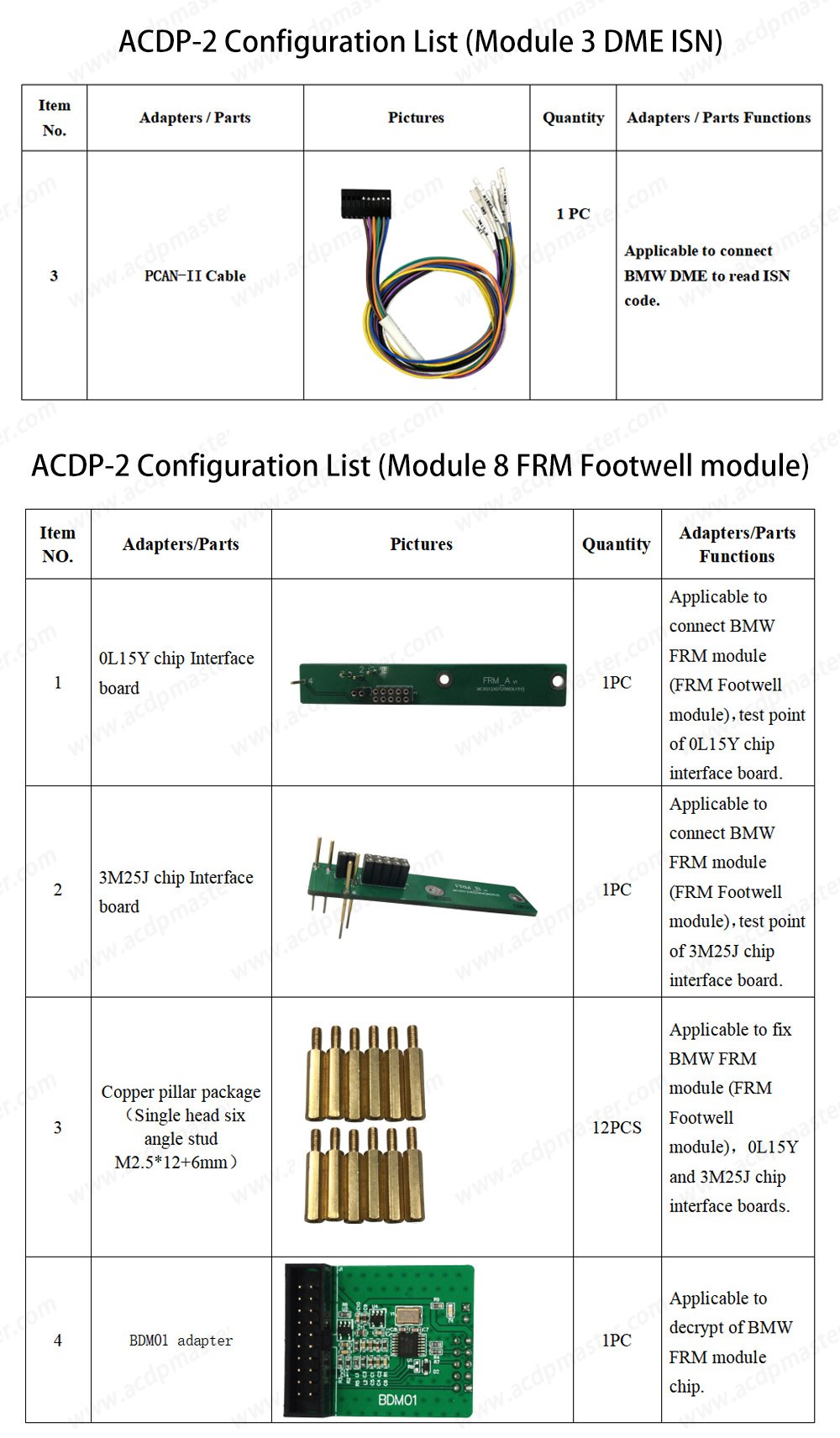

• 03 ACDP-2 ISN module with licence A50B: read and write N20, N55 and N13 ISN by OBD, read and write MSV80 and MSD85 ISN without opening the DME shell, other DME ISN by opening the DME
• 08 ACDP-2 FRM footwell module with licence: read and write BMW FRM 0L15Y chip EEPROM and FLASH, and 3M25J chip EEPROM, D-FLASH and P-FLASH
• 15 ACDP-2 Mercedes-Benz DME clone module with licence A100

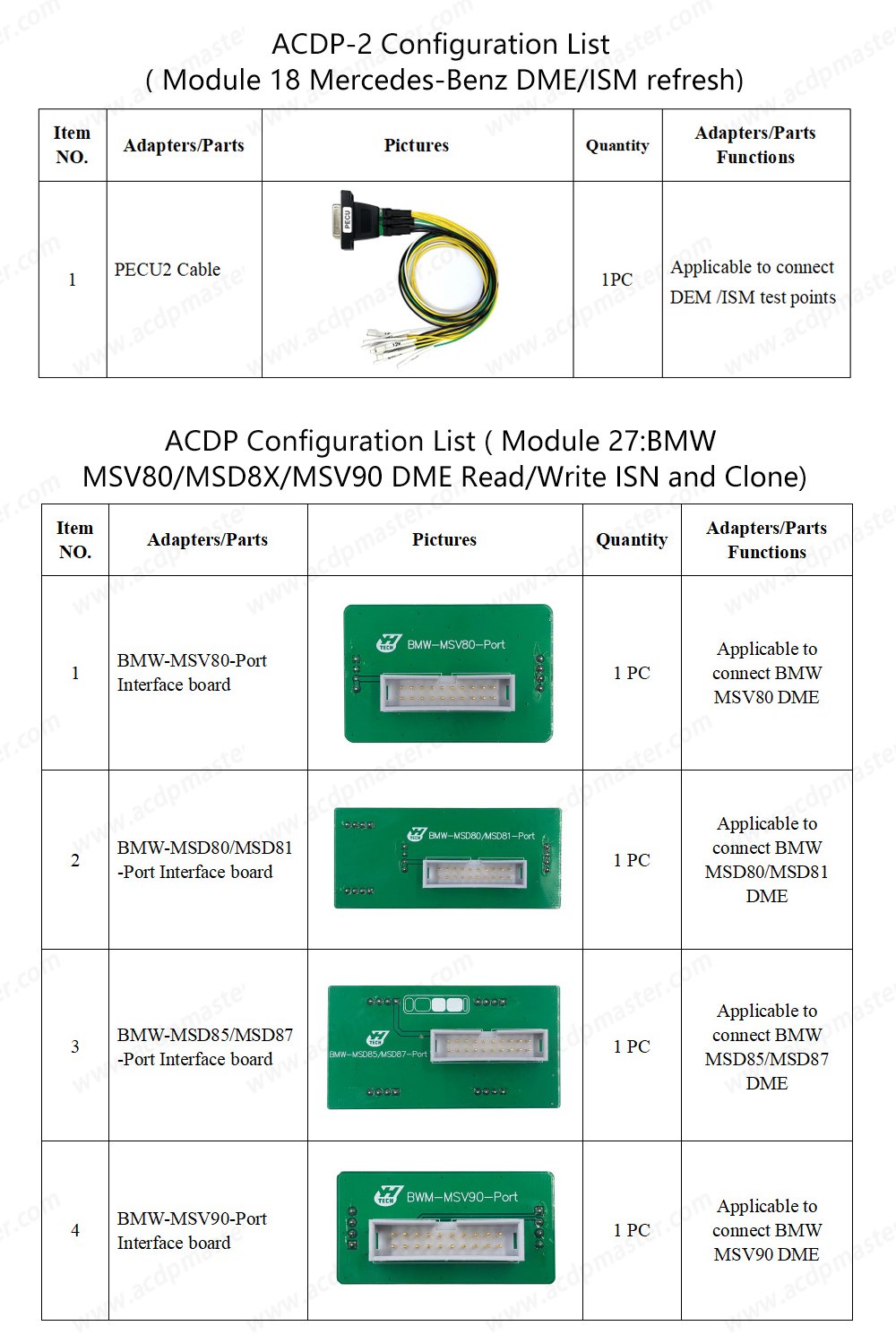

• 18 ACDP-2 Mercedes-Benz DME and ISM refresh module with licence A102, supporting 271, 272 and 273 DME and ISM refresh
• 27 BMW MSV80, MSD8X and MSV90 DME read, write ISN and clone with licence A51E, supporting E and F chassis MSV80, MSD80, MSD81, MSD85, MSD87 and MSV90

Specifications

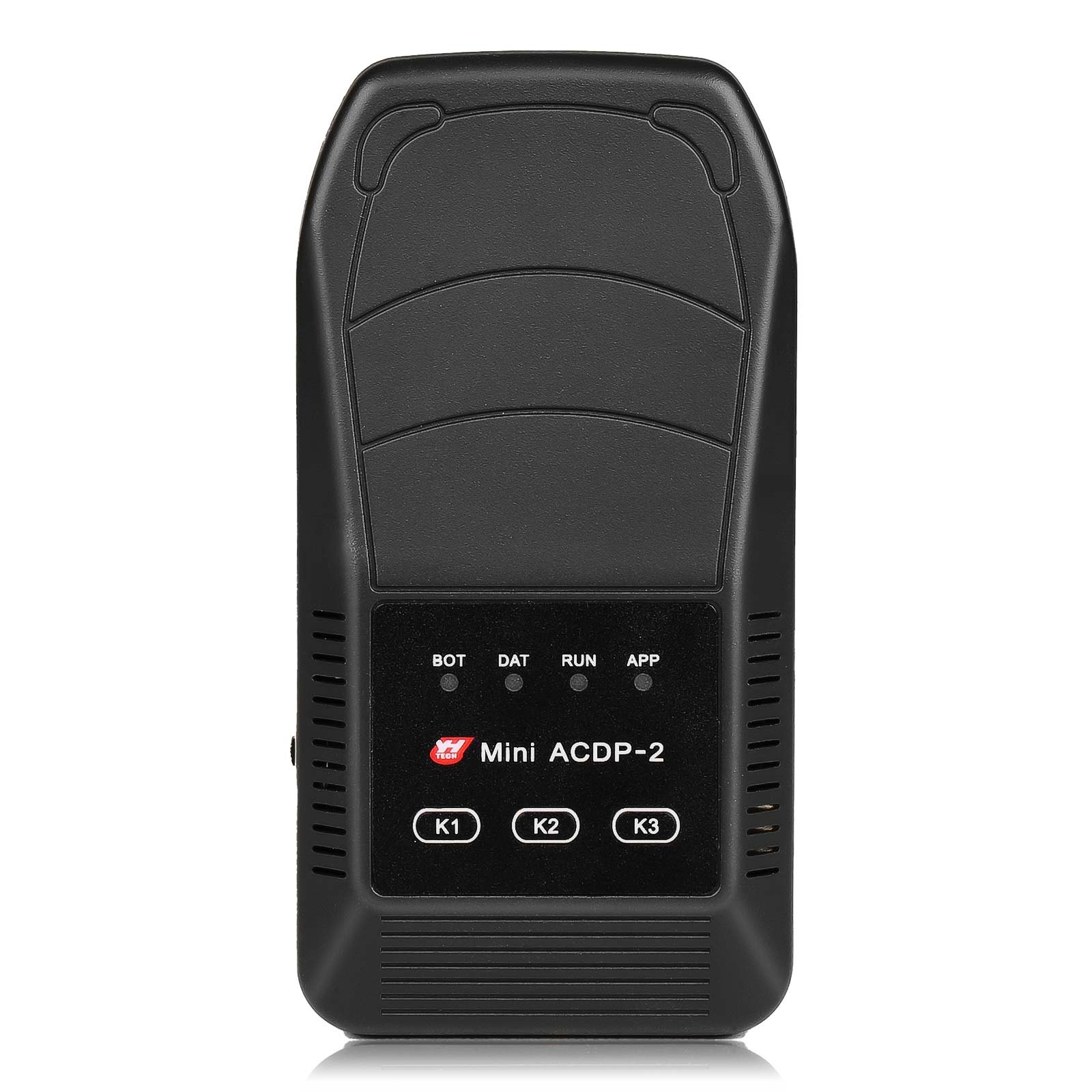

• Base unit: Yanhua Mini ACDP-2 programmer master
• EEPROM support: 93, 24, 25, 35 and 95 series, ICP and OBP
• Licences: EUC clone licence, A50B, A100, A102, A51E

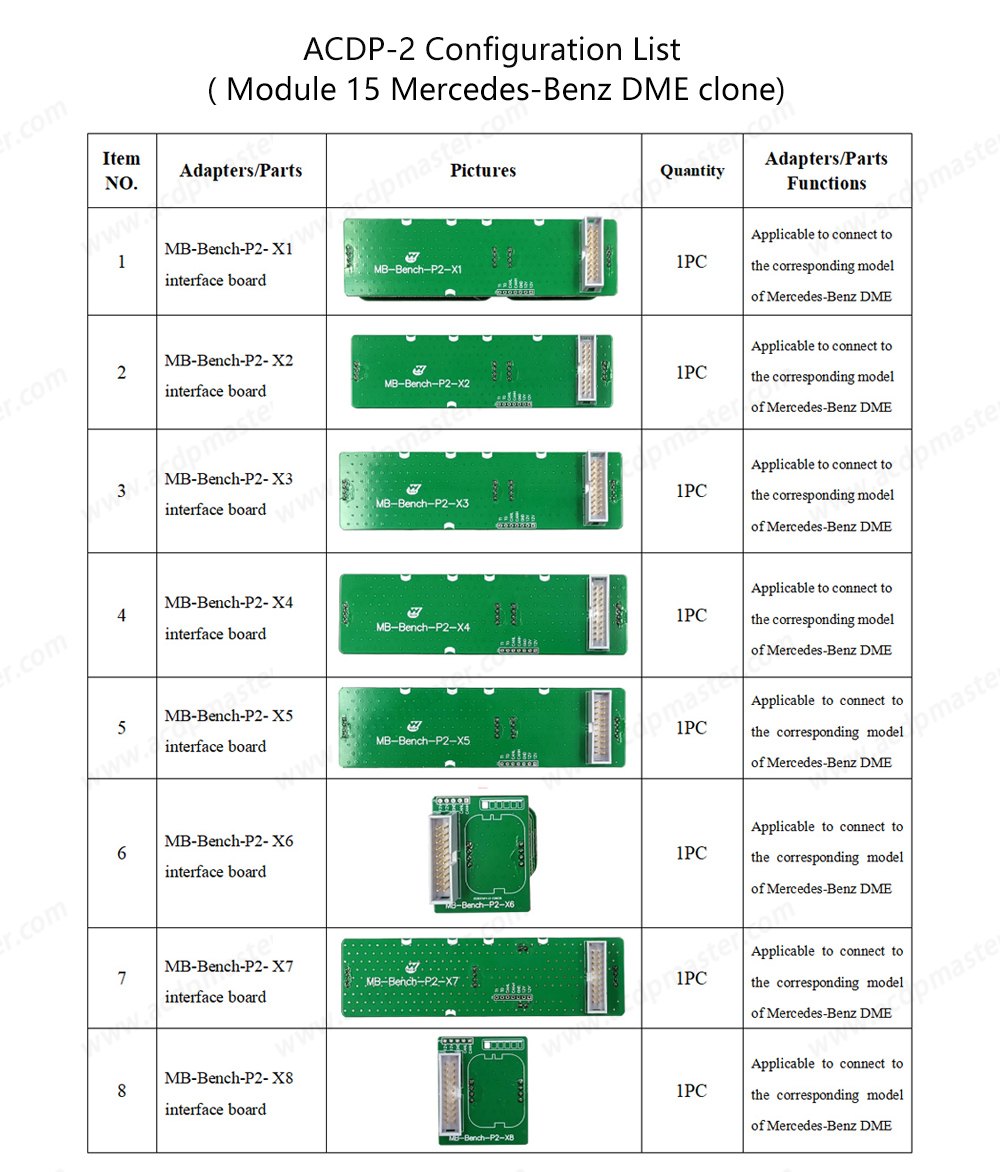

• Interface boards: B48, N20, N55, B38, X1, X2, X3, X4, X5, X7, X8, MSV70, MSS60, MEV9 plus

In the box

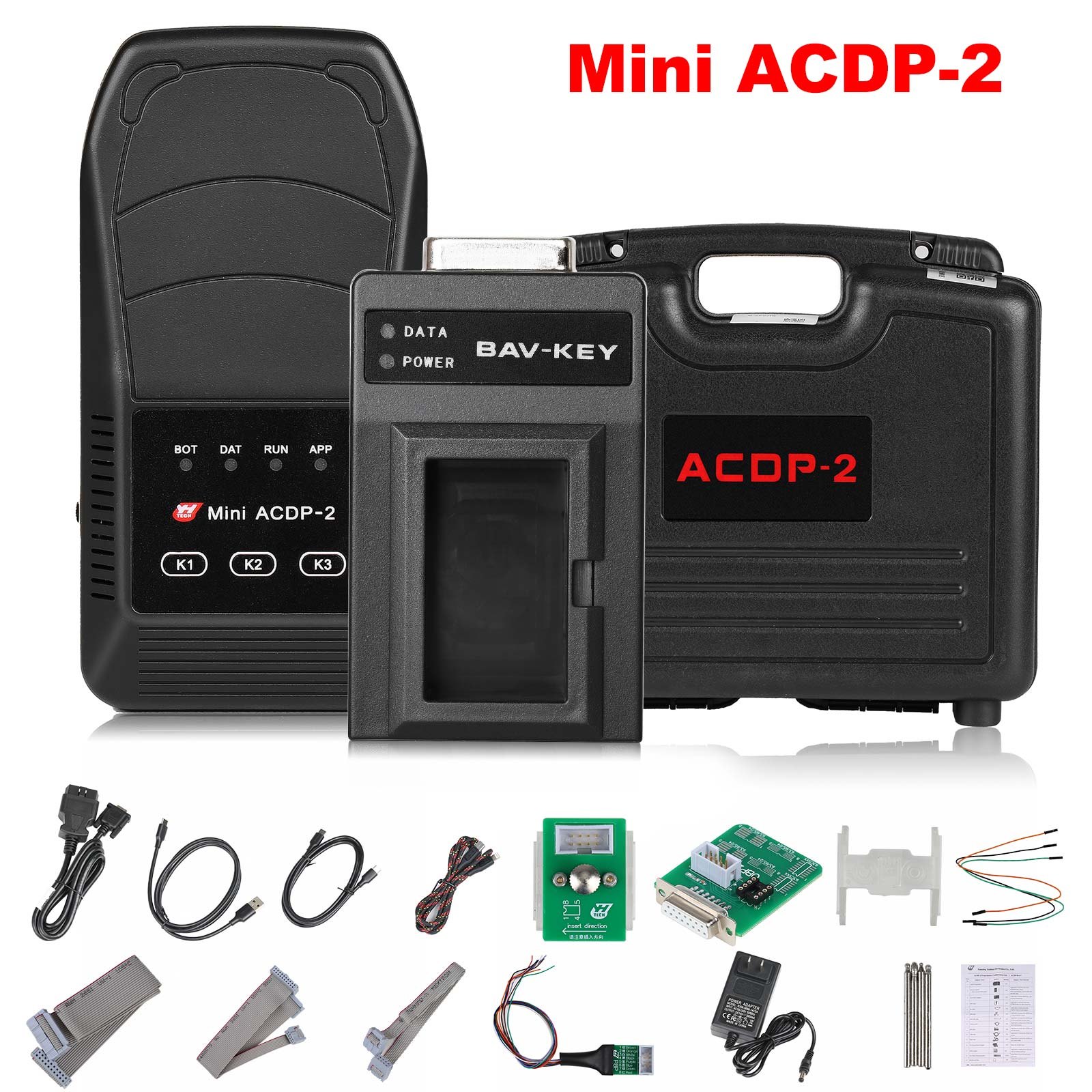

• 1 x Yanhua Mini ACDP-2 master
• 5 x modules, 3, 8, 15, 18 and 27
• 1 x set of bench interface boards
