Yanhua ACDP-2 VW MQB Package with Modules 33/34 and Interface Boards

Yanhua ACDP-2 VW MQB package with Module 33, Module 34, R7F701401/21-5D interface board, R7F701402-B interface board for VW Polo, and MQB YH-OBD platform. Covers VW 4th/4.5th generation and MQB 5A/5C IMMO and mileage correction.

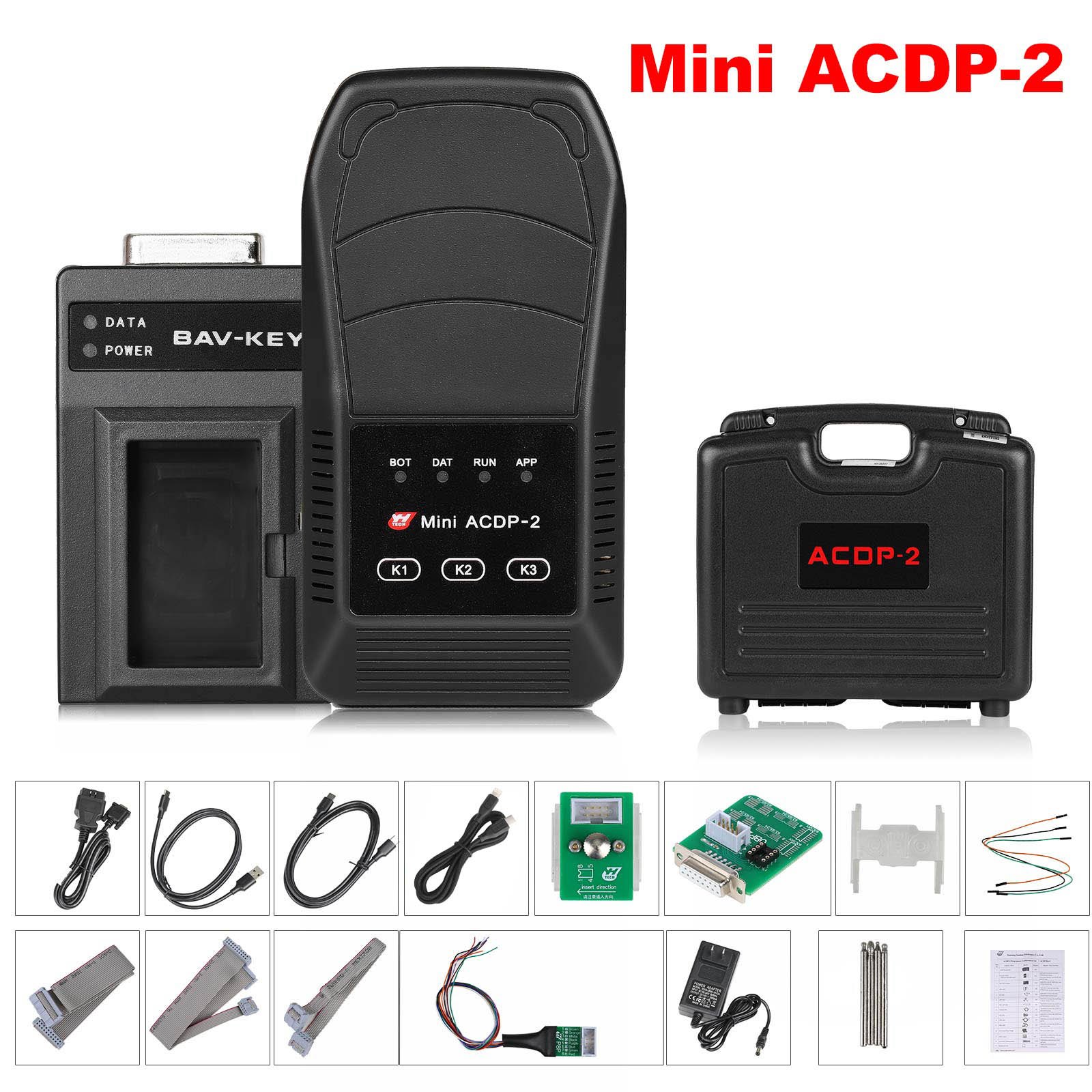

ACDP-2 Programmer (License A801)

• 93/24/25/35/95 series EEPROM in-circuit programming (ICP) and on-adapter-board programming (OBP)
• No chip removal, no soldering, no wire cutting, no pin lifting
• USB direct connection, plug and play. Wi-Fi wireless connection
• Pin intelligent detection for safe and reliable data read/write

MQB-33 Module (License A608)

• VW 4th/4.5th generation and MQB 5A IMMO and mileage correction
• Supported chips: D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3535, D70F3536, D70F3537
• Quasi-blind plug-in interface board, no soldering required
• Third-generation PCB interface board locking technology

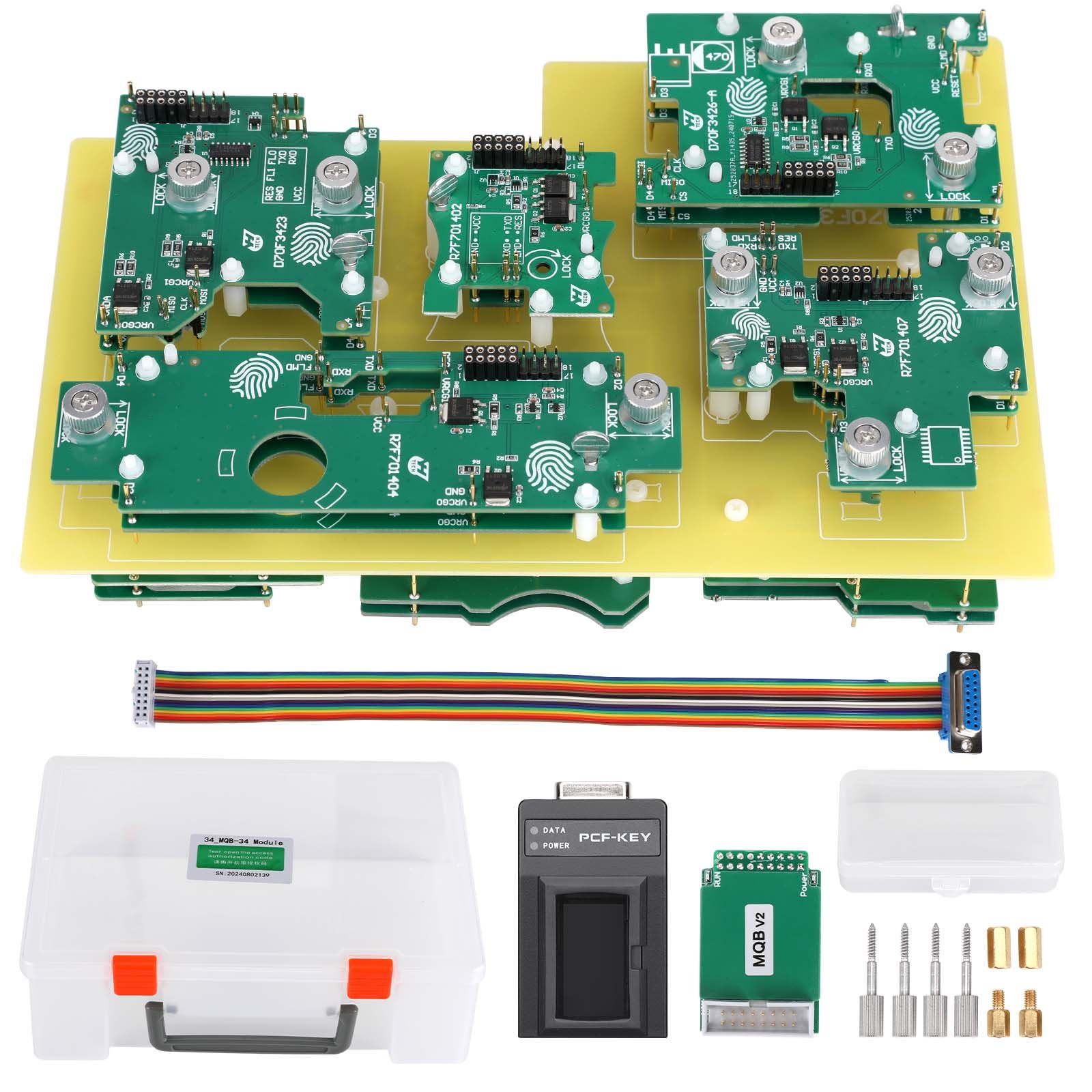

MQB-34 Module (License A609)

• VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction
• 4th generation D70F3423 + 95320 chip model
• D70F3426 + 95128 chip model MQB 5A instrument
• RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments
• Mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 (5C)

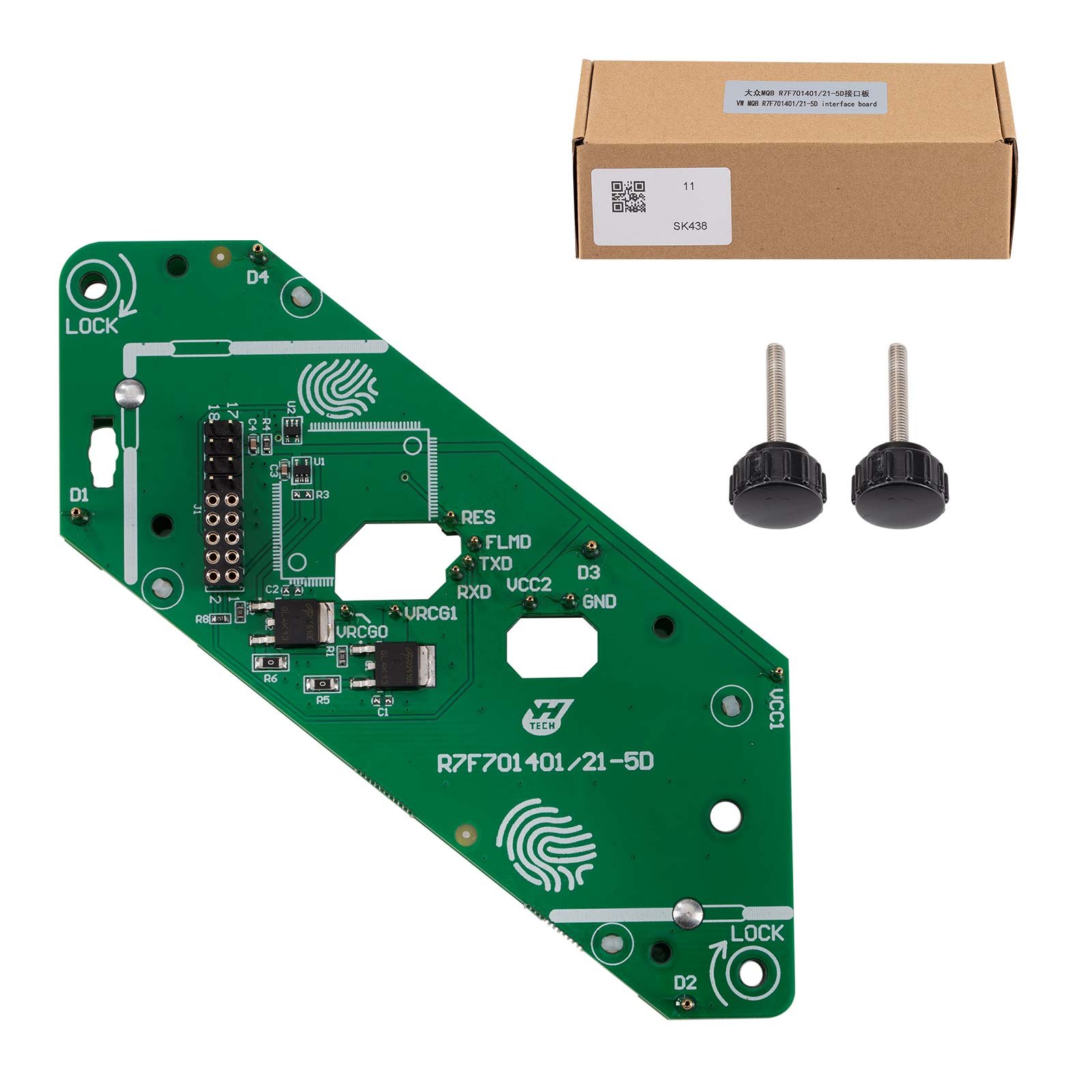

R7F701401/21-5D Interface Board

Supported models: Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L and more.

Supported meter numbers: 5GD920340A, 5GD920340C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5H0920340A, 3JD920340 and more.

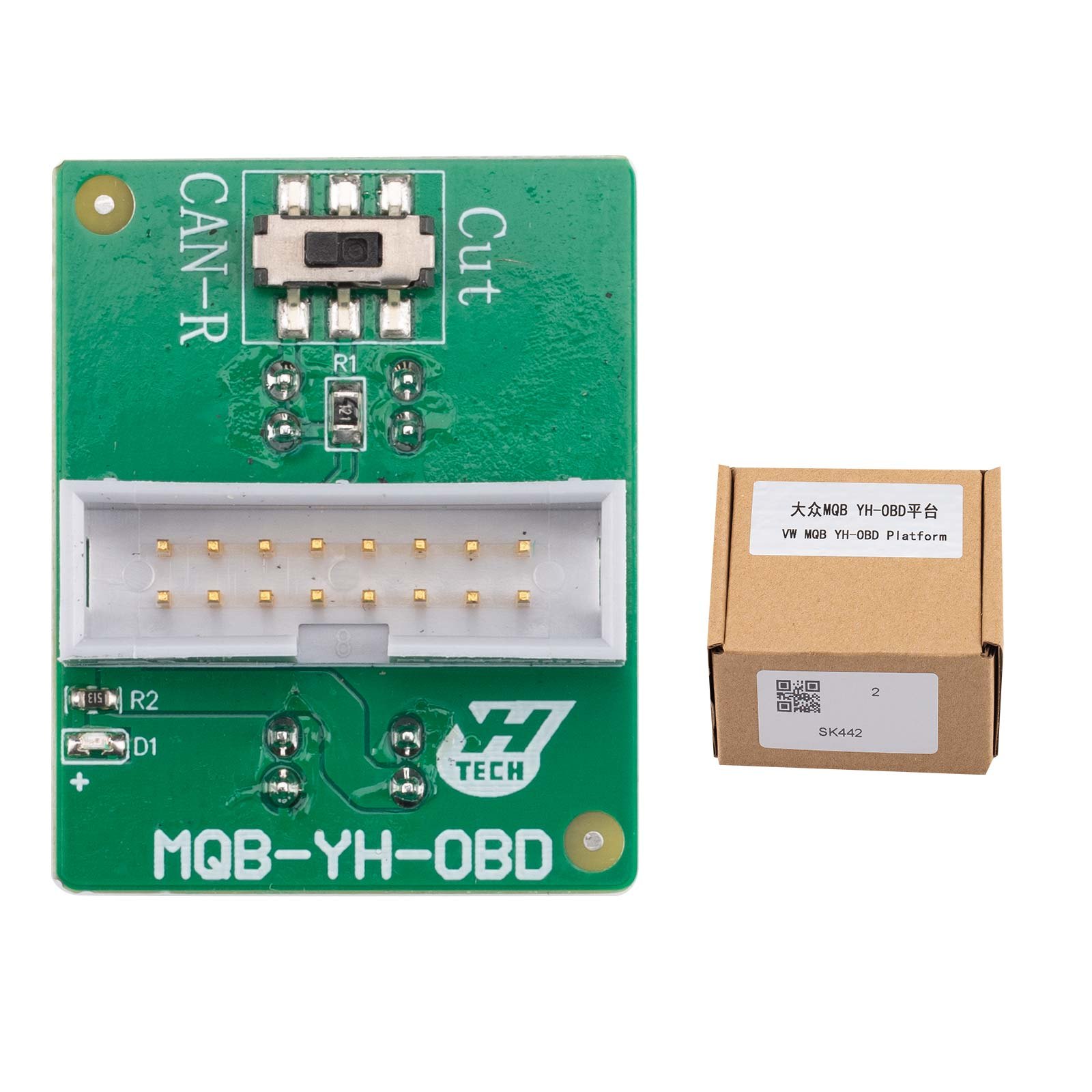

MQB YH-OBD Platform

• VW MQB dashboard light-up and info reading
• Mileage correction for R7F01404/1406 chips on the platform without reinstalling the dashboard in the car

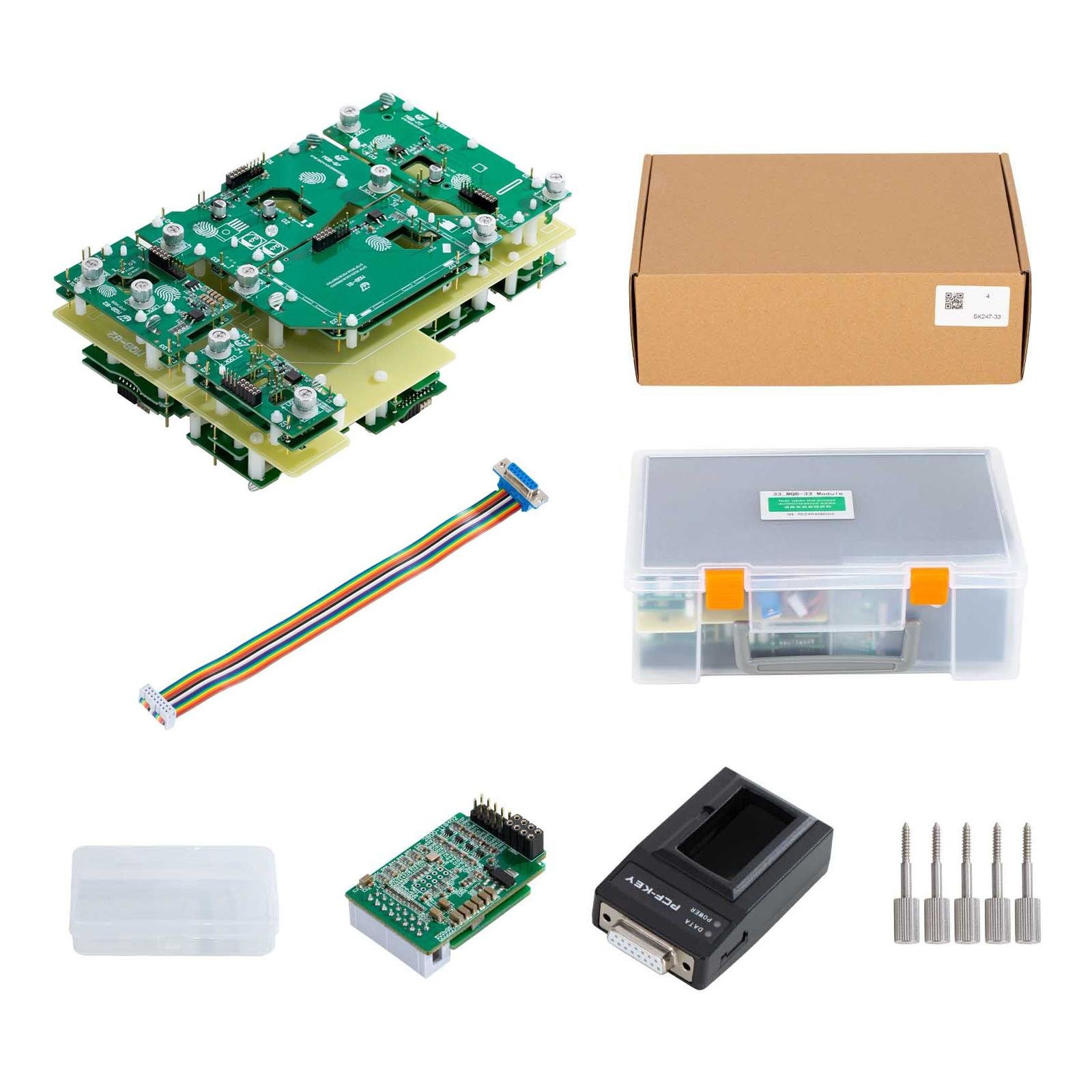

Package Includes

• 1x Yanhua ACDP-2
• 1x MQB-33 module
• 1x MQB-34 module
• 1x ACDP R7F701401/21-5D Interface Board

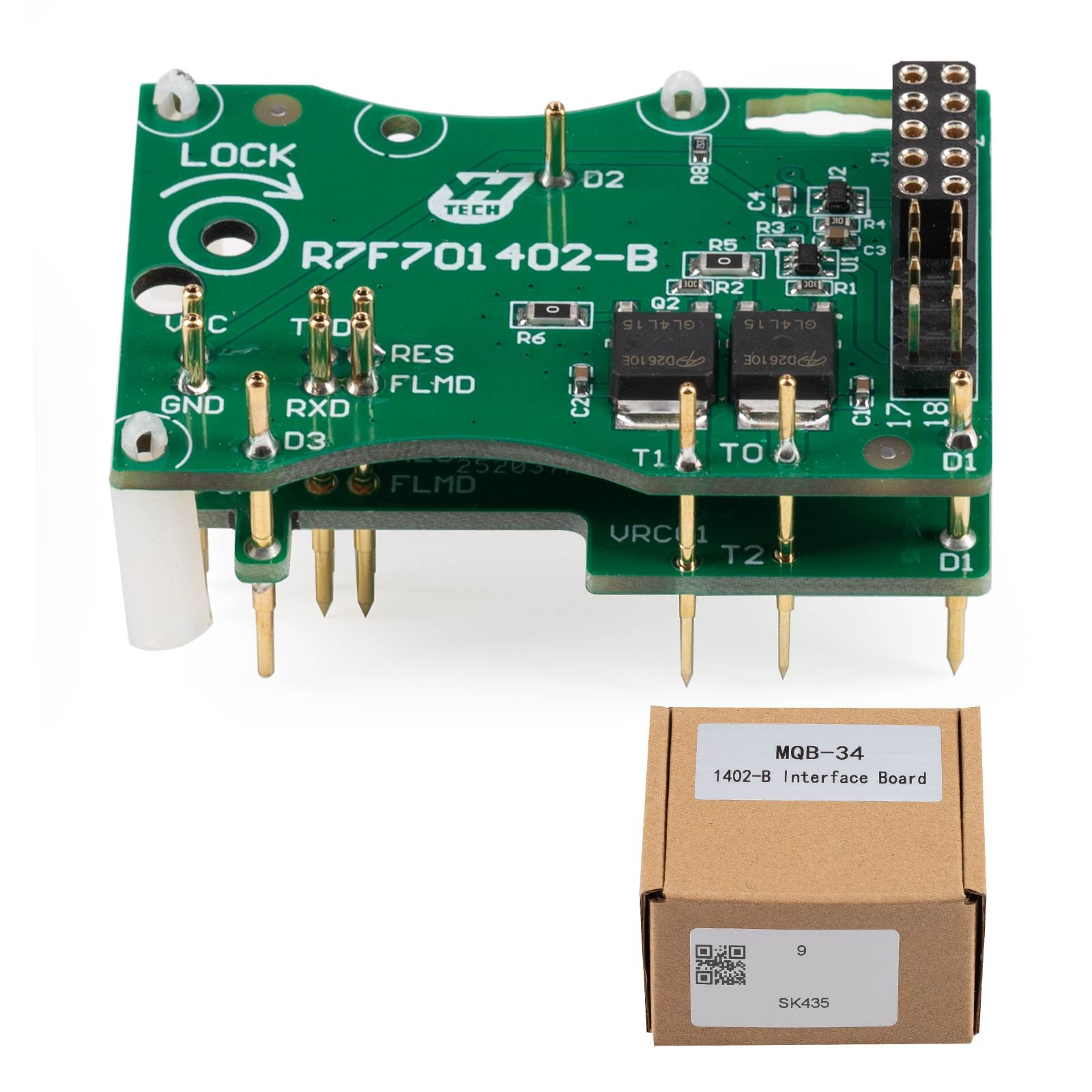

• 1x R7F701402-B Interface Board for VW Polo
• 1x MQB YH-OBD Platform
