Yanhua Mini ACDP-2 for BMW ECU Package with Module 3/8/27 EUC Clone License And Bench Interface Board

The Mini ACDP-2 is Yanhua's new generation programmer, and this package licenses the three BMW modules that cover ISN reading, FRM repair and DME cloning, together with the bench interface boards for the common engine families.

The base unit handles 93, 24, 25, 35 and 95 series EEPROM both in circuit and on an adapter board, which is the necessary basic configuration everything else builds on.

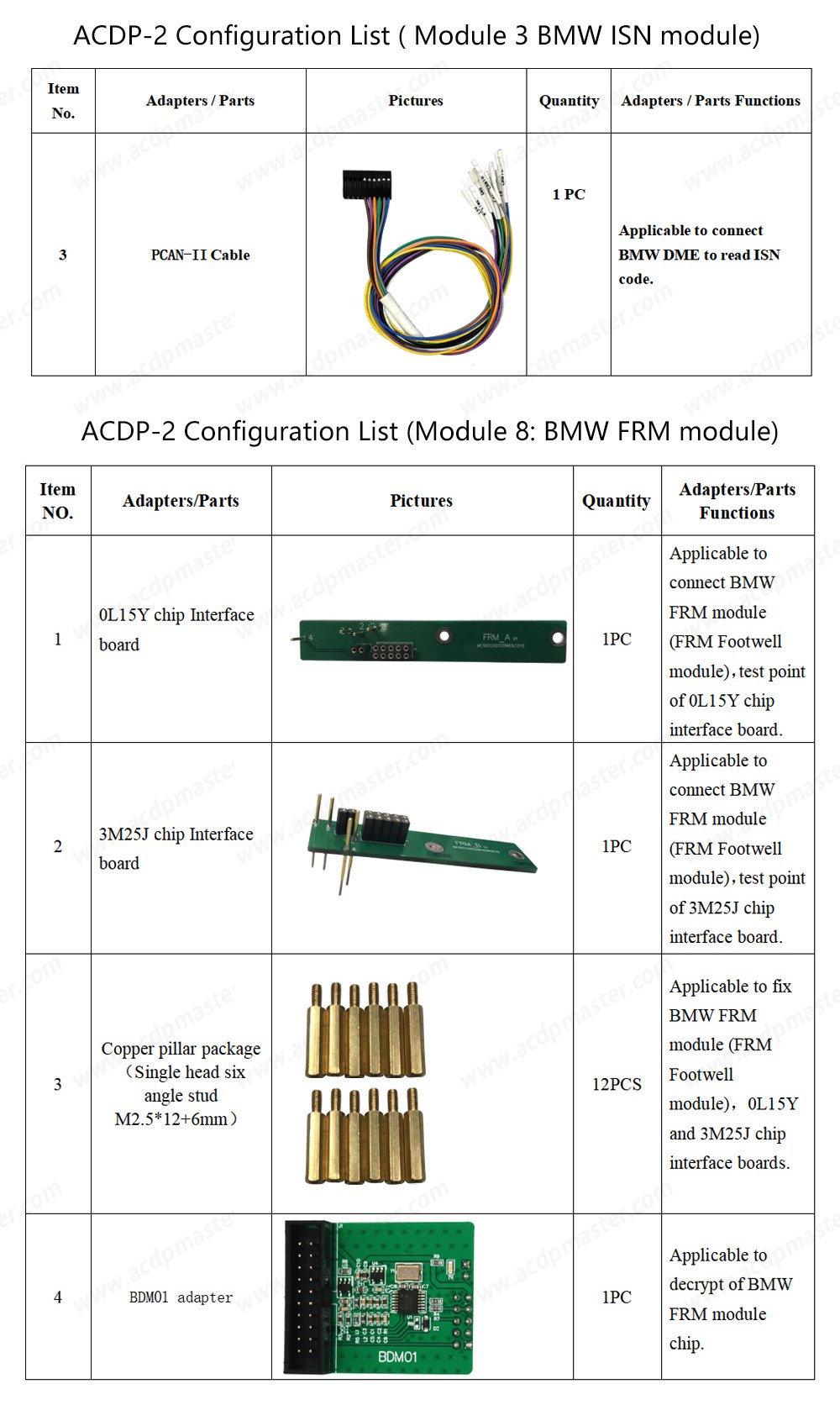

Modules included

• 03_ISN Module with License A50B: read and write N20, N55 and N13 ISN code via OBD, read and write MSV80 and MSD85 ISN code without opening the DME shell, read and write other DME ISN code by opening the DME
• 08_FRM Module (FRM Footwell module) with licence: read and write the BMW FRM module 0L15Y chip EEPROM and FLASH data, read and write 3M25J chip EEPROM, D-FLASH and P-FLASH

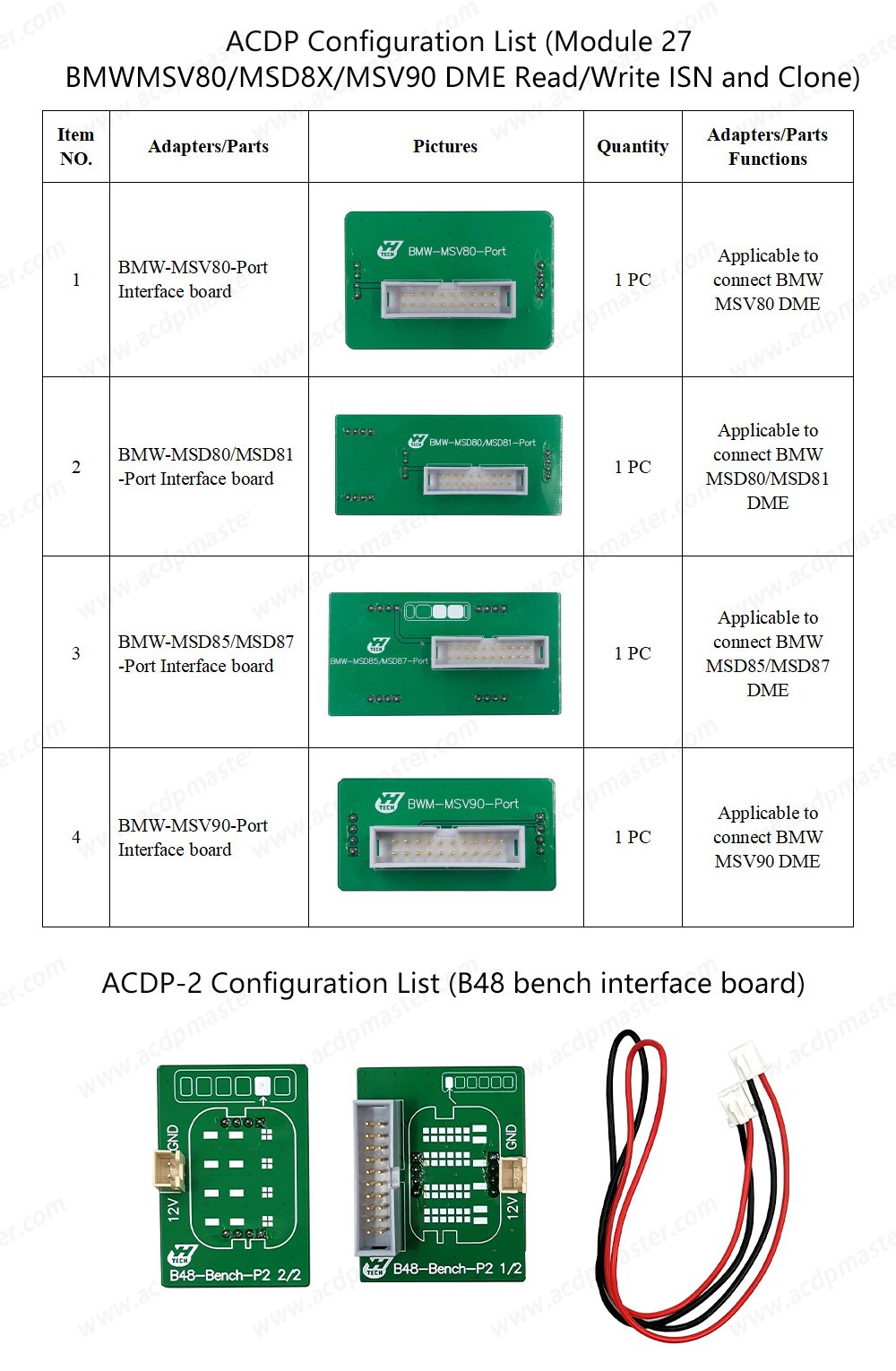

• 27_BMW MSV80 / MSD8X / MSV90 DME read, write ISN and clone with License A51E: BMW E and F chassis MSV80, MSD80, MSD81, MSD85, MSD87 and MSV90 DME read, write ISN and clone

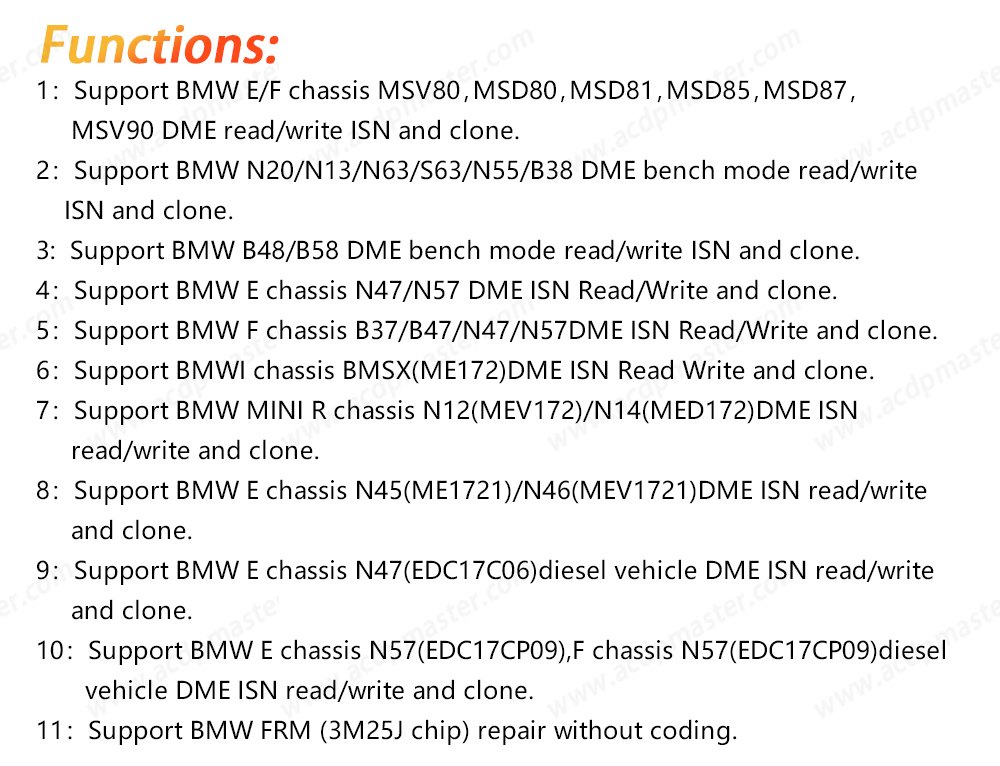

Capability

• 93, 24, 25, 35 and 95 series EEPROM in circuit programming (ICP) and on adapter board programming (OBP)
• ECU clone coverage for B48, N20, N55, B38, X1, X2, X3, X4, X5, X7, X8, MSV70, MSS60 and MEV9

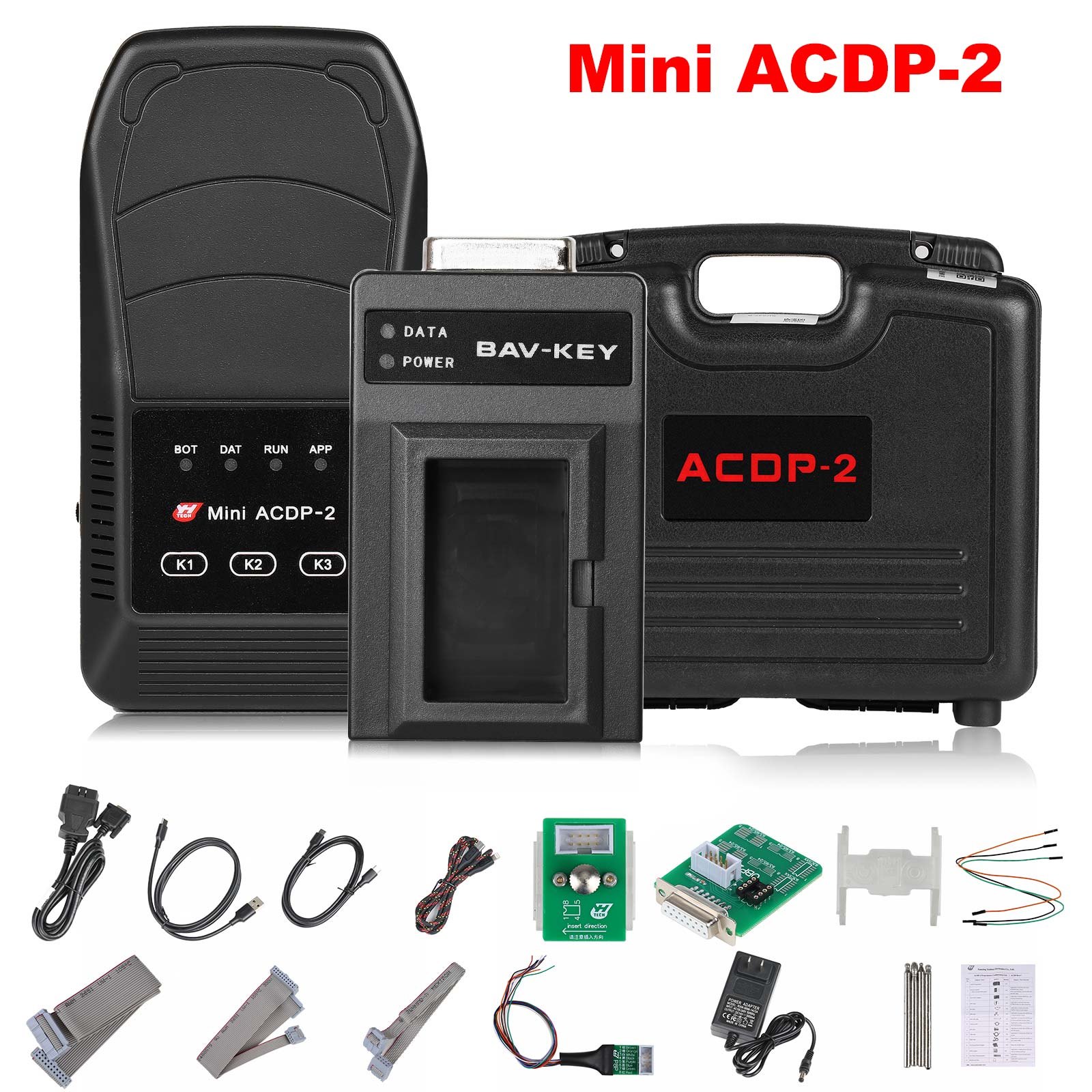

In the box

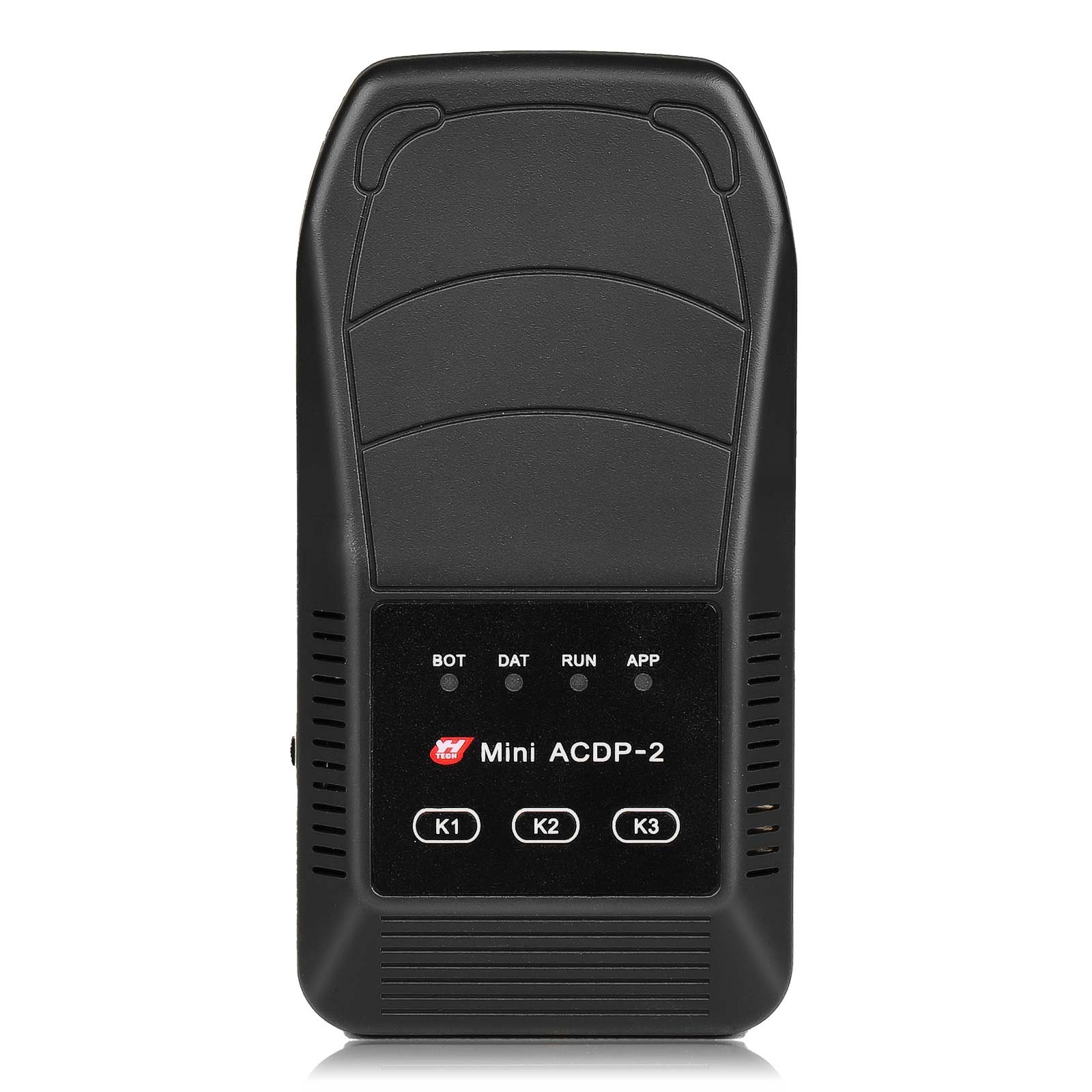

• 1 x Yanhua Mini ACDP-2 programmer master

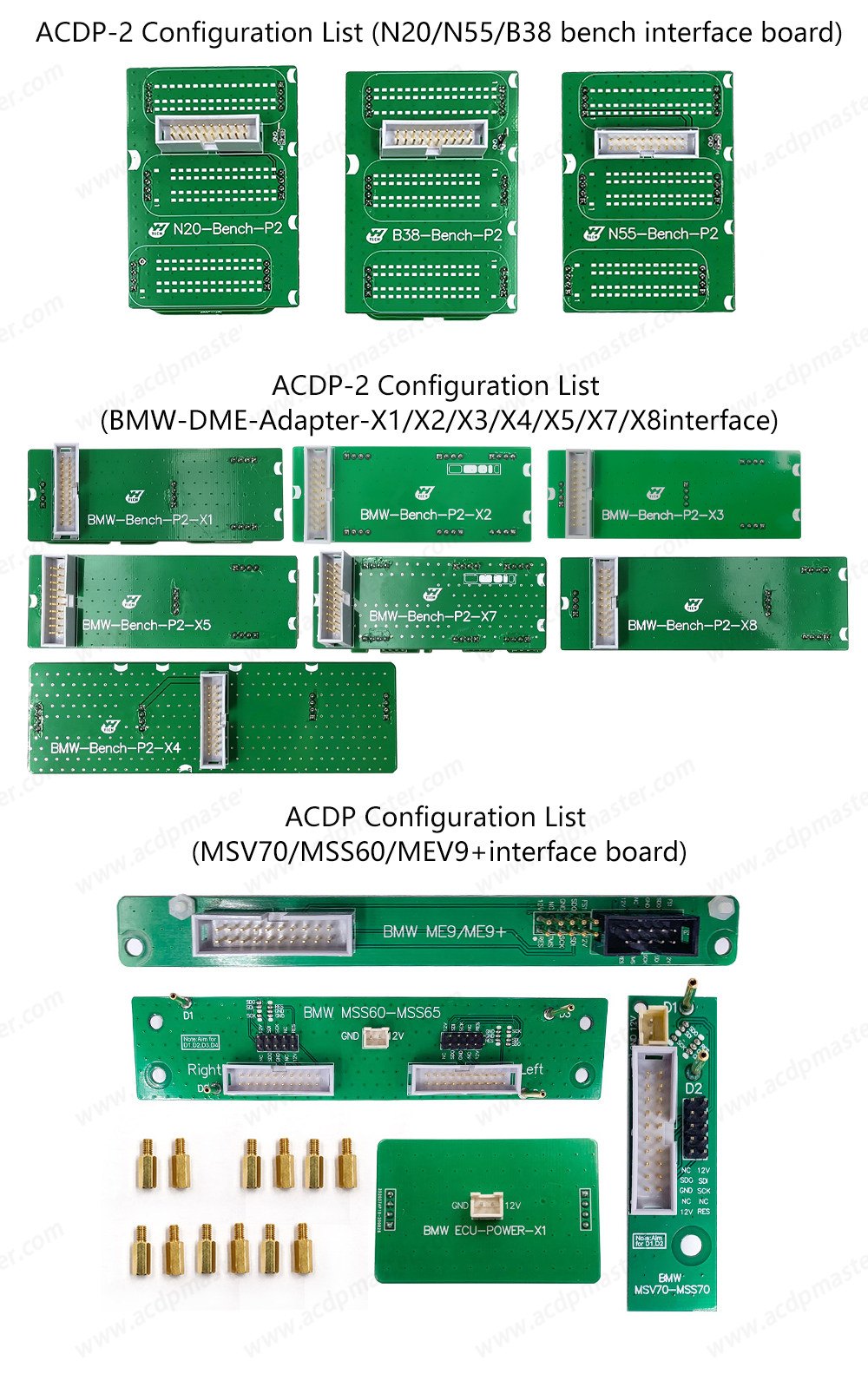

• 1 x B48 bench interface board
• 1 x N20 / N55 / B38 bench interface board
• 1 x BMW-DME-Adapter-X1 interface board
• 1 x BMW-DME-Adapter-X2 interface board
• 1 x BMW-DME-Adapter-X3 interface board
• 1 x BMW-DME-Adapter-X4 interface board

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
