Yanhua JLR KVM Soldering Assisted Package Help Replace JLR 2018+ KVM RFA MCU
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
This 2023 Yanhua kit is the bench-side hardware for replacing the CPU chip on Jaguar Land Rover RFA and KVM modules from 2018 onward. It does not program anything itself; it holds, heats, cleans and re-solders the module so the swap goes cleanly.
The practice board is the reason to take the full package seriously. Removing an MCU from a live KVM module is a one-shot job, and the board lets you rehearse the air gun height and the lift before you touch a customer's part.

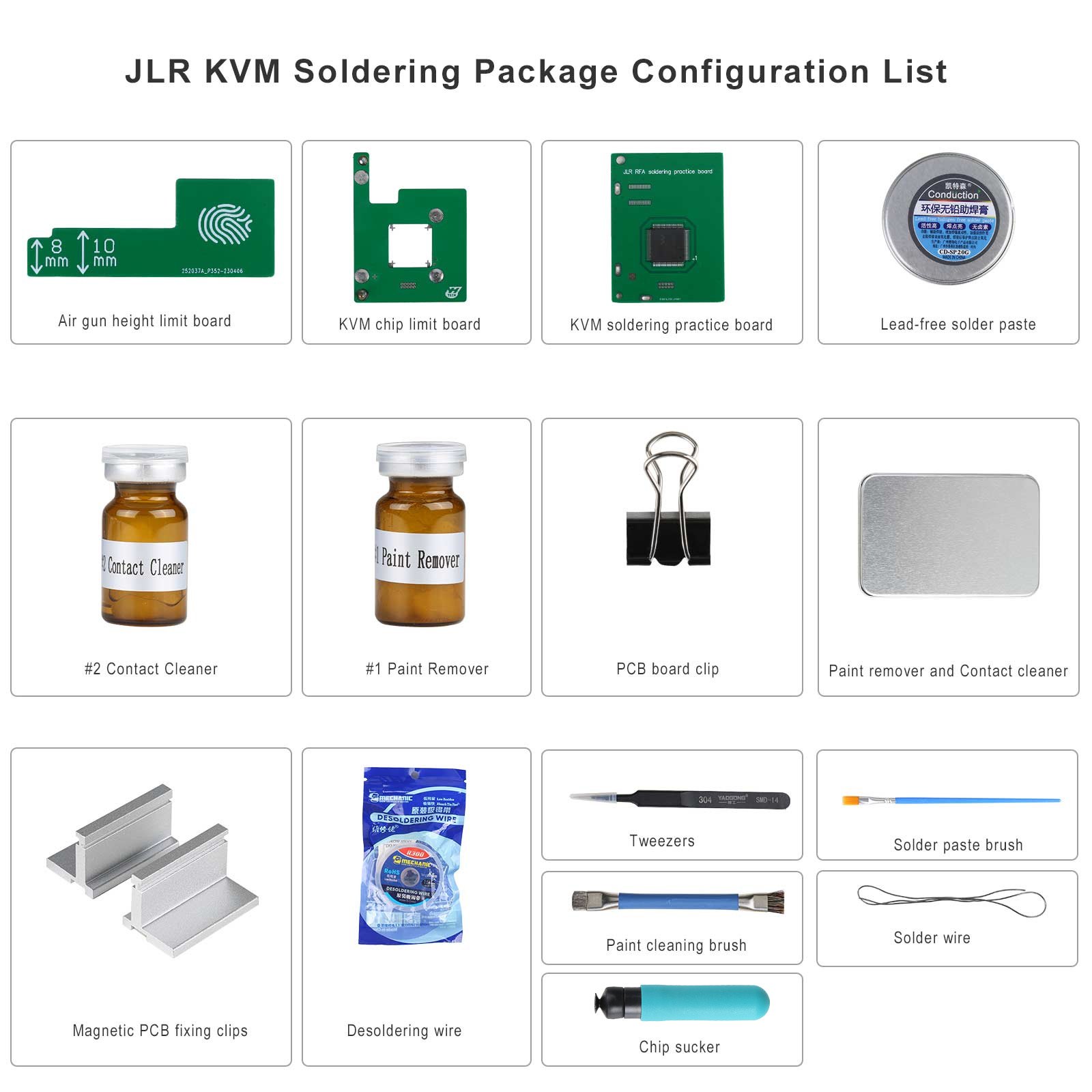

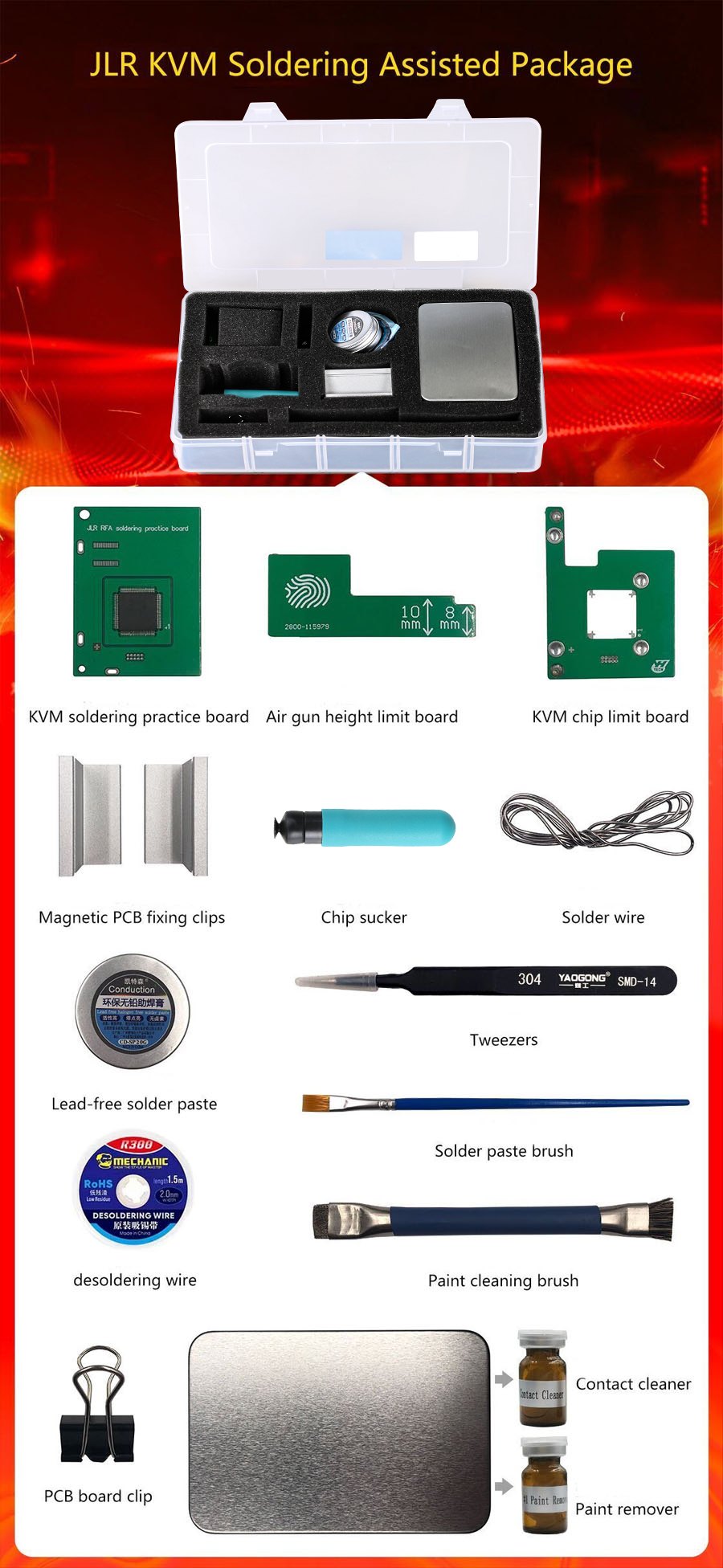

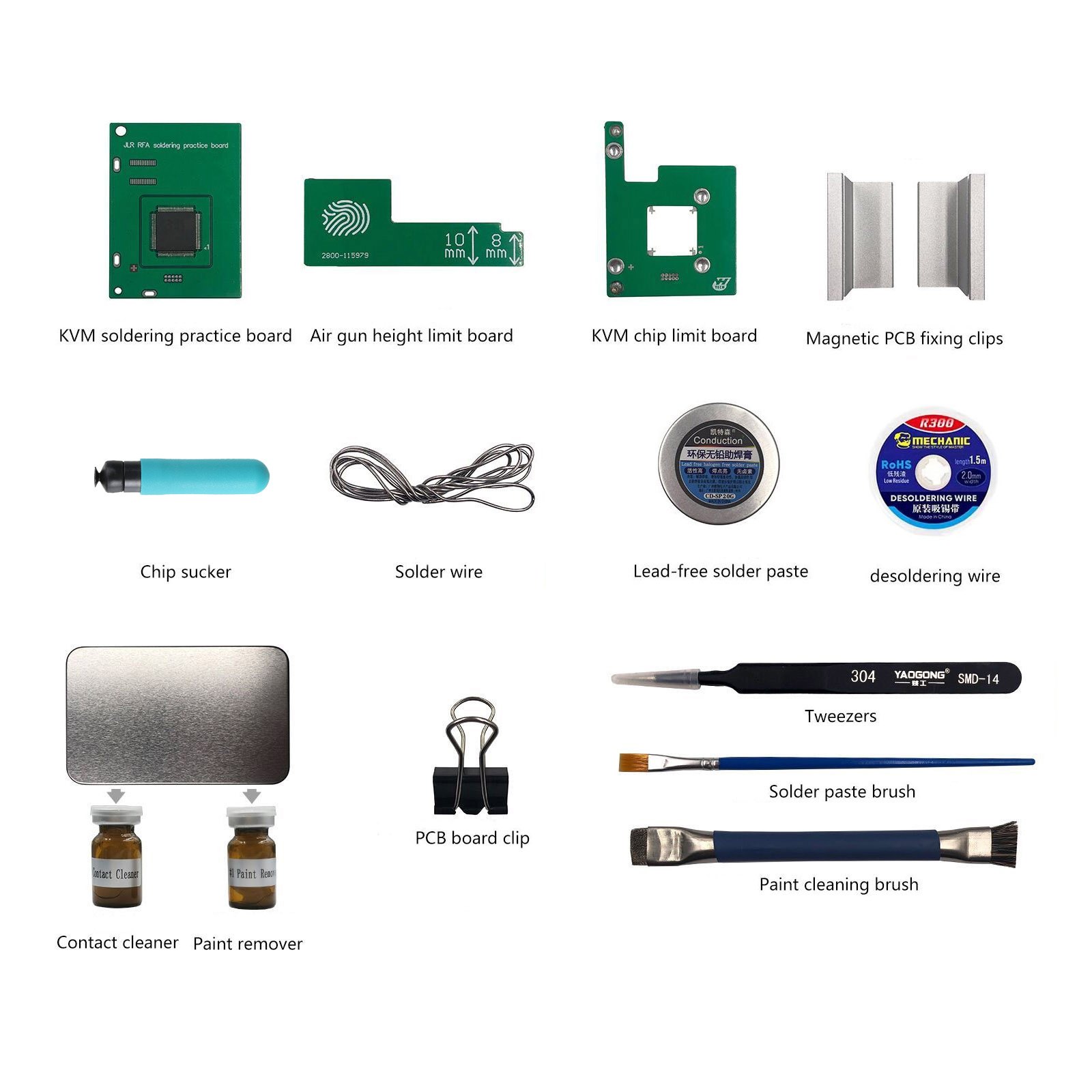

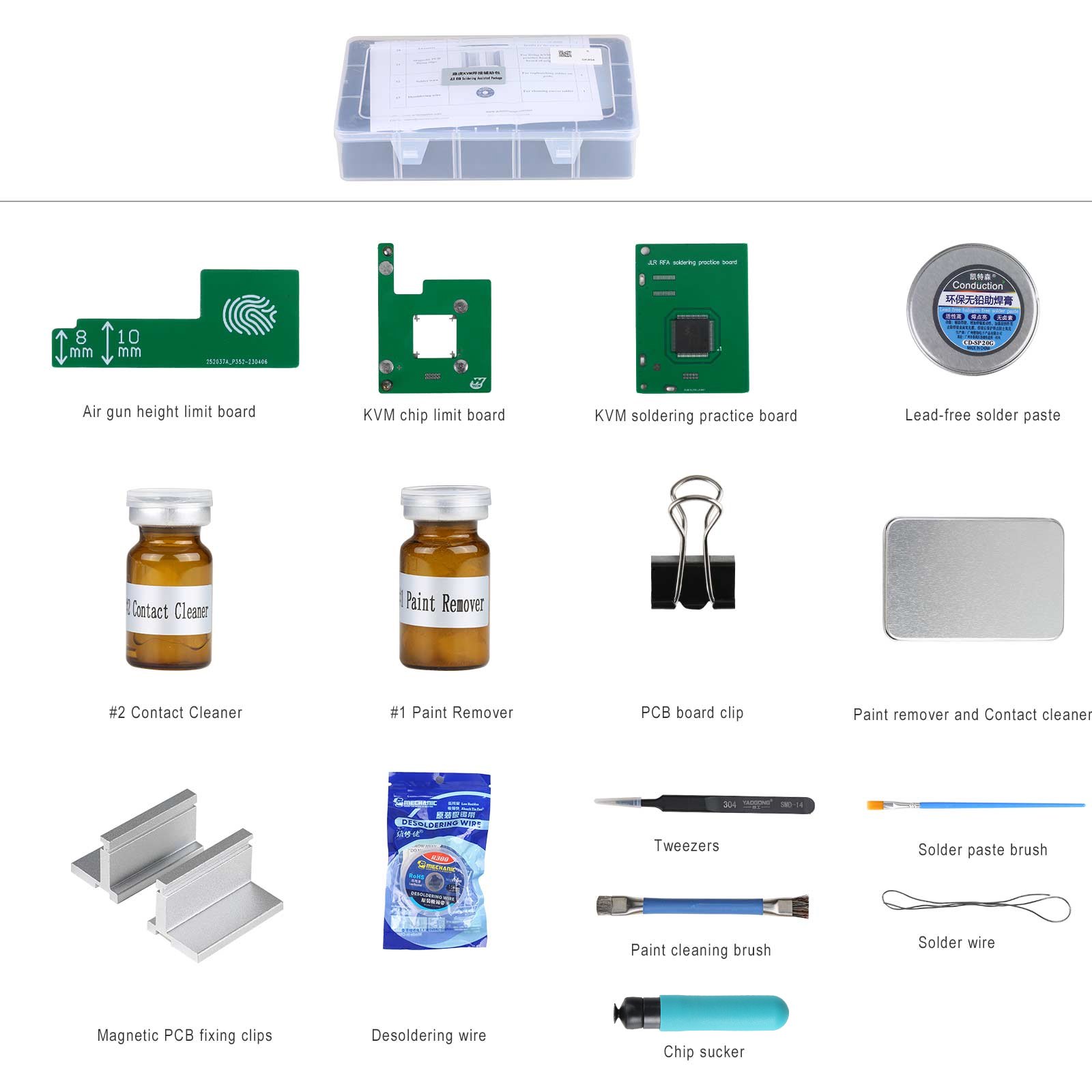

Configuration list

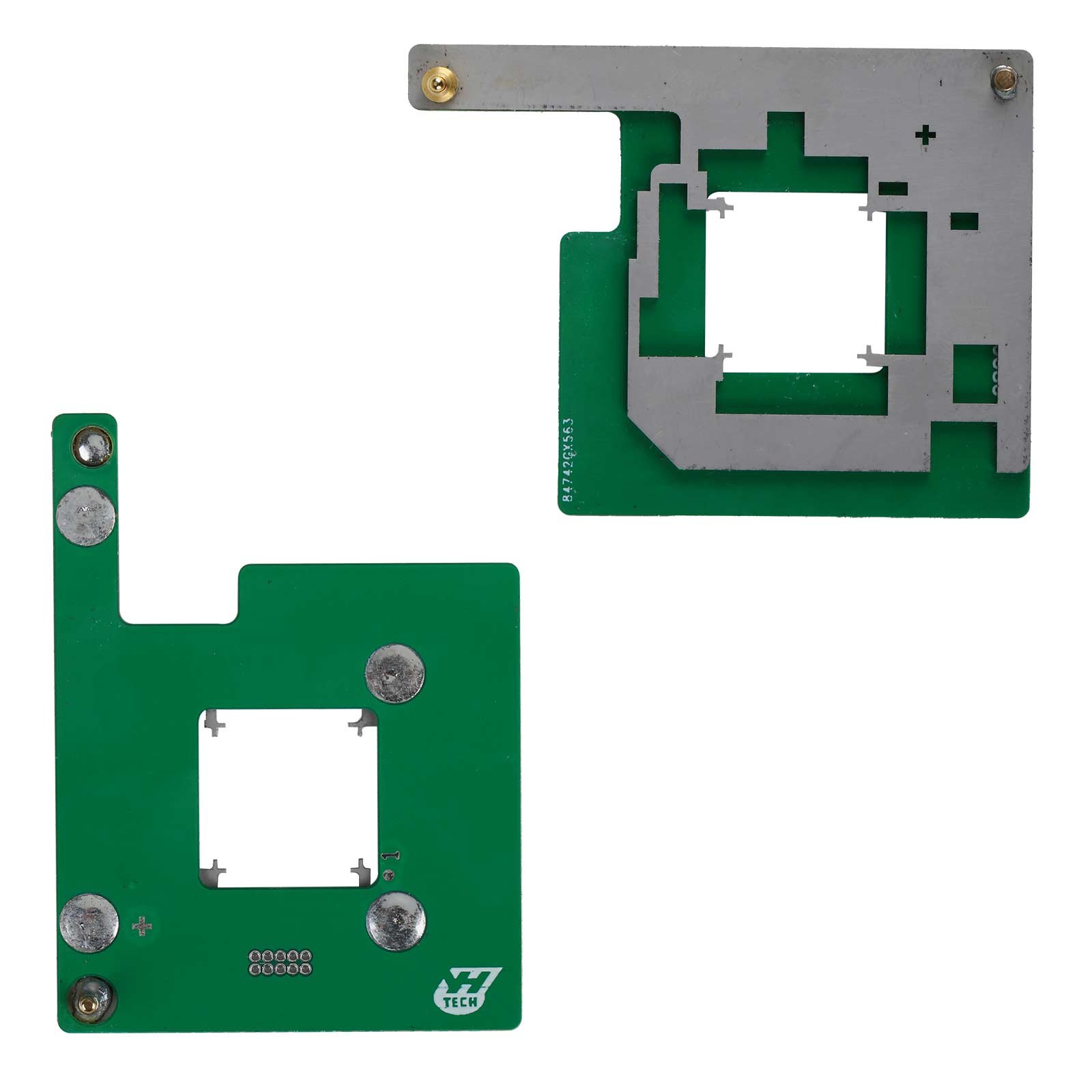

- KVM chip limit board, to fix the position of the CPU chip on the KVM module

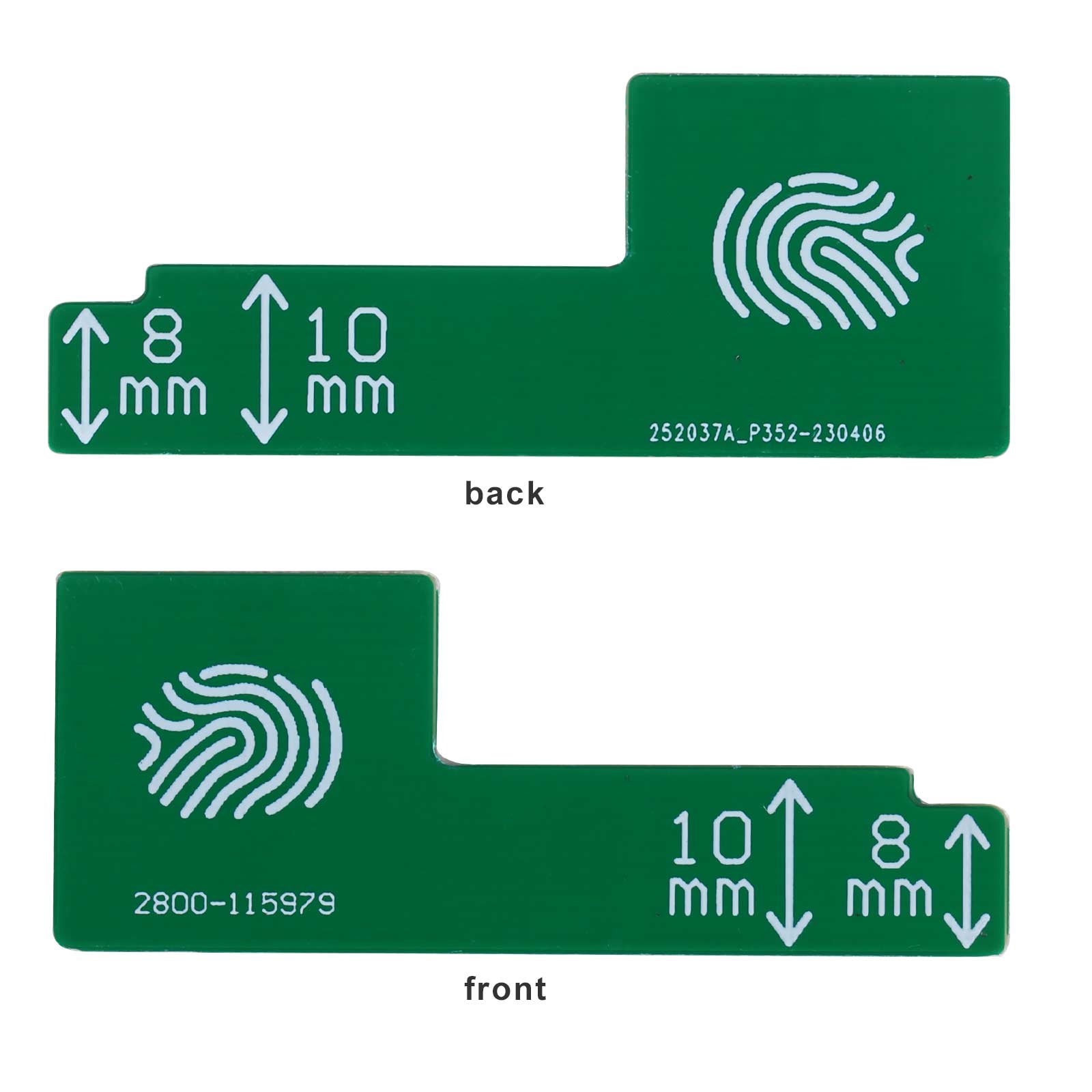

- Height adjustment between the air gun and the chip

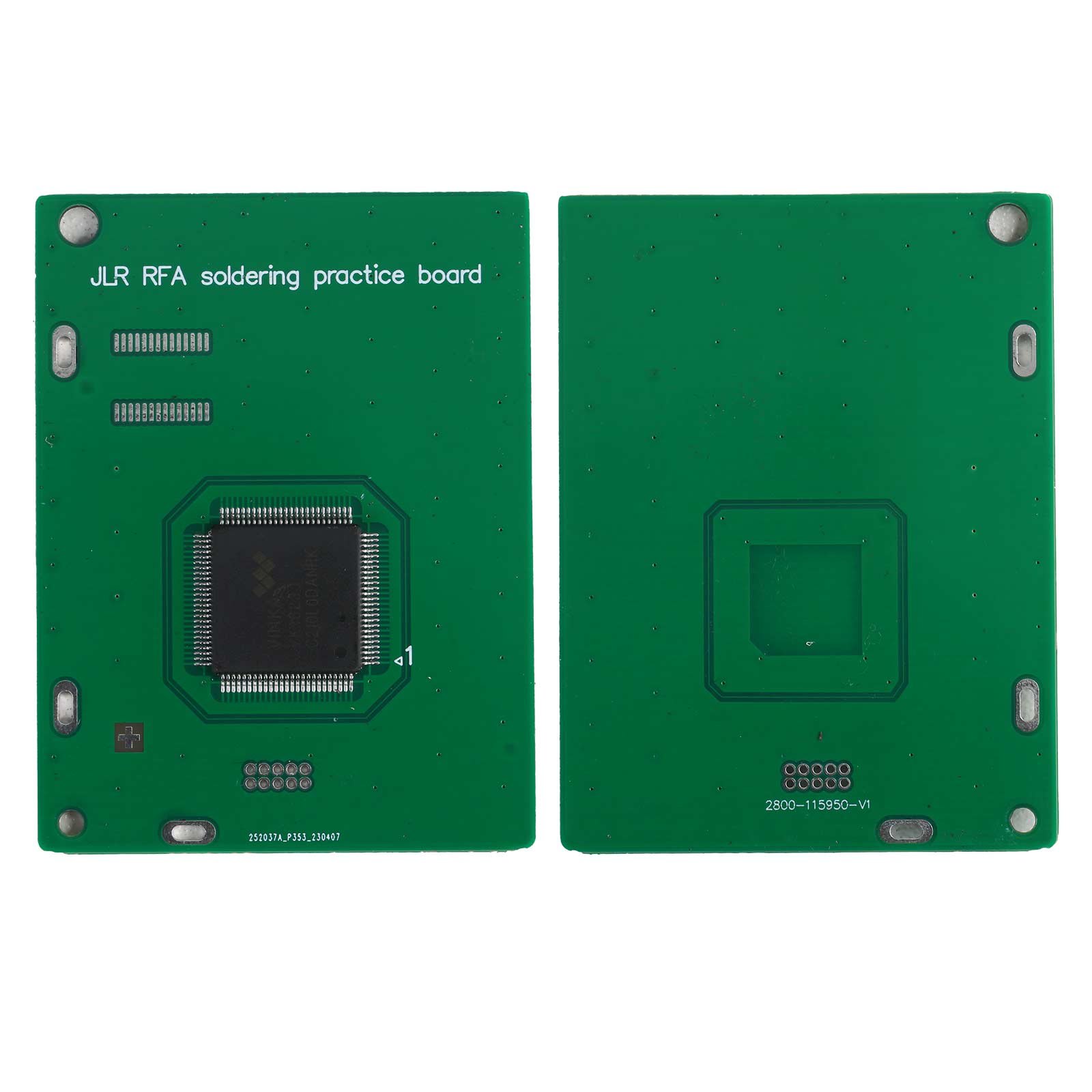

- Practice board for CPU chip removal and soldering
- Chip sucker, for lifting chips that need to be removed
- Aid for better chip soldering
- Clamp for the PCB limit board
- Tool for removing the triple protection paint on the chip
- Treatment for peeling the three-proof paint
- Brush for solder paste
- Pick-up tool for chips heated by the air gun
- Fixture for the KVM soldering practice board or the original car KVM board
- Solder for replenishing pads
- Tool for cleaning excess solder
Options
- Basic Package
- Full Package
Specifications
| Brand | Yanhua |
|---|---|
| Type | Auto Key Programmer |
| Condition | New |
| Version | Basic Package, Full Package |
| Price range | $734.99 to $1,244.99 |
