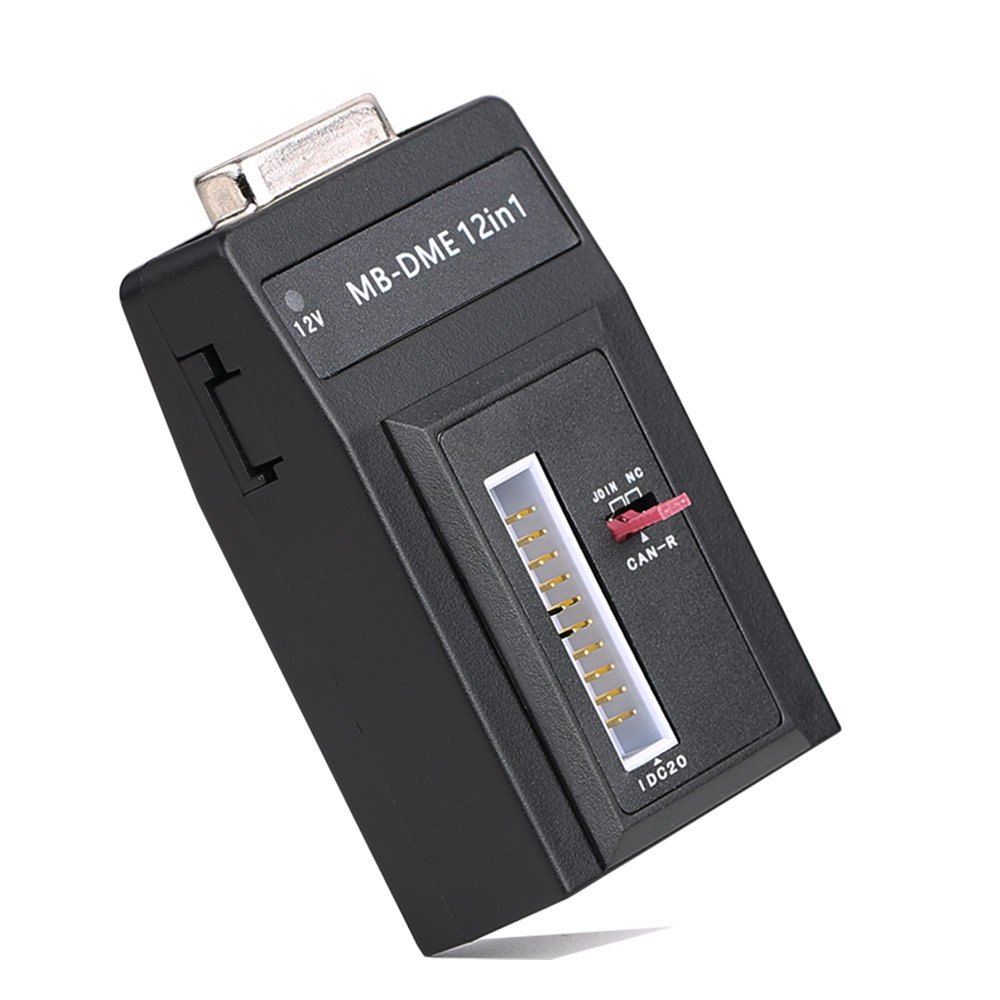

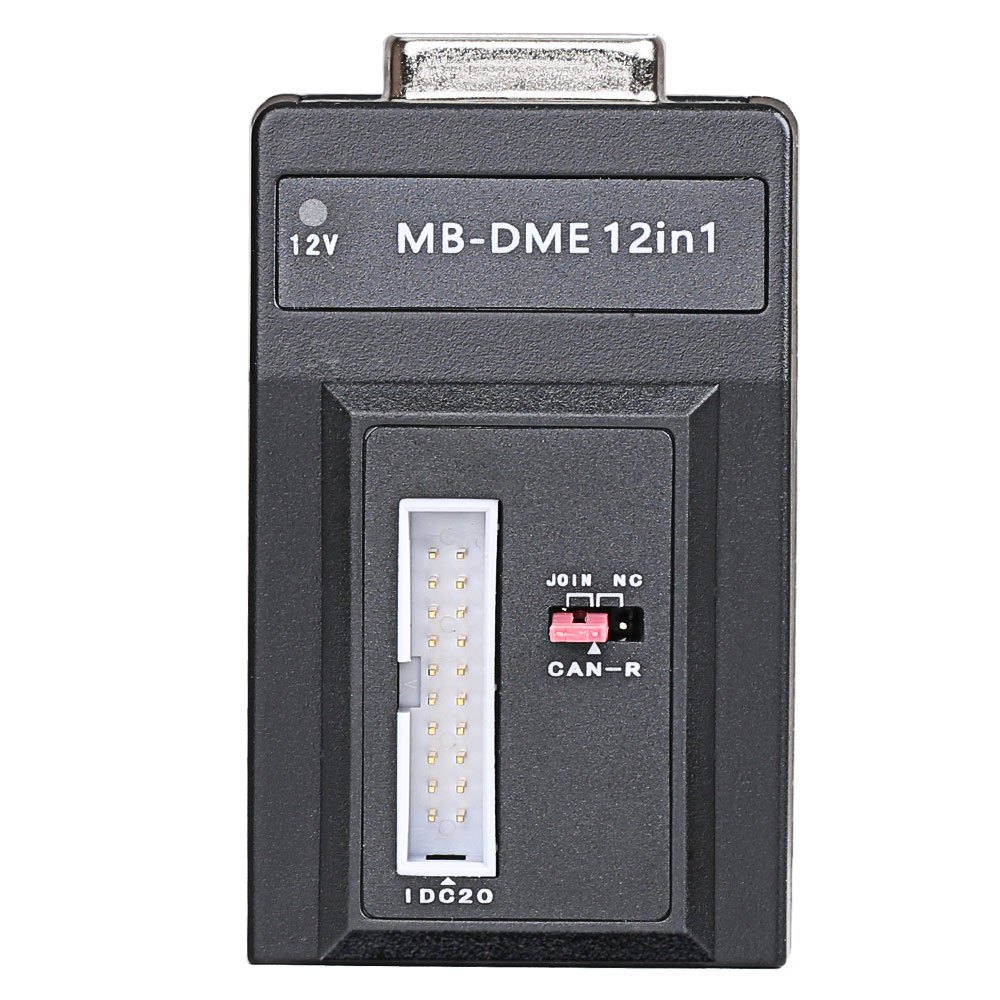

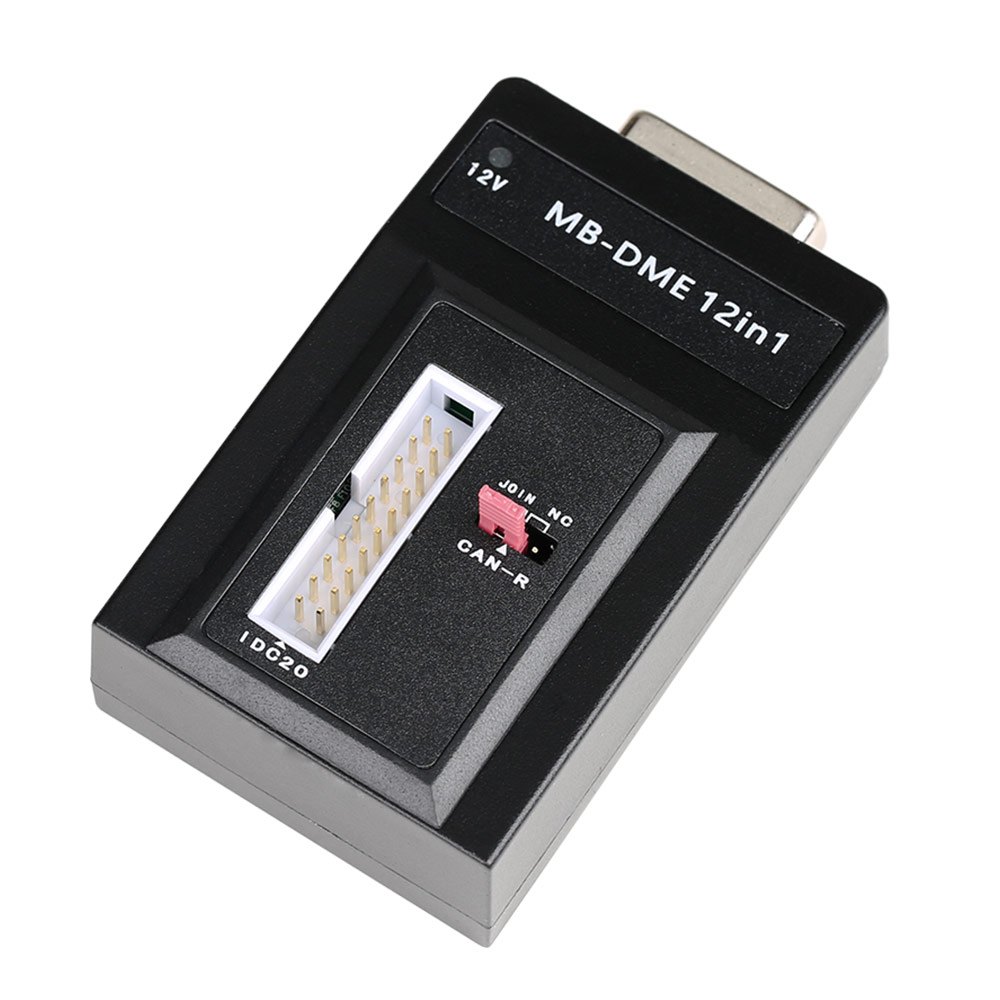

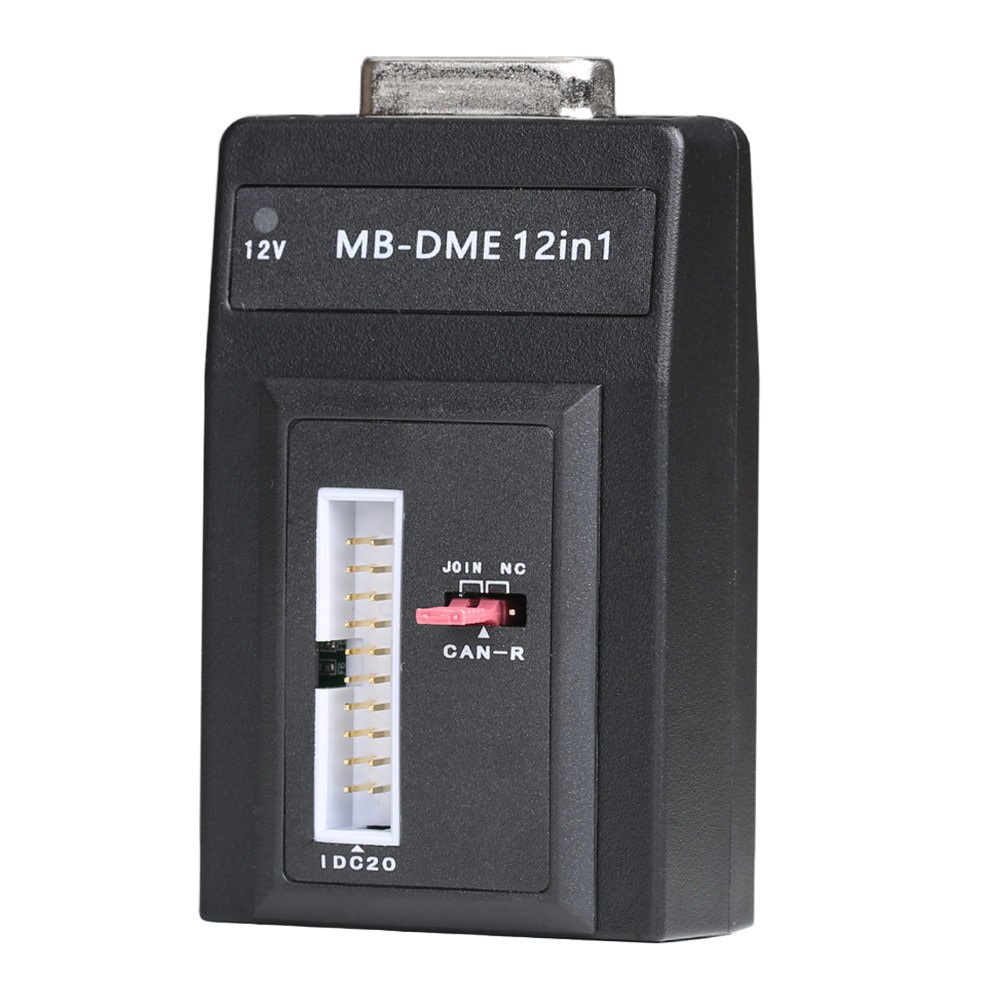

Yanhua ACDP MB 12-in-1 Interface Board Adapter Working with ACDP Module 18
$189.00
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
Yanhua ACDP MB 12-in-1 interface board adapter for refreshing Mercedes-Benz DME units. Requires ACDP Module 18 to function.
Note: This adapter cannot work alone. Must be used with Yanhua ACDP Mercedes-Benz DME/ISN Refresh Module 18.
Supported DME models
- CR4.XX
- CRD2.XX
- CR5
- ME9.7
- SMI271KE2.0
- CRD.11
- SIM271DE2.0
- CR3.XX
- SIM4LKE
- MED17.7X
- CR6
- SIM266
Features
- Mercedes-Benz dedicated interface, no wire separation
- Quick plug and unplug design
- Automatically identifies and connects to 12 Mercedes-Benz DME models
- Pin automatic detection for safe, reliable connections
- Avoids wiring errors that could damage the circuit
Bench connection steps
- Prepare ACDP, adapter, interface board, and DME

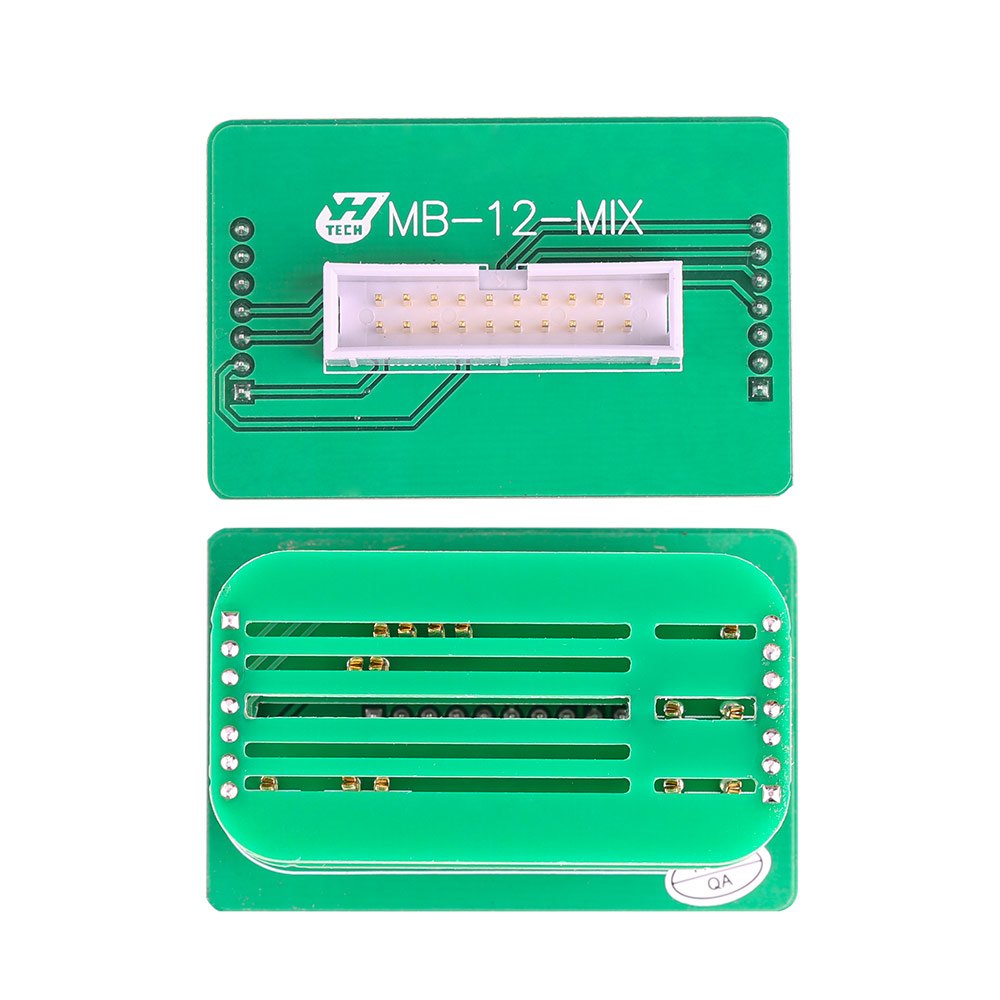

- Connect the interface board to the DME interface as shown
- Short the CAN resistor on the adapter to CAN-R Join
- Connect ACDP, adapter, interface board, and DME
Package includes
- 1pc x Yanhua ACDP MB 12-in-1 Interface Board Adapter
Specifications
| Brand | Yanhua |
|---|---|
| Type | Auto Key Programmer |
| Part number | SK247-18 |
| Condition | New |
