Yanhua ACDP-2 VW MQB48/49 5A 5C Package with Module 34 for MQB RH850 5A IMMO Key Programming & 5C KM Cluster Correction

This bundle pairs ACDP-2 with Module 34 so one purchase covers both halves of MQB work. It handles IMMO and mileage on fourth generation instruments, on D70F3426 with 95128, and on RH850 R7F701 series clusters, plus mileage on R7F701401 and R7F701403.

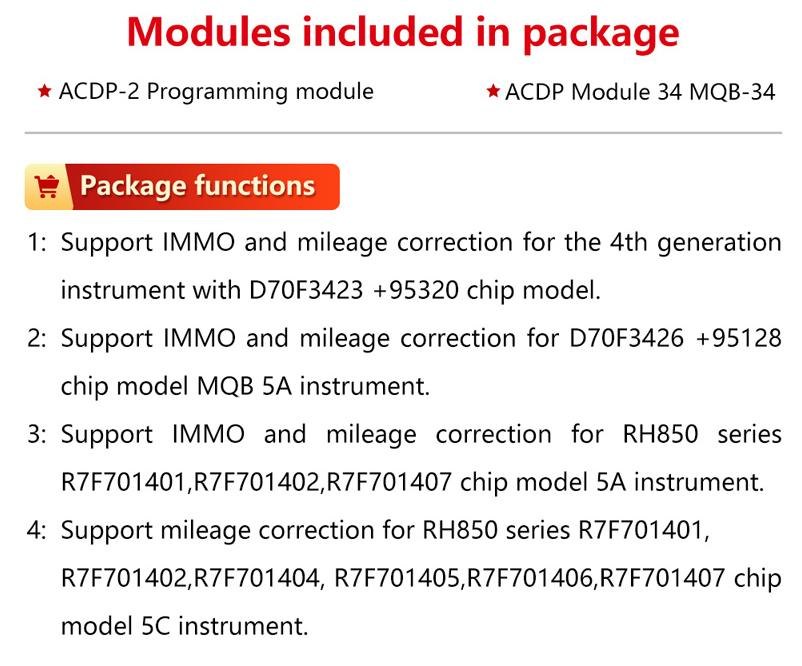

Specifications

• 1: Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
• 2: Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
• 3: Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
• 4: Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instruments.

What you get

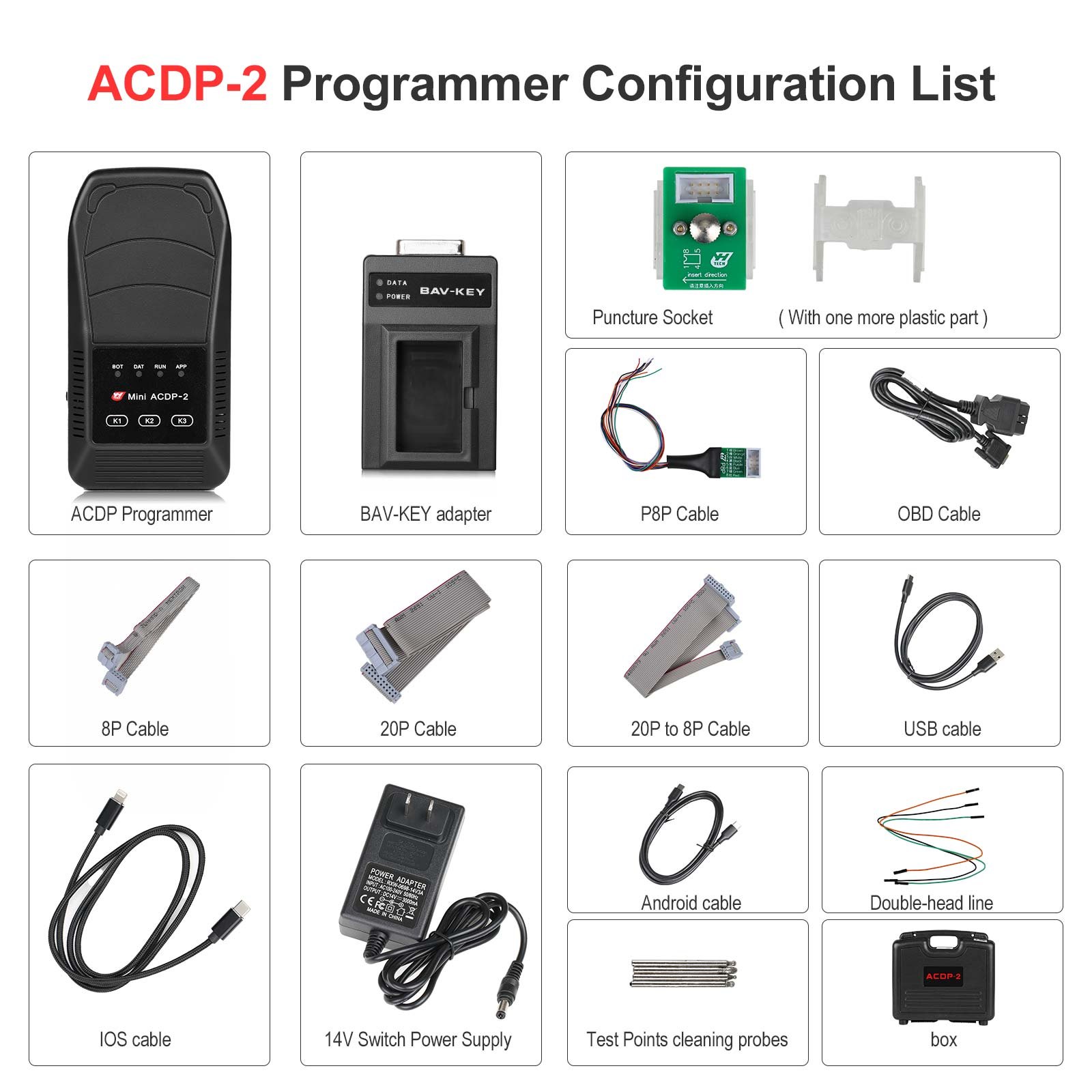

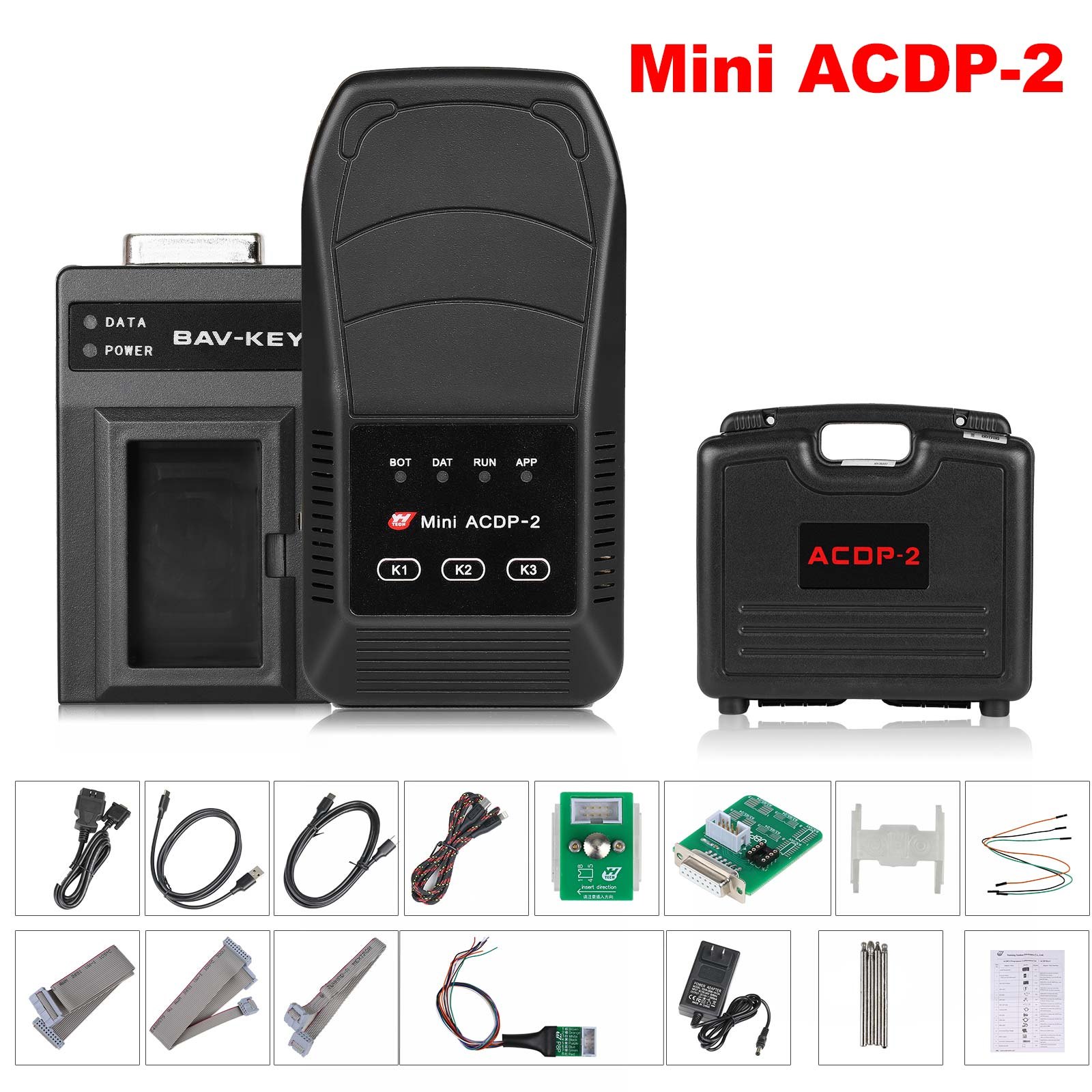

• 1pc x ACDP-2 Master Basic Module

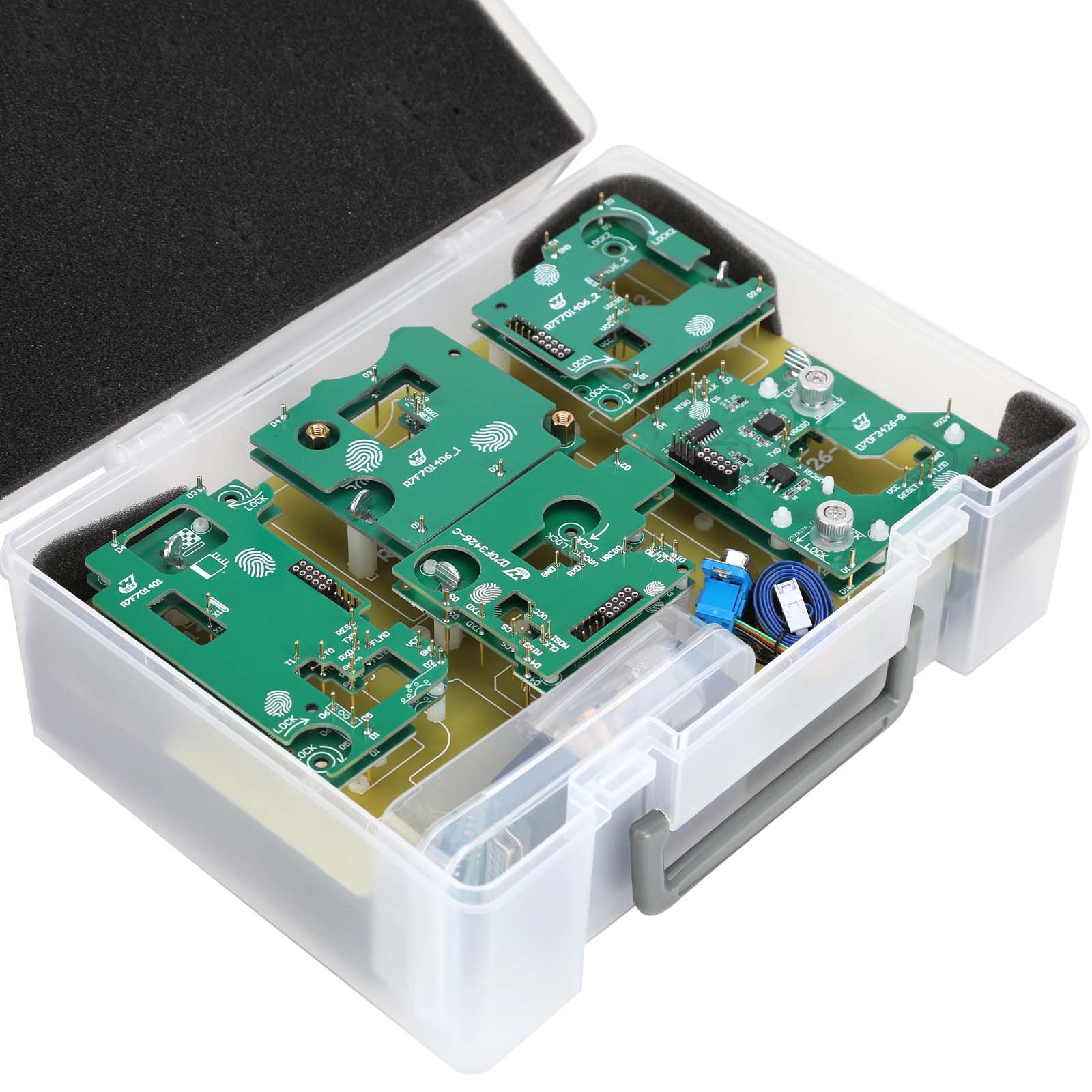

• 1pc x ACDP-2 Module 34
• Yanhua ACDP-2 VW MQB48/49 5A 5C Package with Module 34 and License
• Includes ACDP-2 Master and VW MQB48/49 Module 34
• Support VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction (5A/5C)

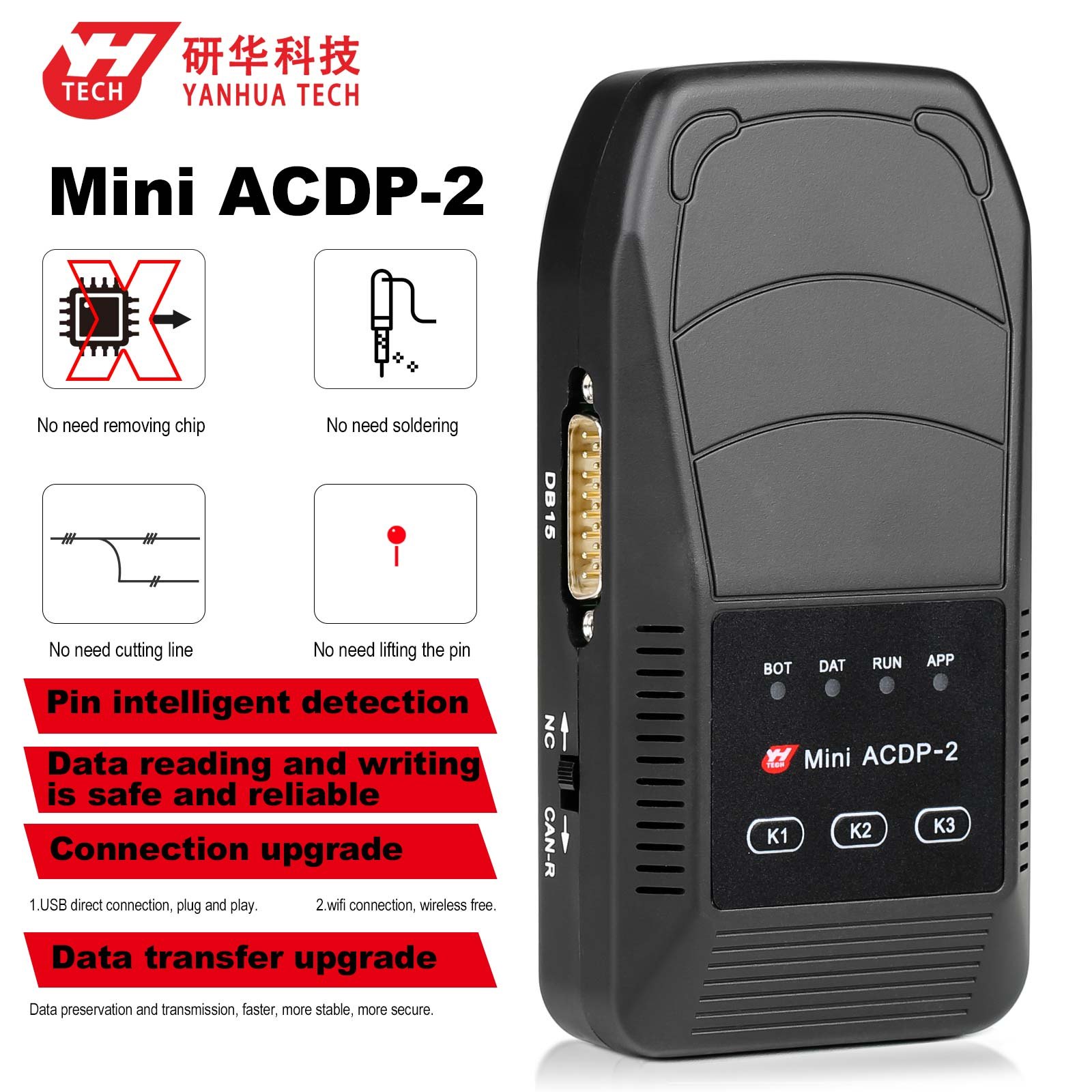

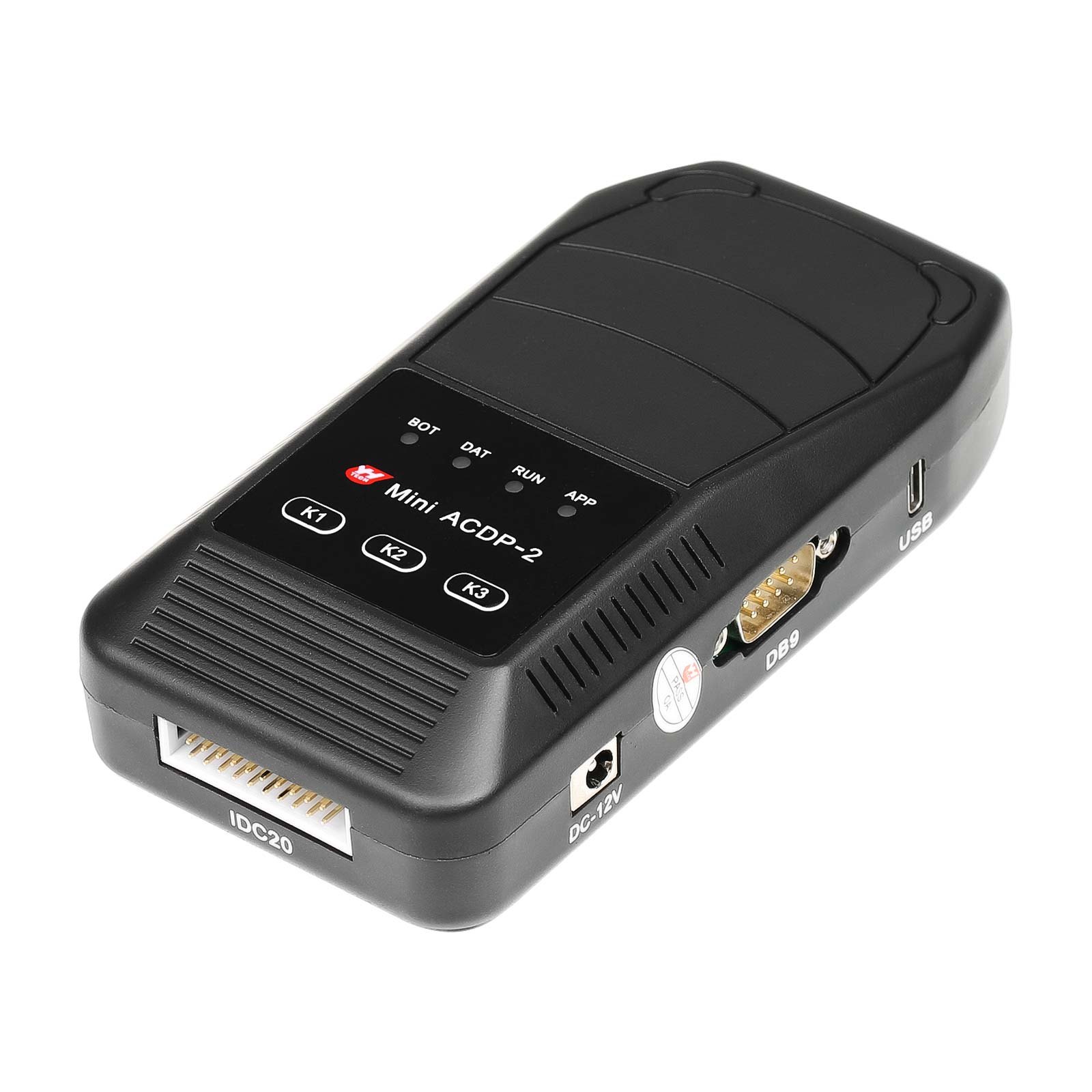

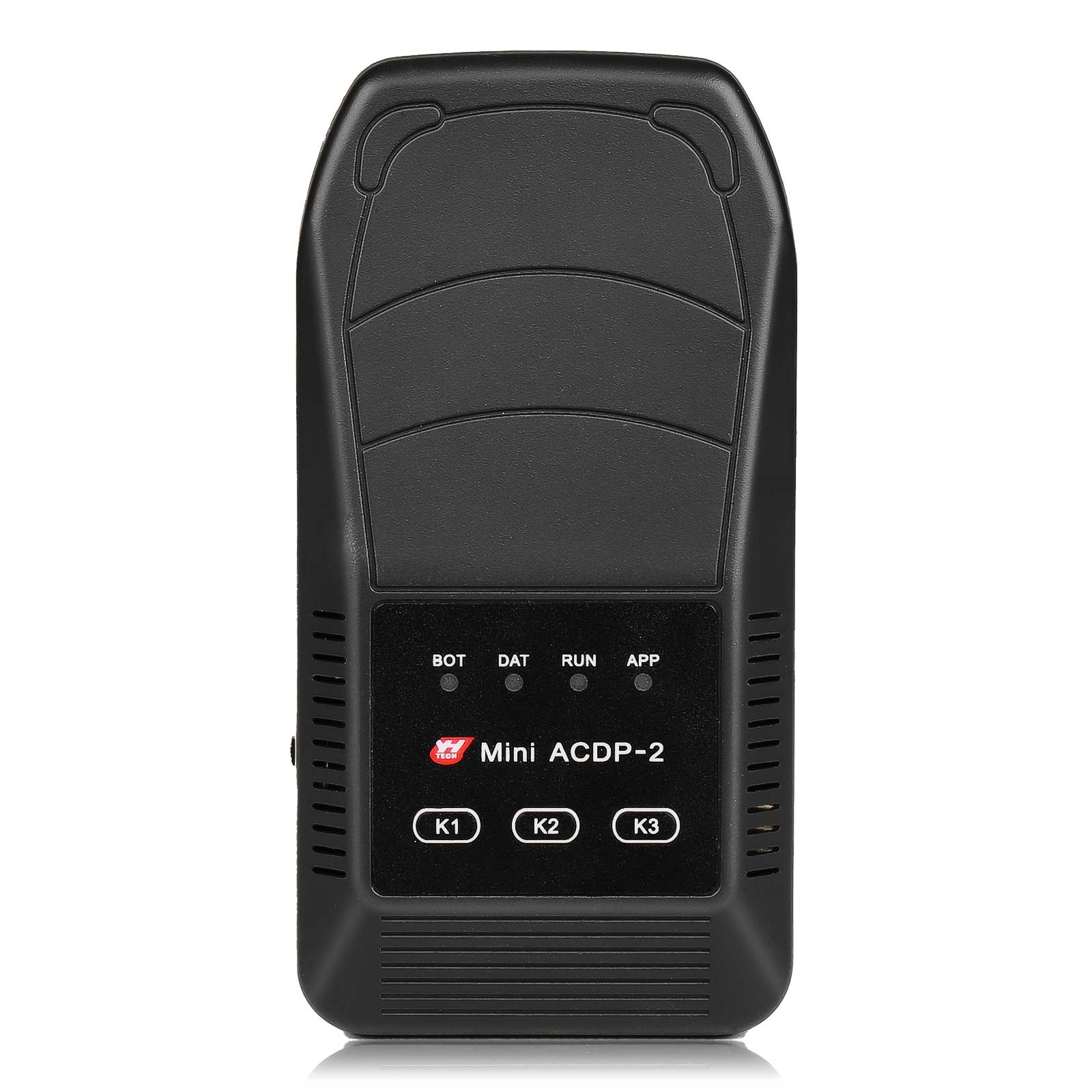

• Yanhua ACDP-2 NEW Generation Programmer Master with License A801
• Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration

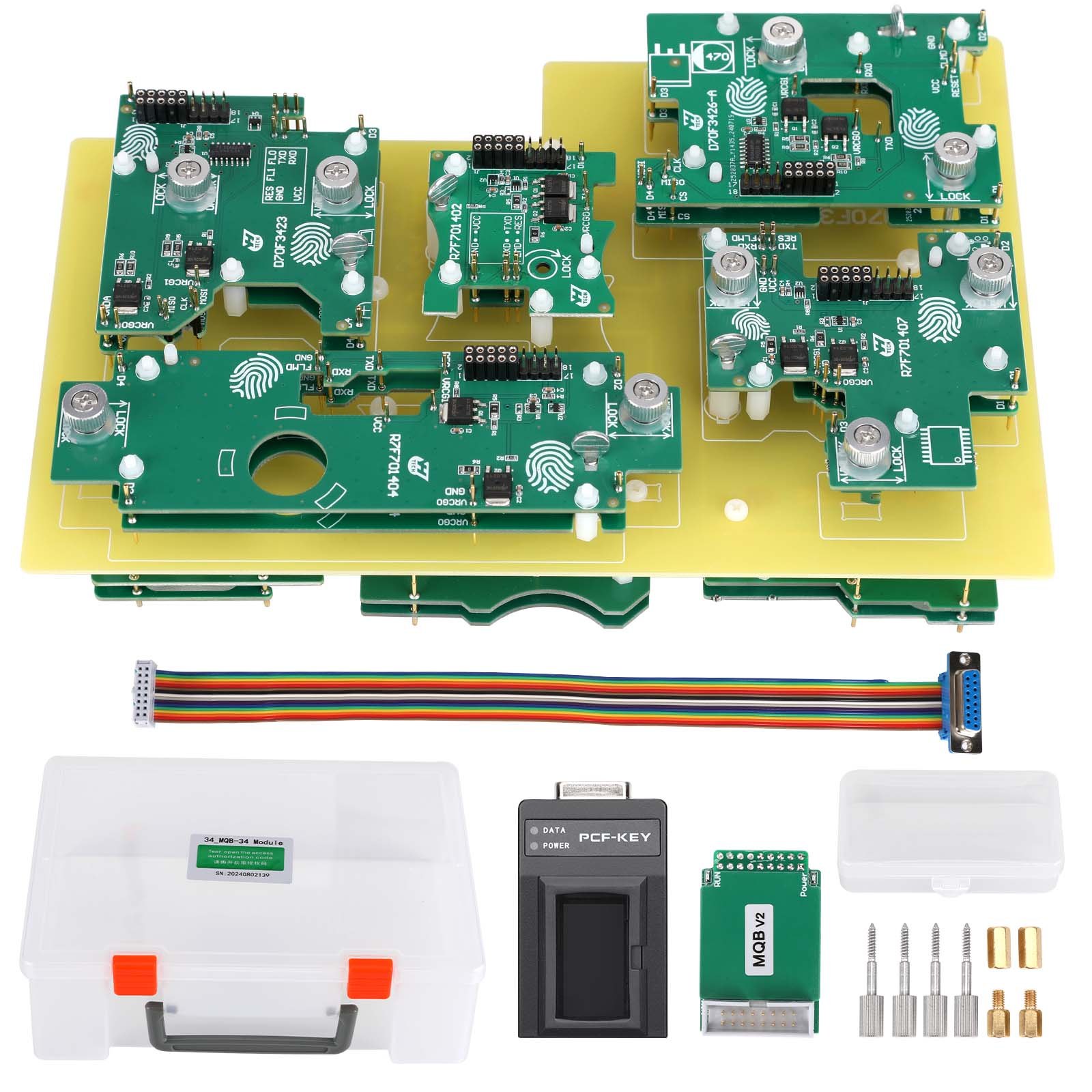

• MQB-34 Module with License A609
• 83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B
• R7F701401/ R7F701402/ R7F701404/ R7F701405/ R7F701406/ R7F701407 5C:
• 3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C,5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B,55G920650C,5HG920340,5HG920340A,5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E
• 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C,
• 34D920850E, 31G920860A, 34D920850G
• 5GG920640, 5GG920860, 5GG920860A, 5G0920861A

Cluster work is legal only on a repaired or replaced unit, and the reading must be recorded honestly. Confirm the exact microcontroller in the cluster before you quote, since the supported list is specific.
