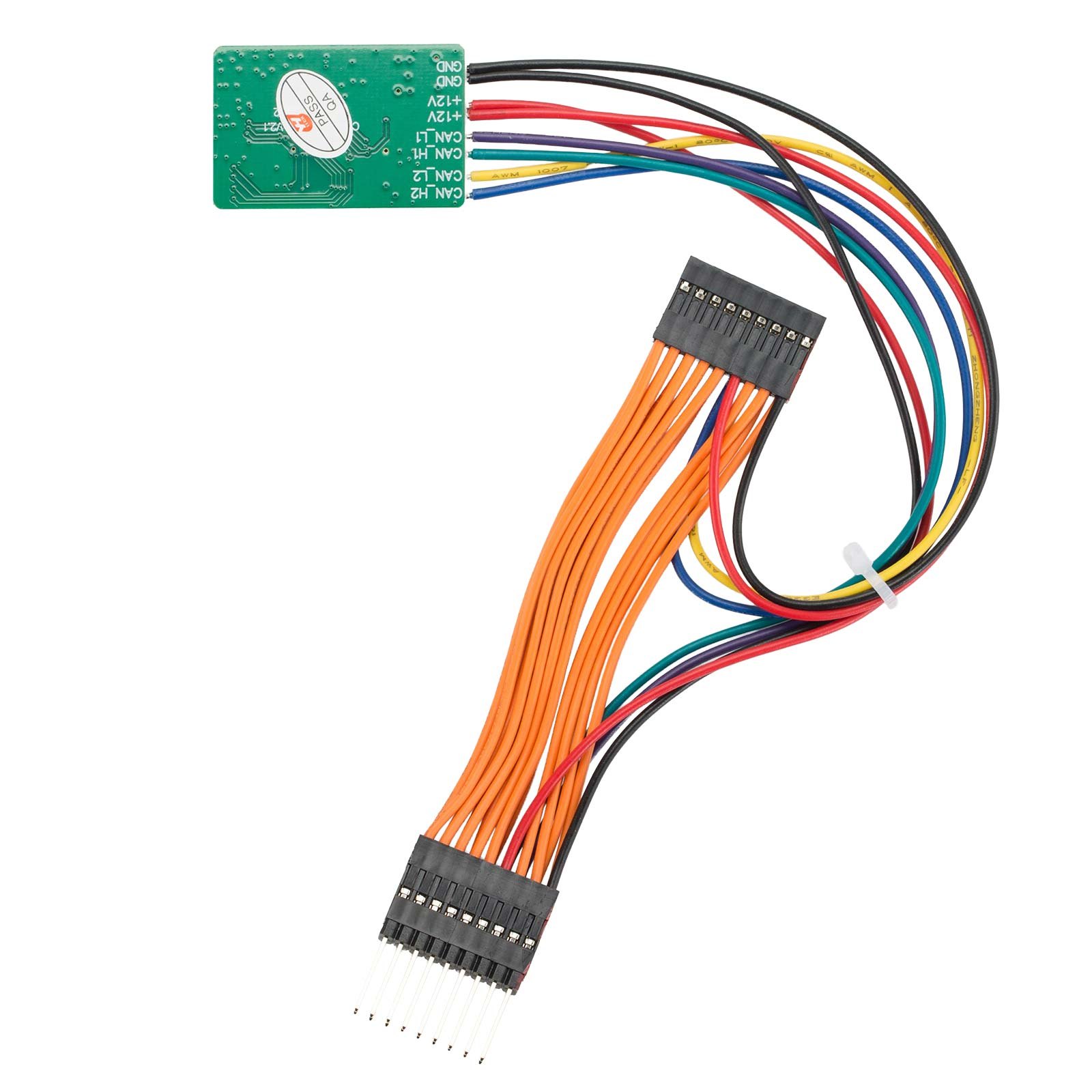

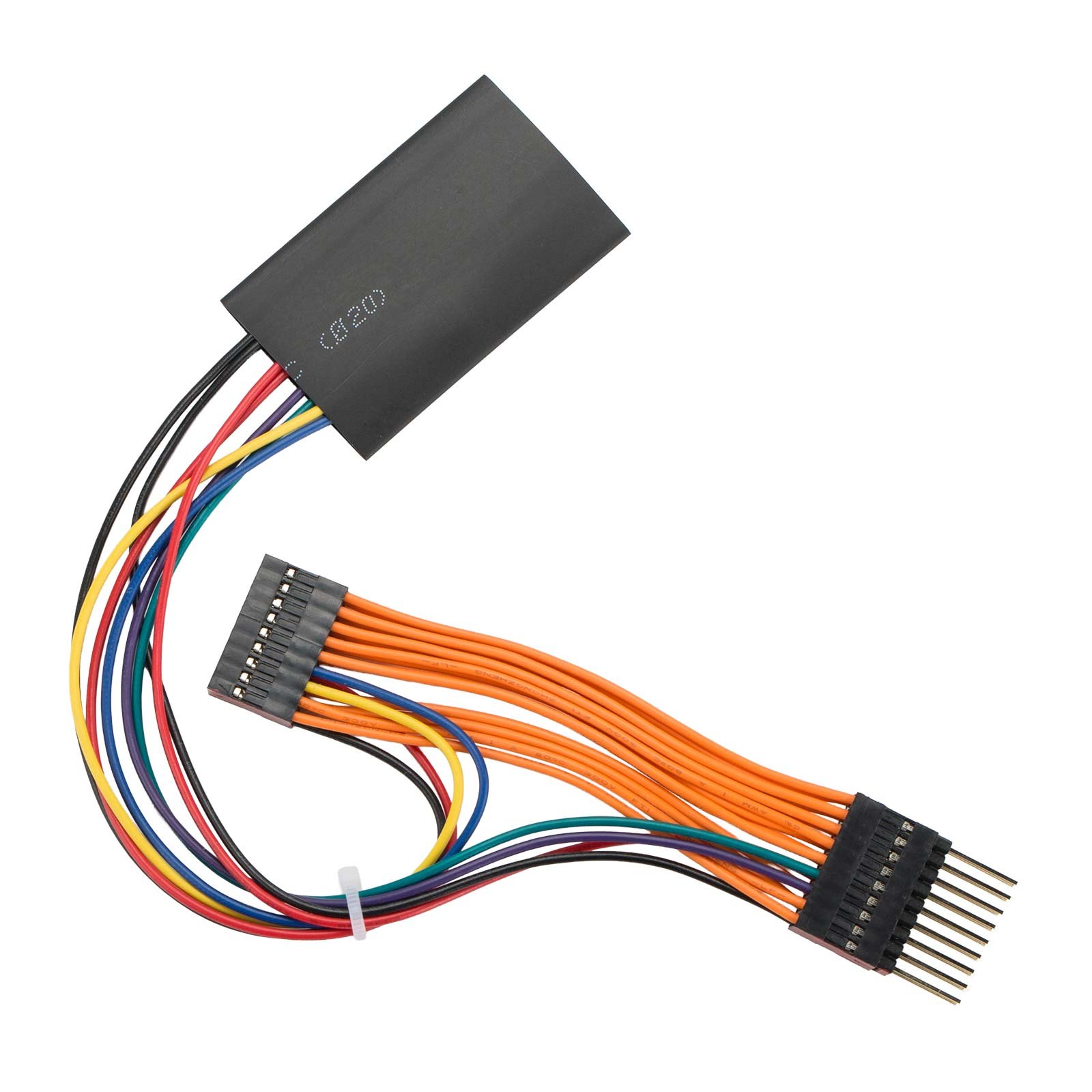

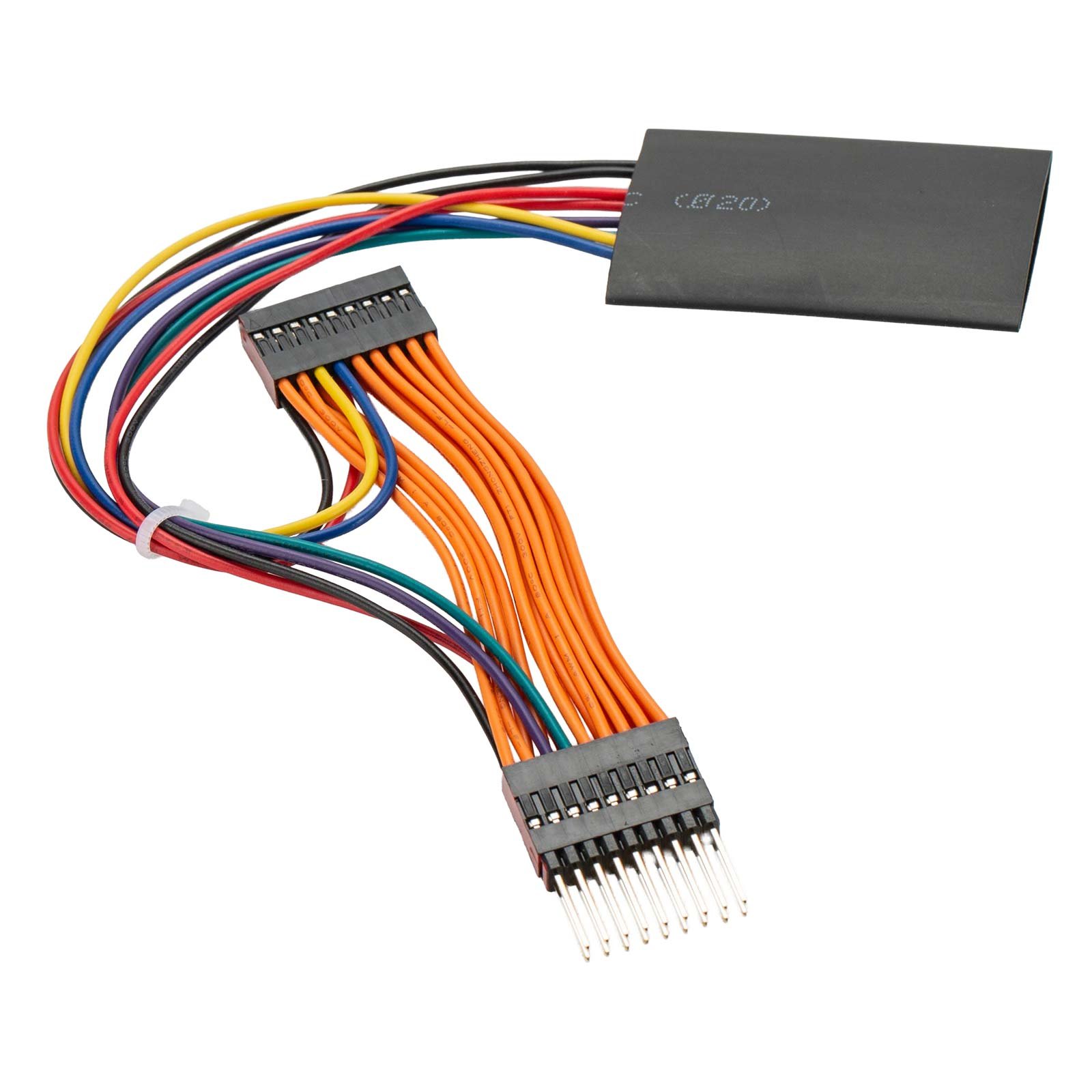

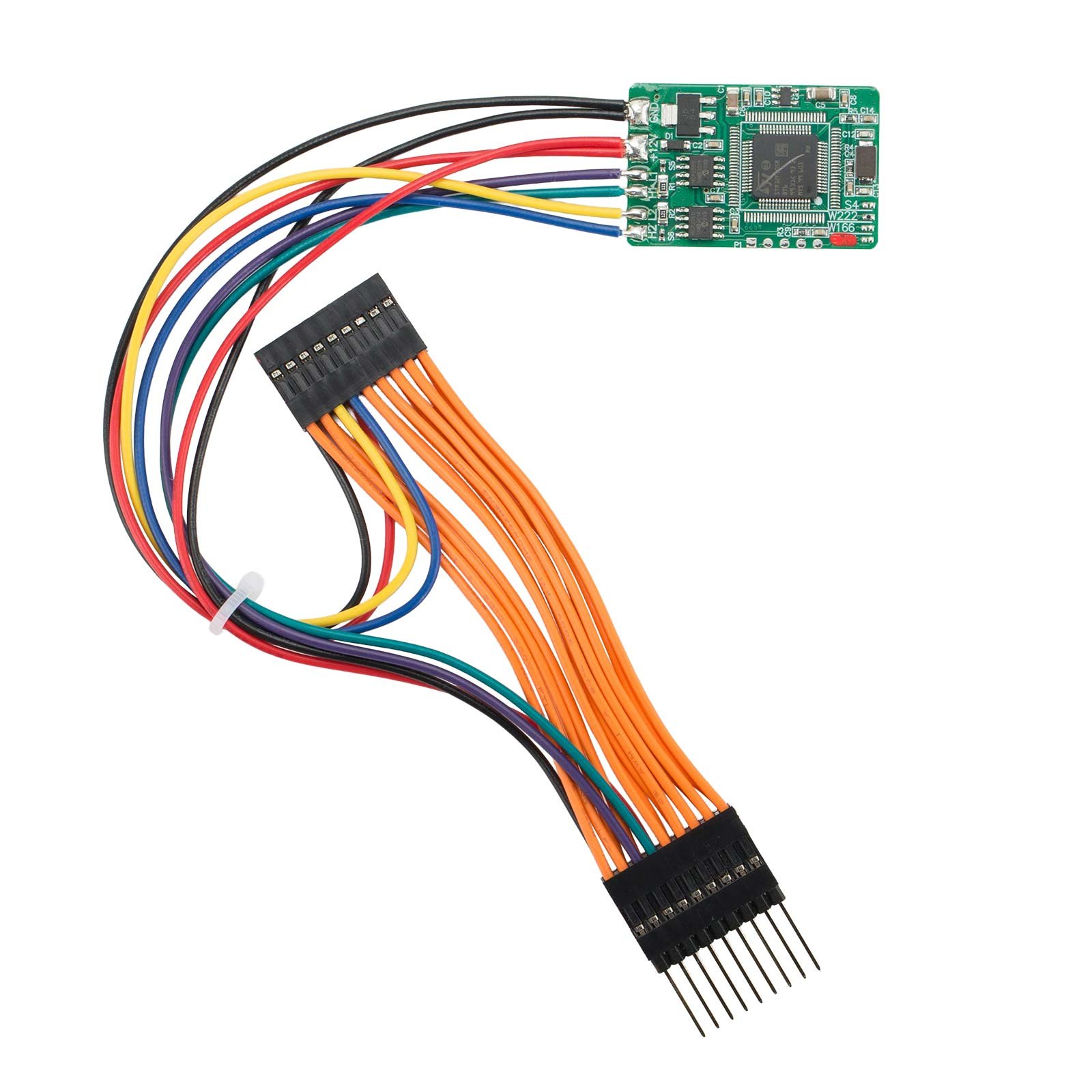

Original Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter

An original Yanhua MB CAN filter in an 18 in 1 build, covering Mercedes and BMW. On the Mercedes side it lists S222, S221, C205, C204, V W447, E W212 and E W207 among 18 chassis types, in new style 222, 205 and 217 and old style 166, 212 and 463, and on BMW it covers CAS4 and FEM on the Fxx cars.

Specifications

• Benz 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
• BMW: CAS4/FEM Fxx
• New style: 222/205/217
• Old style: 166/212/463

What you get

• 1pc x Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal filter

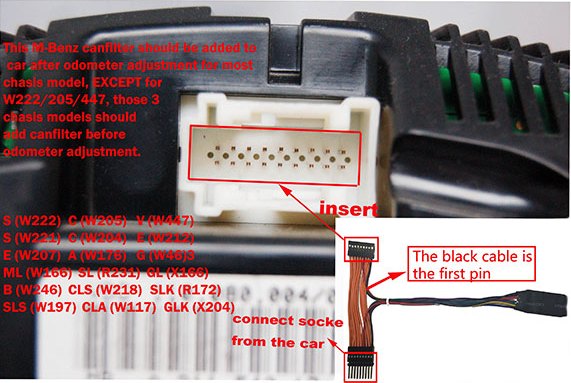

• This original Yanhua MB CAN Filter 18 in 1 Benz / BMW Universal filter should be added to car after odometer adjustment for most chassis model, EXCEPT for W222/W205/W447, those 3 chassis models should add can filter before odometer adjustment.
• Yanhua MB CAN Filter 18 in 1 Benz/BMW Universal filter
• BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
• BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
• This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
• CHECK the car model correctly before adjust.
• Old style W166 short circuit to GND
• New style W222 short circuit to GND
• Black wire connect to plug 1

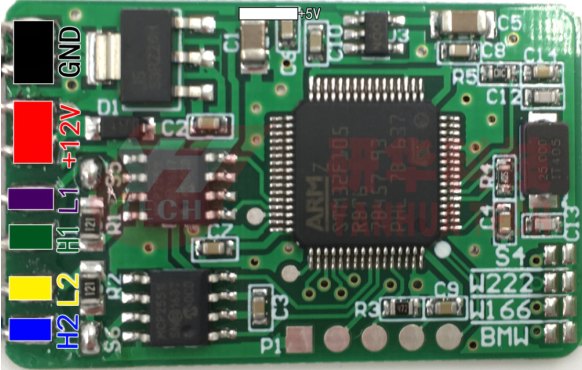

• YH Benz / BMW Universal filter --- Diagram for BMW
• Black --------- GND Red --------- +12V White --------- +5V
• Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
• Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
• NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!

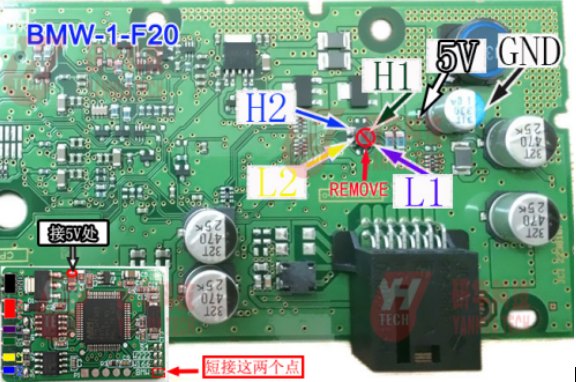

• 1.Below is the diagram for BMW 1 series F20 instrument:

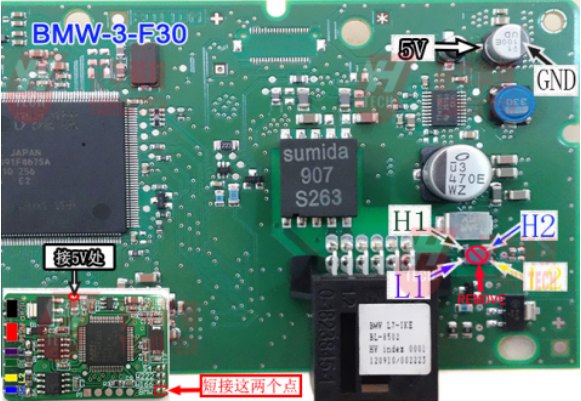

• 2.Below is the BMW 3 series F30 instrument:

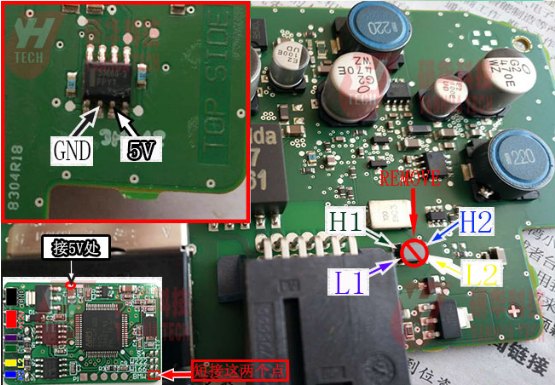

• 3.Below is the BMW 3 GT series F30 instrument:

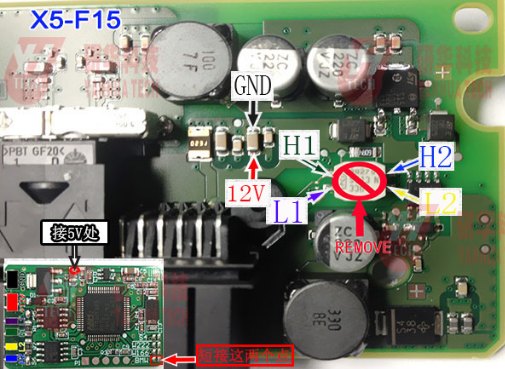

• 4.Below is the diagram for American Standard BMW X5 F15 instrument:
• 5.Below is the diagram for USA Strandard BMW X5 F15 instrument:

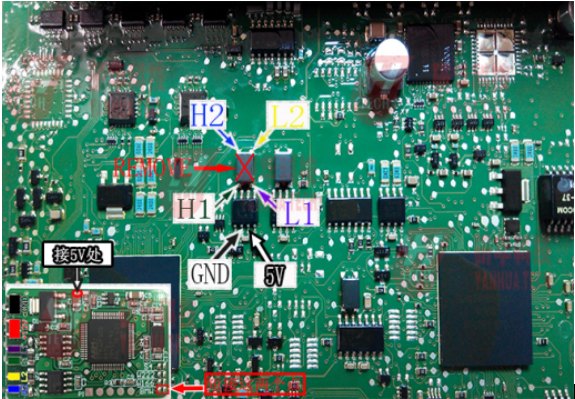

• 7.Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)
• 8.Below is the diagram for BMW X3 F25 instrument:
