OBDSTAR X300 MINI Ford Mazda Key Programmer

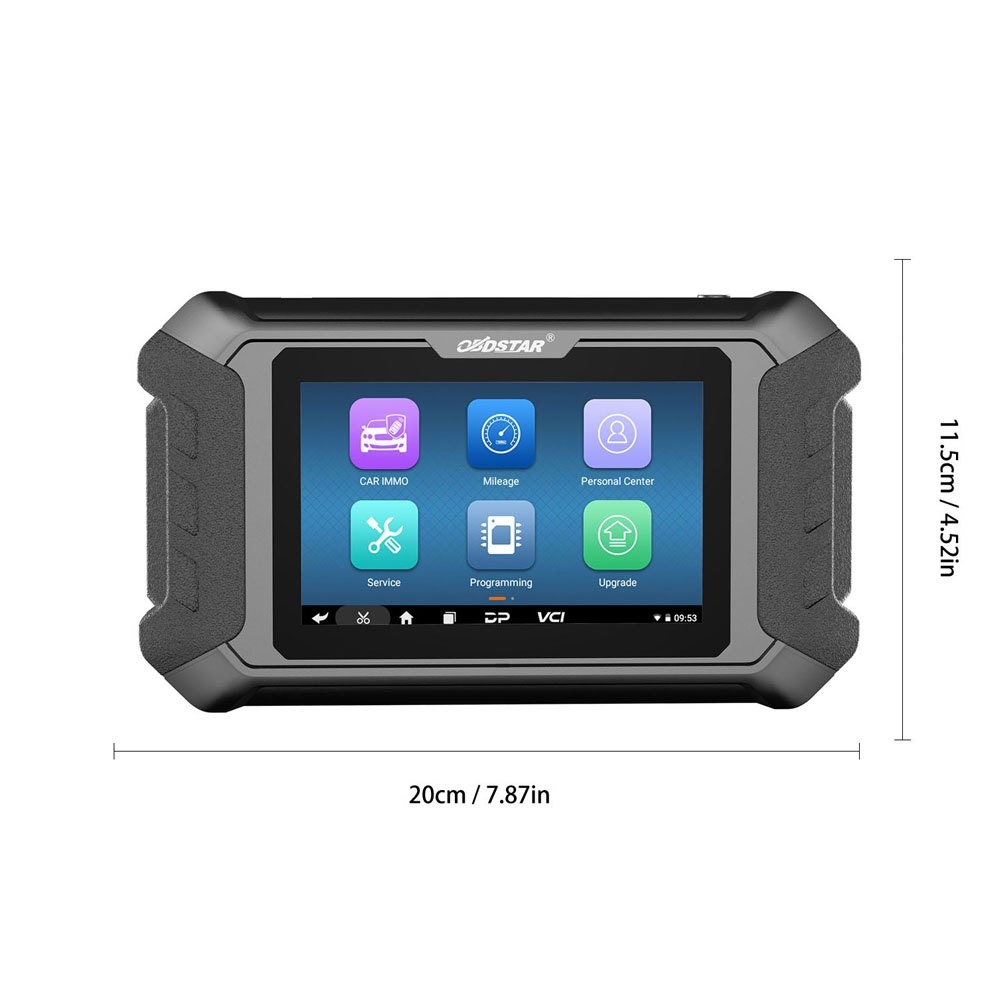

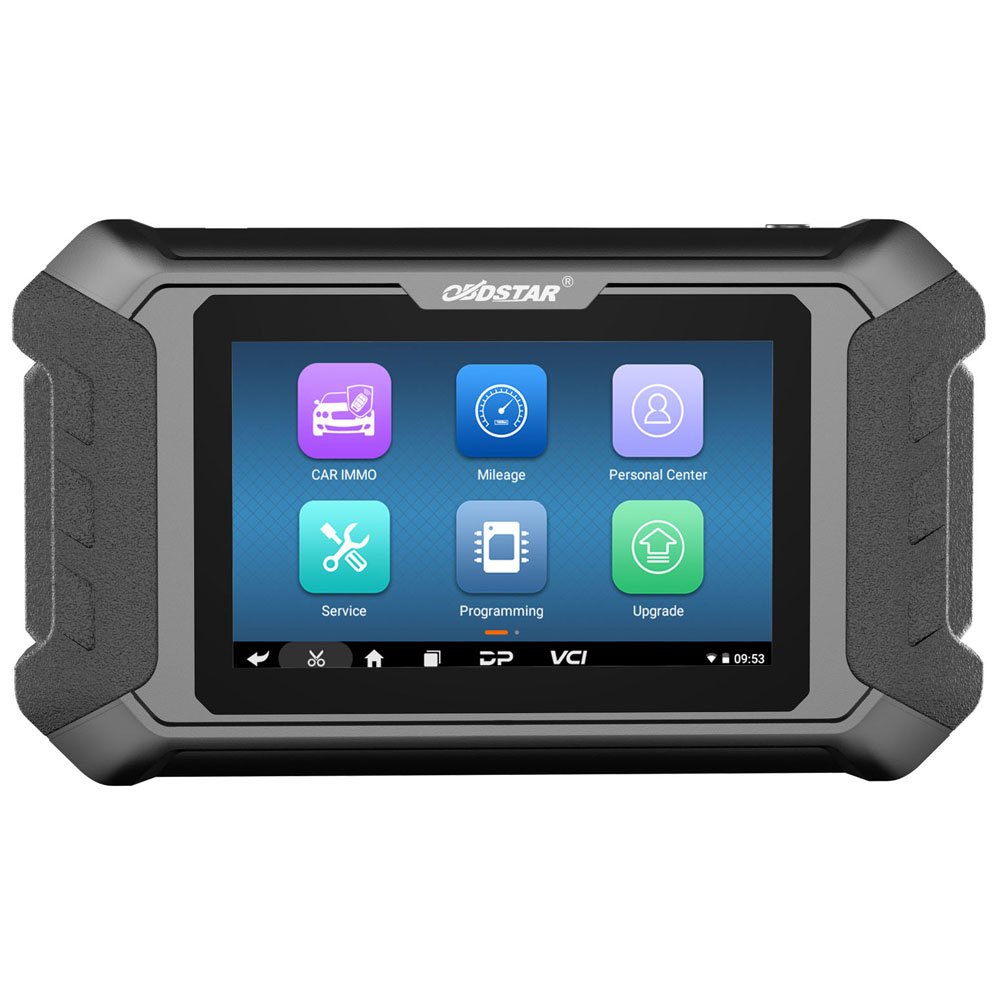

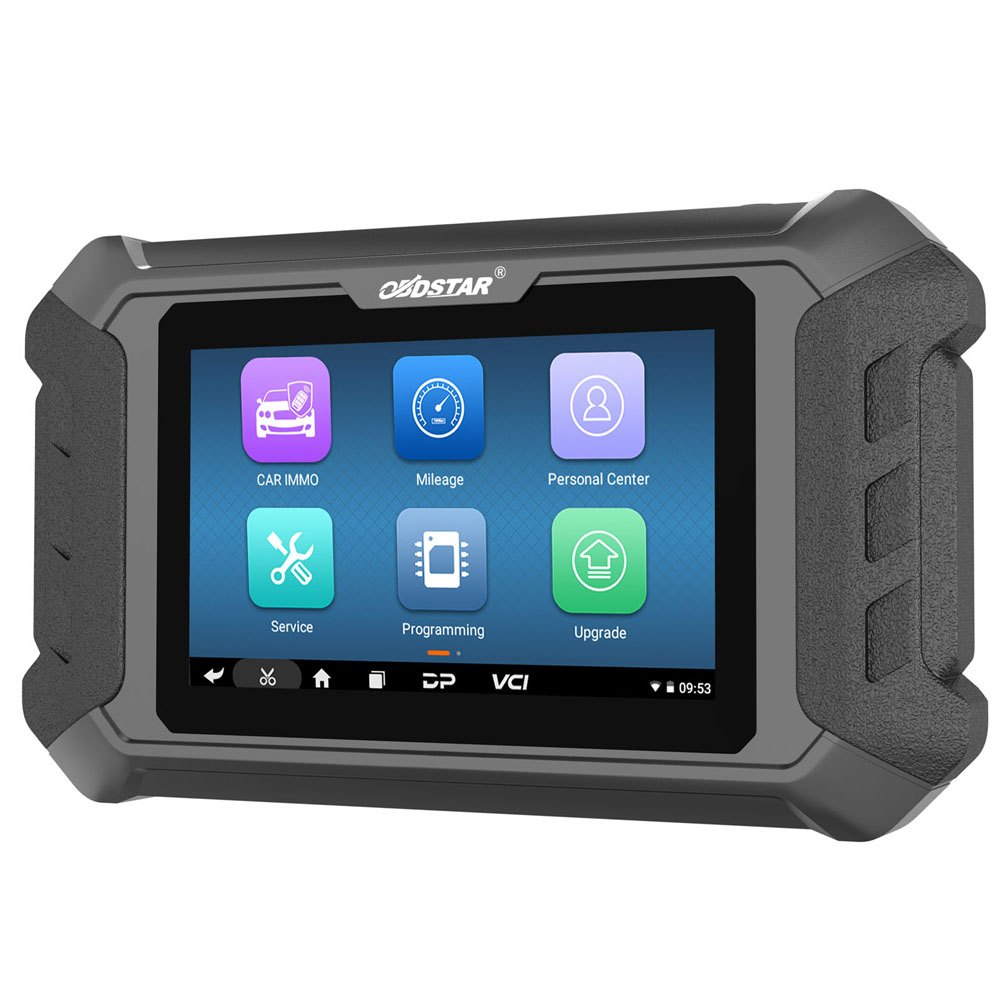

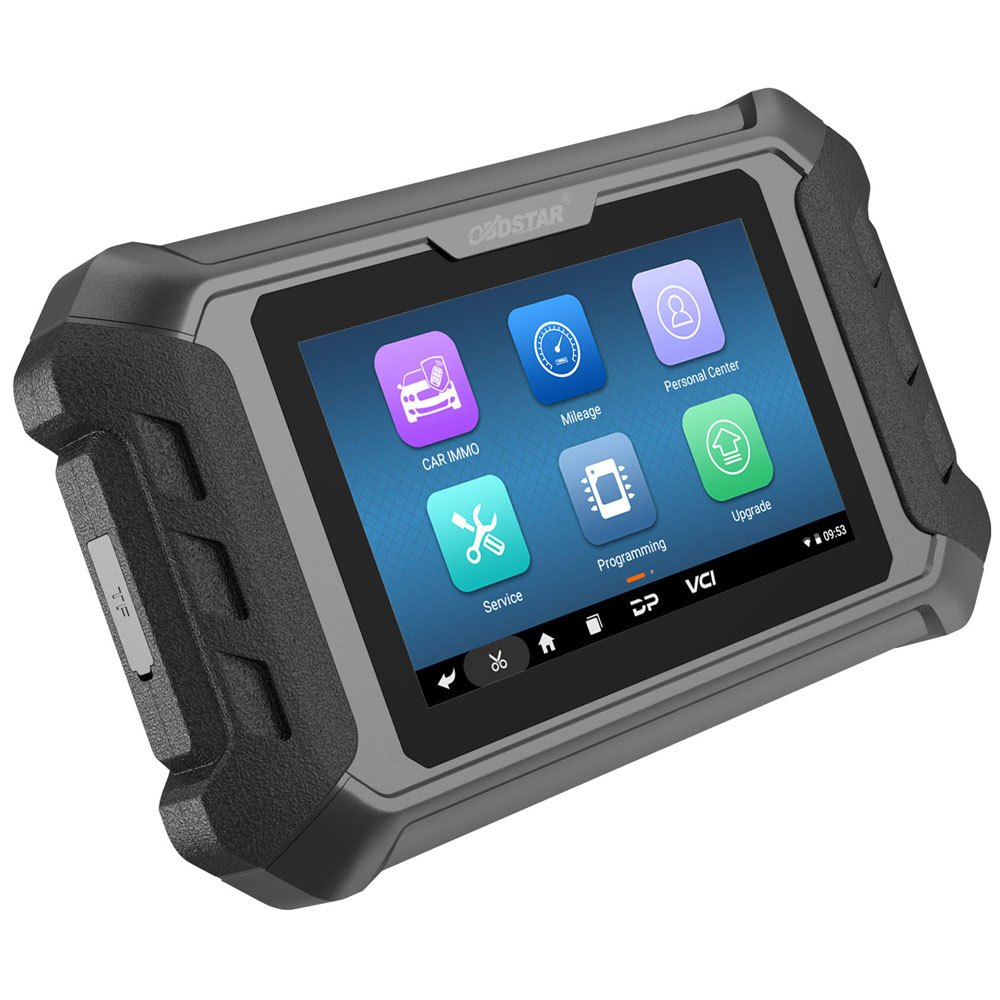

The OBDSTAR X300 MINI for Ford and Mazda is a portable tablet for key programming, cluster calibration, oil and service reset and OBDII diagnosis. It is listed as the full function version of X300 DP Plus for these brands and as an upgrade to H100 and F100, with one year free update and no tokens required.

Versions

This page is the Ford and Mazda version. Other versions listed include One Year Update Service, For JLR, For VW, For PSA, For GM Buick Chevrolet Cadillac, For Fiat Lancia Iveco, and For Chrysler Jeep Dodge. Check the version list before ordering.

Compatibility

Supports Ford and Mazda as main coverage, with added oil and service reset for partial Chrysler and Maserati to 2020 by FCA adapter and for partial GM Buick, Cadillac, Chevrolet, Holden and Ravon to 2020 and more as listed. Ford coverage includes all series all keys lost and add keys with free pincode, Ford 2017 and later read and write FLASH with no disassembly by P002 adapter and ALK for Ford cable, and partial IMMO ECU programming. Cluster calibration includes about 50 Ford models including F150 to F550 to 2018, Fusion 2010 to 2017, Ranger 2013 to 2020 and more. Mazda coverage includes to 2020 all series add keys and all keys lost, partial 2021 add keys and all keys lost, and partial IMMO ECU programming. Cluster calibration includes over 10 Mazda models to 2015 and partial models to 2017. Oil and service reset covers over 80 percent of listed models. OBD diagnosis supported. Supplier car lists referenced include Ford Mazda car list, cluster calibration car list, key programming car list and oil light reset car list. Confirm year and model before ordering.

Specifications and Functions

• System: Android 5.1.1
• Display: 5 inch touchscreen
• Interface: USB interface
• Battery: 2600 mA rechargeable polymer lithium battery, charging via OBD
• Network: WiFi connection for one-click software upgrade
• Update: free upgrade for one year, no tokens required
• Support data: help data, technical bulletin and tips to help operation
• Distributor code: 0086A002
• Functions: IMMO programming, cluster calibration, oil and service reset, OBD diagnosis
• Design: portable and industrial design tablet

Box Contents

• 1 pc OBDSTAR X300 MINI Ford Mazda main unit
• 12V charger
• Main cable

Notices and Terms

• Functions vary by year and model. Confirm coverage before ordering.
• Adapters P002, ALK for Ford and FCA adapter required for listed functions where stated.
• One year free update included.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
