OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP/ MS80

An OBDSTAR P003 kit bench and boot adapter for reading the ECU CS PIN, working with the X300 DP, X300 DP PLUS, DC706, X300 PRO4, Key Master DP and MS80. The wiring runs 1, 2 and 3 together, then the ECU pin connector to the ECU, then 12V power to the diagnostic device before the read.

Specifications

• Step 1: Connect 1,2,3 together as pic below;
• Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
• Step3: connect 12V power with diagnostic device;
• Step4: read data on diagnostic device.
• Step 1: Connect 1, 2, 3 together as pic below;
• Step3: connect 7 with 4 or 5 and connect it to ECU;
• Step4: connect 12V power with diagnostic device;
• Step5: read data on diagnostic device.

What you get

• 113*75*31mm

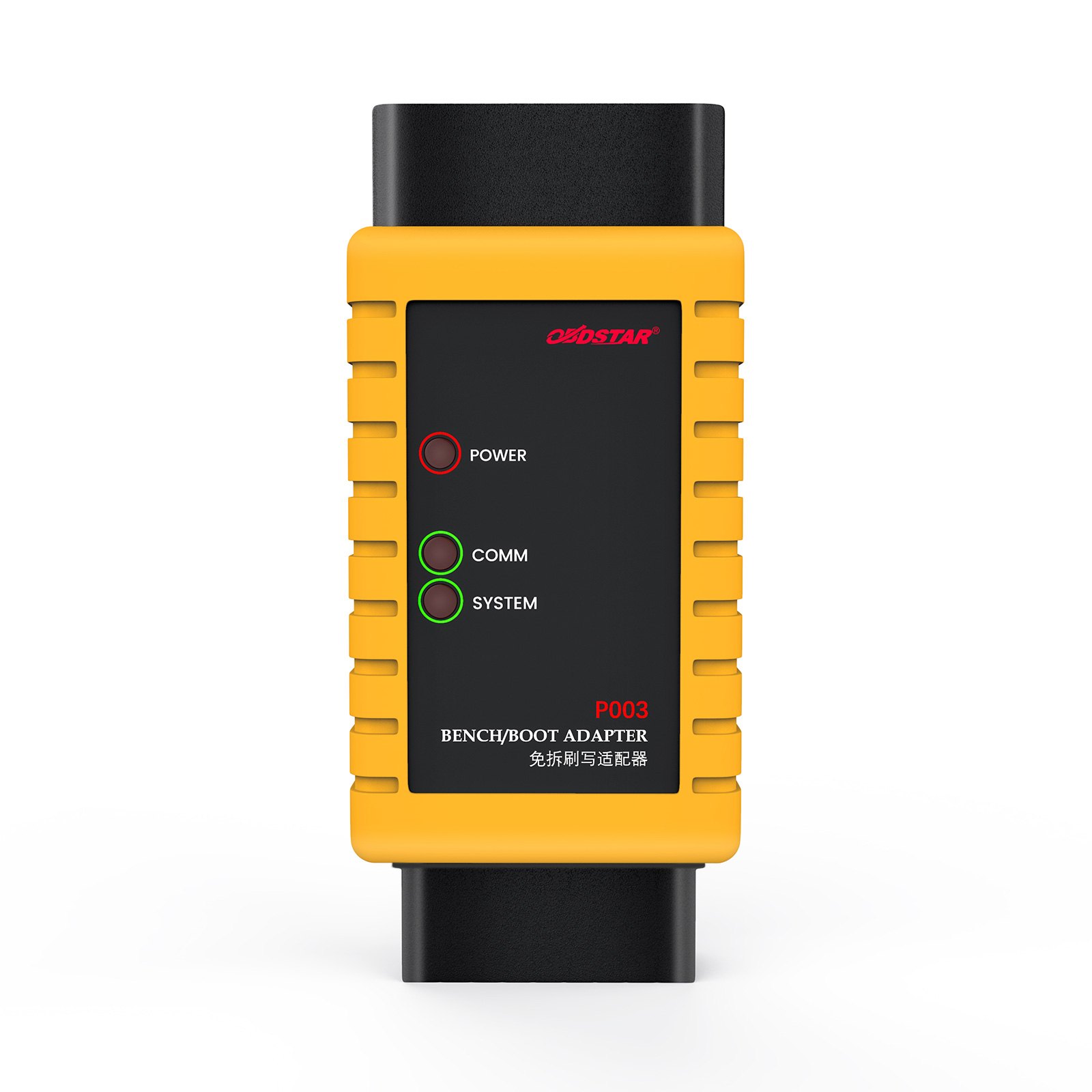

• OBDSTAR P003 Bench/Boot Adapter is designed for Reading ECU CS PIN ect, can work With OBDSTAR IMMO series tablets, such as OBDSTAR X300 DP, X300 DP PLUS, OBDSTAR DC706, X300 PRO4, Key Master DP.

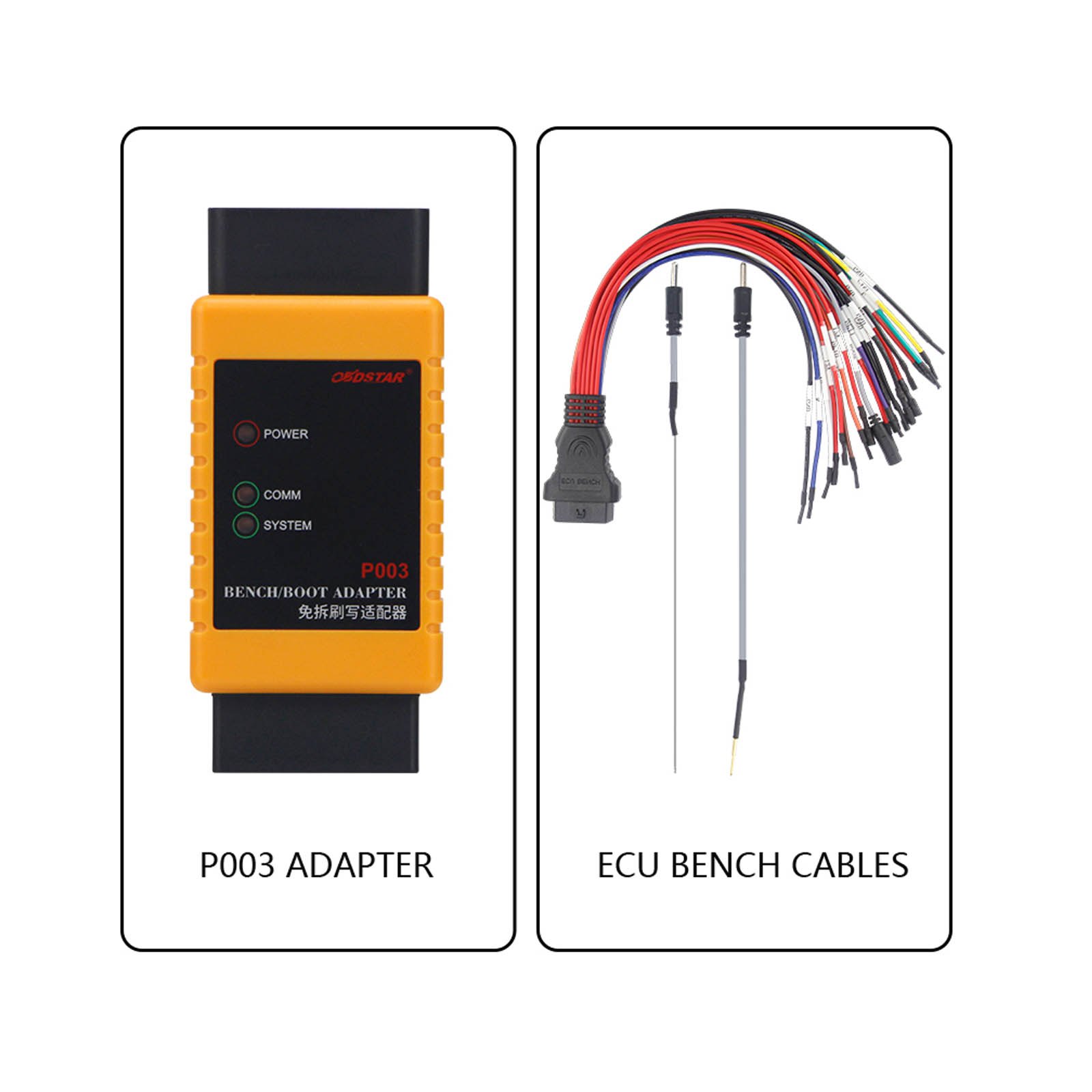

• OBDSTAR P003 KIT P003 Adapter with ECU Bench Cables Working With OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP
• P003 Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc..
• OBDSTAR X300DP Plus Key Master DP Plus
• X300 Pro4 Key Master 5
• OBDSTAR DC706 ECU TCU Clone Tool
• New version of OBDSTAR P003 KIT ( SE156 ) can work with DC706/ MS80
• Old version ( SE156-B ) can work with X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP
• Some functions are only supported by P003+ adapter (SE156-C)and MP001 programmer. For DC706, please buy P003+ Kit.
• Support only buy P003+ Kit hardware, change the New version of OBDSTAR P003 KIT to P003+ Kit for DC706, ECU BENCH jumper are same.
• 1.Portable Design
• 2.Easy Operation
• 3.High Performance
• Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
• Bosch MED17.4.4 reading eeprom, PinCodeP003 KIT
• Bosch EDC17C60 reading eeprom, PinCodeP003 KIT
• Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
• Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
• Bosch ME17XX reading & writing eeprom, flash
• T87A, 6HP reading & writing TCM eeprom, flash

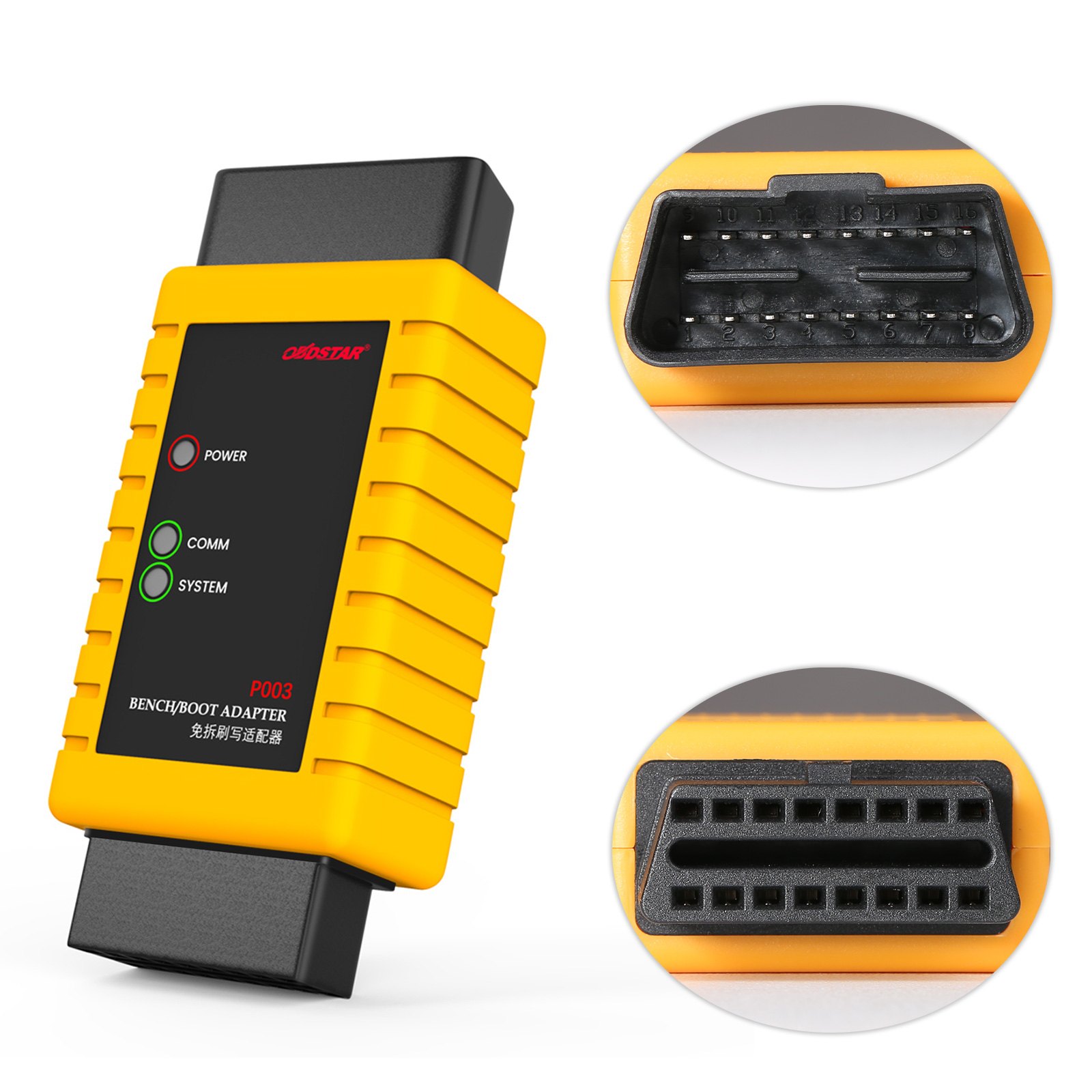

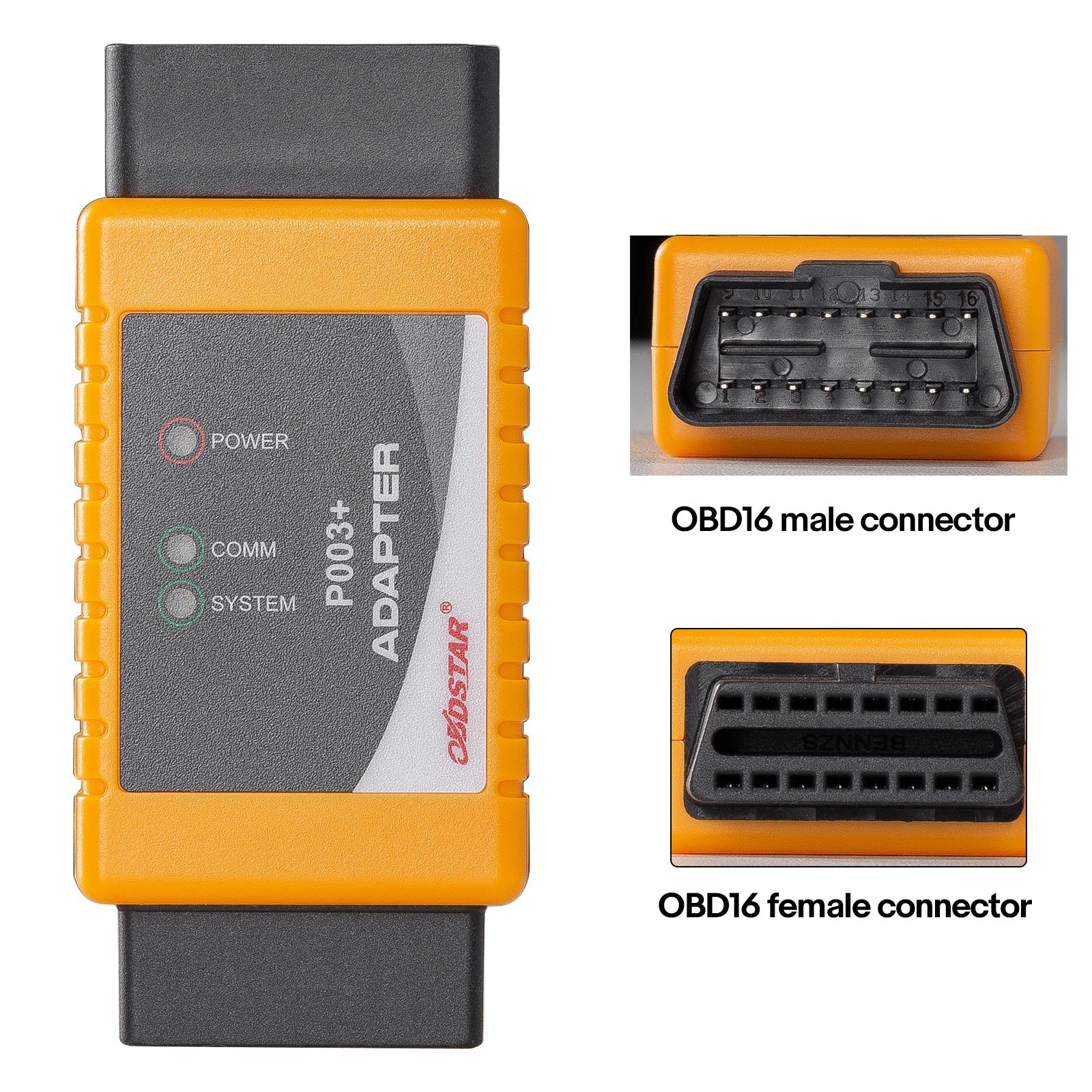

• 1.Diag cable OBDconnector(male)
• 2.Connect P003 connector(female)
• P003 adapter
• 4.Boot jumper(spring needle)
• 5.Boot jumper(welding)
• 6.ECU pin connector
• 8.12V power
• OBDSTAR P003 Kit Function
• For reading BOSCH ECU data, CS, Pincode etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.. More models are in development...
• OBDSTAR P003 Kit Supported ECU List
• Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5
• HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro6/TC298TP) etc.
• Voltage
• 12V
• Weight
• 100g
• Dimension
• Continental PCR2.1(TC1796)
• 2010-2014 Audi A1 (8X) 1.6L Diesel
• 2009-2012 Audi A3 (8P) 1.6L Diesel
• 2009-2013 Seat Altea 1.6L Diesel
• 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
• 2010-2012 Seat Leon II 1.6L Diesel
• 2014 Seat Toledo (KG) 1.6L Diesel
• 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
• 2010-2013 Skoda Fabia II (5J) 1.6L Diesel
• 2010-2011 Skoda Roomster (5J) 1.6L Diesel
• 2013-2014 Skoda Rapid (NH) 1.6L Diesel
• 2011-2013 Skoda Superb (3T) 1.6L Diesel
• 2012/2015 Skoda Yeti (5L) 1.6L Diesel
• 2010-2015 VW Caddy (2K) 1.6L Diesel
• 2009-2013 VW Golf VI 1.6L Diesel
• 2010-2013 VW Golf Plus 1.6L Diesel
• 2011-2014 VW New Beetle (9C) 1.6L Diesel
• 2011 VW Passat (B7) 1.6L Diesel
• 2009-2014 VW Polo V 1.6L Diesel
• 2010-2015 VW Touran (1T) 1.6L Diesel
• Bosch MED17.4.4(TC1793)
• Citroen C3 Mk2
• Citroen C4 Gran Picasso
• Citroen C4 MK2
• Citroen C5 (RD/TD)
• Citroen C6
• DS DS3
• DS DS5
• DS DS6
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 3008 (T84)
• Peugeot 308 (T9)
• Peugeot 4008
• Peugeot 408
• Peugeot 508
• Bosch EDC17C60(TC1793)
• Citroen C3 Aircross
• Citroen C3 Picasso
• Citroen C4 Cactus
• Citroen C4 Picasso
• DS DS4
• Peugeot 5008 (T87-P87)
• Bosch MD1CS018
• Mahindra BS-6
• Bosch MED17XX/EDC17XX
• EDC17U01(TC1766)
• EDC17C46(TC1767)
• EDC17C54(TC1797)
• EDC17C64(TC1797)
• EDC17CP44(TC1797)
• EDC17CP44 MS(TC1797)
• MED17.5(TC1766)
• MED17.5.1(TC1766)
• MED17.5.20(TC1766)
• MED17.5.5(TC1766)
• MED17.5.5 HW2(TC1766)
• MED17.5.2(TC1767)
• MED17.5.5(TC1767)
• MED17.5.5 HW2(TC1767)
• MED17.5.21(TC1782)
• MED17.5.25(TC1782)
• MED17.1.1(TC1797)
• MED17.1.1 MS(TC1797)
• MED17.1.6(TC1797)
• Bosch ME17XX
• ME17.5.6(TC1767)
• ME17.5.20(TC1767)
• ME17.1.1(TC1797)
• ME17.1.6(TC1797)

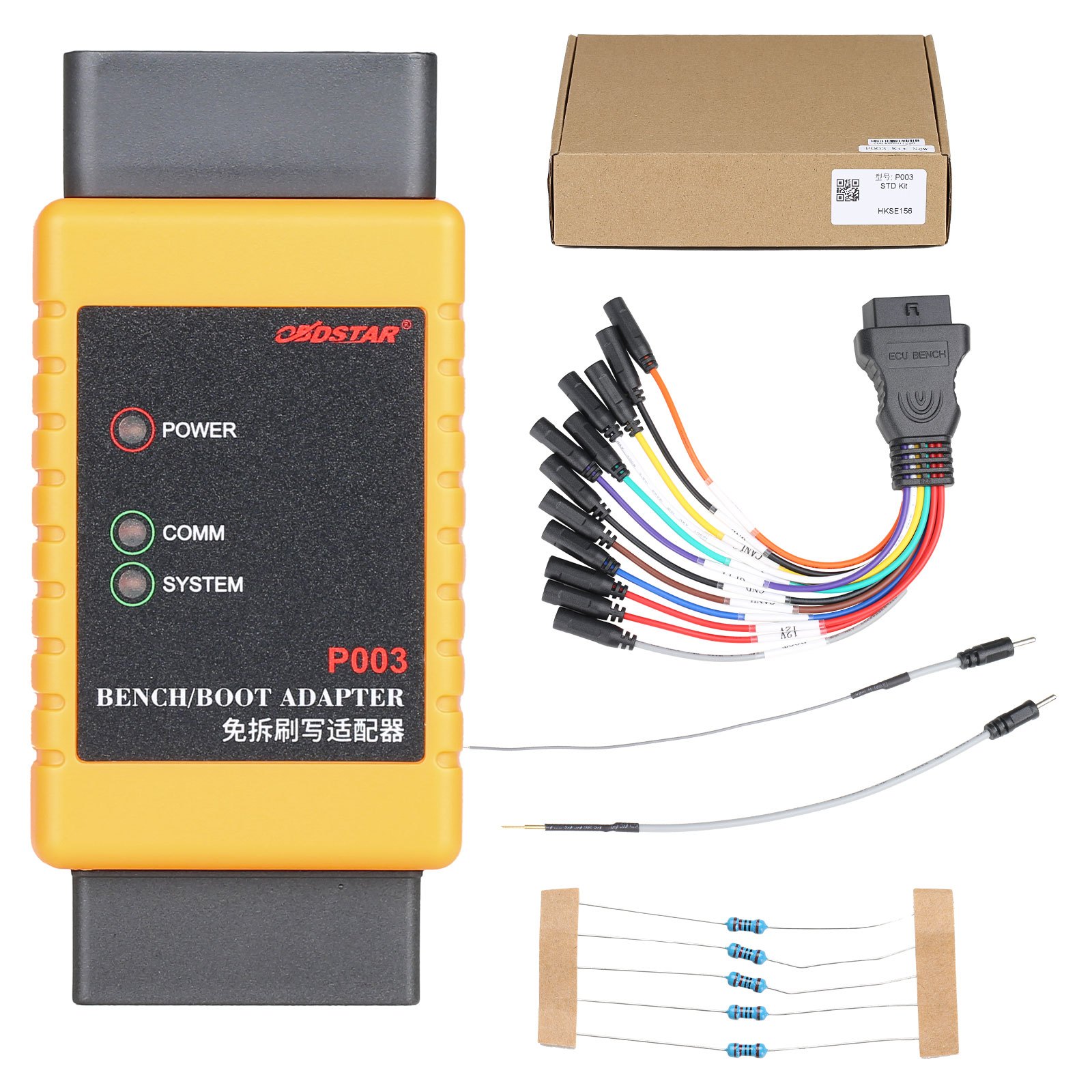

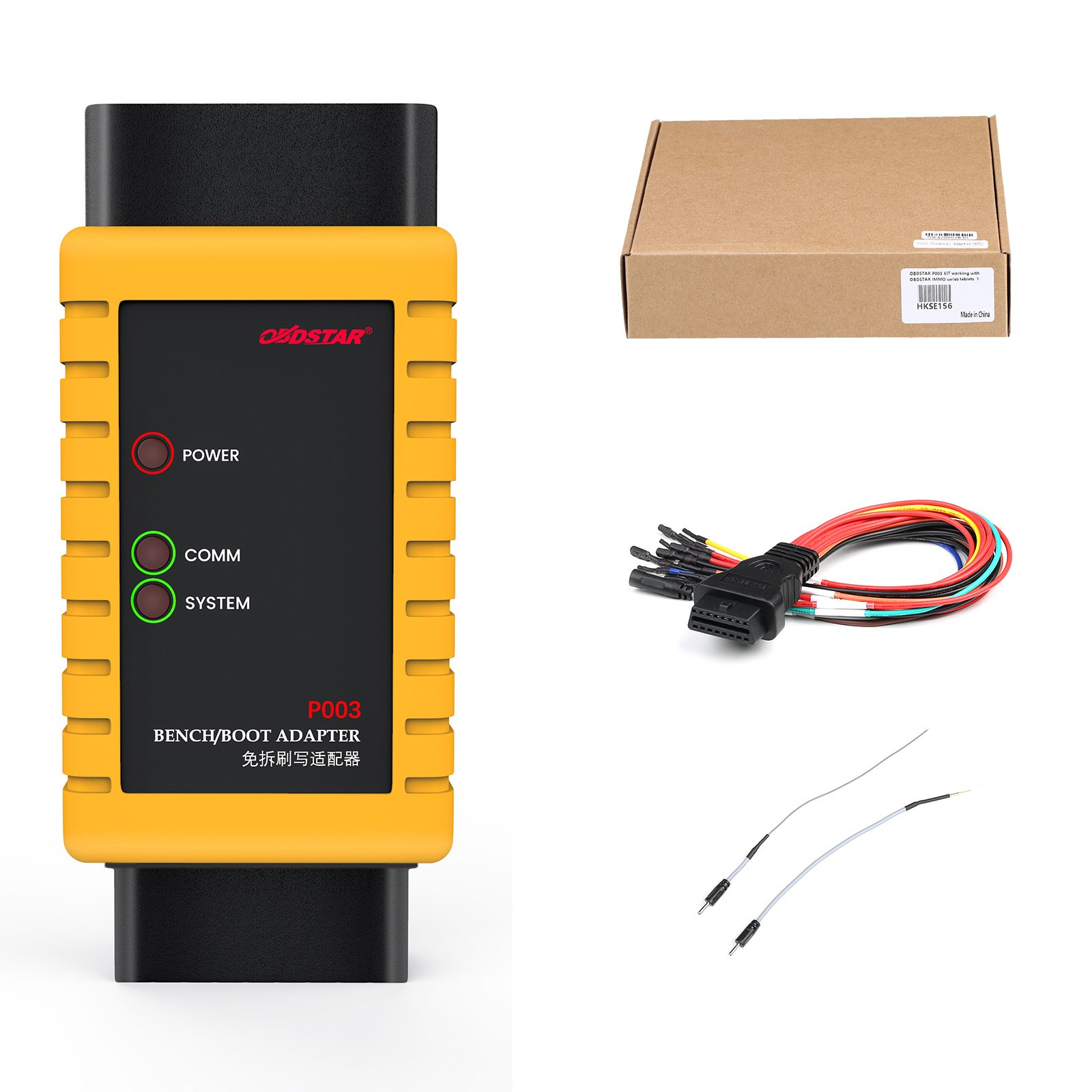

• New Version of OBDSTAR P003 KIT Package Includes:
• 1pc x P003 adapter
• 1pc x ECU BENCH jumper
• 5pcs x 120 ohm resistors
• 1pc x Boot jumper(spring needle)
• 1pc x Boot jumper(welding)
• Old version of OBDSTAR P003 KIT Package Includes:

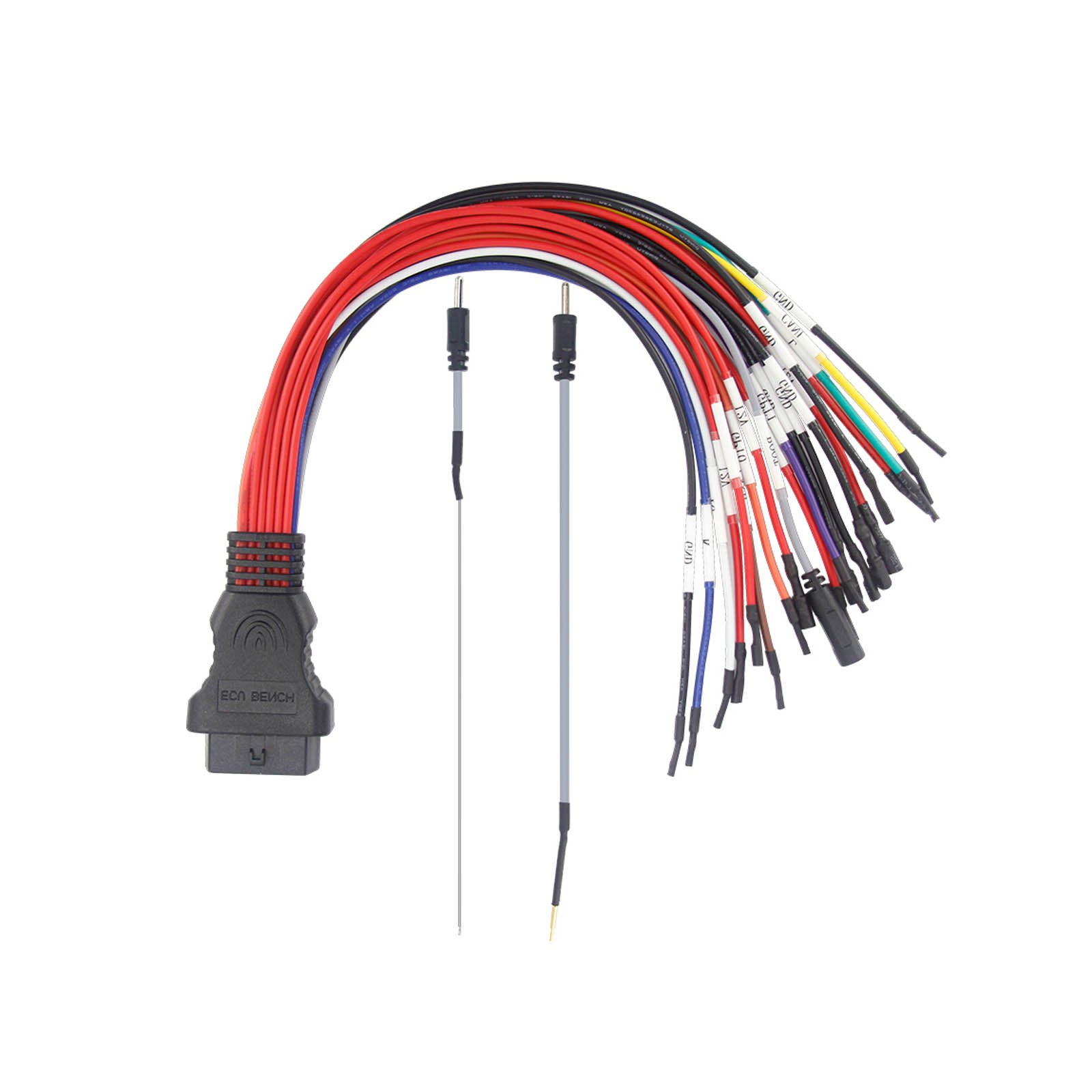

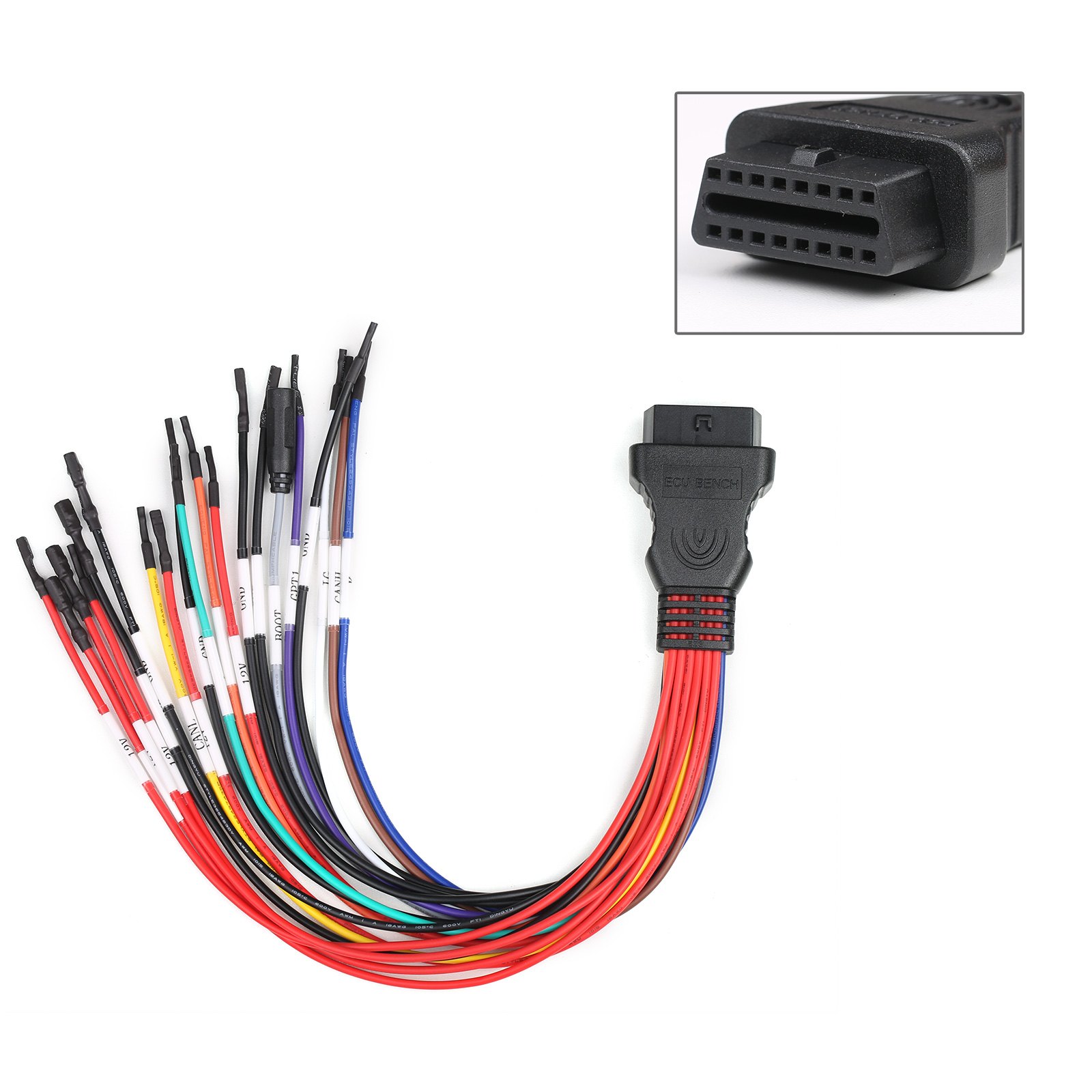

• 1pc x ECU BENCH cables
• OBDSTAR X300DP Plus Read Continental PCR2.1 Immo Data with P003 Adapter
• Continental PCR2.1(TC1796) [SIMOS PCR 2.1 IMMO Data Reading Guide]

Boot mode adds one jumper, connecting 7 to 4 or 5 before it goes to the ECU, then power and read.
