OBDSTAR RH850/V850 C4-06 Adapter Full Kit with MQB Collector ECM001 TCM030 for MDG1 Unlock, MQB All Keys Lost, Airbag Reset, IMMO Data/ Pincode Read

$63.99

In stock, delivery 7 to 20 days

Free US shipping over $150
Secure checkout via Stripe
30 day returns, no restocking fee

Buying for the trade? Ask for a written quote on quantity.

Description

An OBDSTAR RH850 and V850 C4-06 adapter full kit, supplied with the MQB collector, the ECM001 and the TCM030, for MDG1 unlock, MQB all keys lost, airbag reset and immobiliser data and pincode reading. VW, Audi, Seat and Skoda software runs at V45.48.

Specifications

Notice: All data read is unencrypted, can be used on third-party devices!
VW/AUDI/SEAT/SKODA 【Version: V45.48】

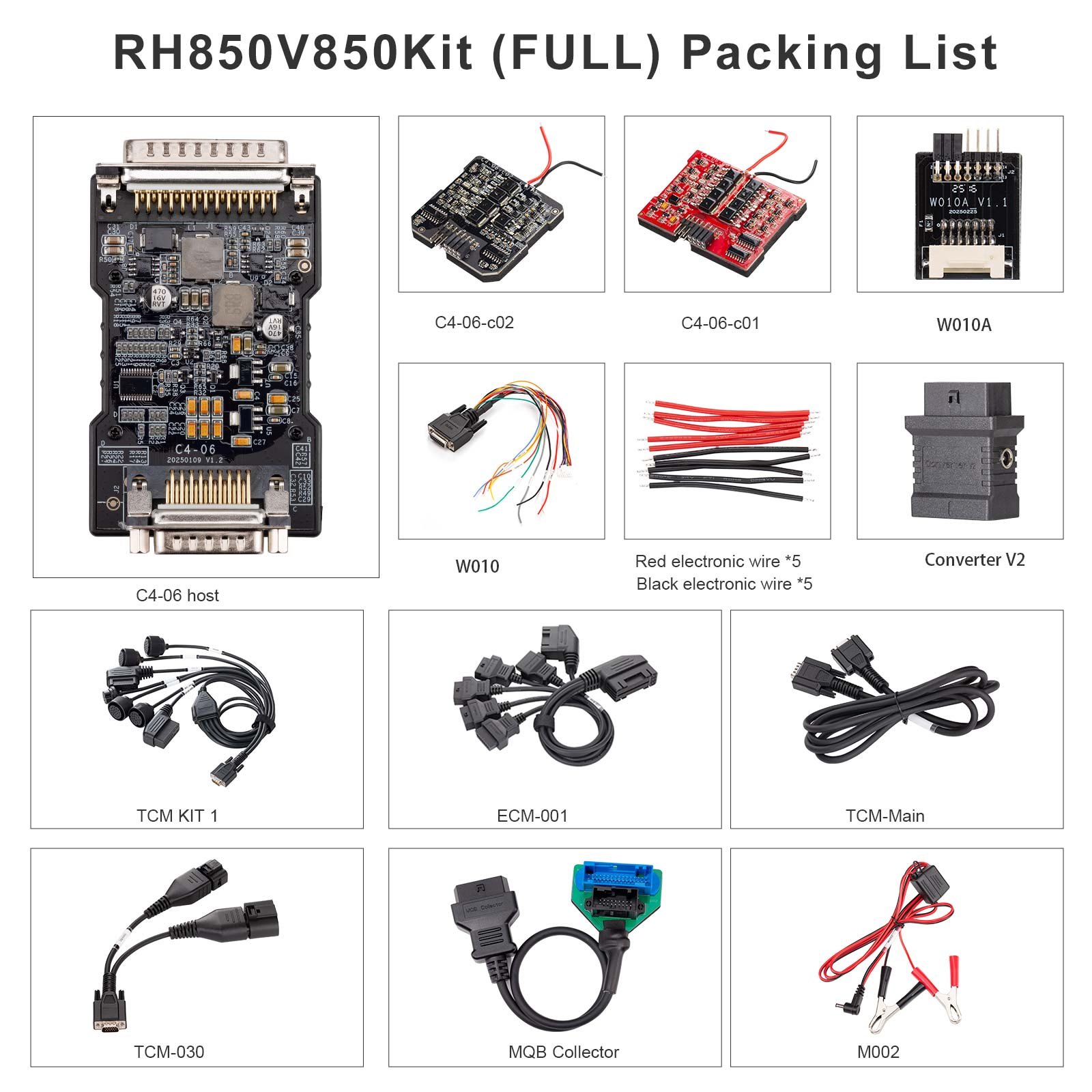

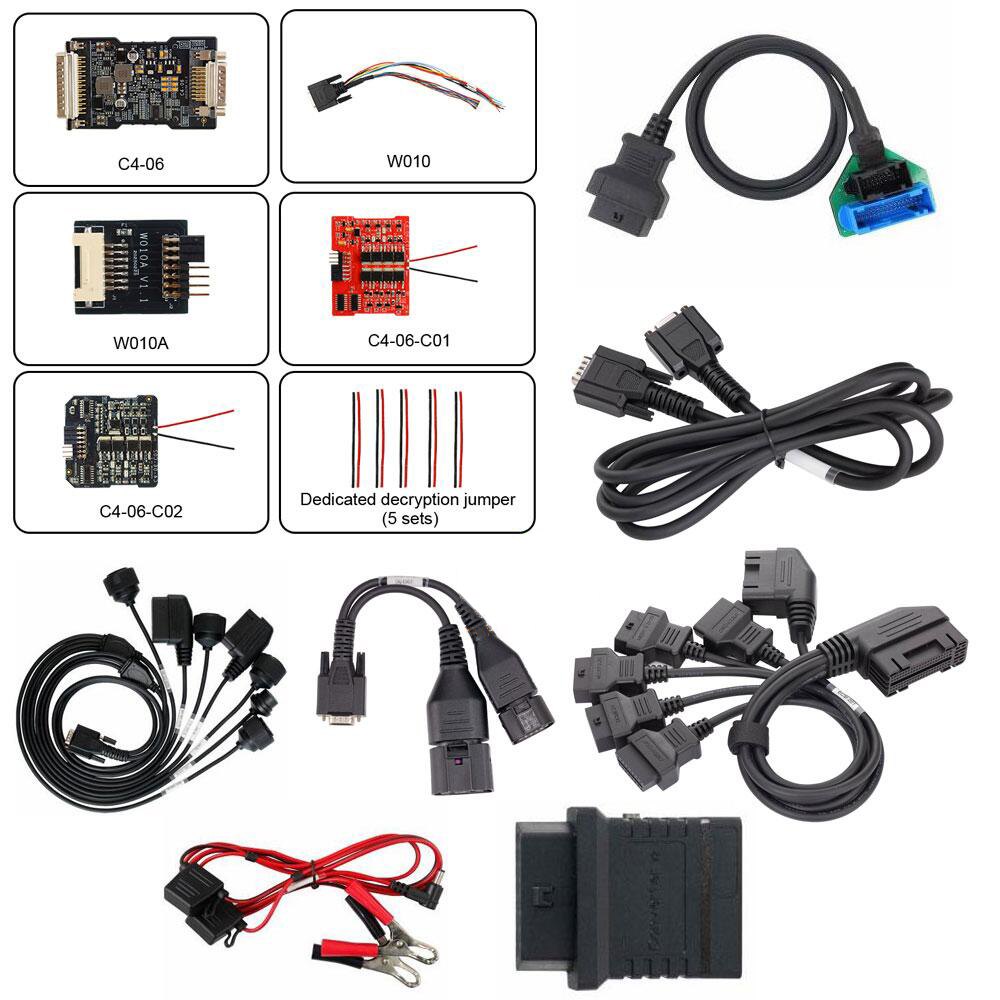

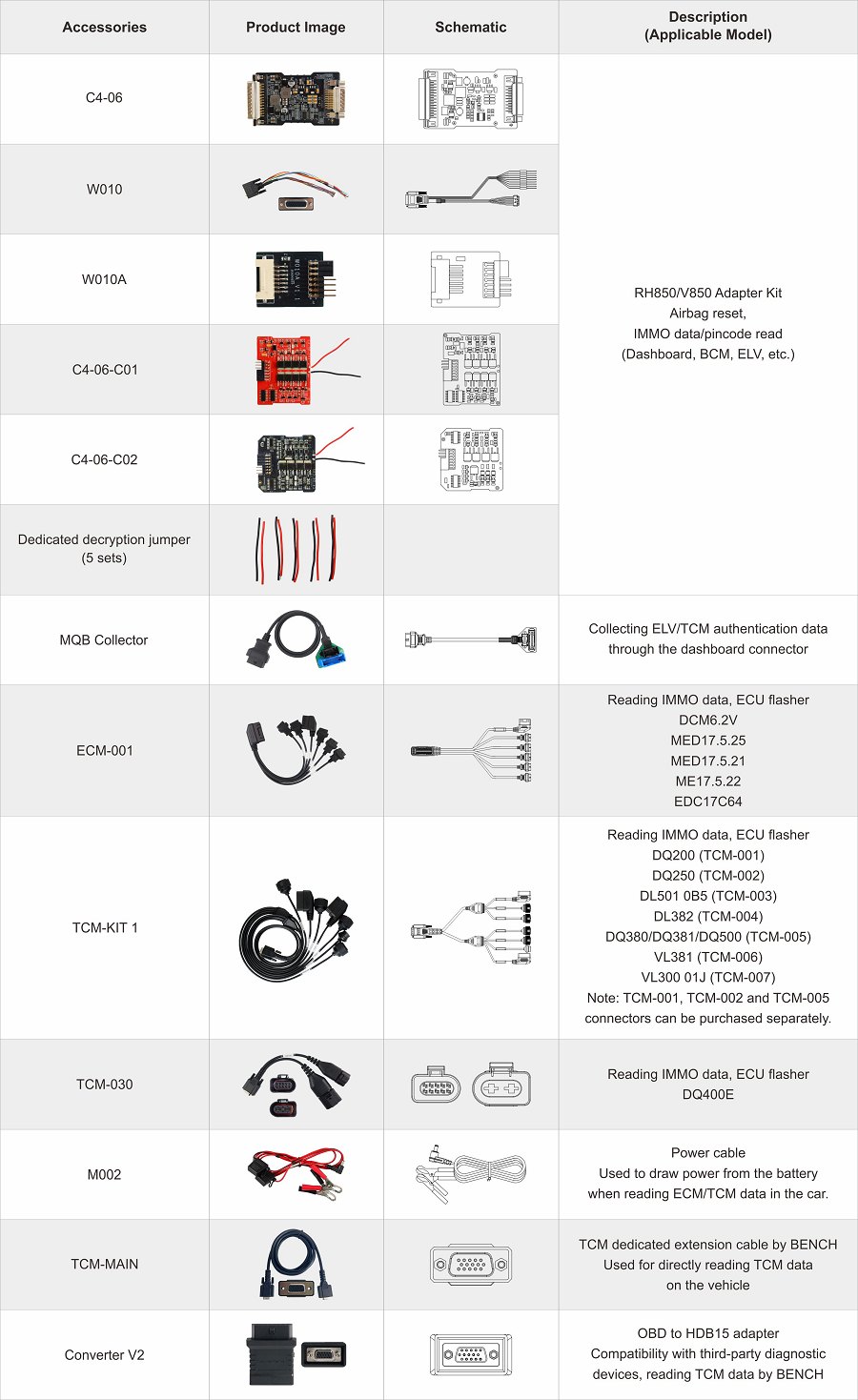

What you get

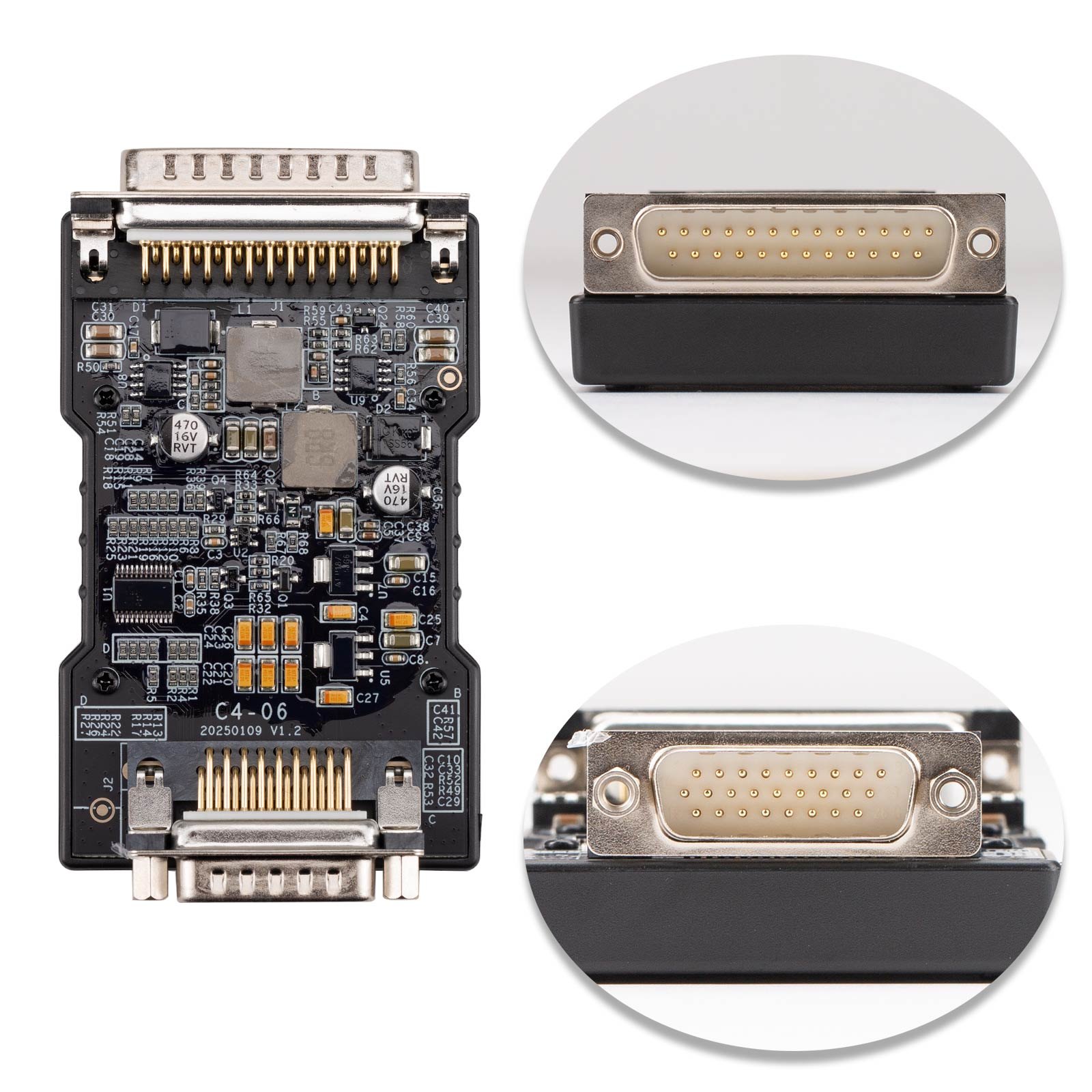

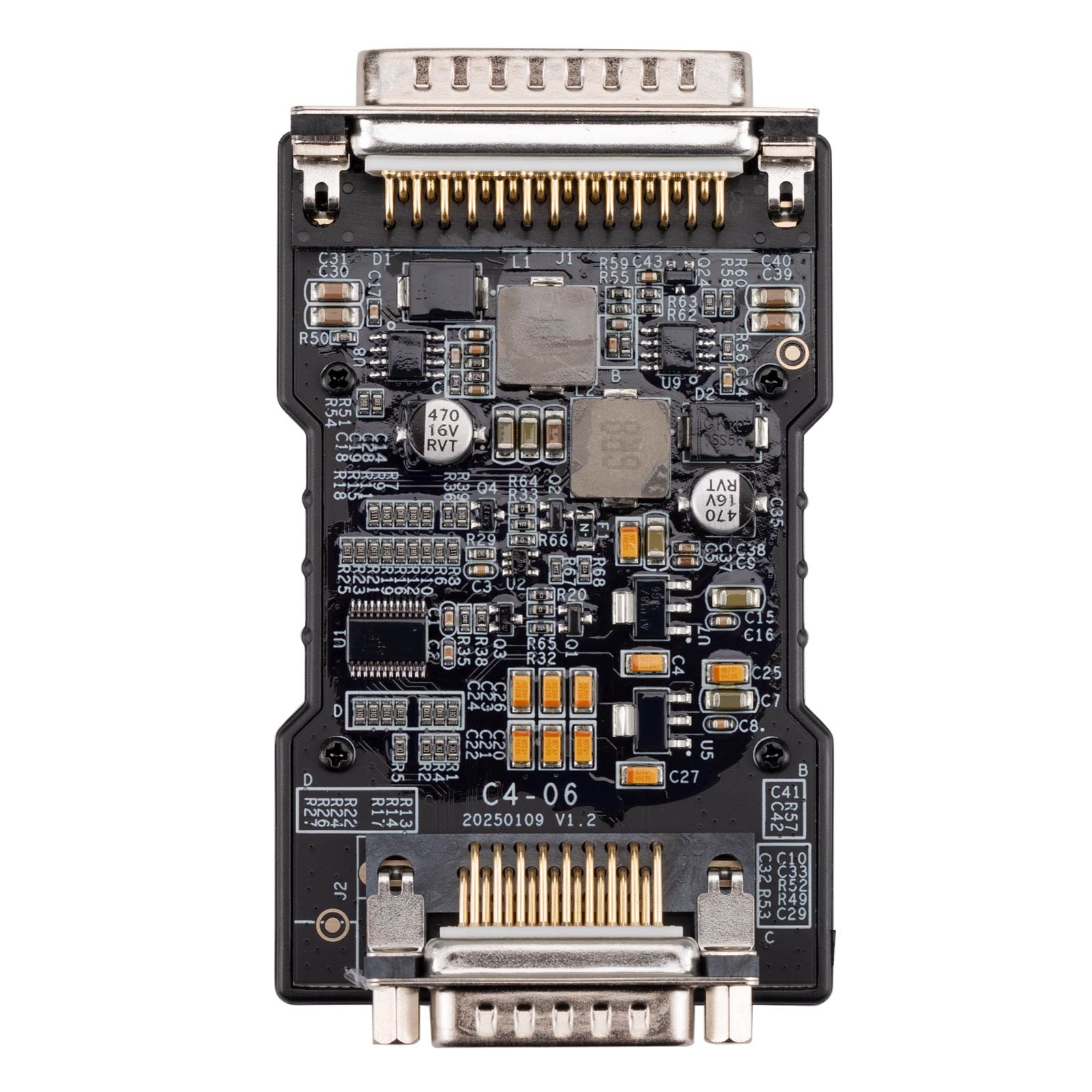

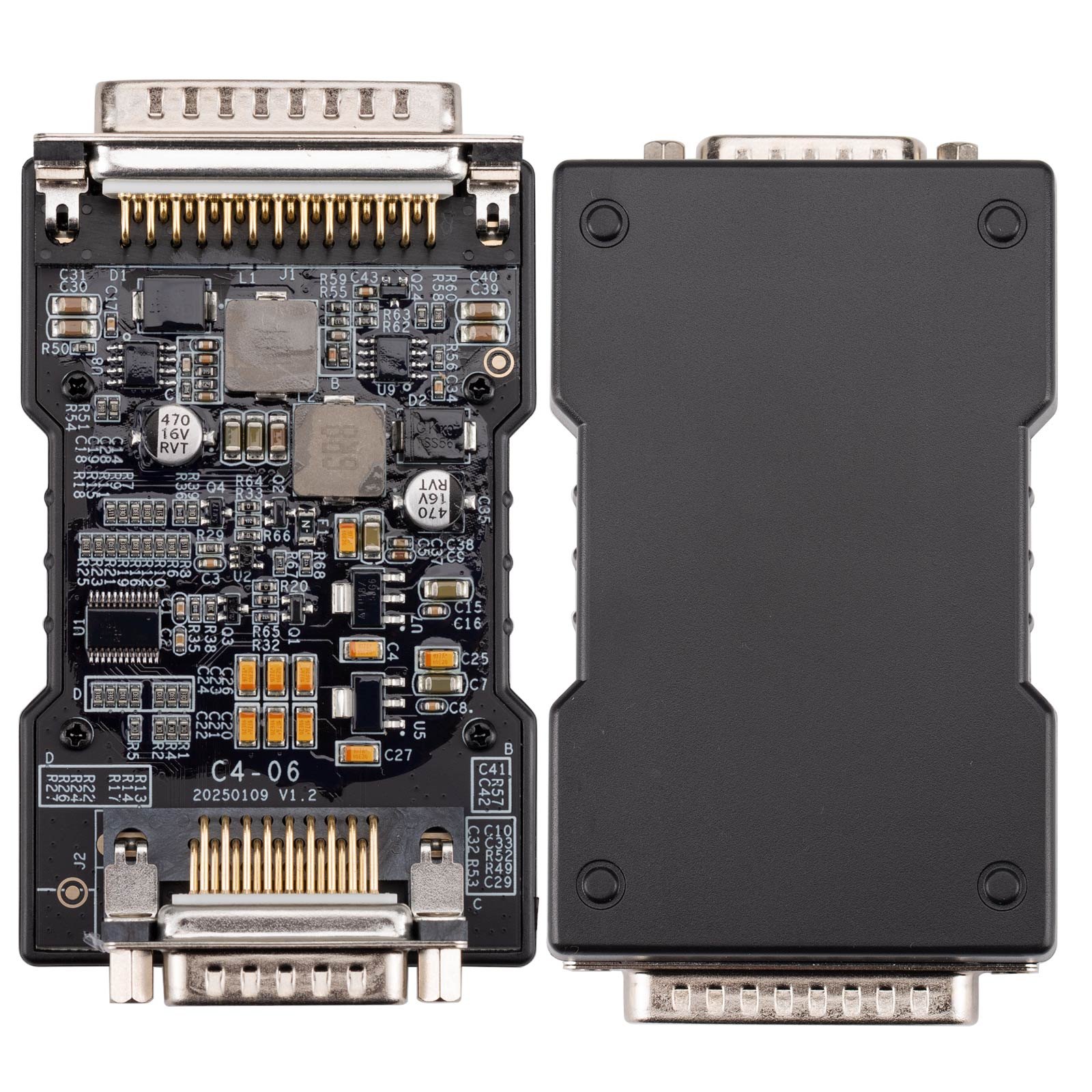

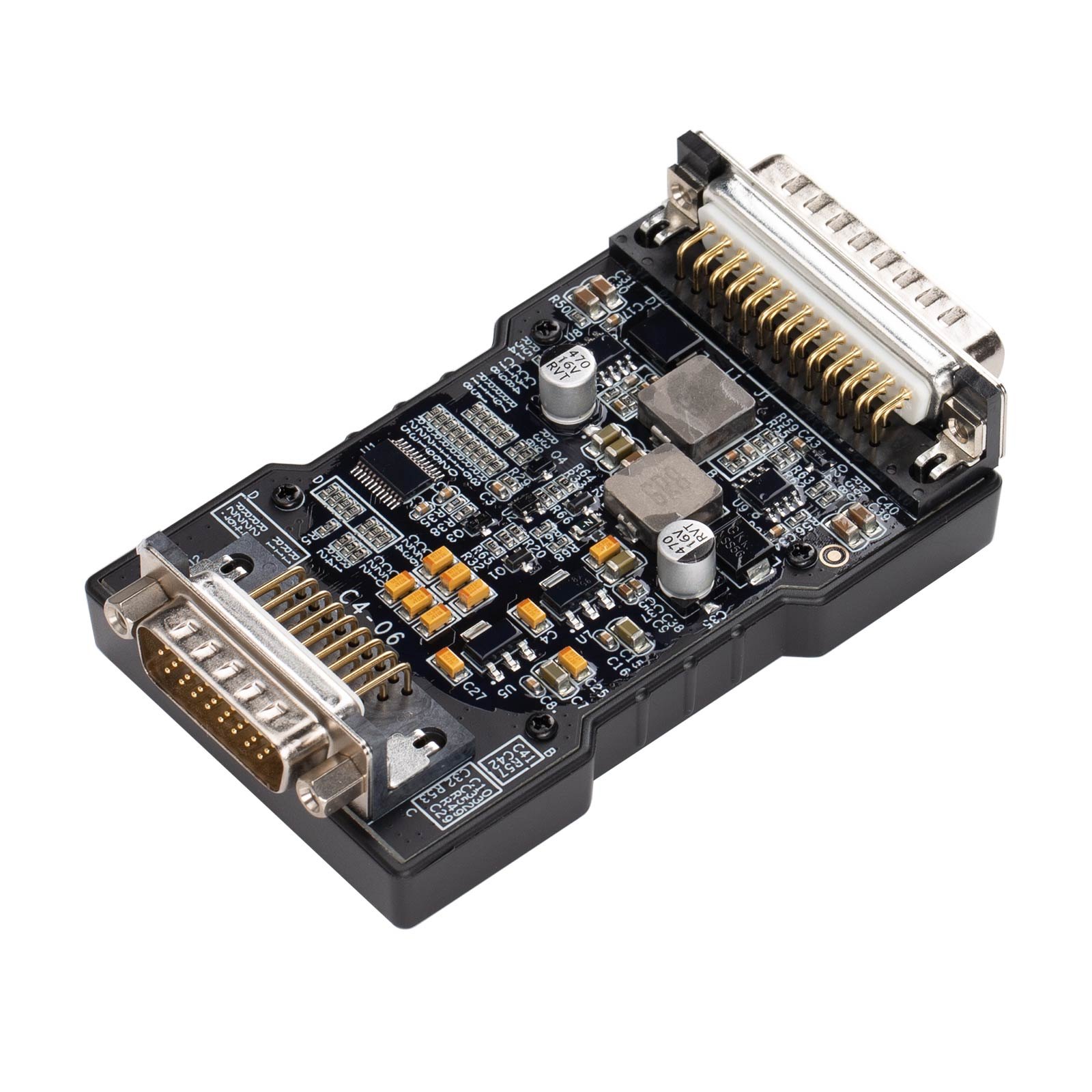

C4-06
W010
W010A
C4-06-C01
C4-06-C02
Dedicated decryption jumper (5 sets)
ECM-001 adapter
TCM-Kit 7 in 1
TCM-030 adapter for DQ400E
M002 power cable
Converter V2
OBDSTAR RH850/V850 Adapter Full Kit is for airbag reset, immo data/pincode read (Dashboard, BCM, ELV, etc.). And all data read is unencrypted, can be used on third party devices!
Support MDG1 Unlock, MQB All Keys Lost, Airbag Reset, IMMO Data/ Pincode Read
OBDSTAR RH850/V850 Adapter Full Kit
OBDSTAR RH850/V850 adapter kit is for airbag reset, immo data/pincode read (Dashboard, BCM, ELV, etc.). And all data read is unencrypted, can be used on third party devices!
OBDSTAR RH850/V850 Adapter Full Kit Features:
Supports VAG MQB 5A key programming (without removing components. With built-in MQB MQB AKL sync data on OBDSTAR's server for free. No tokens. Up to 3 calculation per day.)
Supports Ford/Lincoln 2021- BCM RH850 key programming (including all keys lost)
Supports Nissan 2021-/ Renault 2019- HFM RH850 key programming (including all keys lost)
Supports FCA key programming (coming soon)
Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor
X300 Classic G3/KEYMASTER G3 Basic IMMO version or Full version
X300 Pro4 /Key Master 5 (to use RH850 kit with X300 Pro4, you also need MP001 Multifunctional Programmer)
OBDSTAR P50 (to clear airbag crash R7F7016863/ R7F7016843/R7F7016443/R7F701330A etc. Also need MP001 Multifunctional Programmer. )
Unlock encrypted MD1 MG1 ECU (requires C4-06 adapter) [July 2026]
Read/Write & Unlock
Bosch MD1CP032 (BMW B57) TC299
Bosch MG1CS024 (BMW B48/B58) TC298
Bosch MG1CS201 (BMW B48/B58) TC298
Bosch MD1CS069 (FCA) TC299
Bosch MD1CP006 (Ford) TC298
Bosch MD1CS089 (ISUZU etc.) TC299 (Only for ECU MASTER C)
MQB48 5A Key programming function is ready (April 2025)
Add key programming function (supported AKL) for VW/AUDI/SEAT/SKODA MQB48-5A keys, which supports online synchronization code calculation.
(Need to use with RH850/V850 Adapter Kit)
Add IMMO data reading function (all keys lost) for VW/AUDI/SEAT/SKODA IMMO IV NEC24C64 and NEC24C32 dashboards by BENCH, without removing IC, soldering PCB and making server data.
(Need to use with VW4-AKL cable)

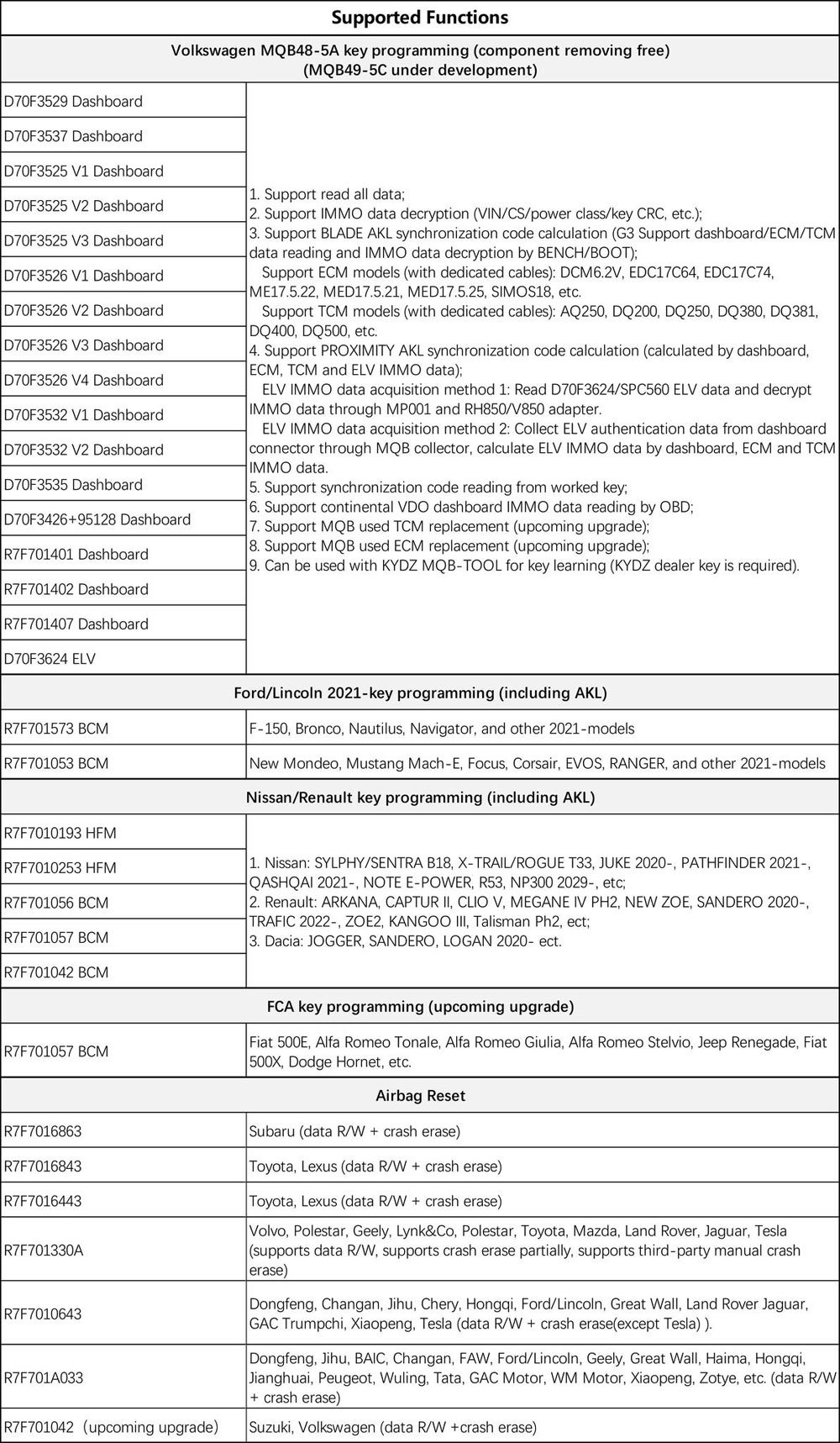

OBDSTAR RH850/V850 Adapter Full Kit Supported Functions:

OBDSTAR note all data read is unencrypted, so it can be used on third party devices as well.

Specifications

Brand	OBDSTAR
Type	Original OBDSTAR Tool
Part number	HKSK446-FULL
Condition	New
Version	MQB Collector, RH850/V850 Adapter, ECM-001 Cable, OBDSTAR C4-09 MB91F526, C4-07 VGS4 Adapter Full Kit, Full Kit
Price range	$63.99 to $830.99
