OBDSTAR P50 Airbag Reset Tool with OBDSTAR MP001 Programmer Set Support Airbag Reset / Battery Reset/ SAS Reset

An OBDSTAR P50 airbag reset tool supplied with the OBDSTAR MP001 programmer set, covering airbag reset, battery reset and SAS reset. The P50 arrives with the P004 adapter for ECU programming and reading, and the MCU list runs H8SX, RH850, SPC, XC2XXX, TC2XXX and TMS570.

Specifications

• P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.
• Language: English Only.
• MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

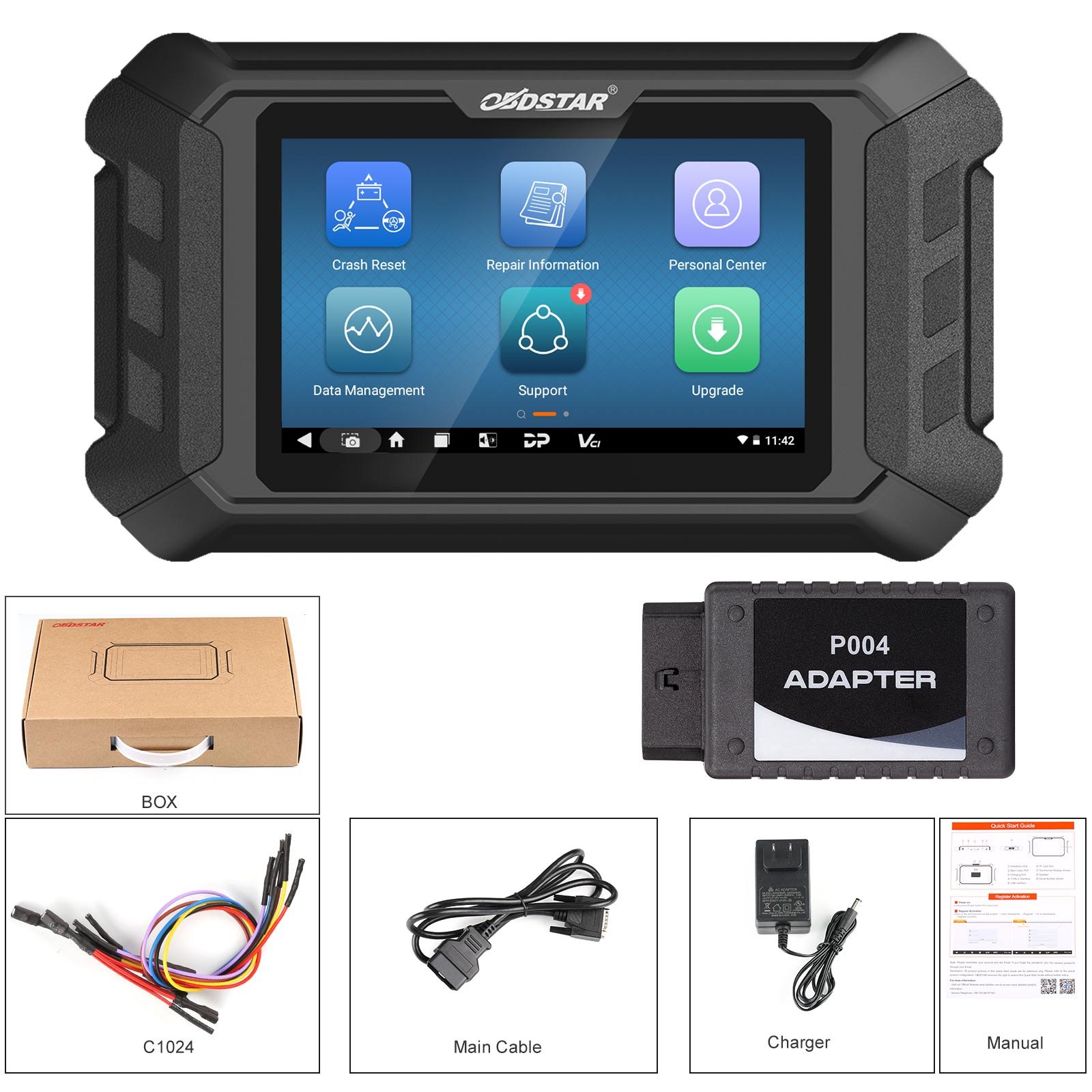

What you get

• 1pc x P50 main unit
• 1pc x main cable
• 1pc x P004 adapter
• 1pc x C1024 jumper
• 1pc x 12V2A charger
• 1pc x OBDSTAR MP001 Programmer
• 1pc x OBDSTAR C4-01 Host
• 1pc x OBDSTAR C4-02 Host
• 1pc x W004 Read/Write soldering wire
• 1pc x W005 Read/Write soldering wire
• 1pc x OBDSTAR ECU Bench Jumper
• 6pcs x Jumper Wires(including 6 specifications)
• OBDSTAR P50 Airbag Reset Tool with OBDSTAR MP001 Programmer Set Support Airbag Reset / Battery Reset/ SAS Reset.
• OBDSTAR P50 Airbag Reset Tool with OBDSTAR MP001 Programmer Set

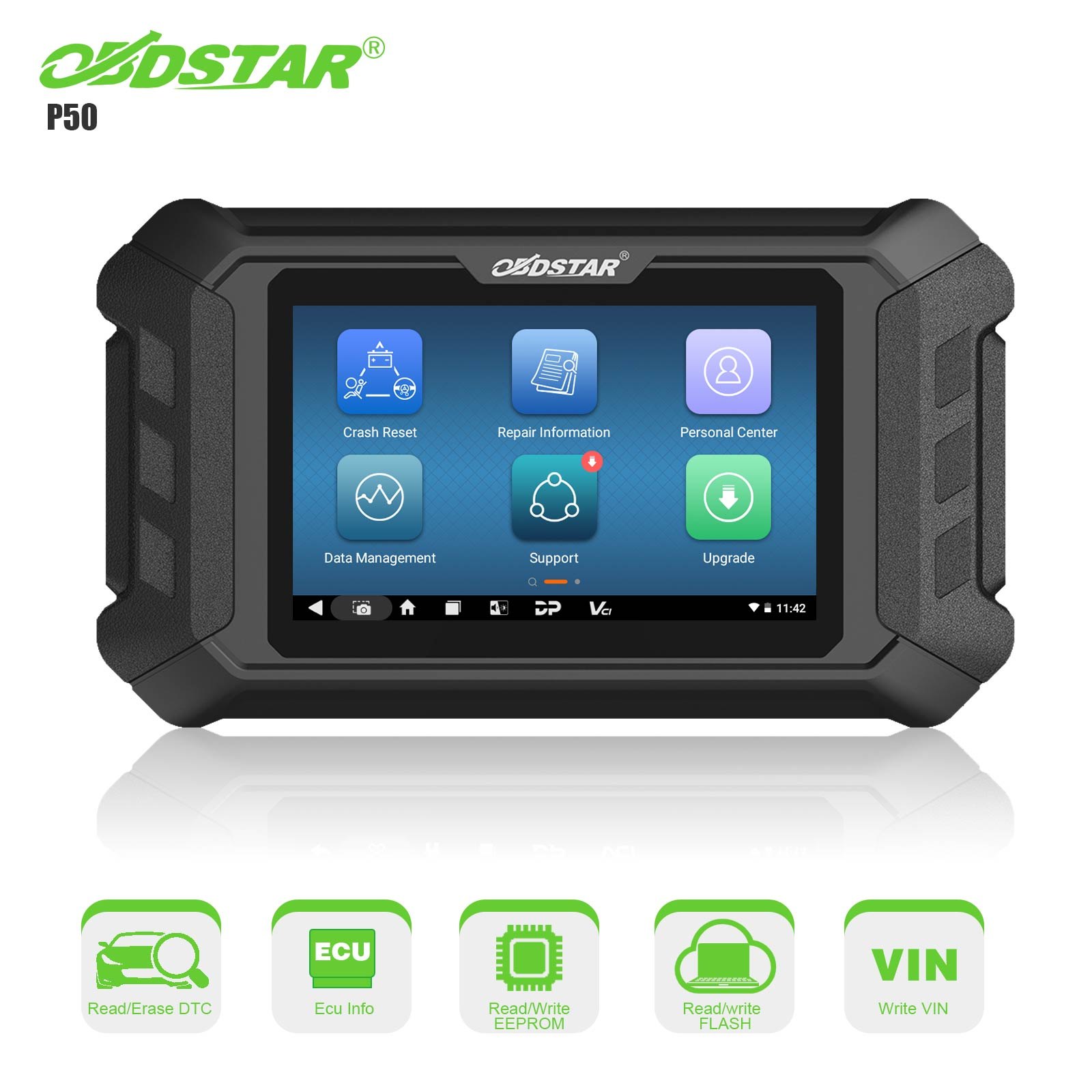

• P50 is the new generation of intelligent airbag reset equipment. It's with powerful function and wide coverage, covering 86 brands and 11600+ ECU part No., some MCU.

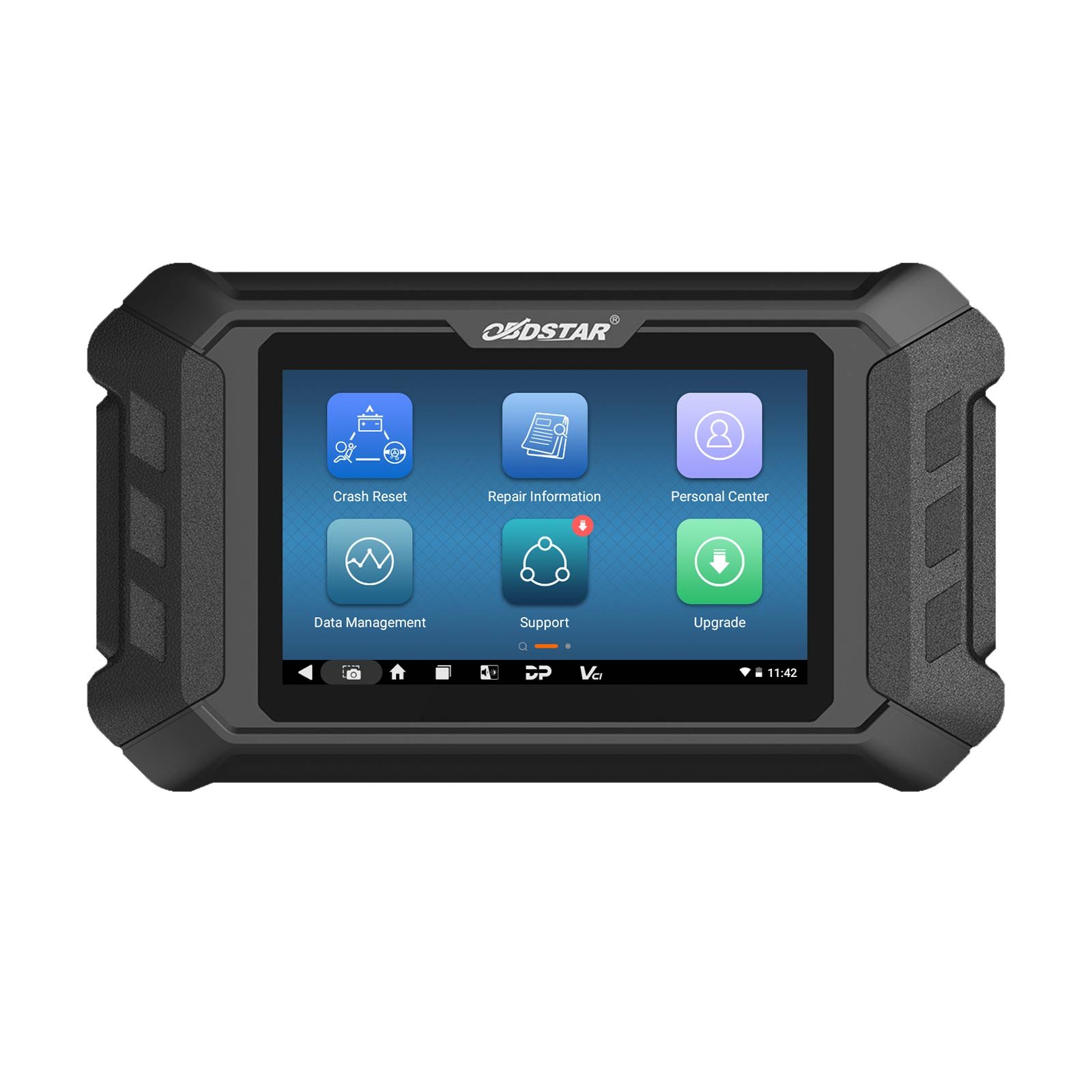

• P50 is based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 5-inch capacitive touch screen, touch sensitive.

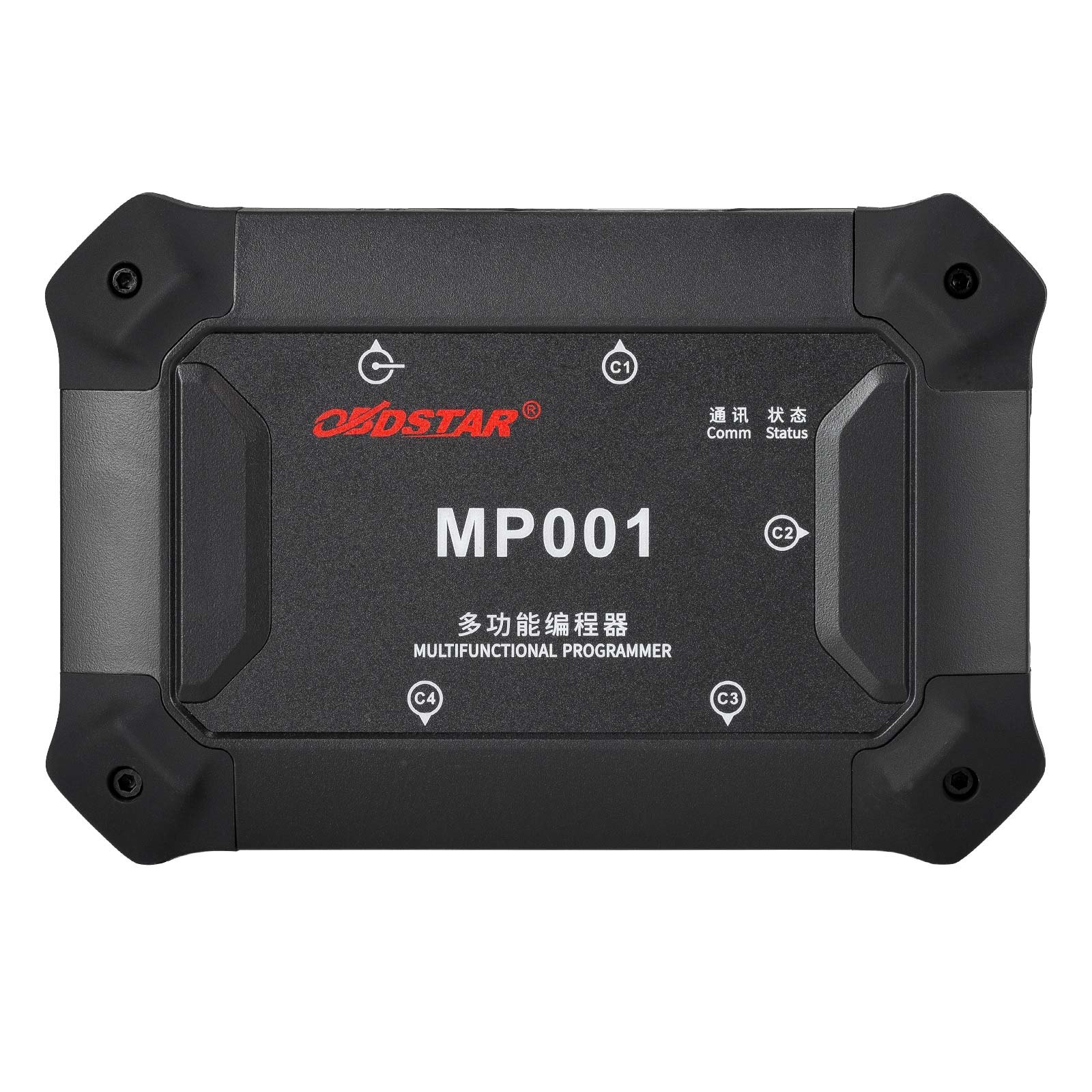

• MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports data read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).
• Support one-click airbag reset for 86 brands and over 11600+ ECU part No.
• Support fuzzy search for ECU part No.
• Contain clear BENCH mode wiring diagram
• Contain powerful and complete description files for fault code
• Supports battery reset(MVBM) function
• P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
• Programming devices keep in normal communication no matter turn on or off 12V power button;
• Turn on or off 120Ω resistance at any time for CANBUS ECU;
• Support 6&14 and 3&11 CANBUS Protocol at the same time;
• Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
• P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
• DB15 connector can communicate with any OBDII-16 I/O interface.
• OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service
• Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor(need buy RH850/V850 Adapter Kit)
• Supported Brands(86 Brands)
• Over 11600+ ECU part No.(supporting fuzzy search)

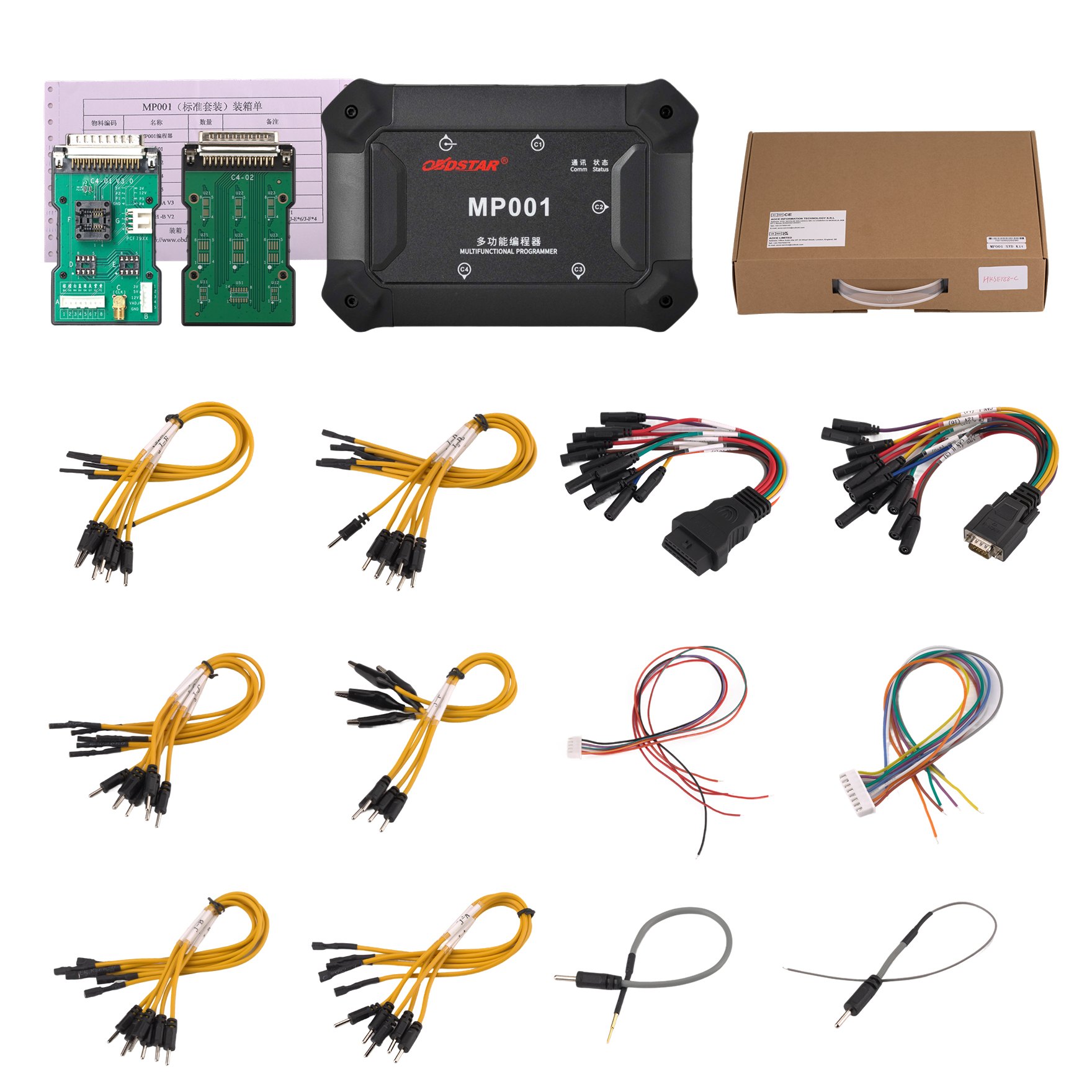

• OBDSTAR MP001 Set (MP001 Programmer+C4-01 Host + C4-02 Host + Jumper Wires + W004/W005/ECU Bench Jumper)
• MP001 is compatible with P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
• Support P002 functions.

OBDSTAR note the P50 runs in English only, with no other language selectable on the tool.
