OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter Support GM/ Hyundai/ Kia/ Toyota Bench Airbag Reset & SAS Reset Function

This is the P50 sold with the CAN FD adapter fitted into the deal, which is what brings newer GM, Hyundai, Kia and Toyota cars into range for bench airbag reset. SAS reset is included.

Specifications

• Language: English Only.
• R7F7016863: Subaru (data R/W + crash erase)
• R7F7016843: Toyota/Lexus (data R/W + crash erase)
• R7F7016443: Toyota/Lexus (data R/W + crash erase)
• R7F701330A: Volvo, Polestar, Geely, Lynk&Co, Zeekr, Toyota, Mazda, Land Rover/Jaguar, Tesla (supports data R/W, supports crash erase partially, supports third-party manual crash erase)
• R7F7010643: Dongfeng, Changan, Arcfox, Chery, Hongqi, Ford/Lincoln, Great Wall, Land Rover/Jaguar, GAC, XPeng, Tesla (data R/W + crash erase(except Tesla) ).
• R7F701A033: Dongfeng, Arcfox, BAIC, Changan, FAW, Ford/Lincoln, Geely, Great Wall, Haima, Hongqi, JAC, Peugeot, Wuling, Tata, GAC, WM, XPeng, Zotye, etc. (data R/W + crash erase)
• R7F701042(upcoming upgrade): Suzuki, Volkswagen (data R/W +crash erase)
• MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

What you get

• OBDSTAR P50 Airbag Reset Tool + OBDSTAR CAN FD Adapter
• Supports one-click airbag reset for 86 brands and over 11600 ECU part No.
• Supports fuzzy search for ECU part No.
• Contains clear BENCH mode wiring diagram
• Contains powerful and complete description files for fault code
• OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service
• Newly add Battery Reset for Audi/Volvo by BENCH
• Supports Hyundai/Kia TC2xxx types bench airbag reset with CANFD adaptor

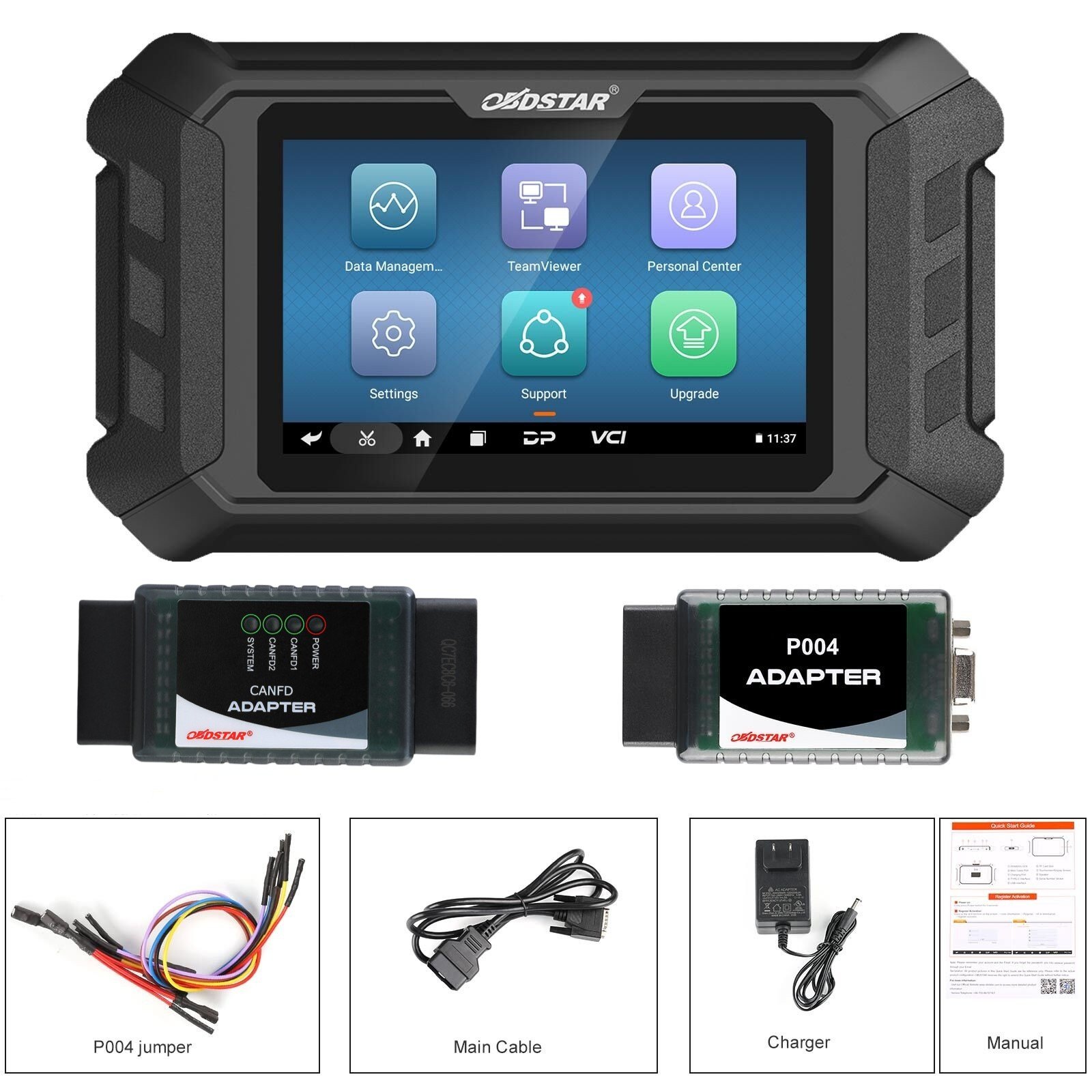

• 1pc x P50 Main Unit
• 1pc x Main Cable
• 1pc x P004 Adapter
• 1pc x P004 Jumper
• 1pc x 12V2A Charger
• 1pc x OBDSTAR CAN FD Adapter
• OBDSTAR P50 Airbag Reset Tool SRS Reset Equipment with CAN FD Adapter
• Supports Hyundai/Kia TC2xxx types, Toyota R7F7016443, R7F7016843 bench airbag reset
• Supports one-click airbag reset for 86 brands and over 11600+ ECU part No.
• OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter

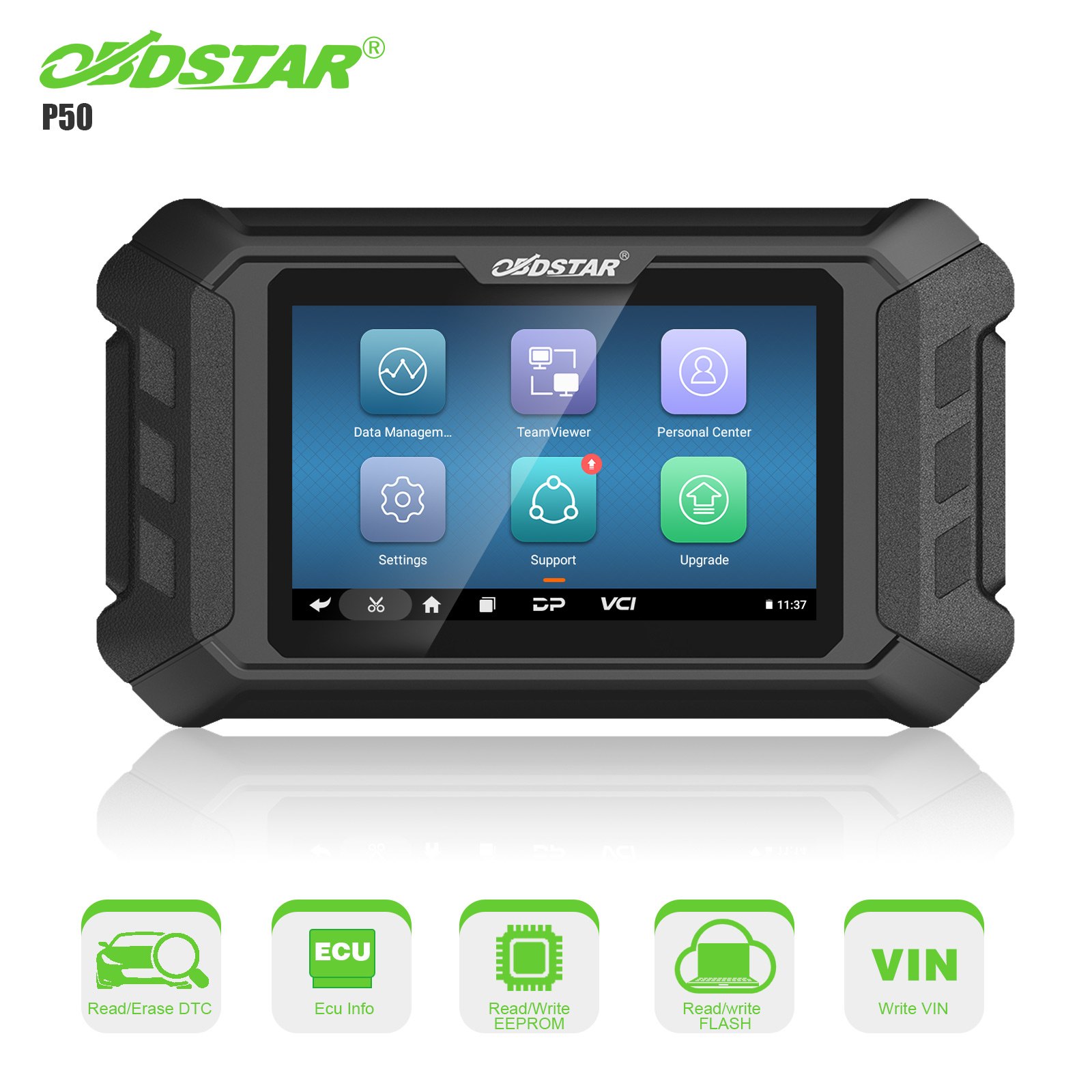

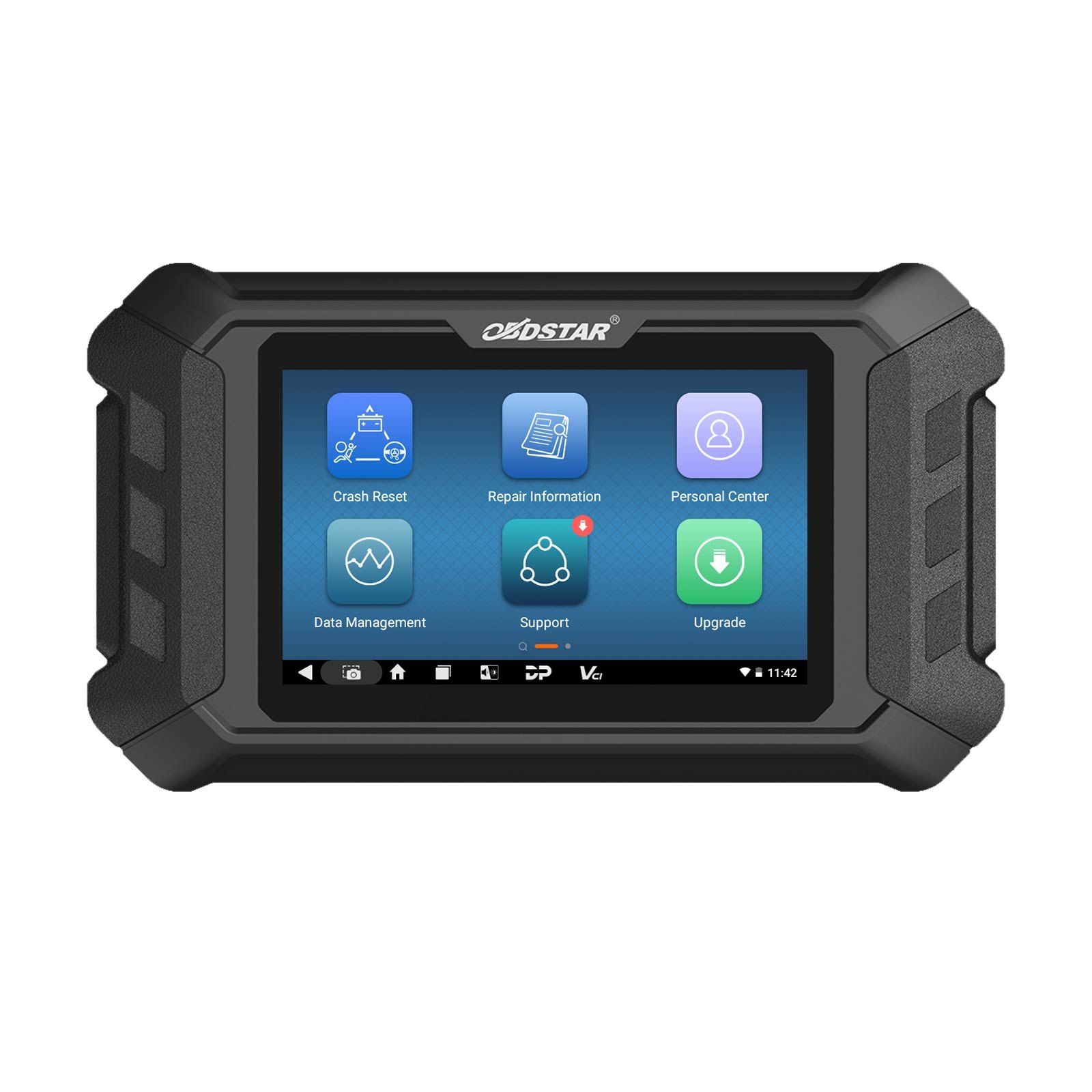

• OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 86 brands and 11600+ ECU part No., some MCU.

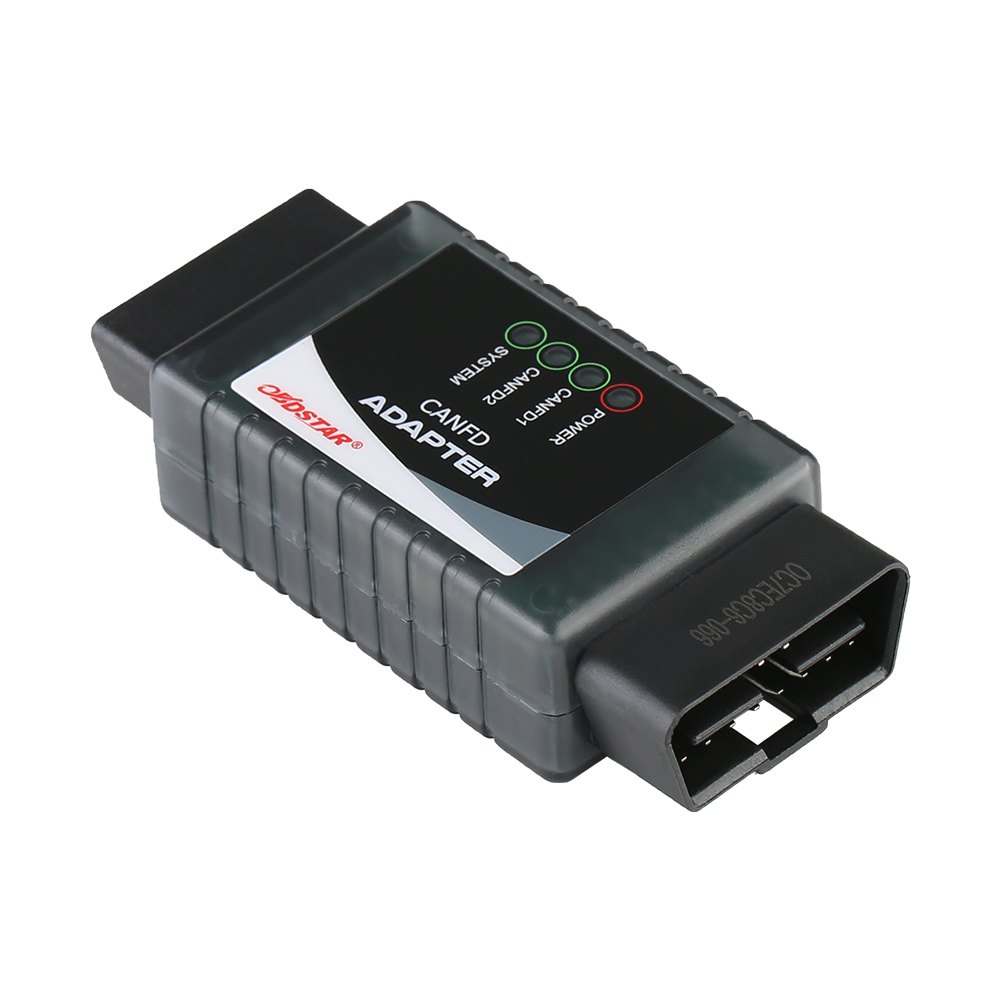

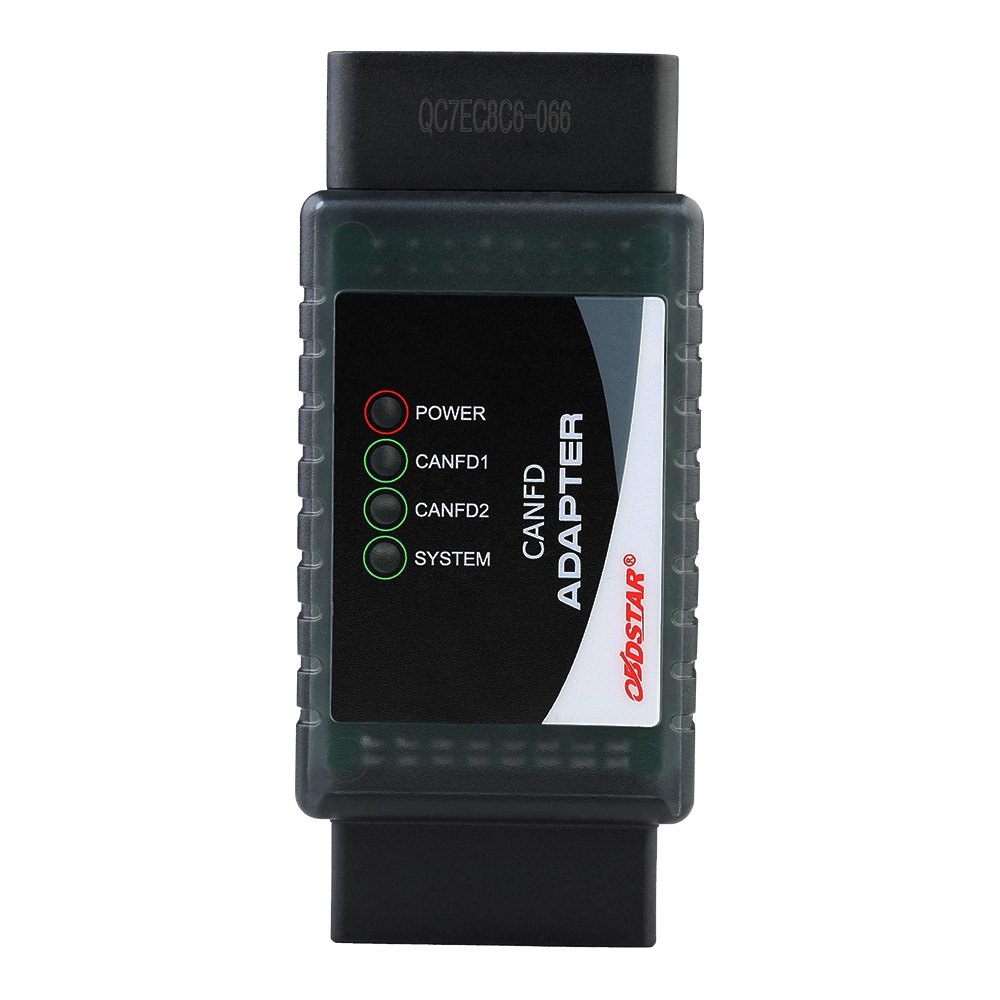

• CANFD Adapter is designed for diagnosing ECU systems of cars complying with CANFD protocols. It's used with our company's tablets series products such as Key Master DP Plus. It's high performance and easy operation.
• Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor(need buy MP001 Programmer and RH850/V850 Adapter Kit)
• P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
• Programming devices keep in normal communication no matter turn on or off 12V power button;
• Turn on or off 120Ω resistance at any time for CANBUS ECU;
• Support 6&14 and 3&11 CANBUS Protocol at the same time;
• Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
• P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
• DB15 connector can communicate with any OBDII-16 I/O interface.
• Advanced Functions with Optional MP001 Programmer and RH850/V850 Adapter Kit:
• Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor. The repair and diagnosis of the encrypted SRS ECU are completed through the MP001 programmer, avoiding the switching back and forth between the MP001 programmer and the P004 adapter. The power supply is automatically controlled, which making the repair safer and more convenient and avoiding internal faults caused by insufficient power off time.
• Support models
• The following are the vehicle brands and MCU models of SRS ECU that come with the encrypted RH850 processor
• Optional MP001 Programmer and RH850/V850 Adapter Kit vs P004 Adapter:
• This kit uses the MP001 programmer with the C4-06 adapter soldering wire to decrypt the new SRS ECU with the encrypted RH850 processor for data reading, writing and repair, and uses the MP001 programmer with the BENCH-A-V3 jumper to perform a separate diagnosis of the SRS ECU (read fault codes/erase fault codes), which can avoid switching between the MP001 programmer and the P004 adapter.
• Compared with the P004 adapter, the power on/off of the SRS ECU is automatically controlled by the MP001 programmer, without the need for manual control of power on/off. The operation experience is safer and more convenient, avoiding internal faults caused by incomplete sleep of the ECU due to insufficient power outage time.

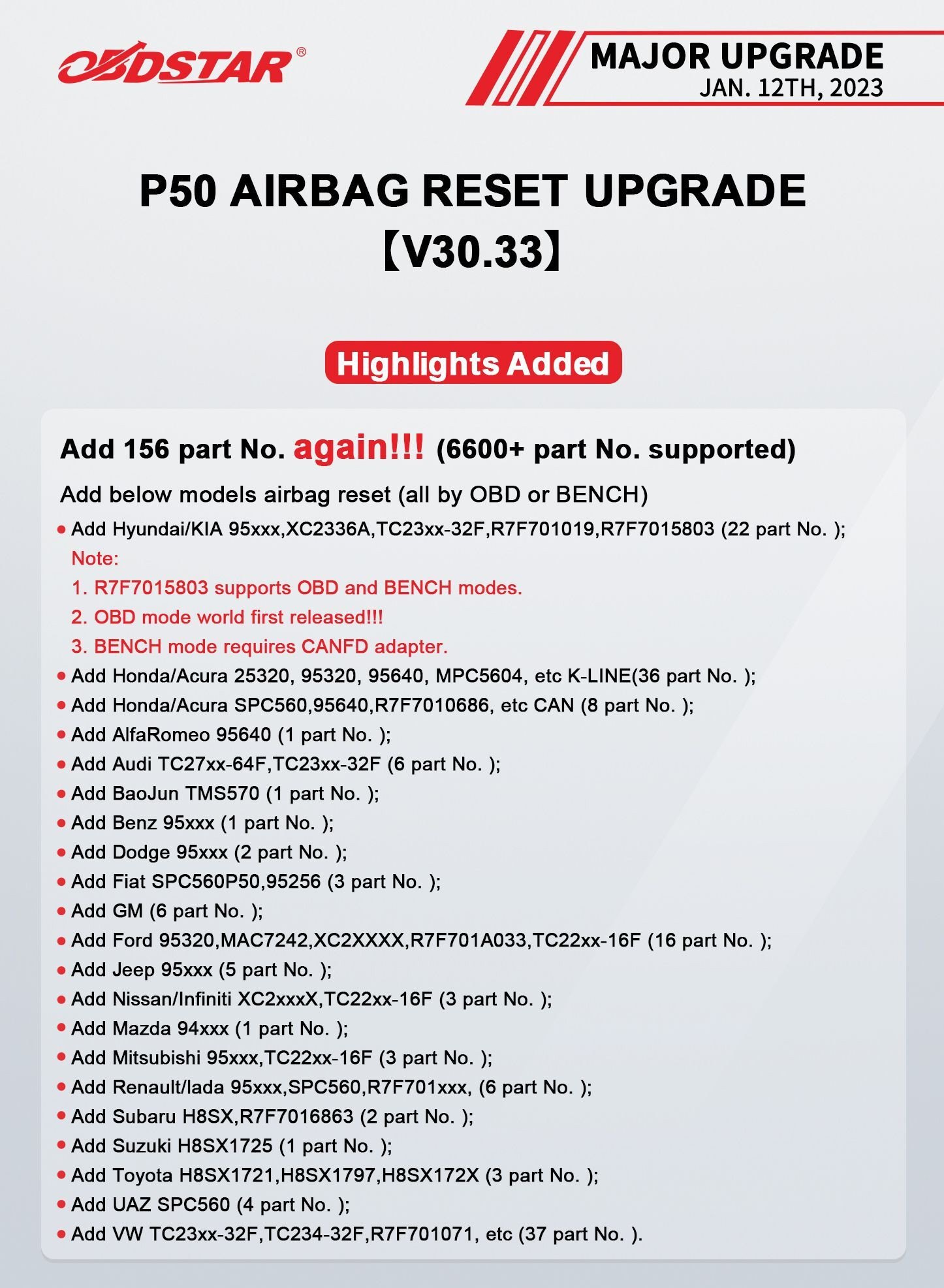

• P50 Airbag Reset Latest Update Information:

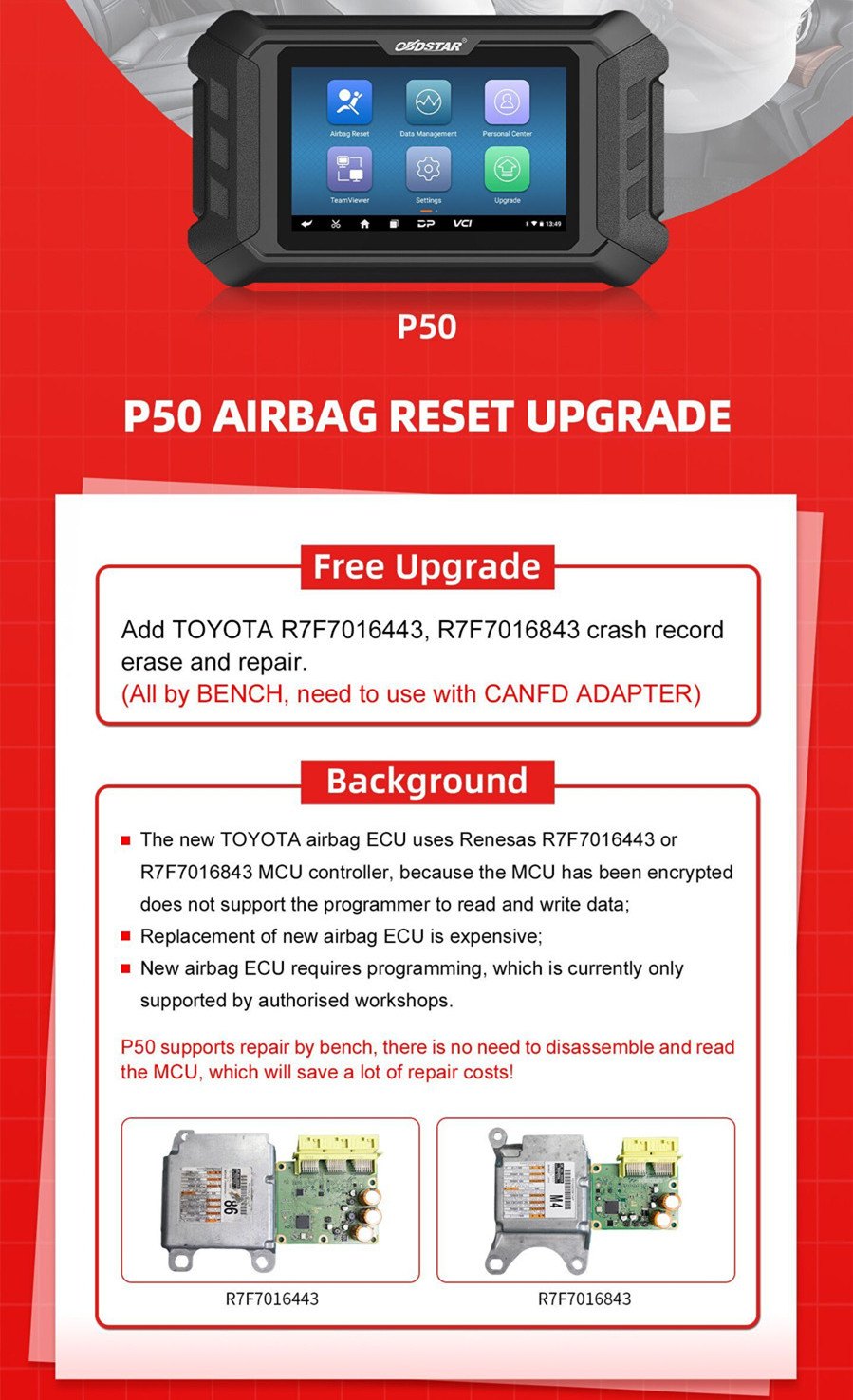

• P50 Airbag Reset Upgrade
• Add TOYOTA R7F7016443, R7F7016843 crash record erase and repair

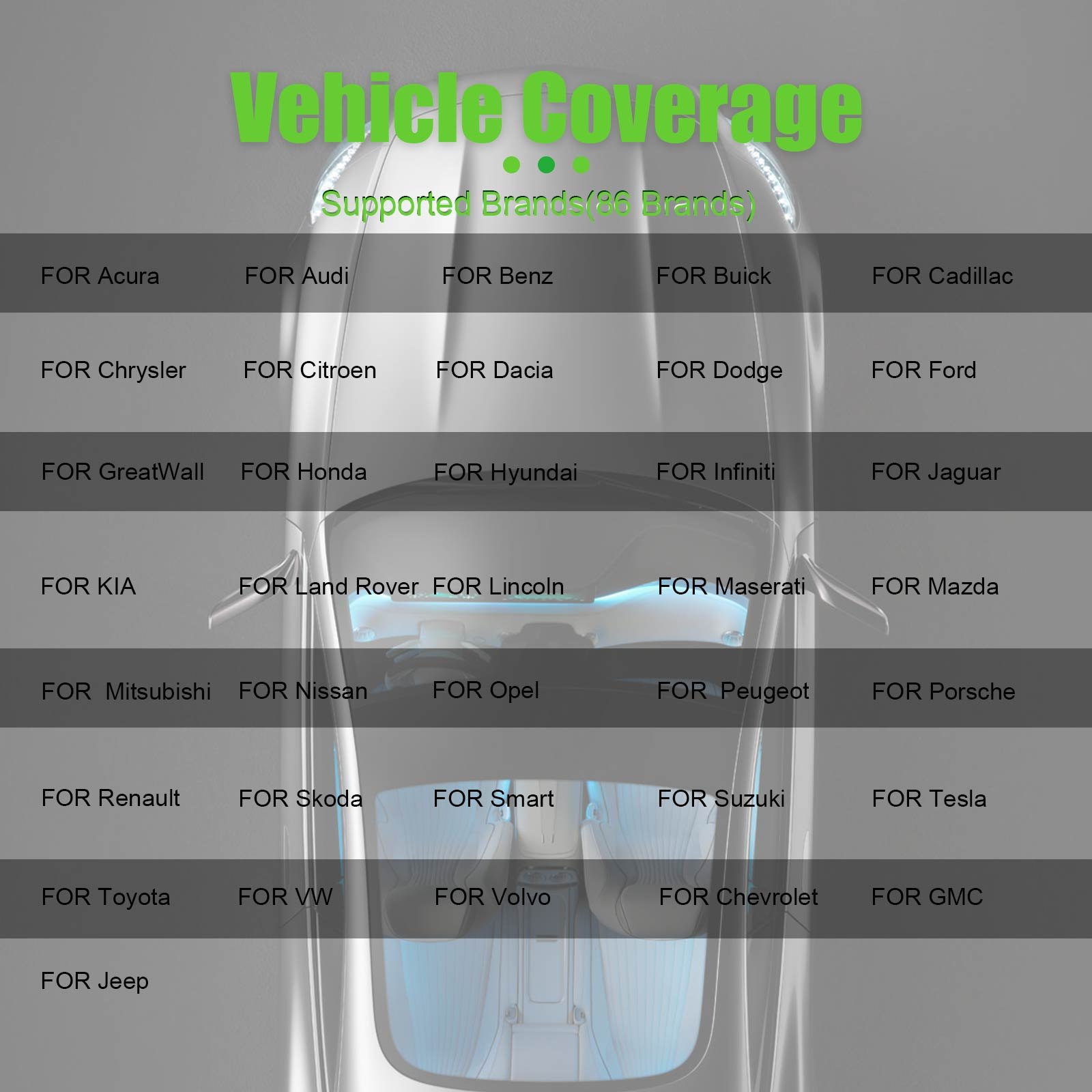

• Supported Brands(86 Brands)
• Over 11600+ ECU part No.(supporting fuzzy search)

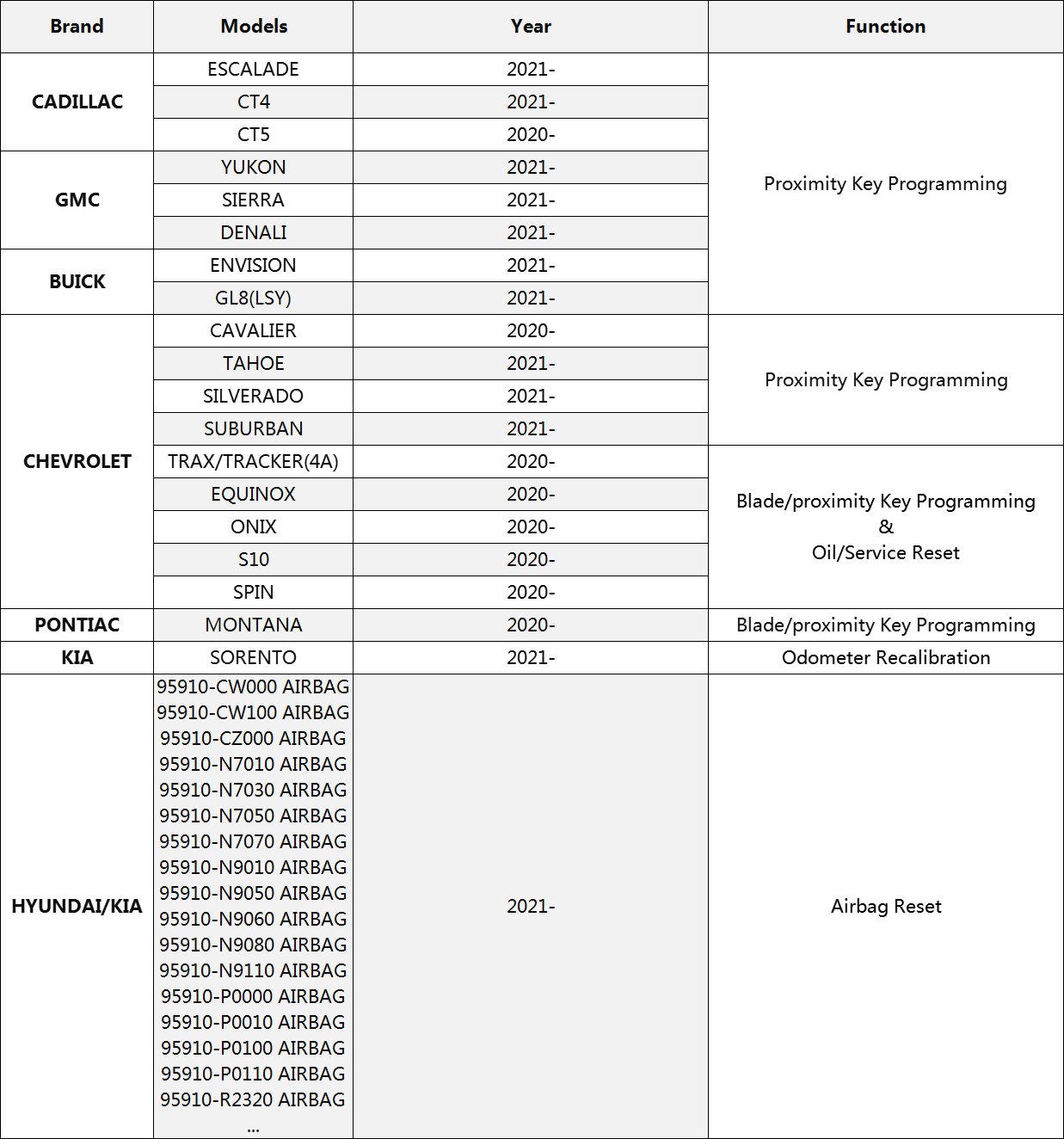

• Supporting GM, HYUNDAI/KIA vehicle models as below
• Use female connector connecting with OBDII-16 and male connector connecting with DLC diag socket.

Named chip coverage includes R7F7016863 for Subaru, R7F7016843 and R7F7016443 for Toyota and Lexus, R7F701330A for Volvo, Polestar, Geely, Lynk and Co, Zeekr, Toyota, Mazda and Land Rover, R7F7010643 and R7F701A033 for a long Chinese and Ford list, with R7F701042 for Suzuki and Volkswagen listed as an upcoming upgrade. MCU families are H8SX, RH850, SPC, XC2XXX, TC2XXX and TMS570. The interface is English only.
