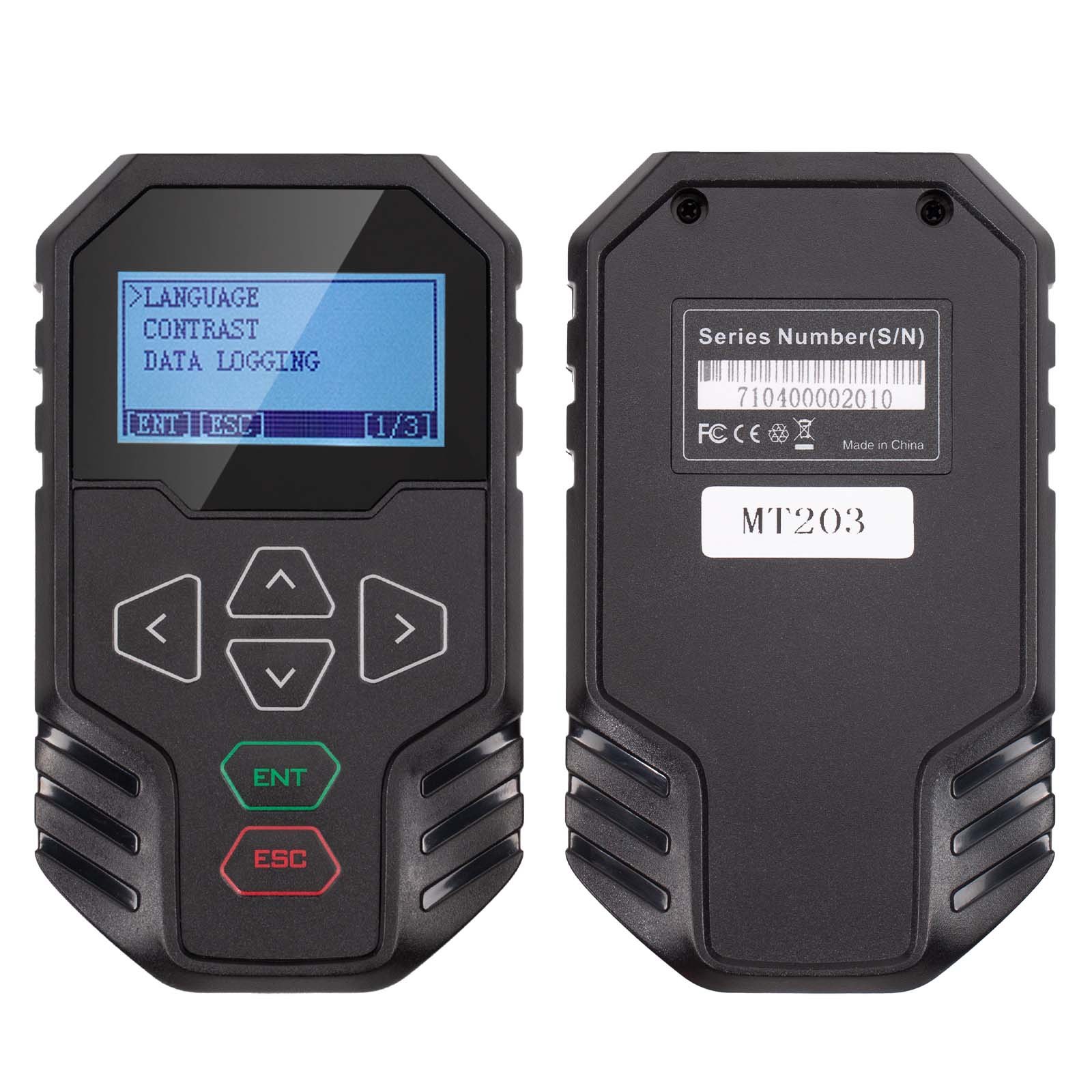

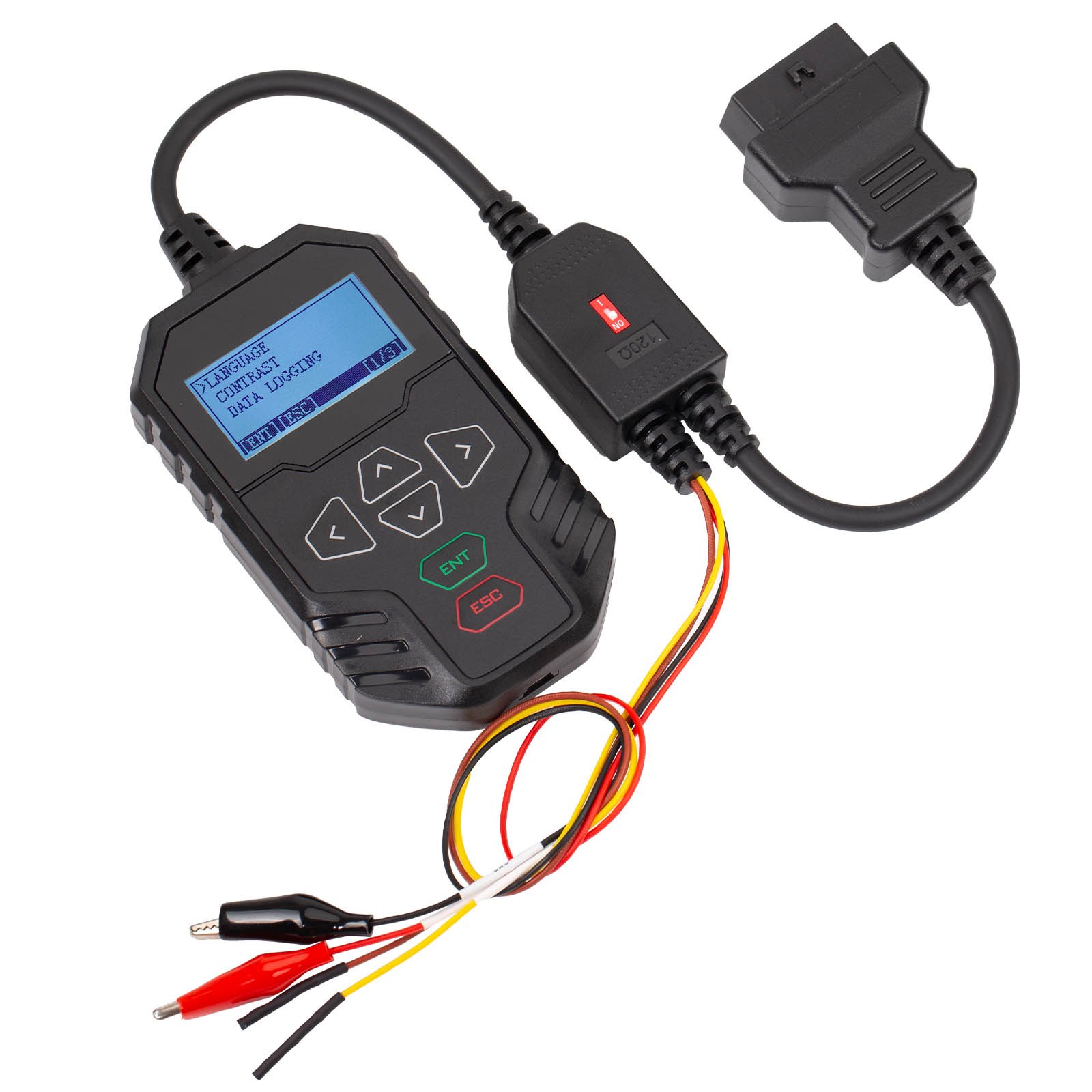

OBDSTAR MT203 CAN Driver/Gateway Simulator Support Dash, Audio, Gear Lever, AC Panel and Other Test Functions

The OBDSTAR MT203 CAN driver and gateway simulator, supporting dash, audio, gear lever, AC panel and other test functions. Wiring diagrams and the function display come through the OBDSTAR app, the software updates from the official site, and the distributor code is 0086A002.

Specifications

• Distributor Code: 0086A002

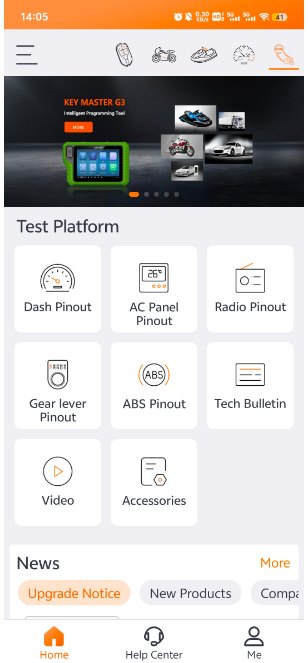

• Function Display: (From OBDSTAR APP)
• Q: Can the device be upgraded?
• A: Yes, you can download the software from the official website "Service-Download-One Click Upgrade Tool", and then connect the device to the computer with USB to upgrade it.
• Q: Why does the automatic scanning fail?
• A: The success of the automatic scanning depends on a number of factors:

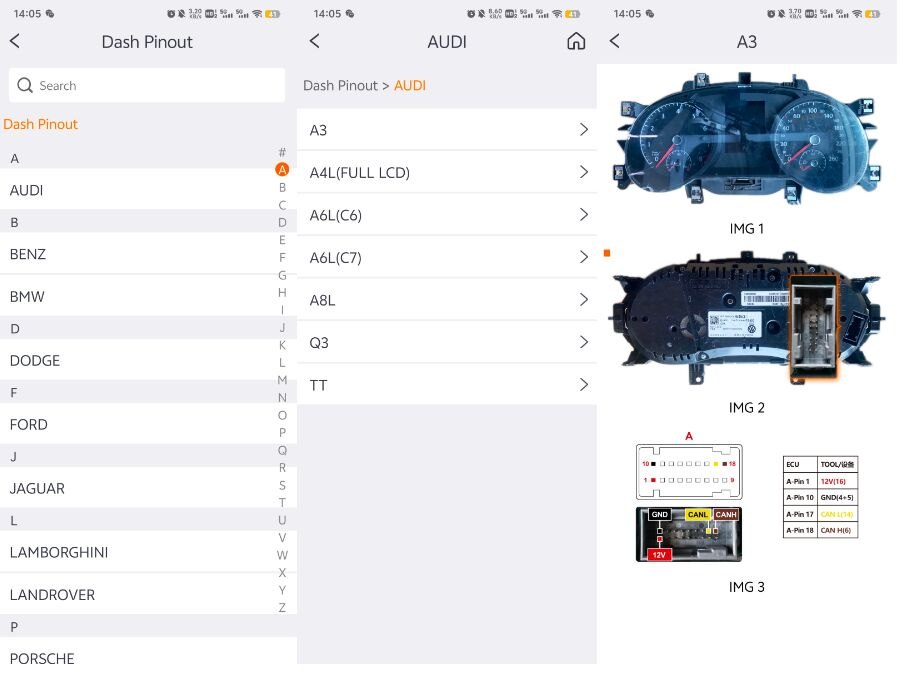

• Q: Where to check the wiring diagram of CAN driver?

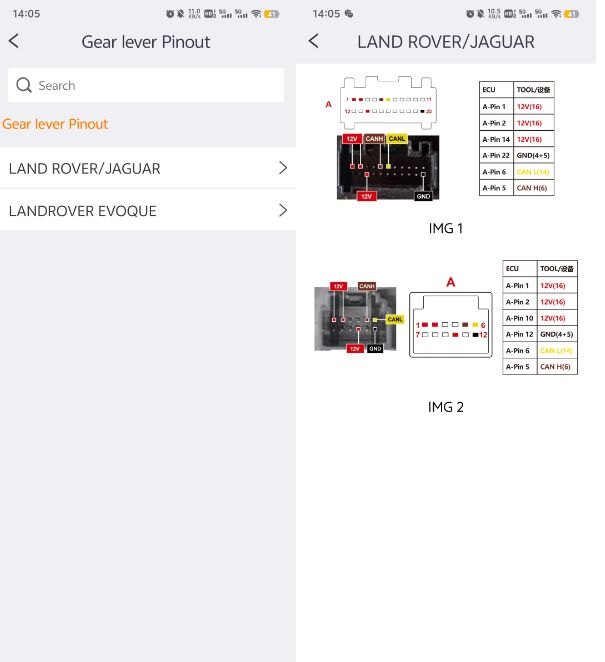

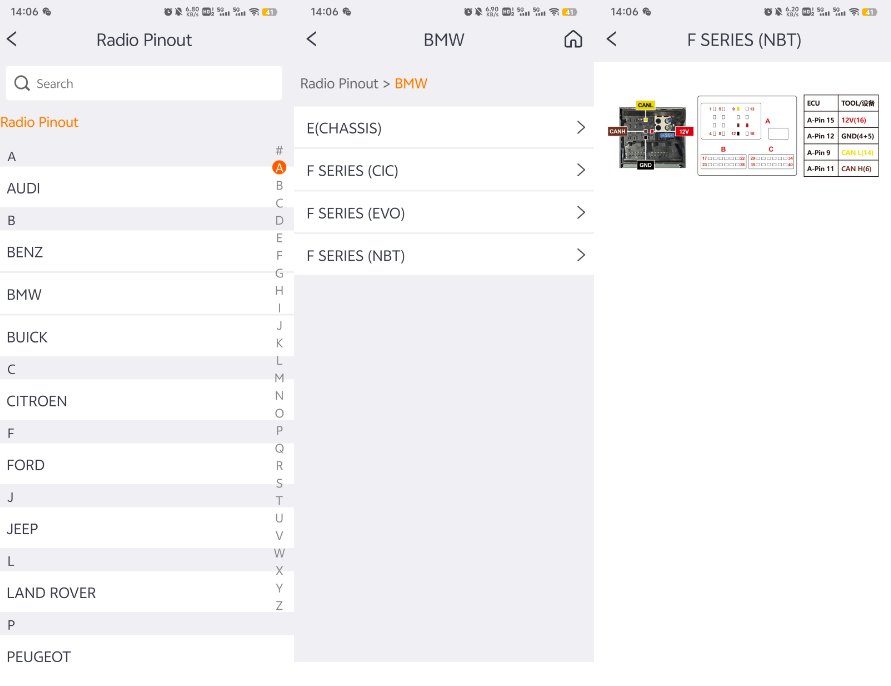

• A: You can download the OBDSTAR APP from the Apple Store and Google Play Store. There are wiring diagrams for Dash, Audio, Gear Lever, etc. in the APP.
• Q: What does the 120Ω resistor do?
• A: If the ECU itself does not come with a 120Ω resistor, you need to switch the unit's resistor switch to ON for the CAN line to communicate properly.
• Q: Is the Flexray protocol supported?
• A: It is not supported.

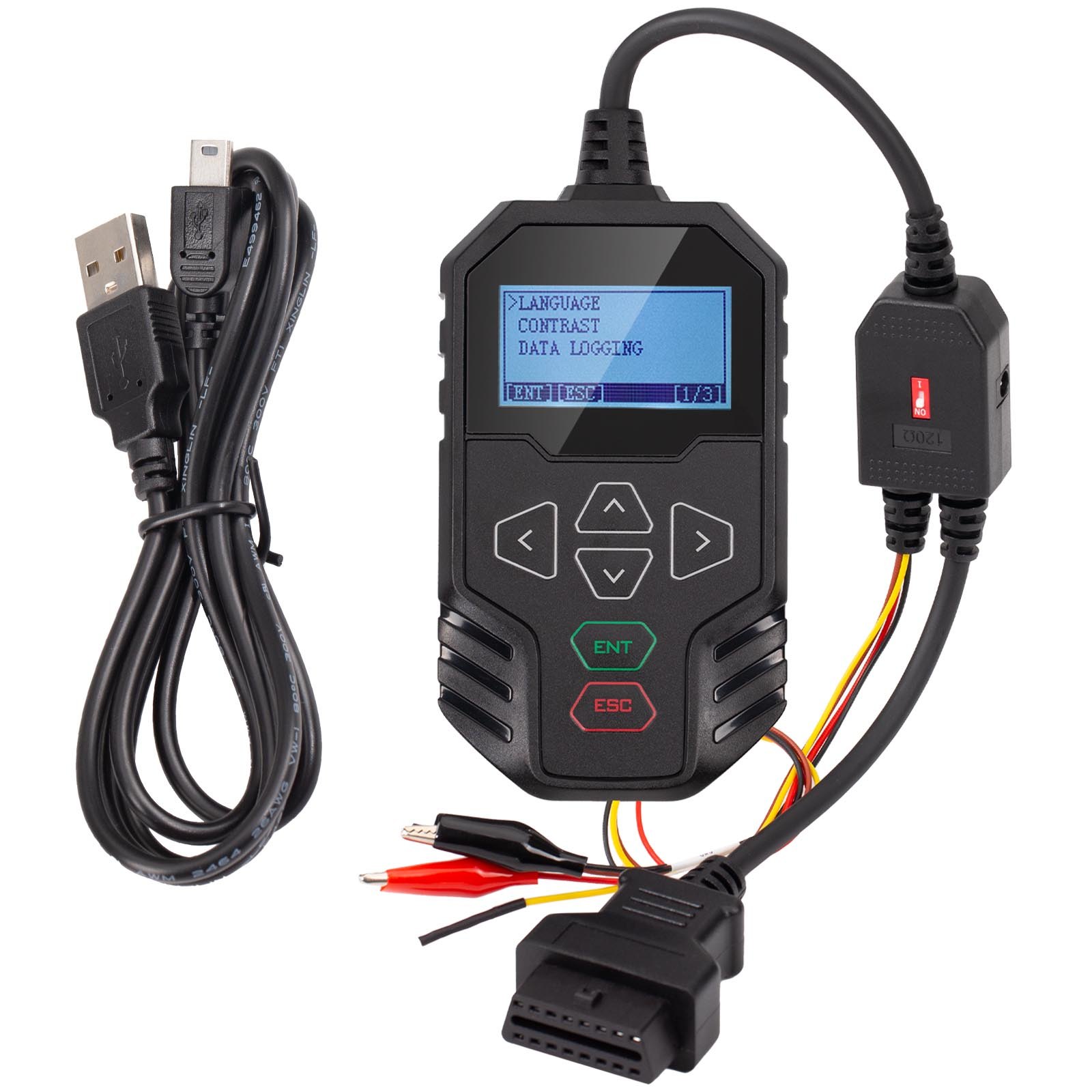

What you get

• 1pc x OBDSTAR MT203 main unit
• 1pc x Mini USB upgrade cable
• OBDSTAR MT203 CAN Driver Gateway Simulator Function Overview
• OBDSTAR MT203 CAN driver/Gateway simulator is a tool designed for automotive electronics maintenance and repair with 2-year free update. It provides CAN driver and gateway simulation function, supports multiple vehicles, and is a compact device, which is a good helper for automotive electronics maintenance engineers.
• OBDSTAR MT203 CAN Driver/Gateway Simulator Support CAN Driver & Gateway Simulation
• Using STM32H723 high-performance MCU, fast running speed;
• Automatic scanning, manual baud rate selection, custom input baud operation;rate and other modes to simulate different types of gateways;

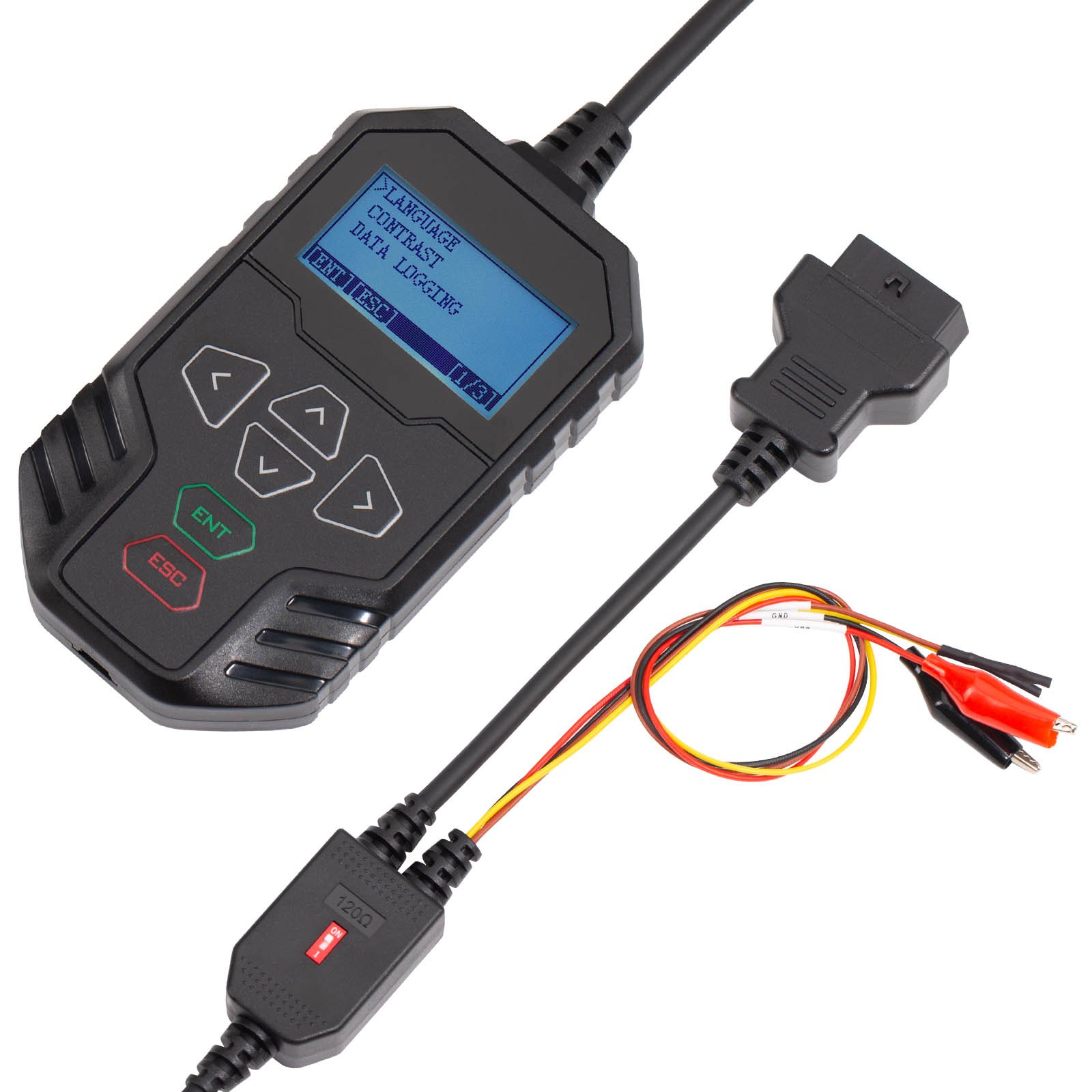

• Integrated design, comes with 120Ω resistor switch, easy to operate;
• 5.Simple and intuitive menu allows you to quickly master the device;

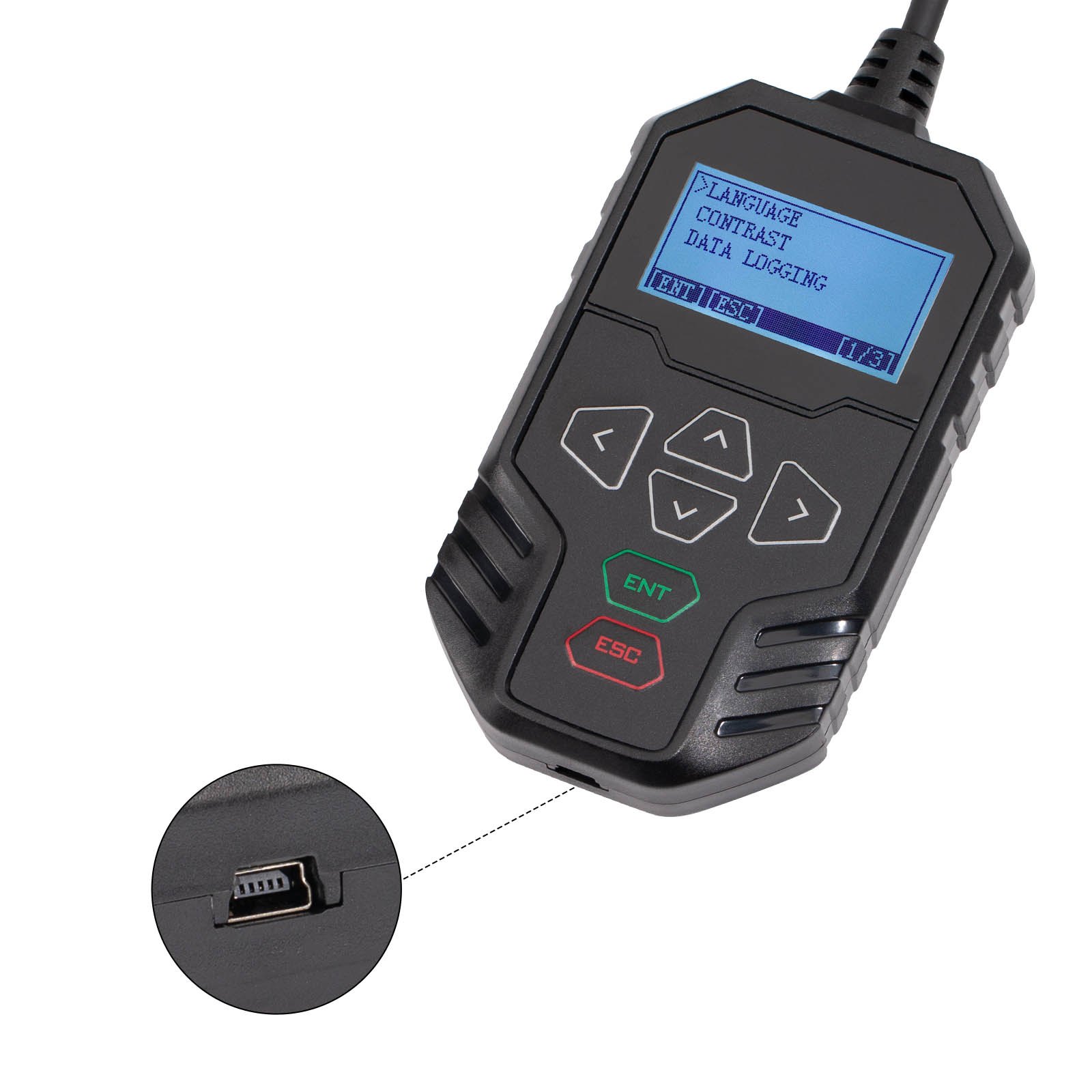

• Mini USB upgrade cable directly connected to the PC for one-key upgrade
• Supports Dash, Audio, Gear Lever, AC Panel and other test functions for below models:
• for AUDI, for FORD, for PORSCHE, for BENZ, for JAGUAR, for ROLLS-ROYCE, for BMW, for LAMBORGHINI, for VOLKSWAGEN, for DODGE, for LAND ROVER, for VOLVO.
• OBDSTAR MT203 Supported Protocol Types/Functions:
• 500K/250K 500K/125K
• 500K/83.3K
• 500K/100K
• 500K/125K
• 125K/125K
• 500K/5M
• 500K/2M
• Supports Dash, Audio, Gear Lever, AC Panel and other test functions for AUDI, BENZ, BMW, DODGE, FORD, JAGUAR, LAMBORGHINI, LAND ROVER, PORSCHE, ROLLS-ROYCE, VOLKSWAGEN, VOLVO and other brands.
• Make sure that the diagnostic instrument and ECU are connected correctly first, and the ECU is powered up before the automatic scanning is performed;
• ECU power on for a period of time (a few seconds or minutes) did not communicate, may enter the hibernation mode, can not communicate, need to re-power on;

OBDSTAR note a 120 ohm resistor is needed where the ECU under test does not carry one itself.
