OBDSTAR MT200 Handheld Radio Decoding Tool All by OBD or BENCH for Ford VW

The OBDSTAR MT200 handheld radio decoding tool for Ford and VW, working through OBD or on the bench. OBDSTAR confirm all supported radio models read and modify by OBD, and read, modify and close by bench. It runs in English, and the coverage list downloads from the MT200 product page.

Specifications

• Supported language: English.
• Q: I want the list of modules which can cover with tool？
• A: You can download the coverage list from MT200 page on our website.
• Q: Does it have the the anual subscribe fee？
• A: Yes, the anual fee is 30 dollars.
• Q: Does MT200 support all radio models OBD reading and modification?
• A: All models support reading and modifying by OBD.
• Q: Does MT200 support all all radio types BENCH reading and modification?
• A: All models support reading, modifying and closing by BENCH.
• Q: Under what circumstances do I need to short a 120 ohm resistor on the CANBUS communication cable?
• A: When the FORD model is operated by BENCH on the workbench, a 120 ohm resistor needs to be shorted between CANH and CANL. See the product description for the specific shorting method!
• Q: Under what circumstances is it not necessary to short the 120 ohm resistor on the CANBUS communication cable?
• A: All OBD operations do not require external resistors, and VW and Skoda do not require resistors for BENCH operation on the workbench!
• Q: Do I need to use other accessories for MT200?
• A: No, all accessories come standard.
• Q: Is there a wiring diagram and tips?
• A: Our wiring diagram is very intuitive, you can check it through our product description page or through OBDSTAR APP.
• Q: How to enquiry radio code for models not supported by MT200?
• A: For the models not supported by MT200, you can inquiry it by OBDSTAR APP (free inquiry, but you need to bind MT200 device).

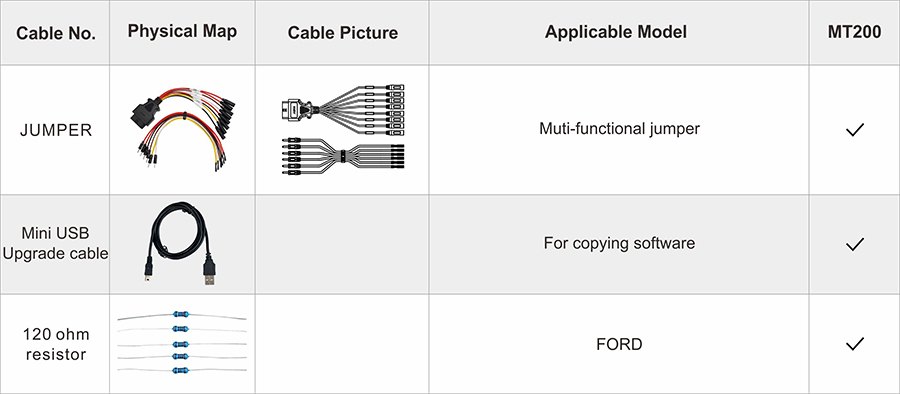

What you get

• 1pc x MT200 host
• 1pc x Jumper
• 1pc x Mini USB Upgrade cable
• 1pc x 120 ohm resistor
• For better service experience, we've listed out frequently asked questions(FAQ) about MT200.
• MT200 is the latest handheld radio decoding tool developed by OBDSTAR, which supports Ford, VW, etc. All by OBD or BENCH, easy to operate.
• Mini USB upgrade cable connects directly to computer for one-click upgrade
• Free upgrade for one year.
• Support models (OBD or BENCH)
• TMS470AVF689APZA+24C16
• TMS470R1VF48BPGEA+24C16
• TMS470R1VF288PZA+24C16
• NEC70F3357+24C16
• Including but not limited to the following models or radio models:
• Ford 1500 RDS Medialess, 6C1T-18C838-AH, TMS470AVF689
• Ford 5000C Tape, KW2000, 6S61-18K876-AG, TMS470AVF689
• Ford 5000C, 6S61-18K876-AF, TMS470AVF689
• Ford 6000 CD Single CD, KW2000, 6S61-18C815-AF, TMS470AVF689
• Ford 6000 CD Single CD, KW2000, 6S61-18C815-AG, TMS470AVF689
• Ford 6000 CD Single CD, KW2000, 6S61-18C815-AH, TMS470AVF689
• Ford 6000 CD, 6S61-14C044-AB, TMS470AVF689
• Ford 6000 Single CD, GGDS, 6C1T-18C815-AH, TMS470AVF689
• Ford 6000 Single CD, GGDS, 6M2T-18C815-AF, TMS470AVF689
• Ford 6006 CDC, 6C1T-18C815-BH, TMS470AVF689
• Visteon RCD300;
• Support models(through Radio's SN query)
• a. Bind the device through OBDSTAR APP and use the Radio Pincode query function (through Radio's SN query) for free after binding;
• b. The Radio Pincode query function in OBDSTAR APP supports ALFA ROMEO, BRAZIL CITROEN, BRAZIL FIAT, BRAZIL FORD, BRAZIL PEUGEOT, BRAZIL RENAULT, CHRYSLER, CLARION, DACIA DAF TRUCK, DODGE, ESN ECLIPSE, FIAT, FORD, HOLDEN TRUCK, IVECO TRUCK, JAGUAR, JEEP, LANCIA, LANDROVER, MACK TRUCK, MAN TRUCK, MASERRATI, MAZDA, RENAULT, RENAULT TRUCK, SCANIA TRUCK, TOYOTA, VOLVO TRUCK and other brands
• Brand
• Type
• Visteon 6000CD(NEC70F3357)
• Visteon 6000CD(TMS470)
• Visteon Sony(NEC70F3357)
• Visteon Sony(TMS470)
• Visteon Sony 6CD(TMS470)
• Visteon RCD300
• Screen Type
• USB Type
• 20℃~55℃（14℉~131℉）
• 20℃~70℃（-4℉~158℉）
• Weight
• about 160g
• External Dimensions
• 120mm*70mm*21mm
• Operating Voltage
• 12V

OBDSTAR list a 30 dollar annual subscription fee, so factor that in beyond the purchase price.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
