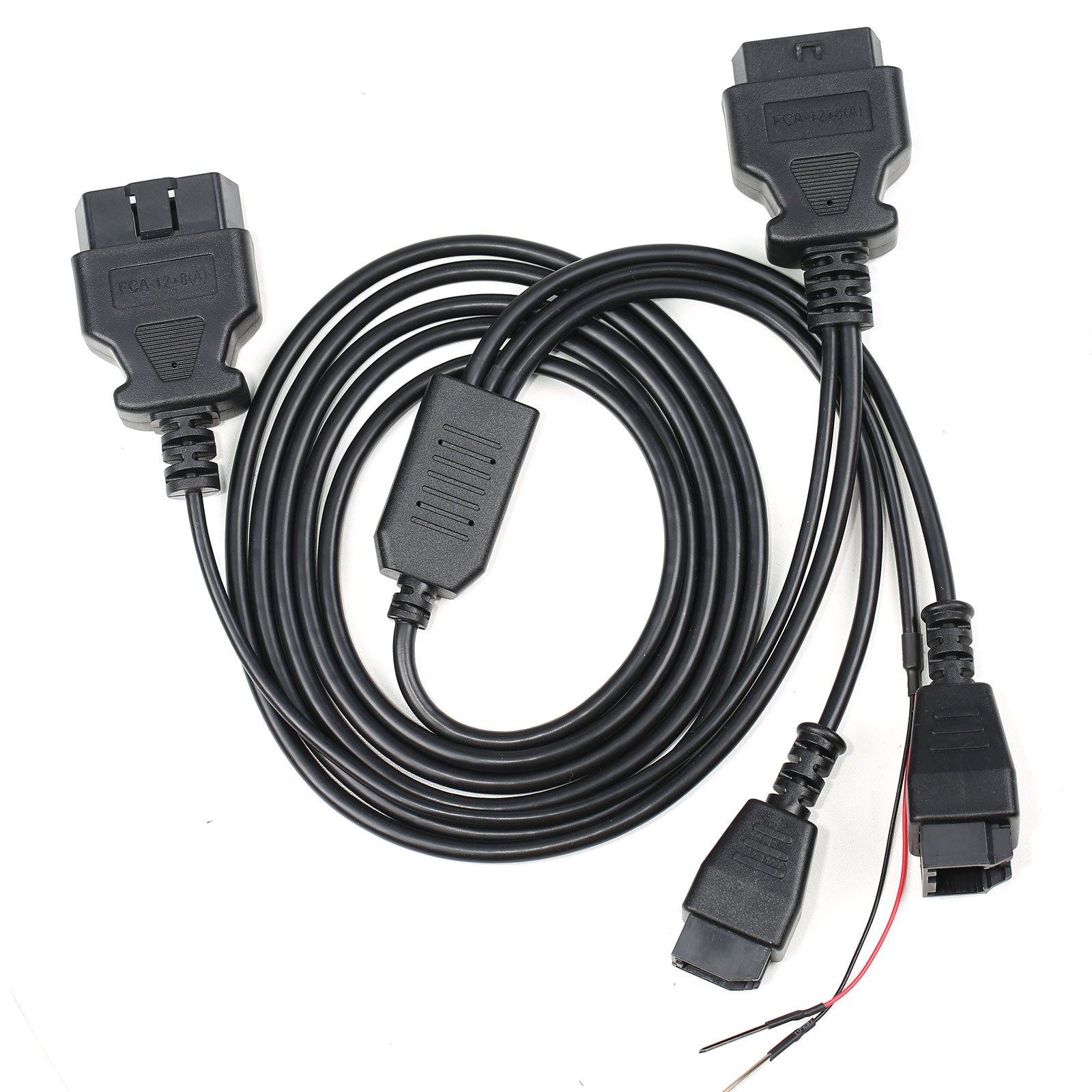

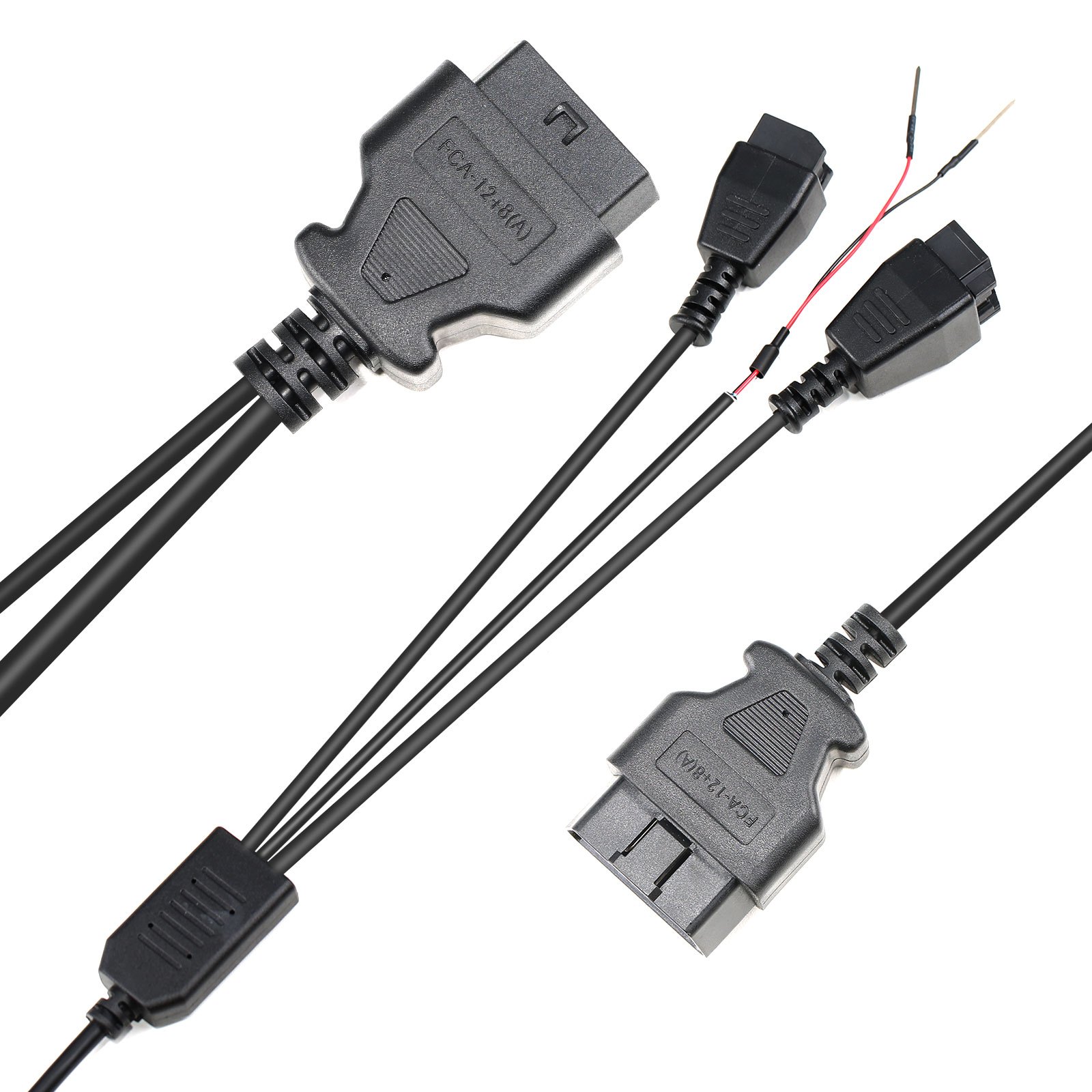

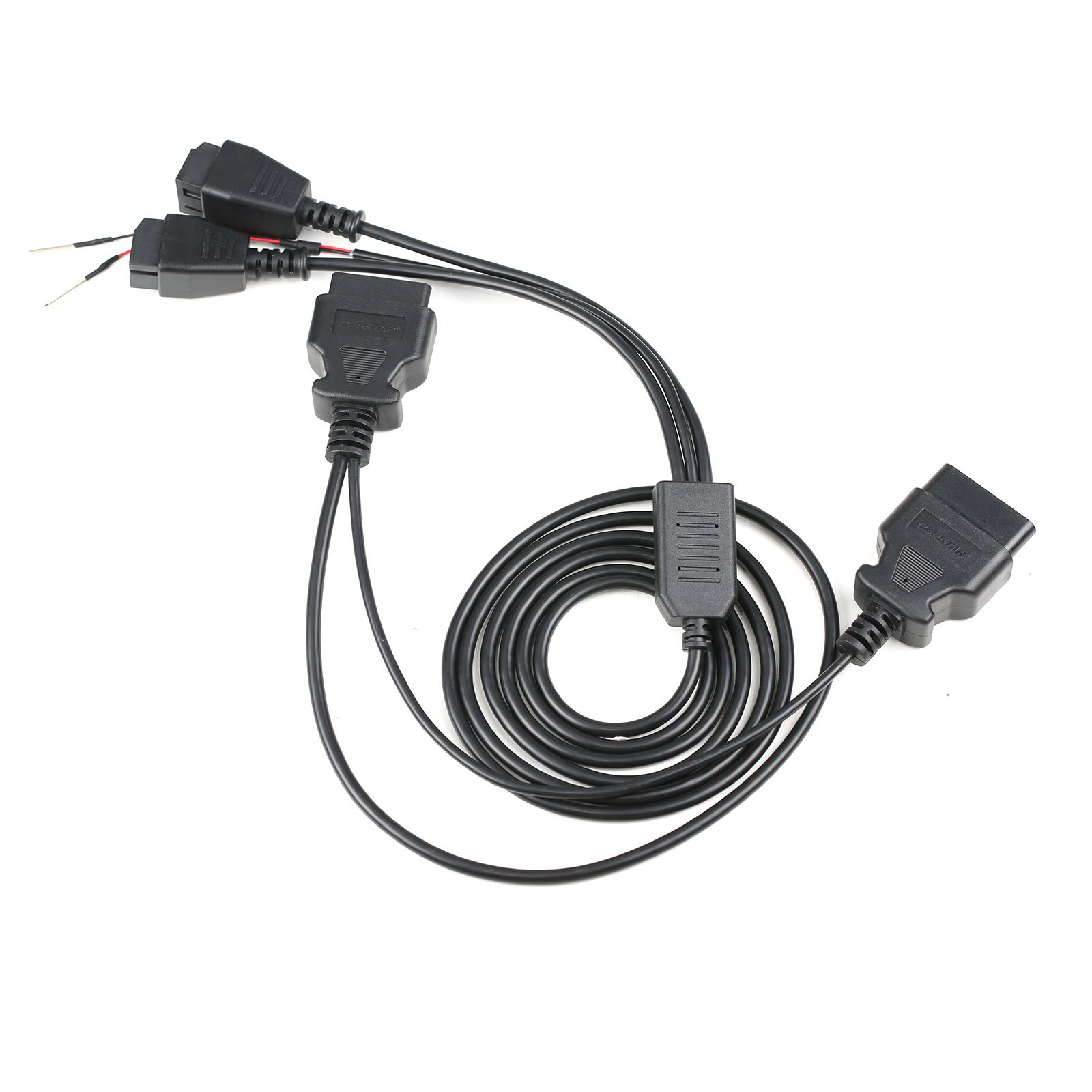

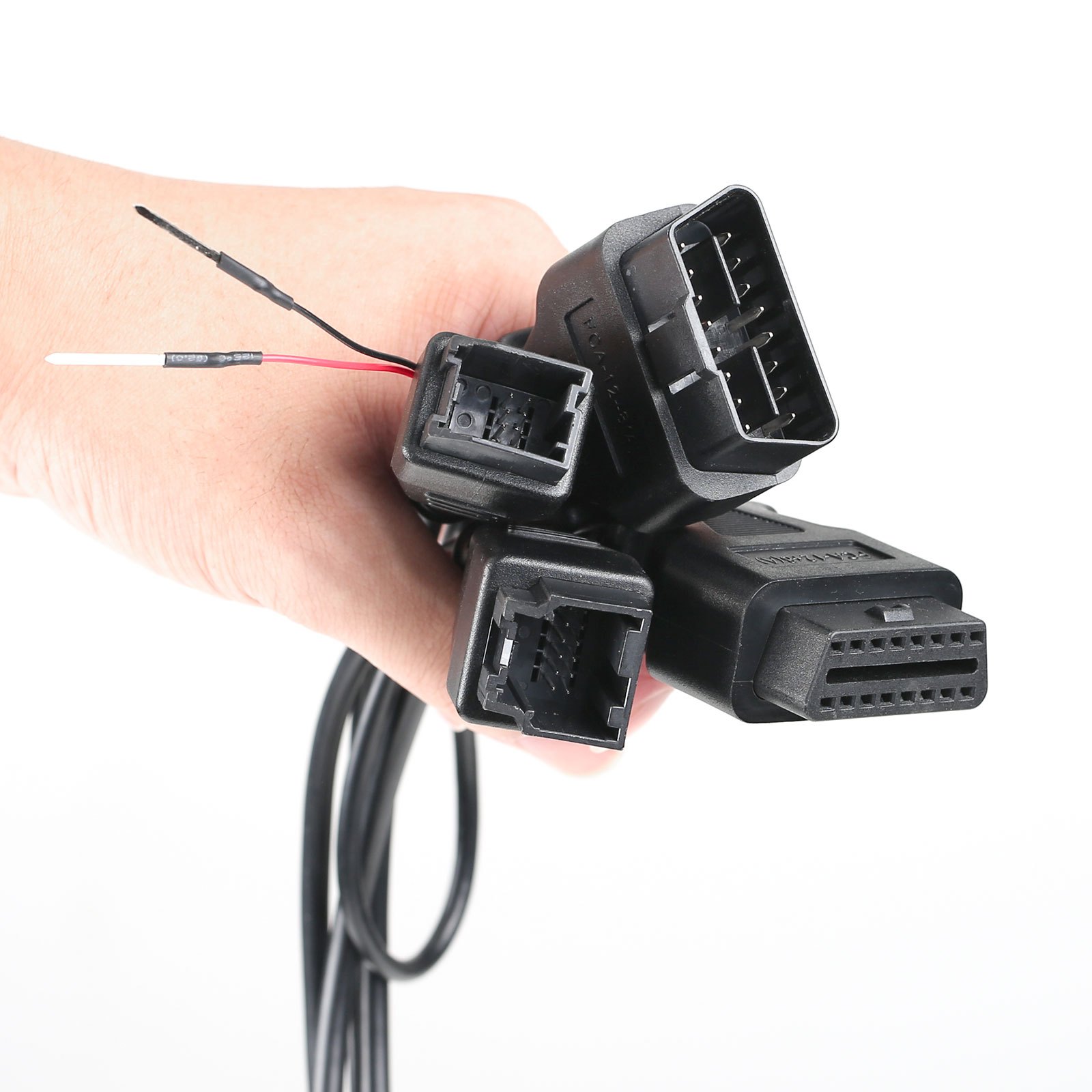

OBDSTAR FCA 12+8 Cable for Chrysler Work on X300 DP Plus/X300 PRO4/OdoMaster/X200 PRO2
$38.75
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
An OBDSTAR FCA 12+8 cable for Chrysler, working with the X300 DP Plus, the X300 PRO4, the OdoMaster and the X200 PRO2. Older Chrysler group cars use a 12+8 socket rather than a standard OBD2 one.
What you get
- 1pc x OBDSTAR FCA 12+8 Cable
- OBDSTAR FCA 12+8 Cable for Chrysler Work on X300 DP Plus/X300 PRO4/OdoMaster/X200 PRO2
- All FCA (FIAT/CHRYSLER/ALFA ROMEO) vehicles after 2018 are equipped with SGW security gateway module to prevent attacks on the vehicle network via the CAN bus. Directly plug in the OBD II-16 connector cannot communicate with the vehicles because SGW security gateway module can block the access to the vehicle's OBD2 port from non-original diagnoses. To solve this problem, you can connect to the 12PIN and 8PIN connections on the car via this FCA 12 + 8 cable to get normal communication with the car.
- OBD cluster calibration, OBD key programming, oil/service reset; also can be used with other diagnostic equpment for reading code and clearing code etc.
- 1.CHRYSLER
- 2018-CHRYSLER 300
- 2018-CHRYSLER PACIFICA
- 2.DODGE
- 2018-DODGE CHALLENGER
- 2018-DODGE CHARGER
- 2018-DODGE DURANGO
- 2018-DODGE JOURNEY
- 2018-DODGE RAM
- 3.JEEP
- 2018-JEEP CHEROKEE
- 2018-JEEP GRAND CHEROKEE
- 2018-JEEP COMPASS
- 2018-JEEP WRANGLER
- 2018-JEEP RENEGADE
- 4.MASERATI
- 2018-MASERATI, include GHIBLI, LEVANTE,PRESIDENT
- 5.FIAT
- 2018-FIAT
- How to use FCA 12+8 Cable
- Find and unplug the 12PIN and 8PIN connectors of the SGW module, and then connect the FCA 12+8 directly to the 12PIN and 8PIN (connecting to the two connectors of the SGW) connector on the car. At this time, normal communication with the car can be realized.

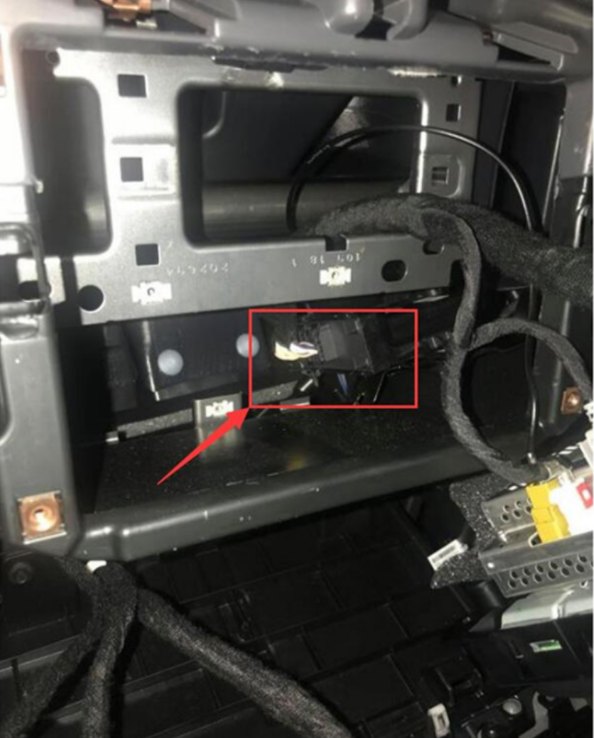

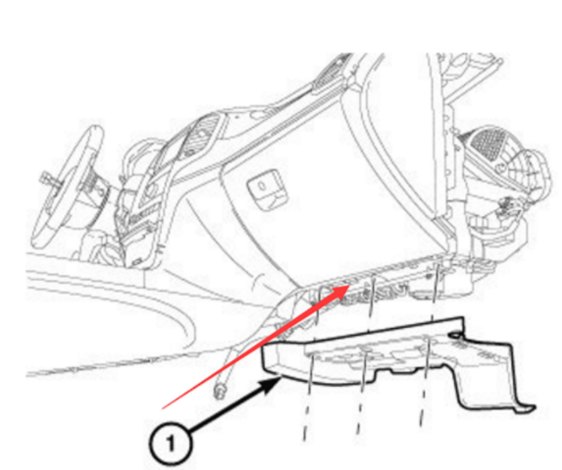

- 2018-DODGE RAM 1500/2500/3500
- 2018 DODGE DURANGO
- 2018 GRAND CHEROKEE

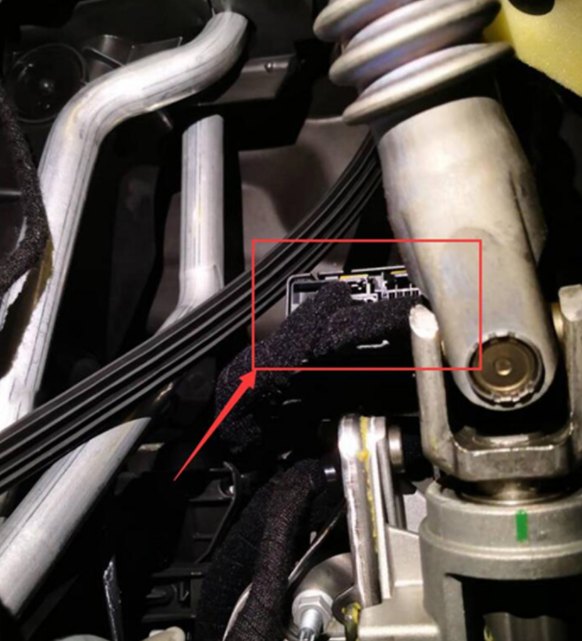

- 2018 MASERATI GHIBLI SGW LOCATION
Cheap, small and the difference between doing an older Chrysler job and turning it away.
Specifications
| Brand | OBDSTAR |
|---|---|
| Type | Original OBDSTAR Tool |
| Part number | SF251-C2 |
| Condition | New |
