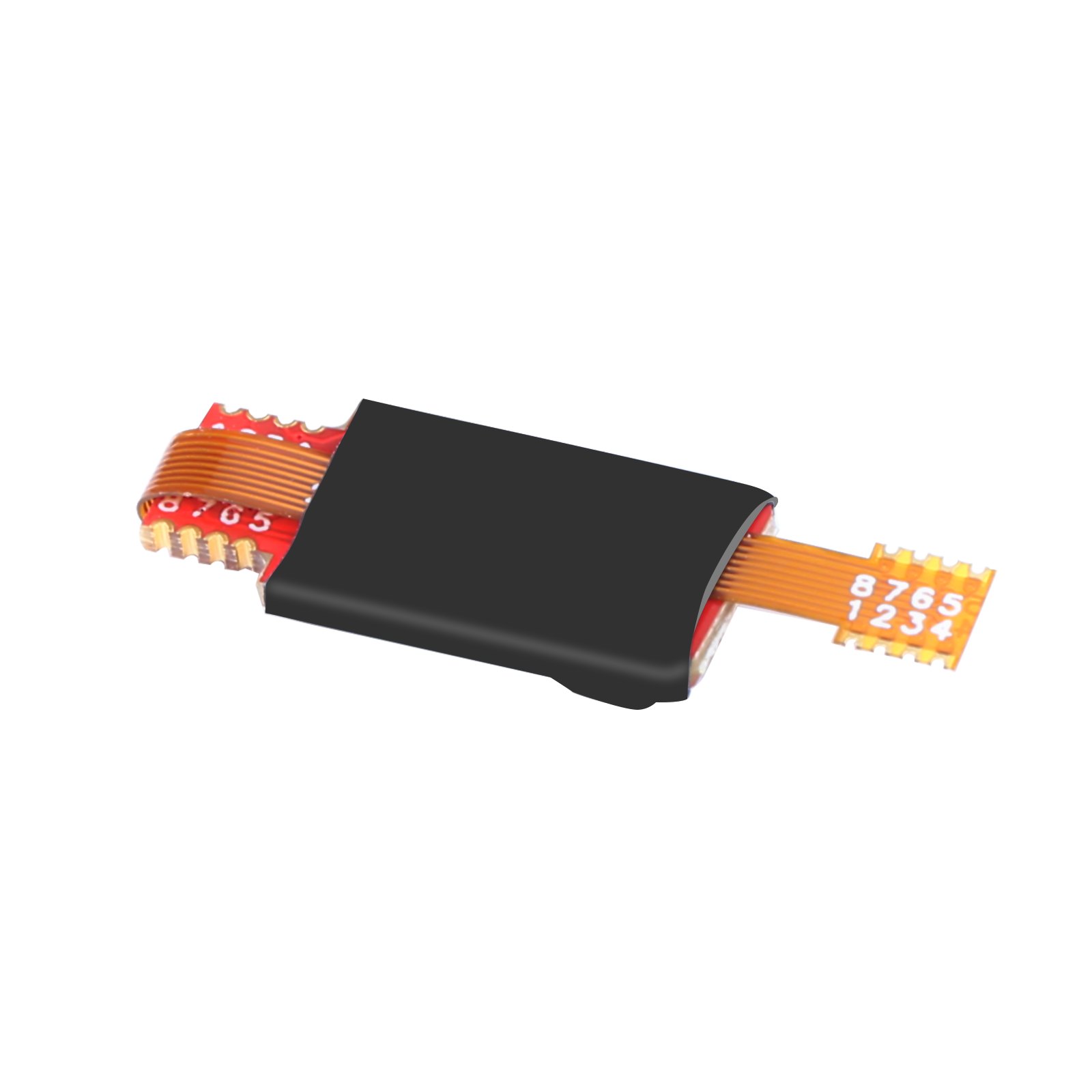

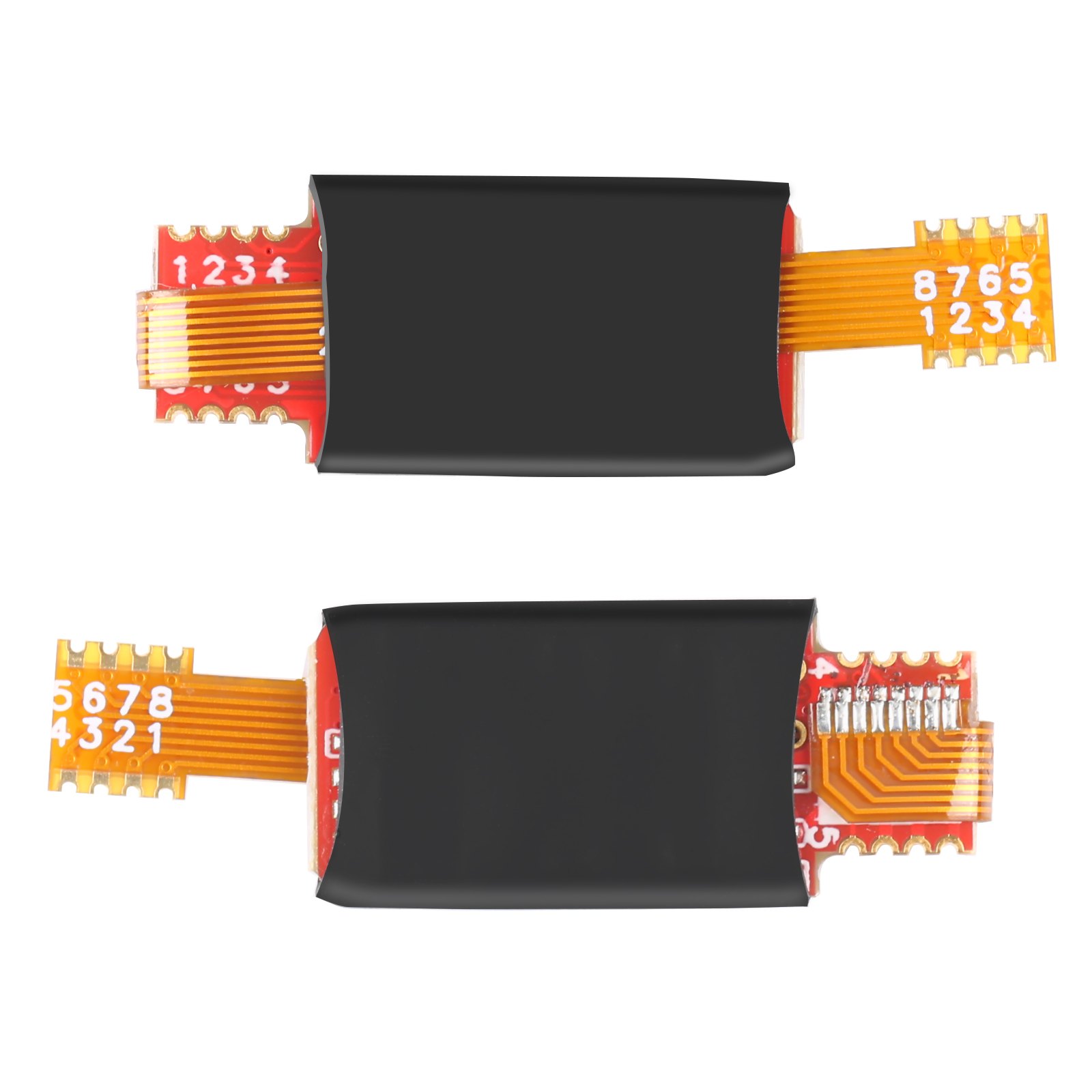

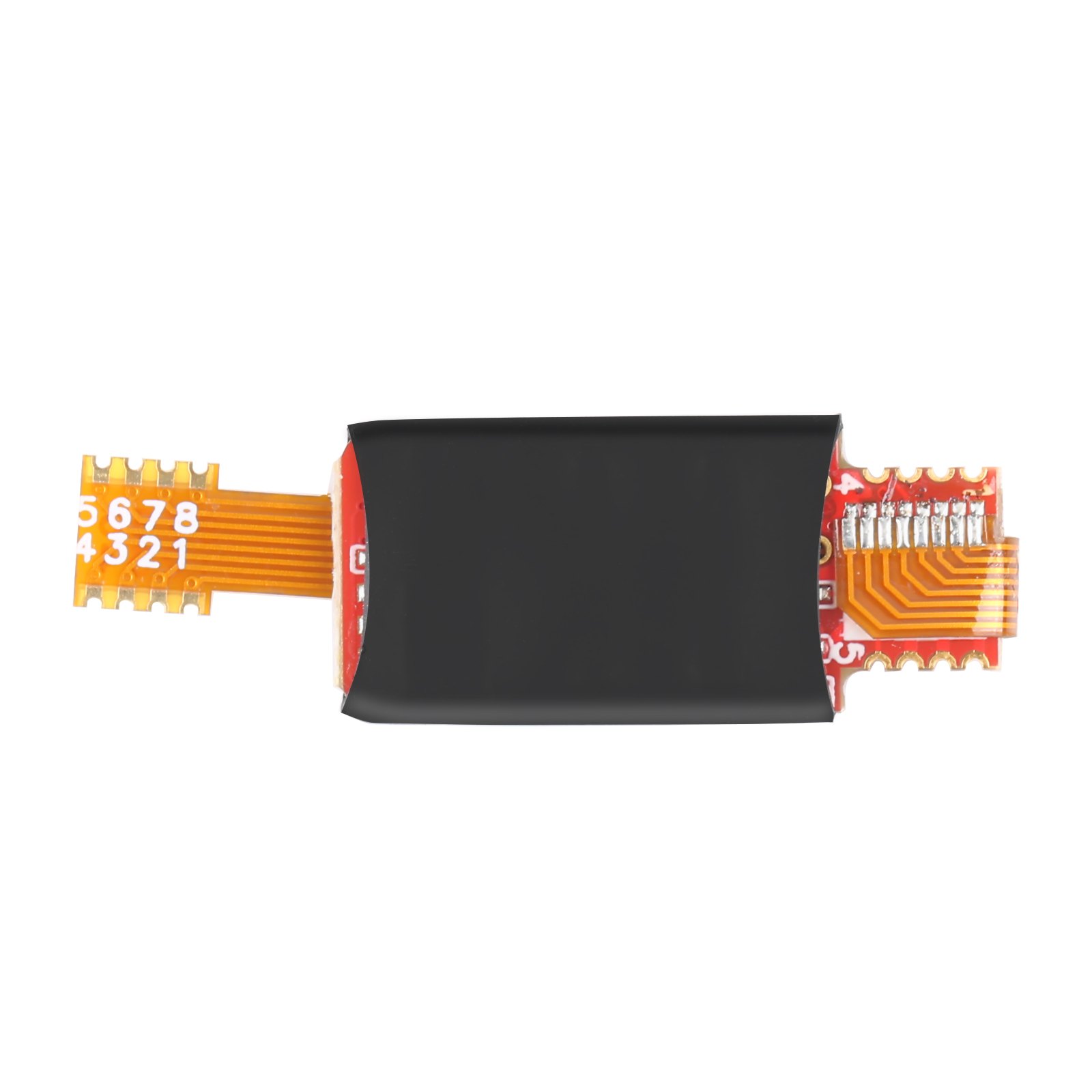

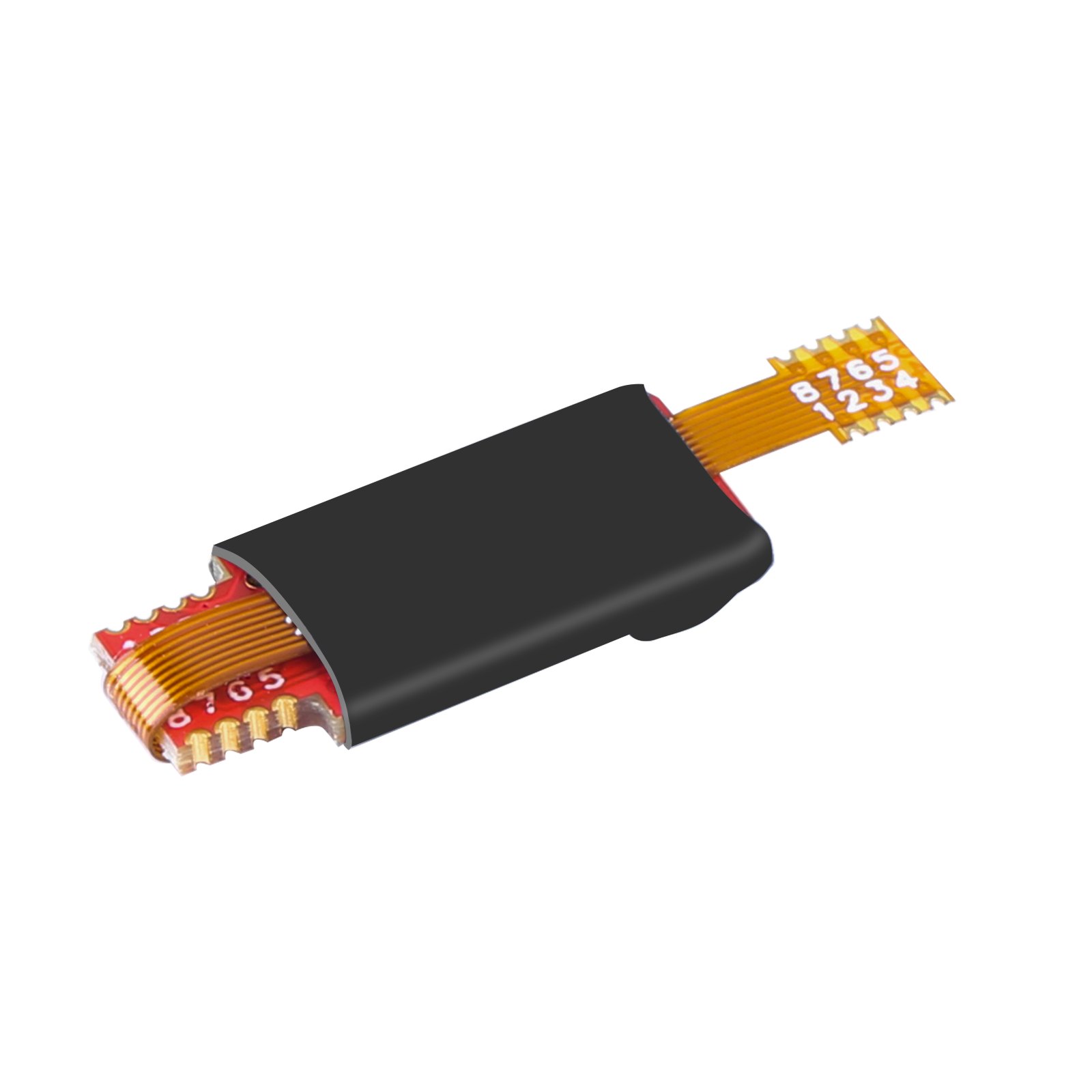

Newest Version YANHUA Simulator Chip for 35128WT and 35160WT (incl. 5V NO.8 Pin)

The newest version Yanhua simulator chip for the 35128WT and 35160WT, including the 5V number eight pin. It stands in for the EEPROM during a cluster procedure so the work happens safely.

Specifications

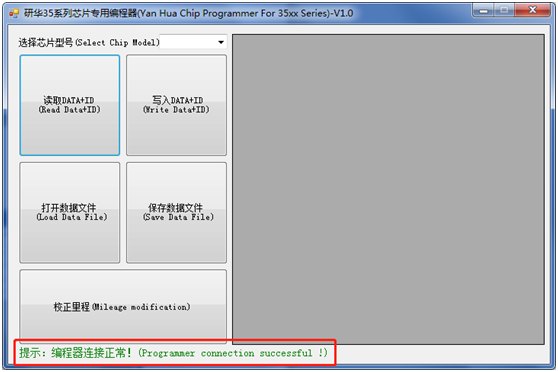

• Wait for the prompt: Programmer connection successful,Then run it.

What you get

• 1pc x Yanhua 35160 and 35128 Chip 2 in 1
• Newest Version YANHUA Simulator Chip for 35128WT and 35160WT (incl. 5V NO.8 Pin)
• YANHUA Simulator Chip for 35128WT and 35160WT (incl. 5V NO.8 Pin)
• Disassemble the original 35XX EEPROM from the cluster and solder it to the adaptor board.

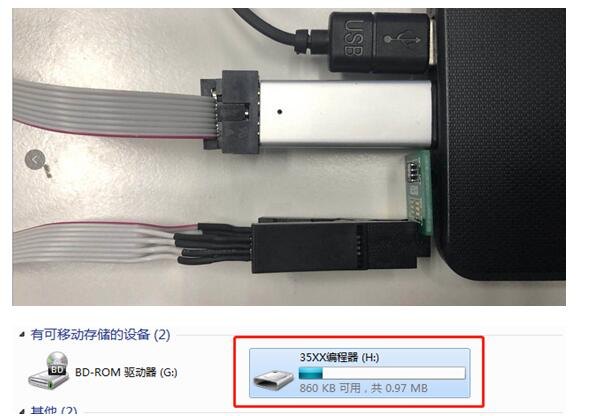

• Plug the YH35XX programmer into the USB port of the PC, Click "computer" and it will recognize a usb flash drive named 35XX programmer.

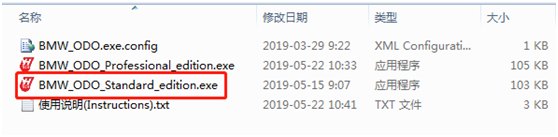

• Click U disk 35XX programmer, Double-click "BMW_ODO_Standard_edition. exe" to open the software.

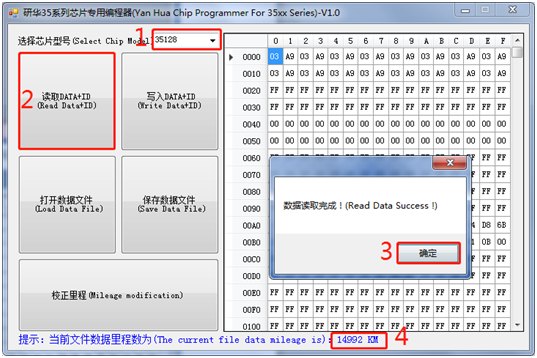

• Select the EEPROM chip model, i.e 35128 and click "Read DATA+ID", check whether the read mileage is the same as the actual mileage.

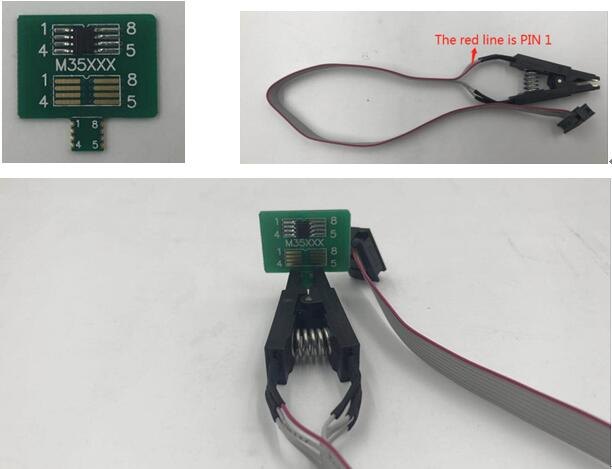

• Clip compatible simulator with chip clamp. Pay attention to the direction. Then connect the solder-free clamp to the programmer, connect the programmer to the PC.
• Select EEPROM model, click "Load Data File", Select the corresponding data of original EEPROM and load it. Check whether the displayed mileage is the same as the mileage displayed in cluster.

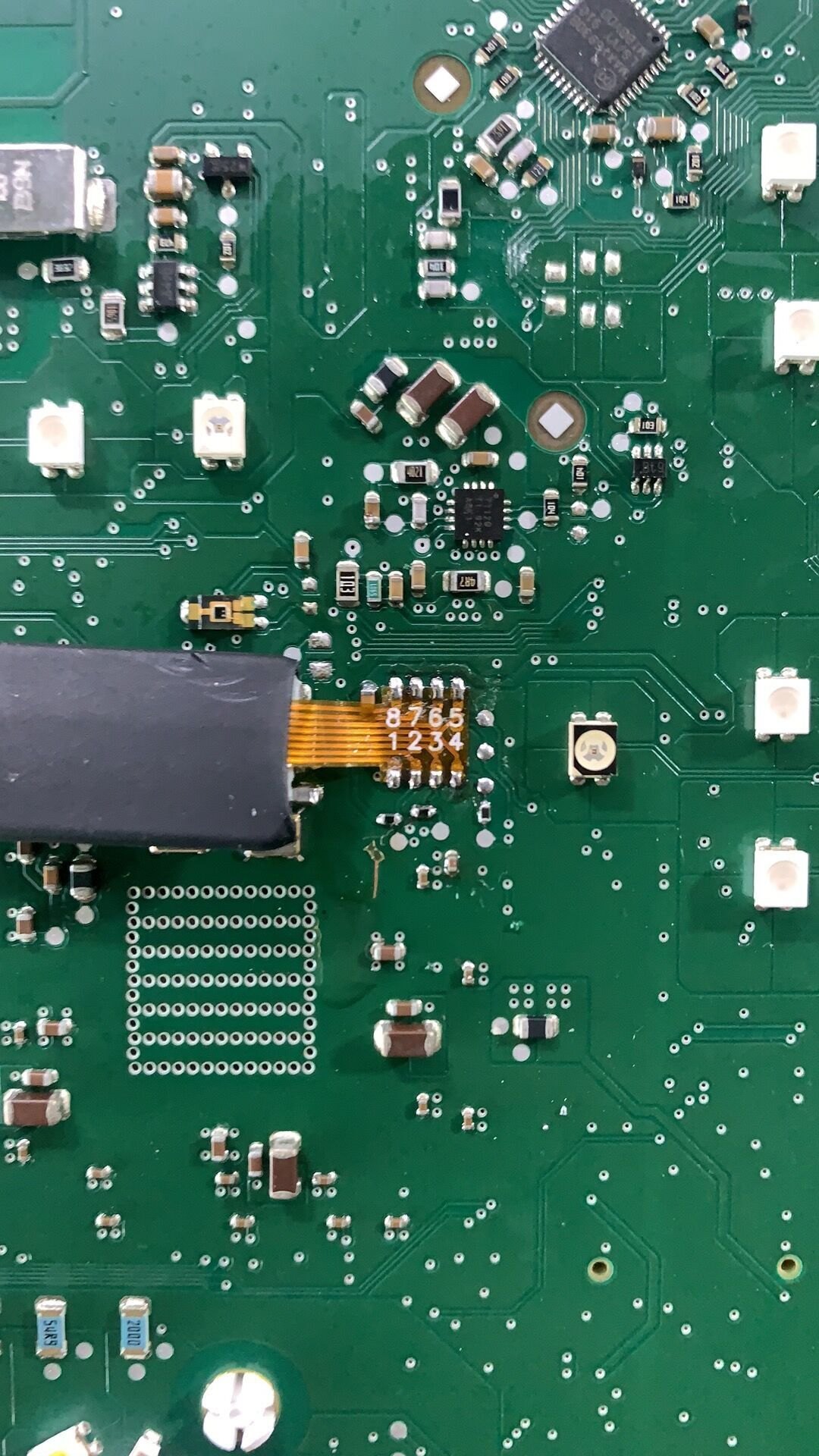

• If the displayed mileage is the same as what you want, cut off the handle of the Simulator, and solder the Yanhua 35xx Simulator to the original EEPROM position. Pay attention to the EEPROM direction. Install the odometer back to the car to verify whether the mileage modification is successful.

Wait for the programmer connection successful prompt before running the procedure, as Yanhua advise.
