Newest Breakout Tricore Cable GODIAG Full Protocol OBD2 Jumper Cable for MPPS/Kess V2/Vident/Fgtech/Byshut DisProg Bench Work

A newest breakout tricore cable, a GODIAG full protocol OBD2 jumper cable for MPPS, Kess V2, Vident, Fgtech and Byshut DisProg bench work. It puts every line in reach so a bench setup can be wired and checked.

Specifications

• Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

What you get

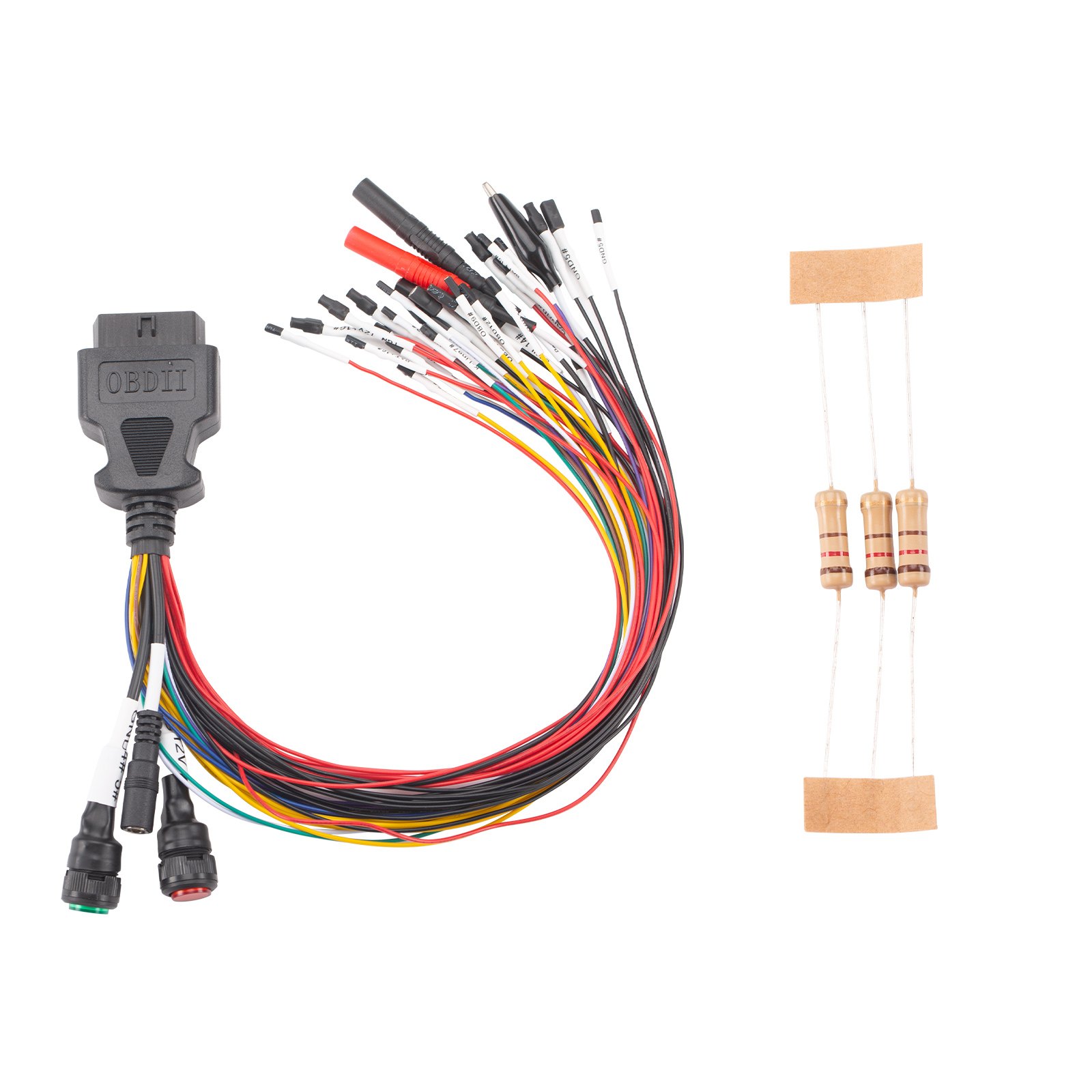

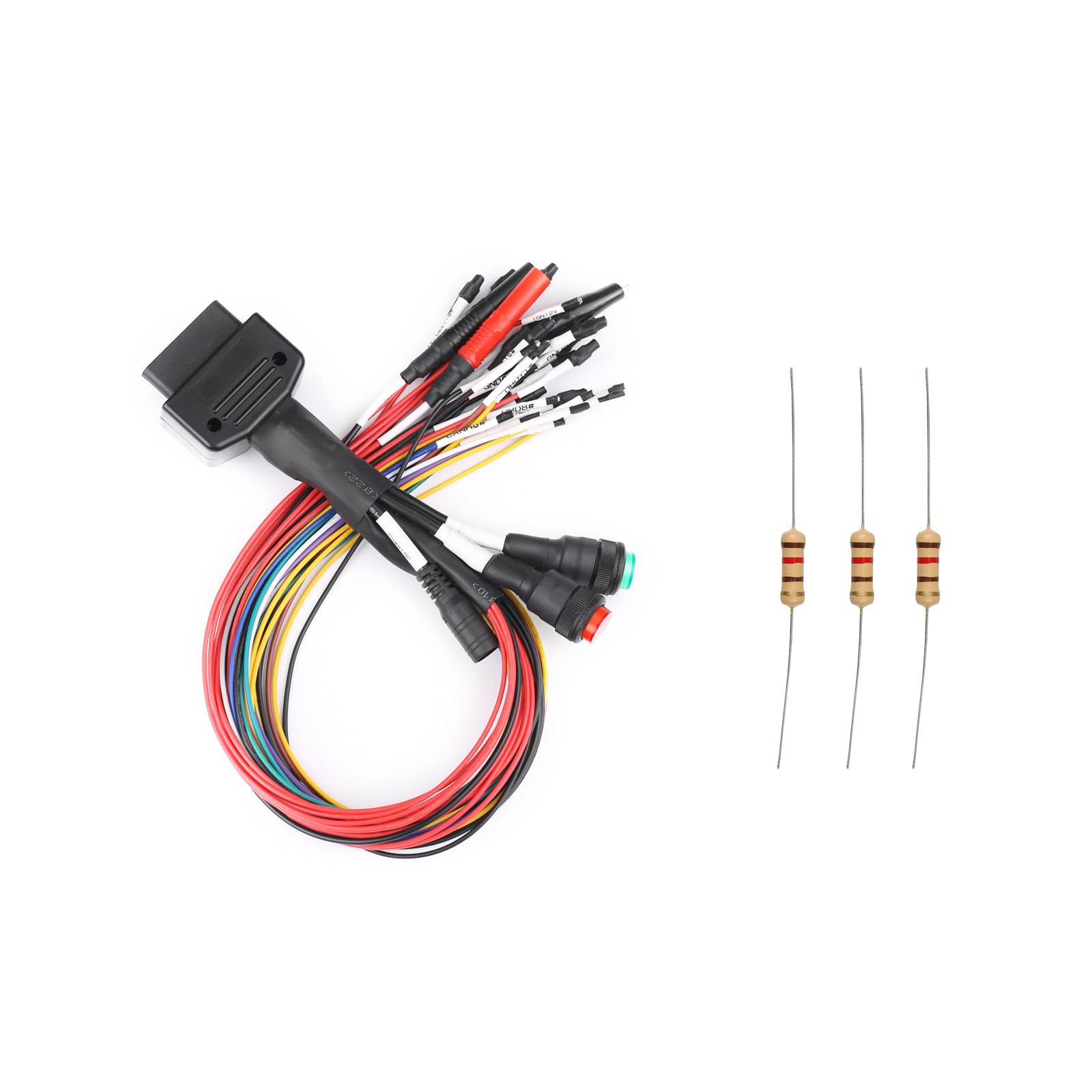

• 1set x GODIAG Full protocol OBD2 jumper
• GODIAG Full Protocol OBD2 Jumper Cable Nissan Airbag Reset with OBDSTAR P50
• PCMTuner MPM GM Gen4 E67 Remap with GODIAG GT105 and Tricore Cable
• Full protocol OBD2 jumper Breakout Tricore Cable is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG,Vident iAuto 702pro etc.
• GODIAG Full Protocol OBD2 Jumper Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG
• GODIAG Full Protocol OBD2 Jumper Functions:
• Supports DC power supply
• Support safety protection banana head super programming dedicated connection port power supply.
• Independent GND4, GND5 [meet the needs of special ECU programming].
• With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
• With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
• With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
• Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

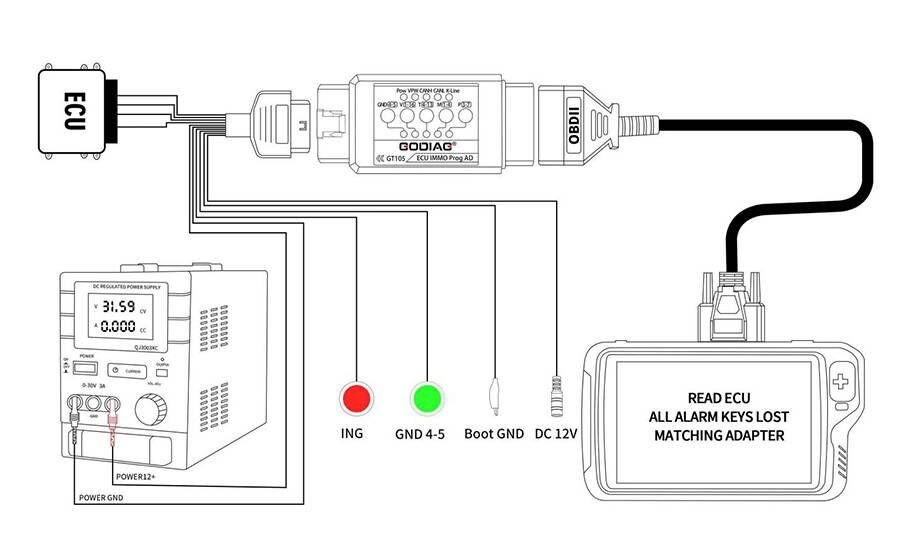

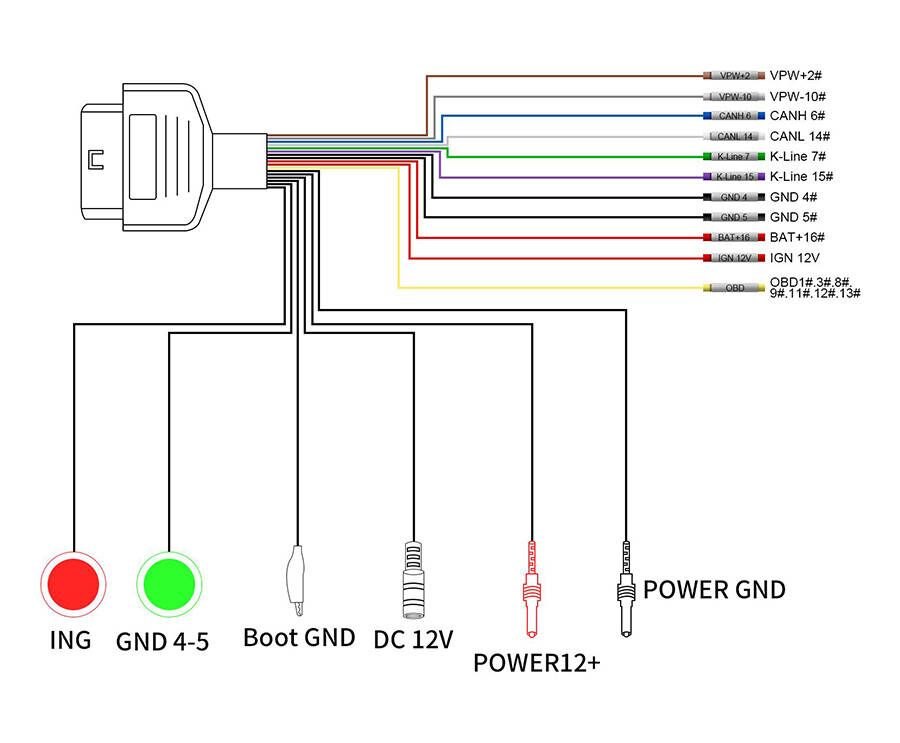

• Connection diagram of the dedicated programming power connector.

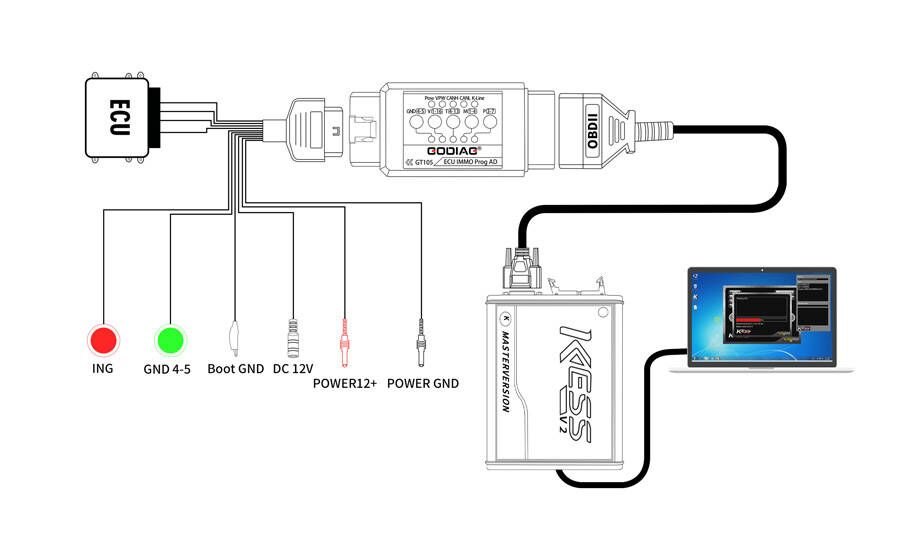

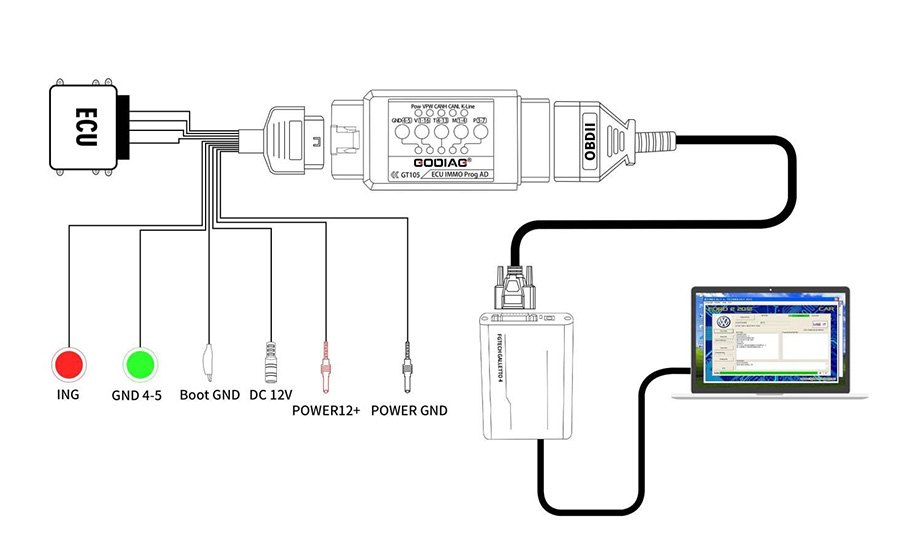

• KESS V2 ECU connection diagram
• After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.
• 7 pin Knorr, Wabco Trailer Adapter Cable X 1
• 12 pin MAN Adapter Cable X 1
• 37 pin MAN Adapter Cable X 1
• IVECO-30P Adapter Cable X 1
• SCANIA -16P Adapter Cable X 1
• BENZ-14P Adapter Cable X 1
• Renault-12P Adapter Cable X 1
• VOLVO-8P Adapter Cable X 1

GODIAG note the GND4-5 switch is normally pressed so that it lights, which is the default state.
