2026 GODIAG GT100 PLUS GPT AUTO TOOL with GODIAG BMW CAS1/CAS2 Mech-Key Test Platform and CAS2 CAS3 SER Semi Smart Test Platform

A GODIAG GT100 PLUS GPT auto tool bundled with the GODIAG BMW CAS1 and CAS2 mech-key test platform and the CAS2 and CAS3 SER semi smart test runs a single module connection to the ECU.

Specifications

• Bunding Package: GODIAG GT100 PLUS GPT AUTO TOOL with GODIAG BMW CAS1/CAS2 Mech-Key Test Platform and CAS2 CAS3 SER Semi Smart Test Platform
• ECU connection: single module connection
• Note: Godiag CAS2 CAS3 SER Semi Smart Test Platform does not support mechanical key CAS2 and cannot be used with diagnostic equipment or with GT100 GT100+.

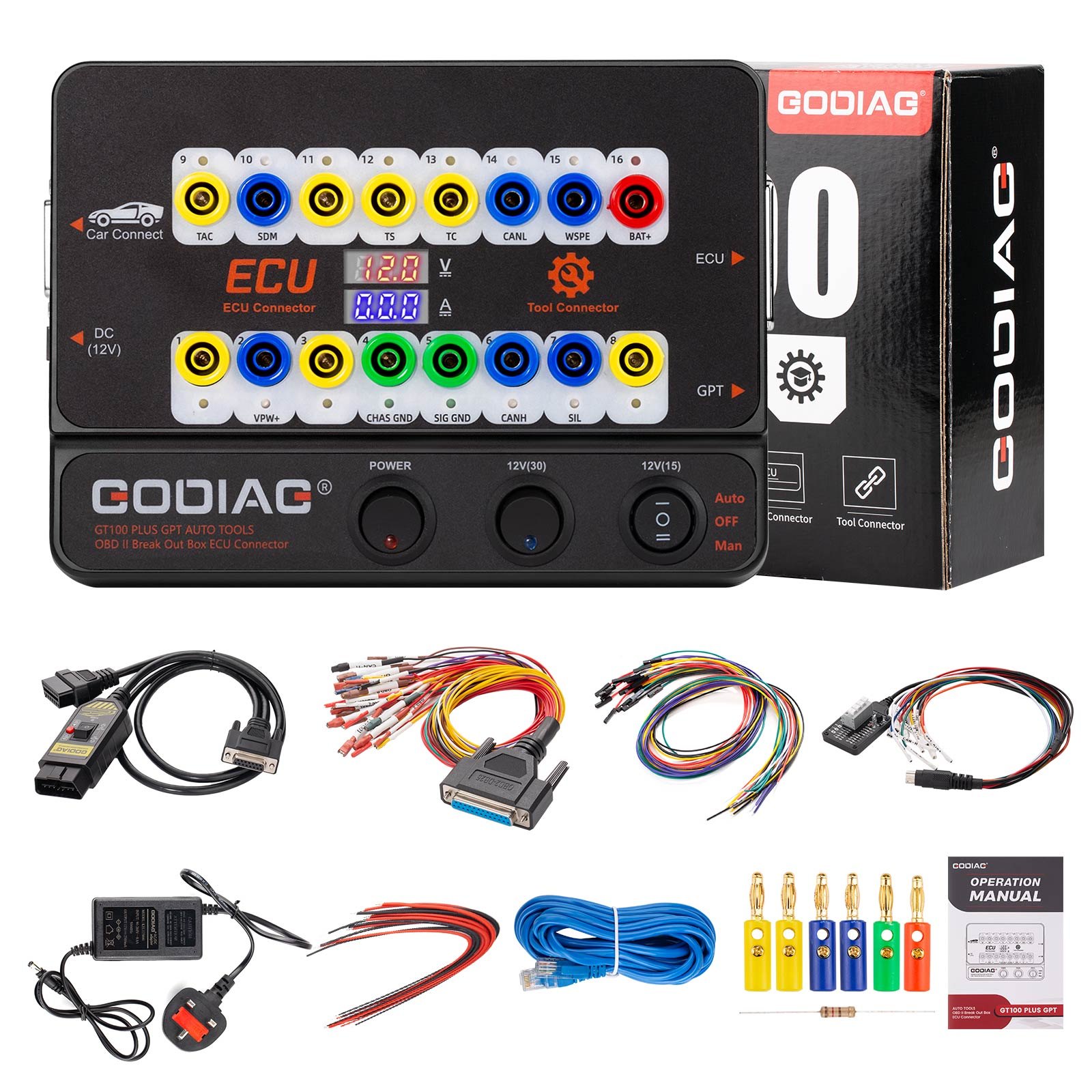

What you get

• 1pc x Host
• 1pc x GPT connecting cable
• 1pc x Ethernet cable
• 1pc x OBD 2-in-1 extension cable
• 1pc x Colored jumper cable
• 1pc x Power supply 12V
• 1pc x Resistance 120 ohm
• 6pcs x Banana plug
• 24pcs x Wire accessories, Dupont 2.54mm connector female pins
• 1pc x Manual
• 1pc x GODIAG BMW CAS1/CAS2 Mech-Key Test Platform
• 1pc x OBD2 to DB25 Cable
• 1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform
• GODIAG GT100 PLUS GPT AUTO TOOL with GODIAG BMW CAS1/CAS2 Mech-Key Test Platform and CAS2 CAS3 SER Semi Smart Test Platform
• 1 set x GODIAG GT100 PLUS GPT AUTO TOOL
• 1 set x GODIAG BMW CAS1/CAS2 Mech-Key Test Platform
• 1 set x GODIAG BMW CAS2 CAS3 SER Semi Smart Test Platform

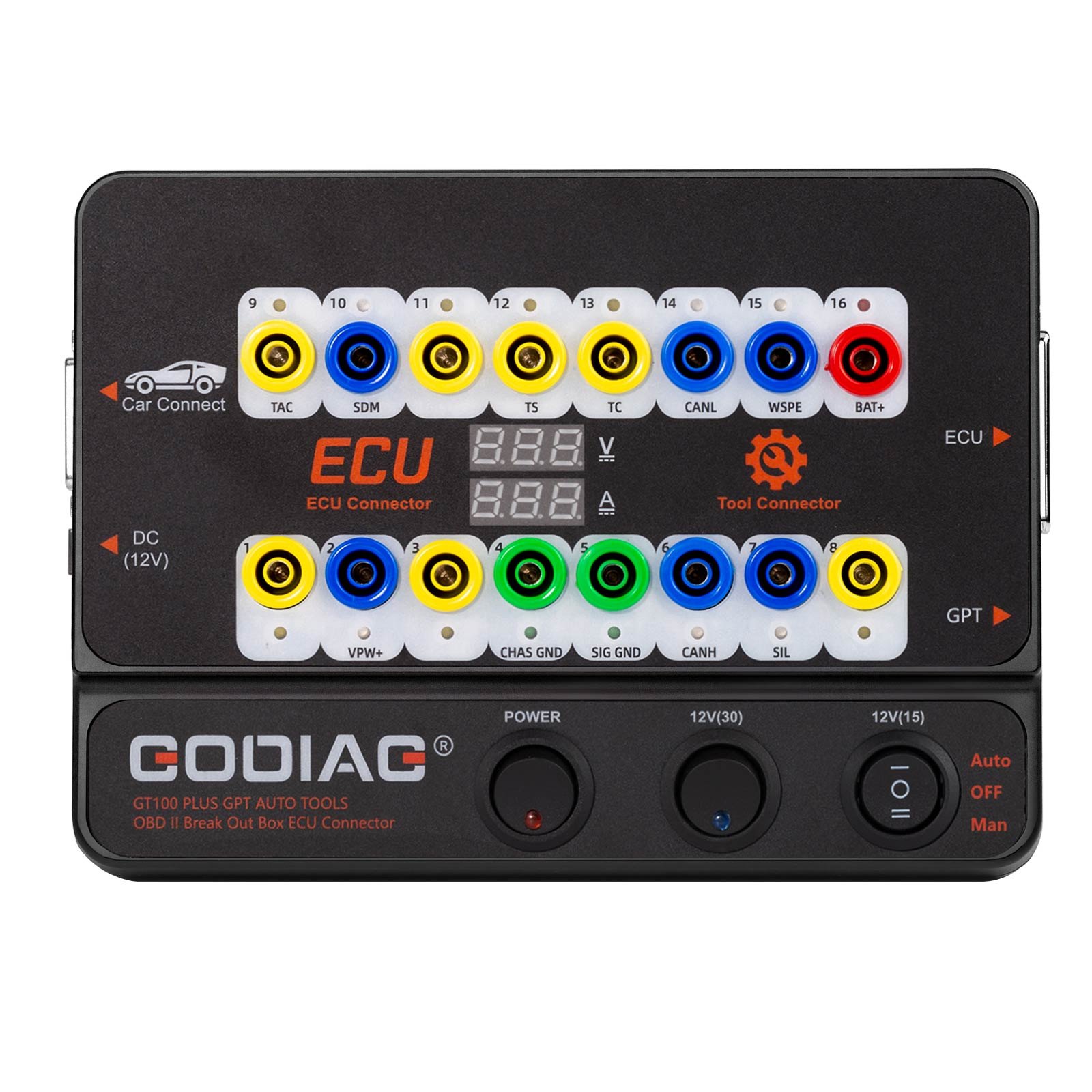

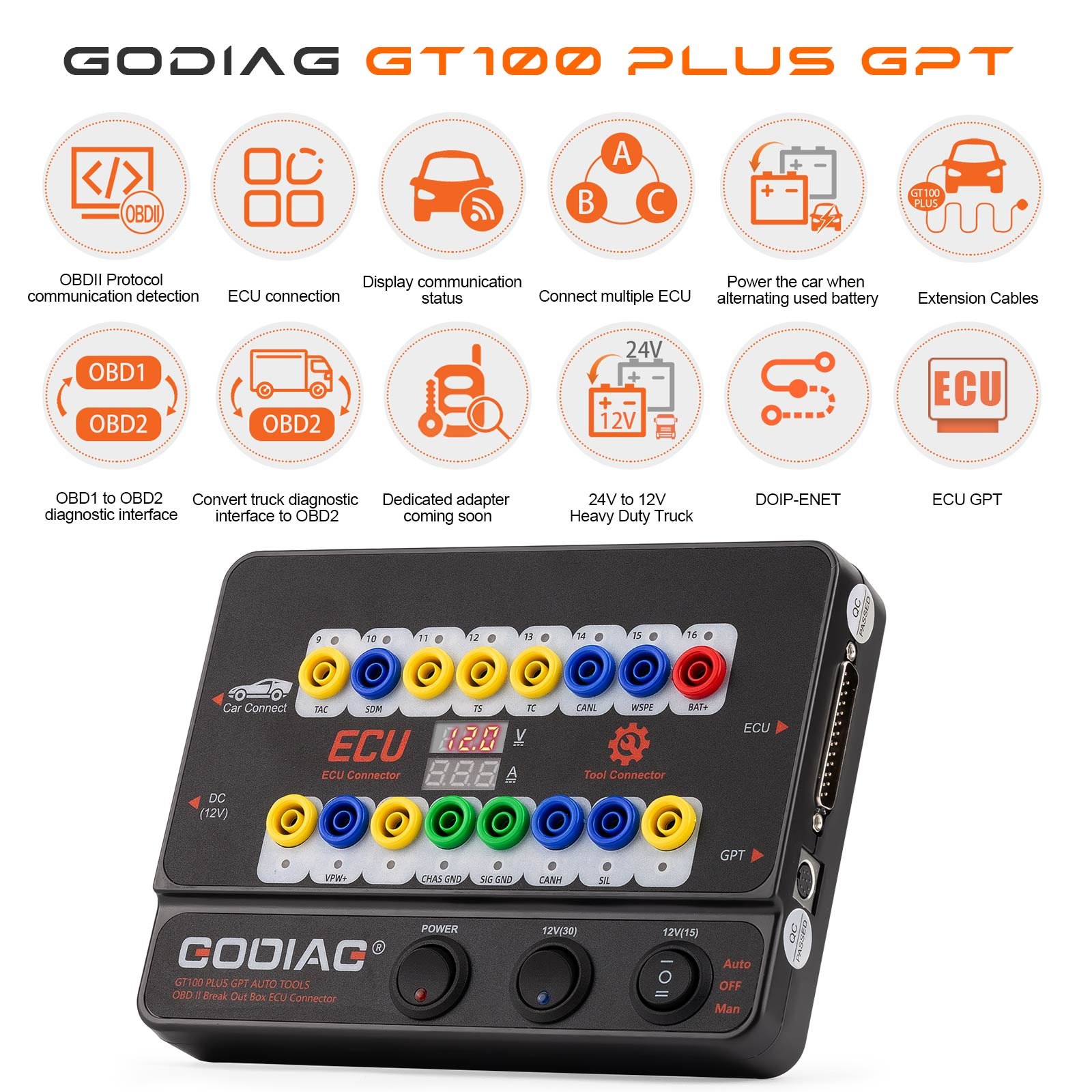

• GODIAG GT100 PLUS GPT Auto Tool OBDII Break Out Box ECU Connector
• GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of ECU.
• It can convert the car OBD2 interface into 16 pin for signal detection. It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car communication is good or not.
• It supports the 24v to 12v voltage conversion, DOIP-ENET communication and GPT to read and write ECU data.
• It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.
• Use GPT to read and write ECU with devices (such as PCMFLASH, KESSV2)
• Check OBDII diagnostic interface Communication Status and Display Voltage
• Support diagnostic programming and coding for BMW Benz, Volkswagen, Audi and other vehicles that support DOIP protocol. [no software is provided.]
• Can be used for diagnostic programming and coding of Land Rover, VOLVO, and Geely vehicles that support DOIP communication. [no software is provided.]
• 24V to 12V Voltage Conversion
• Convert the 24v voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12v voltage that can be used by diagnostic equipment.
• GODIAG GT100 PLUS GPT, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
• GT100 PLUS GPT program key for VW, Porsche, Mitsubishi etc with all keys lost - activate the instrument or immobilizer module.
• GT100 PLUS GPT Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 PLUS GPT can only display K- Line Pwm Vpw+ KWP 2000 protocol. GT100 PLUS GPT will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
• Multiple vehicle ECU module connecting. [It's aimed at solving the problem of engineers and technicians who need to connect multiple ECU during programming a module, such as connecting to multiple ECU modules for key programming]
• 11.Replace the auxiliary power supply for the battery - uninterruptible power supply connecting mode. [Since there's failure or missing antitheft remote control data of some vehicles when the battery is dismantled, the auxiliary power supply aims at supplying power to the vehicle through GT100 PLUS GPT before replacing the battery to sustain the power supply to the vehicle. It guarantees the vehicle ECU is power connected during replacement of the battery.]
• The OBD2 cable of GT100 PLUS GPT is as long as 1.4 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 PLUS GPT first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. [Which keep away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port]
• 13.For old OBD1 vehicles or special diagnostic port, please connect GT100 PLUS GPT through the banana plug and DB25 jumper. The OBD1 diagnostic port or special diagnostic port can be transferred to the standard OBD2 diagnostic port.
• 14.GT100 PLUS GPT will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.
• Work with GODIAG CAS1/CAS2 Mech-Key Test Platform
• Work with GODIAG CAS2 CAS3 SER Semi Smart Test Platform
• For BMW-CAS4/CAS4+Programming Test Platform, it's used to test whether the programmed key works with CAS4 normally
• For BMW FEM/BDC Programming Test Platform

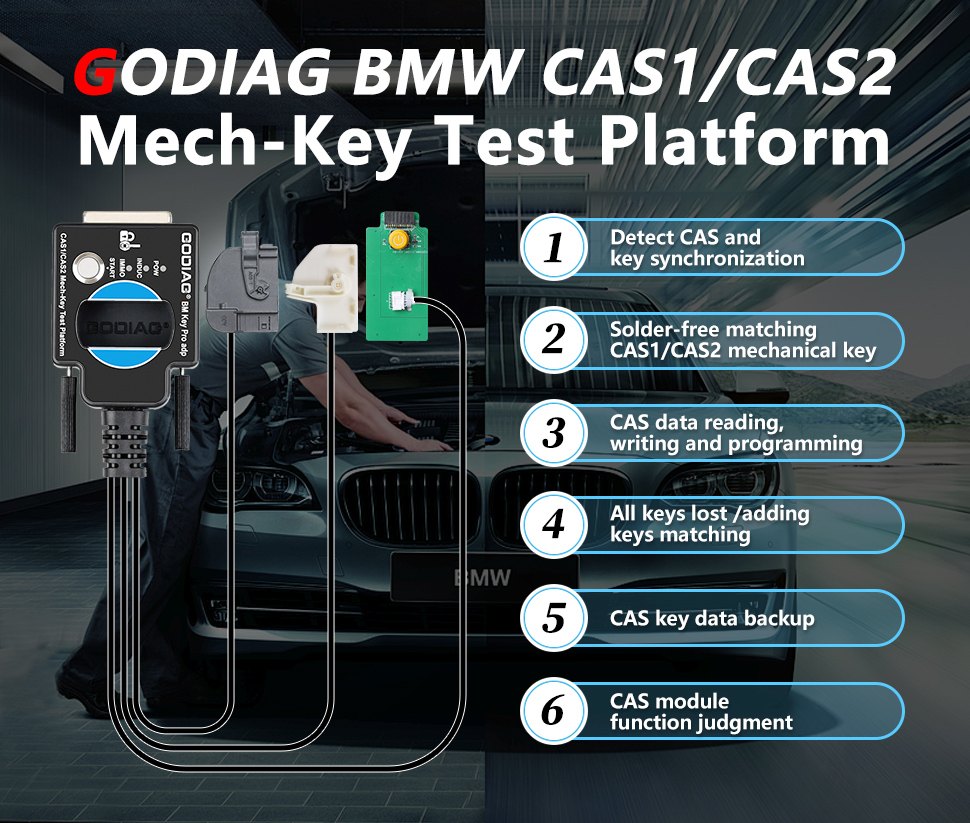

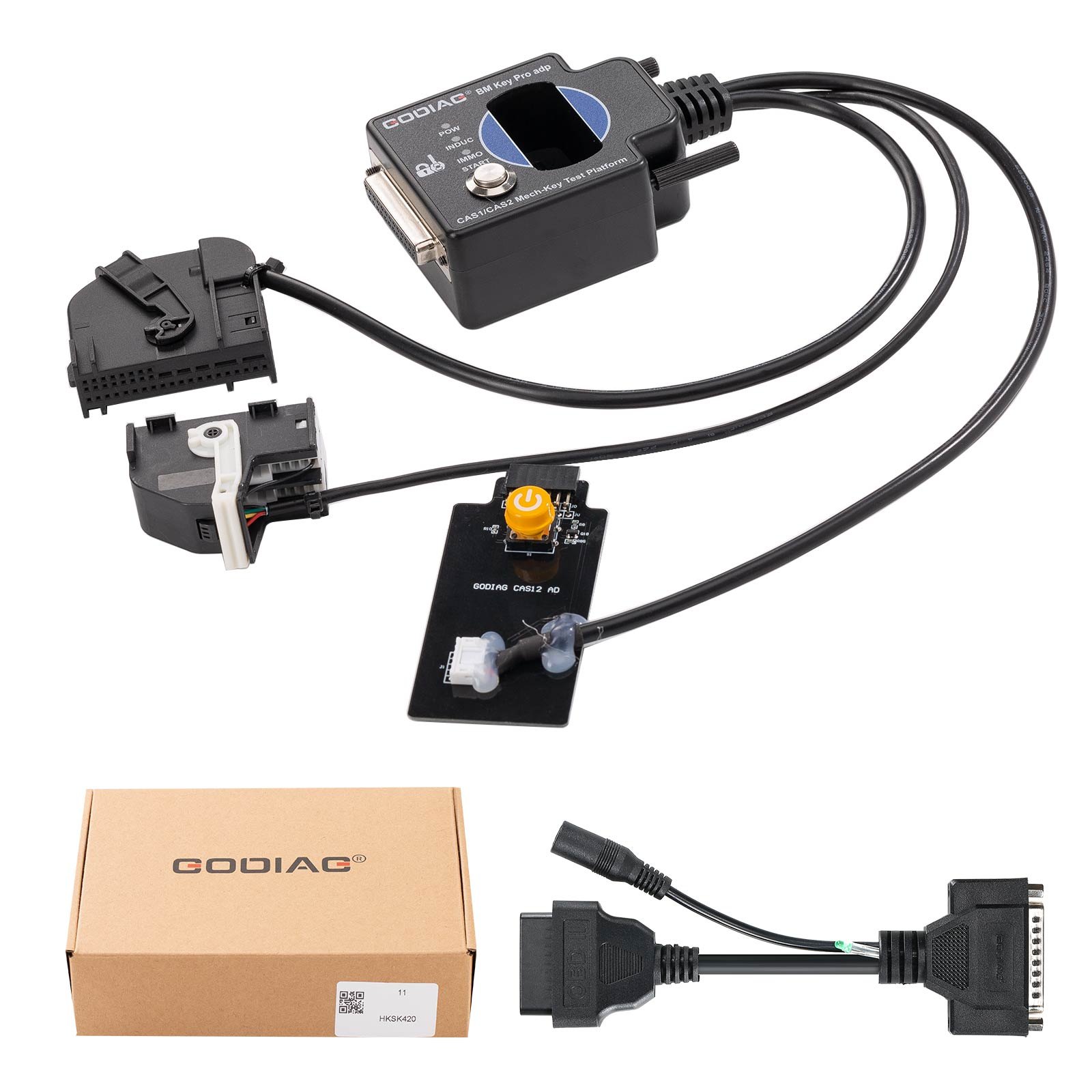

• GODIAG CAS1 CAS2 SER BMW Mech-Key Test Platform Functions:
• GODIAG BMW CAS1/CAS2 Mech-Key Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS1 / CAS2 programming engineers. It can cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices etc., to perform all key lost matching or key addition note that this product is only suitable for mechanical keys.
• Note: GODIAG BMW CAS1/CAS2 Mech-Key Test Platform does not support semi-intelligent smart key CAS2 and cannot be used with diagnostic equipment or with GT100, GT100+. If necessary, please purchase a semi-intelligent smart key detection platform for the semi-intelligent smart key CAS2.
• Check if the CAS1/CAS2 module and mechanical keys are synchronized.
• Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices etc., to perform all key lost matching or key addition operations.
• CAS1/CAS2 module diagnostics
• CAS1 / CAS2 module programming

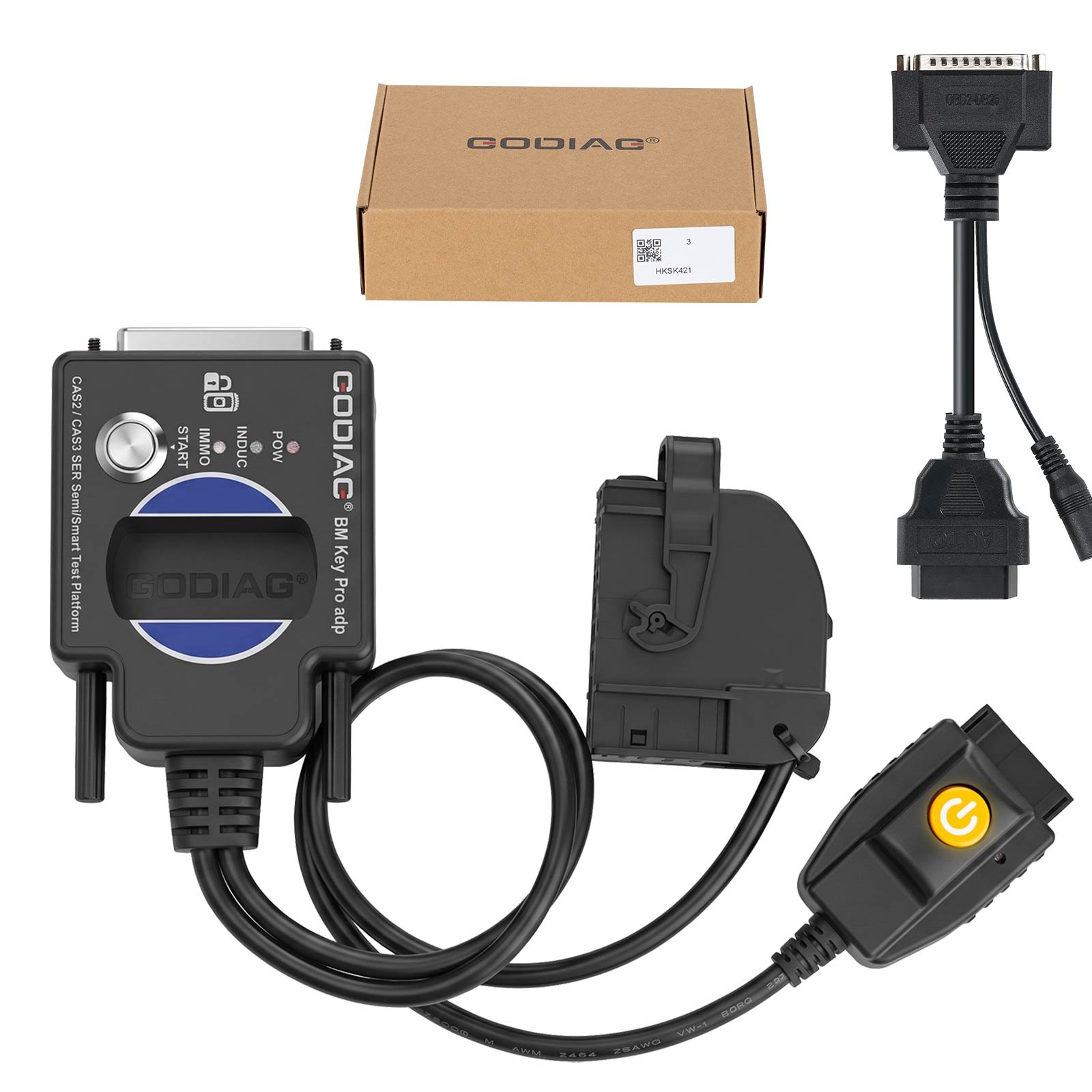

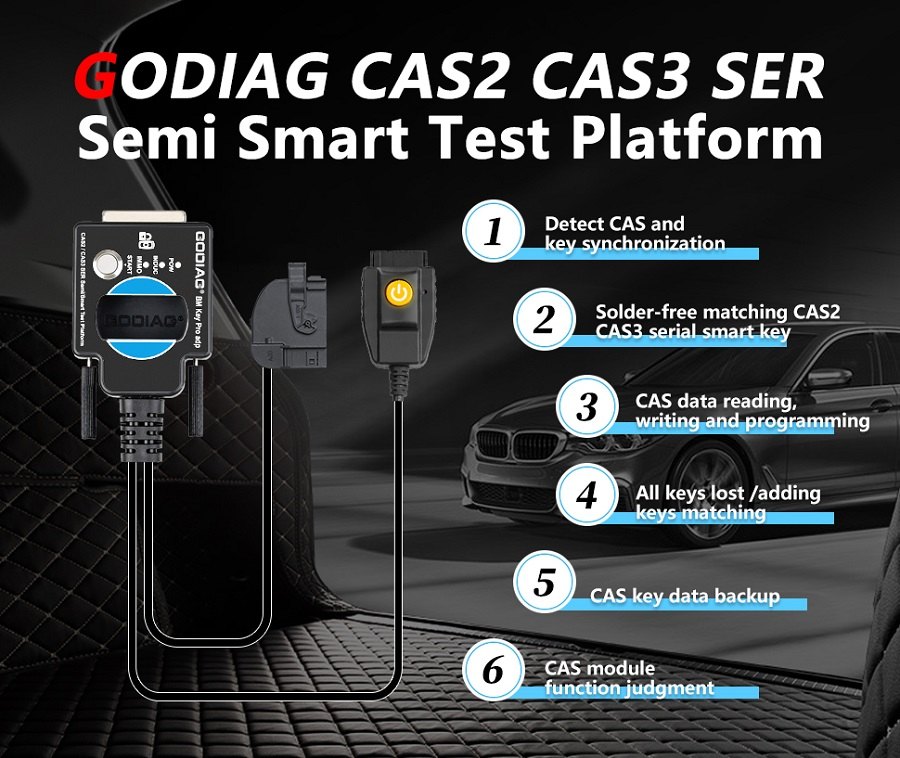

• GODIAG CAS2 CAS3 SER Semi Smart Test Platform Features:
• Godiag CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS2 / CAS3,CAS3+ CAS3++ programming engineers. It can cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices etc., to perform all key lost matching or key addition product is suitable for magnetic semi-intelligent or smart keys.
• Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.
• CAS2 / CAS3, CAS3+ CAS3++ module diagnostics
• CAS2 / CAS3, CAS3+ CAS3++ module programming

GODIAG note their CAS2 and CAS3 SER semi smart platform does not support some of the functions.
