Magic Motorsport FLEX Hardware Kit with OBD Bench ECU Master Software (Car, Van, Motorcycles)

The Magic Motorsport FLEX Hardware Kit with OBD Bench ECU Master Software programs engine ECUs of cars, vans, and motorcycles in OBD and Bench mode, with Boot Glitch unlocking support. The software package groups all OBD and Bench ECU protocols. Bench programming reads and writes the full control unit content without opening it. Part number: SE186-ECU.

Versions

Three versions are available at different prices: Hardware Kit Only, Hardware plus OBD Bench ECU Master Software shown here, and Hardware Kit plus FULL Master Software.

Features

• ECU and TCU reading and writing, module repair, and performance improvement in one solution
• 25,000 compatible vehicles
• Intuitive software with constant updates
• Limited lifetime warranty including repair or replacement
• Tech support Monday to Friday until 10 pm and Saturday until 1 pm
• Datalogger with up to 60,000 real-time parameters: pressure, torque, air, fuel, exhaust gas temperature, speed, and rpm
• Magic Lock file protection: deny unauthorized access to files saved in engine units
• Company logo upload and chiptuning tool customization
• 300 Green Coins per month for helpdesk support

Master and Slave

The Master tool has no file format limits and works with plaintext and.bin files in any software, plus MAGICMOTORSPORT file modification services and full MMS tech support. The Slave tool works with encrypted files only and routes modifications through its linked Master, chosen by the user or recommended by region, with basic support handled through the Master first.

Helpdesk coins

• RED coins are prepaid funds worth 1 euro per coin, bought through the Helpdesk account. RED coins can convert to GREEN coins
• GREEN coins go to FLEX and X17 MASTER tool owners at 300 per month for specified services. GREEN coins cannot convert to RED coins and do not balance resets to 300 at the start of each month

Subscription questions

If the subscription expires, Flex keeps working with all activated protocols and licenses. Only future updates, new protocols, technical support, and warranty coverage stop. Renewing after several missed years requires paying the upgrade fees for the missing years.

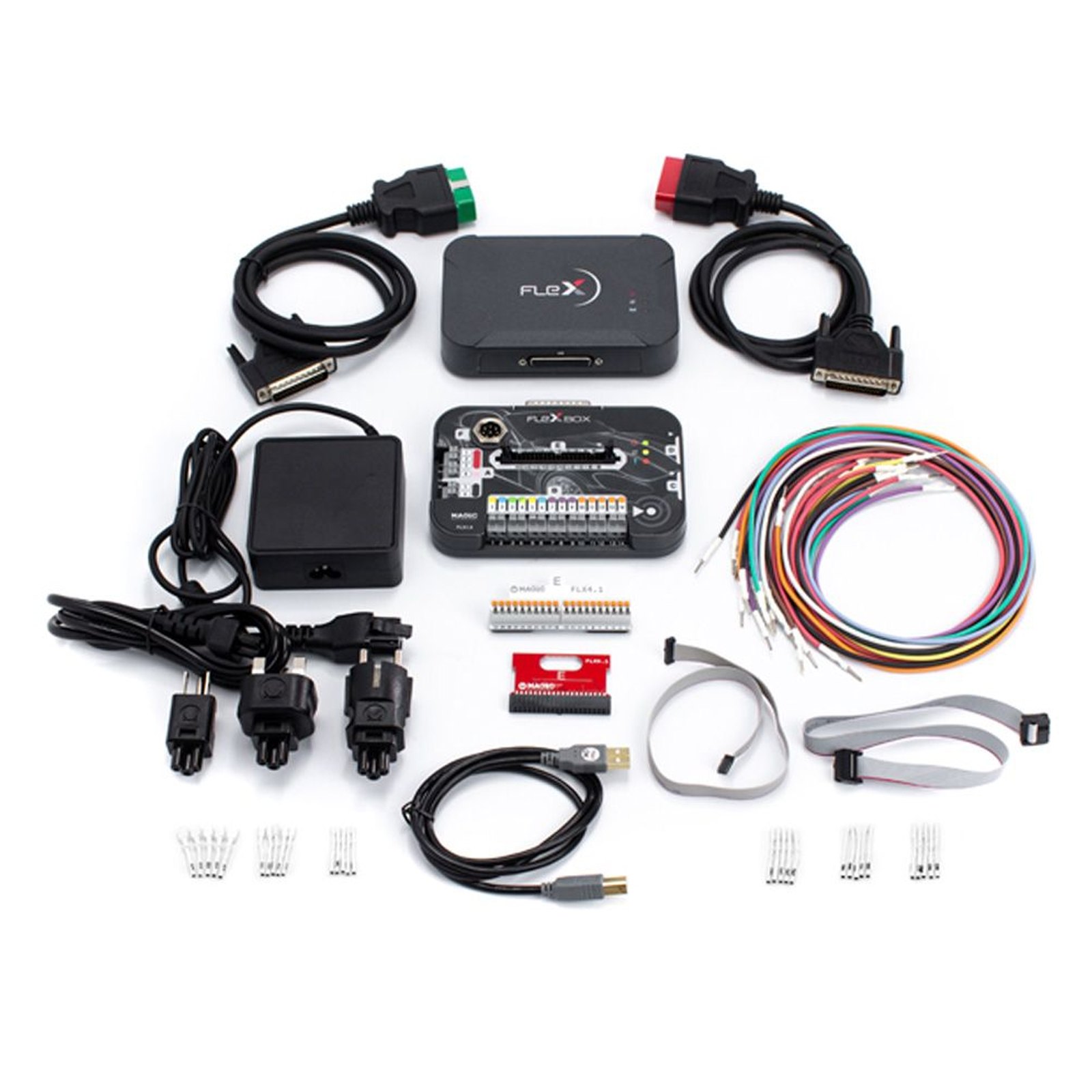

What is in the box

• 1pc Flex OBD Bench ECU Master software for car, van, and motorcycles
• 1pc FLK35 cabling kit: FLX35 color coded wiring harness
• 1pc FLK42 adapter kit: 6-piece pin adapter set to FLX35

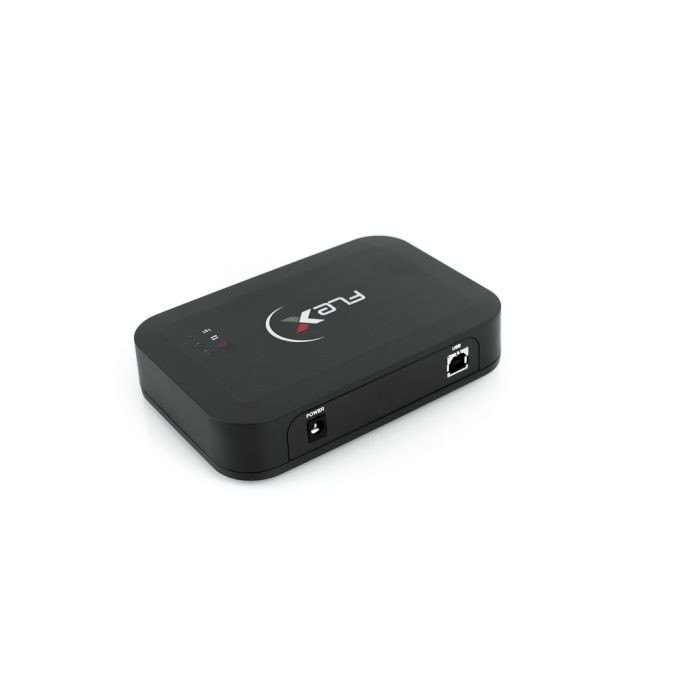

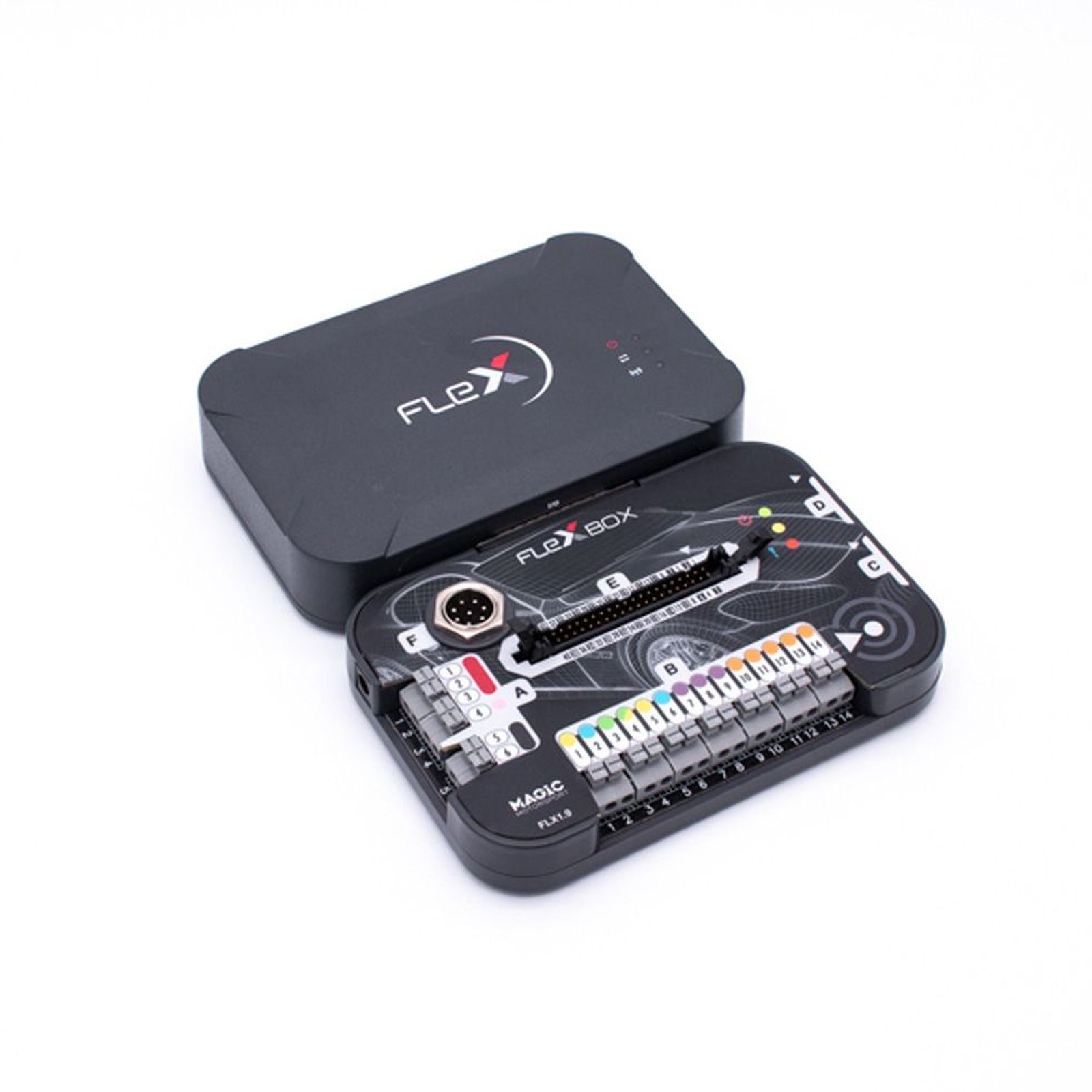

• 1pc FLX1.1 FLEX base module

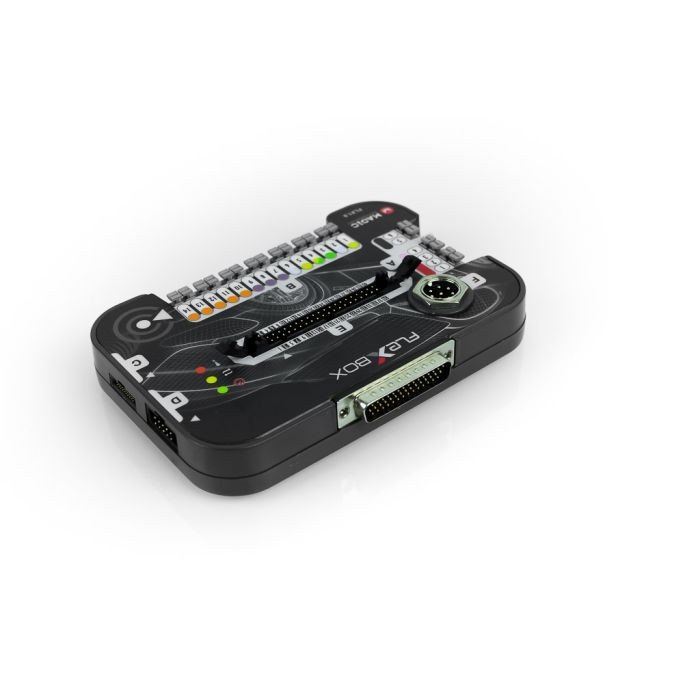

• 1pc FLX1.9 FlexBox module for FLEX
• 1pc FLX2.10 connection cable OBD: FLEX to CAN and Kline, red
• 1pc FLX2.11 connection cable OBD: FLEX to ENet, green
• 1pc FLX3.3 connection cable: FlexBox port C to NEC 7F00 XX
• 1pc FLX3.4 connection cable: FlexBox port D to BDM MPC5xx
• 1pc FLX3.9 connection cable: USB 2.0 AM-BM black 1.8m
• 1pc FLX4.1 FlexBox port E 40-pin adapter for FLK35
• 1pc FLX9.1 FLEX and FlexBox diagnostic adapter
• 1pc FLK49 switch mode power supply for FLEX with plugs
• 1pc FLX8.10 FLEX branded box
• 1pc FLX2.14 OBD female cable
• 1pc FLK43 4-adapter set for FLK35, Flex supplementary kit
• 1pc full Flex software

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
