2026 Magic Motorsport FLEX ECU and TCU Programmer Full Hardware Kit with Master Software (Boot Glitch Unlocking)

The 2026 Magic Motorsport FLEX ECU and TCU Programmer Full Hardware Kit with Master software programs cars, motorcycles, and trucks in OBD, Bench, and Boot modes, including Boot Glitch unlocking. It covers 25,000+ vehicles across cars, trucks, motorcycles, large trucks and buses, and industrial equipment. It recovers many ECU and TCU solutions to OEM specs and clones ECUs. Part number: SE186-FULL.

Versions

Three versions are available at different prices: Hardware Kit Only, Hardware plus OBD Bench ECU Master Software, and Hardware Kit plus FULL Master Software shown here.

Master software package

The Full Master package is the most complete software package for Flex. SKU FLS0.5M.

• Flex ECU OBD plus Bench software
• Flex TCU OBD plus Bench software
• Flex Motorola MPC5xx software
• Flex Nexus MPC5xxx software
• Flex Renesas SH7xxxx software
• Flex Siemens C165, C166, and C167 software
• Flex ST10F2xx software
• Flex NEC software
• Infineon software
• All Magic Motorsport solutions for ECU and TCU
• All programming modes available
• Create your own Slave network with up to 99 mechatronics
• 300 Green Coins per month for helpdesk support

Recent update

• OBD solution for Continental GPECx, specifically GPEC2, GPEC2A, GPEC3, GPEC4, and GPEC4LM engine units
• Bench solution for ZF 9HP48
• Vitesco GPEC4LM control units in Boot and OBD
• VAG 2.0 TFSI (MG1CS031) OBD
• Boot solution for Marelli 11GF engine units
• Unlock and program in OBD mode Bosch MD1CS014 engine units with the latest anti tuning protections
• BMW Marelli MBC1 and MBC2 bench support, software version 8.14.0.0, with new programming for BMW Motorrad and Husqvarna via direct pinout reading

Features

• Programs in OBD, Bench, and Boot modes. Enter the vehicle brand and model or the ECU or TCU code and the software shows the available connection modes
• Software updates every 2 weeks
• Magic Lock file protection: deny access to files saved in engine units to unauthorized users
• Datalogger: collects up to 60,000 parameters in real time, including pressure, torque, air, fuel, exhaust gas temperature, speed, and rpm
• Limited lifetime warranty including repair or replacement service
• Online tech support from 8:00 to 22:00 CET
• First year subscription included. Renewal costs 800 EUR (880 USD) per year

Subscription questions

If the subscription expires, Flex keeps working with all activated protocols and licenses. Only future updates, new protocols, technical support, and warranty coverage stop. Renewing after several missed years requires paying the upgrade fees for the missing years.

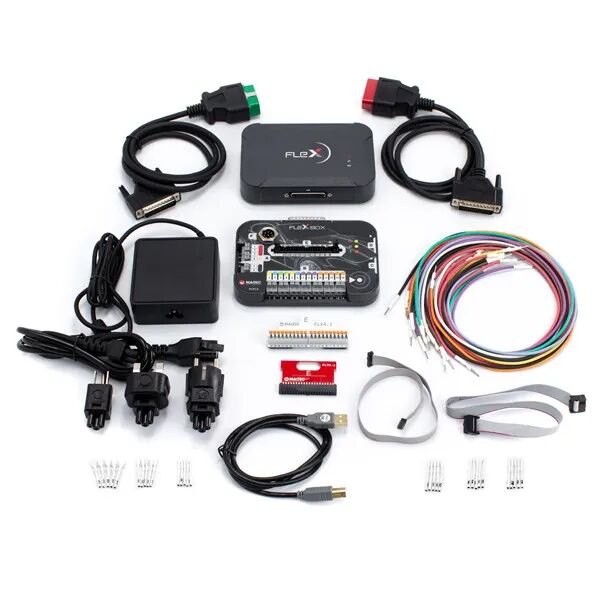

What is in the box

• 1pc FLK35 cabling kit: FLX35 color coded wiring harness
• 1pc FLK42 adapter kit: 6-piece pin adapter set to FLX35

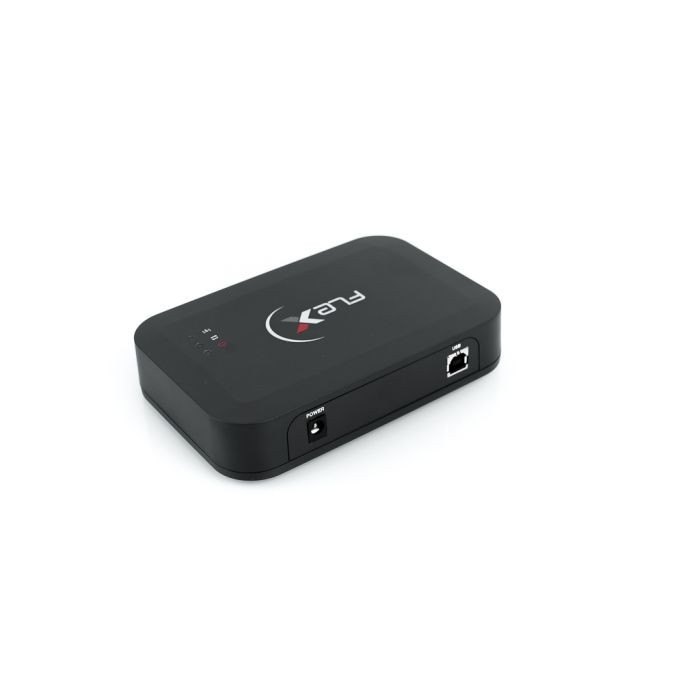

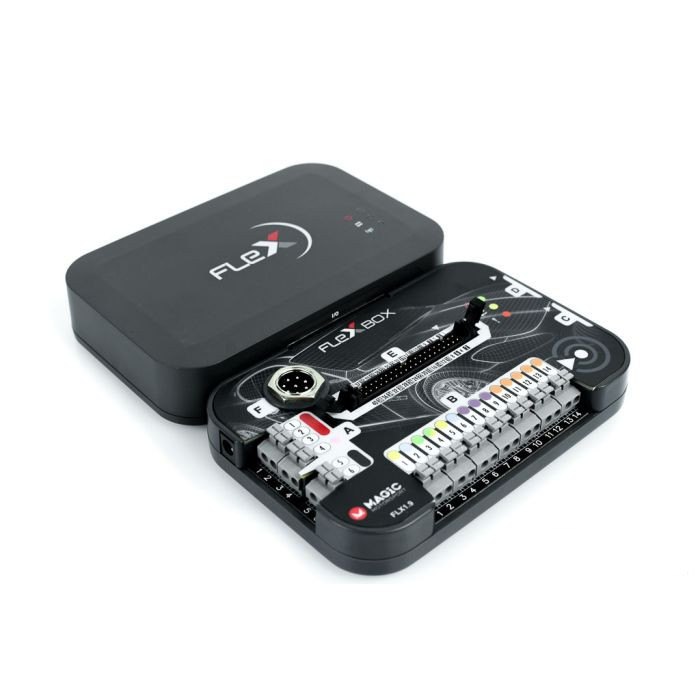

• 1pc FLX1.1 FLEX base module

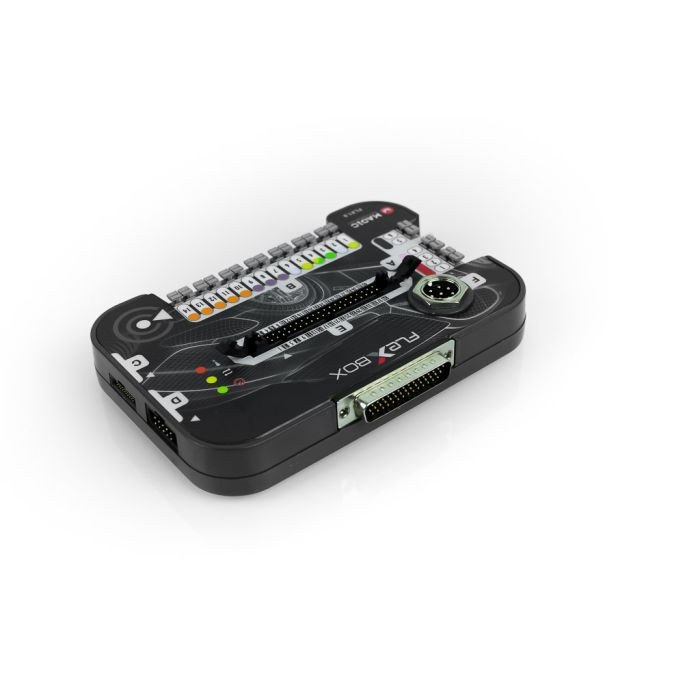

• 1pc FLX1.9 FlexBox module for FLEX
• 1pc FLX2.10 connection cable OBD: FLEX to CAN and Kline, red
• 1pc FLX2.11 connection cable OBD: FLEX to ENet, green
• 1pc FLX3.3 connection cable: FlexBox port C to NEC 7F00 XX
• 1pc FLX3.4 connection cable: FlexBox port D to BDM MPC5xx
• 1pc FLX3.9 connection cable: USB 2.0 AM-BM black 1.8m
• 1pc FLX4.1 FlexBox port E 40-pin adapter for FLK35
• 1pc FLX9.1 FLEX and FlexBox diagnostic adapter
• 1pc FLK49 switch mode power supply for FLEX with plugs
• 1pc FLX8.10 FLEX branded box
• 1pc FLX2.14 OBD female cable
• 1pc FLK43 4-adapter set for FLK35, Flex supplementary kit
• 1pc full Flex software
