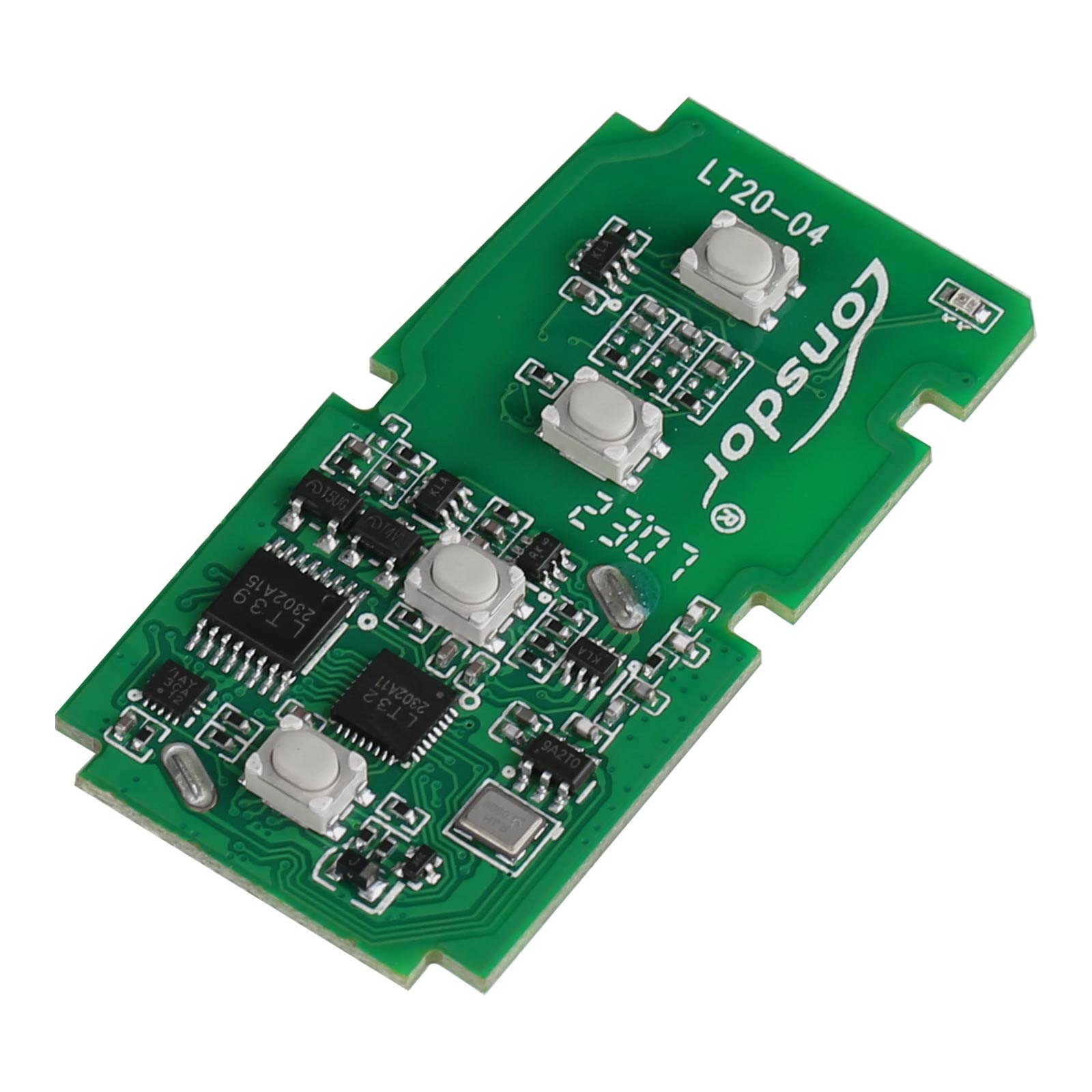

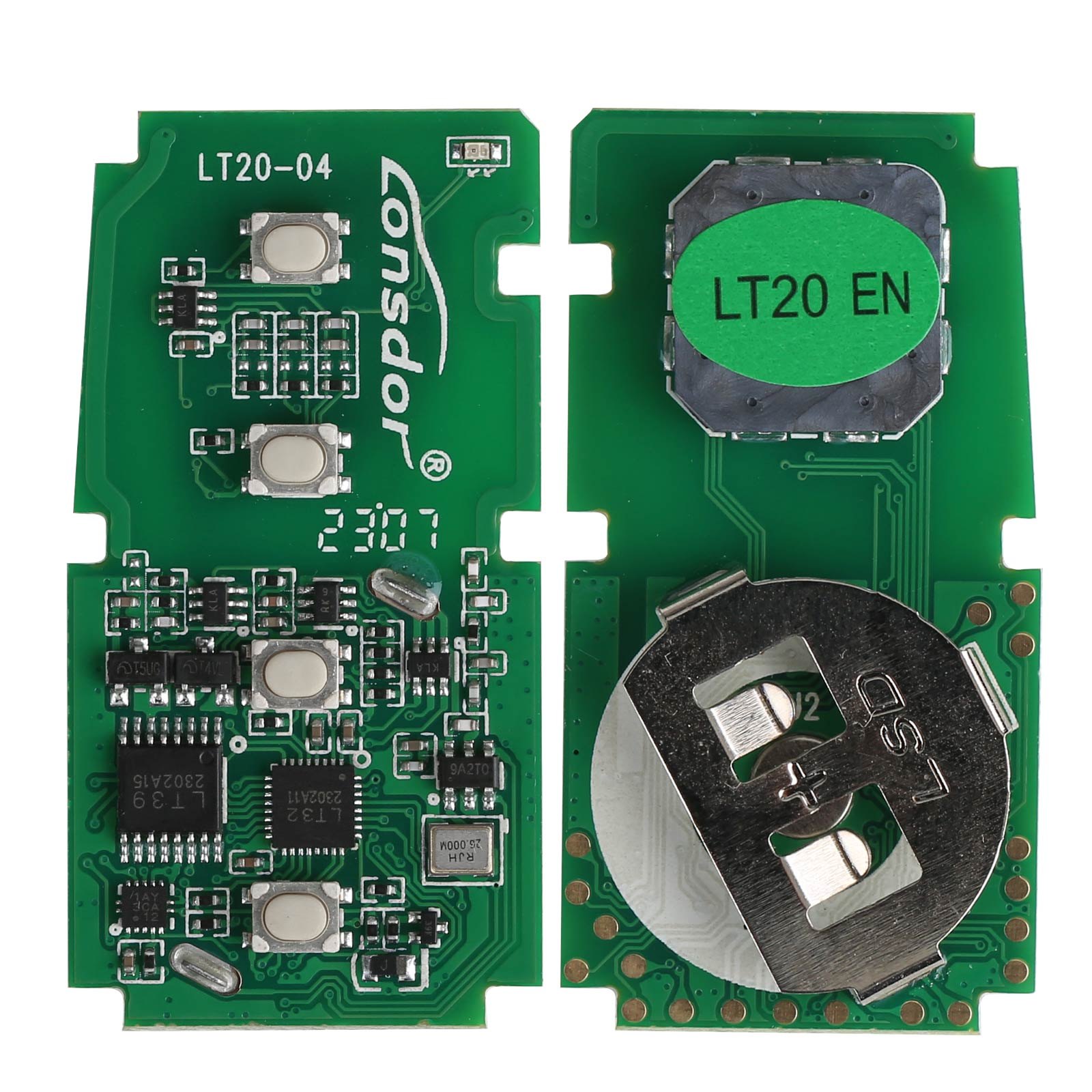

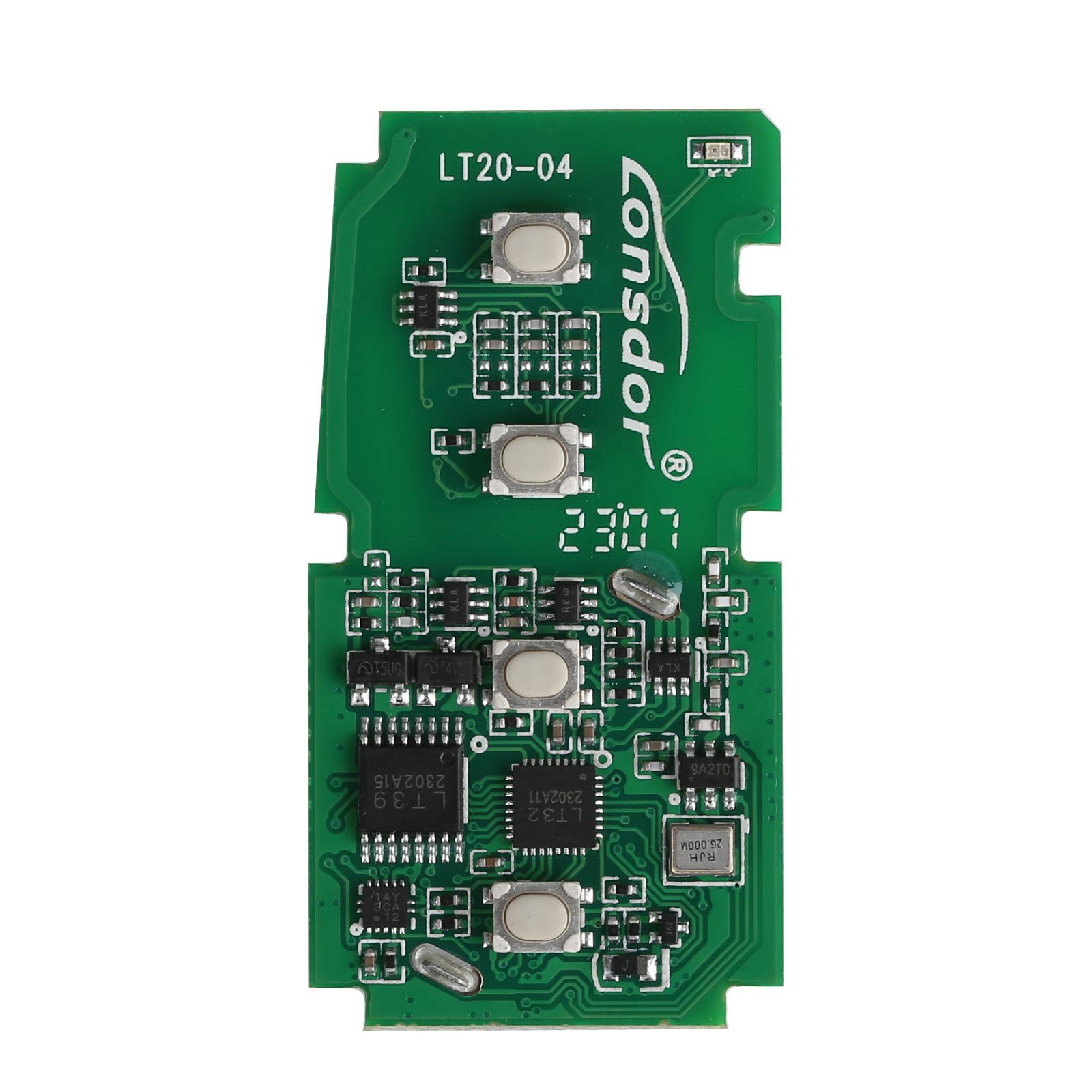

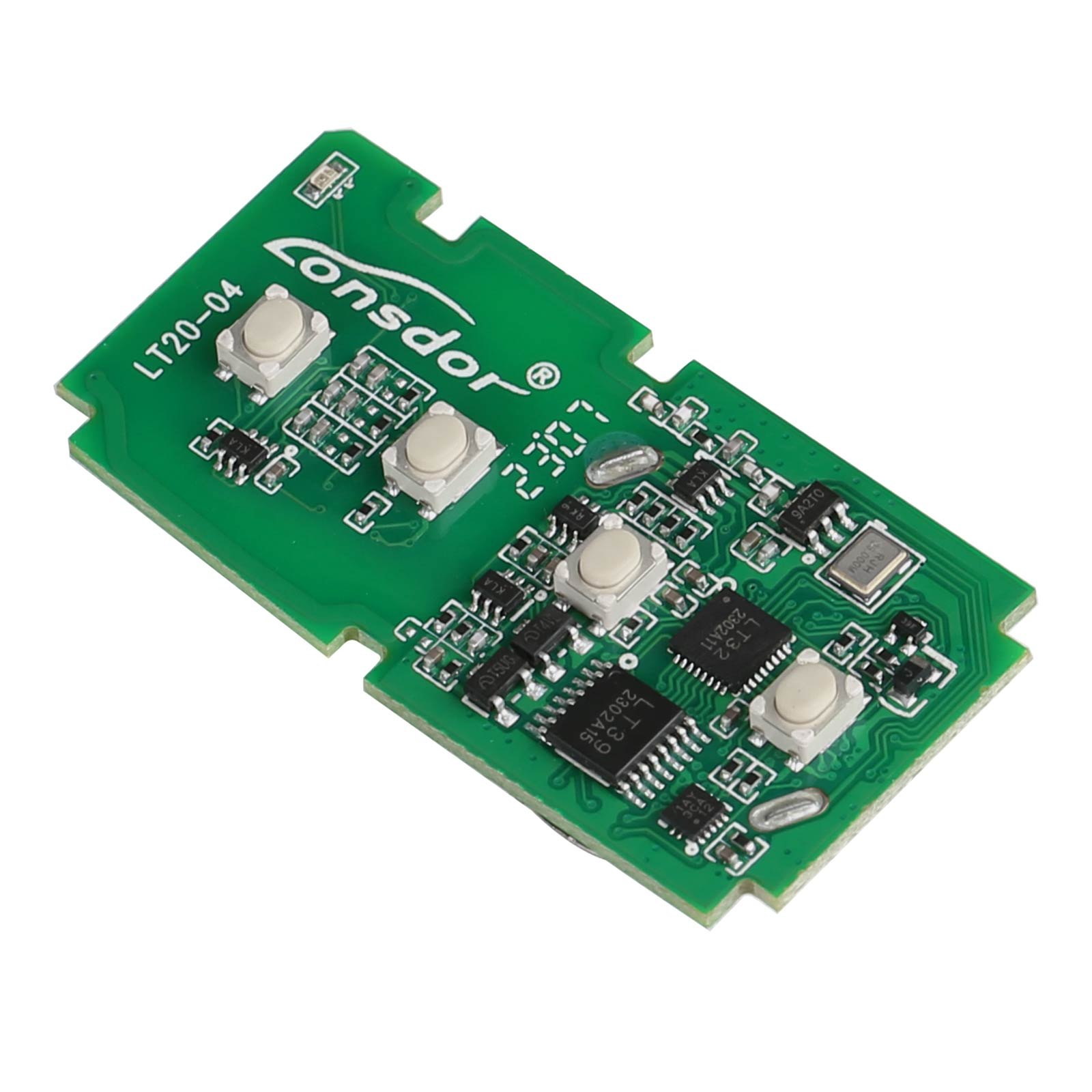

Lonsdor LT20-04 8A+4D Universal Smart Remote PCB 40 / 80 Bit & 8A for Toyota / Lexus 4 Buttons 433 / 315 MHz for K518/ KH100+ Series

A Lonsdor LT20-04 8A and 4D universal smart remote PCB, 40 or 80 bit and 8A, for Toyota and Lexus. It is board number 0010 0011 0182 covering the Yaris L from 2015 to 2022, four button with no panic, full keyless go, on a CR2032 that is not included, for the K518 and KH100+ series.

Specifications

• Note: The difference between Lonsdor LT20 smart keys is the design.
• Board No: 0010 0011 0182
• Support models: Yaris L(2015-2022)
• Buttons: 4
• Manufacturer: Lonsdor
• Condition: New
• Proximity / Smart / Keyless Go: Yes
• Frequency: 433 / 315 MHz
• Panic: No

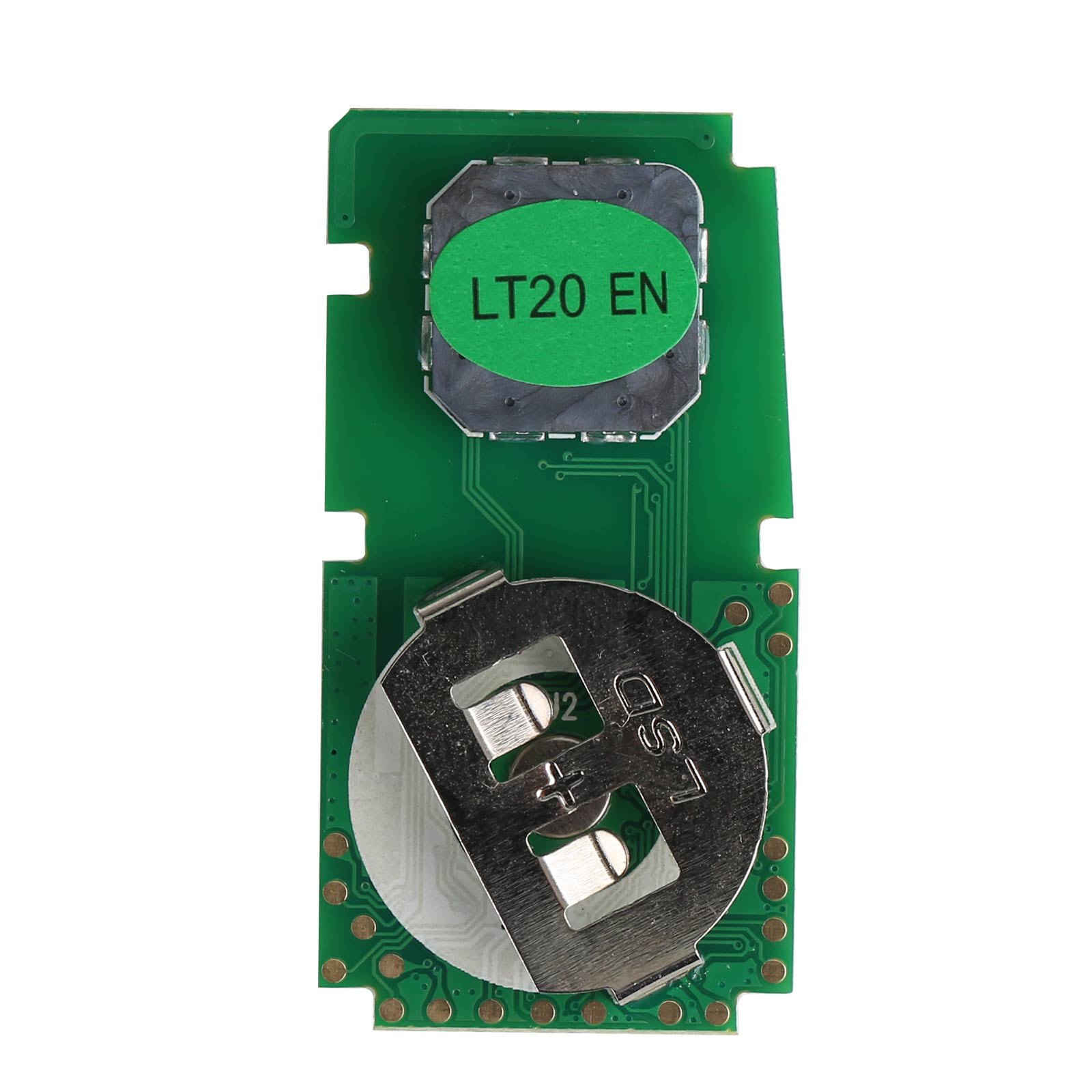

• Battery: CR2032(not included)
• Reusable: Yes
• Region / Market: All countries
• A1: Yes, continue.
• A2: Yes.
• A3: Believe me, LT20-04

What you get

• 1pc x Lonsdor LT20-04 8A+4D Toyota & Lexus Smart Key PCB
• Lonsdor LT20-04 8A+4D Universal Smart Remote PCB 40 / 80 Bit & 8A for Toyota / Lexus 4 Buttons 433 / 315 MHz for K518/ KH100+ Series
• The Lonsdor LT20-04 smart key supports 4D and 8A keys, and currently supports the conversion between 4D and 8A keys for Toyota and Lexus.
• P1/P4
• Frequency（MHz）
• Buttons
• 0020
• P4 [00 00 88 88]
• 314.35/315.10/312.09/314.35/433.58/434.42
• Lock, unlock, trunk,panic
• 7930
• P1 [ 98 ]
• 312.00/ 314.35/315.12/433.92
• 2110
• P4 [00 00 A8 A8]
• 314.35/315.10/312.09/314.35/433.58/434.42/312.50/314.00
• 0010
• 433.58/434.42/312.09/314.35

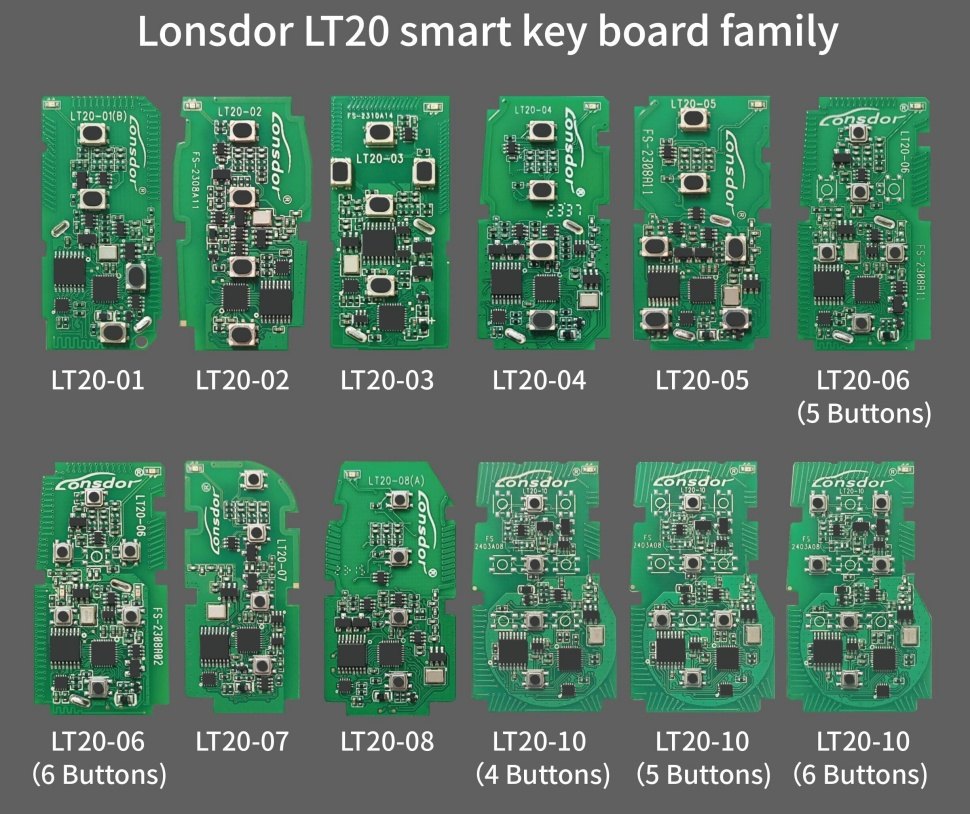

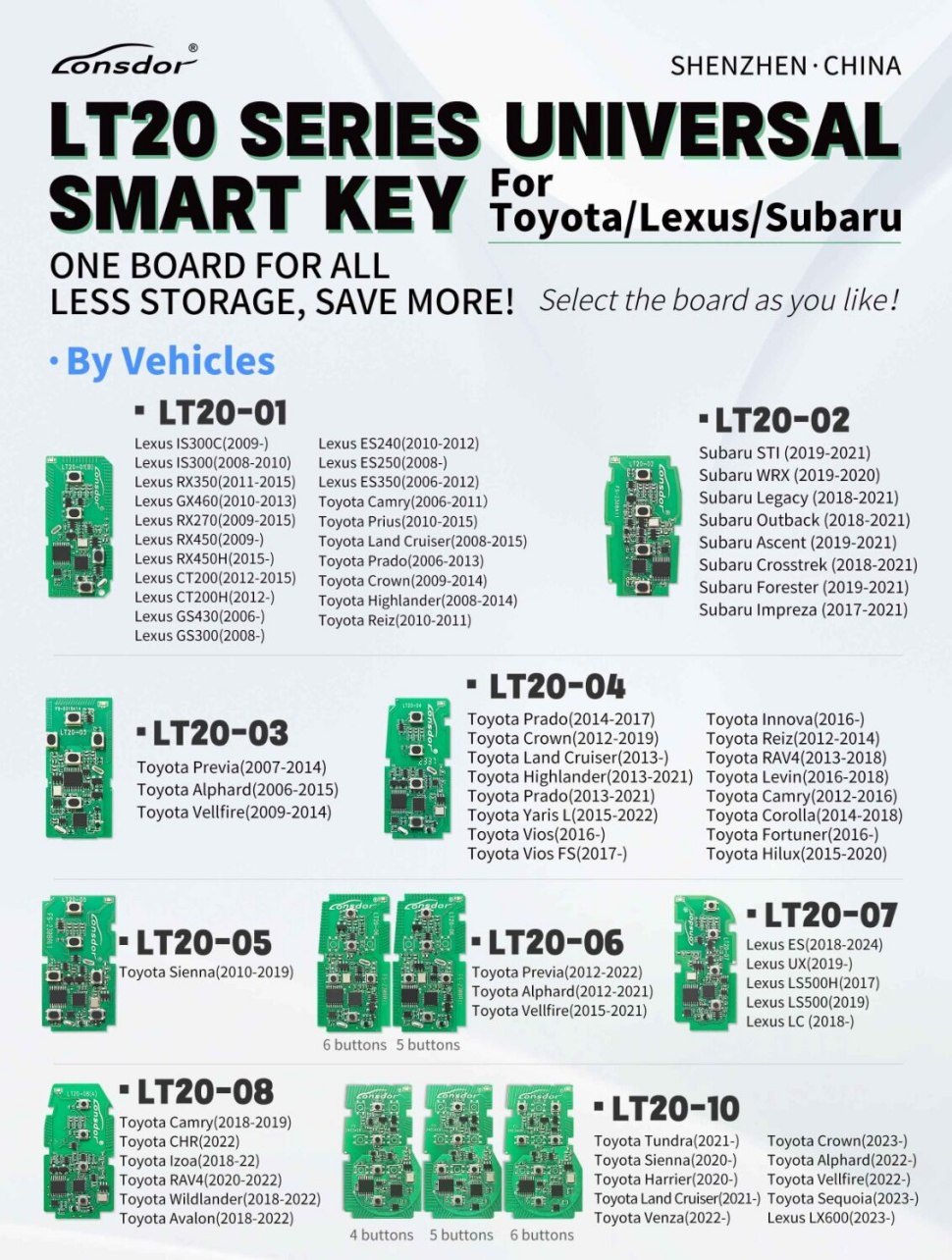

• Lonsdor LT20 Series Universal Smart Key
• Lonsdor LT20-01 Smart Key PCB For Toyota + Lexus Smart Key 2007+ Board number: 3370, 0410, A433, F433, 5290, etc
• Lonsdor LT20-02 Smart Key PCB For Subaru Smart key Board number: 5801, 7000
• Lonsdor LT20-03 Smart Key PCB For Toyota Smart key 2007+ Board Number: 0780, 0500, 0091, etc...
• Lonsdor LT20-04 Smart Key PCB For Toyota + Lexus Smart Key 2011+ Board number: 2110, 0020, 0010, 0101, 7930, 0182, etc
• Lonsdor LT20-05 Smart Key PCB For Toyota Sienna Smart Key 2010+ Board version: 5691
• Lonsdor LT20-06 Smart Key PCB For Toyota Smart Key 2012+ Board number: 5380, 0120, etc.
• Lonsdor LT20-07 Smart Key PCB For Lexus Smart Key 2018+ Board number: 0440, 3410, etc.
• Lonsdor LT20-08 Smart Key PCB For Toyota Smart Key 2018+ Board number: 0410, 0351, 3450, 3330, etc.
• Lonsdor LT20-10 Smart Key PCB For Toyota/Lexus
• LT20 NEWLY SUPPORT
• Toyota lexus 8A with P4 Page: 3939
• Vios FS(2017-) Vios(2016-)
• Hilux(2015-2020)
• K518 series
• KH100P
• Can be got version information of by.
• Can be read button functions by.
• Button's functions can be converted.
• Can be unlocked by K518 and KH100P.
• Frequency can be modified by.
• Copy smart key by K518, KH100P negative.
• Can be converted SW model by.
• Remote counting data can be modified.
• Emergency key can be generated.
• 2015 - 2021 Toyota Camry
• 2015 - 2019 Toyota Corolla
• 2019 - 2019 Toyota C-HR
• 2015 - 2021 Toyota RAV4
• 2016 - 2021 Toyota Land Cruiser
• 2015 - 2021 Toyota Highlander (PIN required for 2021)
• Q1, Would FT series boards continue producing?
• Q2, Are LT20 series including 7000D for Subaru?
• Q3, I bought lots of 8A universal smart key boards P0020B before, which product number of LT20 series should I order to have same functions and more stable quality than vv38?

Lonsdor note the LT20 keys differ by design rather than function, so pick on the board number.
