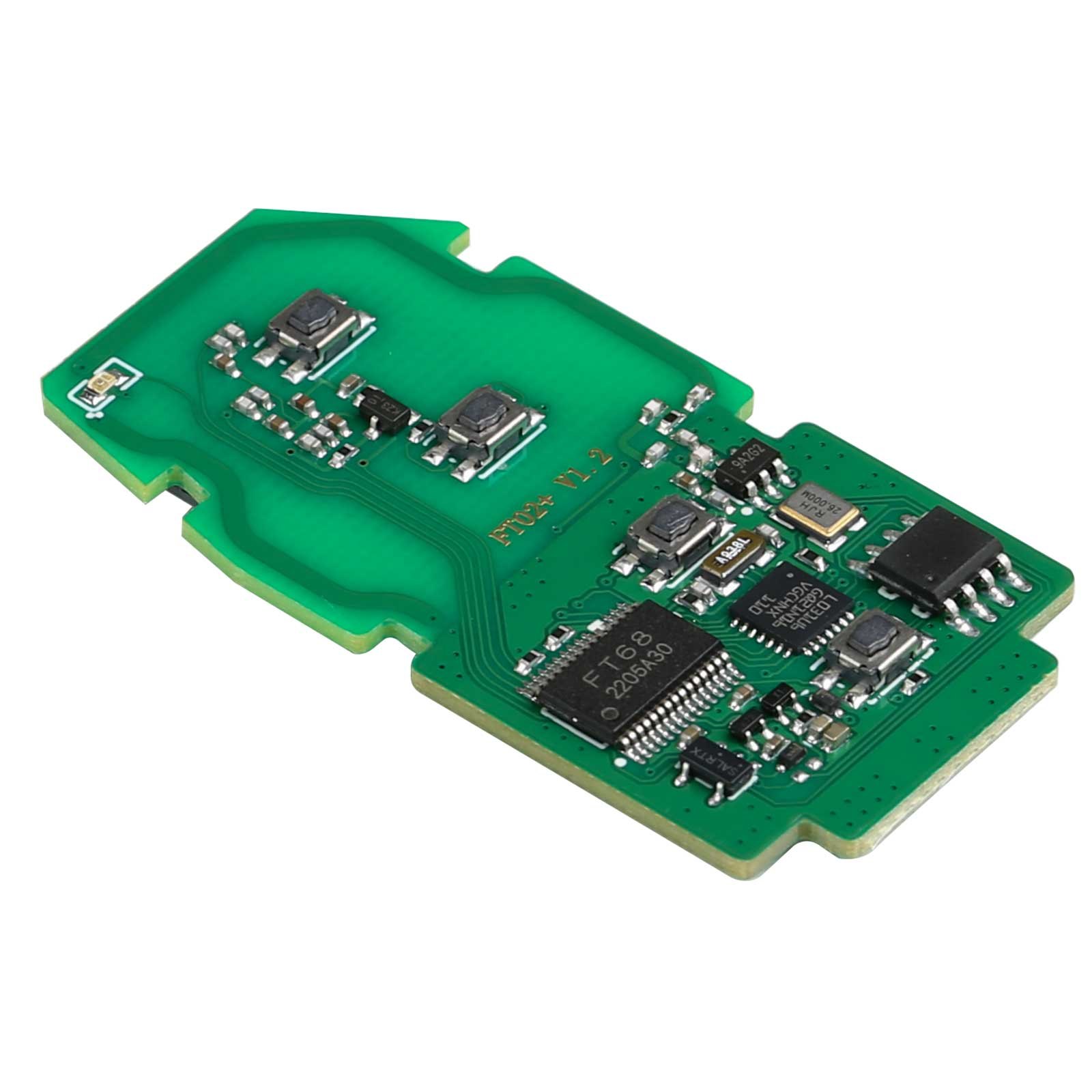

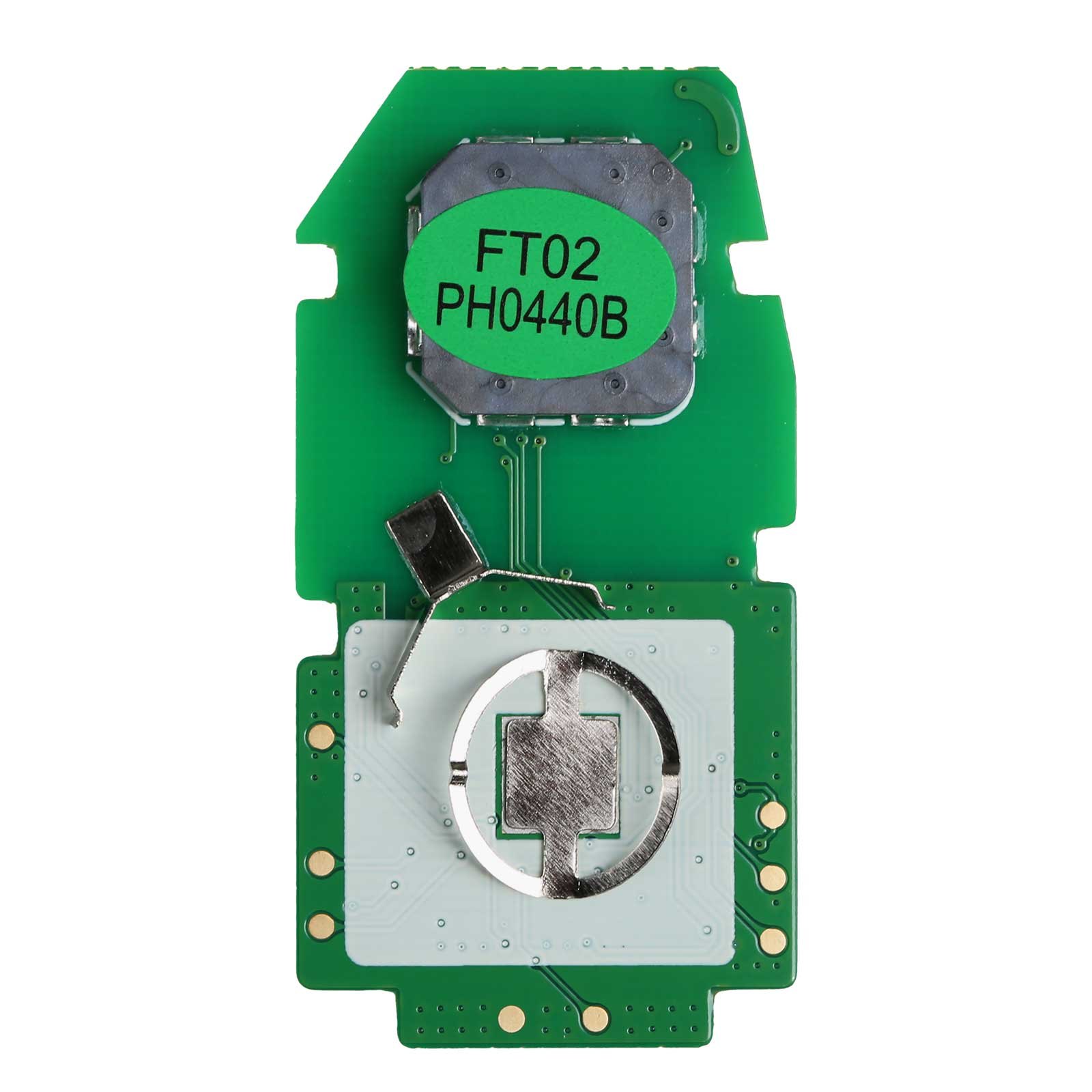

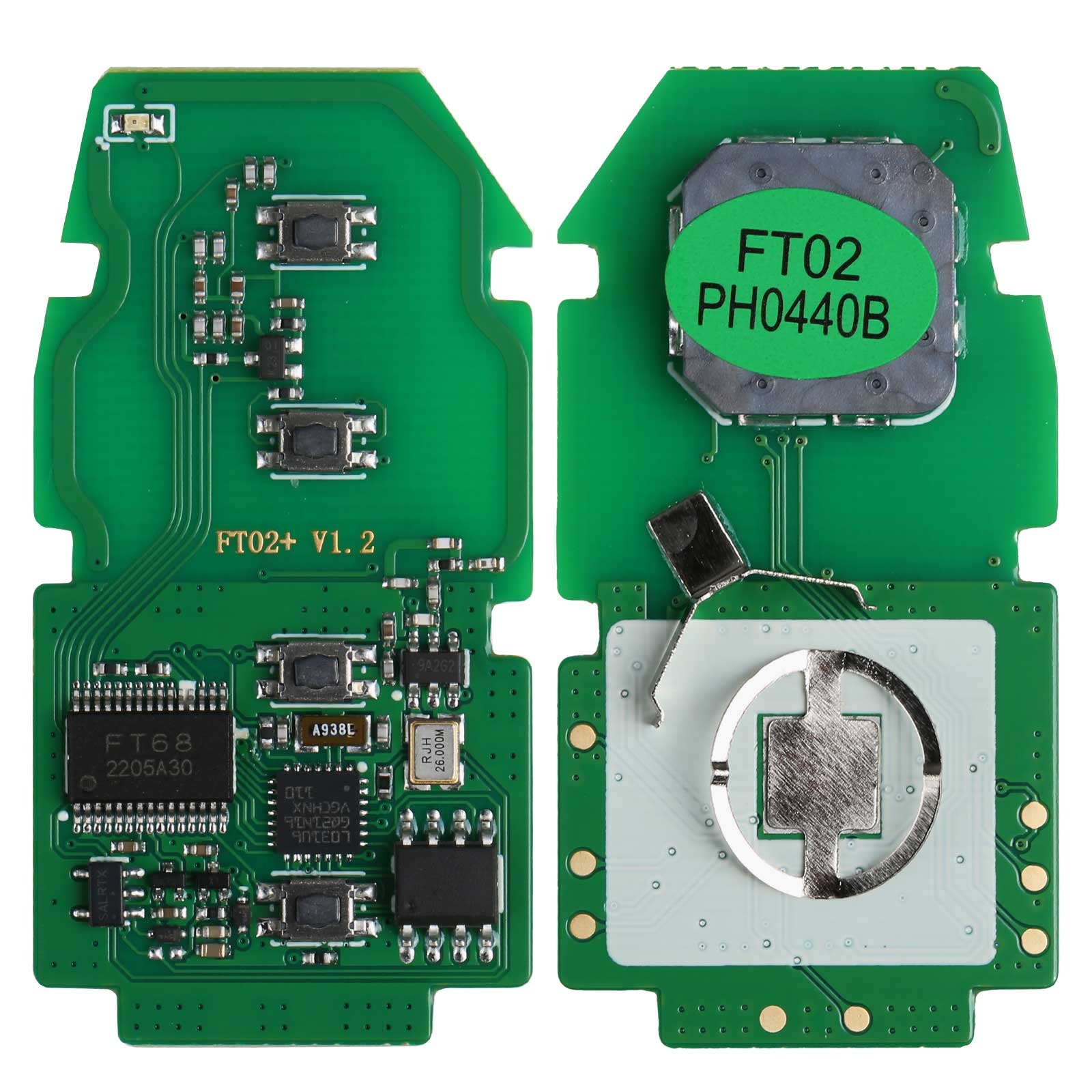

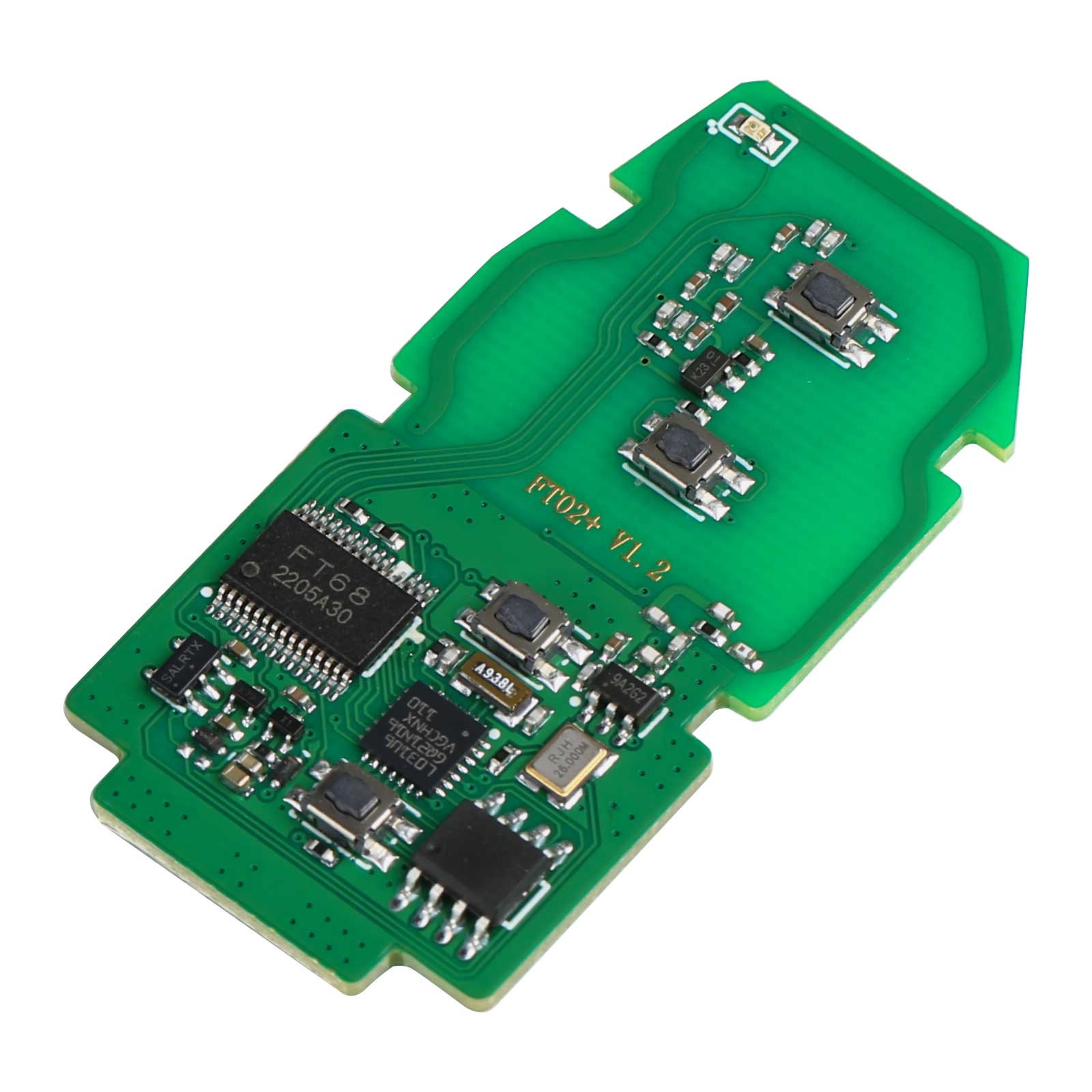

Lonsdor FT02 PH0440B Update Version of FT11-H0410C 312/314 MHz Toyota Smart Key PCB Frequency Switchable

Lonsdor FT02 PH0440B Toyota smart key PCB, updated version of FT11-H0410C with expanded old Toyota 8A model support.

Vehicle coverage

• Toyota 8A models (0410 and 0440 chip types)

Functions

• Collection: Collects data from existing keys to generate a replacement key in emergency or all-keys-lost situations
• Simulation: Emulates a working key to light up the instrument panel (limited functions compared to full LKE)
• Copy: Duplicates key data with functions equivalent to FT11-H0410B
• Matching: Programs directly as a new working key on the vehicle

Specs

• Model: FT02 PH0440B
• Frequency: 312/314 MHz (switchable)
• Transponder: Supports 9100A9A9 (0410) old models and 9100AAAA (0440) new models
• Replaces: FT11-H0410C

Note: Toyota AKL Online Calculation Activation is required to use this PCB.

Package includes

• 1pc x Lonsdor FT02 PH0440B 433.58/434.42 Toyota Smart Key PCB
