GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

The GODIAG GT115, an MQB IMMO4 POGO PIN test platform with a data collector and an ELV, TCM and DSG gearbox adapter. It detects keys and IMMO modules together, runs standalone engine diagnostics, tests BCM modules through the gateway and reads and writes the dashboard over POGO pins, with live supply voltage, module current and 2032 battery voltage monitoring.

Specifications

• Size: 35MB
• Synchronous Detection: Effortlessly detect keys and vehicle IMMO modules.
• Independent Diagnostics: Perform standalone diagnostics for engine and power expansion modules.
• Gateway Communication: Conduct communication diagnostics and programming tests for engine and power modules via the gateway.
• POGO PIN Technology: Read and write data to the dashboard with precision and stability.
• Comprehensive Testing: Test BCM modules through the gateway for seamless communication and programming.
• Real-Time Monitoring: Display current power supply voltage and module current for accurate diagnostics.
• Battery Voltage Detection: Ensure optimal performance with 2032 battery voltage detection.
• Connect the power supply [Note: the power switch must be off].

What you get

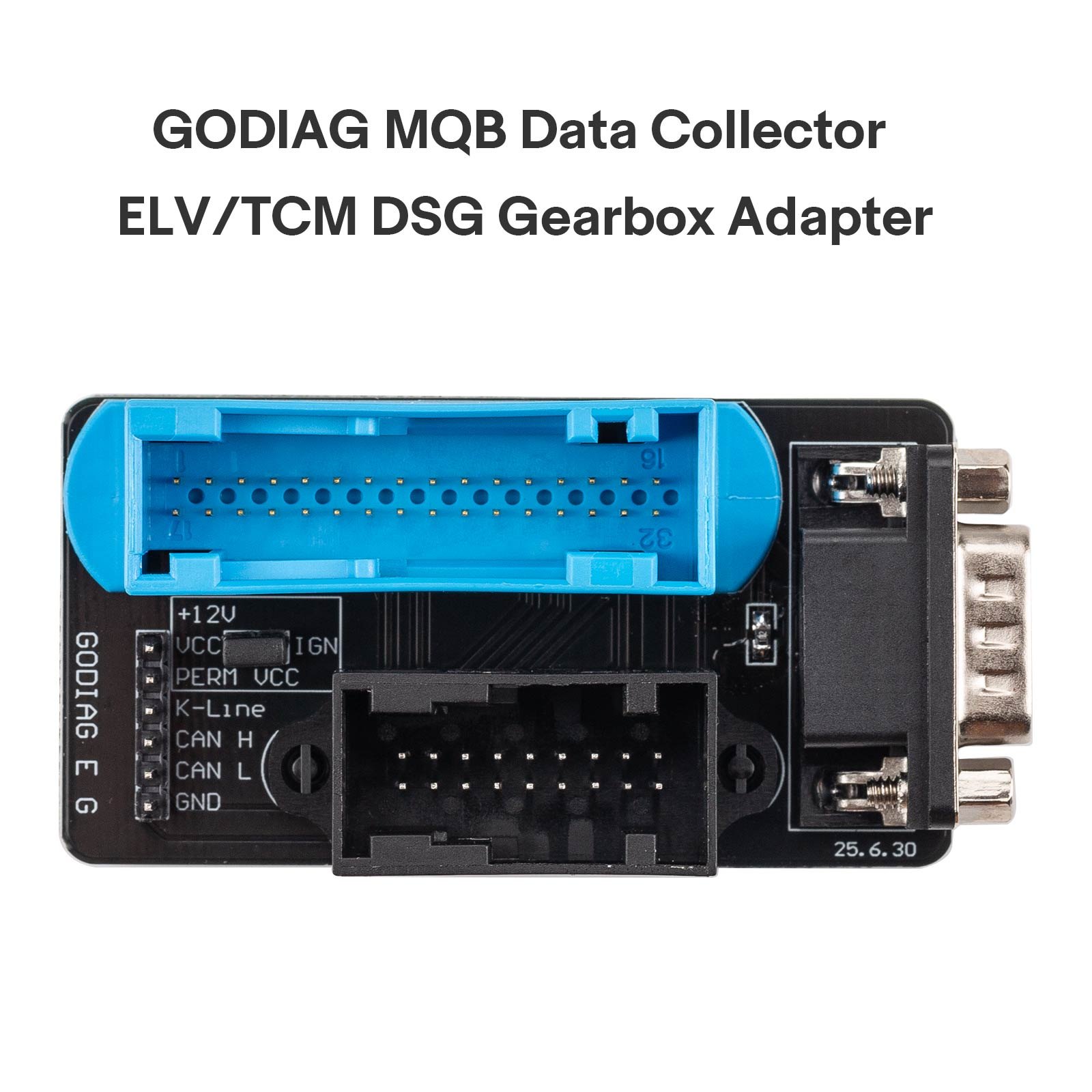

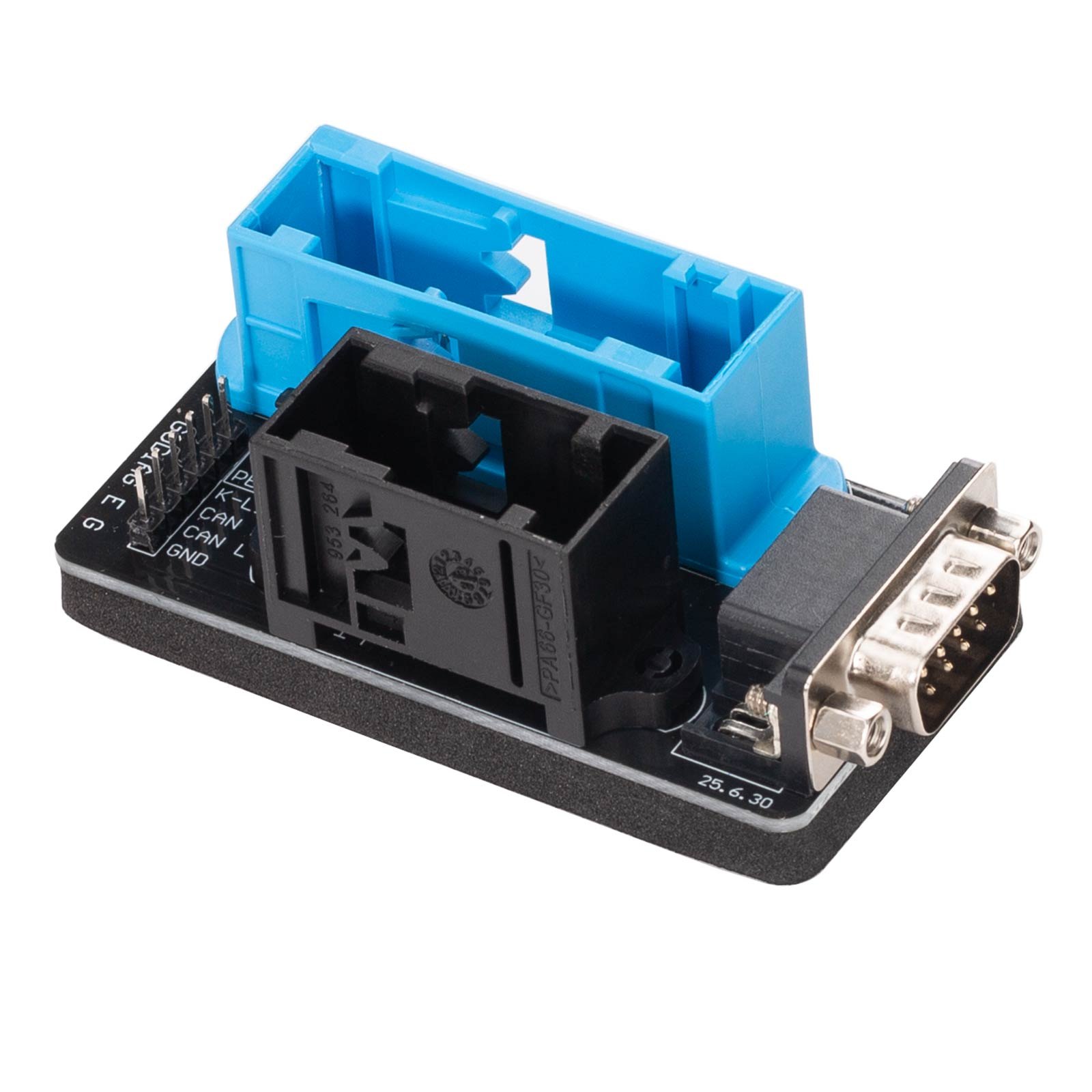

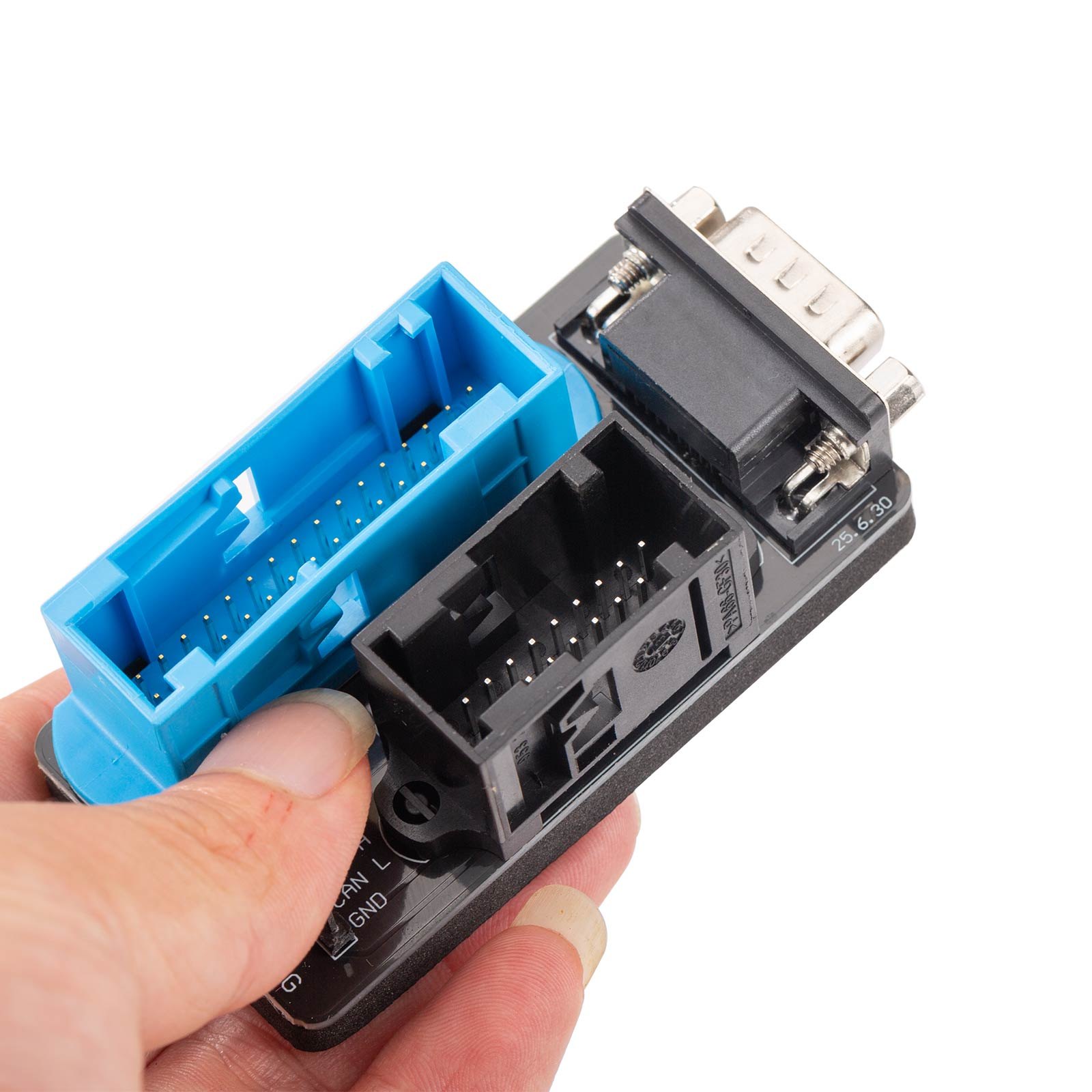

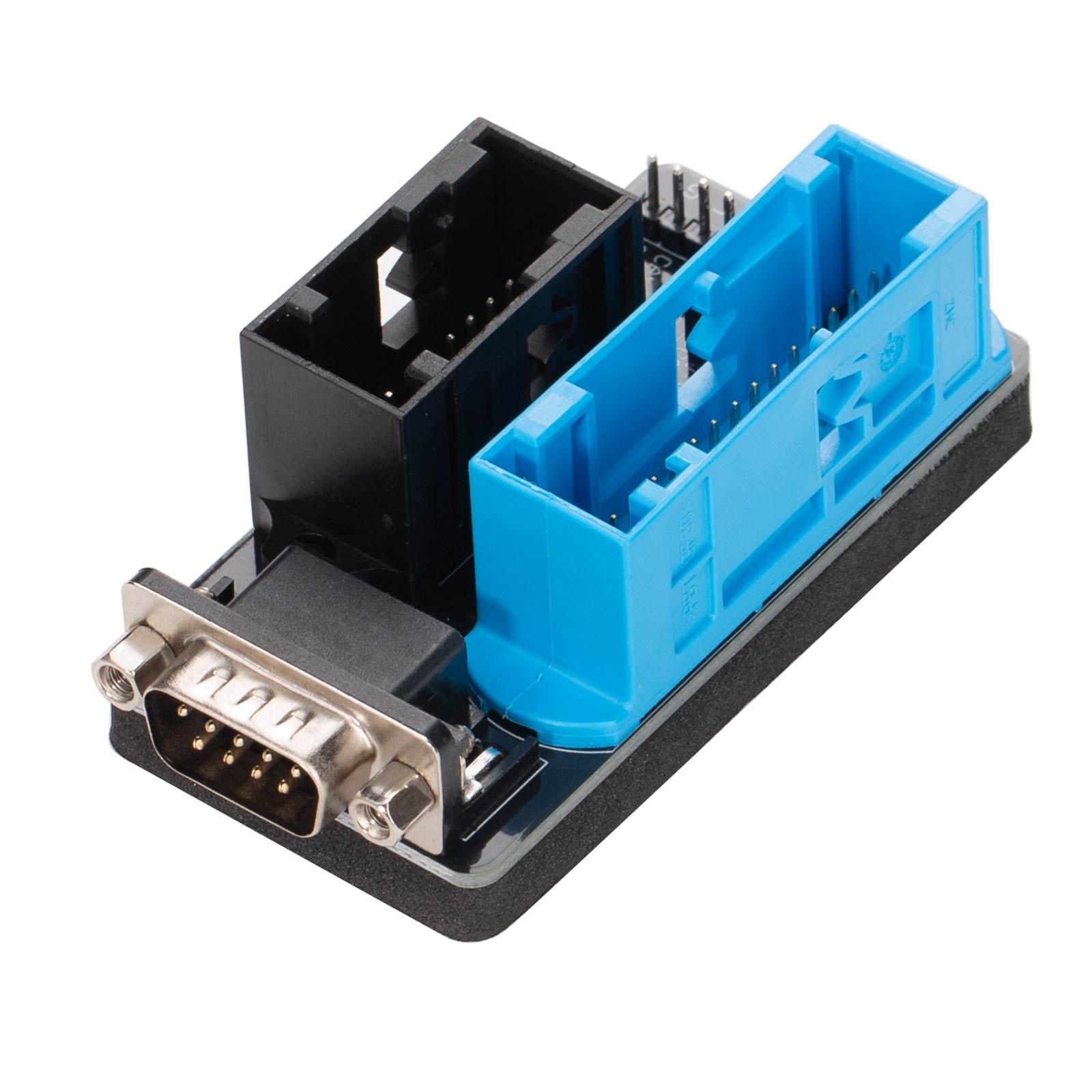

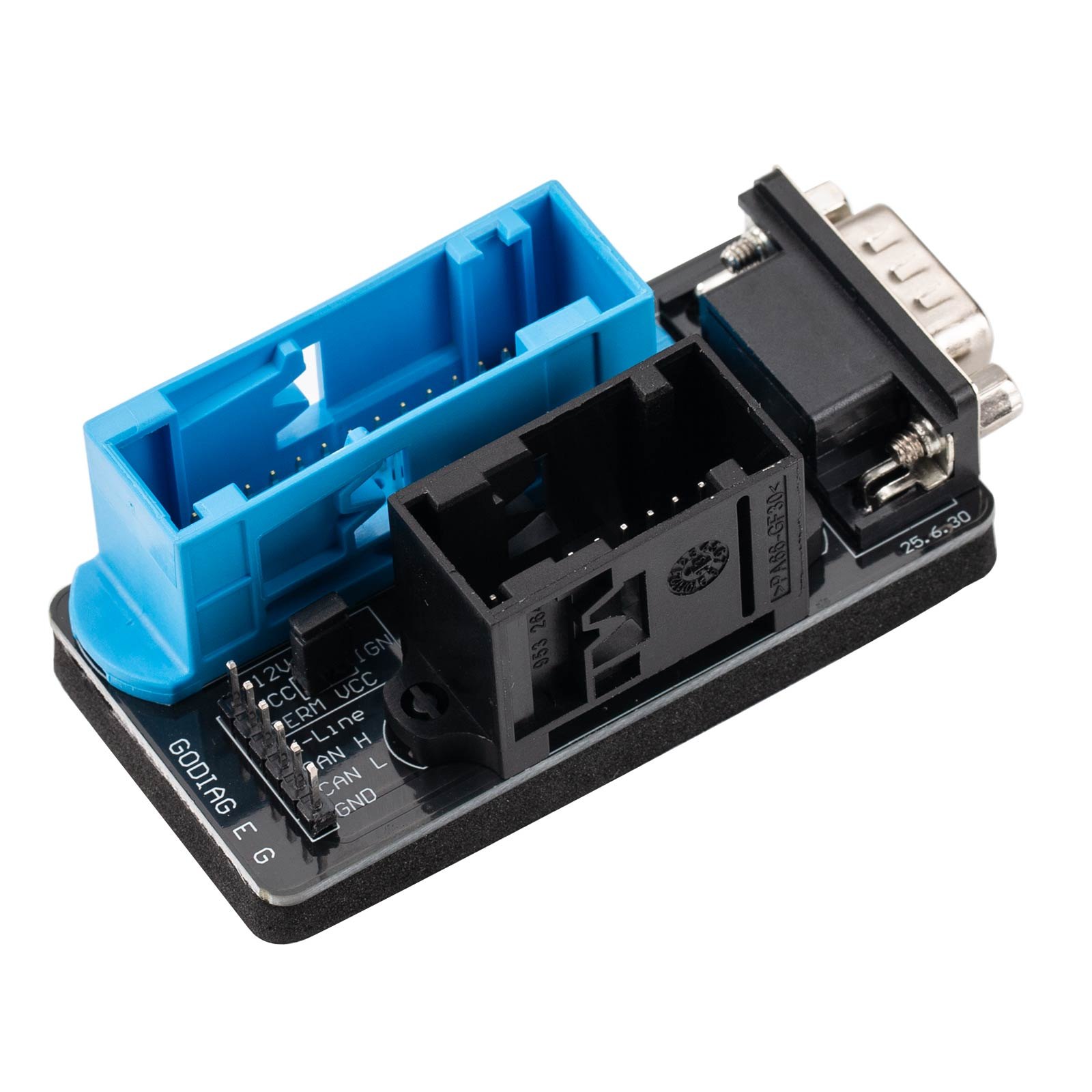

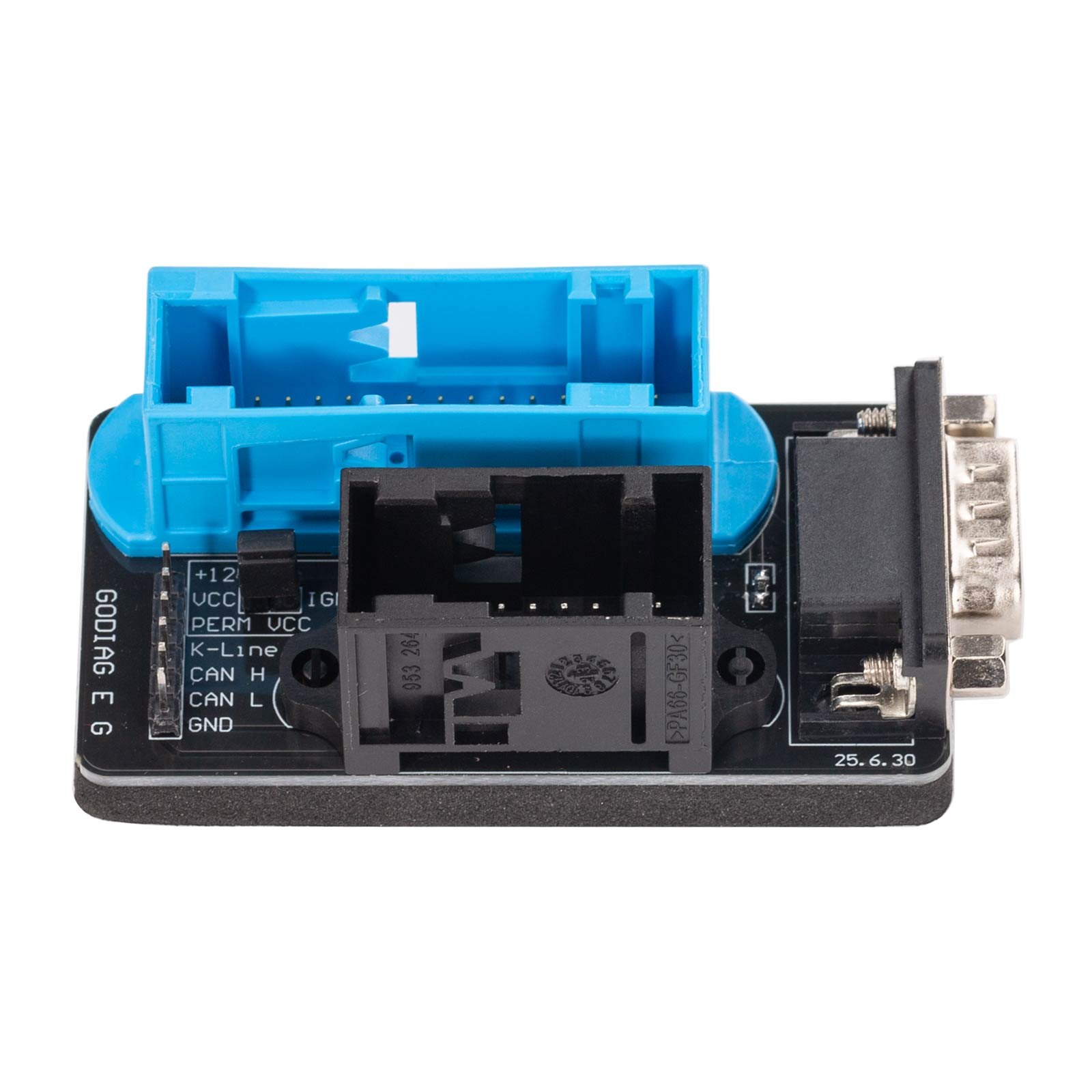

• 1pc x GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

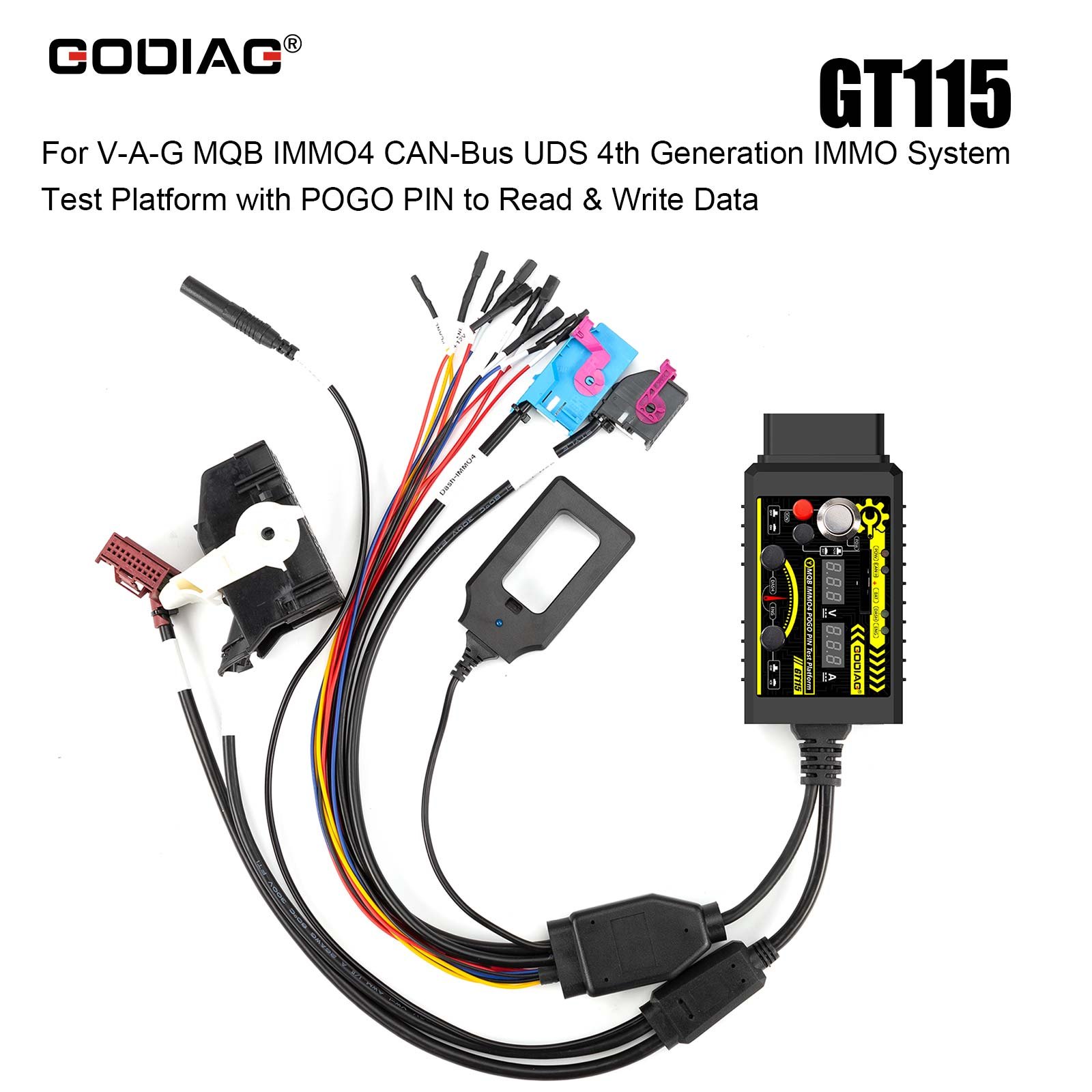

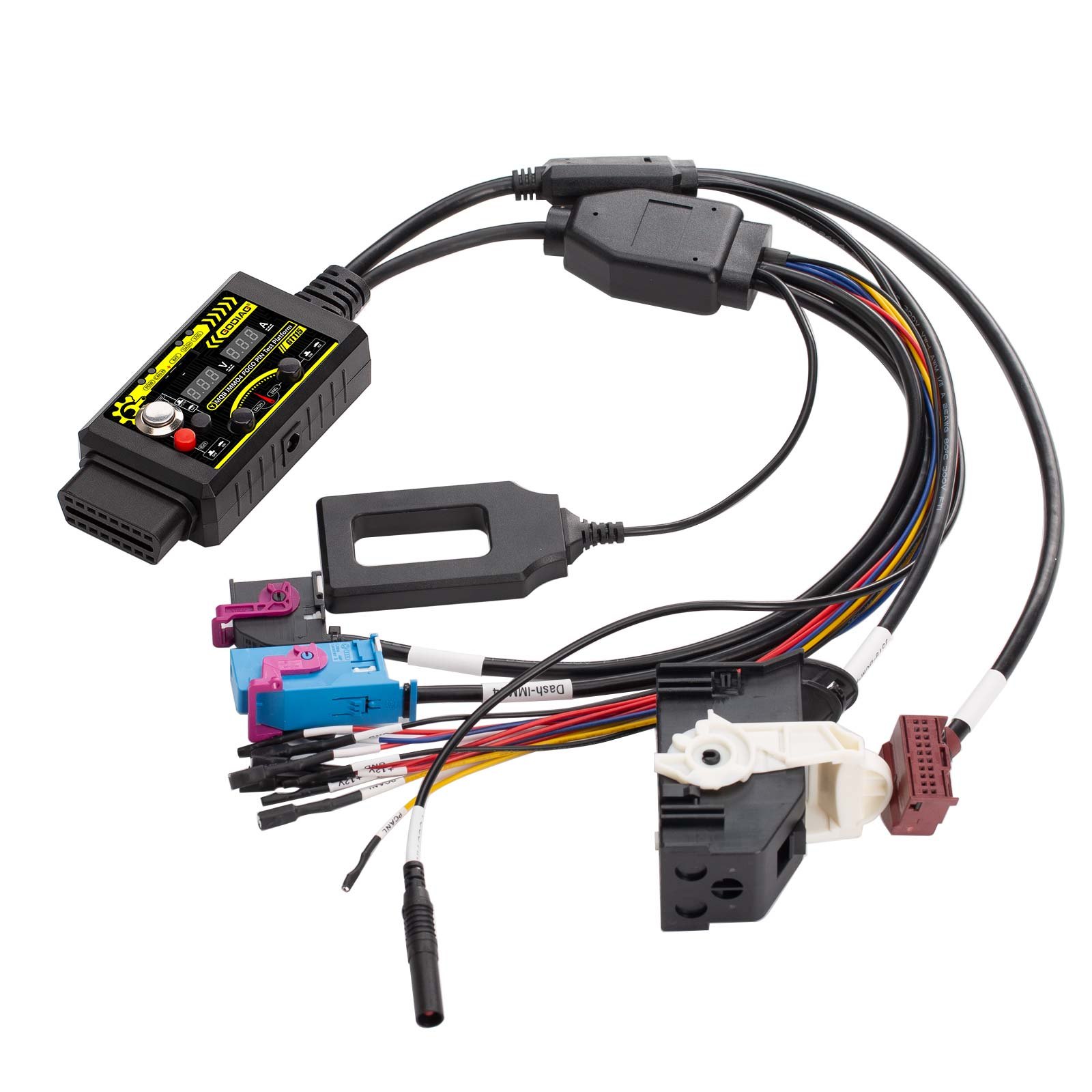

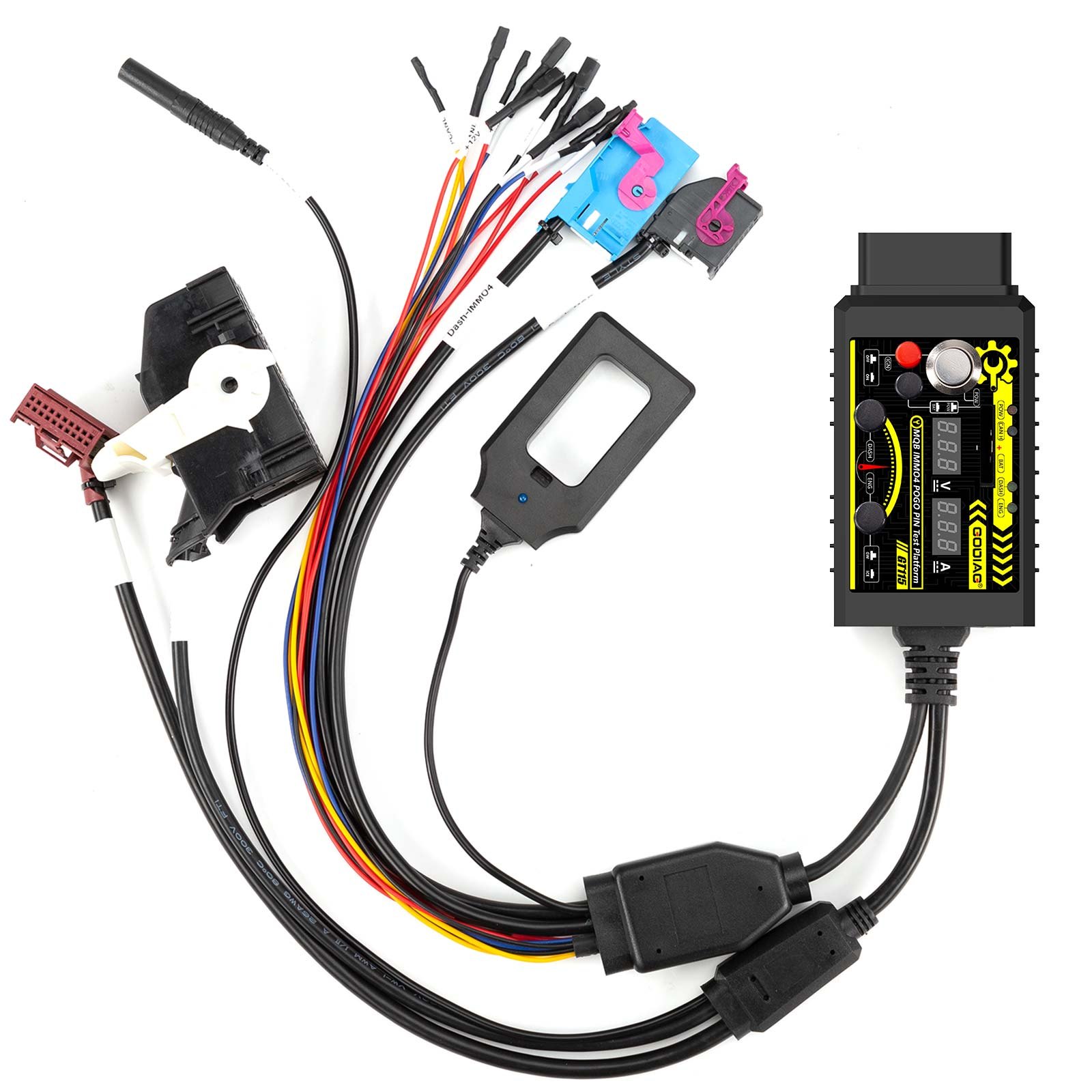

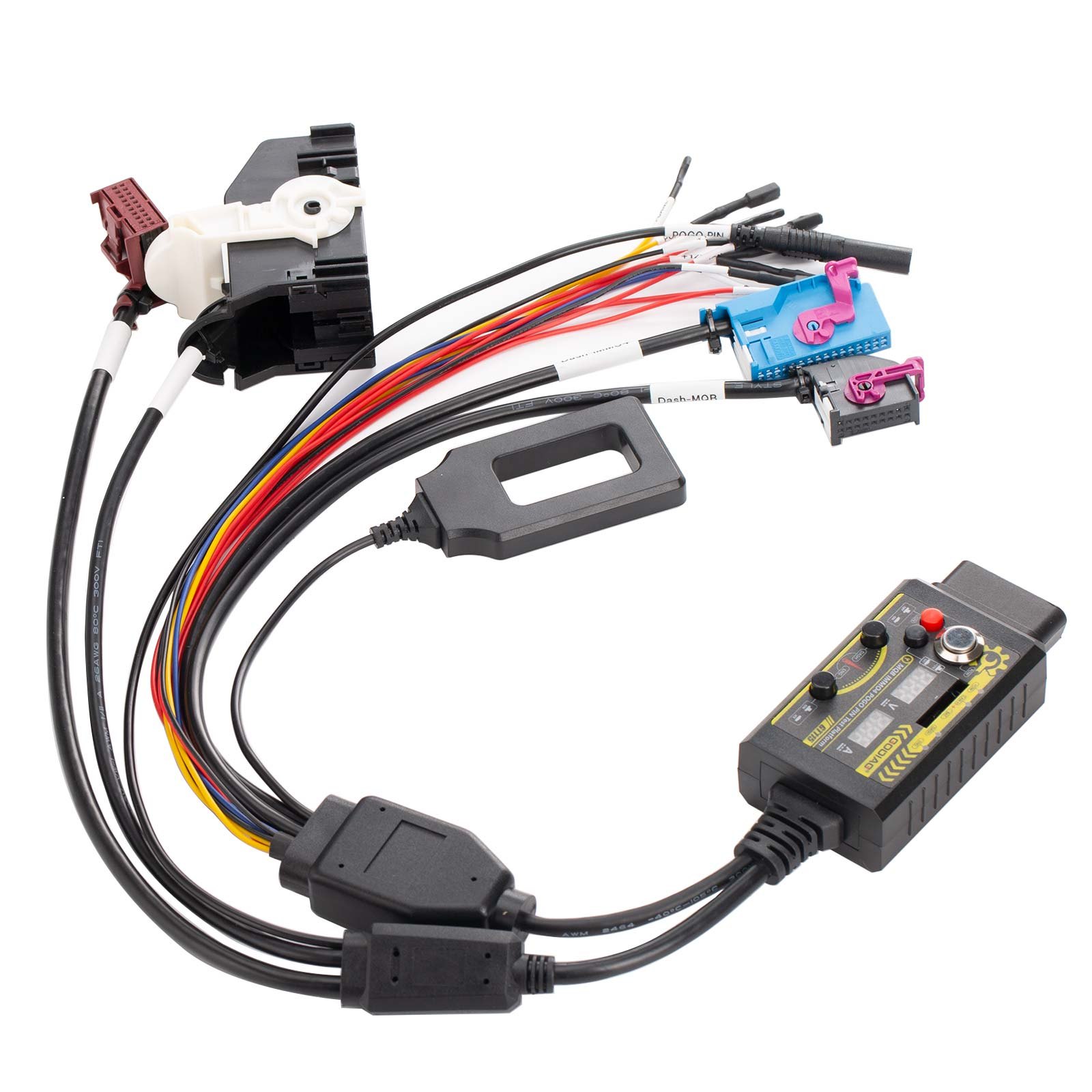

• 1pc x GODIAG GT115 MQB IMMO4 POGO PIN Test Platform
• New and old versions will be shipped randomly.
• Add a DB9 plug to work with GODIAG Gearbox Cable 9-in-1 Set and GODIAG Gearbox Cables 7-in-1 Set
• GODIAG GT115 is a connecting cable designed for the MQB IMMO system, enabling engineers to conveniently perform off-vehicle operations such as IMMO programming, matching, and diagnostics on the MQB IMMO system. Moreover, it has a POGO PIN to read and write data to the dashboard, which is more stable to hold and does not damage the cable. With GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter to collecte ELV data.
• GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter
• Synchronous detection of key and vehicle IMMO module
• Independent diagnosis of engine and power expansion module.
• Communication diagnosis and programming test of engine module and power module through gateway module
• IMMO 4th generation POGO PIN read and write data and key synchronization detection
• Connect BCM module with gateway module for communication diagnosis and programming test(Note: Press the corresponding switch when required.)

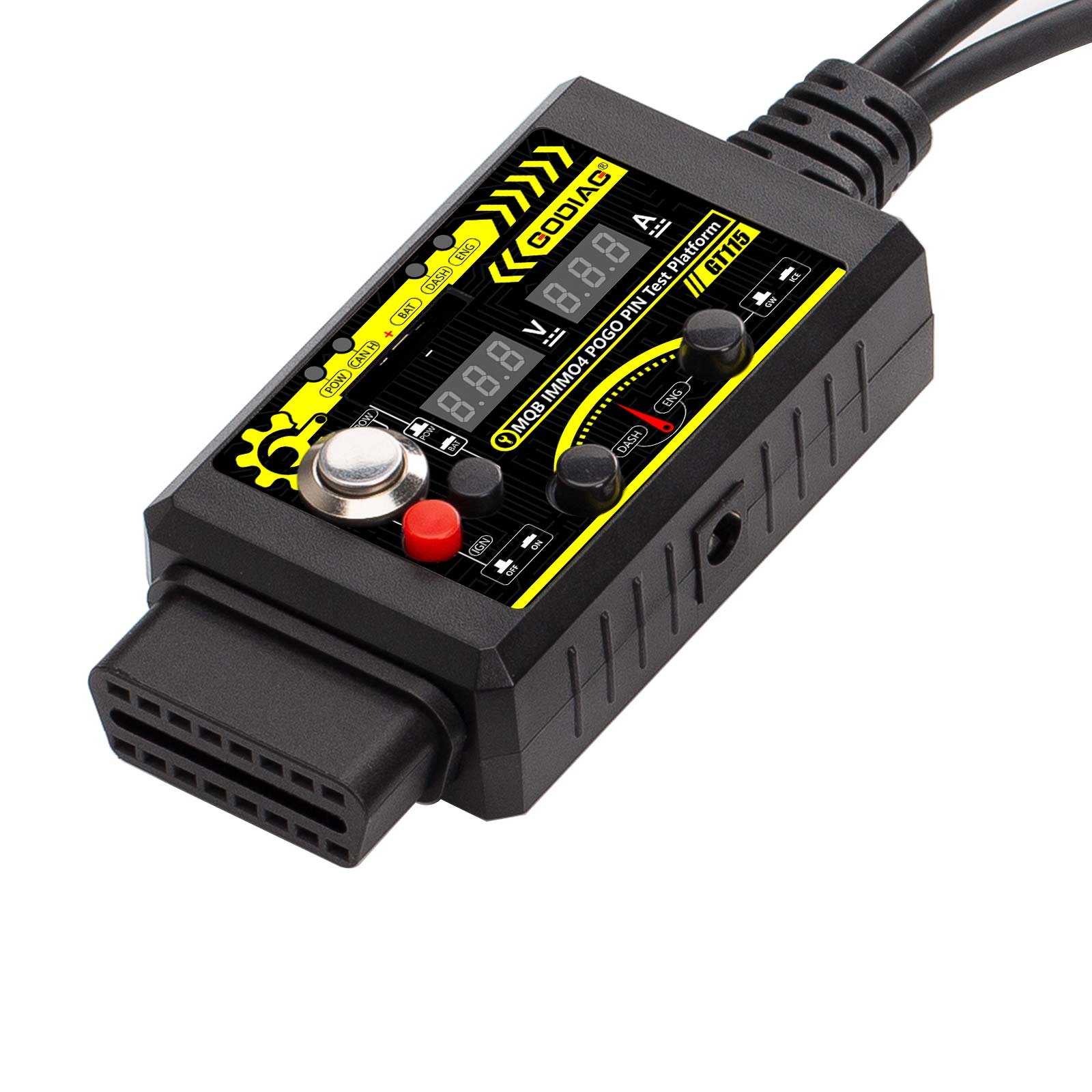

• Current connected power supply voltage display
• 2032 battery voltage detection.
• Free Dowload the GODIAG GT115 Connection Diagram directly
• Press the IGN ignition power [the IGN ignition switch must be turned on].
• Turn on the power switch for 3-5 seconds. If the ABS light flashes, you've successfully entered POGO PIN read/write mode.
• In combination with GODIAG GT115 MQB IMMO4 POGO PIN Test Platform the vehicle instrument plug can be connected to collect ELV data, and in combination with the GT107+ with Gearbox Cables 7-in-1 Set, it can diagnose or read and write data.
• In combination with GODIAG Full Protocol OBD2 Jumper Adapter or other OBD2 canbus communication protocol cables, and GODIAG GT107+ with Gearbox Cables 7-in-1 Set to diagnose and read and write data in the office.

POGO pins press onto the board rather than soldering to it, which is what keeps a dashboard read repeatable.
