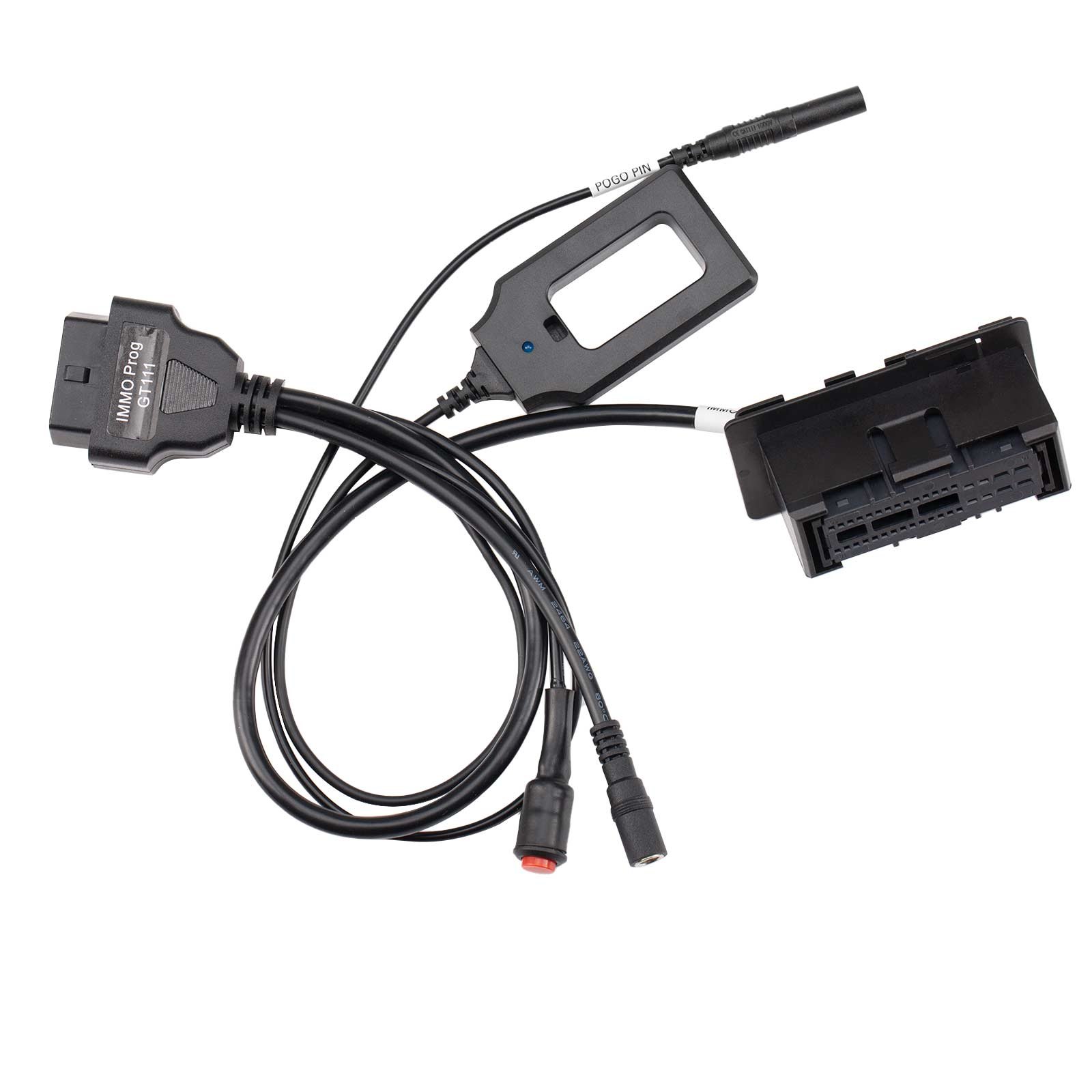

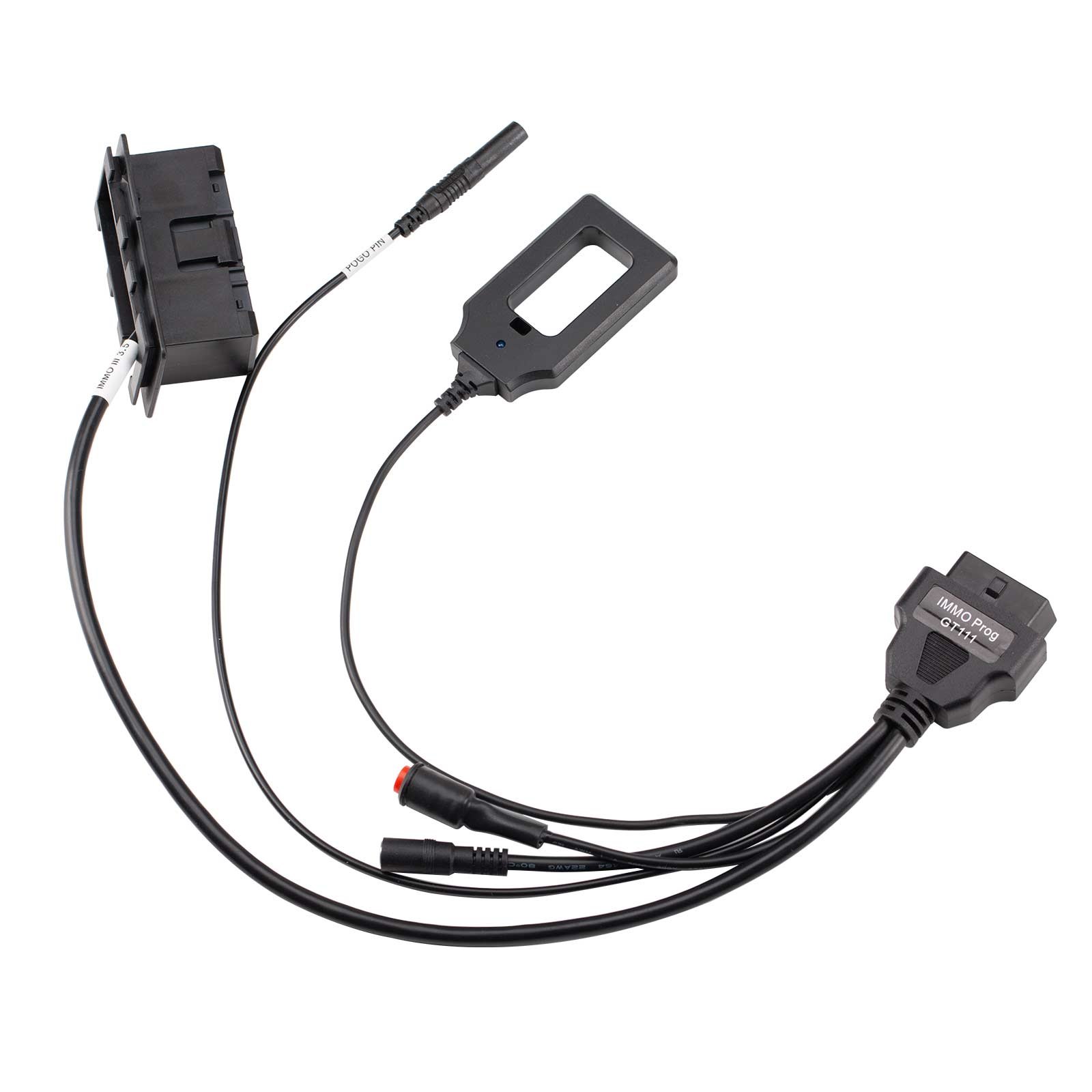

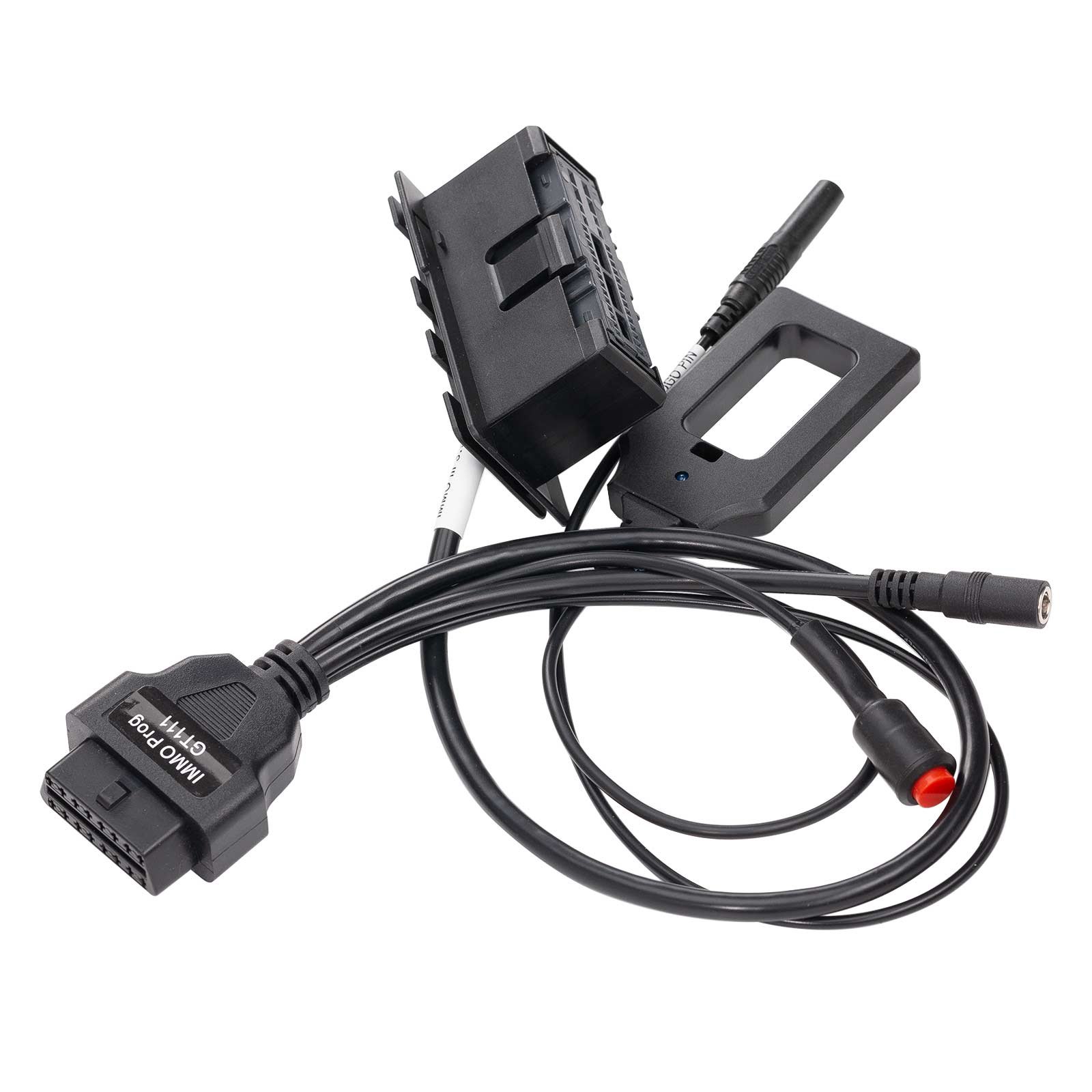

GODIAG GT111 for VW Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN to Read & Write Data

Third and 3.5 generation VAG dashboards are the awkward middle era, past K-Line but before UDS, and GT111 is the bench platform for them. POGO PIN contacts read and write data without soldering to the cluster.

What you get

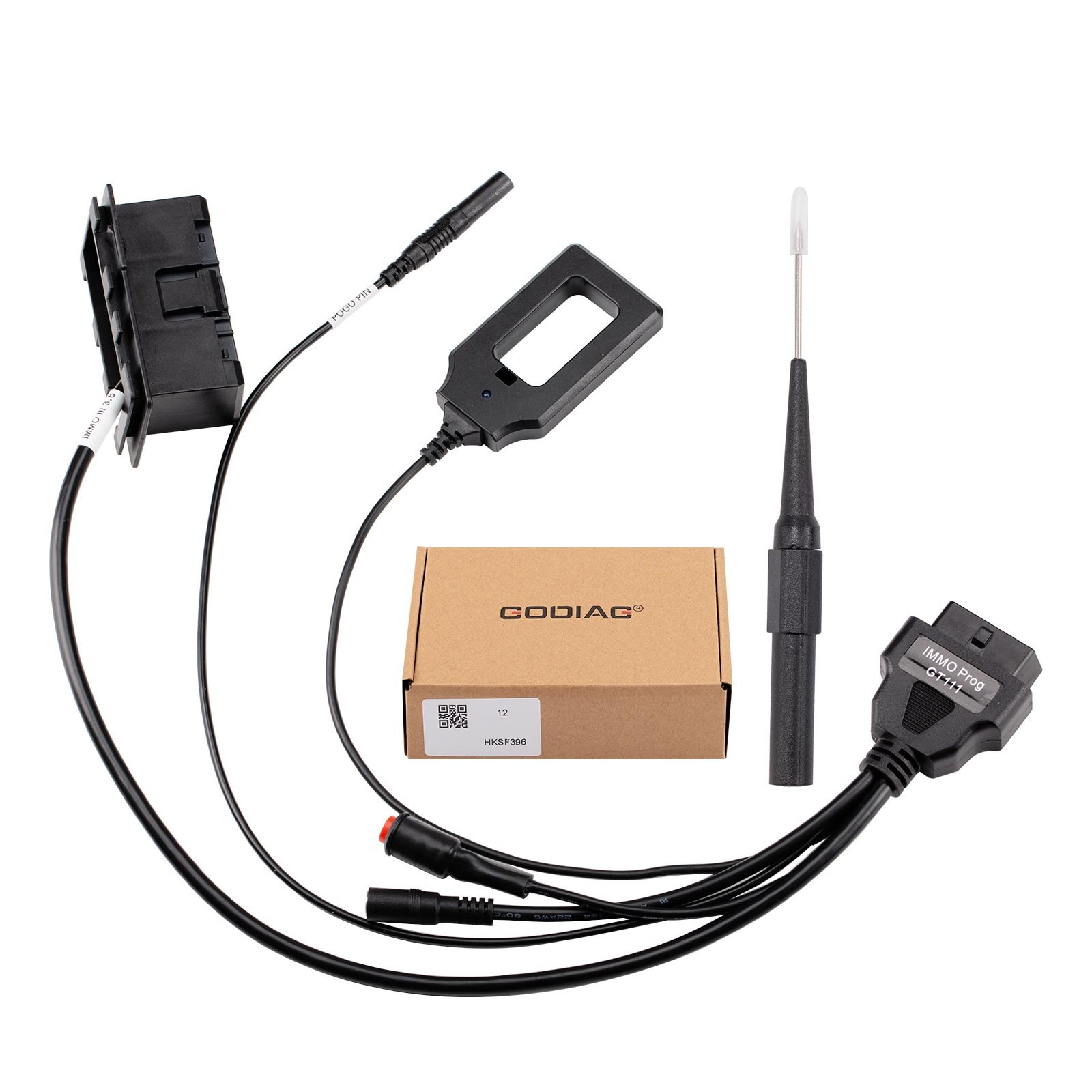

• 1pc x GODIAG GT111 FOR VW Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

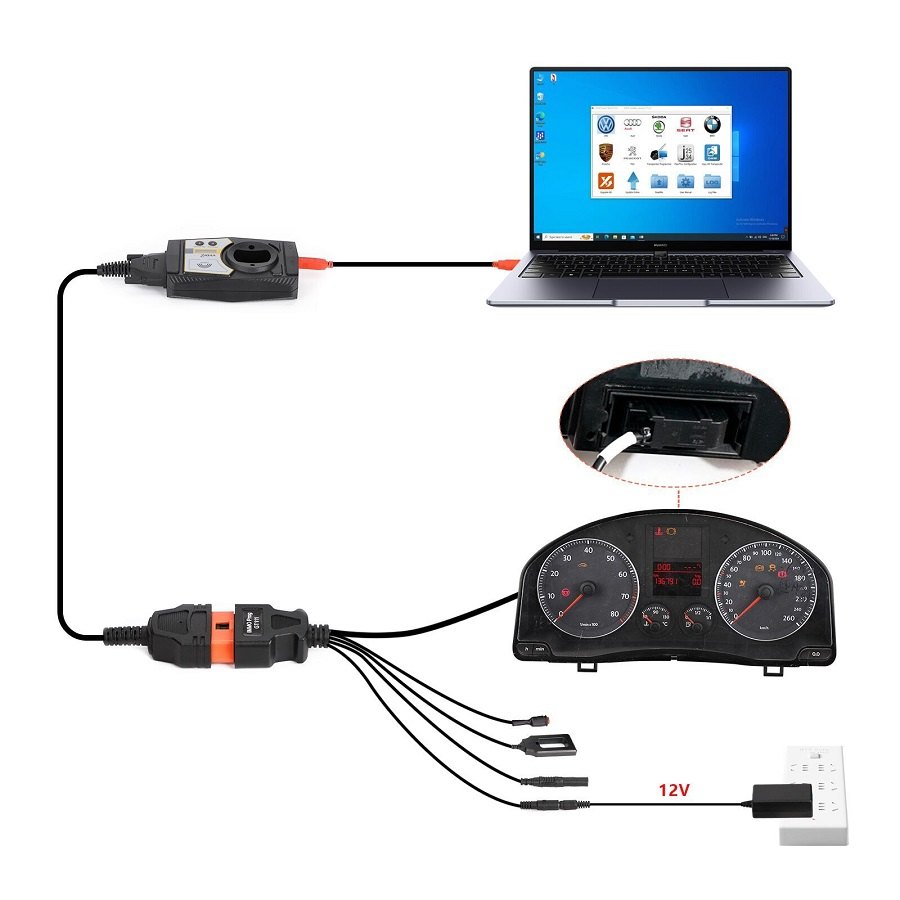

• How to Use IM608 with GT111 to Test VAG 3th3 5th vag Series Dashboard
• Godiag GT111 VAG IMMO3 IMMO3.5 Test Platform work with VVDI2
• GODIAG GT111 supports synchronization testing of keys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.
• GODIAG GT111 for VW Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
• GODIAG GT111 for VW Skoda Seat CAN-Bus 3rd & 3.5th generation dashboard IMMO key matching test platform cable with POGO PIN supports VW, Skoda, Seat and other models, using POGO PIN for offline data reading and writing. The product supports synchronization testing of keys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.
• It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.
• Offline connection to the dashboard to convert to standard OBD2.
• Perform key chip and instrument synchronization test.
• Key induction adapter with light
• Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
• Car IMMO Start and Start Key Chip Detection
• The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
• The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
• The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

Order by generation: GT111 here, GT112 for K-Line cars, GT110 for fourth generation CAN-Bus UDS, GT114 for Audi K-Line and GT115 for MQB IMMO4 systems.
