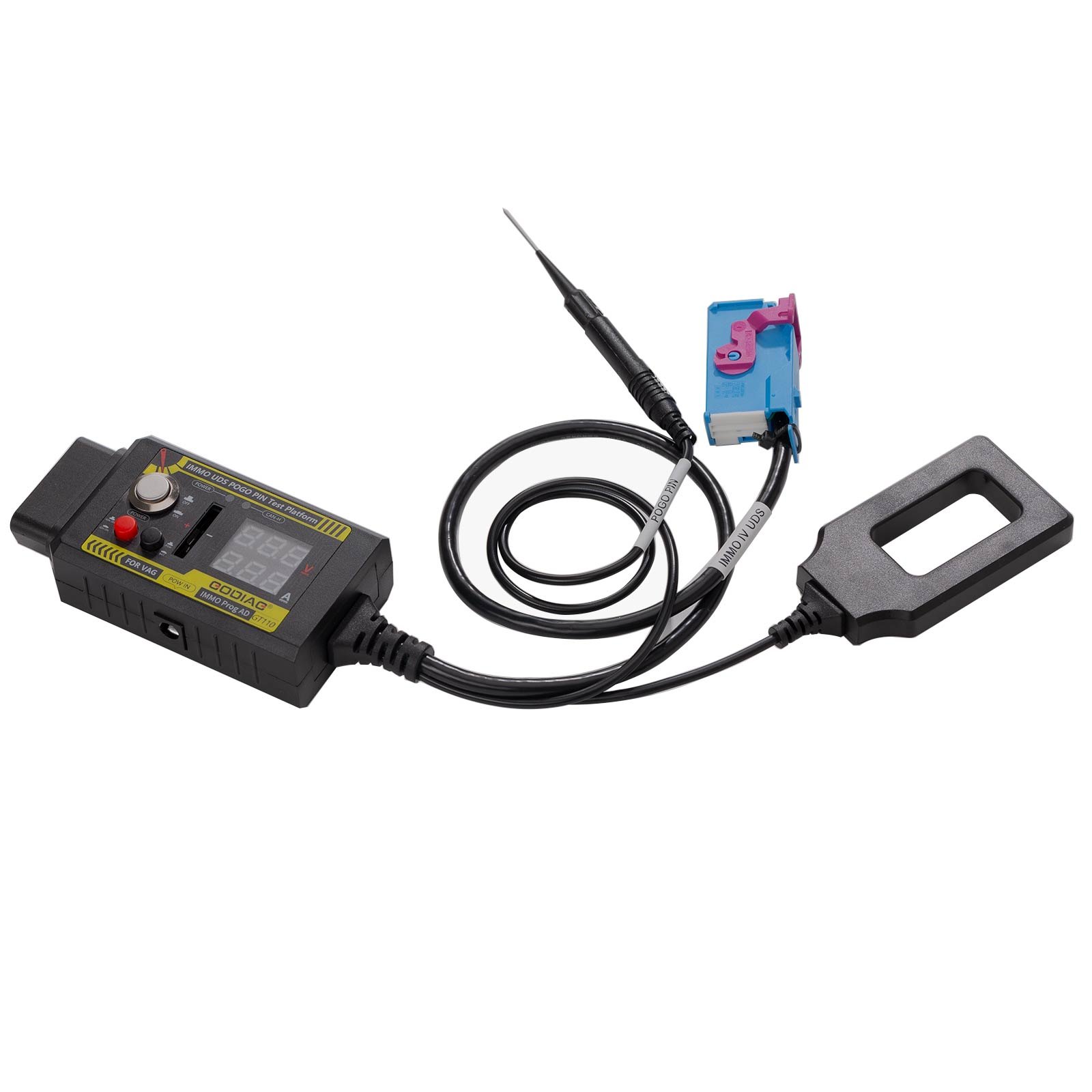

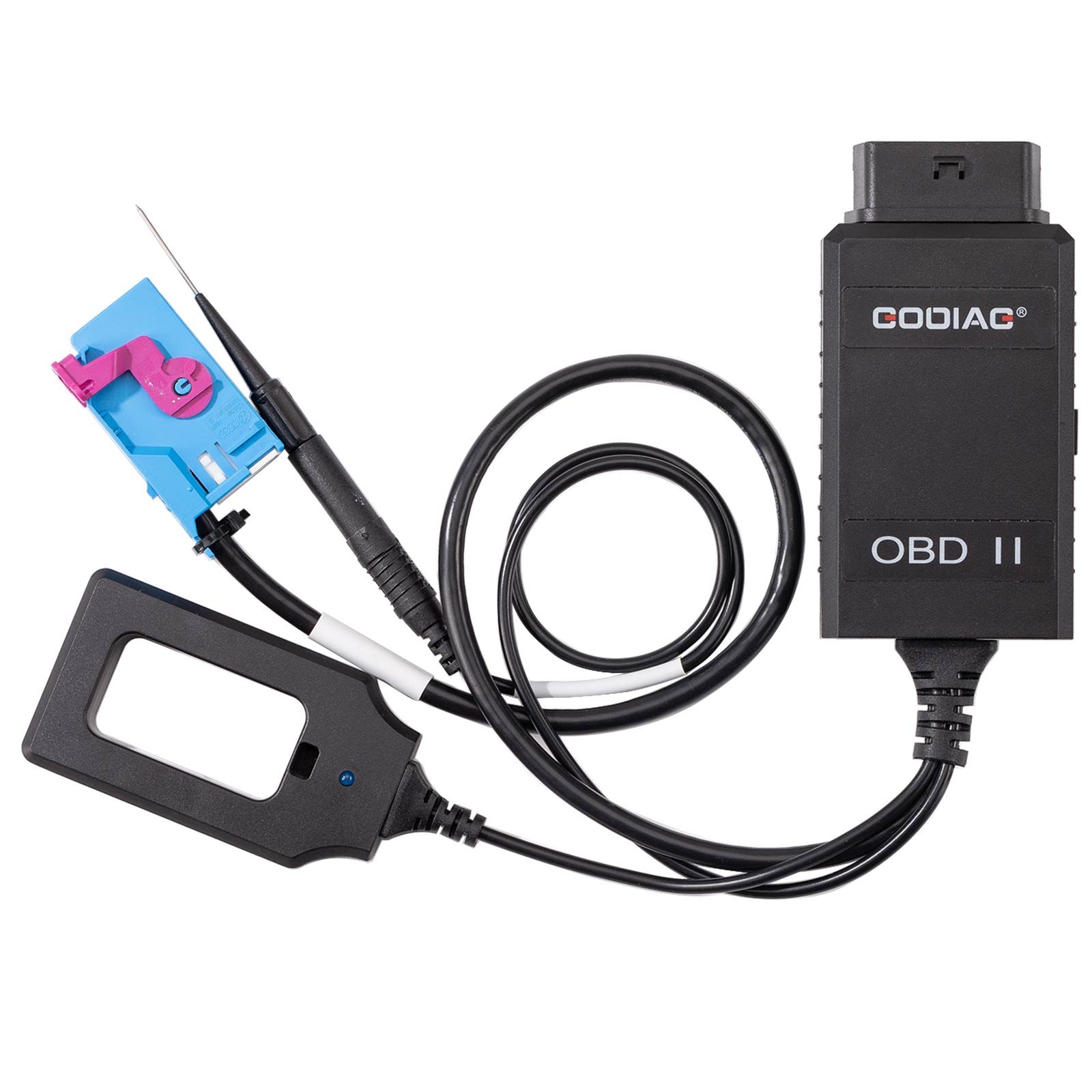

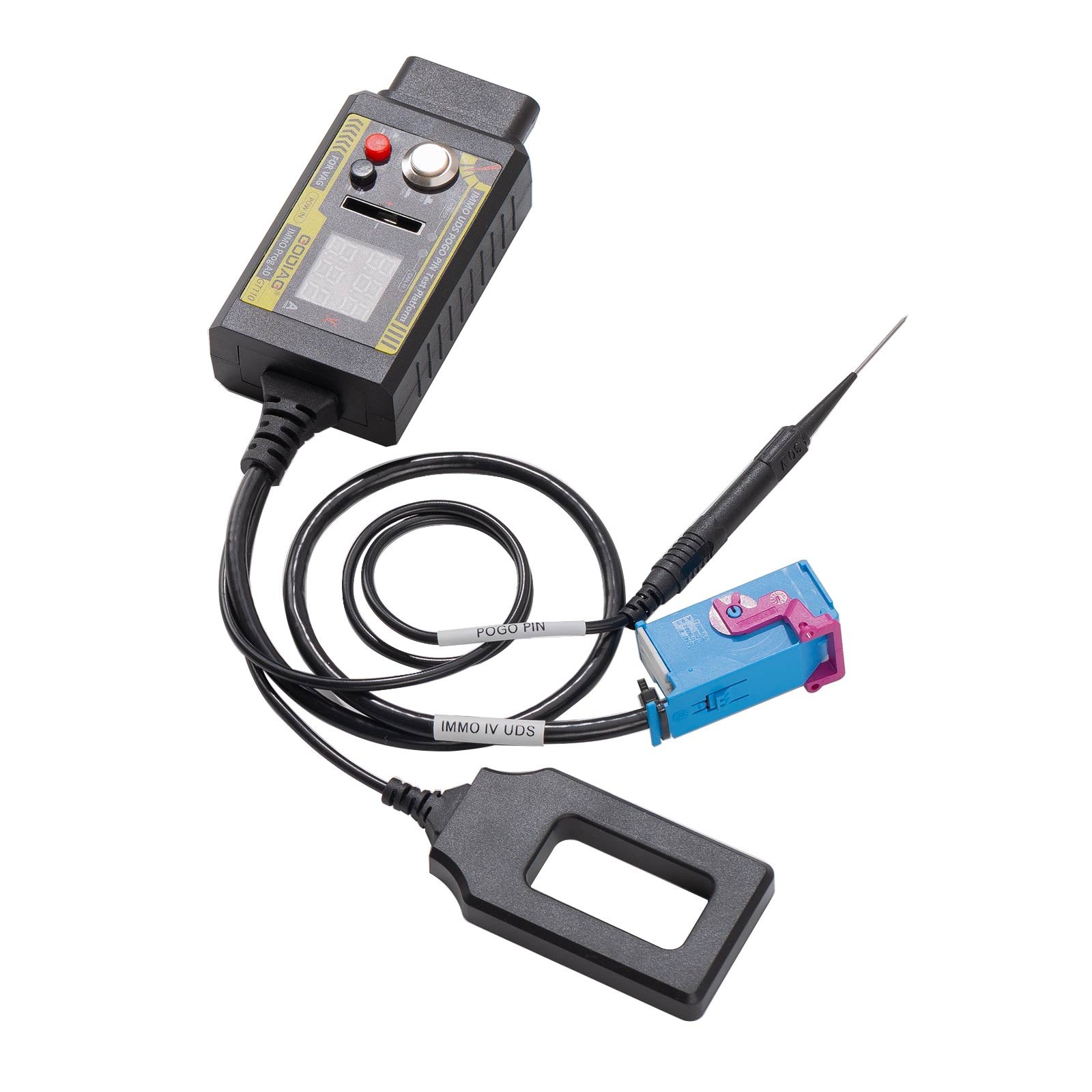

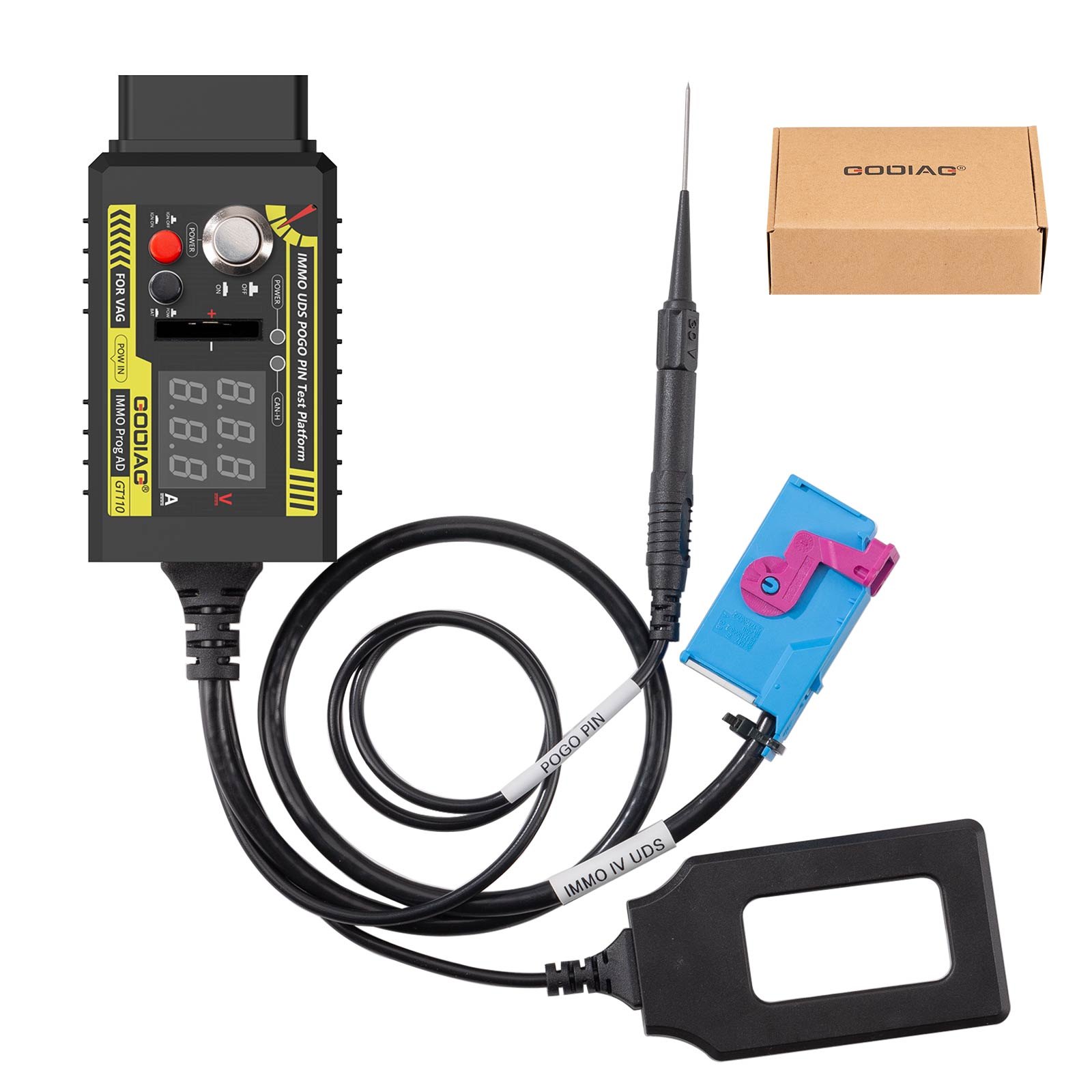

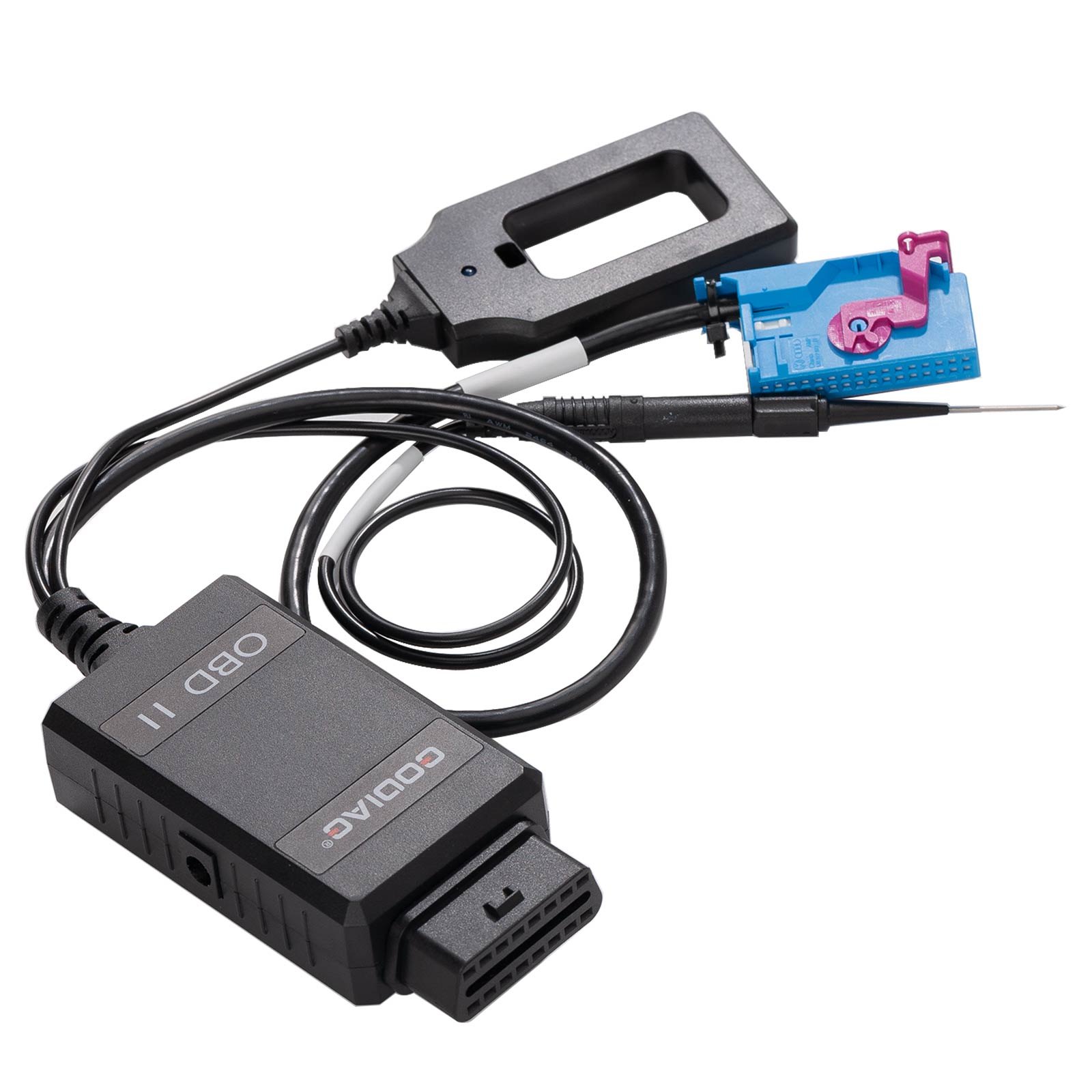

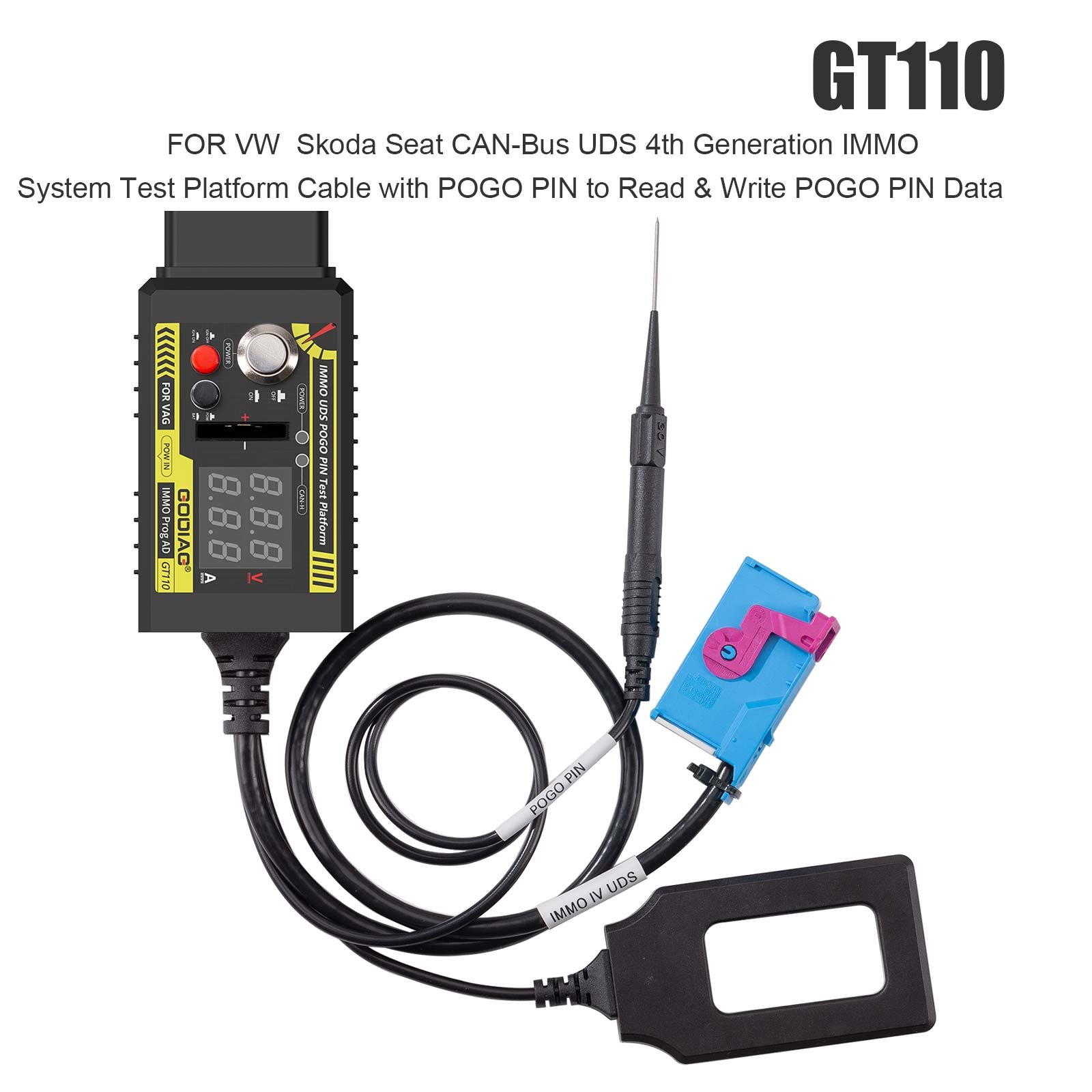

GODIAG GT110 for VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

Fourth generation VAG immobiliser systems moved to CAN-Bus UDS, and GT110 is the bench platform for that generation. POGO PIN contacts read and write cluster data without soldered leads.

Specifications

• Connect the power supply [Note: the power switch must be off].

What you get

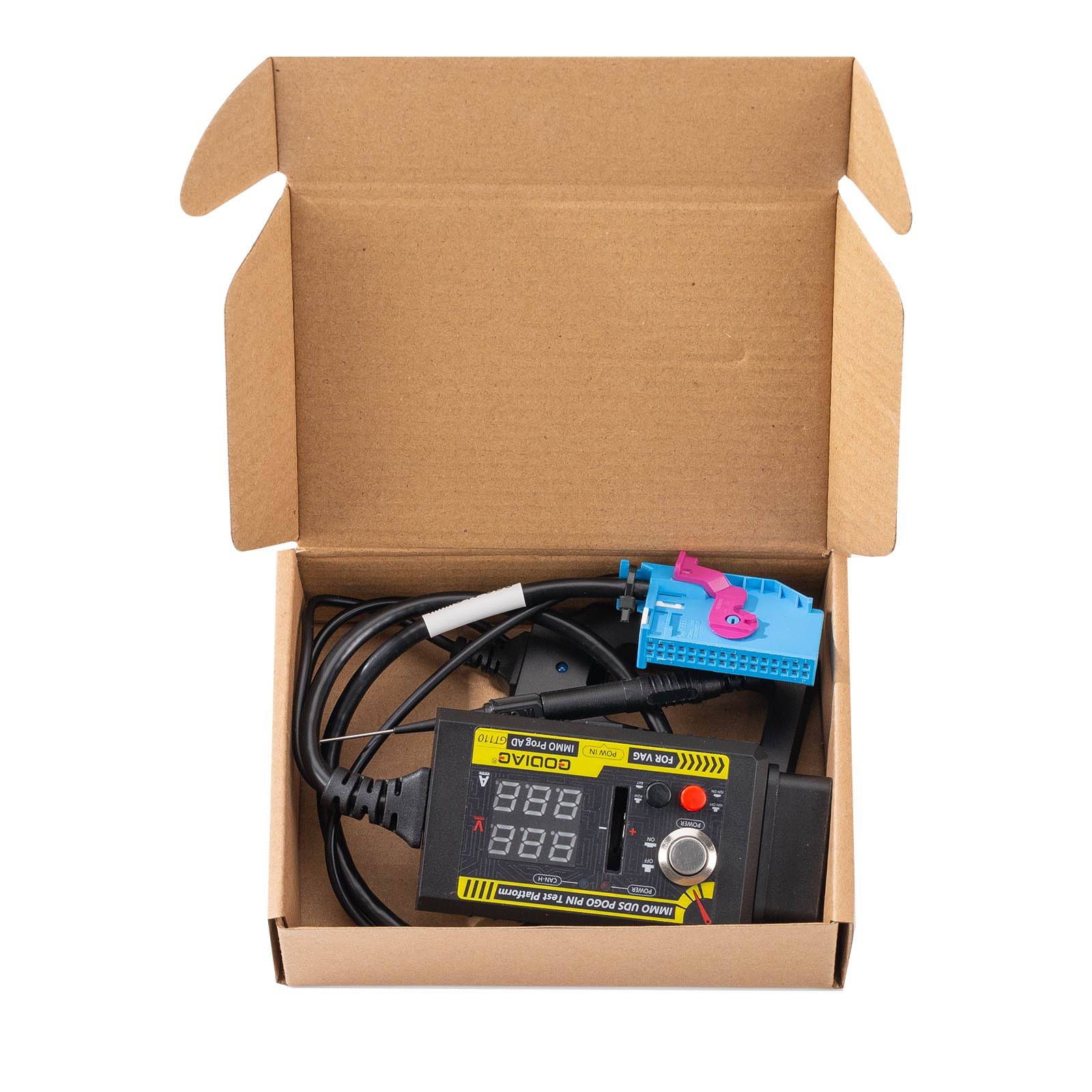

• 1pc x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th IMMO Test Platform
• GODAIG GT110 VAG Test Platform Cable Use Guide
• GODIAG GT110 supports VW Skoda Seat and other models, and performs offline POGO PIN data reading and writing.
• It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.
• GODIAG GT110 for VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
• GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports VW Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards key programming (including Boot Probe).of all UDS systems of Volkswagen, Skoda and Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMMO instrument synchronization test, intelligent IMMO system emergency start area induction detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.
• Offline connection to the dashboard to convert to standard OBD2.
• Perform key chip and instrument synchronization test.
• Independent power switch
• Current working voltage display
• CR2032 remote key battery detection
• Key induction adapter with light
• Model
• GODIAG GT110
• Other Brands
• OBD2
• Voltage display
• Main power switch
• Key recognition coil
• √ Smart key emergency start test for all vehicles
• Press the IGN ignition power [the IGN ignition switch must be turned on].

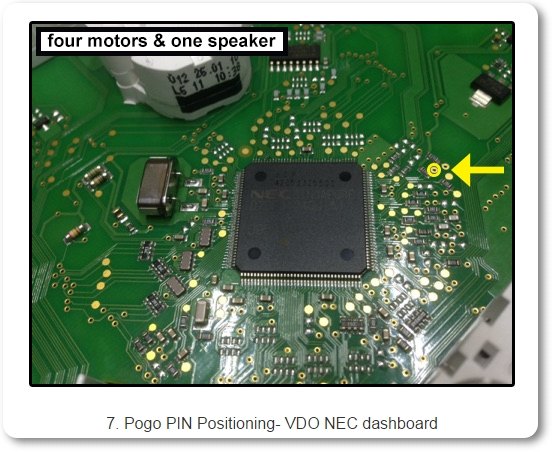

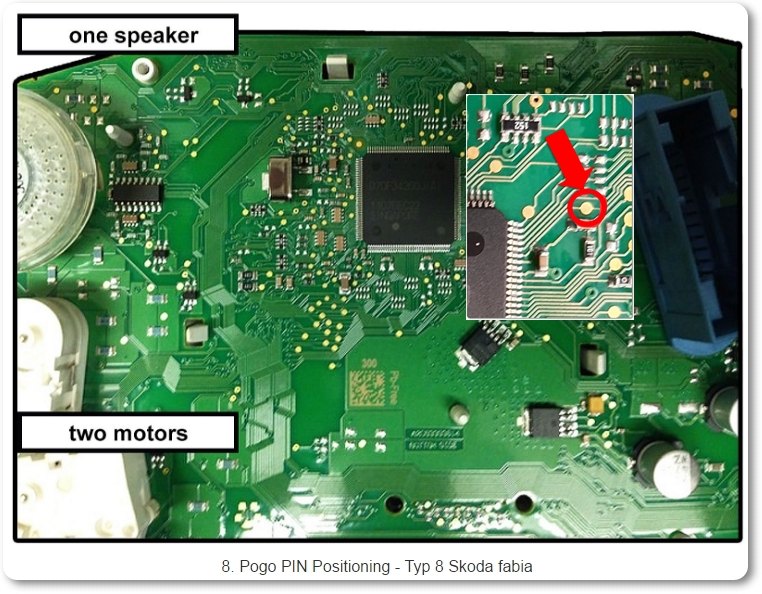

• Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.
• Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
• Car IMMO Start and Start Key Chip Detection
• The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
• The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
• The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

Connect the power supply with the power switch off, then switch on. If your cars are older, GT112 covers K-Line and GT111 the third and 3.5 generation CAN-Bus systems.
