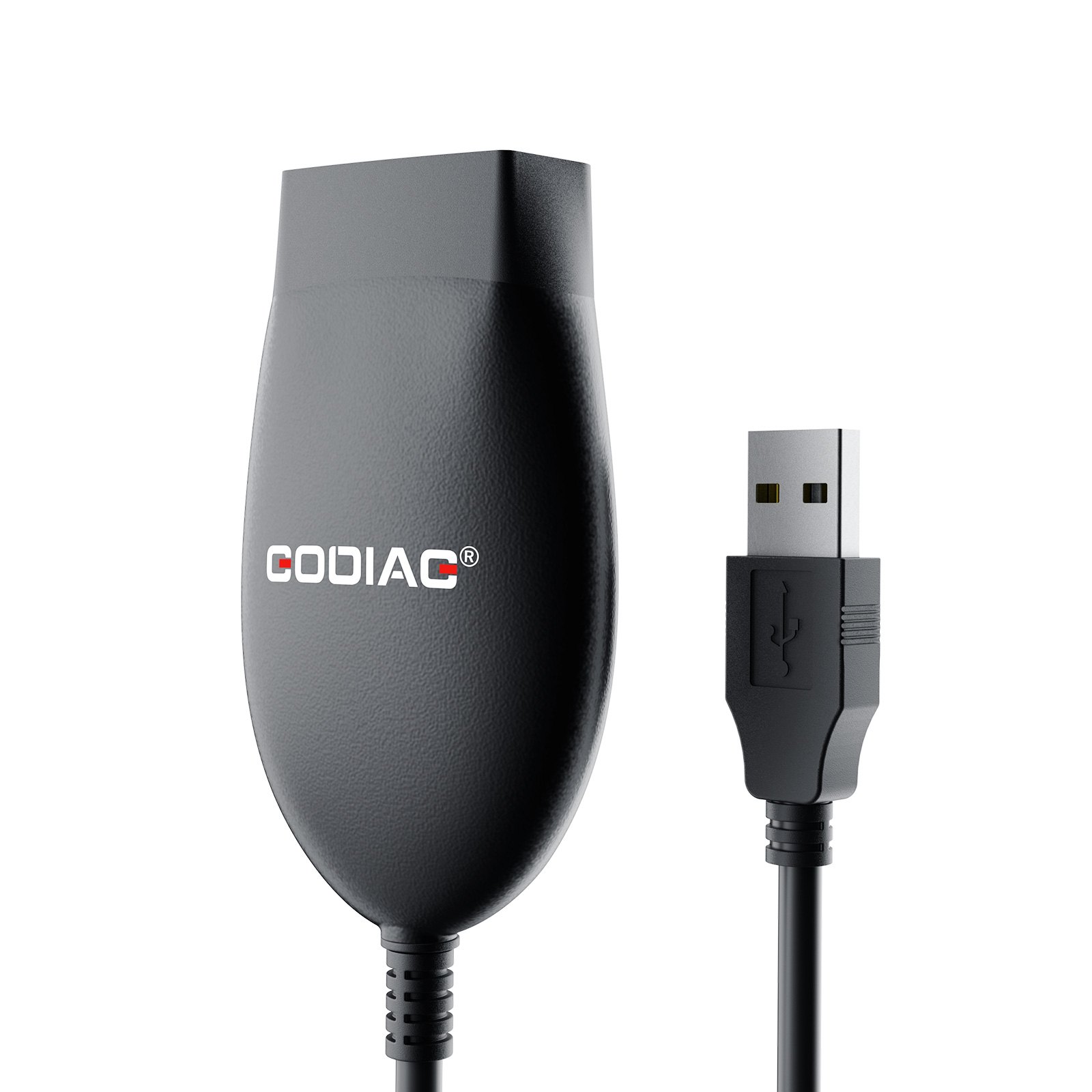

GODIAG GD101 J2534 Passthru Diagnostic Cable for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/ J1979

The GODIAG GD101, a J2534 passthru diagnostic cable for Ford, Mazda, Honda, Toyota and Renault, working with ODIS, JLR SDD, Forscan, ScanMaster, PCM-Flash, ELM327, J1979 and Can Clip Renault. It measures 95 by 55 by 23mm and is rated minus 20 to 45 degrees C, with wide language coverage in each supported application.

Specifications

• ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech,
• Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
• Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese,Chinese
• JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
• Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak, Ukrainian
• Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
• Pcmflash: English, Russian
• Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish

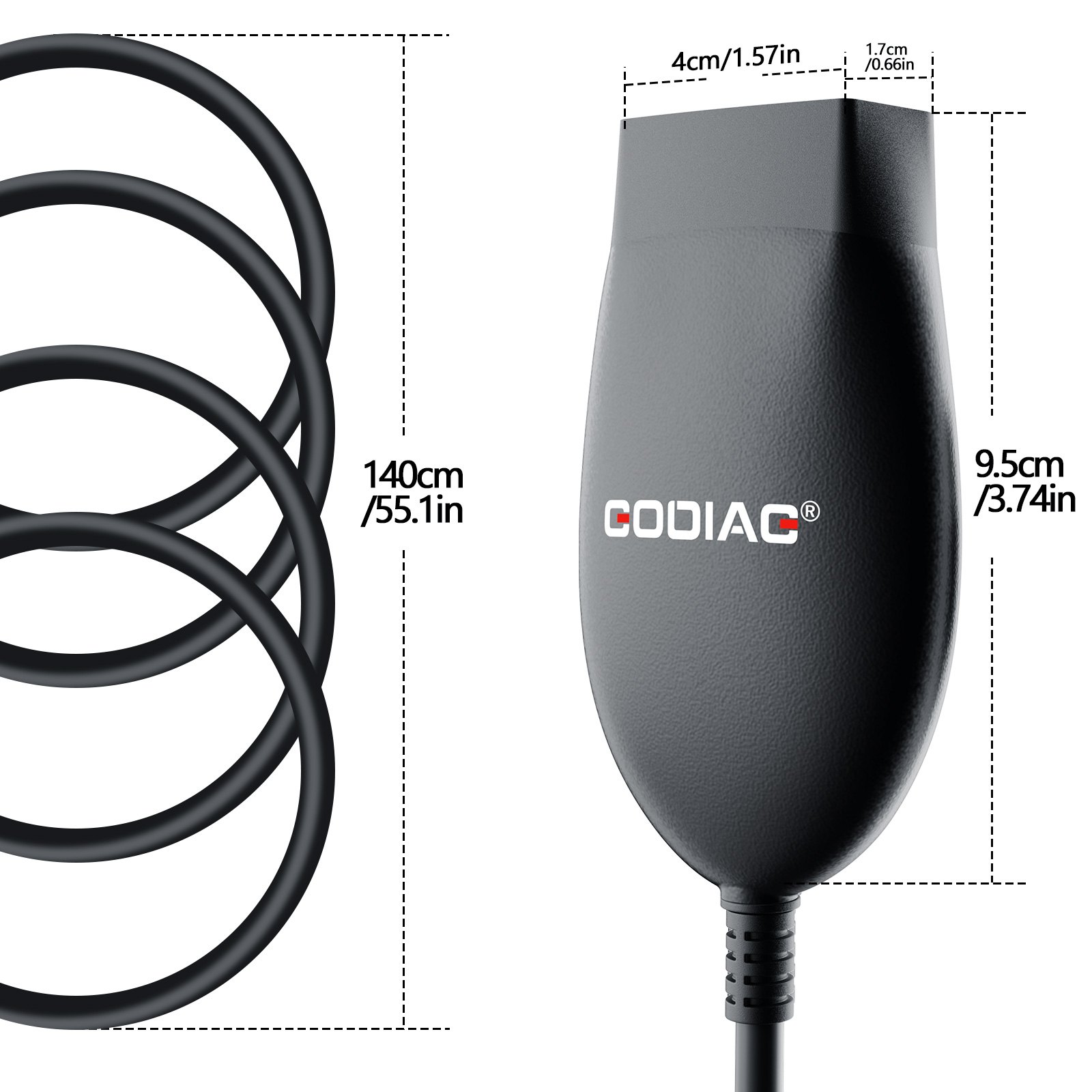

• Dimension(L*W*H): 95mm*55mm*23mm
• Environmental: -20℃-45℃(-4℉-113℉)
• Vehicle voltage requirements: 8-18V DC

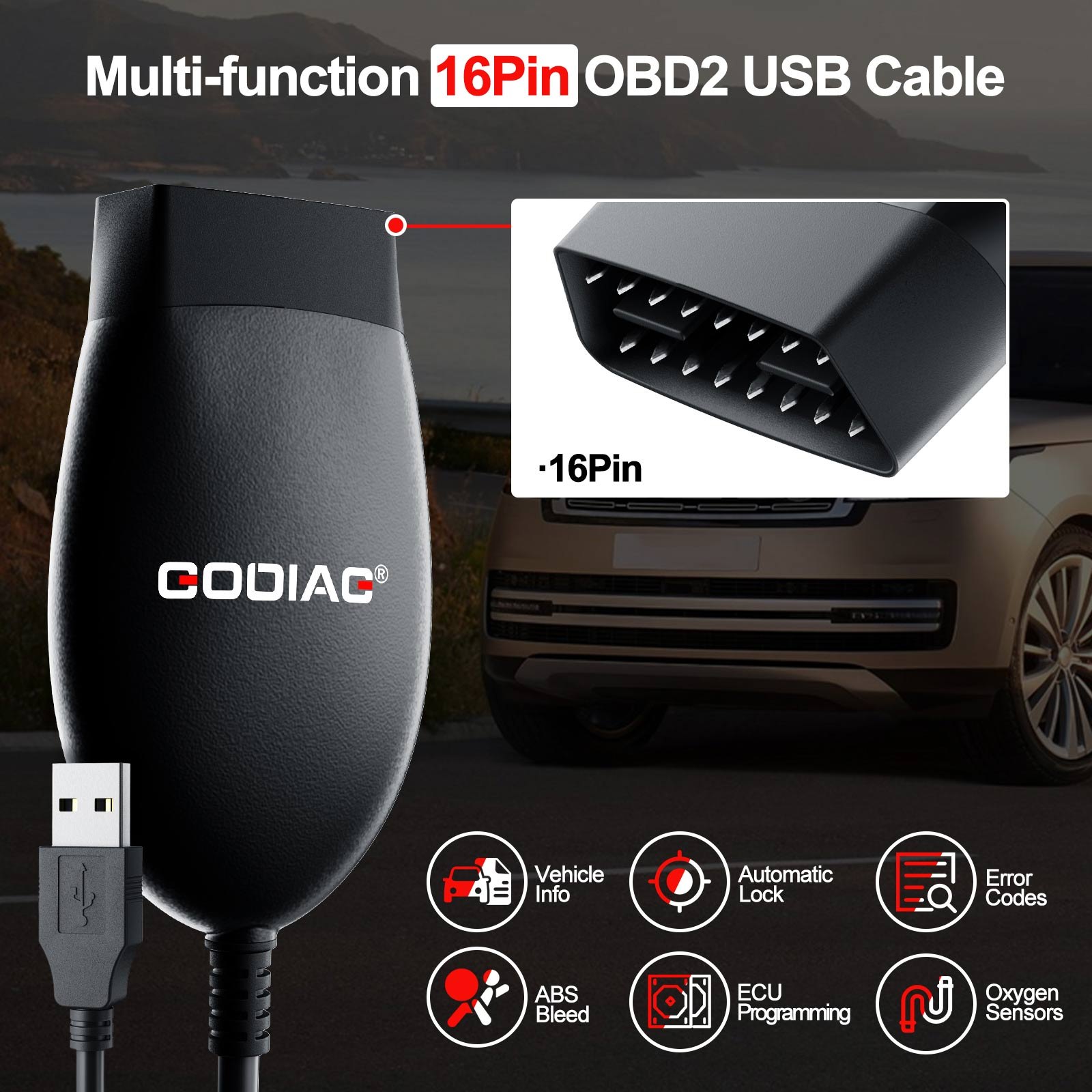

• Vehicle connection: Molded DLC3(OBDII-16)
• Host connection: USB 2.0

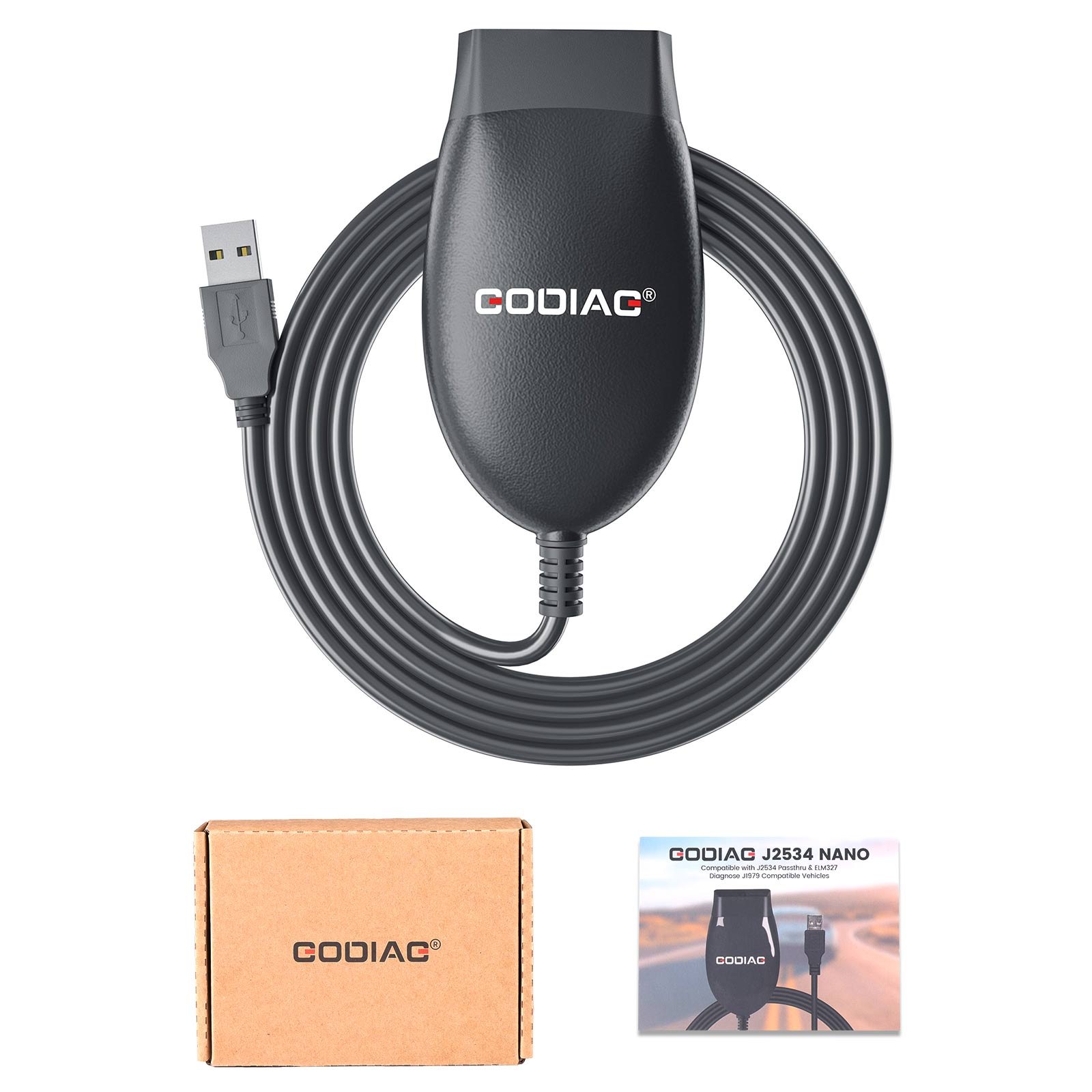

What you get

• 1pc x GODIAG GD101 J2534
• GODIAG GD101 J2534 Diagnostic Cable Read 2007 Honda CRV Fault Code
• Godiag gd101 j2534 JLR SDD 163 Software Install and Test
• GODIAG GD101 J2534 is compatible with Honda 3.104.024, Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-Flash 1.2.0, VAG ODIS 9.1.0, Renault Clip V227.
• Works with J2534 Passthru and ELM327
• GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford Mazda/ Renault etc
• Compatible with Honda 3.104.024, Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0 and Renault Clip V227,Renault Clip V230
• Portable and convenient. Small package and easy to carry.
• Wok on Windows 8/10/11, 32/64bit
• Brand
• 1995-2022
• Honda 3.102
• Does not support non-#7 K-line, update by link
• For J2534 VAG only. Don't support CAN FD protocol, Don't support Ignition switch voltage detection
• Forscan 2.3.48
• 1996-2022
• Cannot do 3, 11 medium speed CAN
• Scanmaster V2.0
• J1979Tester
• JLR SDD2
• 2006-2016
• GDS2
• Renault Clip V227/V230
• 2005+ Renault with Can Bus Protocol
• Support most all of J2534 compatible software
• Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
• Support ECU reprogramming in J2534 mode with programming voltage.
• Supply free software for diagnosing J1979 compatible vehicles.
• Free Download Godiag J2534 V2.3 Software
• For Honda 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.
• Not Support Win7 System
• GODIAG GD101 J2534 Protocol Configuration:
• ISO15765 (Standard/Extended frame).
• ISO9141.
• ISO14230.
• J1850 PWM (Support IFR and 2X speed mode).
• J1850 VPW (Support 4X speed mode).
• Programming voltage.
• ELM327 with command set version 1.3a

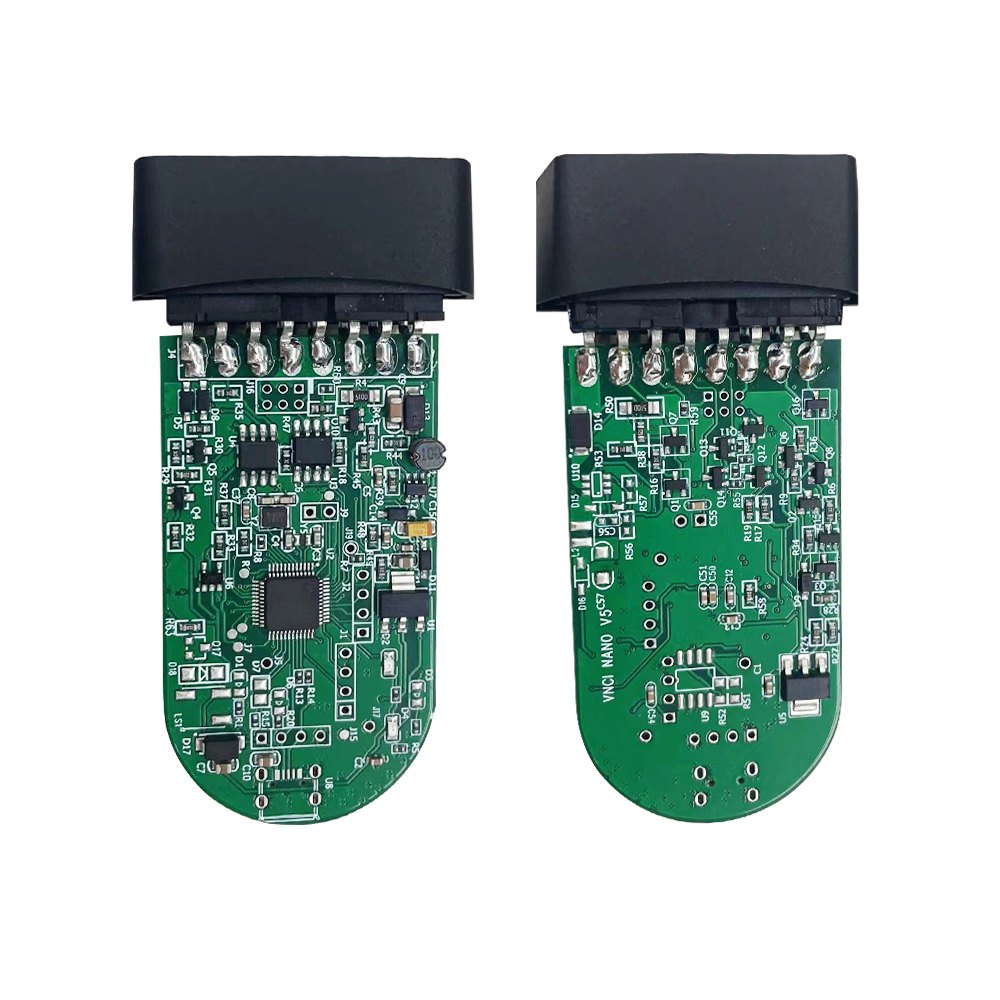

• GODIAG GD101 J2534 Hardware Configuration:
• ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
• ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
• J1850 PWM (OBDII PIN 2 and PIN 10).
• J1850 VPW (OBDII PIN 2).
• Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
• Short to ground (OBDII PIN 9. Short to OBDII PIN5).

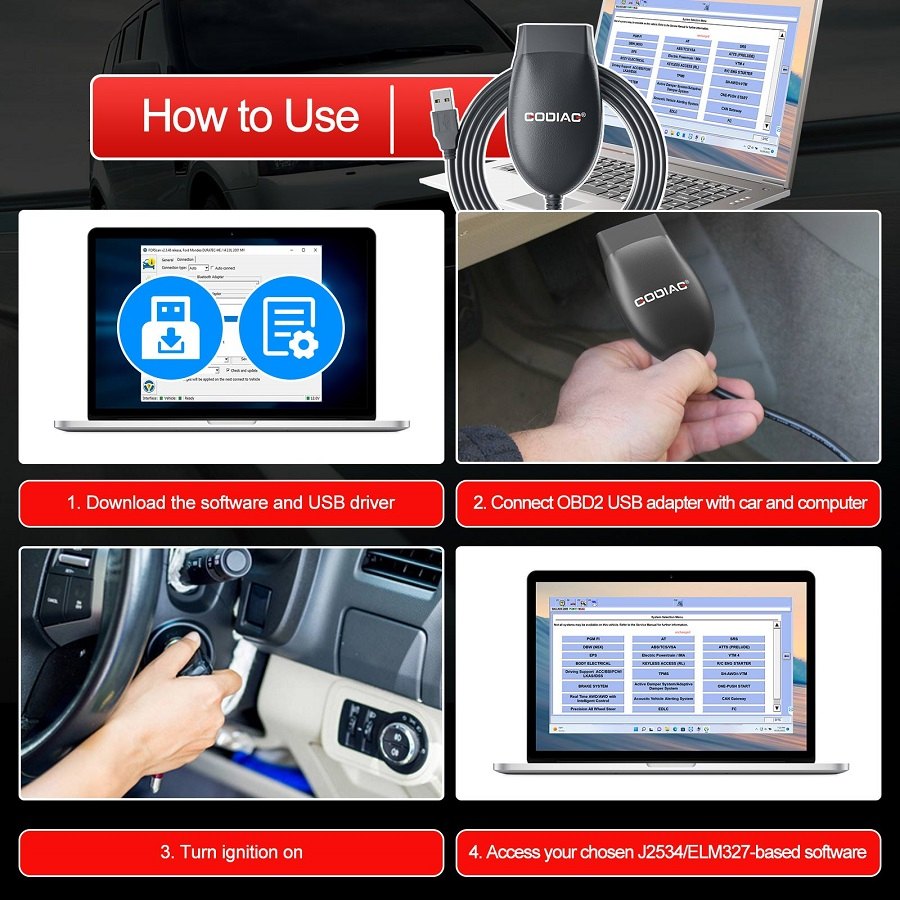

• How to use the GODIAG GD101 J2534?
• GODIAG J2534 Upgrade Notice
• Driver Updated on 2023-8-16
• GODIAG GD101 J2534 driver update to V2.3, Click to download V2.3
• Support test Renault Clip V227
• Renault year 2005+ Renault with Can Bus Protocol
• Software Firmware（March 31, 2023）
• Software upgrade to 2.1
• Firmware upgrade to 1.8
• In J2534 mode, the sending length of J1850VPW is extended to 4128
• PyOBD software cannot be connected in ELM327 mode
• ELM327 mode cannot read ISO9141 VIN

J2534 means the cable carries the maker's own software rather than a copy of it, which is the point.
