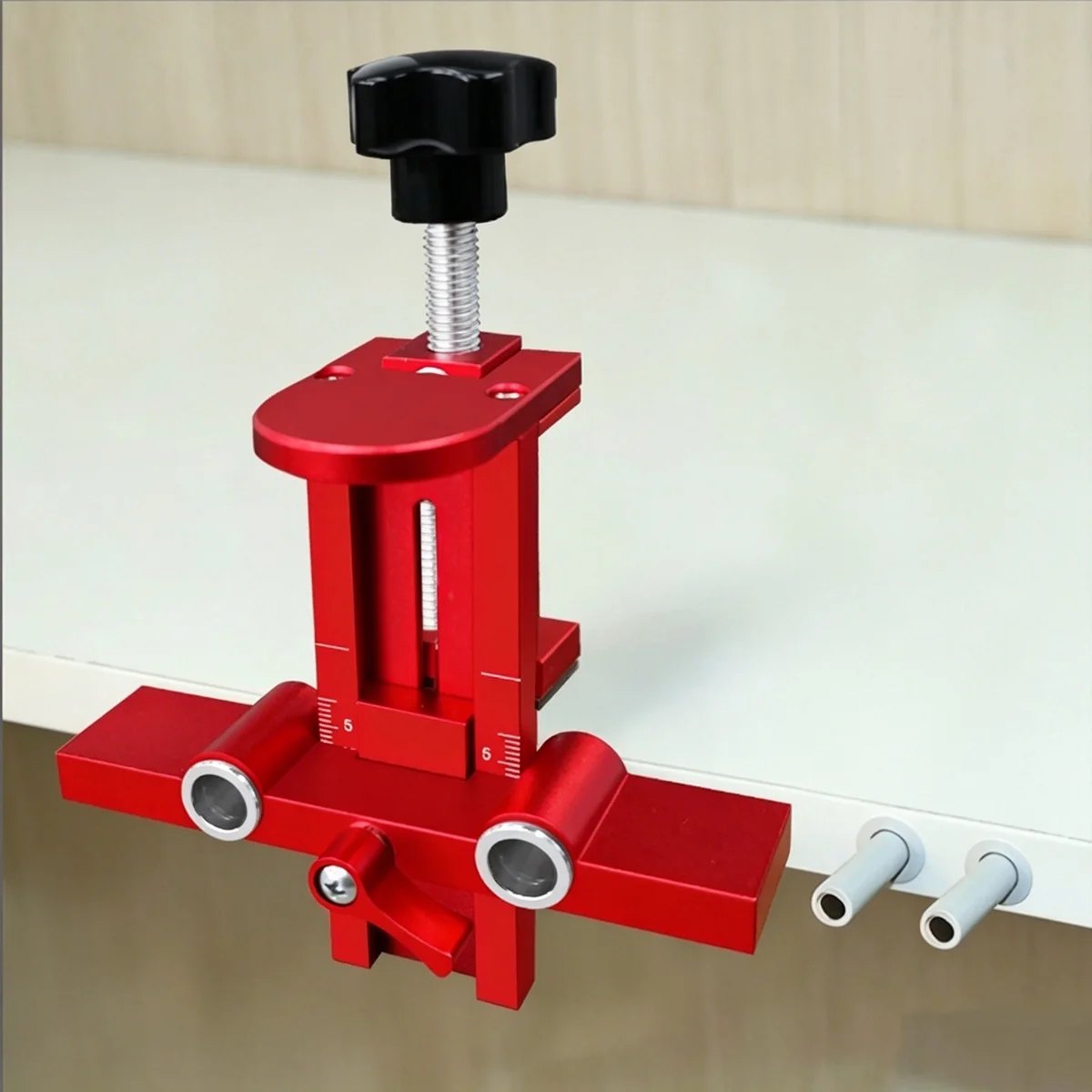

Cabinet Door Installation Jig - Concealed Hinge & Push Latch Drill Guide, Adjustable Locator for Flush/Undermount Cabinet Doors

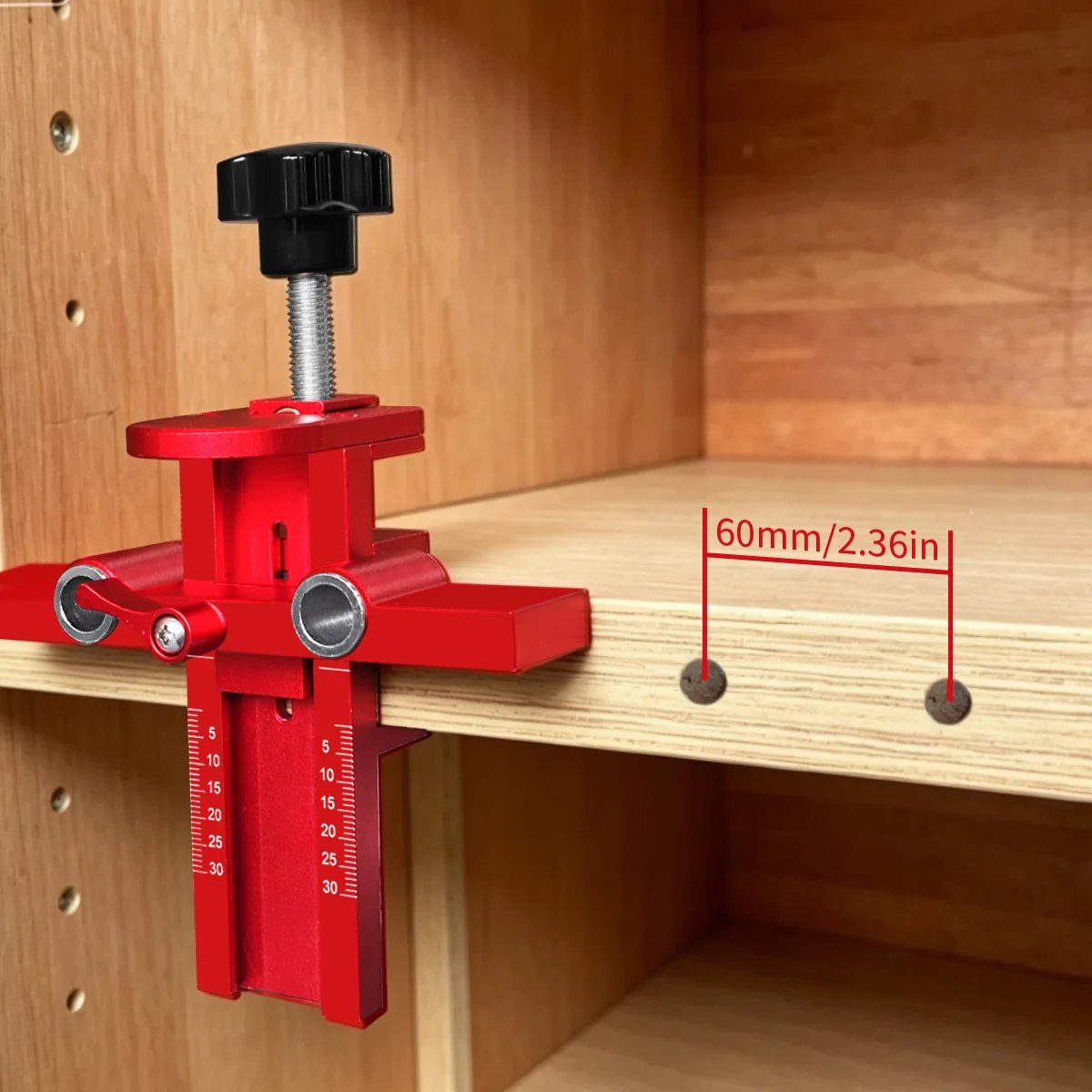

Covers four common bench tasks in one body: flush cabinet door fitting, double door alignment, concealed hinge boring and push latch positioning. Solid anodised aluminium alloy rather than cast, with printed adjustable scales so a setting can be read back rather than guessed at on the next door.

Also stated by the supplier

• Crafted from solid anodized aluminum alloy, this jig offers exceptional strength, rust resistance, and long-lasting performance. The smooth, precision-machined body ensures consistent, wobble-free drilling for years of heavy use.
• Designed for 4 common woodworking tasks: flush cabinet door installation, double-layer board mounting, undermount door setup, and push latch drilling. No extra tools needed for different cabinet styles.
• ✅ Precision Adjustable Scales for Perfect Alignment
• Features a textured, non-slip adjustment knob and padded contact points for comfortable handling and scratch-free clamping. Even beginners can achieve professional-level results in minutes.
• ✅ Universal Compatibility for All Cabinets
• Works with most standard hinges, push latches, and drill bits, Ideal for kitchen cabinets, wardrobes, bathrooms, and all your woodworking projects.

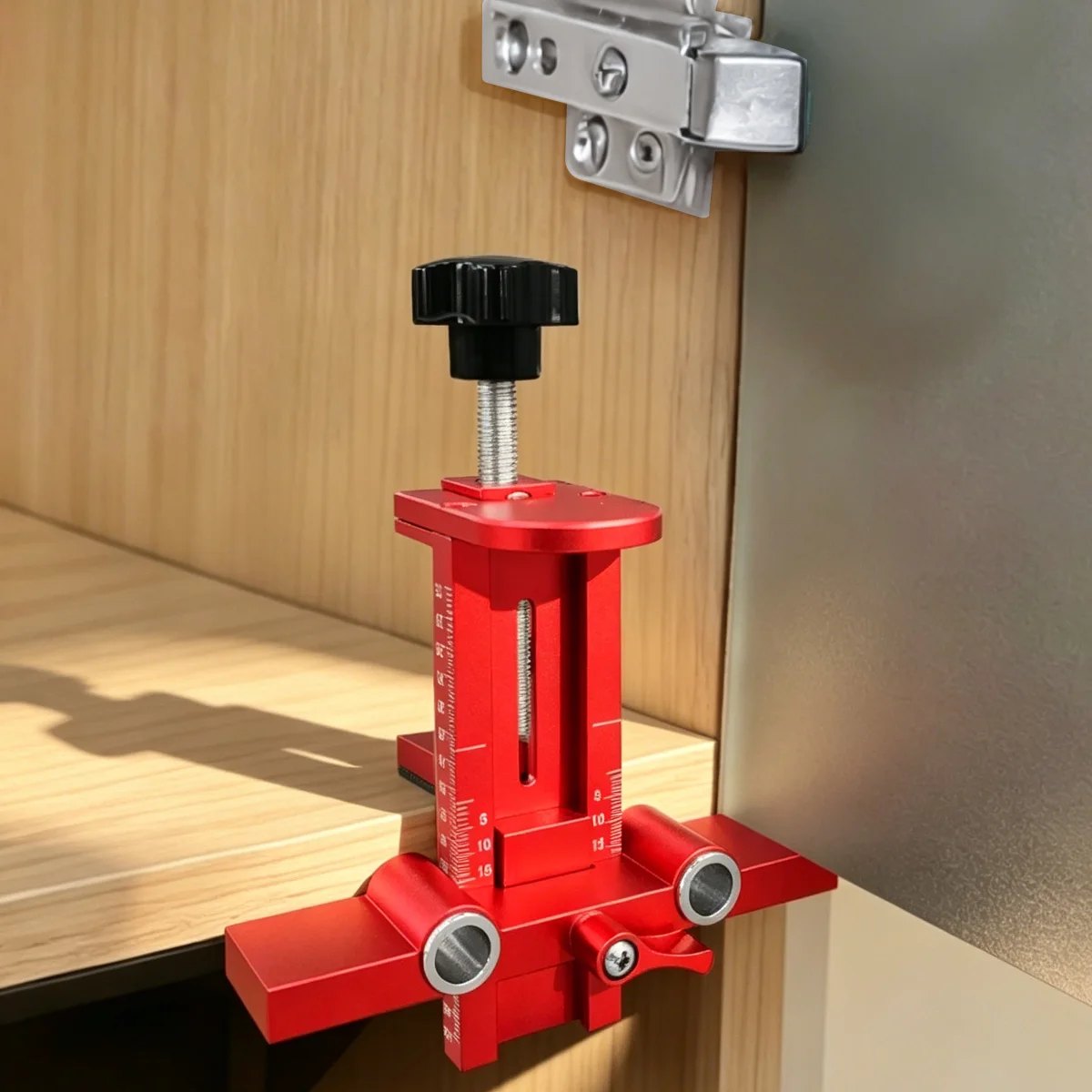

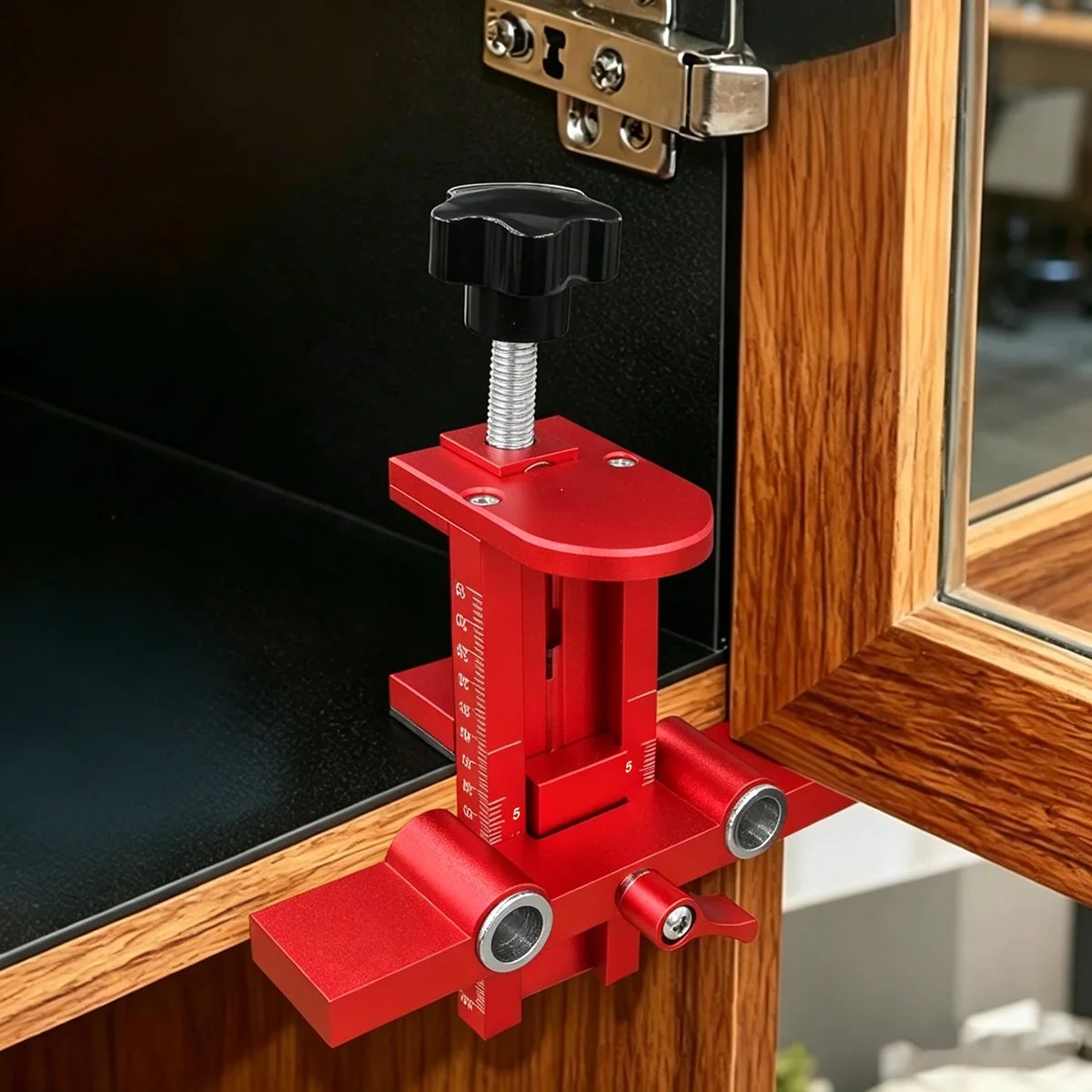

Made for flush and undermount doors. An overlay door is set from a different reference and this jig is not the tool for it.
