2026 OBDSTAR X300 Classic G3 CAN FD DoIP Car HD Moto Jet Ski

The 2026 OBDSTAR X300 Classic G3 shown here is a key programmer for car, HD, E-Car, motorcycles and jet ski with 2 years free programs IMMO keys, tests remotes, reads and writes transponders, makes dealer keys and start keys, renews keys, handles IMMO off, reads and writes EEPROM and MCU, resets ECUs to virgin, covers ECU advanced and OBD2. Paid activations for cluster calibration, ECU flasher, airbag reset and test platform are available. It has built-in CAN FD, fault tolerant CAN, OBD16 pinout switch, DOIP, remote test and RFID, with MP001, P004 and Renault adapters in the default package. Language is English only.

Versions

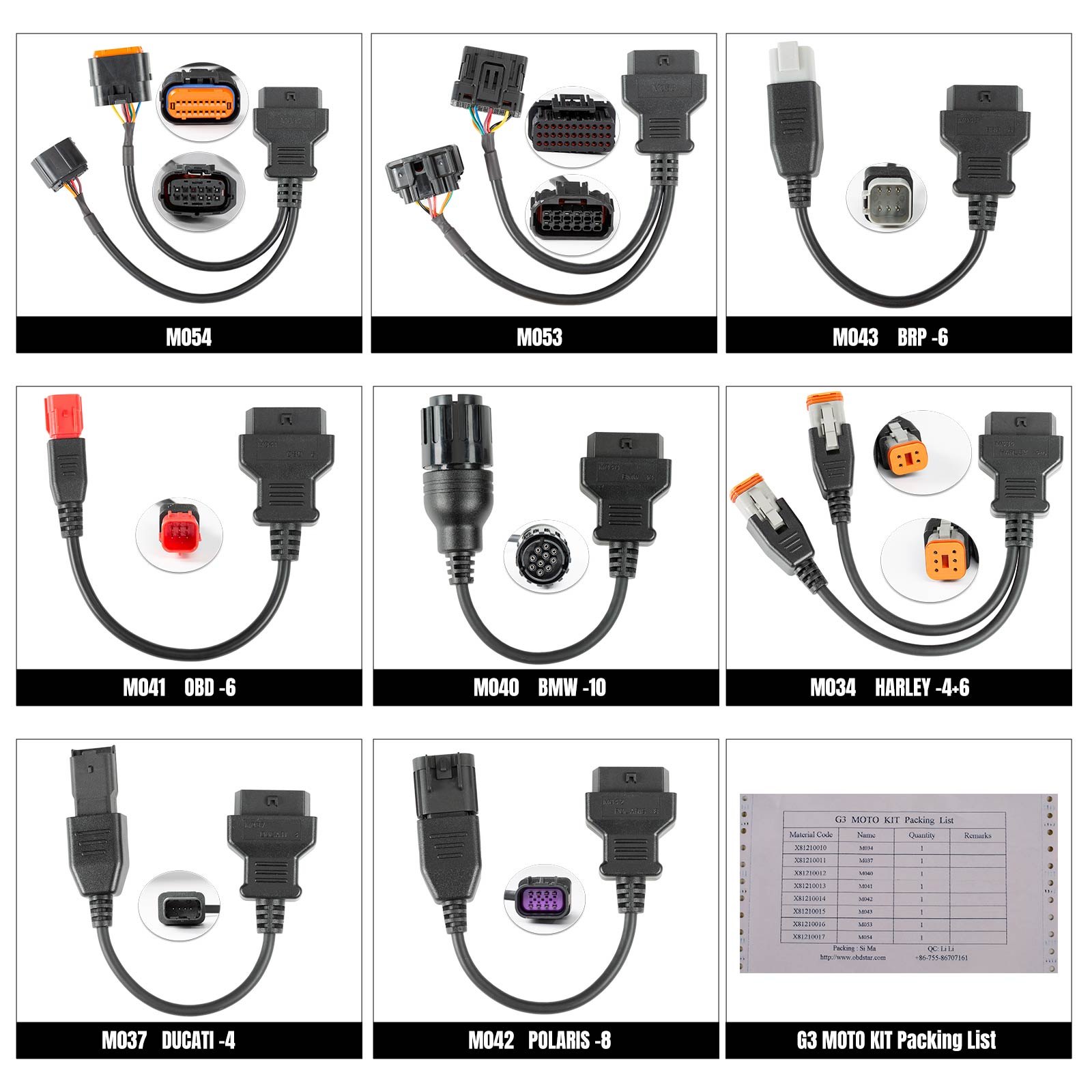

Five versions are available at different prices: one year update service, G3 with A1 KeySim kit, G3 with A2 motorcycle IMMO accessories, G3 with A1 KeySim and A2 motorcycle adapters shown here, and G3 full version with cluster calibration, ECU flasher, airbag reset and test the version list before ordering.

Compatibility

Supported vehicles: car, HD, E-Car, MOTO and jet ski. Processor RK3568 hexa-core, 4G plus 64G storage, high brightness display, HDMI interface, dual band 2.4 and 5 GHz WIFI, Bluetooth 5.0, STM32H723 VCI processor. MOTO key programming with no pincode for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Dayang, Aprilia, Piaggio, Vespa, Derby, Girella, Guzzi, Peugeot, Itajet and others. Marine programming for BRP, Kawasaki, Yamaha and others. E-Car programming for LI, NETA, Leapmotor, Seres, AITO and others. ECU virgin and reset for Alfa Romeo, Fiat, Chrysler, Dodge, Jeep and others. Smart 453 all keys lost programming where all functions disabled. Renault City K-ZE, Kwid, Sandero, Trafic, Twingo, Lodgy, Duster PH3 all keys lost programming. Renault post-2015 Espace, Kadjar, Koleos, Megan, Scenic, Talisman and Samsung QM6 and SM6 pincode reading for all keys lost with no risk. Optional accessories: Ford all key lost cable with P002 adapter for Ford, Lincoln and Mustang, Toyota-30 cable for proximity and all key lost for 4A and 8A-BA types with no harness piercing, BENZ FBS3 kit for pincode reading, ECU reset to virgin and programming and key programming including FBS3 add keys, AKL and ECM, TCM, ISM, EIS and ELV reset to virgin and personalization, VW 7-in-1 TCM kit for ECU clone, map read and write, diag and cluster calibration for VW and Audi transmissions by OBD or bench with no TCM removal, TCM connectors for mileage calibration and ECU cloning with one click read and write, VW4-AKL cable for VW IMMO IV NEC24C64 and NEC24C32 all keys lost, RH850 and V850 adapter full kit for MQB all keys lost including MQB48 5A programming and AKL sync calculation, P005 adapter kit for BMW BDC02 IMMO. Latest updates include locked MG1 and MD1 read, write and virgin for Bosch MD1CP032 BMW B57 TC299, MG1CS024 BMW B48 and B58 TC298, MG1CS201 BMW B48 and B58 TC298, MD1CS069 FCA TC299, MD1CP006 Ford TC298, MD1CS089 Isuzu and related TC299 for ECU master C, plus more coming. Requires RH850 and V850 adapter kit C4-06 adapter where listed. VW, Audi, Seat and Skoda V45.48 adds MQB-5A key programming with AKL and online sync calculation with RH850 and V850 kit, and IMMO IV NEC24C64 and NEC24C32 data reading by bench with VW4-AKL cable with no IC removal, PCB soldering or server major upgrade, BMW V40.10, Lynk and Co V40.33 adds CEM security data for 01 proximity, 03 hybrid proximity, 01 hybrid proximity, 05 proximity, 02 proximity, 05 hybrid proximity, 02 hybrid proximity, 06 proximity, 02 hatchback proximity, 06 hybrid proximity and 03 proximity. Roewe V42.20 adds MG MG7 2023 proximity programming. BYD V40.63 adds BYD F3 proximity program or clear with pincode. Greatwall listed with details cut in source data.

Specifications and Functions

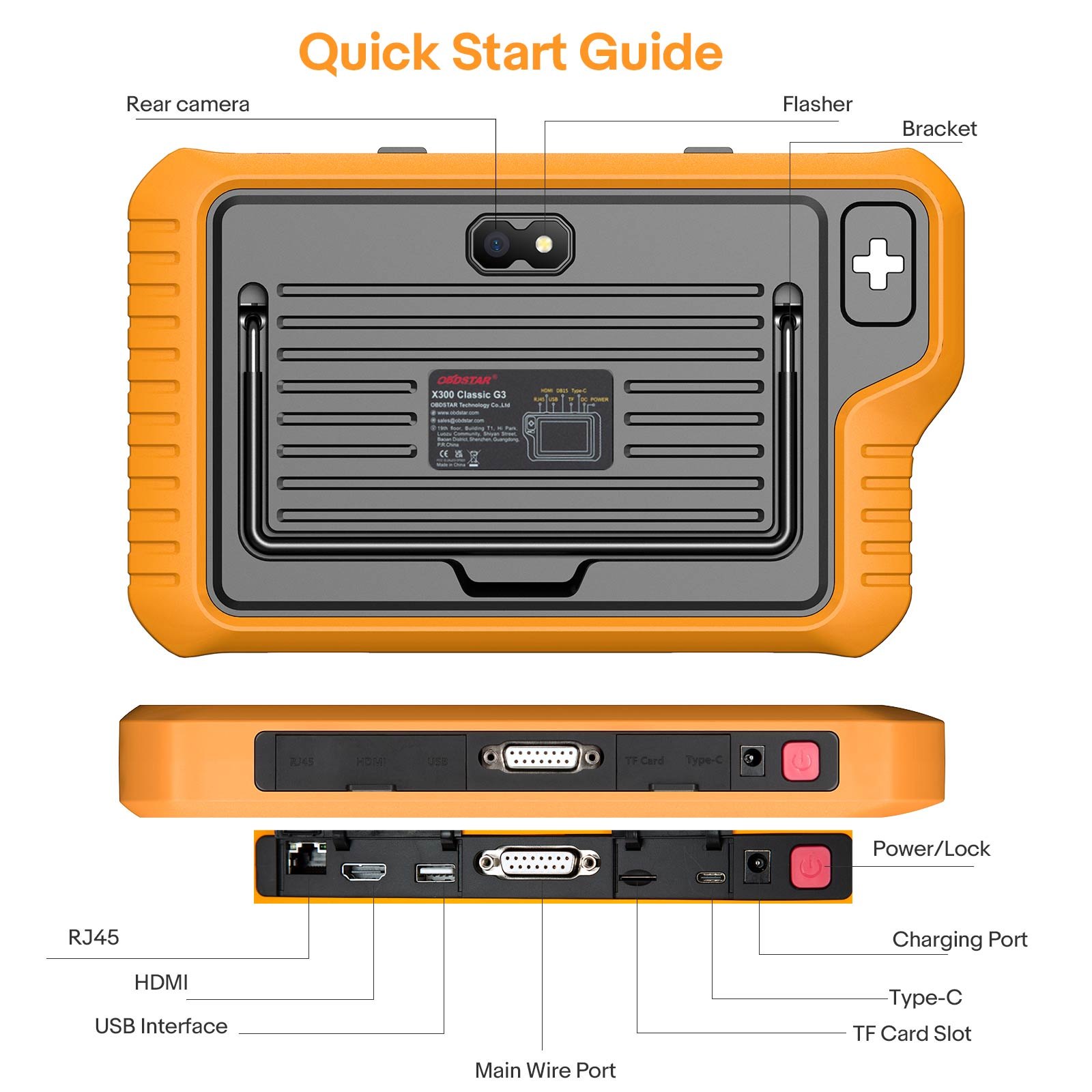

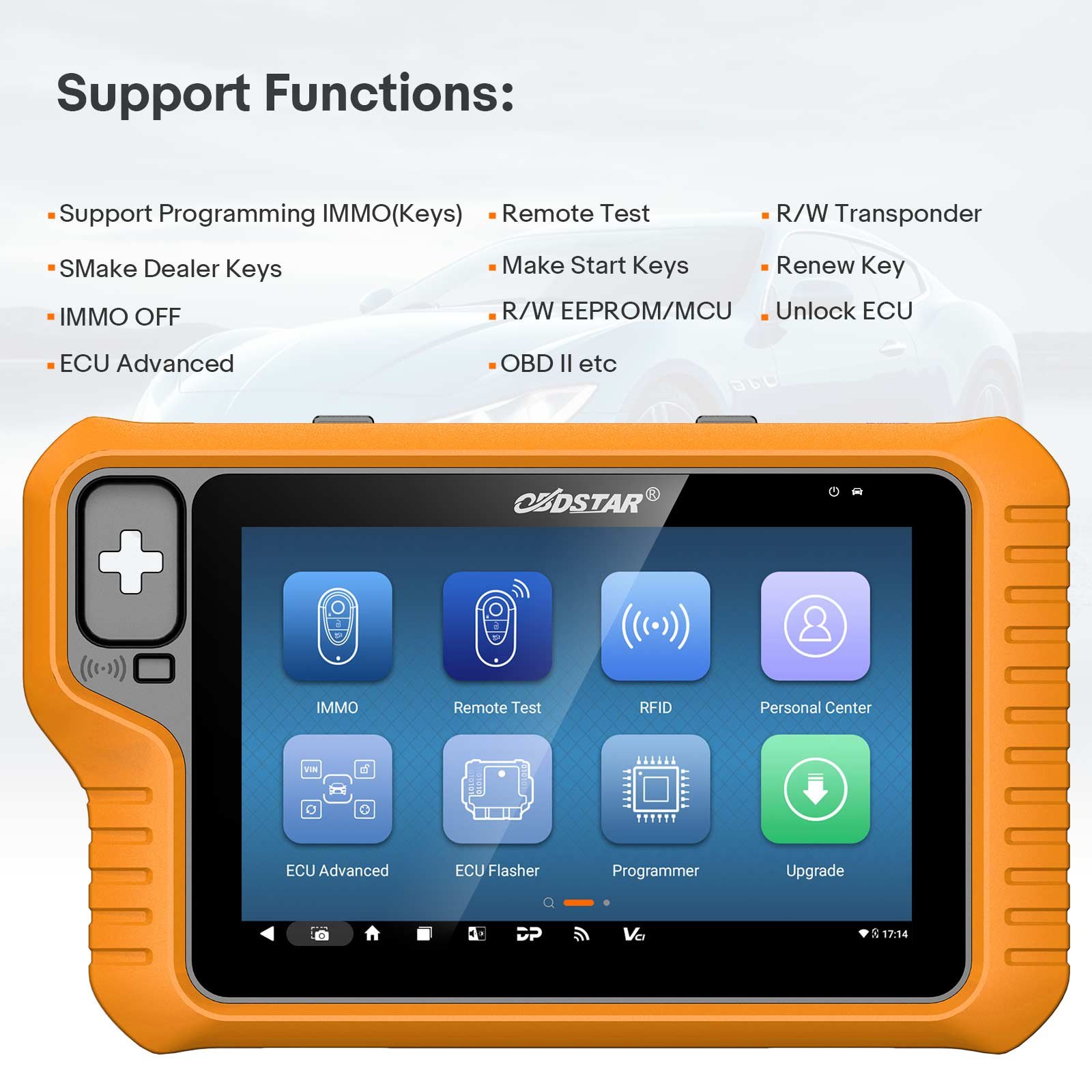

Highlights: programming IMMO keys, remote test, transponder read and write, dealer key making, start key making, key renewal, IMMO off, EEPROM and MCU read and write, ECU virgin and reset, ECU advanced, OBD2. Comparison with X300 DP Plus: G3 runs Android 11 versus 5.1.1, OTA yes versus no, screen recording yes versus no, wireless casting yes versus no, CPU quad-core 64-bit Cortex-A55 2.0 GHz versus quad-core ARM Cortex A9 1.4 GHz, battery 9000 mAh versus 3700 mAh, storage 4 plus 64GB versus 1 plus 32GB, LCD 8.0 inch fully laminated sunlight readable versus 8.0 inch, rear camera 800W pixels auto-focus versus 500W pixels, Bluetooth 5.0 versus 4.2, RJ-45 yes, HDMI yes, Type-A and Type-C versus Type-A, WIFI dual band 2.4G and 5G versus 2.4G, VCI STM32H723 versus STM32F105, CAN FD built in yes, DOIP built in yes, low speed fault tolerant CAN built in yes, RS232 and RS485 built in yes, RFID built in versus P001 required, remote test built in versus RT100 required, Renault converter built in versus required, weight about 1 kg versus 1.5 kg main unit, dimensions 270.5 mm by 165 mm by 39 mm versus 254 mm by 174 mm by 35 mm. Functions: diagnosis on DP Plus only, OBD2 on both, car IMMO on both, MOTO IMMO on both, HD IMMO on both, marine IMMO on G3 only, E-Car IMMO on G3 only, RFID on G3 only, key making on G3 only, smart key virgin on G3 only, key renewal on both, EEPROM and MCU read and write on both, ECU advanced with virgin on G3 only, oil and service reset on both, other service on DP Plus only, remote test on G3 only, ECU flasher IMMO including IMMO off, ISN and IMMO data on G3 only, ECU flasher clone on DP Plus and limited on G3 different from DC706, paid licenses for cluster, airbag and test platform on G3. Hardware includes MP001 replacing P003 and P003 plus, P004 and Renault adapter, free key sim emulator and motorcycle set M034, M037, M040, M041, M042, M043, M053 and M054.

Box Contents

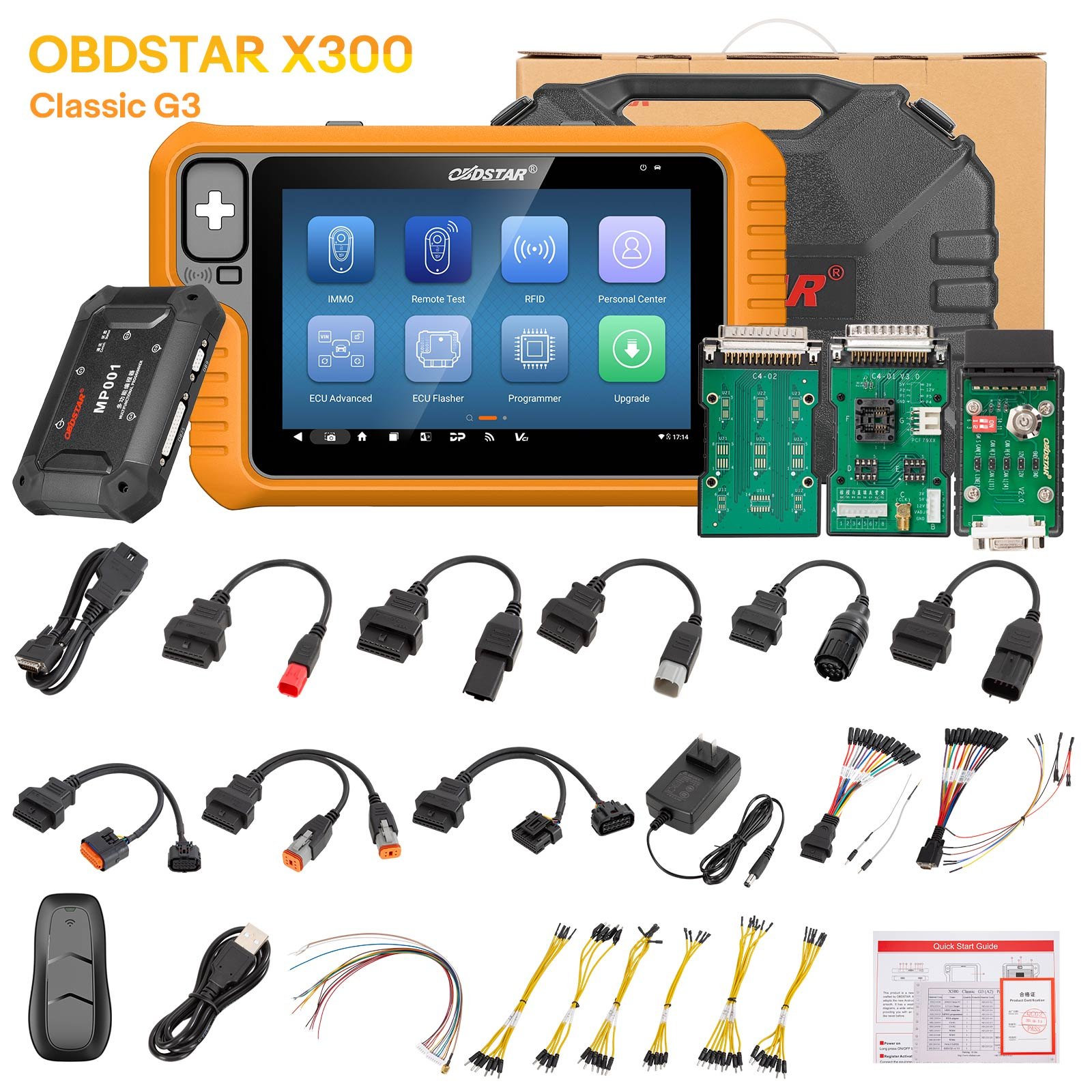

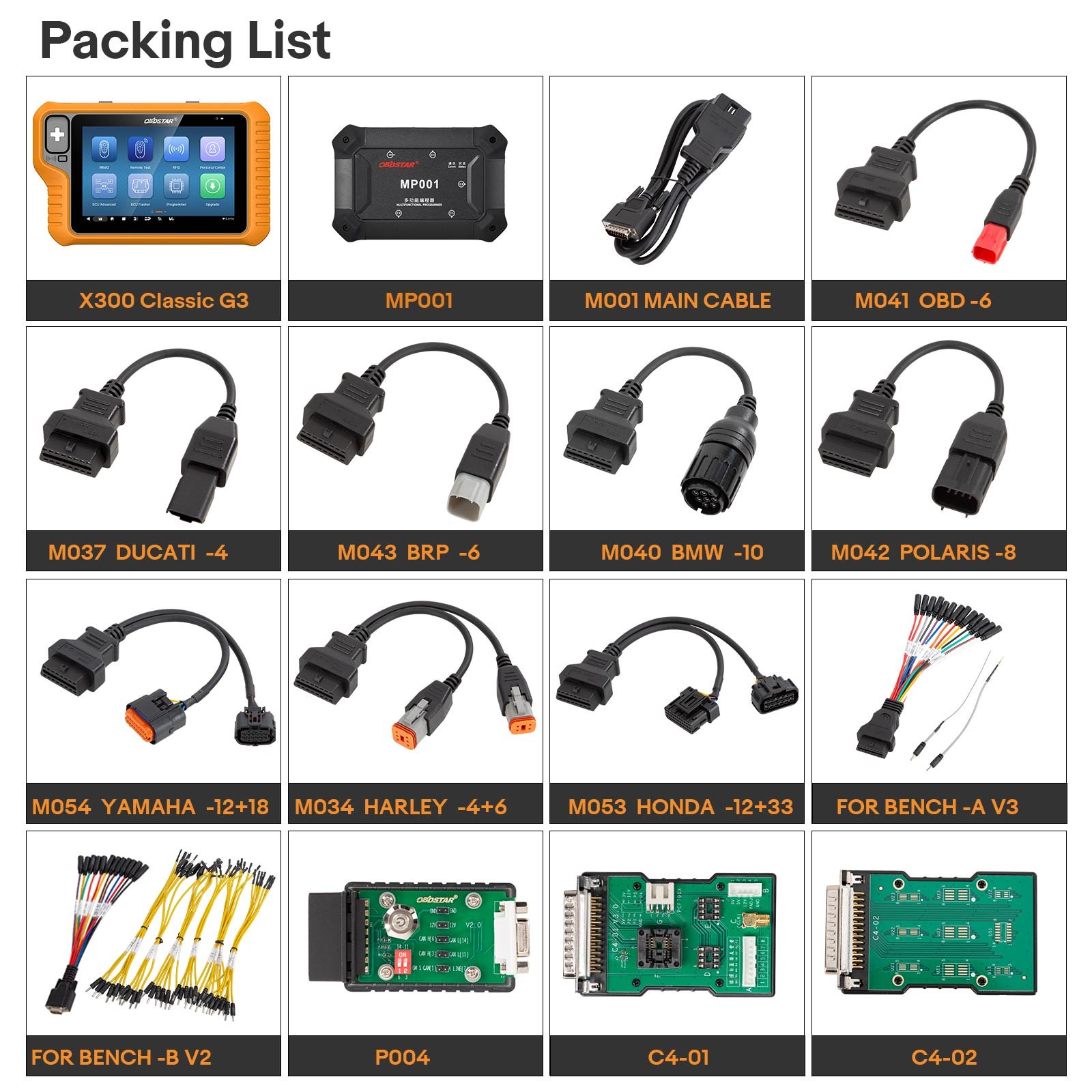

Default package as listed includes G3 main unit with MP001, P004 and Renault adapters, plus free key sim and motorcycle adapter set where listed for this version. Confirm exact adapters before ordering as contents vary by version.

Notices and Terms

• 2 years free update online. After 2 years buy G3 one year update service.
• Paid software for cluster calibration, ECU cloning, airbag reset and test platform available ECU cloning license G3 works as DC706 as listed.
• Language English only.
• Functions vary by model. Check vehicle list and manual before ordering.
• Source data ends Greatwall details to be confirmed.
