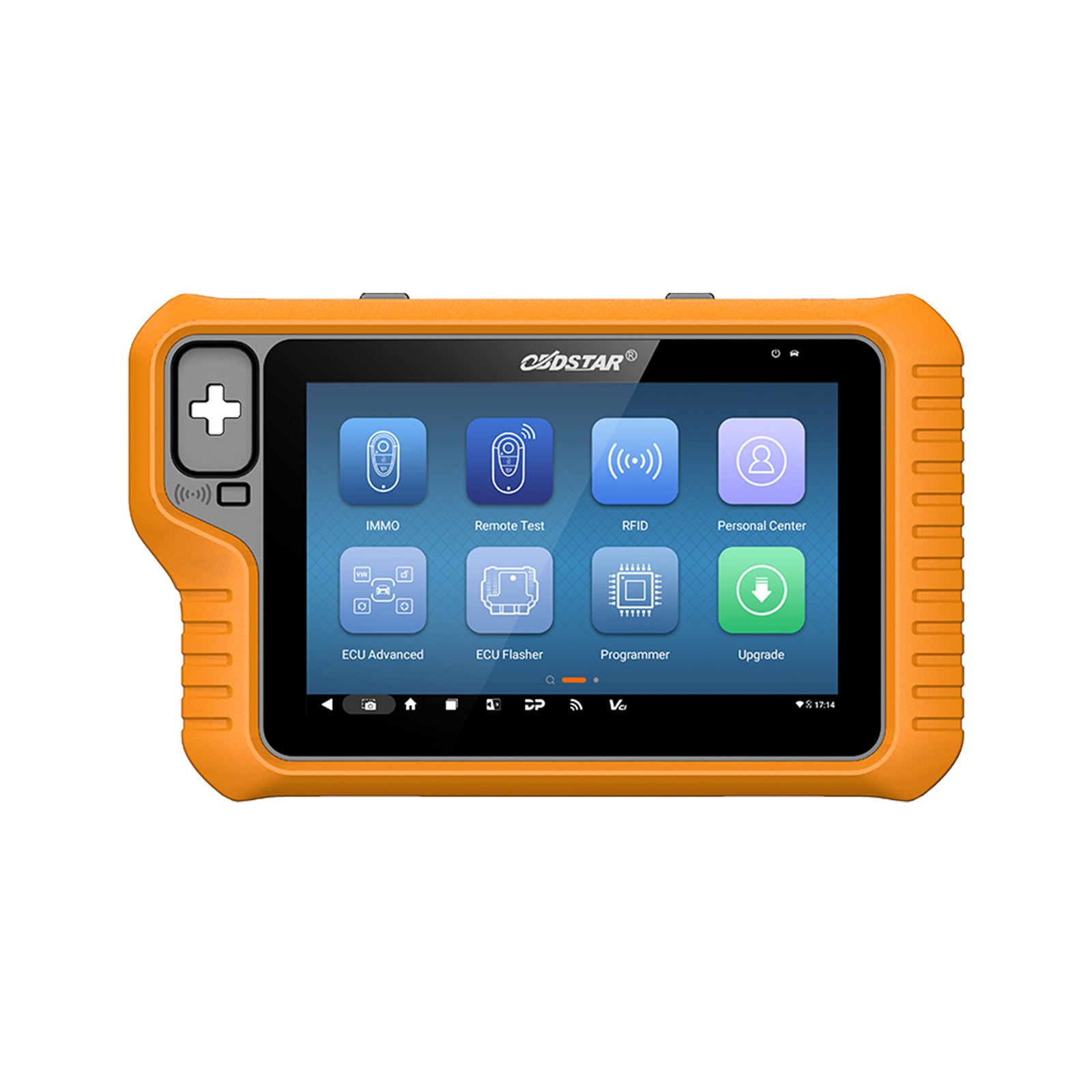

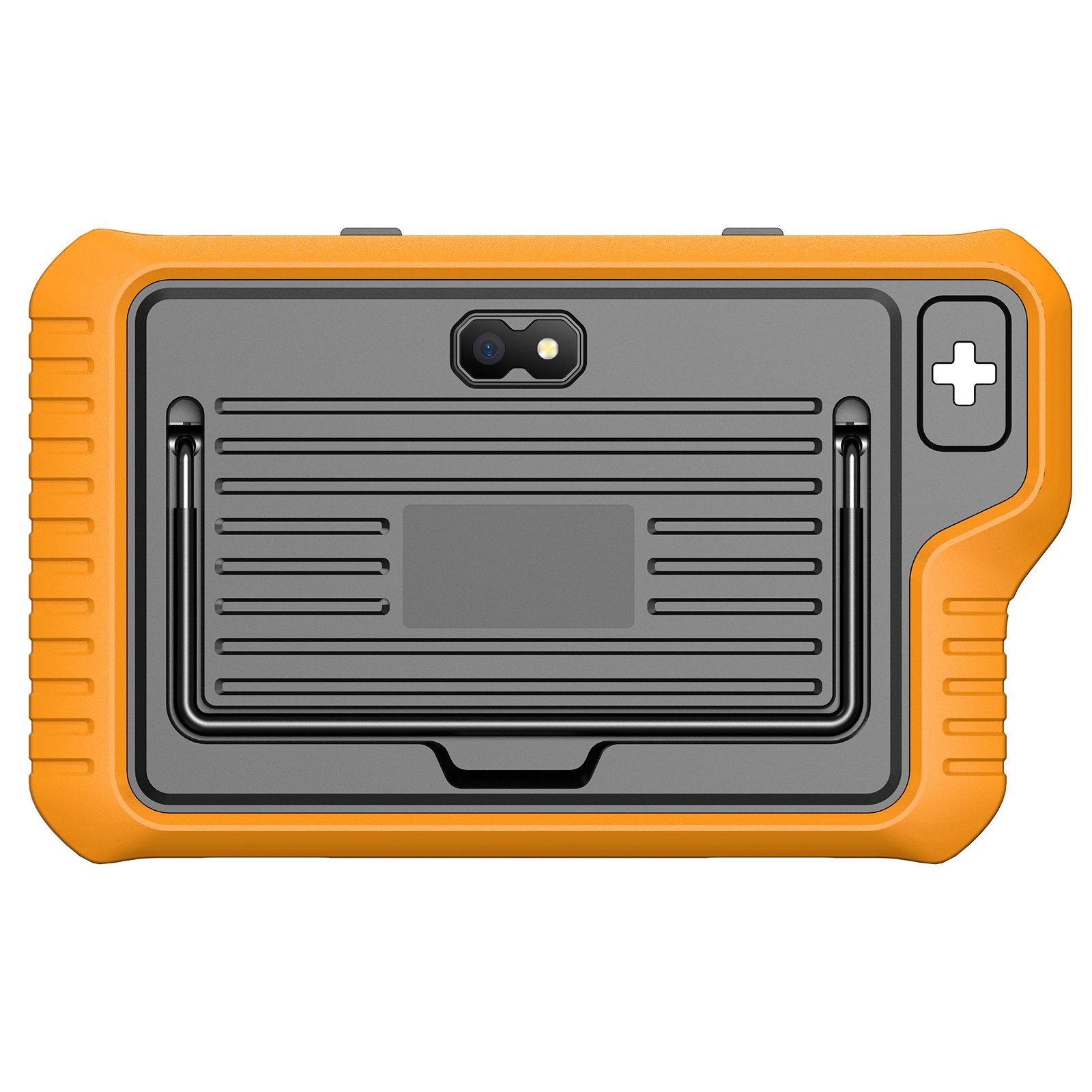

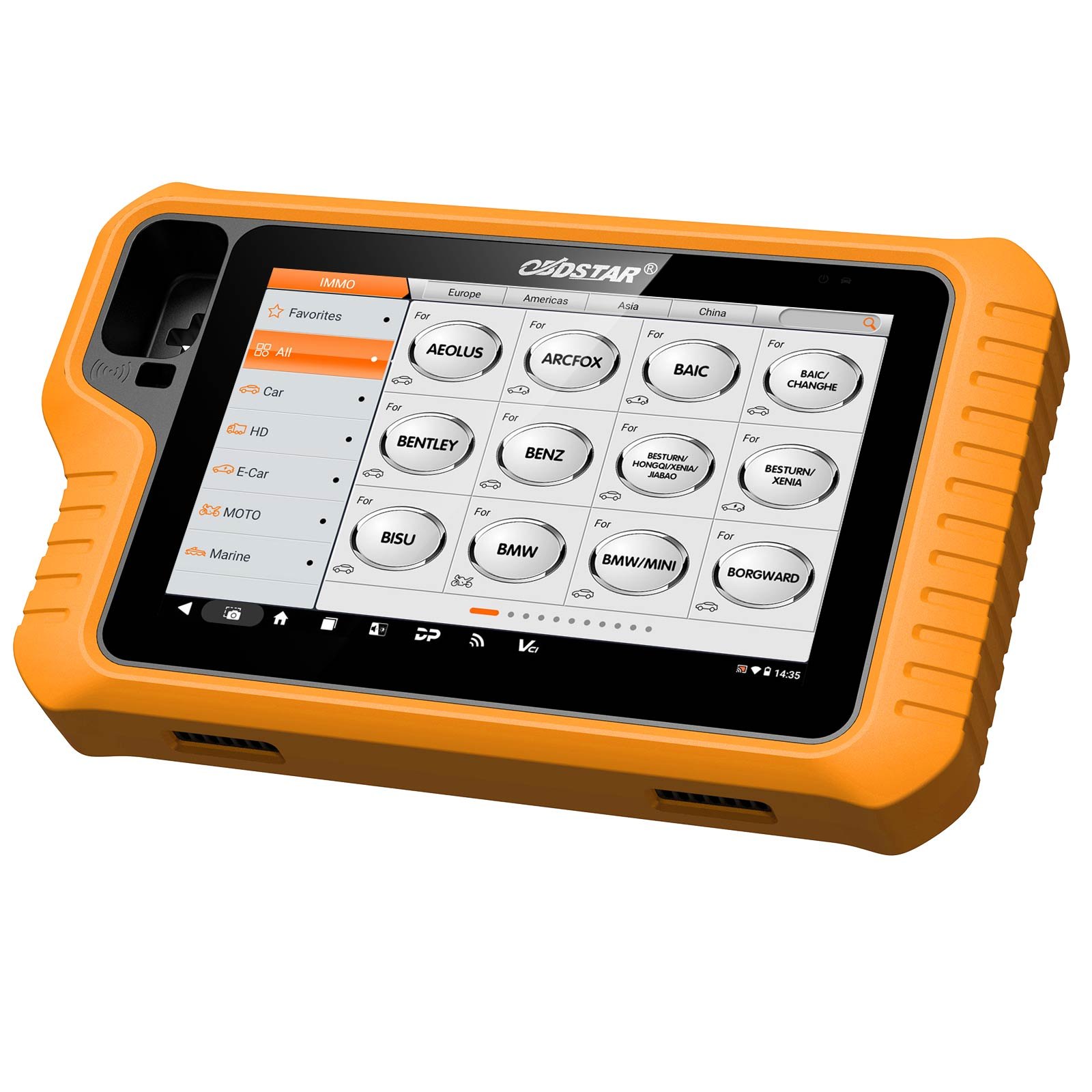

2026 OBDSTAR X300 Classic G3 Full Version (Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform)

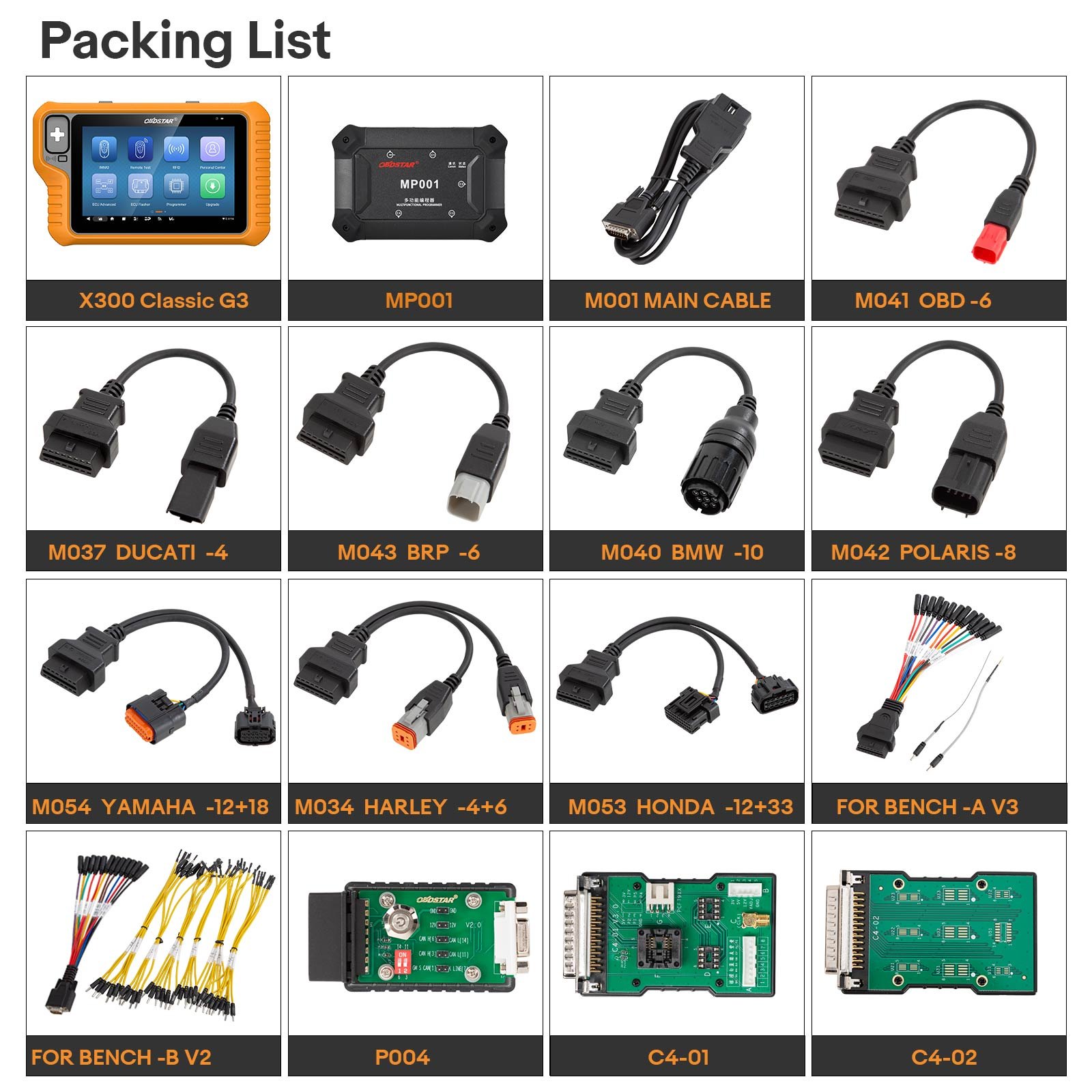

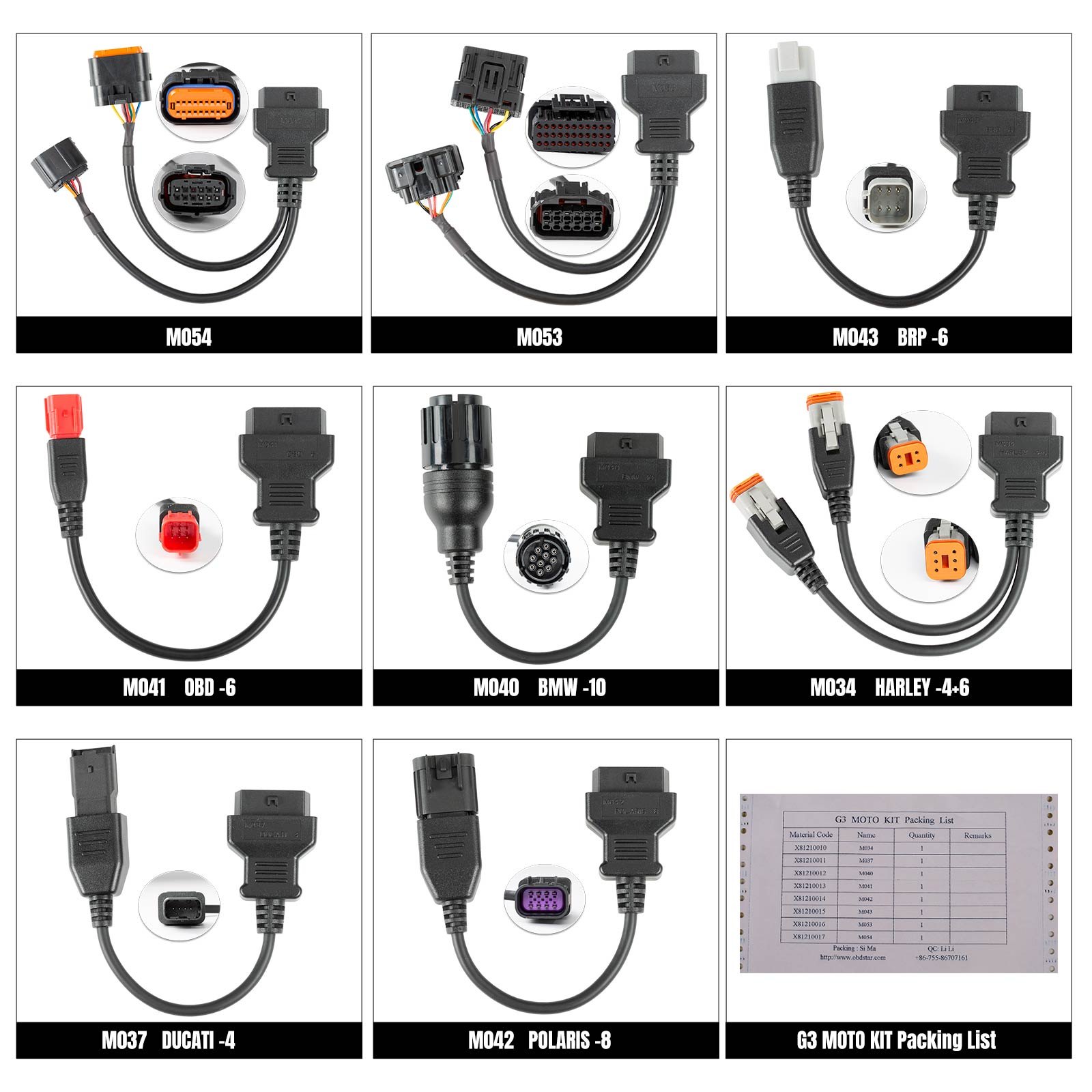

The 2026 OBDSTAR X300 Classic G3 Full Version equals the G3 basic version plus paid software for cluster calibration, ECU cloning, airbag reset, and test platform in one. It covers cars, heavy duty, E-cars, motorcycles, and jet skis. Free key SIM emulator and motorcycle adapter set (M034, M037, M040, M041, M042, M043, M053, M054) included. Part number: HKSP539-FULL.

Versions

Five versions are available at different prices: one year update service, G3 with A1 key sim adapters, G3 with A2 motorcycle adapters, G3 with A1 and A2 adapters, and G3 full version shown here.

Functions

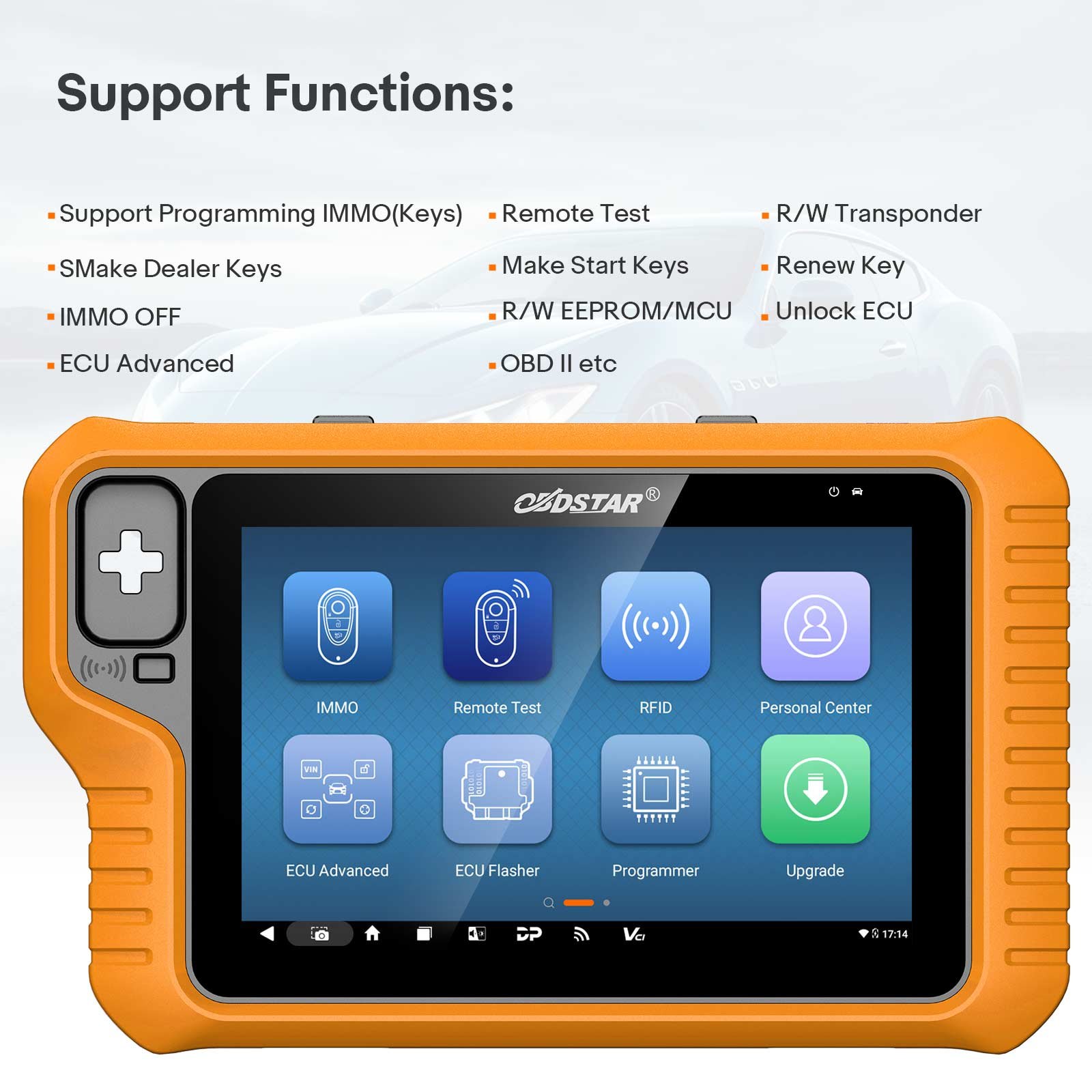

• Programming IMMO and keys, remote test, transponder read and write, dealer key making, start key making, key renewal, IMMO off, EEPROM and MCU read and write, ECU unlock, advanced ECU functions, and OBDII
• Motorcycle key programming without pincode for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Dayang, Aprilia, Piaggio, Vespa, Derby, Girella, Guzzi, Peugeot, Itajet, and others
• Marine key programming for BRP, Kawasaki, Yamaha, and others
• E-car key programming for LI, NETA, Leapmotor, Seres, AITO, and others
• ECU unlock for Alfa Romeo, Fiat, Chrysler, Dodge, and Jeep
• Smart 453 all keys lost programming where all functions are disabled
• Renault all keys lost programming where all functions are disabled: City K-ZE, Kwid, Sandero, Trafic, Twingo, Lodgy, and Duster PH3
• Pincode reading for all keys lost with no bricking risk for post-2015 Renault Espace, Kadjar, Koleos, Megan, Scenic, Talisman, and Samsung QM6 and SM6
• Paid software adds cluster calibration, ECU flasher, airbag reset, and test device registration, send the serial number

Function modules

• A IMMO: A1.1 car IMMO, A1.2 HD IMMO, A1.3 E-car IMMO, A1.4 moto IMMO, A1.5 marine IMMO, A2.1 remote test, A3.1 ECU advanced, A4.1 make key, A4.2 transponder read and write, A4.3 smart key unlock, A5.1 EEPROM and MCU, A5.2 renew key
• B odometer and cluster calibration: B1.1 car odometer, B1.2 moto odometer, B2.1 oil and service reset
• C ECU flasher: C1.1 car ECM, C1.2 car TCM, C1.3 car body, C2.1 moto ECM
• D crash reset and airbag reset: D1.1 battery reset (MVBM), D1.2 airbag reset, D1.3 SAS reset
• E test platform: E1.1 dashboard, E1.2 E-car ABS, E1.3 gear lever, E1.4 A/C panel, E1.5 E-car BSG, E1.6 E-car MHEV, E1.7 E-car audio, E1.8 E-car EBA

Optional adapters

• Ford all keys lost cable with the P002 adapter for Ford, Lincoln, Mustang, and others
• Toyota-30 cable for proximity key programming and all keys lost, 4A and 8A-BA types, no harness piercing
• Benz FBS3 kit for pin code reading, ECU virgin reset and programming, and key programming. FBS3 add keys, all keys lost, ECM, TCM, ISM, EIS, and ELV virgin reset, and personalization
• VW 7-in-1 TCM kit for ECU clone, map read and write, diagnostics, and cluster calibration on VW and Audi automatic transmissions, by OBD or bench without removing the TCM
• TCM connectors for transmission mileage calibration and ECU cloning with no jumper connection, one-click read and write
• VW4-AKL cable for VW IMMO IV NEC24C64 and NEC24C32 all keys lost
• RH850 and V850 adapter full kit for MQB all keys lost
• C4-07 (MB-VGS4-0-NAG2) adapter kit: all VGS4-0 NAG2 7G-Tronic TCU vehicles of the FBS4 and DAS4 generation Mercedes-Benz. Solder-free virginizing of used TCM by JTAG mode. Personalization by bench or OBD mode with TCM clone effect
• P005 adapter kit for BMW BDC02 IMMO function
• C4-08 (MB-VGS4-500-NAG2) adapter kit: solder-free virginizing of used TCM by JTAG mode and personalization by bench or OBD mode with TCM clone effect
• C4-09 (MB91F526) adapter kit: FLASH, DFLASH, and immobilizer data decryption read and write

Notice

• The full version activates ECU flasher (clone), car and motorcycle cluster recalibration, airbag reset, and test platform functions
• Language: English only

Hardware

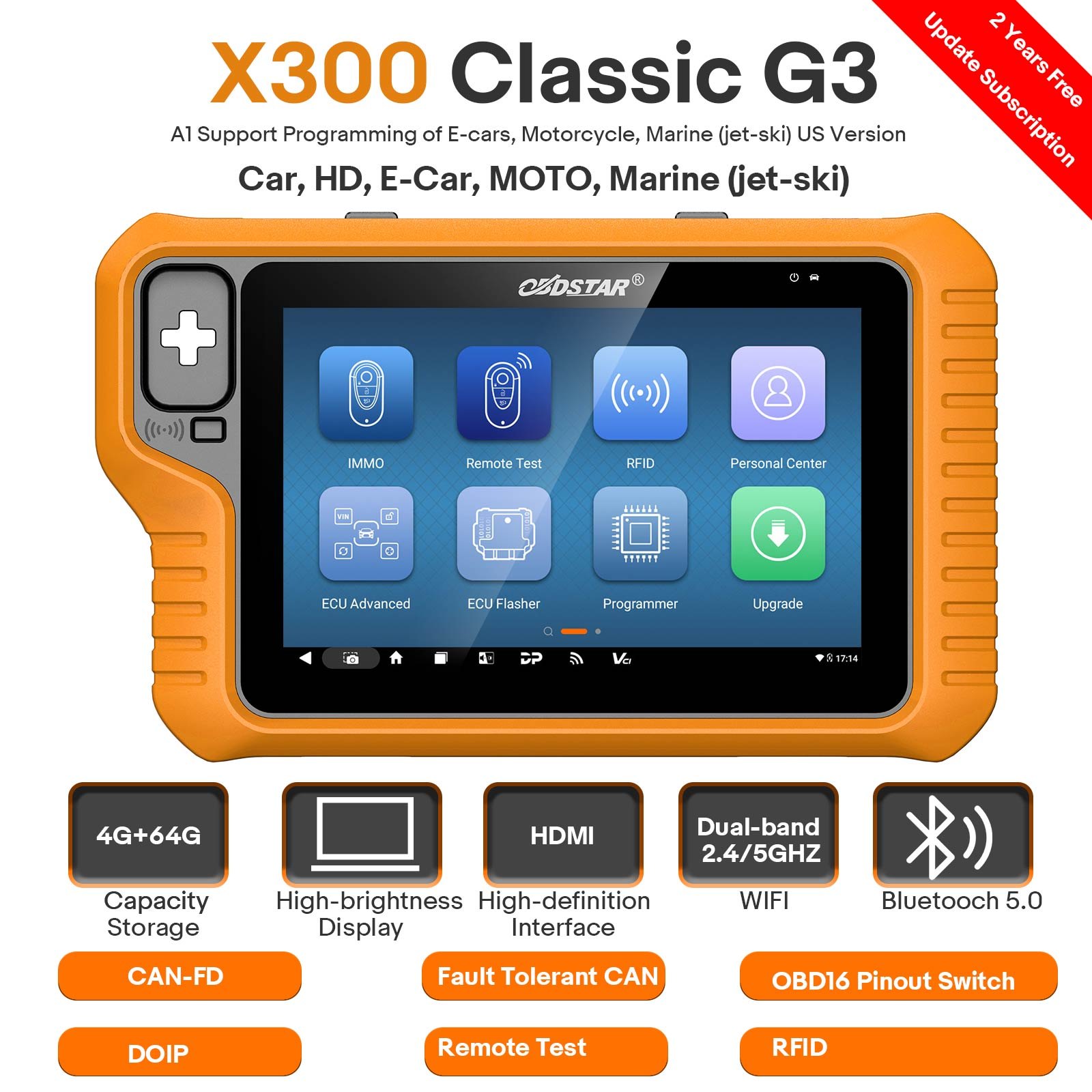

• Built-in CAN-FD, fault tolerant CAN, OBD16 pinout switch, DOIP, remote test, and RFID
• RK3568 hexa-core processor, 4G plus 64G storage, high-brightness display, HDMI interface, dual-band 2.4 and 5GHz WiFi, Bluetooth 5.0, STM32H723 high performance VCI processor

G3 over DP Plus

• Operating system: Android 5.1.1 over Android 11
• OTA updates: missing over supported
• Screen recording: missing over supported
• Wireless screen casting: missing over supported
• CPU: quad-core ARM Cortex A9 1.4GHz over quad-core 64-bit Cortex-A55 2.0GHz
• Battery: 3700mAh over 9000mAh
• Storage: 1 plus 32GB over 4 plus 64GB
• LCD: 8.0 inch over 8.0 inch fully laminated sunlight readable
• Camera: rear 500W pixels over rear 800W pixels with auto-focus
• Bluetooth: 4.2 over 5.0 compatible with 4.2

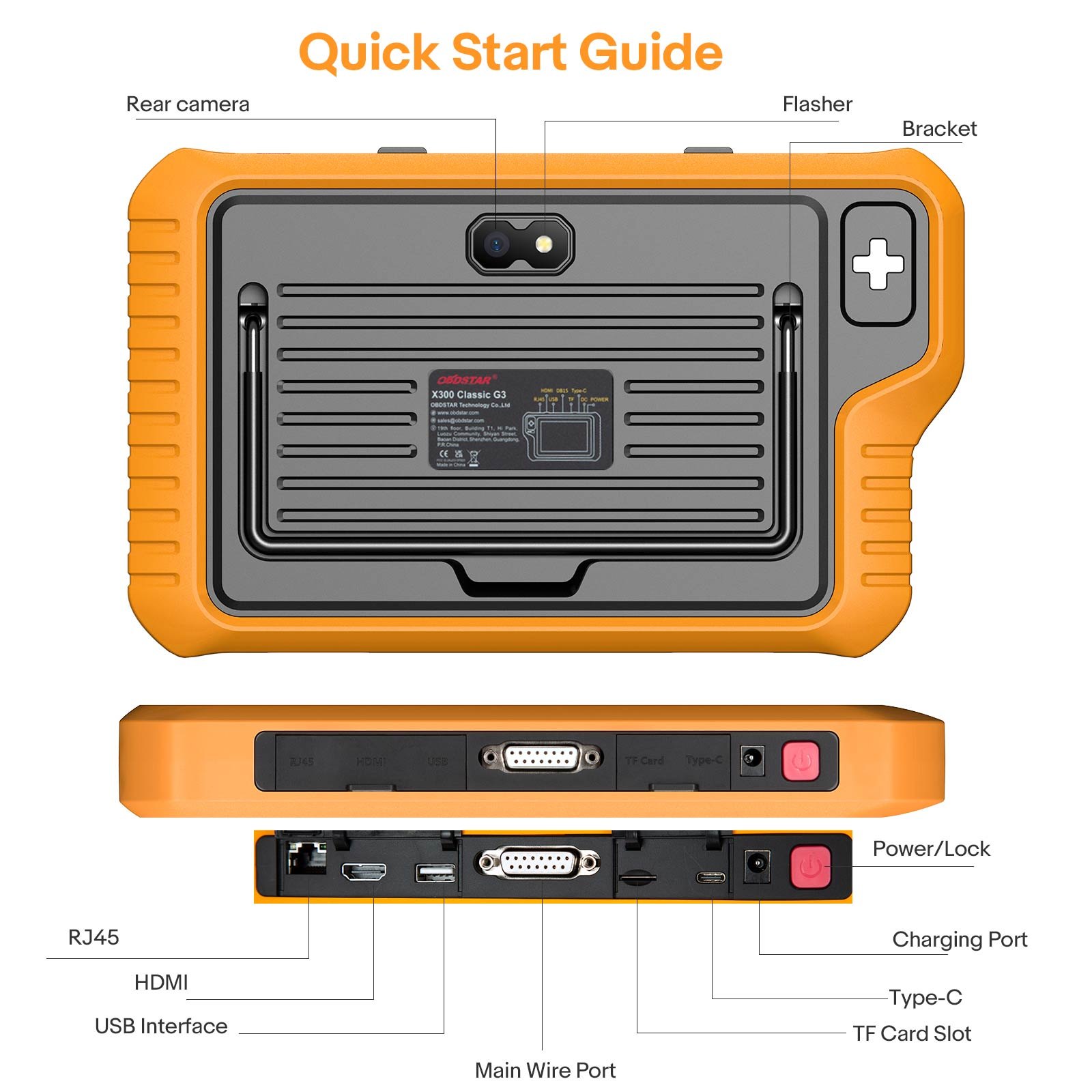

• External interfaces: none over RJ-45, HDMI, TYPE-A, and TYPE-C
• WiFi: 2.4G over dual-band 2.4G and 5GHz
• VCI: STM32F105 over STM32H723
• CANFD adapter: required over built in
• DOIP: built in over missing
• Low speed fault tolerant CAN: built in over missing
• RS232 and RS485: built in over missing
• Other common protocols on both
• RFID: P001 required over built in
• Remote test: RT100 required over built in
• Renault converter: required over built in
• Weight: about 1kg over 1.5kg main unit

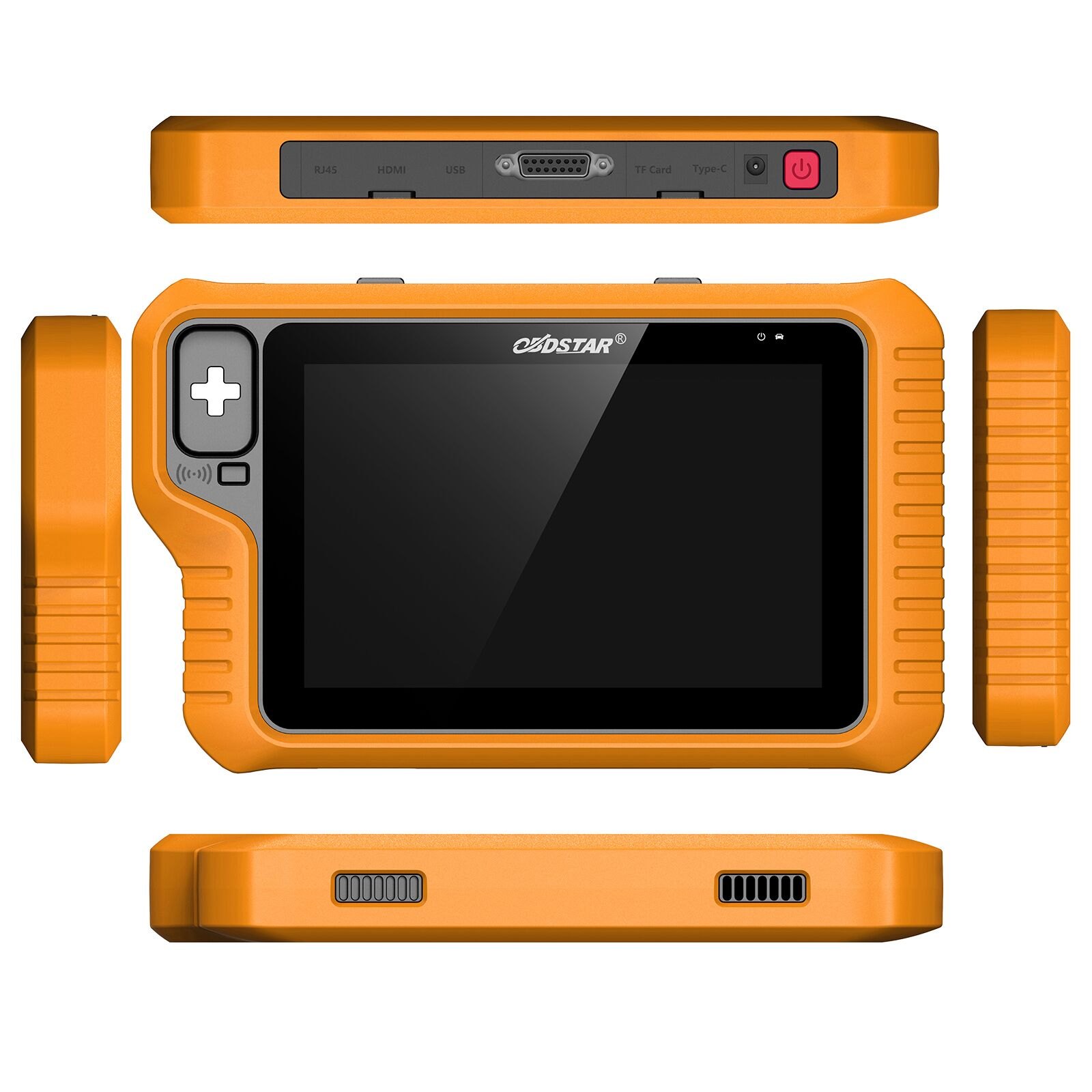

• Dimensions: 254mm by 174mm by 35mm over 270.5mm by 165mm by 39mm
