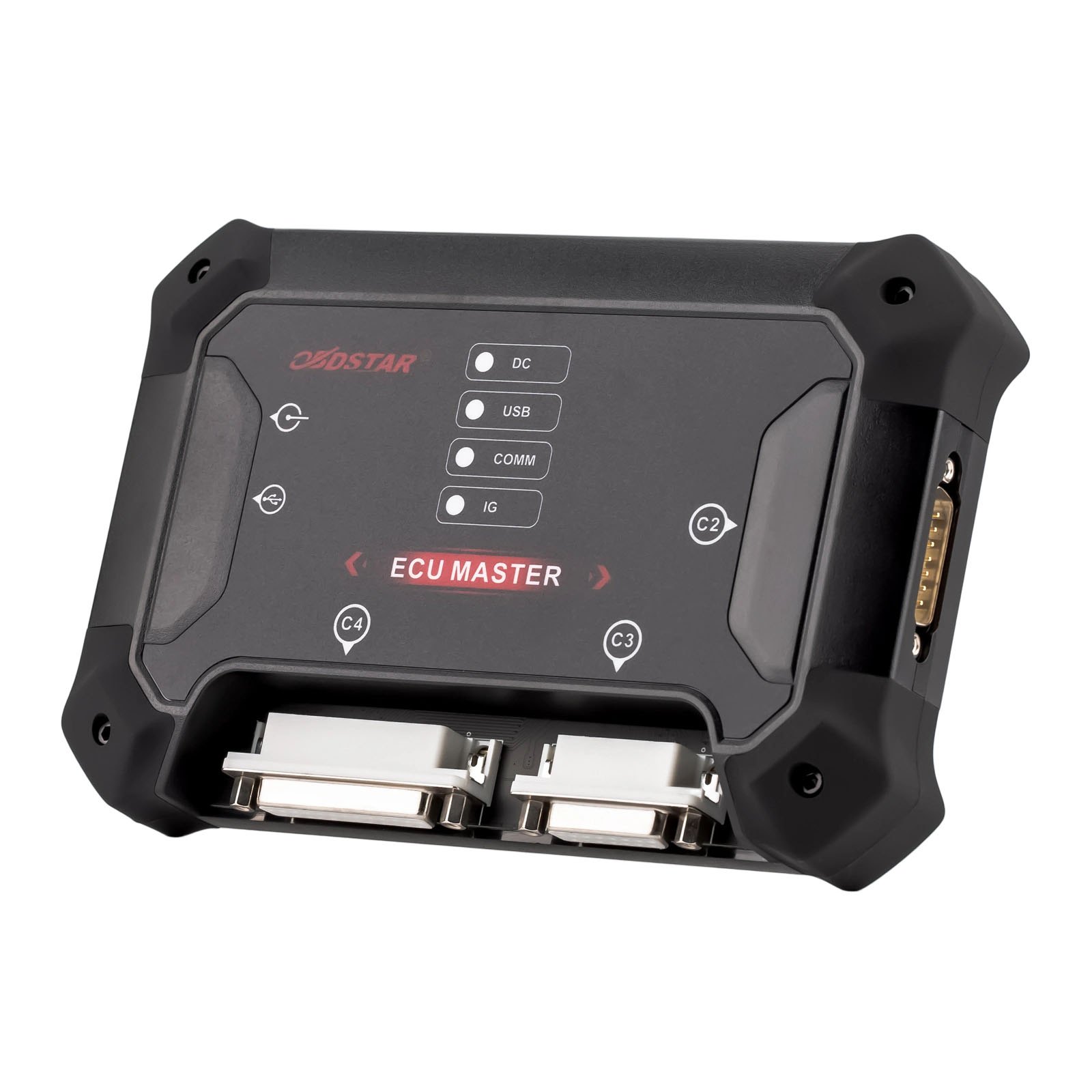

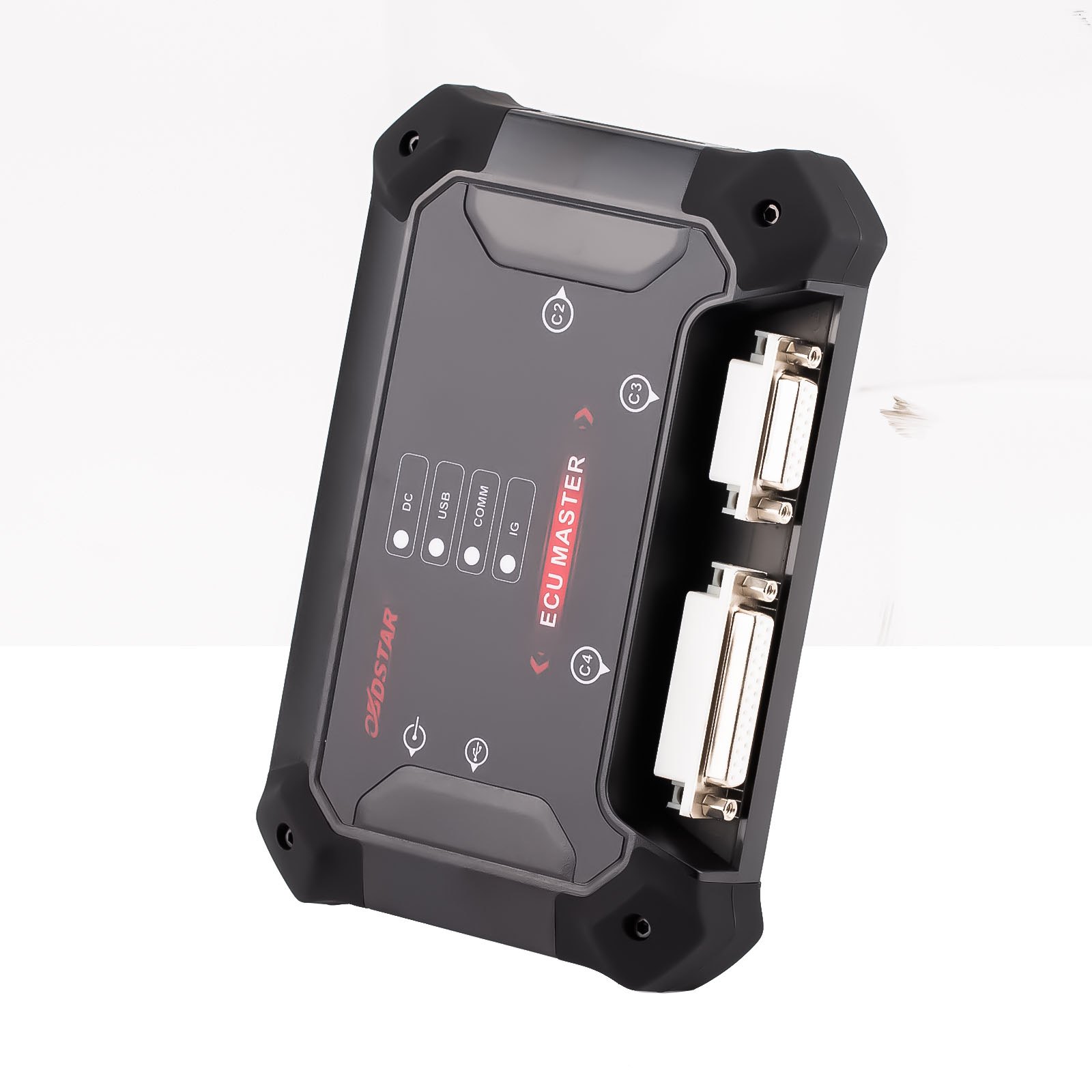

2026 OBDSTAR ECU Master Full Configuration (A+B+C+D) PC-Based ECU Flasher

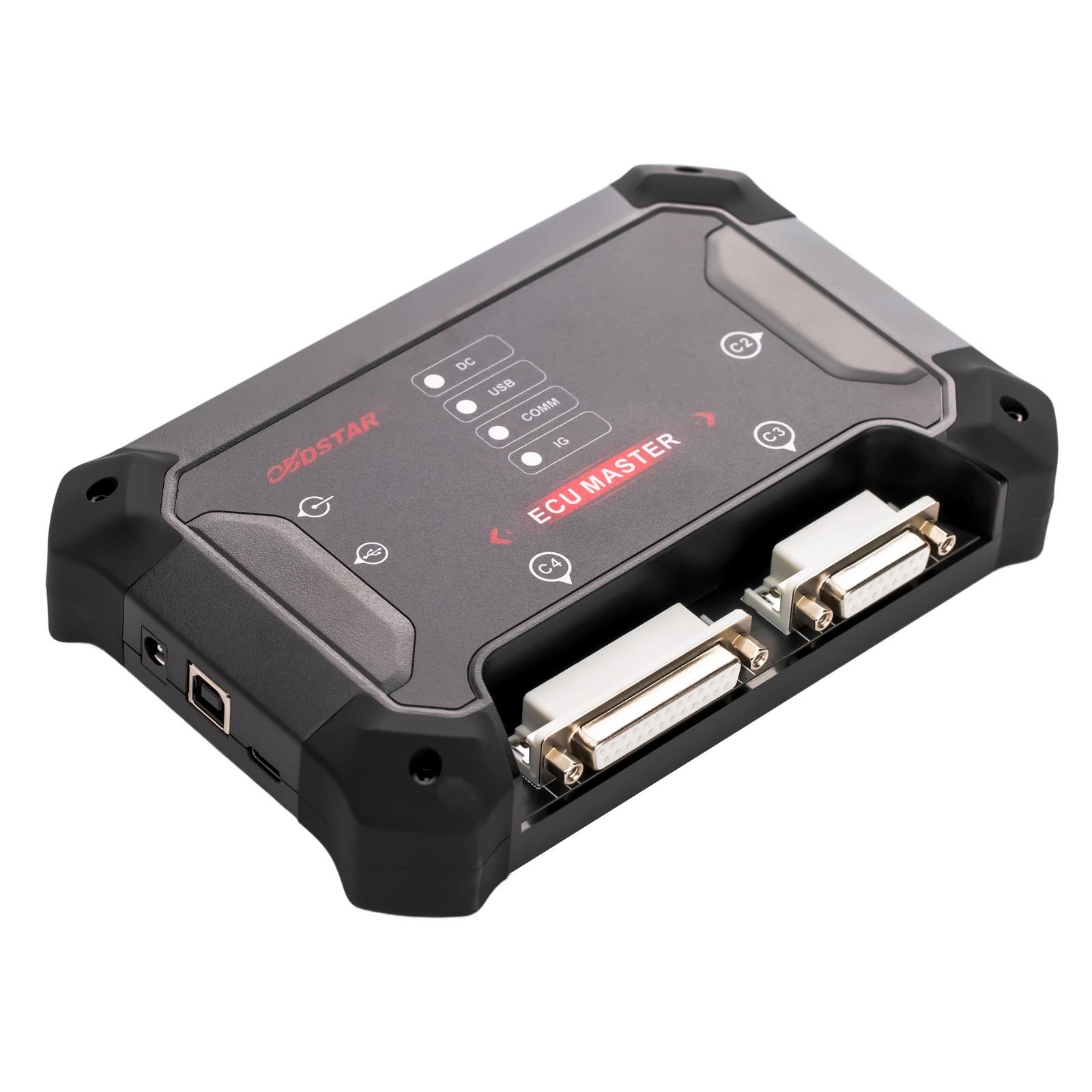

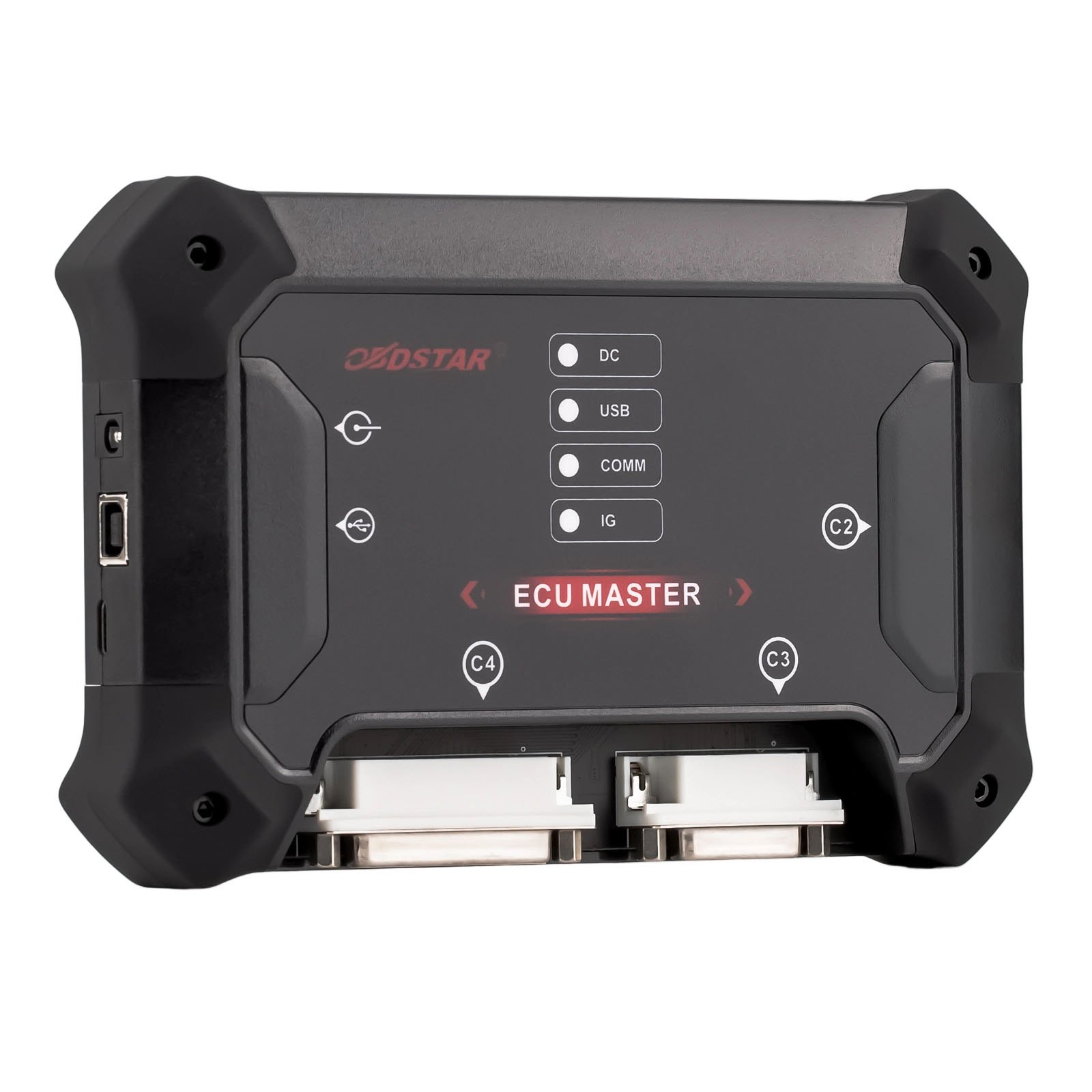

The 2026 OBDSTAR ECU Master Full Configuration (A+B+C+D) is a PC-based ECU flasher for passenger cars, EV, motorcycles, and heavy duty ECM, TCM, and BCM clone work. It is the first professional PC-based ECU flasher from OBDSTAR, with built-in P003+, MP001, CAN FD, and RH850 and V850 adapter functions. It reads ECUs of major global brands with precise maintenance for popular units and anti-misoperation reminders. Part number: HKSE197-FULL.

Versions

Five versions are available at different prices: B configuration for motorcycles, A configuration for passenger cars and EV, C configuration for HD, A plus B plus C configuration for car, motorcycle, and HD, and full configuration (A plus B plus C plus D) shown here.

Configurations

• A: passenger car and EV
• B: motorcycle
• C: heavy duty
• D: airbag, battery, and SAS reset functions

Function matrix: passenger car TCM, ECM, and body/chassis/other, EV BMS/VCU/other, motorcycle ECM, and HD TCM, ECM, and body/chassis/other are covered across A, B, C, and A+B+C and battery and SAS reset spans all configurations.

Highlights

• Read and write by OBD, BENCH, BOOT, JTAG, BDM, and other modes, focused on safe open-free ECU work across all vehicle models
• All-in-one coverage: ECM, TCM, and BCM read and write with CS, virgin reset, immobilizer decryption and matching, VIN modification, and mileage correction
• Clear menus with full documentation and anti-misoperation reminders
• Targeted fixes: non-destructive BCM cloning for Ford and Volvo, IMMO programming for VW and Audi, DSG TCM programming and calibration, used unit adaptation for MB FBS4
• Monthly updates tracking automotive electronics repair trends
• Senior technical team support with manufacturer expertise

Support functions

• Passenger car ECM, TCM, and BCM cloning: BOSCH MED and EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, and MB FBS4 series units
• Advanced functions: checksum, IMMO data convert, IMMO data decryption, IMMO off and on, coolant temperature sensor calibration, mileage calibration, ECU runtime calibration, VIN read and write, virgin reset, and more
• HD ECM, TCM, and BCM cloning for global commercial brands. Trucks: Mercedes-Benz, Volvo, Scania, MAN, Iveco, Isuzu, Mitsubishi Fuso, FAW, Ford, and others. Tractors and off-highway: John Deere, CNH Industrial, Kubota, Yanmar, and others. ECU brands: Bosch, Denso, Continental, Delphi, Siemens, Cummins, Wabco, ZF, and others
• Advanced HD functions: VIN read and write, virgin reset, mileage calibration, checksum, MAPS read and write, ECU lock and unlock, IMMO off and on, and more
• Motorcycle ECM cloning for 100+ motorcycle brands and 300+ ECU types, with VIN read and write, data read and write, ISN read and write, virgin reset, data buffer reset, mileage calibration, checksum, and more
• Airbag, battery, and SAS reset functions

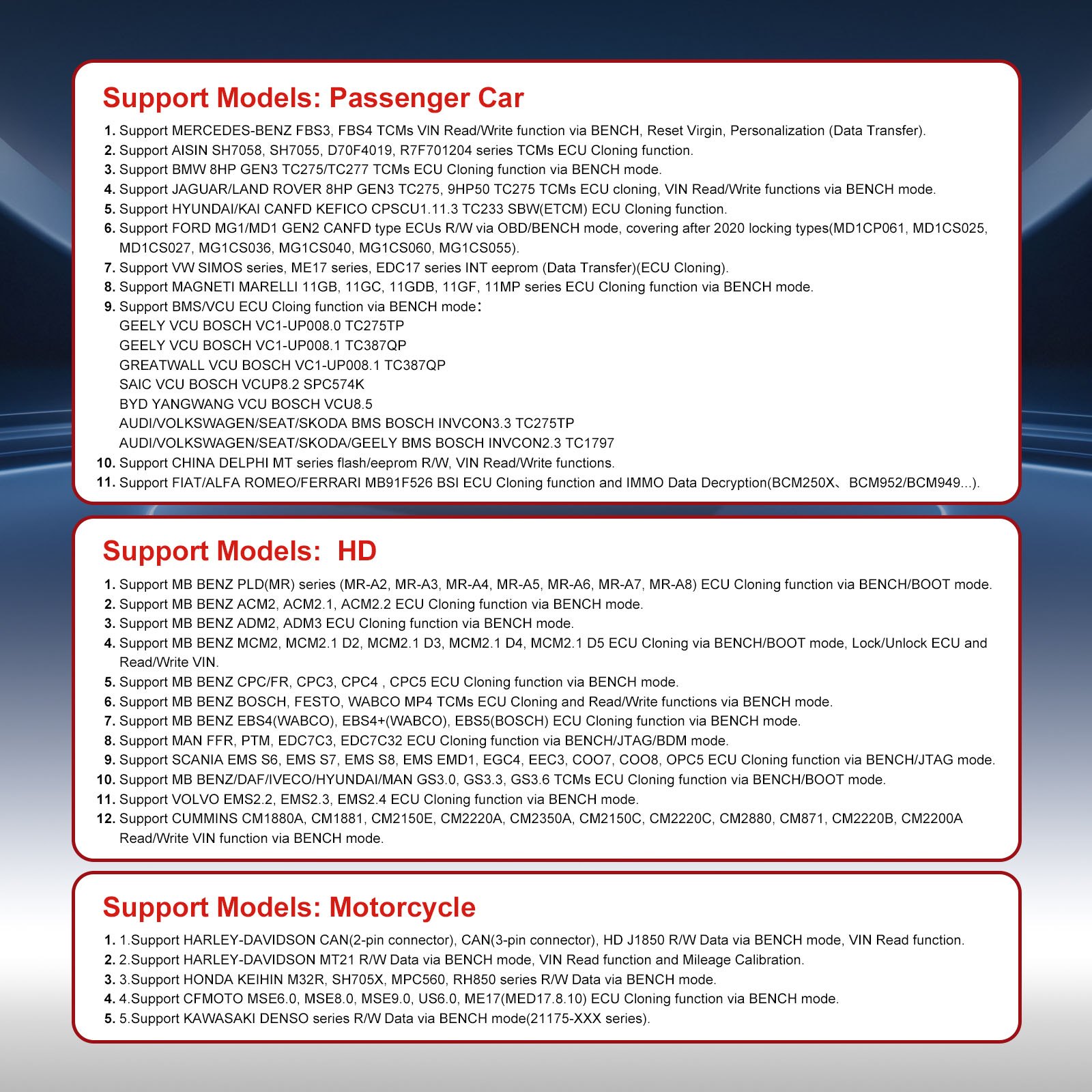

Model support

• Passenger car: Mercedes-Benz FBS3 and FBS4 TCM VIN read and write by bench, virgin reset, and personalization data transfer. AISIN SH7058, SH7055, D70F4019, and R7F701204 series TCM ECU cloning. BMW 8HP GEN3 TC275 and TC277 TCM ECU cloning by bench. Jaguar and Land Rover 8HP GEN3 TC275 and 9HP50 TC275 TCM ECU cloning with VIN read and write by bench. Hyundai and Kia CANFD KEFICO CPSCU1.11.3 TC233 SBW (ETCM) ECU cloning. Ford MG1 and MD1 GEN2 CANFD ECUs by OBD and bench, covering post-2020 locking types MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, and MG1CS055. VW SIMOS, ME17, and EDC17 series internal EEPROM data transfer for ECU cloning. Magneti Marelli 11GB, 11GC, 11GDB, 11GF, and 11MP series ECU cloning by bench. BMS and VCU ECU cloning by bench: Geely VCU Bosch VC1-UP008.0 TC275TP, Geely VCU Bosch VC1-UP008.1 TC387QP, Great Wall VCU Bosch VC1-UP008.1 TC387QP, SAIC VCU Bosch VCUP8.2 SPC574K, BYD Yangwang VCU Bosch VCU8.5, Audi/VW/Seat/Skoda BMS Bosch INVCON3.3 TC275TP, Audi/VW/Seat/Skoda/Geely BMS Bosch INVCON2.3 TC1797. China Delphi MT series flash and EEPROM read and write with VIN read and write. Fiat, Alfa Romeo, and Ferrari MB91F526 BSI ECU cloning with IMMO data decryption (BCM250X, BCM952, BCM949, and others)
• HD: MB Benz PLD (MR) series MR-A2 through MR-A8 ECU cloning by bench and boot. MB Benz ACM2, ACM2.1, and ACM2.2 by bench. MB Benz ADM2 and ADM3 by bench. MB Benz MCM2, MCM2.1 D2 through D5 ECU cloning by bench and boot, with ECU lock and unlock and VIN read and write. MB Benz CPC and FR, CPC3, CPC4, and CPC5 by bench. MB Benz Bosch, Festo, and Wabco MP4 TCM ECU cloning and read and write by bench. MB Benz EBS4 (Wabco), EBS4+ (Wabco), and EBS5 (Bosch) by bench. MAN FFR, PTM, EDC7C3, and EDC7C32 by bench, JTAG, and BDM. Scania EMS S6, EMS S7, EMS S8, EMS EMD1, EGC4, EEC3, COO7, COO8, and OPC5 by bench and JTAG. MB Benz, DAF, Iveco, Hyundai, and MAN GS3.0, GS3.3, and GS3.6 TCMs by bench and boot. Volvo EMS2.2, EMS2.3, and EMS2.4 by bench. Cummins CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B, and CM2200A VIN read and write by bench
• Motorcycle: Harley-Davidson CAN 2-pin and 3-pin connectors and HD J1850 data read and write by bench with VIN read. Harley-Davidson MT21 data read and write by bench with VIN read and mileage Keihin M32R, SH705X, MPC560, and RH850 series data read and write by bench. CFMOTO MSE6.0, MSE8.0, MSE9.0, US6.0, and ME17 (MED17.8.10) ECU cloning by bench. Kawasaki Denso series data read and write by bench (21175-XXX series)
• Update note: locked MG1 and MD1 ECU read, write, and unlock, including Bosch MD1CP032 (BMW B57) TC299
