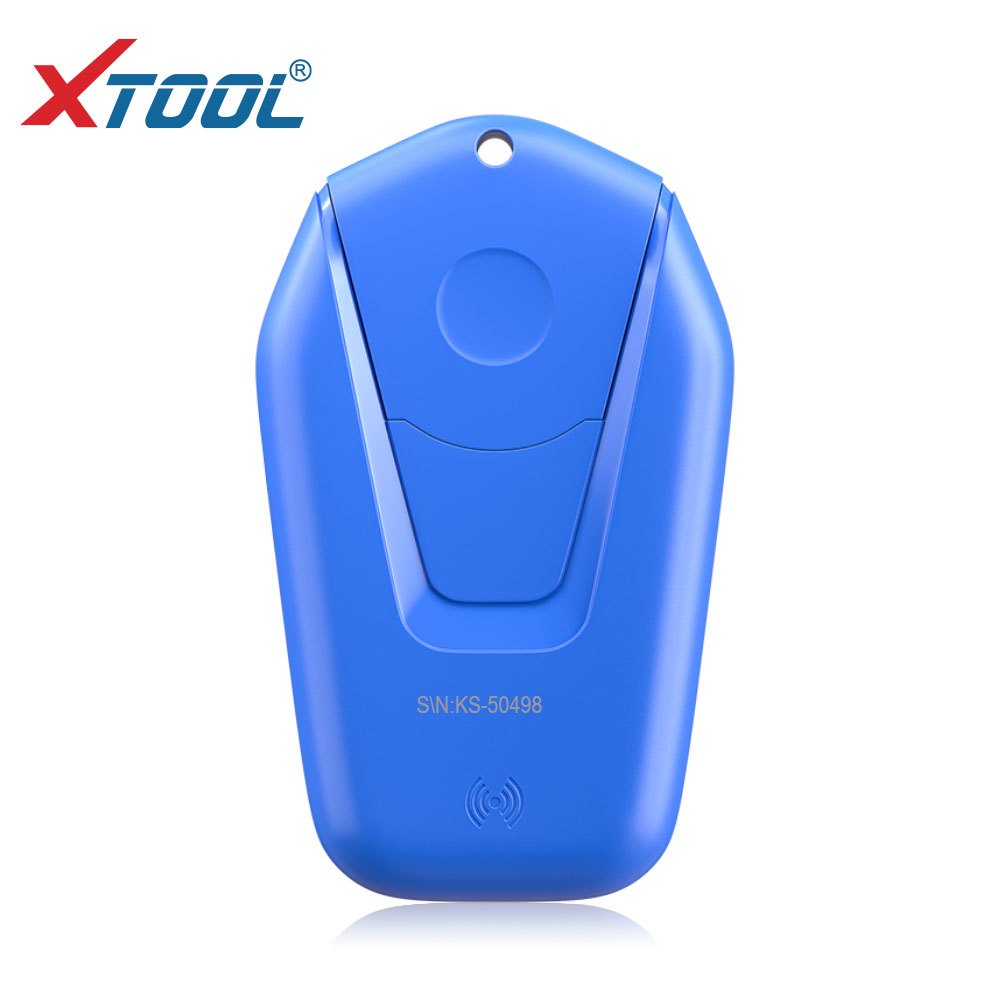

XTOOL KS-1 KS01 Smart Key Emulator for Toyota Lexus All Keys Lost No Need Disassembly Work with X100 PAD2/PAD3

All keys lost on a Toyota smart system usually means pulling the immobiliser box, and the KS-1 emulator is how you avoid that. It stands in for a key so the job can be done through the OBD port, paired with X100 PAD2 or PAD3.

Specifications

• 1pc (mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading)

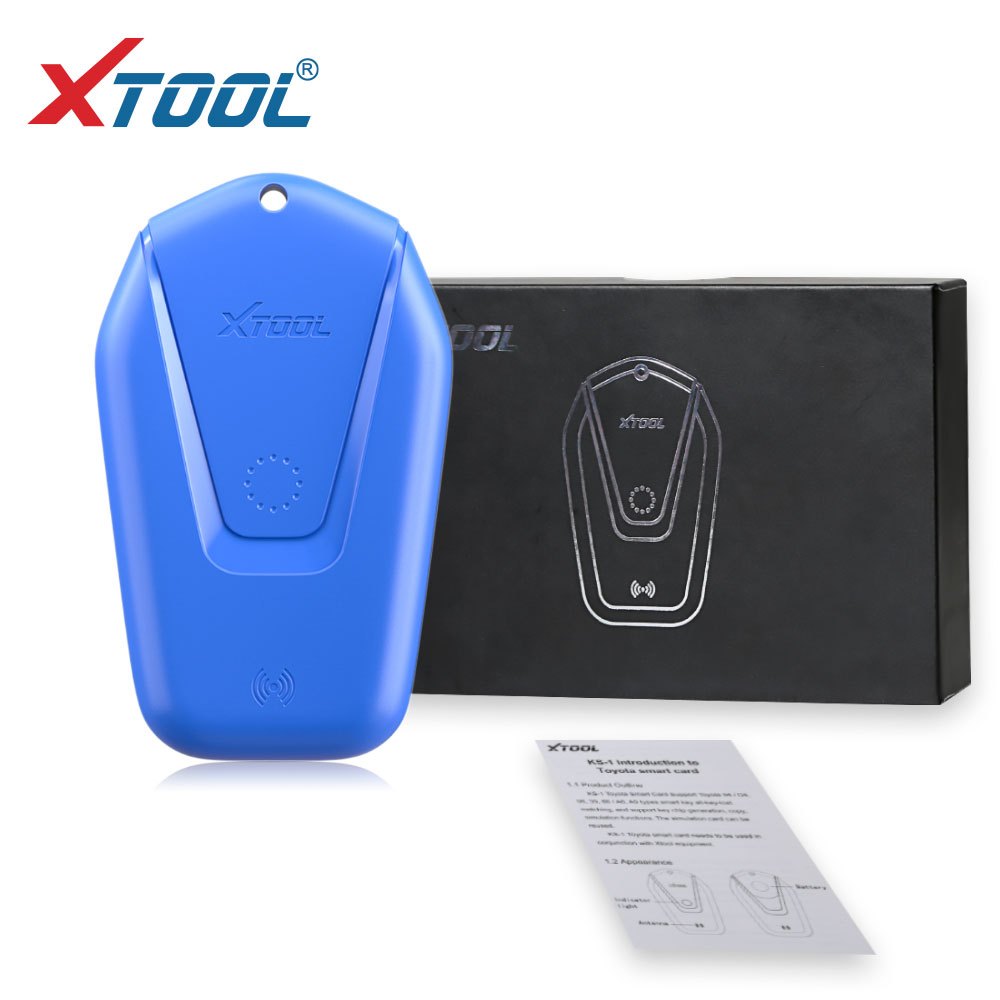

What you get

• 1pc x KS-1 Emulator
• Xtool KS-1 supports Toyota / Lexus all keys no need disassembly, five-in-one simulation card for generating keys.
• XTOOL KS-1 Smart Key Emulator for Toyota Lexus All Keys Lost Work with X100 PAD2/PAD3
• KS-1 The five-in-one simulation card can eliminate the need to disassemble the smart box and other modules.
• As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.

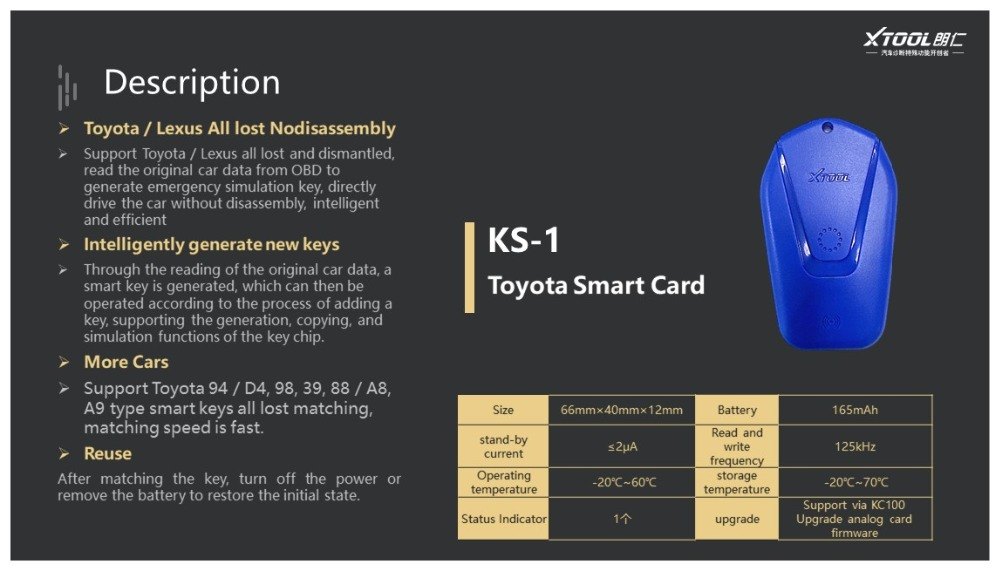

• 1.Toyota/Lexus All Lost No Need Disassembly
• Support Toyota/Lexus all key lost and dismantled,read the original car data from OBD to generate emergency simulation key,directly drive the car without disassemble, intelligent and efficient
• Intelligently Generate New Keys
• Through reading of the original car data, a smart key is generated, which can be operated according to the process of adding a key.
• Supporting generation,copying and simulation functions of the key chip
• Support Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all-key-lost speed is fast
• The simulation card can be reused. After matching the key, turn off the power or remove the battery to restore the initial state.
• Functions also includes generation, copy and simulation of key chip.
• X100 PAD2 PRO
• X100 PAD3
• XTOOL X100 PAD2 (Need Buy KC100)
• A80 (Need Buy KC100)
• PS90 (Need Buy KC100)
• H6 (Need Buy KC100)
• X100 PAD Elite (Need Buy KC100)
• Xtool KS-1 Key Type Support List: (Keep Updating)
• Key Type
• RAV4
• 2015
• 2013
• 2008
• 2010
• 2016
• After 2016,Toyota Crown is not supported
• 2011
• The car is being tested for the Indian Tango

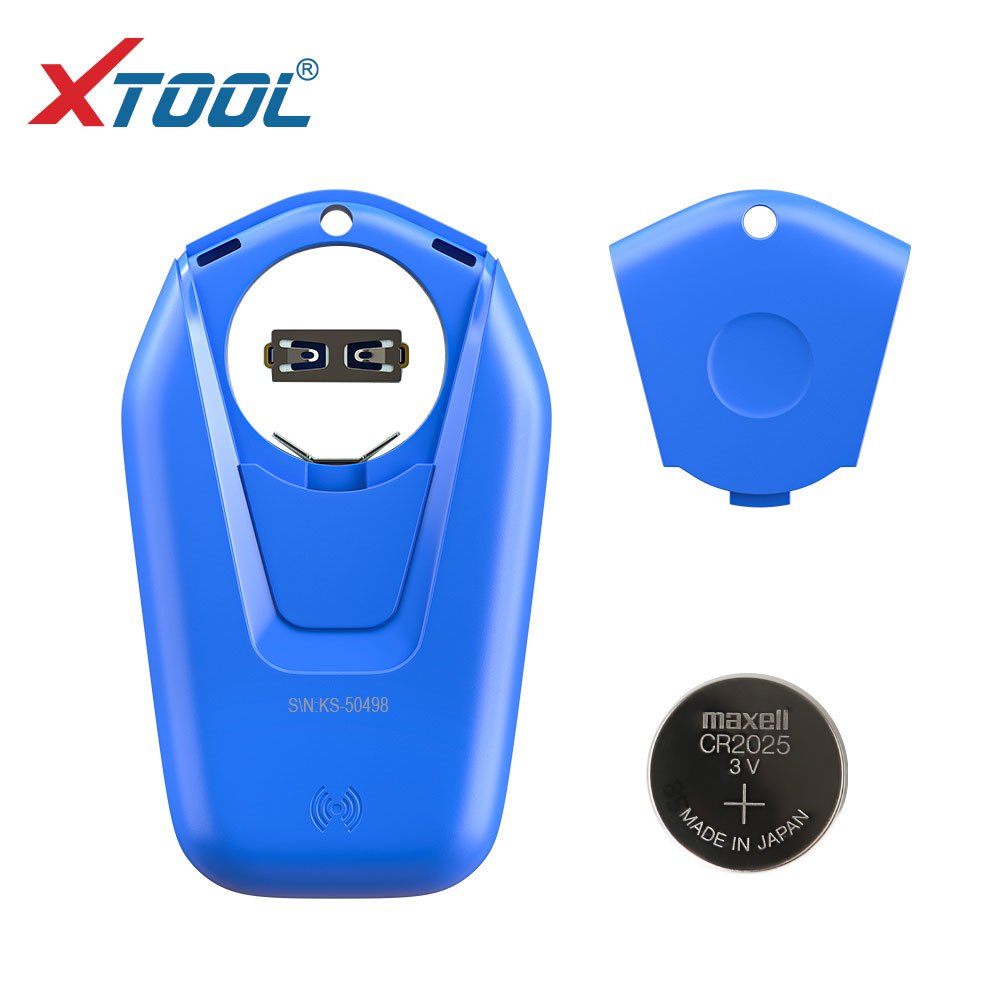

• Battery
• CR2025 3V 165mAh
• Standby current≤2μA
• Reading and writing frequency
• 125kHz

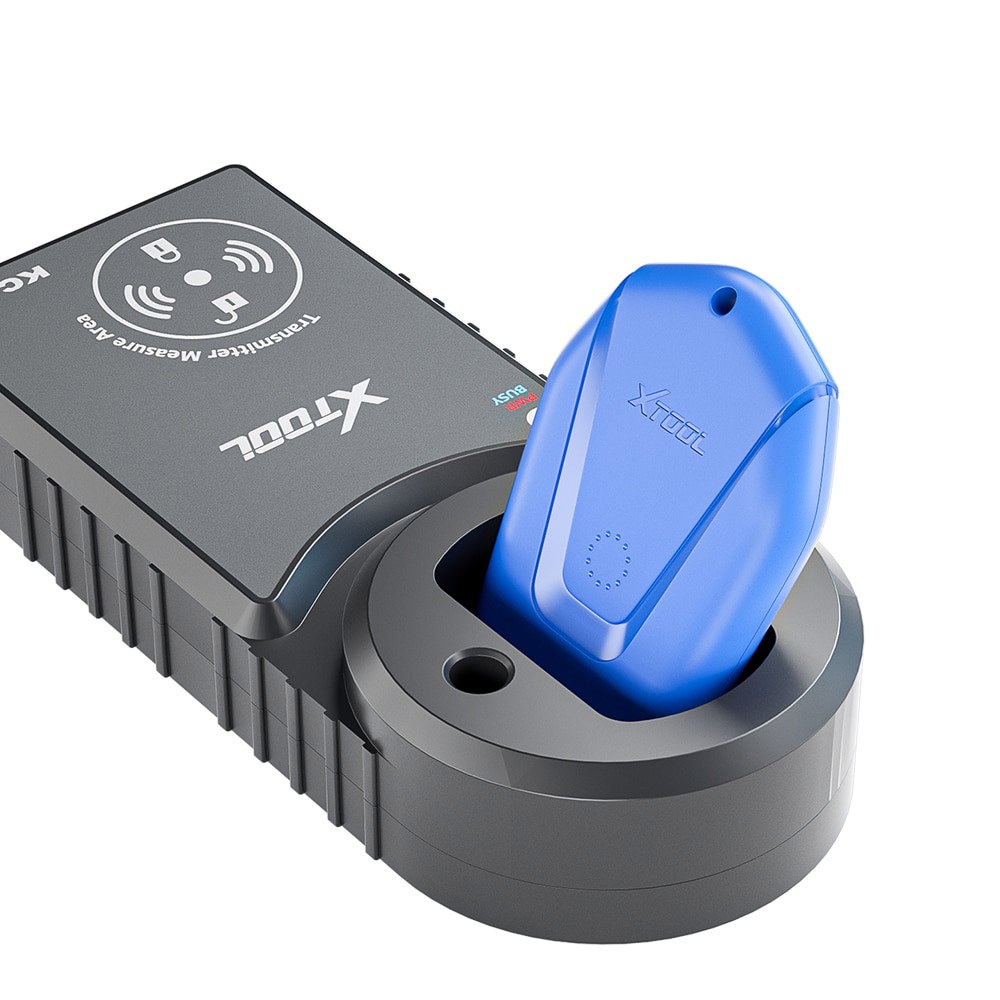

• The simulation card firmware can be updated with KC100
• 20℃~60℃
• 20℃~70℃

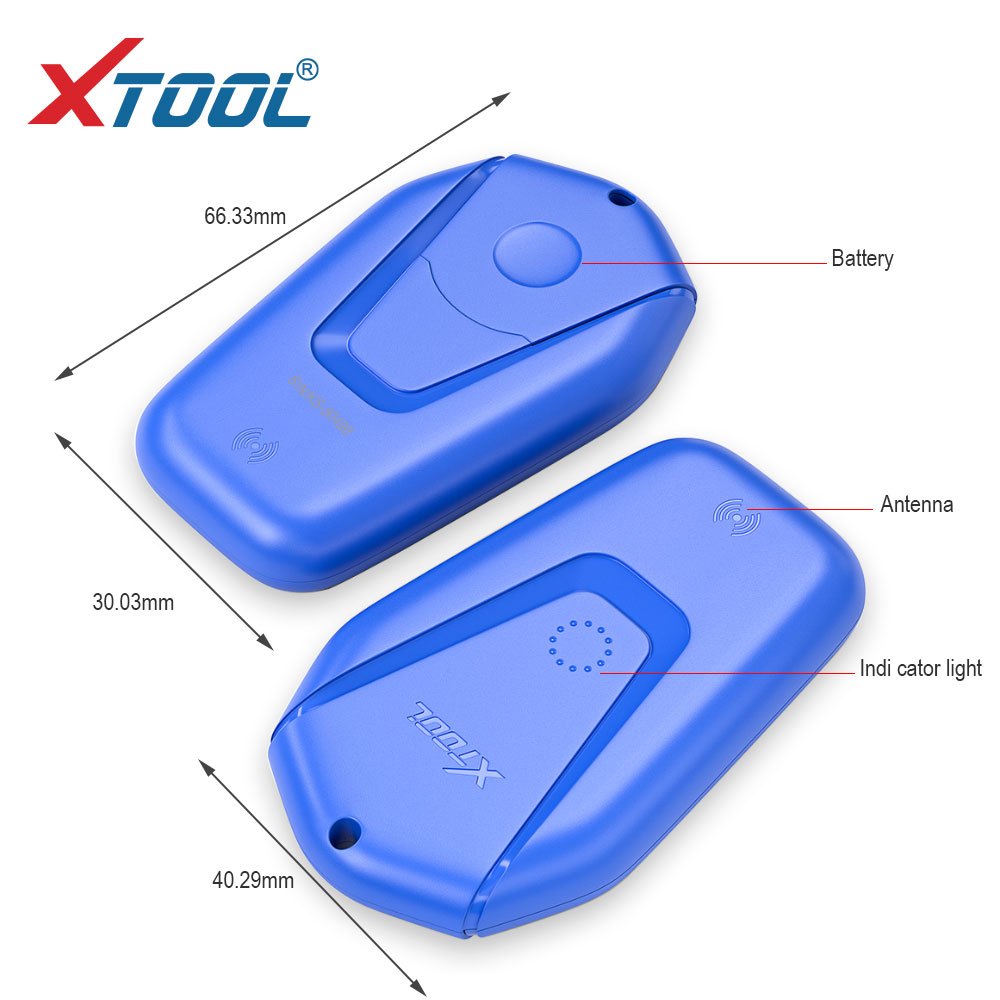

• Structure size
• 66mm*40mm*12mm

One emulator is supplied. Its light comes on for two seconds at power up and then goes out, and flickers during use, which is normal behaviour rather than a fault.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
