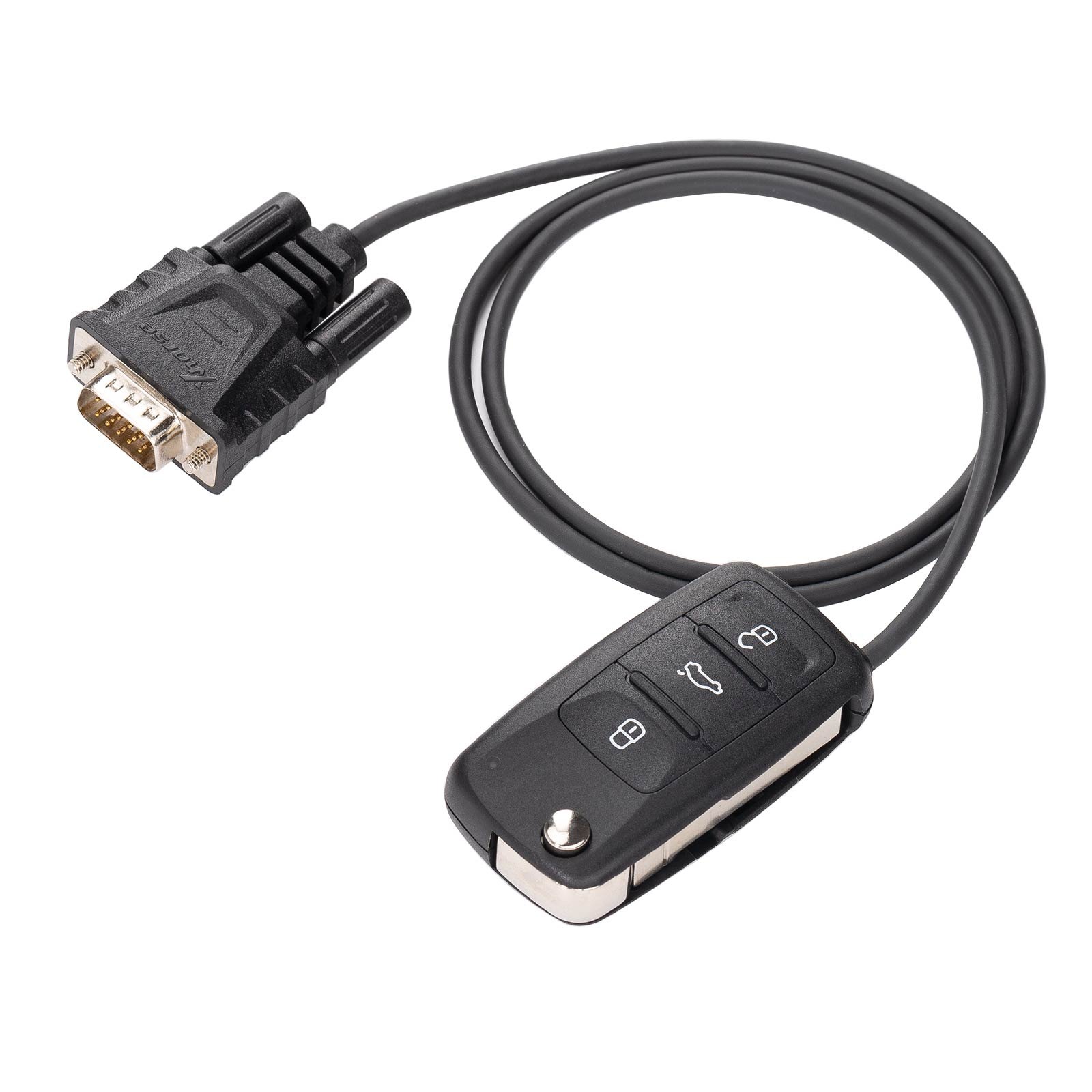

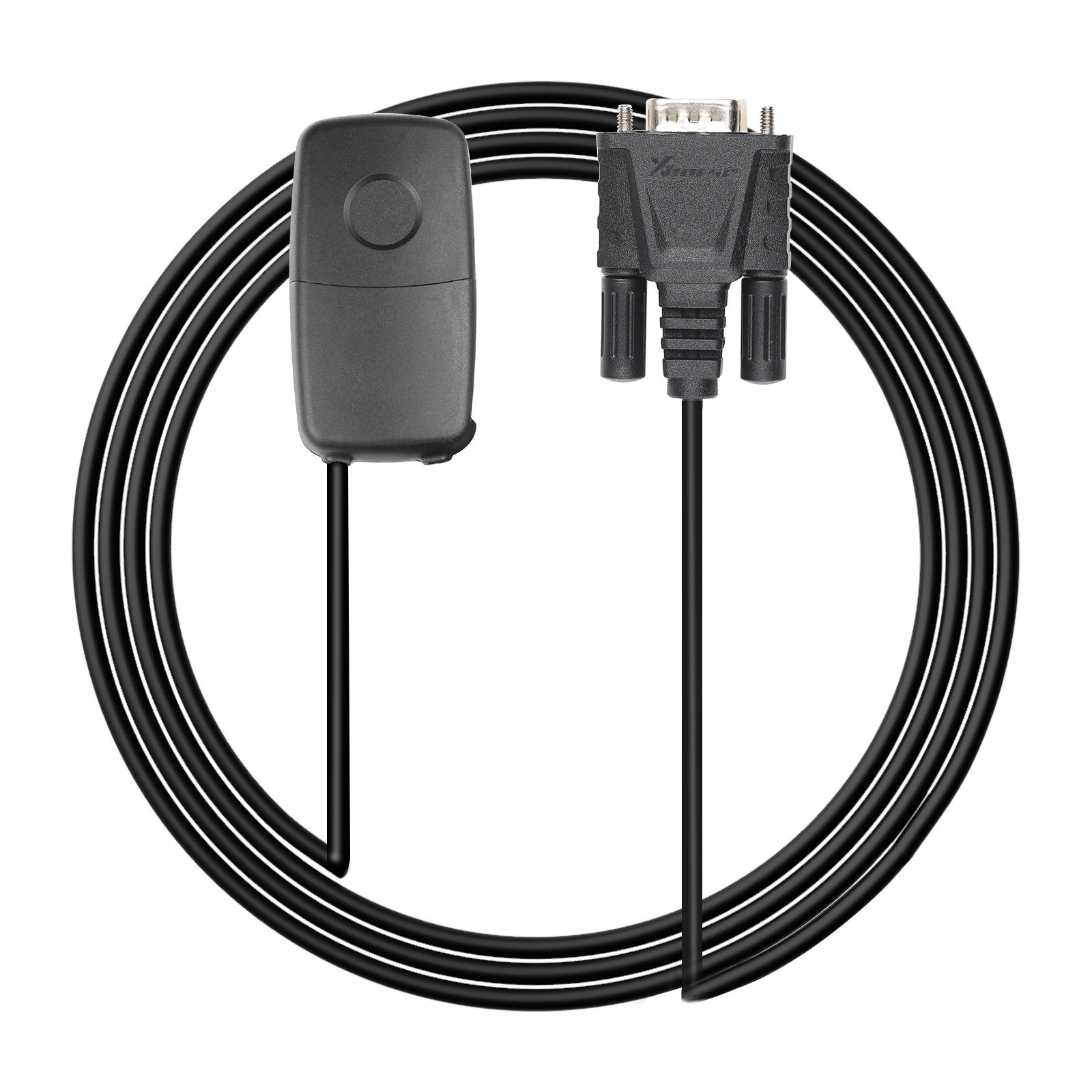

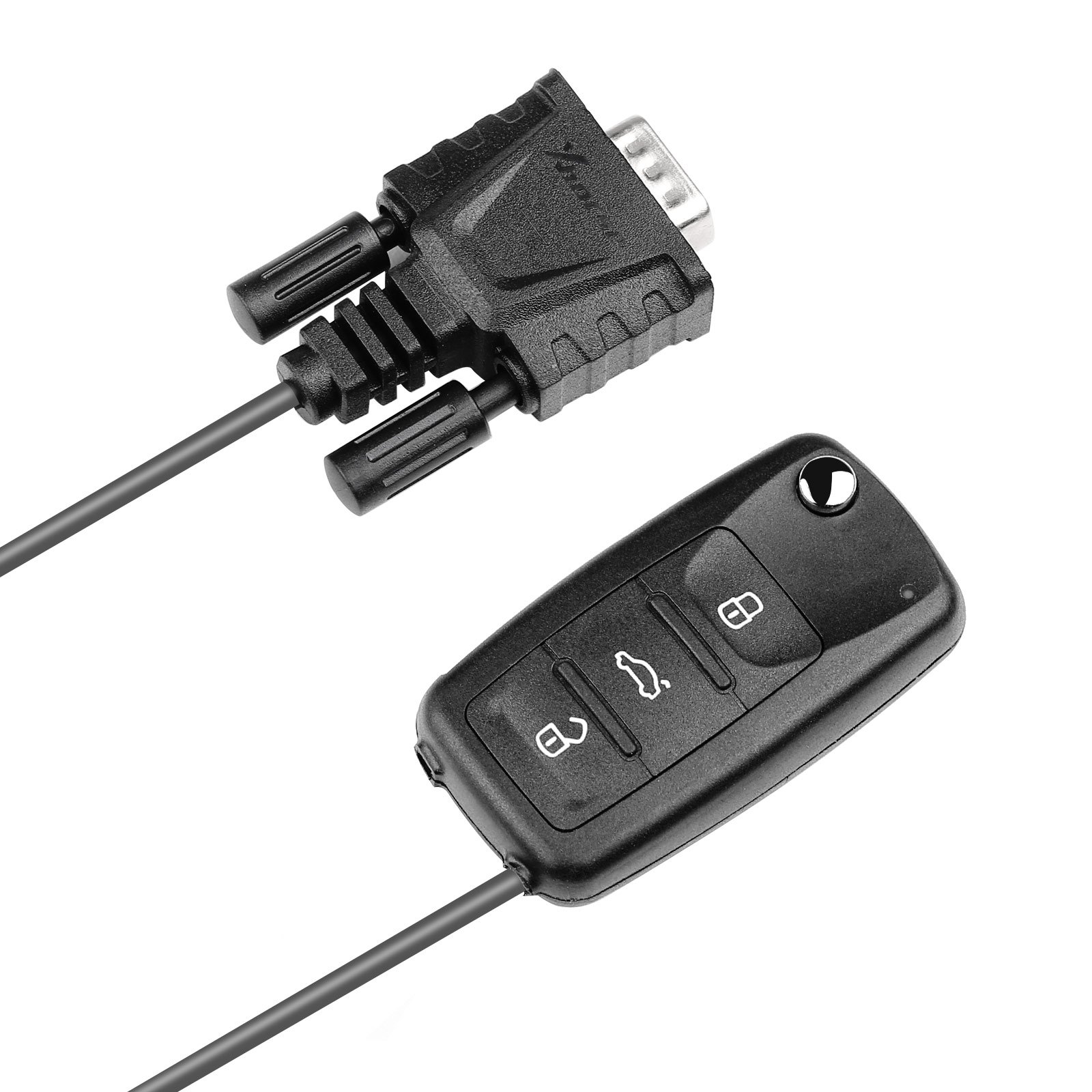

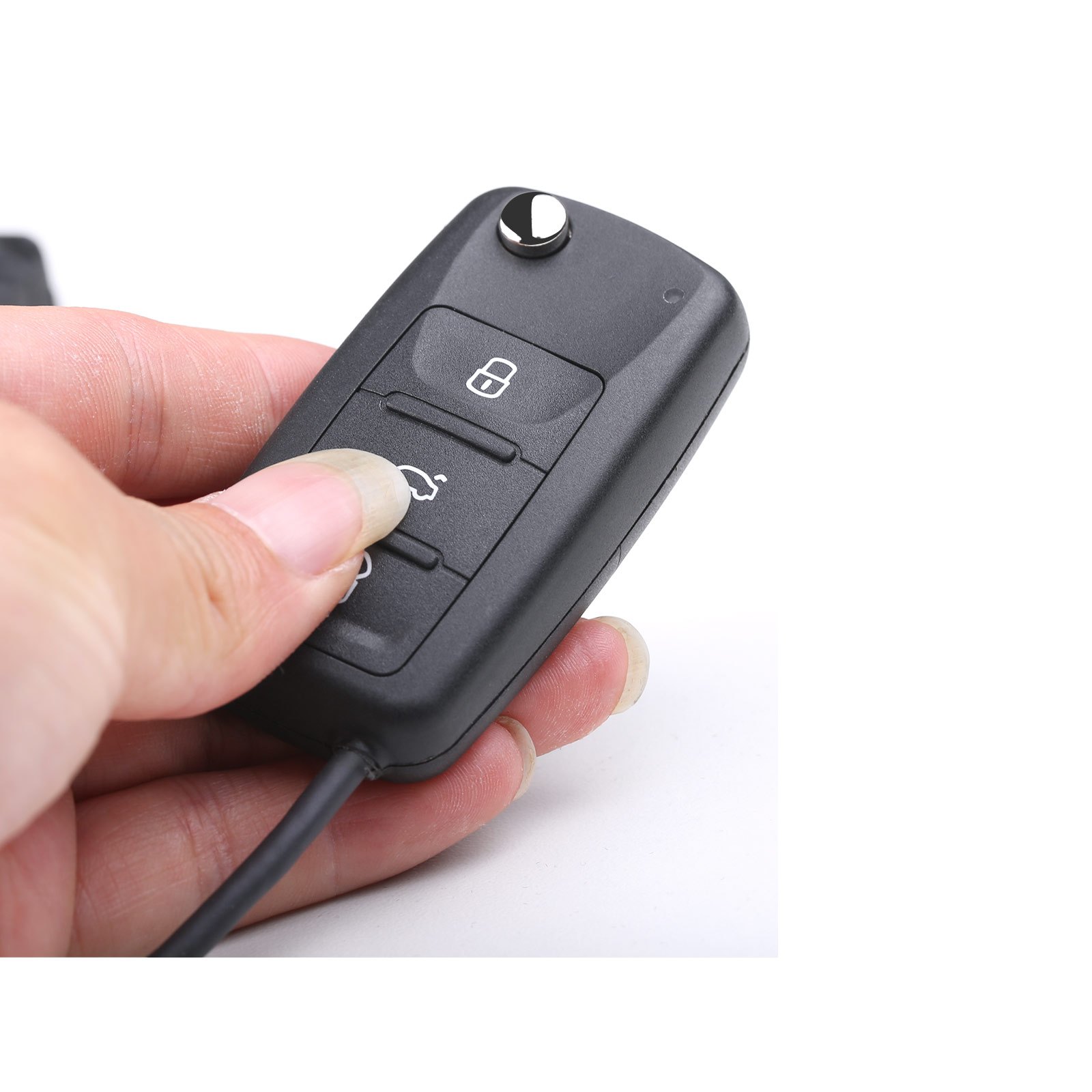

Xhorse VVDI2 48 Data Collector VW Key Simulator (No Need Register Condor)

An Xhorse VVDI2 48 data collector and VW key simulator, which does not need a registered Condor to work. Data collection is the slow half of an ID48 job, and a simulator is what keeps it off the car.

Specifications

• Attention: Every success calculate will cost 100 remote points.

What you get

• 1pc x Xhorse VVDI2 48 Data Collector
• Xhorse VVDI2 48 Data Collector can copy 48 transponder of 4th Immobilizer system.
• The supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
• Xhorse VVDI2 48 Data Collector VW Key Simulator (No Need Register Condor)
• VVDI2 48 transponder copy adapter working together with VVDI can copy 48 transponder of 4th Immobilizer system. The supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
• To Copy 48 Chip, Will Need the Following:
• With the 1000 member points on VVDI2, you could use to exchange 48 chip copy function
• VVDI2 has 4th Immobilizer system function
• VVDI2 48 chip data collector
• New 48 Chip
• 100 member points for one-time 48 Chip copy
• How to use VVDI2 Copy 48 96bit Transponder?

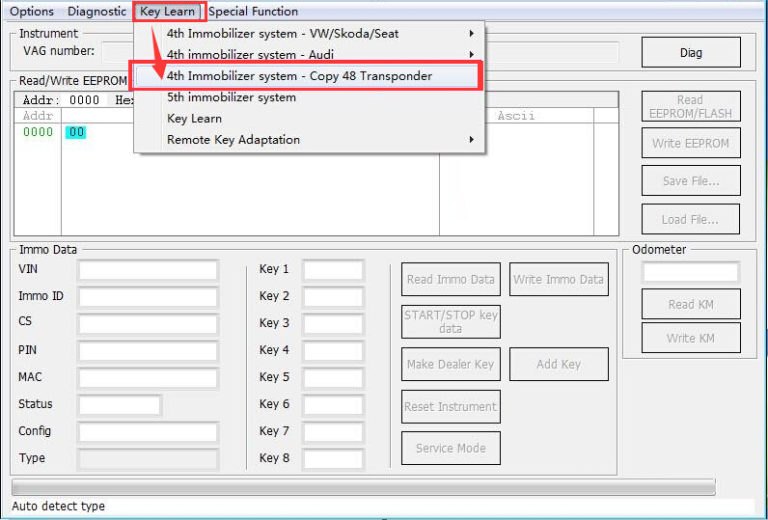

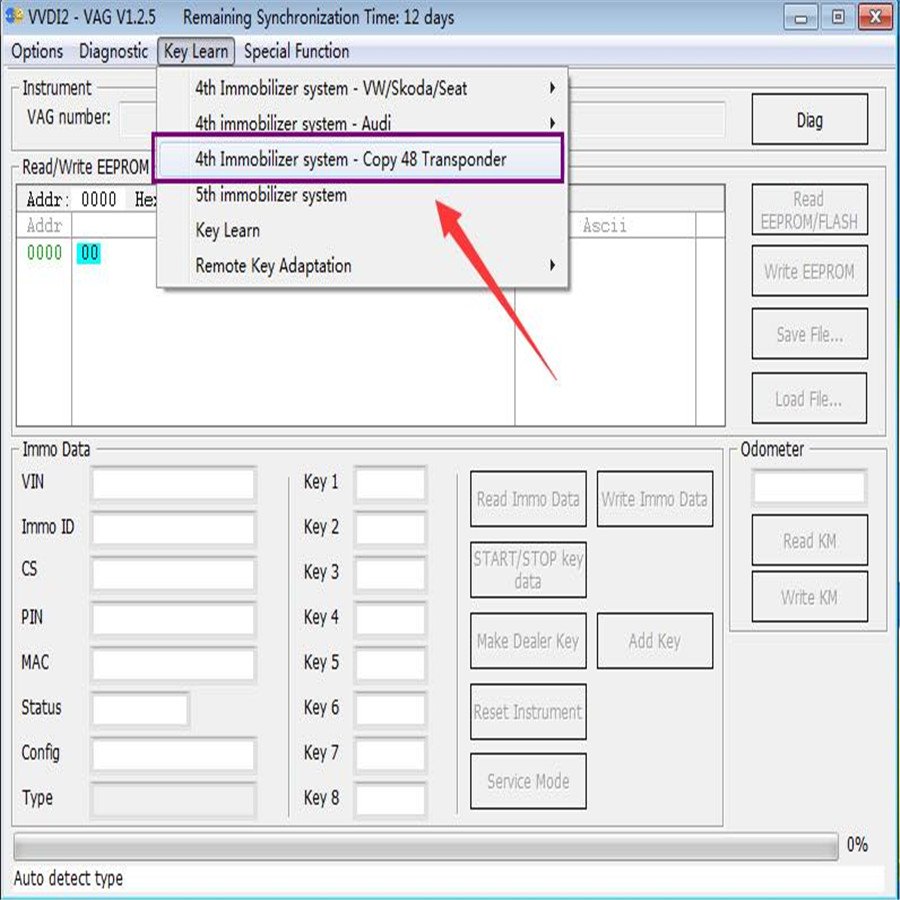

• In V5.5.0 VVDI2 Newest software,you can click ID48 Copy software in Quick start tool software.
• Prepare the working key and 48 collector.
• Copy 48 tranponder(96bit), support all cars with ID48 transponder, support latest VAG cars with 48 transponder before 2018.

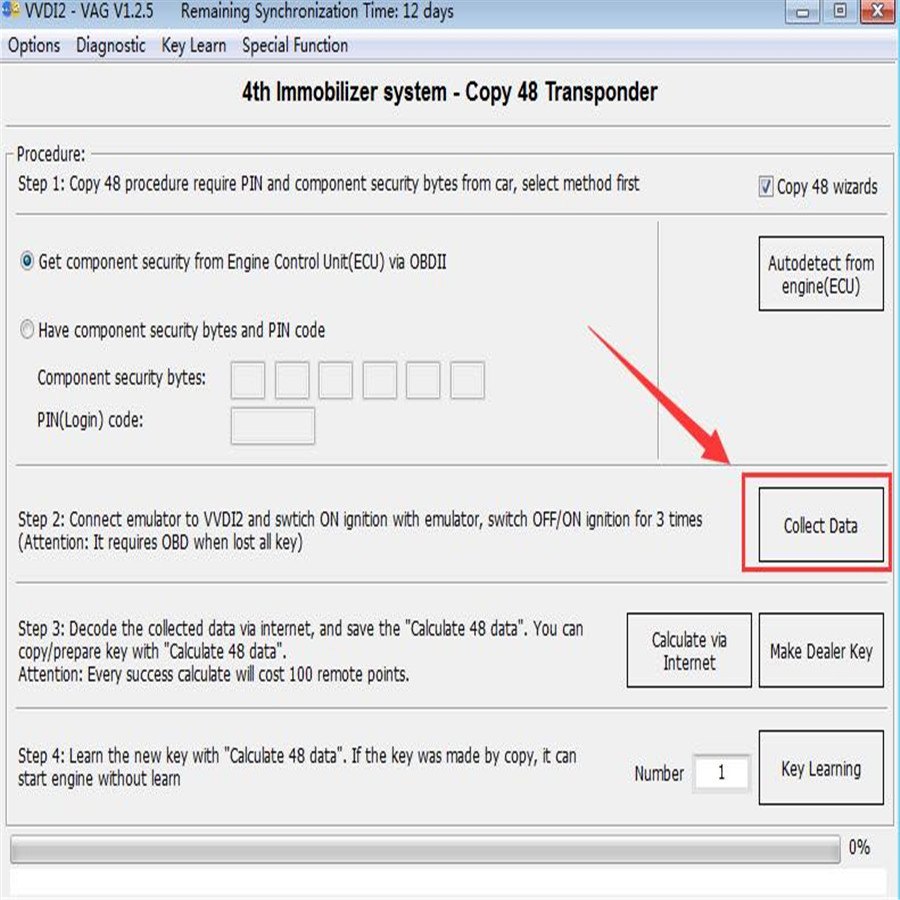

• 1)Connect VVDI-collector to VVDI2.
• 2)Put VVDI-collector neat to ignition switch or ignition coil.
• 3)Insert working key to switch ON ACC,take off working key from ignition switch, repeat this until finished.
• 4)If car with keyless go function,remove the battery and put working key nearby igniton coil,then remove key and switch OFF.
• 5)After collect data,input working key to vvdi2 coil to verify.
• Query result from server, after success you can save the "Calculate 48 data".You can copy/prepare key with "Calculate 48 data".
• Use "Calculate 48 data" to copy original working key.
• In the process of coping 48 chip, it requires PIN code and component security bytes from car, you can select any of following method:
• VVDI2 can read out the PIN code from Engine Control Unit (ECU) via OBDII and CS
• It can copy 48 chip, add 48 chip, support 48 all key lost and support smart key.
• For MAGOTAN / CC, it can only copy 48 chip with original key, not support 46 chip, smart key and all key lost.

Xhorse note every successful calculation costs 100 remote points, so budget points as well as time.
