Xhorse VVDI MLB Tool XDMLB0 Key Programmer Plus XHORSE XDMQBAGL MQB MQB48 Adapter Add keys to MQB System No Need to Disassemble the Instrument

An Xhorse VVDI MLB Tool XDMLB0 key programmer bundled with the XDMQBAGL MQB and MQB48 adapter, for adding keys to the MQB system with no need to disassemble the instrument cluster. Leaving the dash intact turns a strip down into a plug in job.

Specifications

• Bundle Package: Xhorse VVDI MLB TOOL Key Programmer + XHORSE XDMQBAGL MQB Adapter
• Warm notice: It is strongly recommended that customers collect data on a computer instead of using a tablet.

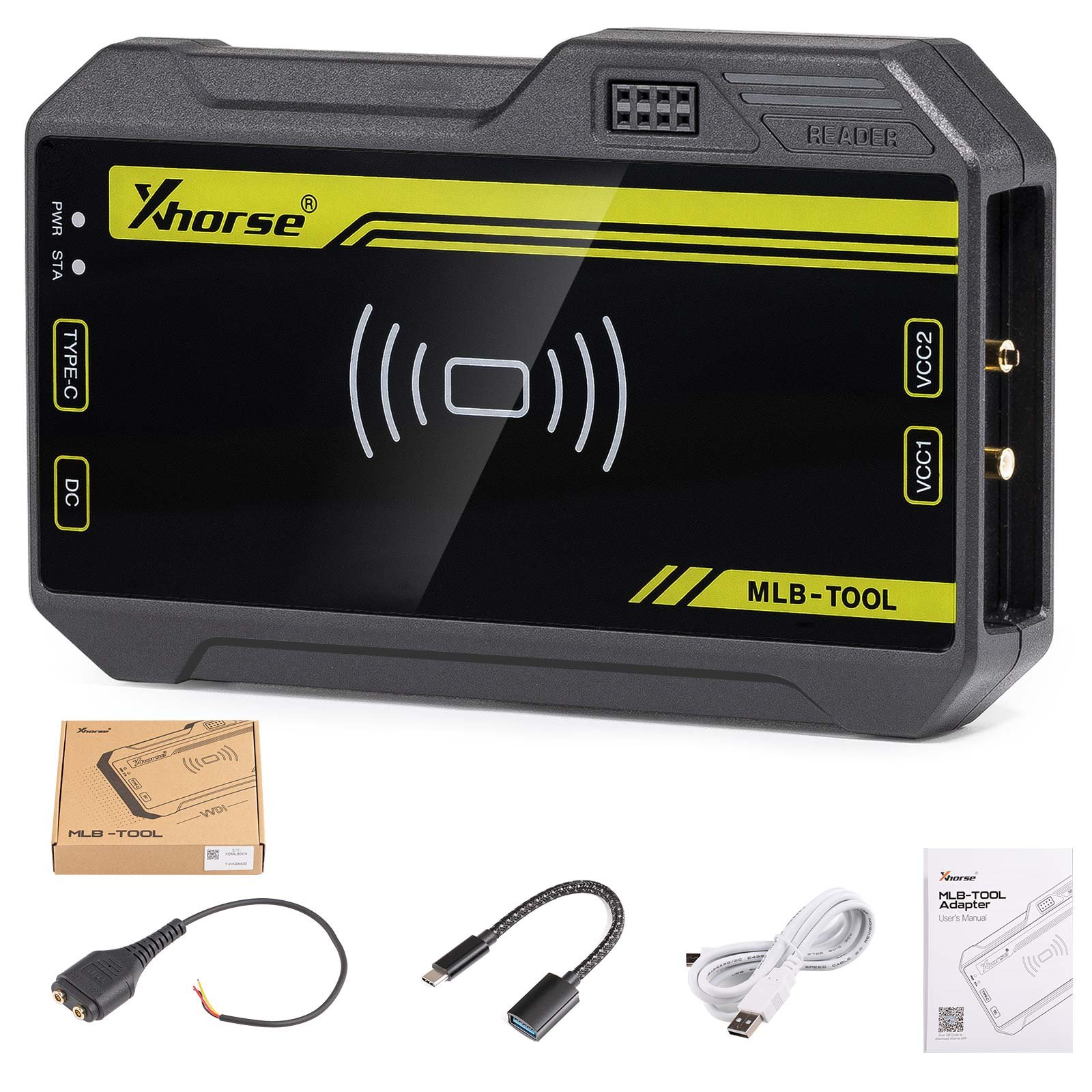

What you get

• 1pc x MLB Tool
• 1pc x MLB Cable
• 1pc x USB Type C Cable
• 1pc x OTG Adapter
• 1pc x User Manual
• 1pc x XHORSE XDMQBAGL MQB Adapter
• Xhorse VVDI MLB Tool with XHORSE XDMQBAGL MQB Adapter, No Need to Disassemble the Instrument Effortlessly Add keys to MQB48 System.
• Xhorse VVDI MLB Tool XDMLB0 Key Programmer Plus XHORSE XDMQBAGL MQB Adapter

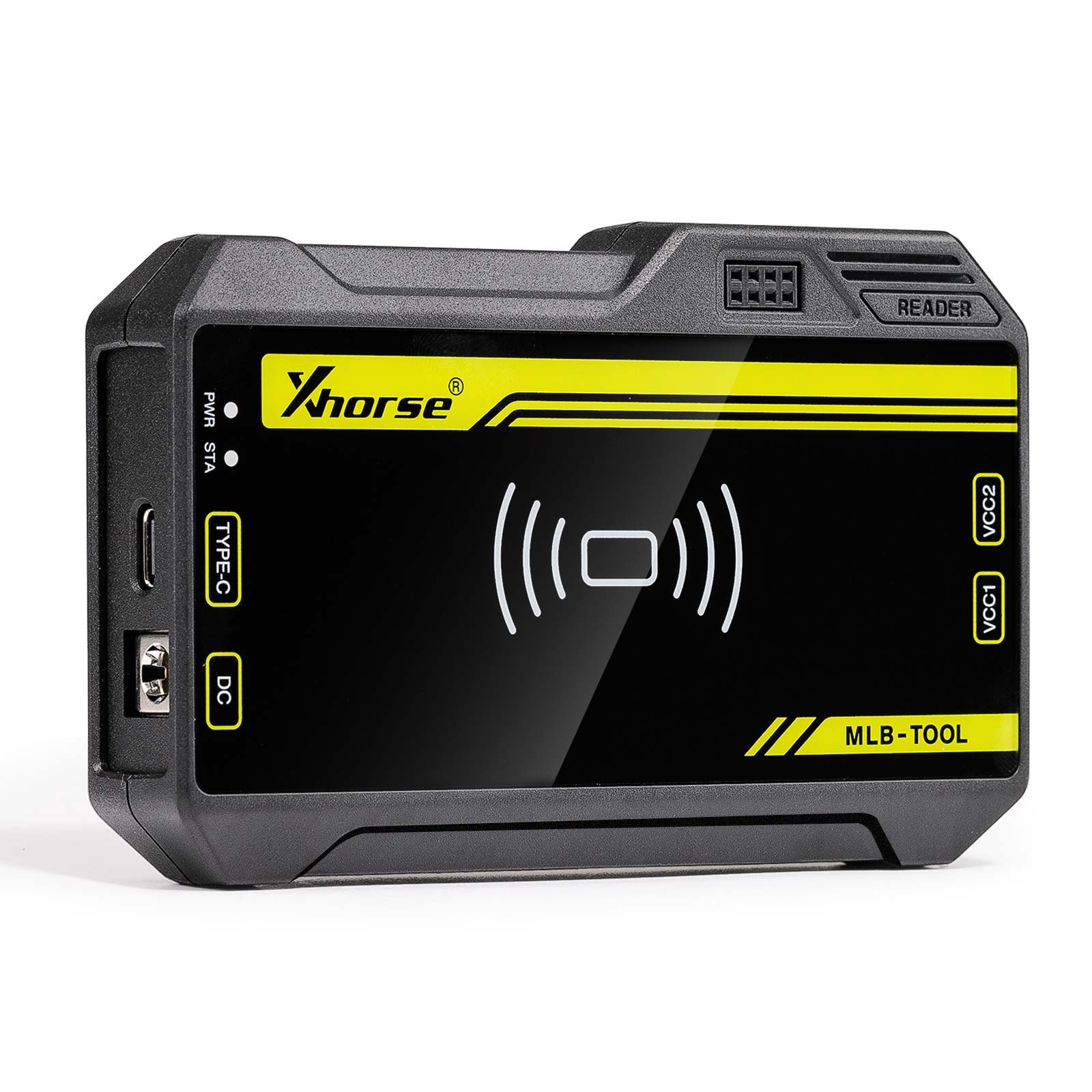

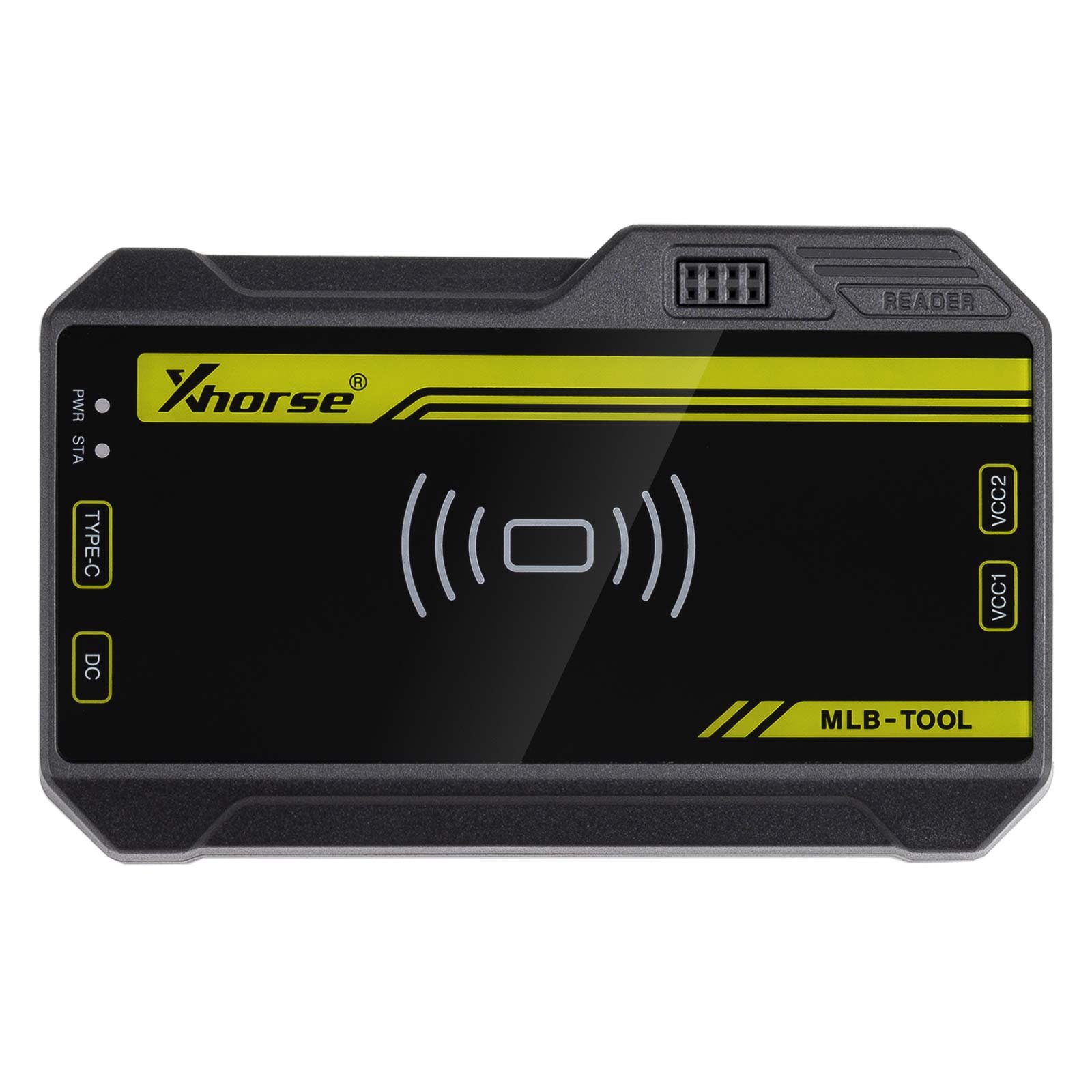

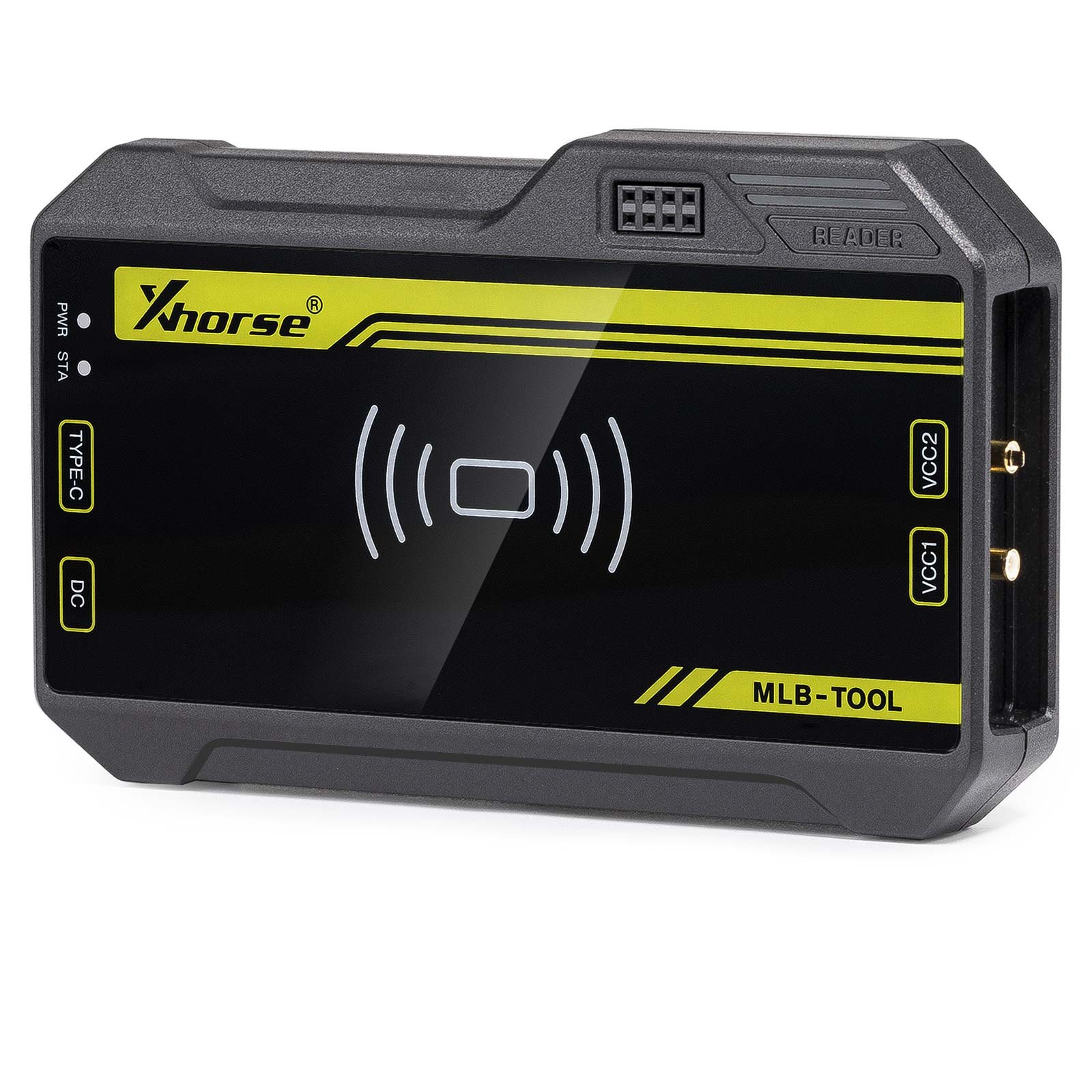

• Xhorse VVDI MLB Tool XDMLB0 Key Programmer Product Features:
• No points required when using VVDI MLB specialized key
• Work with VVDI2 / Key Tool Plus Pad for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
• VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated
• 2.Excel in key Adding for MLB Models
• Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
• No Need to Remove the Chip
• Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
• Wireless Key Generation for Ultimate Convenience
• Generate original dealership keys and Xhorse specialized keys wirelessly.
• Built-in Immo detection module supports wireless key recognition
• Compatibility with Original Keys and Xhorse Specialized Keys
• Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
• Rewrite Uninitialized Key IDs
• Support rewriting uninitialized original key IDs.
• No Need for On-Vehicle Data Collection
• Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.

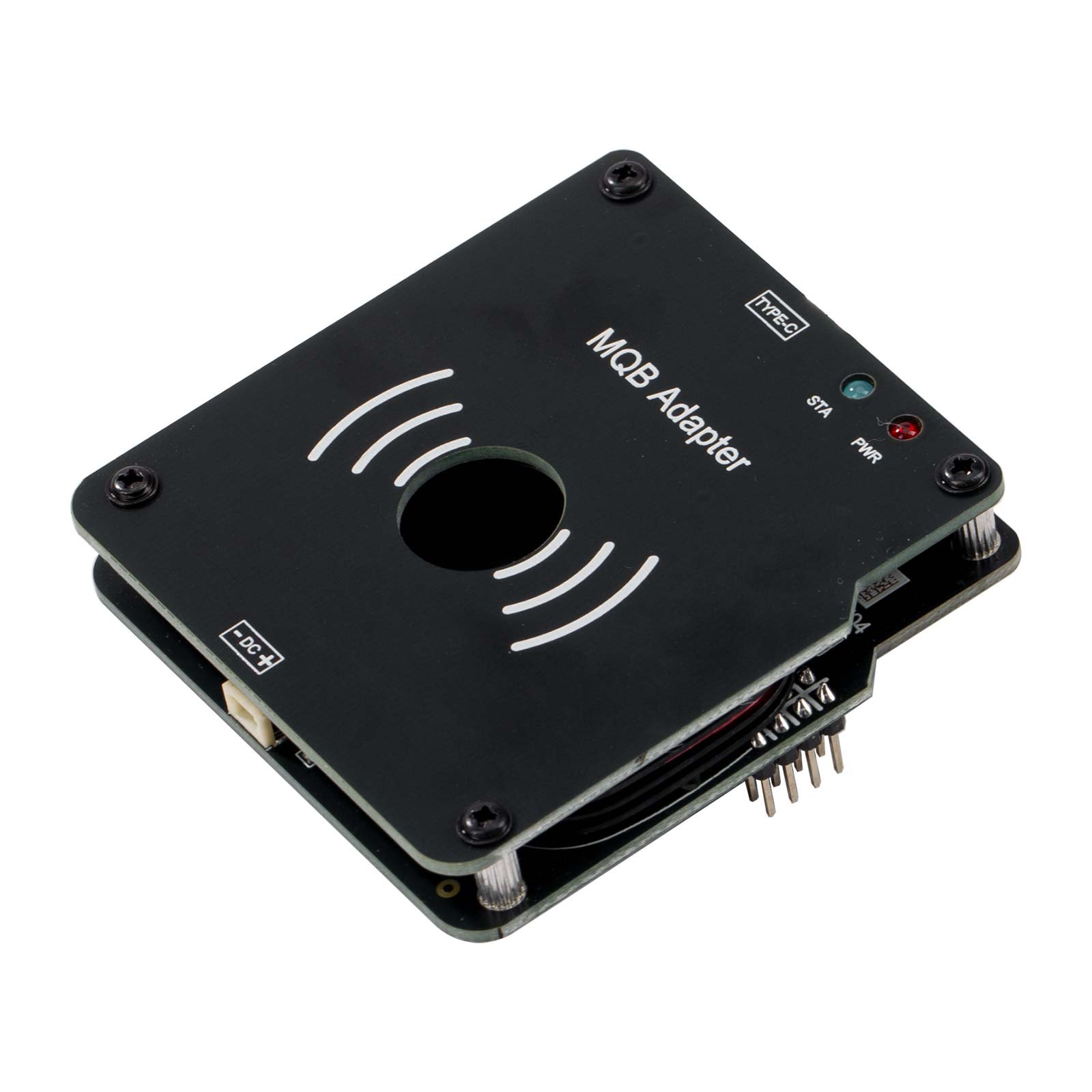

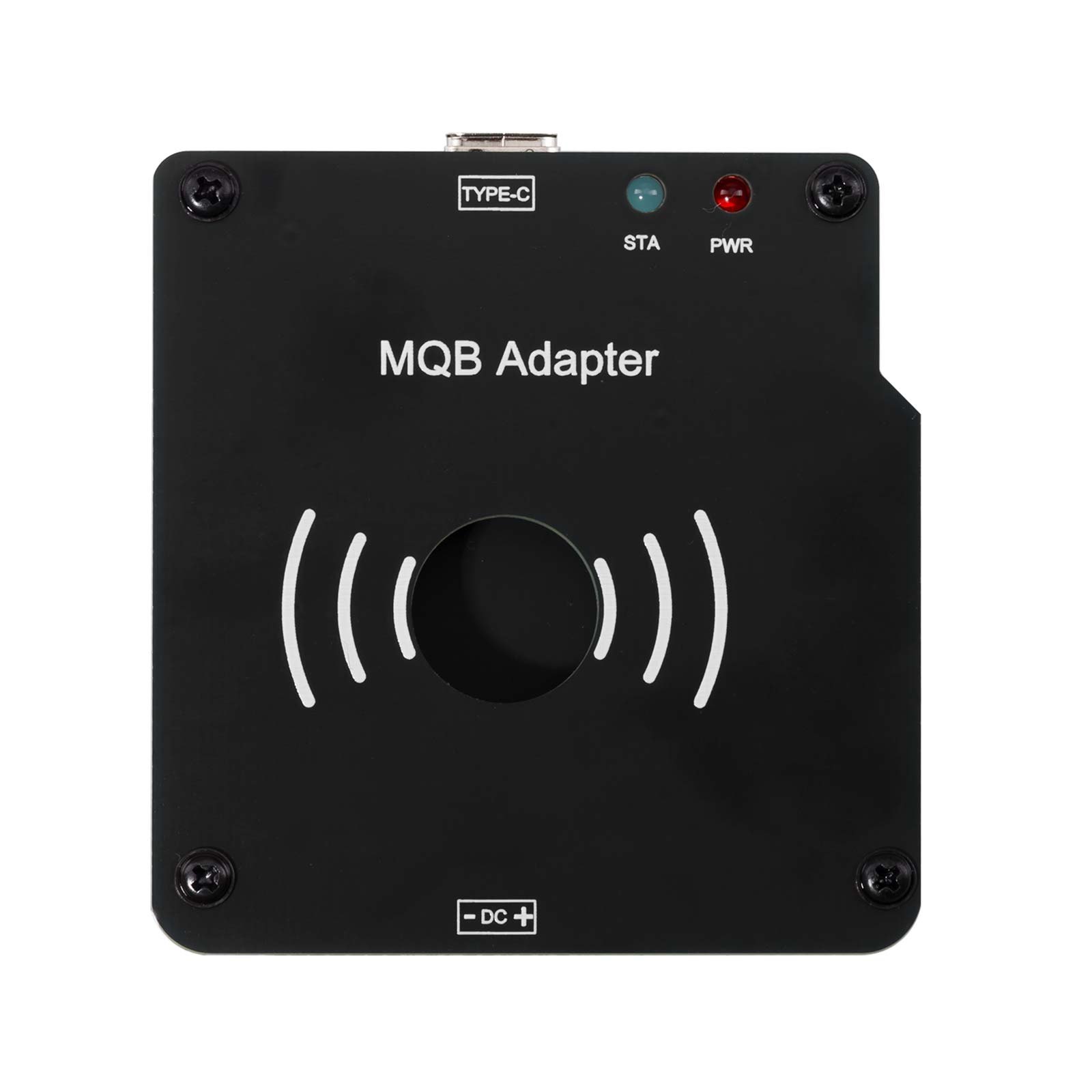

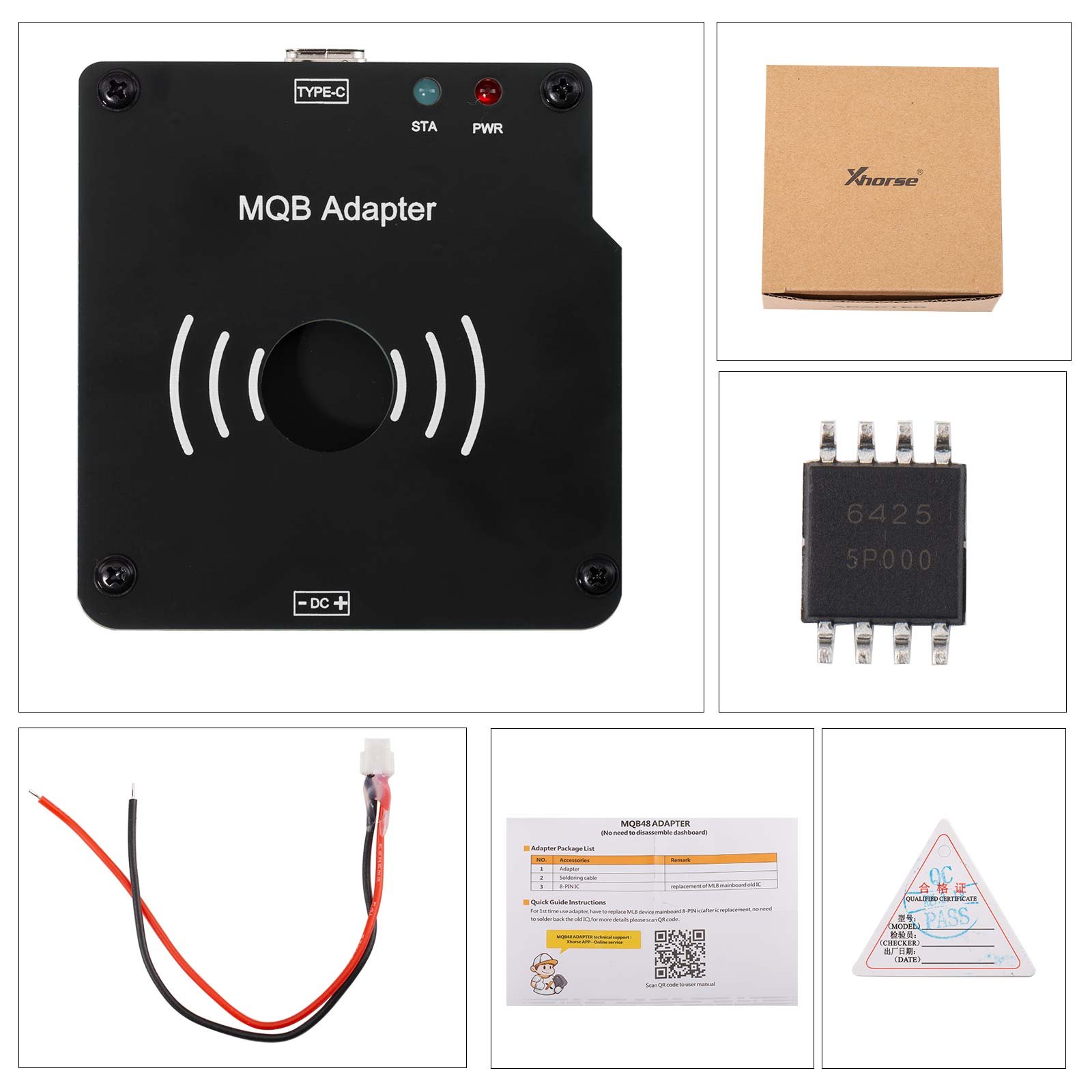

• XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.
• Supports most MQB48 keys
• Works with MLB equipment for seamless key addition
• VVDI2 device
• Use MLB device + MQB adapter to read IMMO data from MQB48 key.
• Use VVDI2 to load the IMMO data read in the first step: generate key, learn key (VVDI2 needs to enable MQB function, does not need MQB48 NEC35XX locking function)
• KEY TOOL PLUS / KEY TOOL MIDI device
• The tablet device is directly connected to MLB device + MQB adapter, and IMMO data can be read from MQB48 key.
• The tablet device loads the IMMO data read in the first step: generate key, learn key (the tablet device needs to have fourth-generation authorization, does not need MQB48 NEC35XX locking function)
• Remove one capacitor (near the IC position) on the original key, as shown in the diagram.

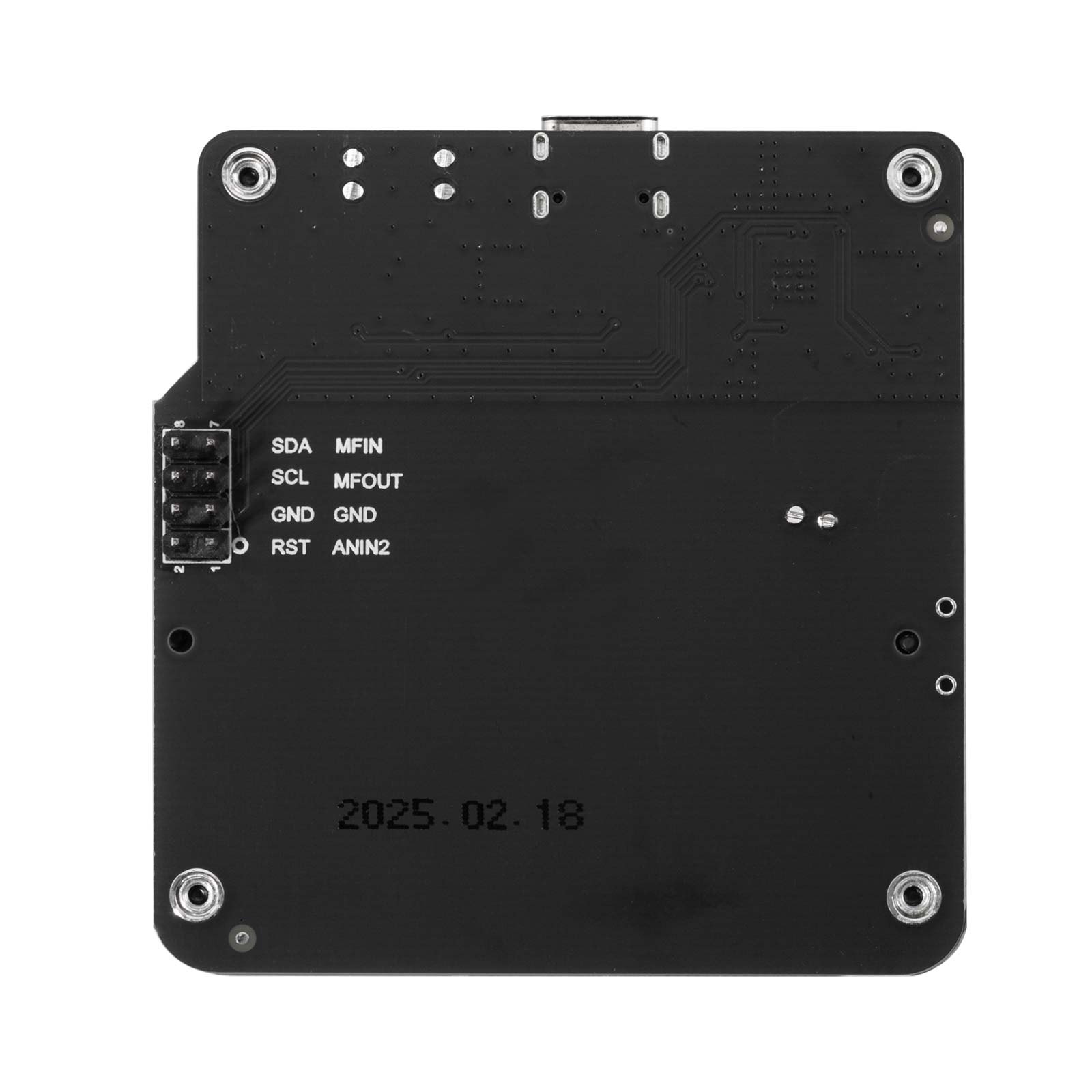

• Solder the socket cables to the original key according to the specified colors in the wiring diagram.

Xhorse strongly recommend collecting data on a known good car first before working on a live job.
